This is the operator manual for the Kubota RC40-G, RC44-G, and RC48-G finish mowers, the mower decks that attach to a Kubota tractor using the front links, rear lift link, and PTO shaft. It runs 11 pages and walks an owner through everything from first assembly to routine maintenance.The manual names each part of the mower, shows how to set it up, mount it to the tractor, adjust the parallel linkage and lift rods, and operate it for a clean cut. Cutting height adjusts from 36mm to 90mm (1.4 in. to 3.5 in.), with about 54mm (2.1 in.) recommended.The maintenance section lays out lubrication and inspection intervals, blade replacement, and a tightening torque chart. With it you can service the gear box, replace worn blades, keep the belt tensioned, and grease the driveline so the deck keeps cutting level.
What's Inside This Kubota RC40-G, RC44-G, RC48-G Operator Manual
| System | Pages | Key Topics |
|---|---|---|

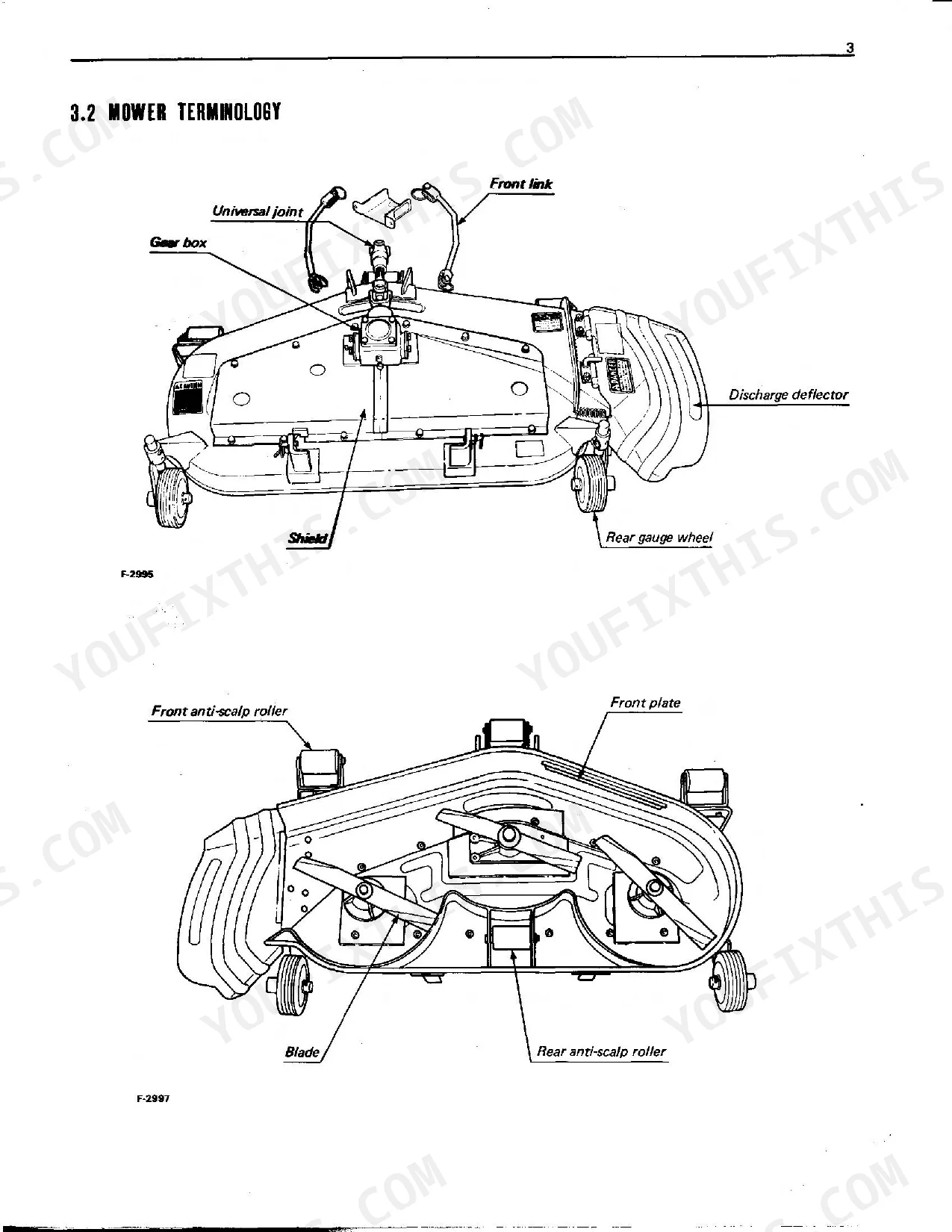

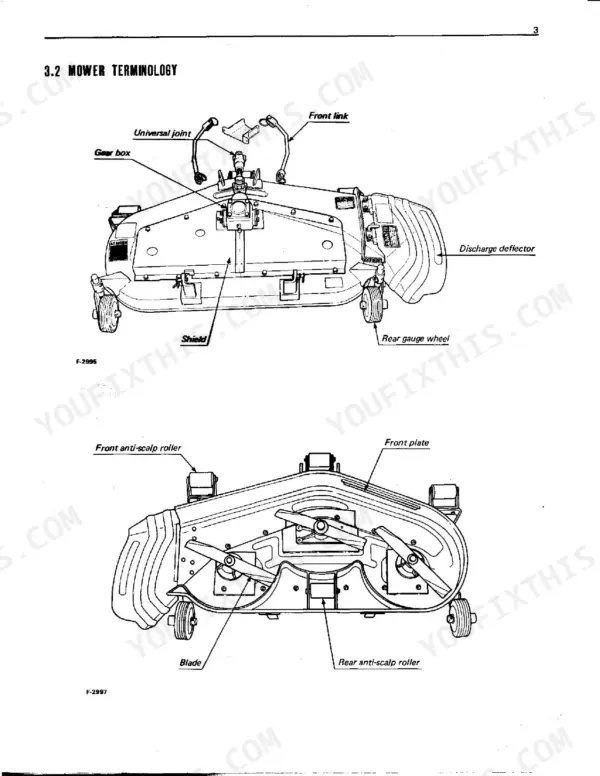

| Mower Terminology | 1 | Gear Box, Universal Joint, Front Link, Shield, Rear Gauge Wheel, Discharge Deflector, Front Anti-Scalp Roller, Front Plate |
| Setting Up | 2 | Pre-Assembly, Setting Up the Mower (Attach: Rear Gauge Wheels, Front Anti-Scalp Roller, Front Anti-Scalp Rollers), Cutting Height |

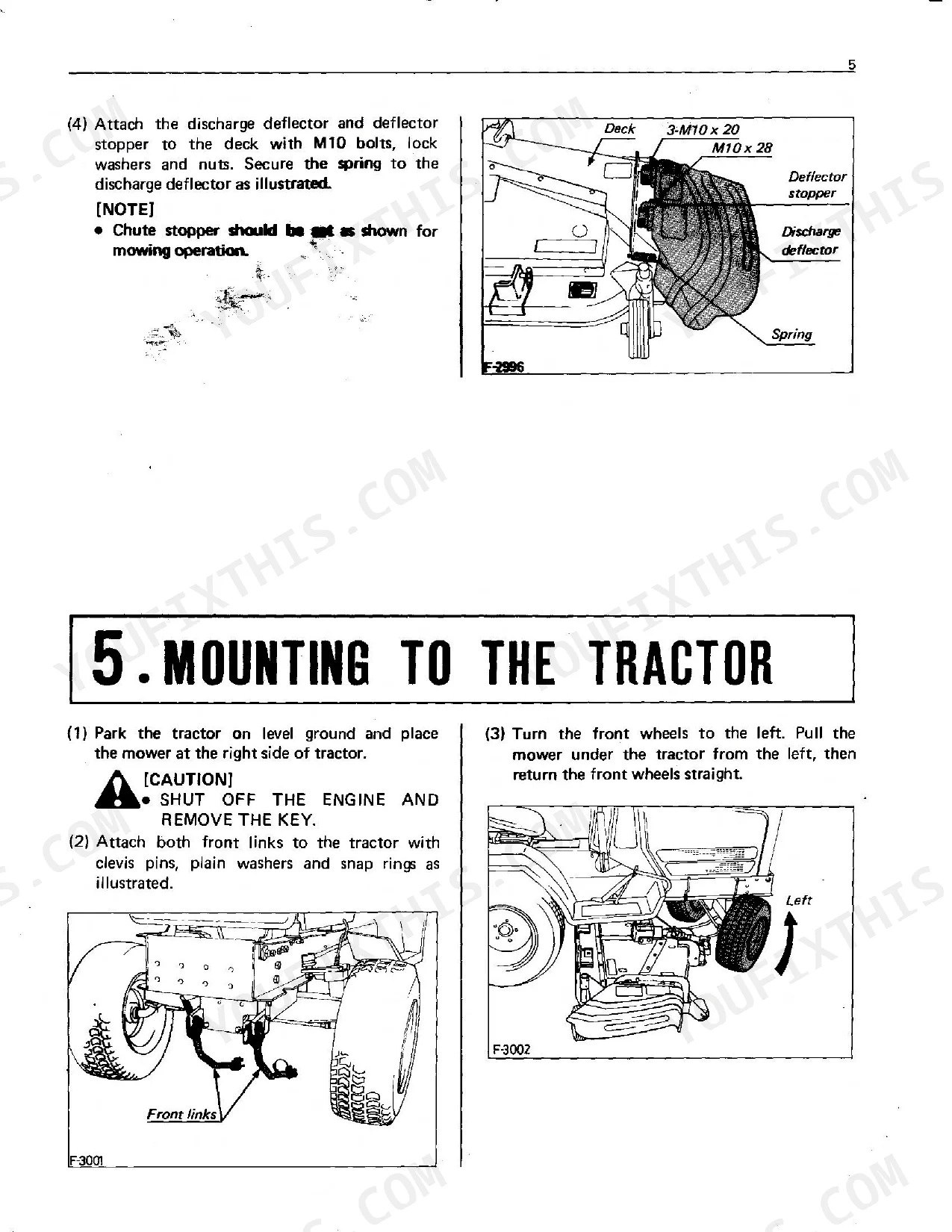

| Mounting to the Tractor | 3-4 | Park Tractor and Place Mower, Attach Front Links, Pull Mower Under Tractor, Slide Universal Joint Onto PTO Shaft, Attach Joint Shield, Attach Front Links to Mower Deck |
| Mower Adjustments | 5 | Adjusting the Parallel Linkage, Adjust Lift Rods, Reattach Rear Gauge Wheels |

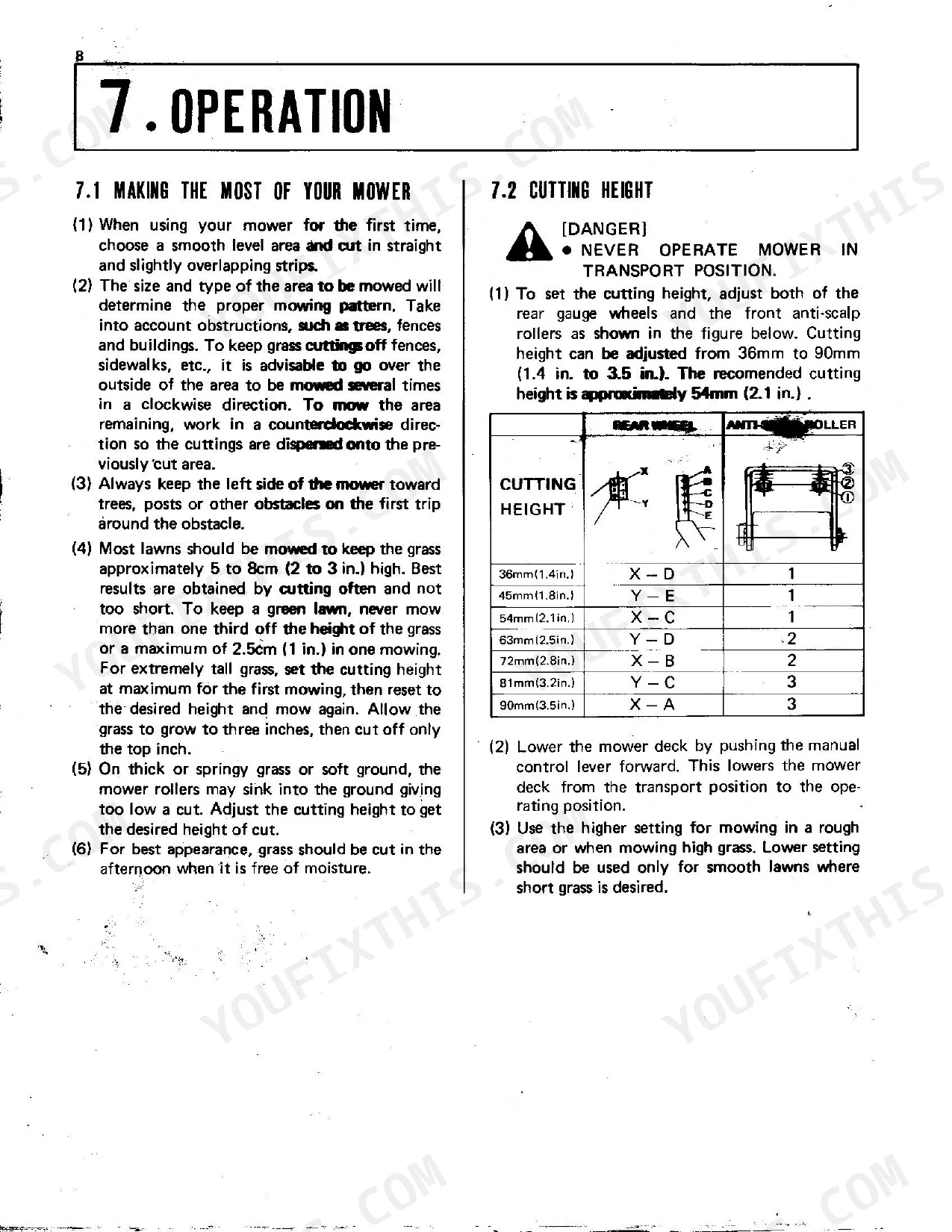

| Operation | 6-7 | Making the Most of Your Mower, Cutting Height, Operating Mower |

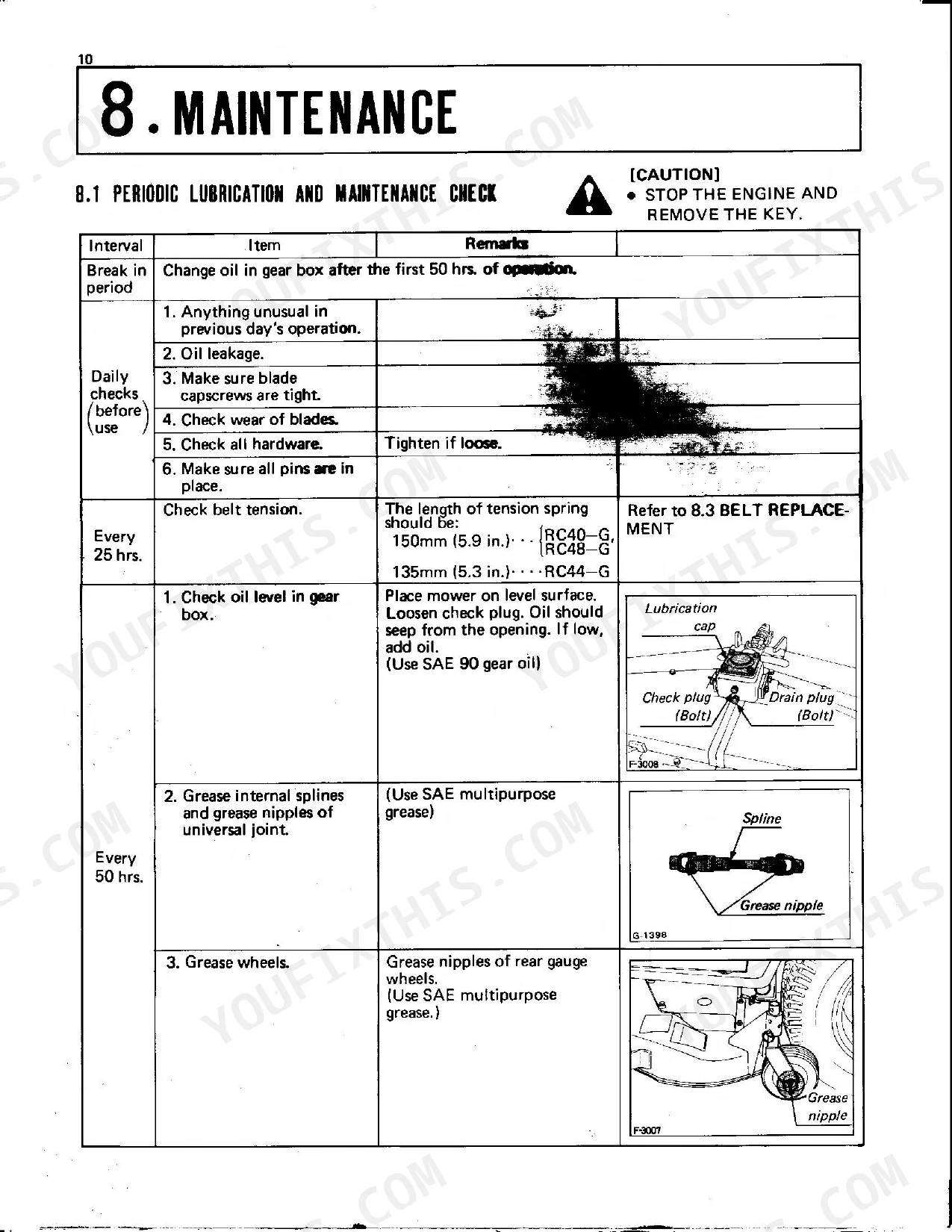

| Maintenance | 8-11 | Periodic Lubrication and Maintenance Check, Blade Replacement, Tightening Torque Chart |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Gear box oil change interval (initial) | first 50 hrs. | p. 8 |
| Gear box oil change interval (subsequent) | every 150 hrs. | p. 9 |
| Mower cutting height range | 36mm to 90mm (1.4 in. to 3.5 in.) | p. 6 |
| Recommended mower cutting height | 54mm (2.1 in.) | p. 6 |
| Gear box initial oil change interval | 50 hrs. | p. 8 |
| Gear oil refill capacity | 0.30 ℓ (0.32 U.S. qt.) | p. 9 |
| Center blade bolt torque | 10 TO 12 kgf·m (72 TO 87 ft-lbs.) | p. 10 |
| M10 bolt torque (No mark) | 28.9~33.3 ft-lbs | p. 11 |
| RC40-G, RC48-G | ||
| Front anti-scalp roller bolt size | M10 x 22 bolts | p. 2 |
| Tension spring length | 150mm (5.9 in.) | p. 8 |
| RC44-G | ||
| Front anti-scalp roller bolt size | M10 x 25 bolts | p. 2 |
| Tension spring length | 135mm (5.3 in.) | p. 8 |
Kubota RC40-G, RC44-G, RC48-G Common Problems This Manual Covers
Uneven or scalped cutting
A deck that scalps or cuts unevenly usually needs the parallel linkage and lift rods set correctly. The Mower Adjustments section shows how to level the deck front to rear and reattach the rear gauge wheels.
Manual Section: Mower Adjustments p. 5Dull or damaged blades
Ragged cut quality and torn grass are signs of worn or damaged blades. The Maintenance section covers blade replacement and the correct center blade bolt torque so blades are refitted safely.
Manual Section: Maintenance p. 8Loose or vibrating PTO driveline
Vibration or knocking from the driveline often means the universal joint is not seated on the PTO shaft or the joint shield has come loose. The Mounting To The Tractor section shows how to slide the joint on and attach the shield.
Manual Section: Mounting To The Tractor p. 3Gear box oil low or overdue
A noisy or hot gear box usually means the oil is low or past its change interval. The Maintenance section gives the initial and periodic gear box oil change intervals along with the refill capacity.
Manual Section: Maintenance p. 8Drive belt loses tension
A slipping or squealing belt drops blade speed and cut quality. The Maintenance section lists the belt tension check interval and the correct tension spring length for each model.
Manual Section: Maintenance p. 8Poor cut in tall or wet grass
Bunching or streaking in heavy grass usually comes from running the deck too low or too fast. The Operation section explains how to set cutting height and get the most from the mower.
Manual Section: Operation p. 6Frequently Asked Questions
Which mowers does this manual cover?
It covers the Kubota RC40-G, RC44-G, and RC48-G finish mowers. The 11-page operator manual explains terminology, setup, mounting to the tractor, adjustments, operation, and maintenance for all three decks.
What is the cutting height range?
The Operation section gives an adjustable cutting height from 36mm to 90mm (1.4 in. to 3.5 in.), with about 54mm (2.1 in.) recommended for most conditions. p. 6
How often should the gear box oil be changed?
The Maintenance section calls for the first gear box oil change at 50 hours and every 150 hours after that, using SAE 90 gear oil with a refill capacity of 0.30 liter (0.32 U.S. qt.). p. 8
Does it list blade and bolt torque values?
Yes. The Maintenance section includes a tightening torque chart and the center blade bolt torque of 10 to 12 kgf m (72 to 87 ft-lbs), so blades and hardware are refitted correctly. p. 8
What exactly do I receive with this Kubota RC40-G Operator Manual?
Your 11-page searchable PDF downloads the moment checkout clears. Open it on a laptop, tablet, or phone, and bring it right to the shop floor.
Does this Kubota RC40-G manual allow printing?
Yes. Print as many copies as you like; there are no restrictions. Plenty of mechanics just print the one section they need and keep it in the cab.
