This is the 146-page Kubota R540 Operator Manual for the R540 wheel loader, powered by the V2607-CR-E5-WL diesel engine with a diesel oxidation catalyst and diesel particulate filter. It is the factory operator reference, so the controls, warning symbols, and service intervals match your machine.The manual walks safe operation, the instrument panel and controls, daily checks before starting, and running the machine, with a full section on the engine and DPF regeneration in auto, parked, and inhibit modes. It also covers cold weather handling, transporting by truck, recommended oils, periodic service, and a troubleshooting section with the error code list.Owners and operators can use it to run the loader correctly, keep up the daily and periodic maintenance, understand a DPF or warning light, and work through starting, power, or overheating problems. It is delivered as a downloadable PDF you can view on any device or print for the cab.
What's Inside This Kubota R540 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safe Operation | 11-28 | Precautions Before Operating the Wheel Loader, Mount a Fire Extinguisher, Lifting the Machine, Snap Pin, Steering Frame Lock |
| Servicing of the Wheel Loader | 29-30 | Dealer Service, Warranty Policy, Procedure for Scrapping the Wheel Loader |

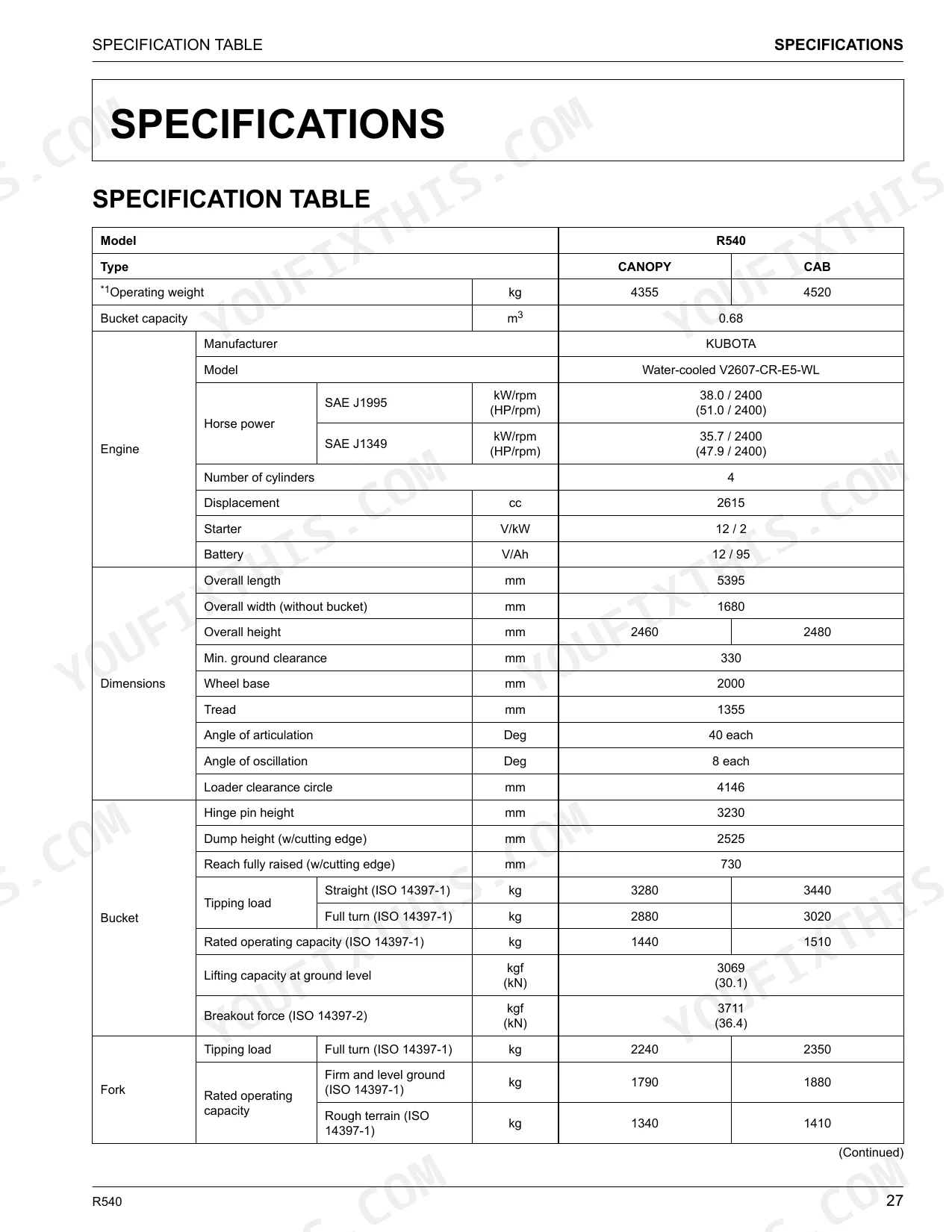

| Specifications | 31-32 | Specification Table, Engine, Dimensions, Traveling Speed, Auxiliary, Fuel Tank |
| Machine Parts | 33-34 | Lift Arm, Bell Crank, Bucket, Front Wheel, Rear Wheel, Fuel Tank Cap |
| Instrument Panel and Controls | 35-37 | Switches, Control Pedals and Levers, Instrument Panel |
| Checks Before Starting the Machine | 38-56 | Daily Check Items |

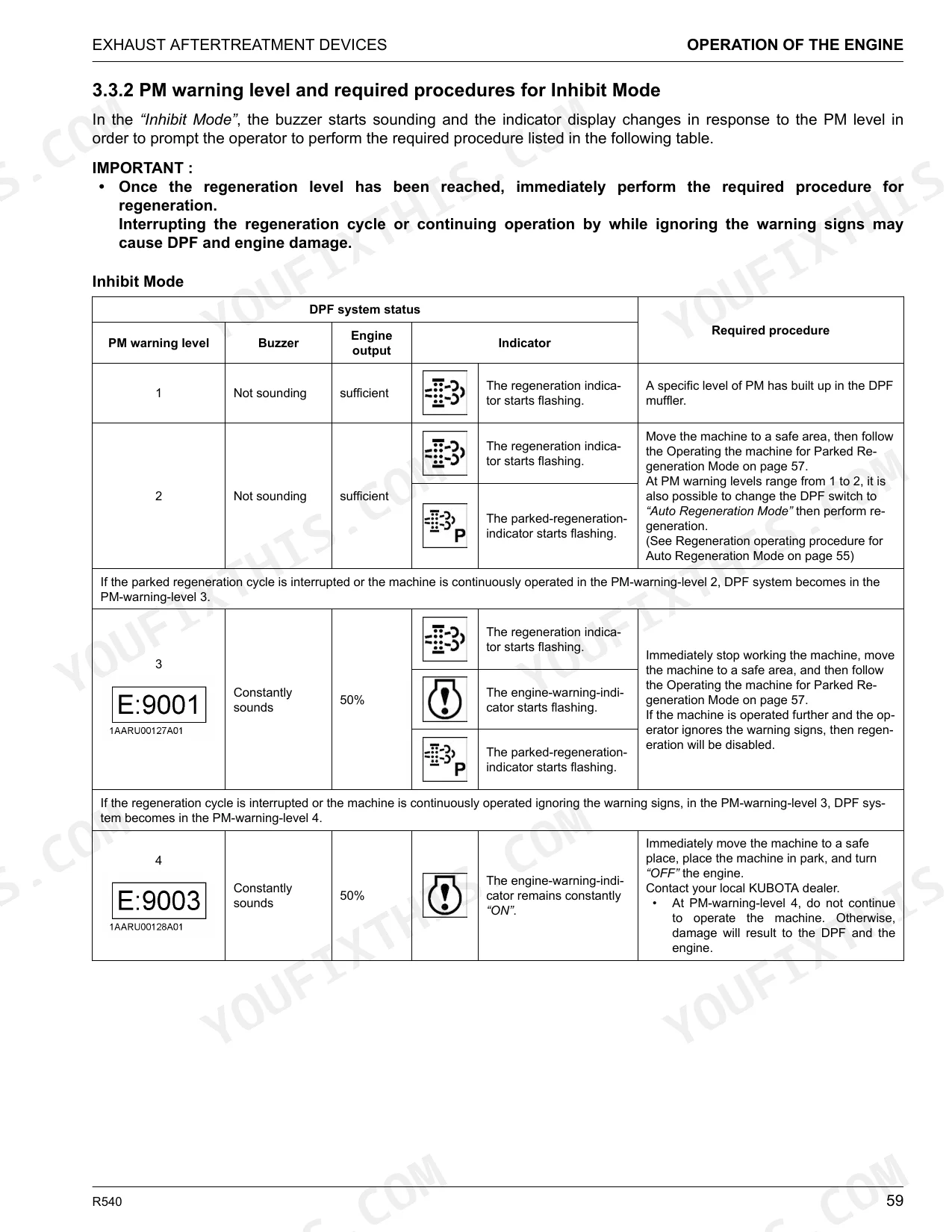

| Operation of the Engine | 57-66 | Exhaust Aftertreatment Devices (Diesel Oxidation Catalyst and Diesel Particulate Filter Muffler, Handling Points for DPF Regeneration, DPF Regeneration Process, Operating Procedure for Auto Regeneration Mode, Regeneration Operating Procedure for Auto Regeneration Mode, Pm Warning Level and Required Procedures for Auto Regeneration Mode, Operating the Machine for Parked Regeneration Mode, Operating Procedure for Inhibit Mode, Regeneration Operating Procedure for Inhibit Mode, Pm Warning Level and Required Procedures for Inhibit Mode, Tips on Diesel Particulate Filter Regeneration) |
| Operation of the Machine | 67-89 | Guide for the Operator, Working in the Vicinity of Overhead Power Lines, Running-In of the Machine |

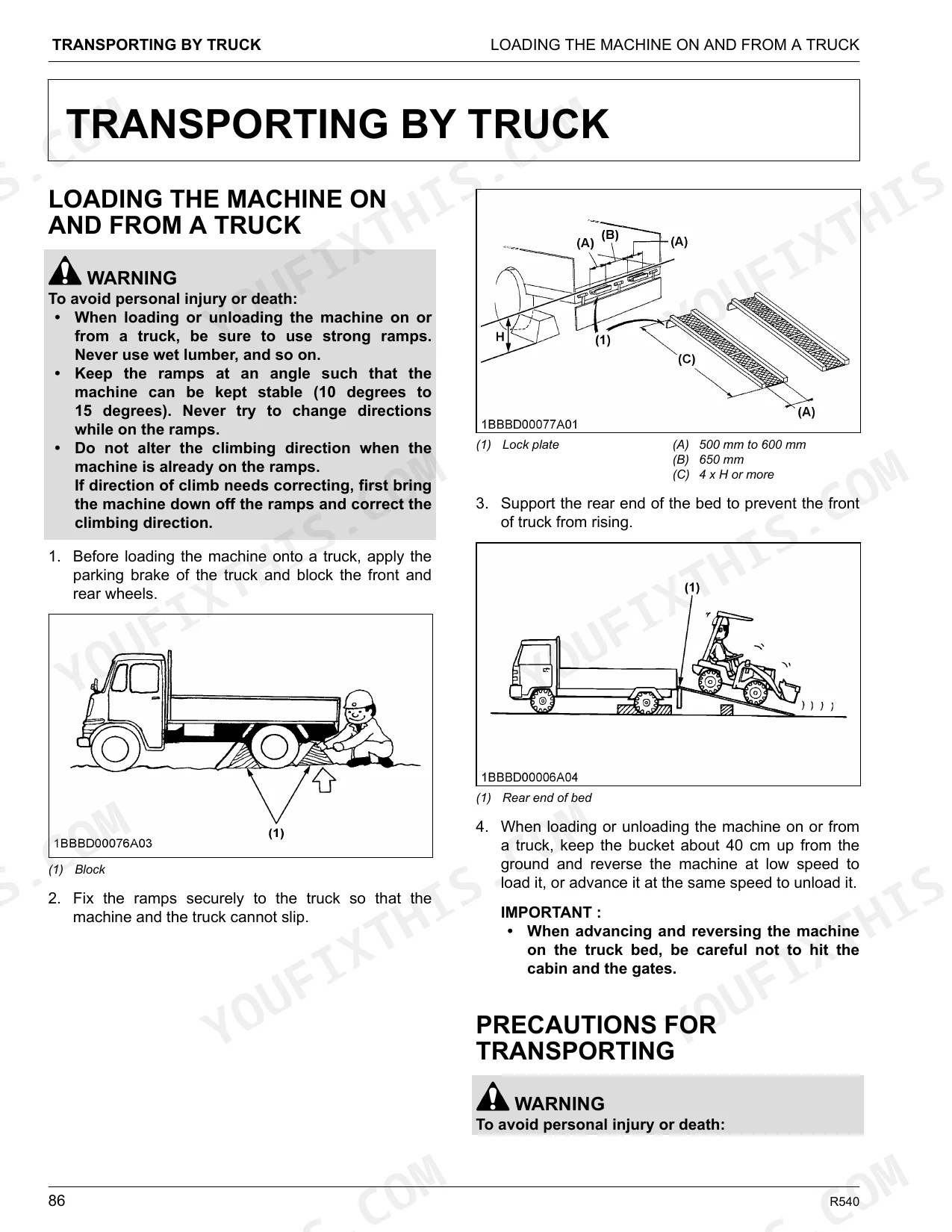

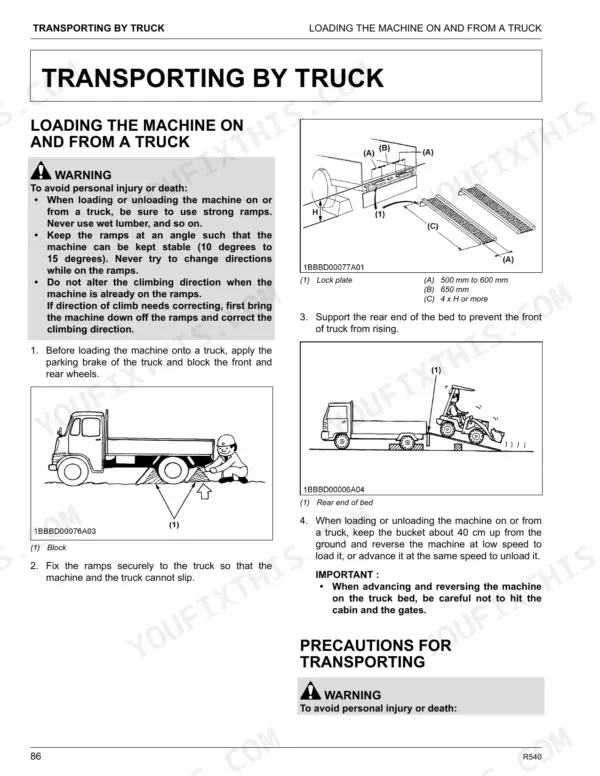

| Transporting by Truck | 90-91 | Loading the Machine, Precautions for Transporting, Lock Plate, Rear End of Bed, Strap or Chain, Wheel Block |
| Handling the Wheel Loader in Cold Weather | 93 | Preparation for Operation, Taking Care After Operation, Engine Oil, Battery Power, Antifreeze, Fuel System |
| Maintenance | 94-98 | Precautions for Maintenance, Maintenance Intervals, Daily Check, Periodic Service, Annual Servicing, Servicing As Required |
| Periodic Service | 99-129 | Opening and Closing of Covers (and Closing the Engine Cover, The Side Cover) |

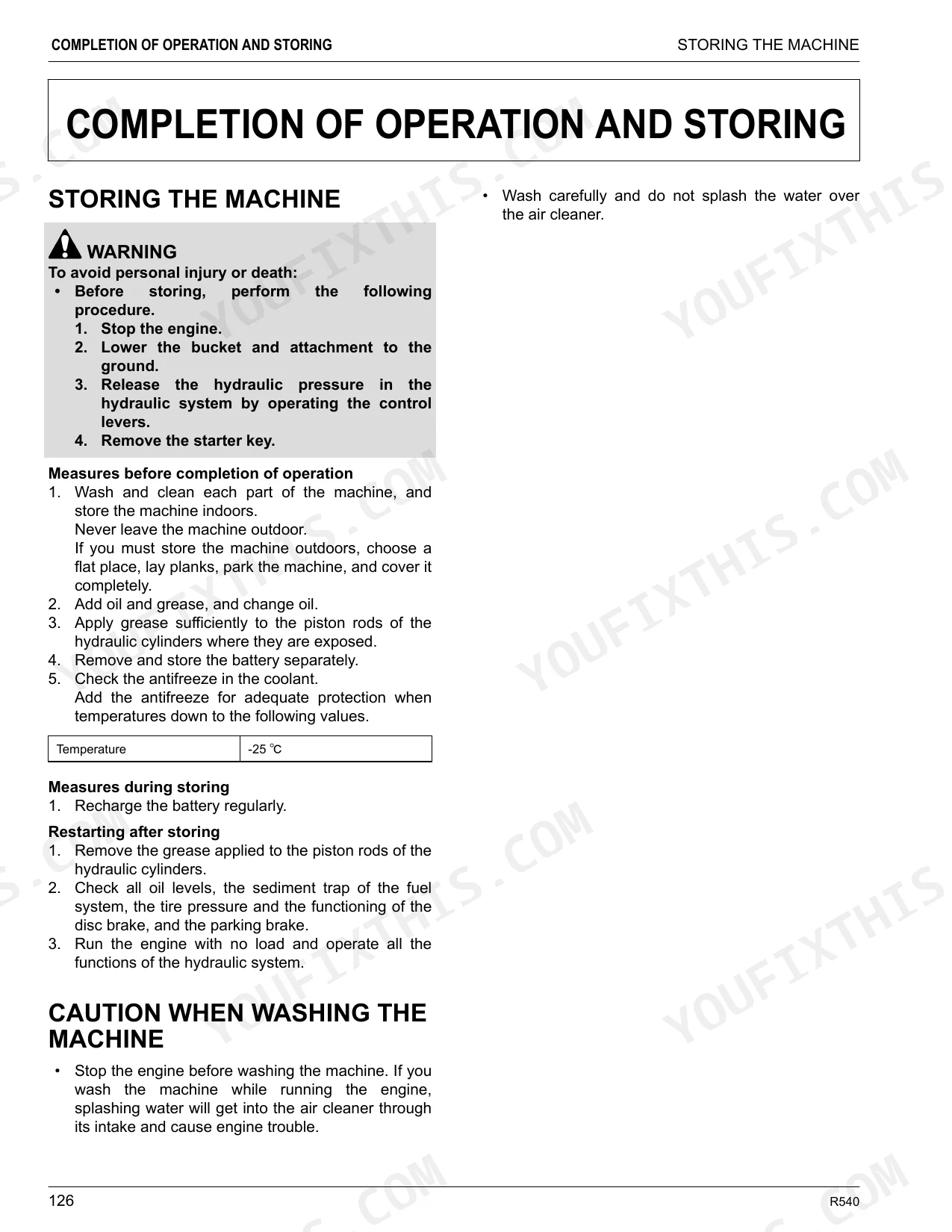

| Completion of Operation and Storing | 130 | Storing the Machine, Measures Before Completion of Operation, Measures During Storing, Restarting After Storing, Washing the Machine |
| Recommended Oils | 131-133 | Recommended Oil List, Hydraulic Oil, Brake Fluid, Engine Oil, Gear Oil, Fuel |
| Troubleshooting | 134-140 | Engine and Other Systems, List of Error Code Numbers, Starting Difficulties, Insufficient Engine Power, Abnormal Exhaust Gas Color, Water Temperature in Red Zone (Overheating) |
| Appendix | 141 | Service Hour Meter, Engine Oil, Hydraulic Oil, Air Cleaner Element, Fuel Filter Cartridge, DPF |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Wheel nut tightening torque | 490 N⋅m | p. 106 |
| End plate bolt of center shaft tightening torque | 282 N⋅m | p. 116 |
| Operating weight (Canopy) | 4355 kg | p. 31 |
| Bucket capacity | 0.68 m³ | p. 31 |
| Engine Displacement | 2615 cc | p. 31 |
| Battery | 12 V / 95 Ah | p. 31 |
| Fuel tank capacity | 70 L | p. 32 |
| Hydraulic oil system capacity | 55 L | p. 32 |
| Max. flow rate (theoretical) | 54.0 L/min | p. 32 |
| Max. pressure | 18.5 MPa | p. 32 |
| Engine oil capacity | 9.0 L | p. 101 |
| Fan belt tension (deflection) | 7 mm | p. 111 |
Kubota R540 Common Problems This Manual Covers
DPF will not regenerate
The R540 uses a diesel particulate filter that must burn off soot, and a clogged filter or a misunderstood regeneration mode leaves a warning on and power reduced. The engine operation section explains auto, parked, and inhibit regeneration and the PM warning levels and required steps.
Manual Section: Operation of the Engine p. 57Engine will not start
Starting difficulty on a diesel loader can be fuel, glow plugs, the battery, or a safety interlock. The troubleshooting section lists starting difficulties alongside the error code numbers so you can narrow the cause before pulling parts.
Manual Section: Troubleshooting p. 134Coolant temperature in the red zone
Overheating shows as the water temperature gauge climbing into the red and usually traces to coolant level, a loaded radiator, or fan belt tension. The troubleshooting section covers overheating and its checks.
Manual Section: Troubleshooting p. 134Wheel nuts working loose
Loose wheel nuts are dangerous on a loader and come from missed retorque after service. The periodic service section gives the wheel nut tightening procedure so hardware stays at the correct torque.
Manual Section: Periodic Service p. 99Hard starting in cold weather
Cold mornings bring slow cranking, thick hydraulic and engine oil, and weak battery output. The cold weather handling section lists preparation before operation, engine oil and battery care, antifreeze, and fuel system steps.
Manual Section: Handling the Wheel Loader in Cold Weather p. 93Neglected filters and fluids
Skipped service on the air cleaner, fuel filter, engine oil, and hydraulic oil leads to lost power and premature wear. The maintenance section sets the intervals for daily, periodic, and annual servicing so nothing is missed.
Manual Section: Maintenance p. 94Frequently Asked Questions
Is this an operator manual or a service manual?
This is the operator manual for the Kubota R540 wheel loader with the V2607-CR-E5-WL engine. It covers operation, controls, daily and periodic maintenance, and troubleshooting, rather than full component teardown.
Does it explain DPF regeneration?
Yes. The engine operation section details the diesel particulate filter and its auto, parked, and inhibit regeneration modes, plus the PM warning levels and the procedure required at each level. p. 57
Where do I find service intervals and fluid capacities?
The maintenance section lists the daily, periodic, and annual service intervals, and the specifications and recommended oils sections give fuel tank, hydraulic, and coolant capacities for the machine. p. 94
Will it match my R540?
Yes. All 146 pages are specific to the R540 wheel loader, including the canopy configuration and its instrument panel, controls, and error code list.
How will I receive this Kubota R540 Operator Manual?
It's a 146-page Operator Manual in searchable PDF, ready to download the moment checkout completes. Open it on a computer, tablet, or phone, with no shipping wait.
Am I able to print pages from this Kubota R540 manual?
Yes, with no restrictions: the PDF is DRM-free. Print whatever sections you want to carry out to the shop, on standard letter or A4 paper.
