Need the factory operating guide for your Kubota GR1600-II or GR2100-II? OEM #K1254-7121-3 is the riding mower reference Kubota ships with the machine, 106 pages in all. Maintenance schedules split into daily, 50-, 100-, 150-, and 200-hour intervals sit alongside a fluid capacities table for engine oil, transmission fluid, and coolant, plus four troubleshooting guides covering the engine, machine, mower deck, and grass catcher. Safety procedures cover slope operation, PTO engagement, and jump-start steps; operating procedures walk through cold-weather starting, warm-up protocols, and grass catcher management. Blade bolts on the GR1600-II torque to 98-117.6 N-m, and blade tip variance over 3 mm from level shows up as a ragged cut. Forget scribbled maintenance cards. Bookmarked by section and keyword-searchable, it pulls up on a tablet before you have found your wrench.
What's Inside This Kubota GR1600-II, GR2100-II Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Abbreviations and Symbols | - | - |
| EC-Declaration of Conformity | - | - |
| About Kubota Corporation | - | - |
| Safe Operation | - | Before Operating, Operating (Starting, Working, Pulling Loads, Operation on Slopes, Do Not, Children, Operators, Age 60 Years and Above, Stopping), Using the PTO |
| Servicing of Riding Mower | - | Machine Serial No., Engine Serial No., Mower Serial No., RCK42, RCK48 |

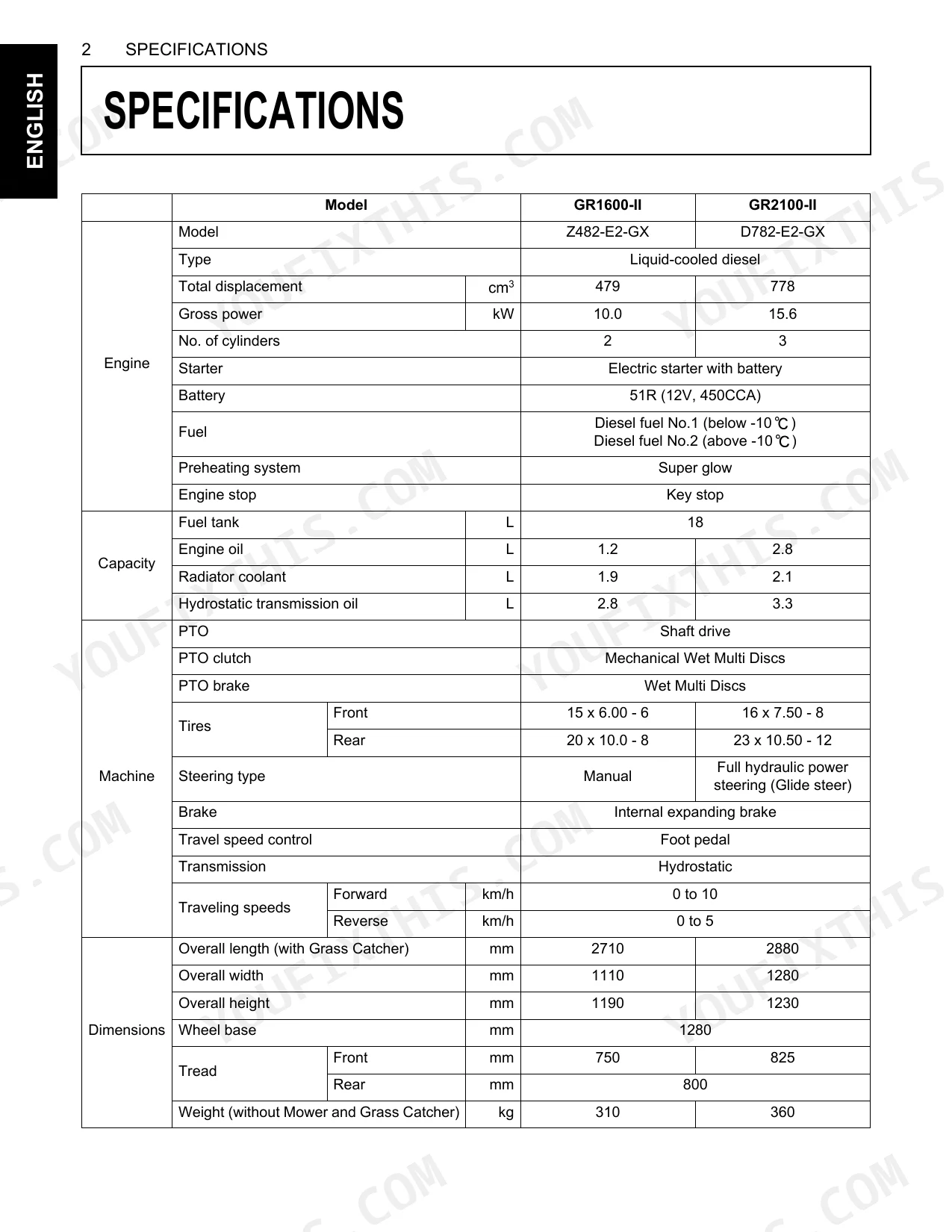

| Specifications | - | Machine Specifications Table (Engine, Capacity, Dimensions, Weight), Mower Specifications Table (Dimensions, Discharge Direction, Gear Box Oil), Grass Catcher Specifications Table |
| Implement Limitations | - | Maximum Axle Loading Weight, Ballast (Front Ballast, Rear Ballast) |
| Instrument Panel and Controls | - | Easy Checker, Head Light Switch, Throttle Lever, Parking Brake, PTO Lever, Hour Meter |
| Mower Mounting | - | Attaching the Mower (Mounting the Mower Deck), Parallel Linkage, Mower Deck, Mower Lift Stopper, Dismounting the Mower Deck |

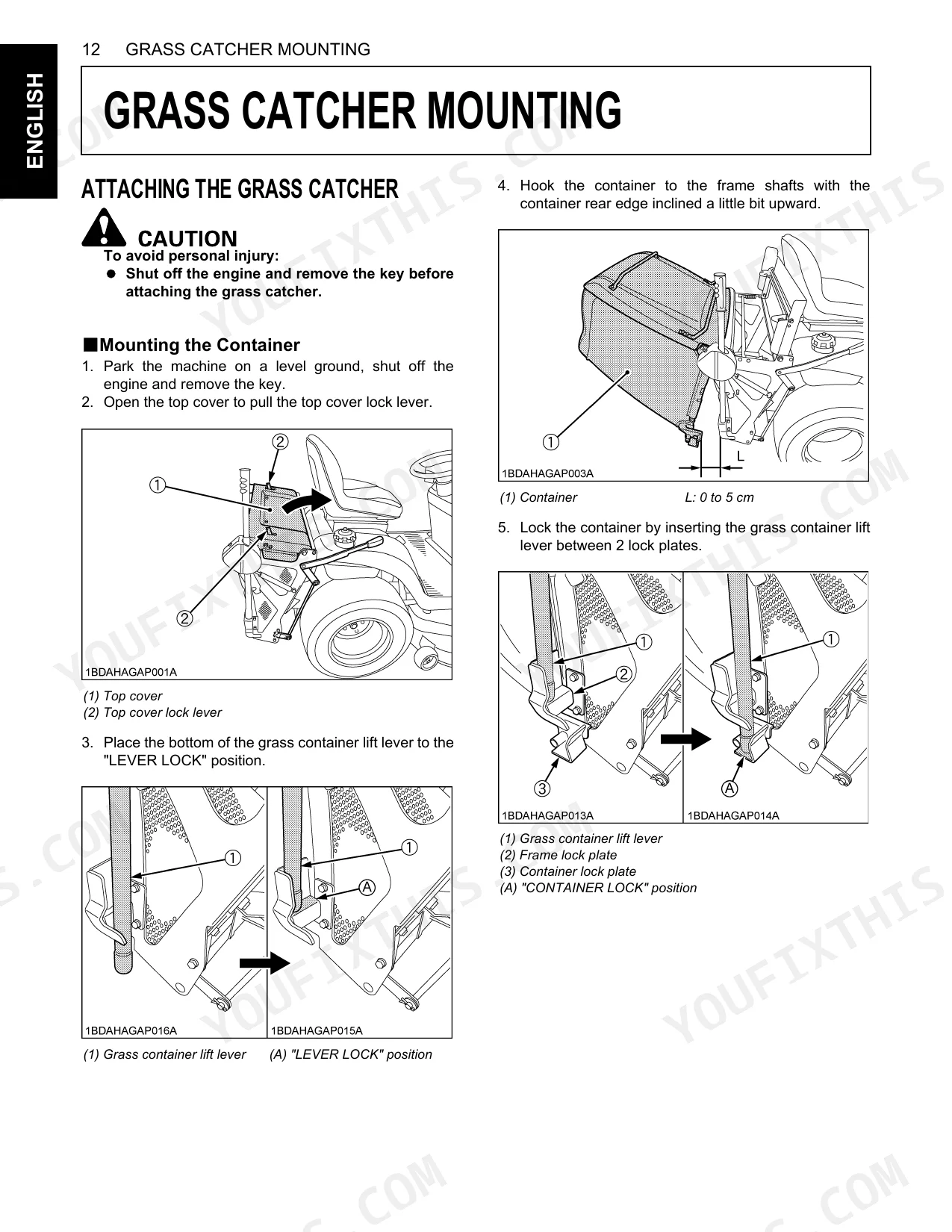

| Grass Catcher Mounting | - | Attaching the Grass Catcher (Mounting the Container), Closing the Top Cover |
| Operating the Engine | - | Starting the Engine (Key Switch, Cold Weather Starting, Block Heater), Stopping the Engine, Warming Up (Warm-Up and Transmission Oil in the Low Temperature Range), Jump Starting |
| Operating the Machine | - | Operating New Machine (Changing Lubricating Oil for New Machines, Engine Break-In, Machine Break-In) |
| Operating the Mower | - | Making the Most of Your Mower |
| Operating the Grass Catcher | - | Operating Performance, Emptying the Grass Catcher, Grass Container Net Material (Checking, Replacing), Front Quick Clean Lever |
| Cleaning | - | Cleaning with Water, Cleaning the Grass Catching Container, Cleaning the Mowing System, Cleaning the Mowing System Using Hose |
| Tire and Wheels | - | Tires, Wheels |
| Maintenance | - | Service Intervals, Lubricants (Place Capacities Lubricants Table, Greasing Table), Engine Oil, Transmission Oil |
| Periodic Service | - | How to Open the Hood |
| Adjustment | - | General Torque Specification, Tightening Torque Chart |
| Troubleshooting | - | Engine Troubleshooting, Machine Troubleshooting, Mower Troubleshooting, Grass Catcher Troubleshooting |
| Option | - | - |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| GR1600-II | ||
| Blade bolt torque | 98 to 117.6 N-m (10 to 12 kgf-m) | p. 95 |
| Blade bolt torque (GR1600-II) | 98 to 117.6 N-m (10 to 12 kgf-m) | p. 95 |
| Engine oil capacity | 1.2 L | p. 29 |
| GR2100-II | ||
| Blade bolt torque (outer blades) | 103 to 118 N-m | p. 96 |
| Engine oil capacity | 2.8 L | p. 29 |
| All Models | ||
| Blade tip to level surface difference (clearance) | less than 3 mm (0.1 in.) | p. 37 |
| Container hook to frame shafts clearance (L) | 0 to 5 cm | p. 39 |
| Grass container net material replacement condition | Replace if found worn or deteriorated | p. 60 |
| Fan drive belt deflection | approx. 10 mm (0.39 in.) with 98 N (10 kgf) finger pressure | p. 85 |
| Battery type | 51R (12V, 450CCA) | p. 29 |
| Battery fluid level | between the UPPER and LOWER levels | p. 82 |
| Fuel tank capacity | 18 L | p. 29 |
Kubota GR1600-II, GR2100-II Common Problems This Manual Covers
Engine cranks but won't start on cold mornings p. 41
Work through the cold weather starting procedure on page 41: move the throttle to the choke position and crank for no more than 10 seconds at a time. Confirm the fuel level (tank holds 18 L). If the battery reads below 12.6 V (page 83), charge or jump-start with a 12-volt booster before trying again.
Manual Section: Operating the EngineMower deck engages and disengages on its own while cutting across the lawn p. 104
Start with the safety devices, the seat safety control especially (page 76), checking its connections and operation. Then turn to the 'Mower Troubleshooting' section on page 104 under 'Belt slipping': culprits include incorrect belt tension, a plugged mower deck, debris in pulleys, or a worn belt. With the engine off and key removed, inspect the deck belt for fraying or damage.
Manual Section: Mower Mechanical TroubleshootingMachine feels unstable, slides, or loses traction when mowing on slopes or wet grass p. 18
Confirm front tire pressure at 200 kPa (29 psi) and rear tires at 140 kPa (20 psi) per page 64; low pressure cuts grip badly. Review the slope rules on page 18: mow up and down slopes, never across them. Stay off wet grass and away from embankments.
Manual Section: Safe OperationGrass catcher discharge duct plugs repeatedly and backs up in heavy or wet clippings p. 63
Stop the engine and pull the key before clearing any blockage. Clean the discharge duct and container net per the procedures on page 63. Inspect the net material for wear or deterioration (page 60) and replace it if damaged. Ease off your ground speed in thick or wet grass to keep it from re-plugging.
Manual Section: Grass Catcher TroubleshootingBattery drains overnight or starter motor barely turns engine over after storage p. 102
Verify the battery fluid sits between the UPPER and LOWER marks on page 82. Measure open-circuit voltage with a multimeter: 12.6 V is a full charge, 11.8 V means fully discharged. Clean any corrosion off the terminals, then charge fully before starting. A battery that won't hold charge needs replacing with a 51R (12V, 450CCA) unit.
Manual Section: Battery TroubleshootingUneven cut with streaks of standing grass left behind after each pass p. 104
Measure the blade tip difference across the blade span; it should stay under 3 mm (0.1 in.) per page 37. Inspect the blades on page 94 for cracks or heavy wear and swap any that match the damaged blade illustration. Review the mowing technique and pattern guidance on page 54 to close overlap gaps.
Manual Section: Mower Cutting Performance TroubleshootingFrequently Asked Questions
What does the warning light mean on a Kubota GR1600-II / GR2100-II?
Each Easy Checker(TM) lamp on the instrument panel flags one condition. The engine oil pressure lamp means oil pressure has dropped below the prescribed level; the electrical charge lamp means the alternator isn't charging the battery; the coolant temperature lamp signals overheating; the full grass indicator lamp means the container is full, paired with a buzzer. The 'CHECK DURING DRIVING' section gives the action for each.
What is the PTO / deck engagement problem on a Kubota GR1600-II / GR2100-II?
Two patterns show up here: 'Belt slipping' and 'Mower loads down machine.' Belt slipping traces to incorrect belt tension, a plugged mower deck, debris in the pulleys, or a worn belt. The machine bogs down when engine rpm is too low, ground speed too fast, or debris has wrapped around the mower spindles.
How do I troubleshoot a Kubota GR1600-II / GR2100-II that will not start?
Hard starting usually points to a fuel tank or filter clogged with dirt, air or water in the fuel system, thickened oil in cold weather, or a discharged battery. When the starter won't turn at all, look at a flat battery, a poor terminal connection, or a battery past its service life.
How quickly can I access this manual after buying?
Download starts the moment you buy: a 106-page searchable PDF, no shipping, no waiting. It opens on any device, so you can read it on your phone right at the machine.
Can I print specific sections of this manual?
Yes. Print as many copies as you want, with no restrictions. Plenty of mechanics print just the section they need and carry it onto the shop floor.
