This is the Kubota Operator's Manual for the Z482-E4, Z602-E4, D722-E4, D782-E4, D902-E4 and D902-T-E4 diesel engines. The 218 page PDF is printed in five languages: English, French, German, Italian and Spanish.It covers safe operation, the names of the main engine parts, pre-operation checks, break-in, the maintenance schedule, fuel and oil recommendations, and the fluid capacities and service intervals for each model in the range. Key figures such as the fan belt deflection of 7 to 9 mm and the valve clearance check interval of every 800 hours are included.This is an owner and operator reference for running and maintaining the engine, not a full teardown shop manual. Use it to keep the engine serviced correctly and to look up capacities and intervals. Download it once and read it on any device, or print the section you need.
What's Inside This Kubota Super Mini Series Engines Operator Manual

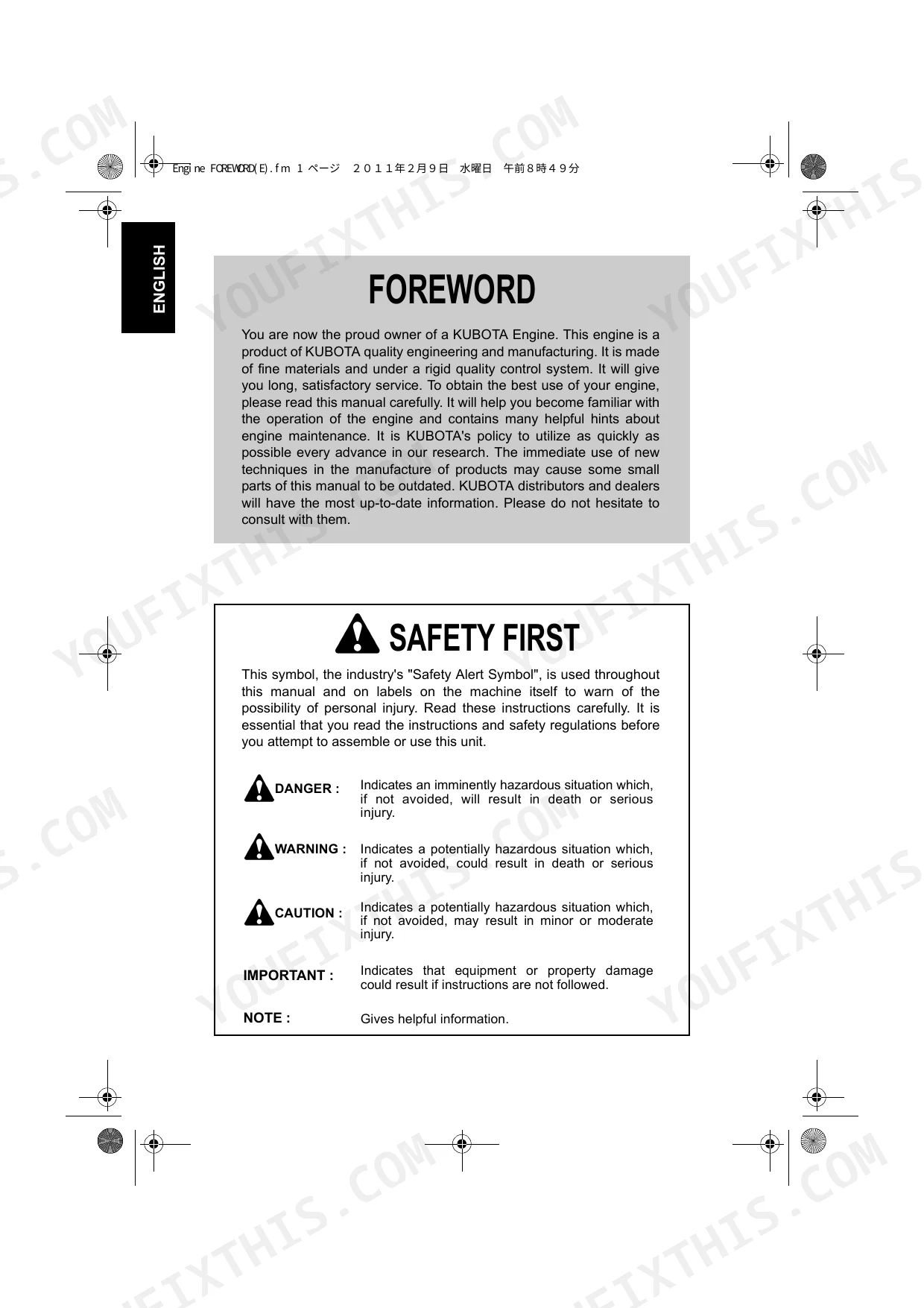

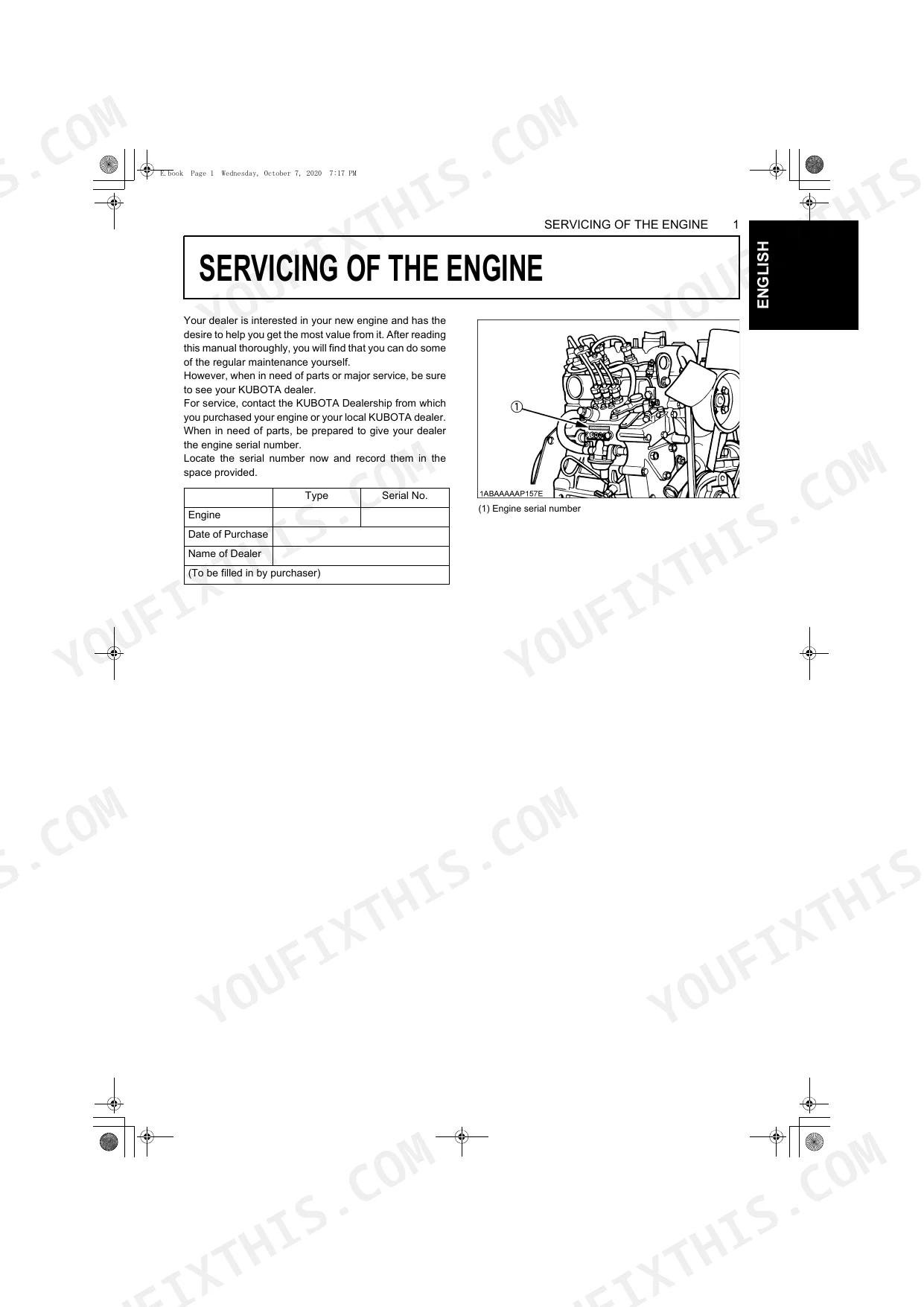

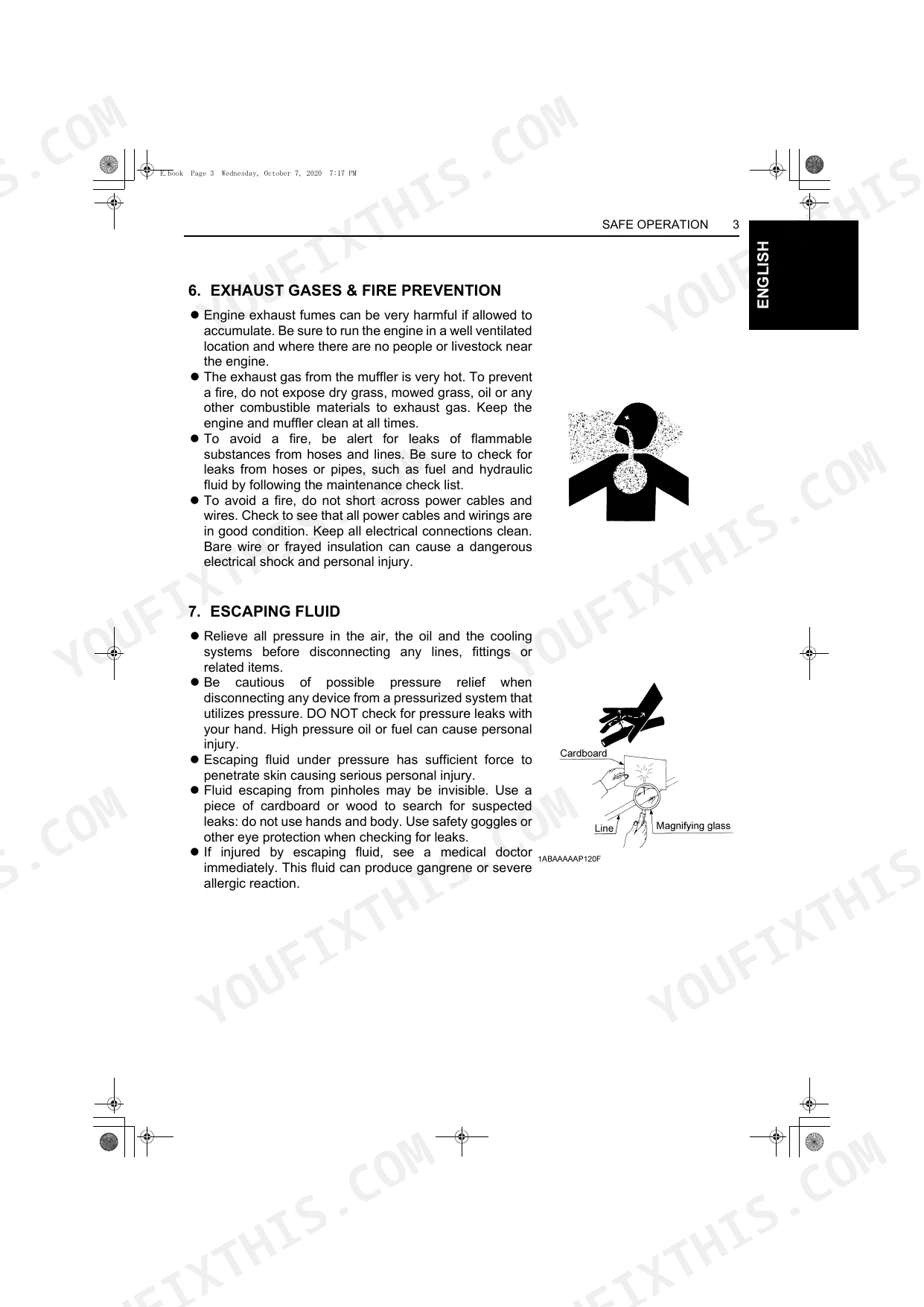

| System | Pages | Key Topics |
|---|---|---|
| 1J090-8916-7Eng | 1-42 | 1J090-8916-7_cover 1906-0631, 1J090-8916-7_Tobira 1906-0631, Engine FOREWORD(E)-, E |
| 1J090-8916-7Fra | 43-86 | Engine FOREWORD(F)-, F |
| 1J090-8916-7Deu | 87-130 | Engine FOREWORD(G)-, G |
| 1J090-8916-7Ita | 131-174 | Engine FOREWORD(I)-, I |
| 1J090-8916-7Spa | 175-218 | Engine FOREWORD(S)-, S |
Quick Reference Specifications

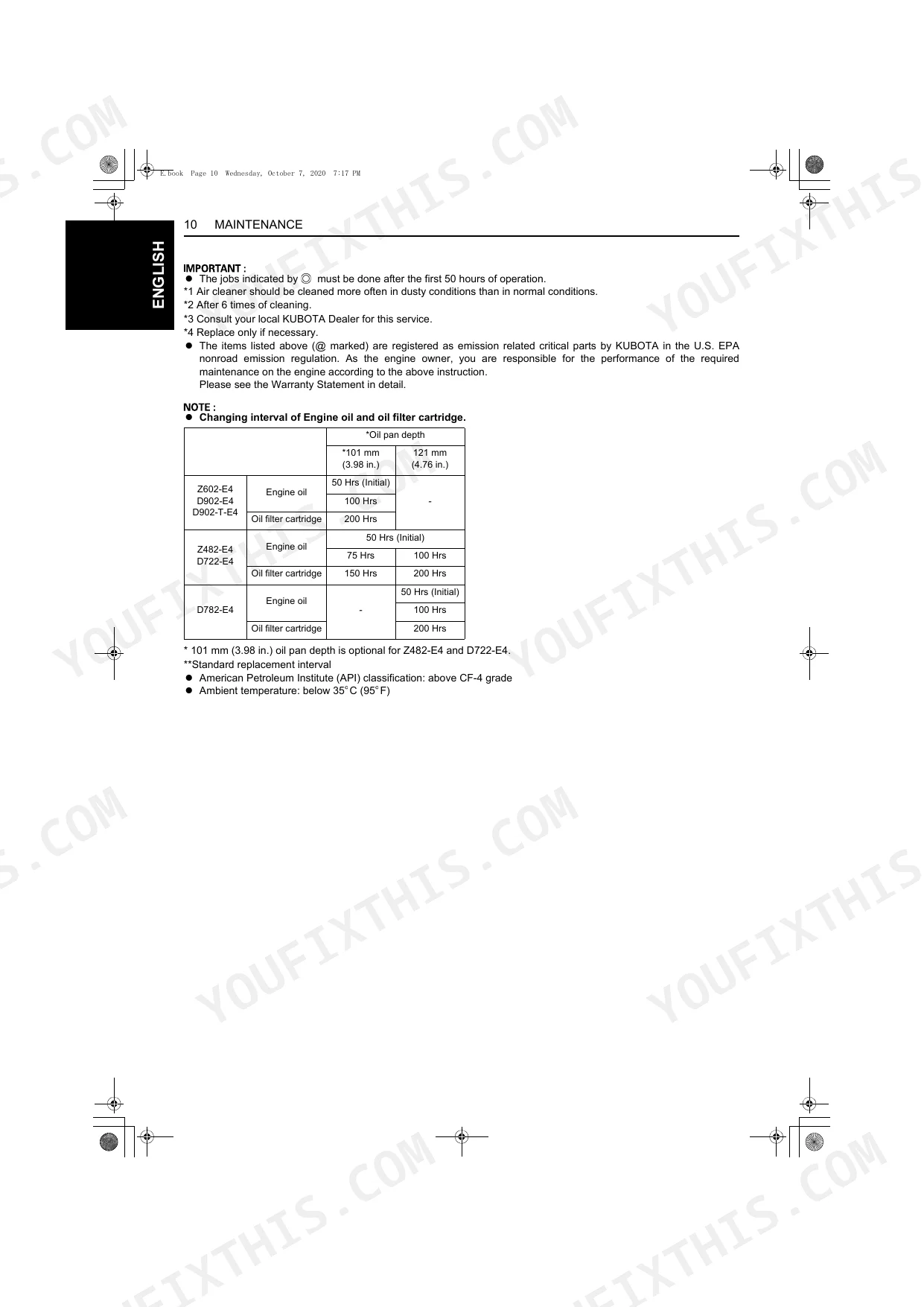

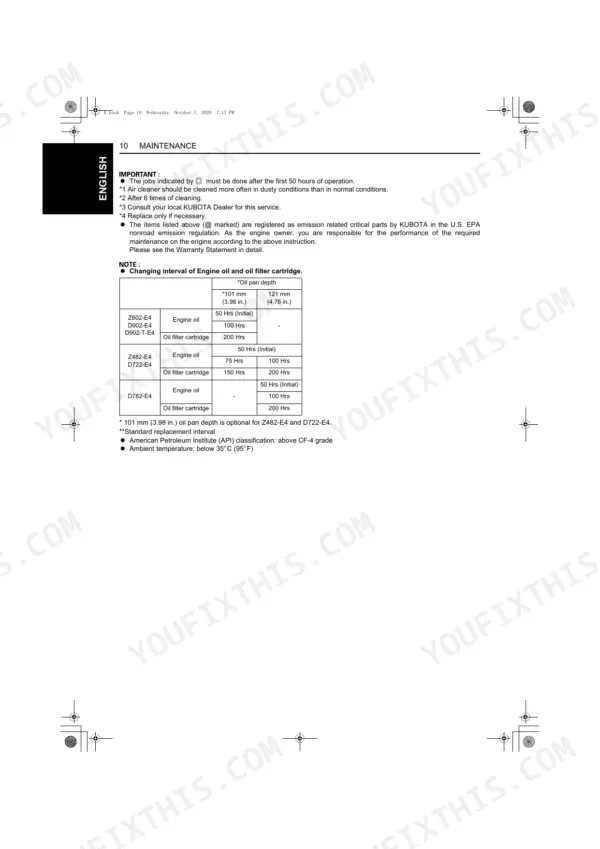

| Specification | Value | Page |
|---|---|---|
| Z482-E4 | ||
| Engine Oil Capacity (101 mm oil pan depth) | 2.1 L (0.55 U.S.gals.) | p. 27 |
| Engine Oil Capacity (121 mm oil pan depth) | 2.5 L (0.66 U.S.gals.) | p. 27 |
| Engine oil capacity (standard oil pan) | 2.1 L (0.55 U.S.gals.) | p. 27 |
| Z482-E4, Z602-E4 | ||
| Number of cylinders | 2 | p. 24 |
| Radiator coolant volume | 2.8 L (0.74 U.S.gals.) | p. 29 |
| D722-E4, D782-E4, D902-E4, D902-T-E4 | ||
| Number of cylinders | 3 | p. 25 |
| All Models | ||
| Injection pressure | 13.73 MPa (1991 psi) | p. 24 |
| Fan belt tension (deflection) | 7 to 9 mm (0.28 to 0.35 in.) | p. 32 |
| Fuel pipe replacement interval | Every 2 years | p. 21 |
| Valve clearance check interval | Every 800 hours | p. 21 |
| Z482-E4, D722-E4 | ||
| Oil filter cartridge replacement interval | 150 Hrs (Initial), 200 Hrs | p. 22 |
| Z482-E4, D722-E4, D782-E4 | ||
| Bore and stroke | 67 x 68 mm (2.64 x 2.68 in.) | p. 24 |
Kubota Super Mini Series Engines Common Problems This Manual Covers
Hard starting in cold weather
A diesel that is slow to start when cold usually needs the preheat and fuel supply checked before anything else. The English operator section covers pre-operation checks and safe starting so you can rule out the basics first.
Manual Section: 1J090-8916-7Eng p. 1Engine overheating
Overheating on these engines is often down to coolant level, a slack fan belt or a blocked radiator. The manual gives the fan belt deflection of 7 to 9 mm and covers the routine cooling checks in the maintenance schedule.
Manual Section: 1J090-8916-7Eng p. 1Low power or rough running
Loss of power and rough running commonly trace to clogged air or fuel filters or a fouled water separator. The maintenance schedule sets cleaning and replacement intervals for these items so they do not get missed.
Manual Section: 1J090-8916-7Eng p. 1High oil consumption
Using more oil than expected usually means it is time to follow the correct oil and filter change intervals for your specific model, which differ across the Z482-E4 through D902-T-E4 range. The manual lists the interval and capacity for each engine.
Manual Section: 1J090-8916-7Eng p. 1Fan belt squeal or slack
A squealing or loose belt reduces charging and cooling. The manual specifies a fan belt deflection of 7 to 9 mm and a tightness check every 100 hours so you can set and monitor it correctly.
Manual Section: 1J090-8916-7Eng p. 1Frequently Asked Questions
Which engines and languages does this manual cover?
It covers the Kubota Z482-E4, Z602-E4, D722-E4, D782-E4, D902-E4 and D902-T-E4 diesel engines, and is printed in English, French, German, Italian and Spanish.
Is this an operator manual or a full repair manual?
This is the operator's manual. It covers running and maintaining the engine, safe operation, checks and the maintenance schedule, rather than full teardown and overhaul procedures.
Does it list oil capacities and service intervals?
Yes. The engine operator section gives the maintenance schedule with oil change and filter intervals and the fluid capacities, which vary by model across the Z482-E4 to D902-T-E4 range. p. 1
How often does the valve clearance need checking?
The manual specifies a valve clearance check every 800 hours. The engine operator section lays out this and the other maintenance intervals for the range. p. 1
How will I receive this Kubota Z482-E4 & variants Operator Manual?
Instant PDF download. The full 218-page searchable Operator Manual lands in your inbox right after payment. Open it on a laptop, tablet, or phone out in the shop.
Am I able to print pages from this Kubota Z482-E4 & variants manual?
None at all. The PDF is DRM-free, so print whatever sections you need for the shop. Standard letter or A4 paper works.
Can I find wiring schematics in this Kubota Z482-E4 & variants manual?

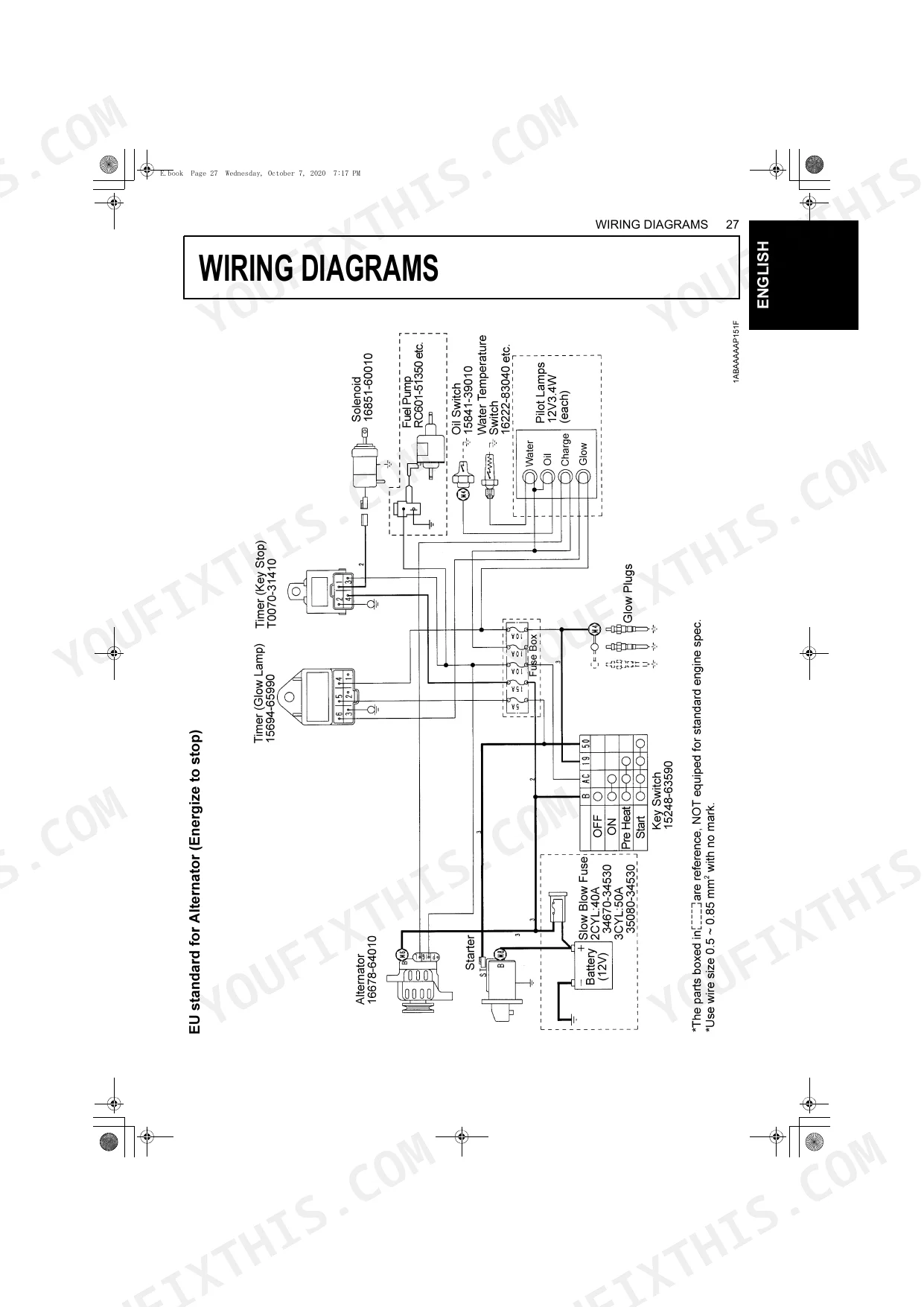

Yes. This operator manual includes the engine electrical wiring diagram for each variant. Note it is operator-grade wiring (basic circuit diagrams), not a full workshop harness teardown.
