Name: Kubota B2301, B2601 Operator Manual
Author: Kubota

Need the factory Kubota B2301, B2601 operator manual PDF? This 95-page OEM guide (6C540-6311-1) gathers every operating procedure, safety warning, and maintenance interval for both compact tractors into one document. Safety coverage spans slope operation, ROPS use, PTO hazards, and hydraulic fluid dangers. Tractor operation is covered from cold-weather warm-up to differential lock and 3-point hitch attachment. The periodic service schedule spans daily walk-arounds out to 3,000-hour injection pump checks, with fluid specs for both North American and international markets and a troubleshooting chart for six engine fault conditions. Rear wheel bolts torque to 145-150 N-m (107.0-110.6 ft-lbs); the hydraulic oil filter is due every 400 hours. Stop guessing at intervals. Bookmarks jump you to any section, and keyword search finds any spec on any device.

What's Inside This Operator Manual

System	Pages	Key Topics
Universal Symbols		Safety, Fuel, And Engine Speed Symbols, Operation and Control Symbols, Drive, Movement, And Warning Symbols
Safe Operation		Before Operating the Tractor, Cab, ROPS, Operating the Tractor, Operating on Slopes, Driving the Tractor on the Road, Parking the Tractor, Operating the PTO

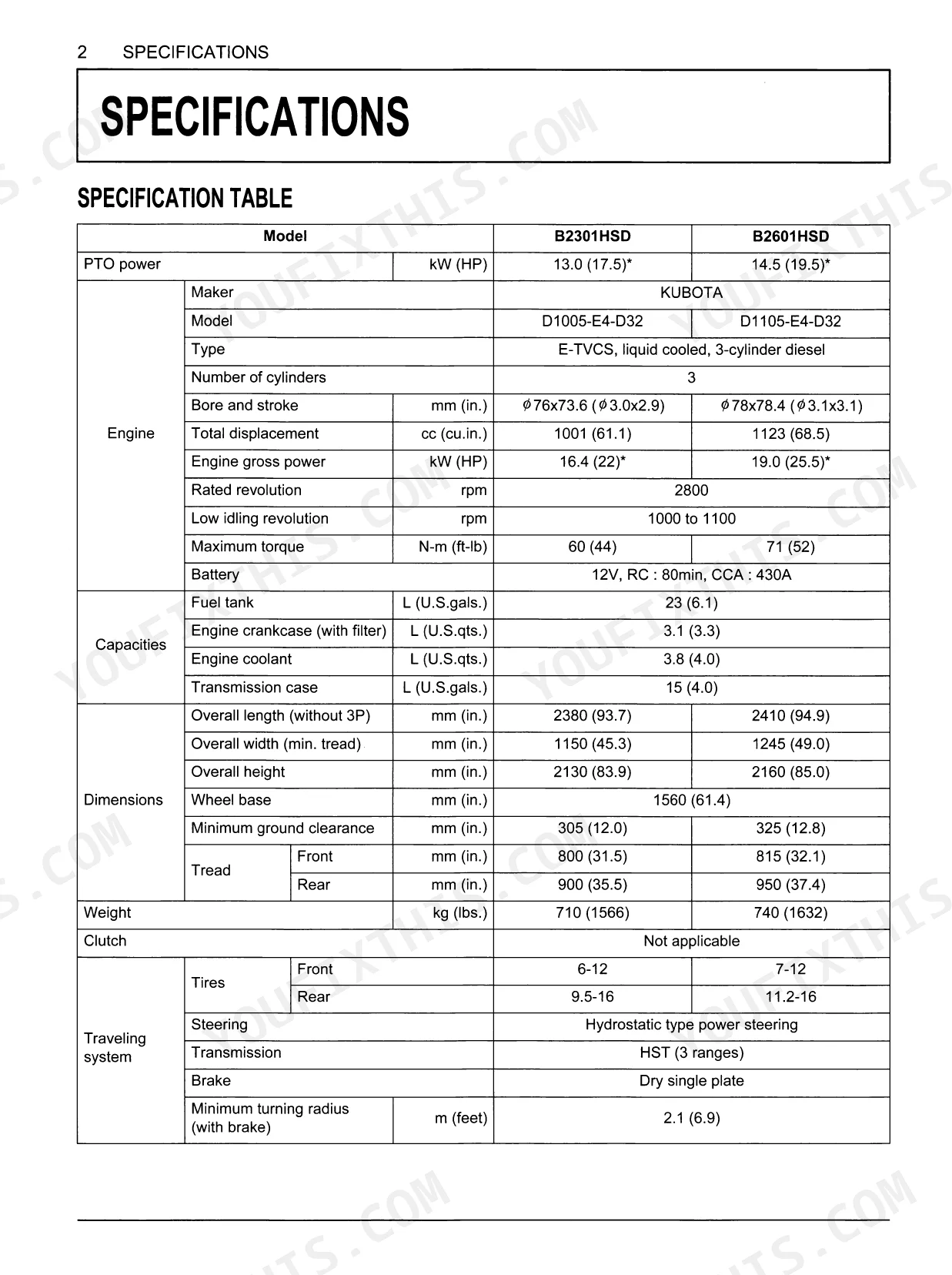

Specifications		Specification Table, Hydraulic Unit and PTO Specifications, Traveling Speeds
Implement Limitations		Tread with Farm Tires, Actual Figures for Implement, Drawbar, And Trailer Loading, Implement Limitations Table
Pre-Operation Check		Daily Check, Warning to Avoid Personal Injury or Death, Check Item List
Operating the Engine		Starting the Engine (Block Heater), Stopping the Engine, Warming Up (Warm-Up Transmission Oil at Low Ambient Temperatures), Jump Starting

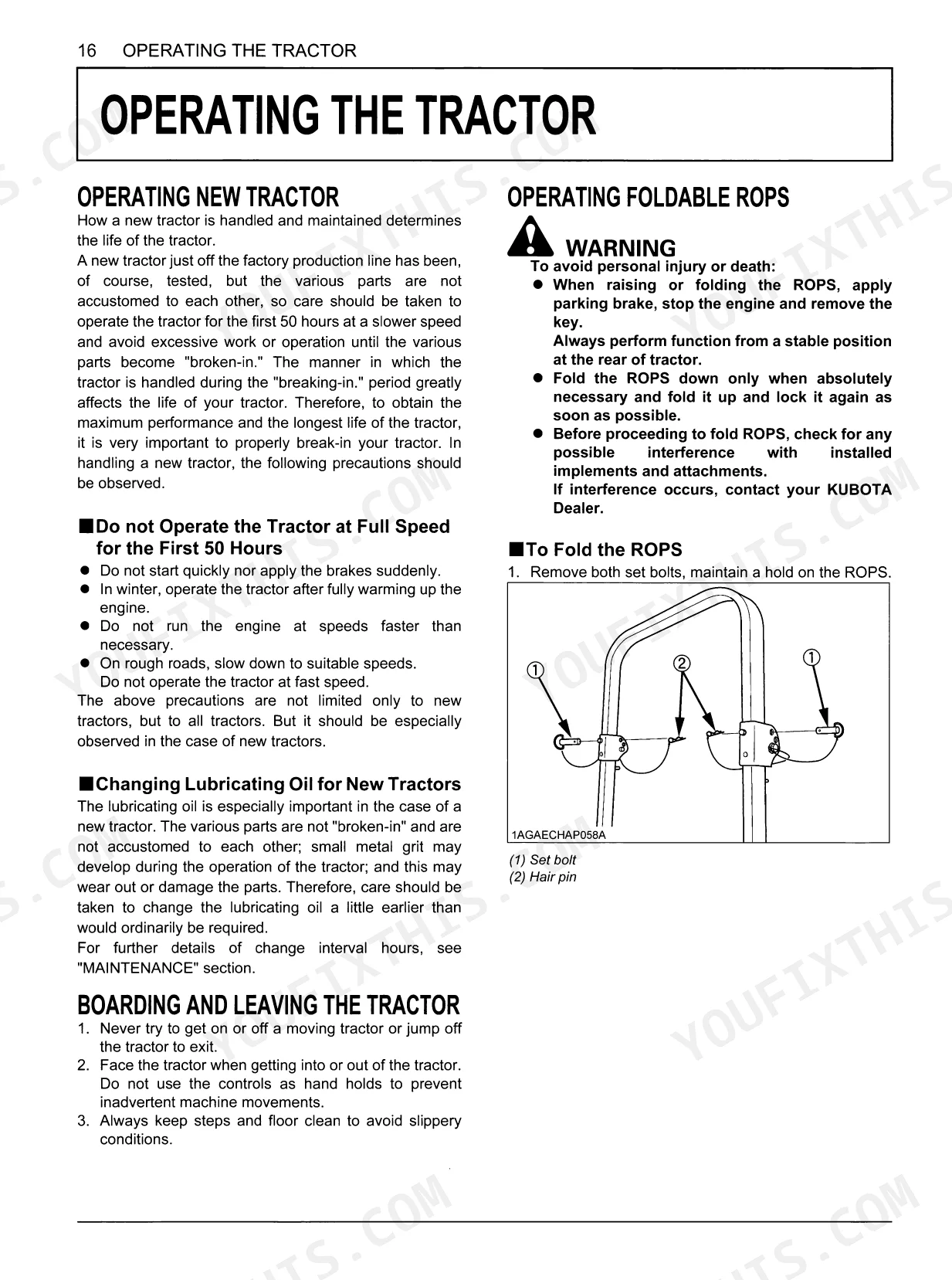

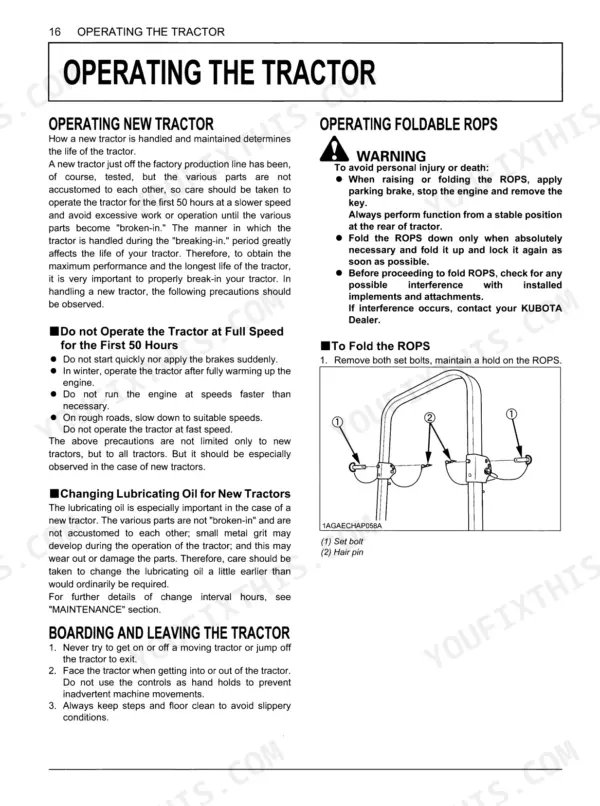

Operating the Tractor		Operating New Tractor (Do Not Operate the Tractor at Full Speed for the First 50 Hours, Changing Lubricating Oil for New Tractors), Boarding and Leaving the Tractor
PTO		PTO Operation, PTO Select Lever, PTO Clutch Lever, Stationary PTO
Point Hitch & Drawbar		3-Point Hitch Components, Make Preparations for Attaching Implement, Attaching and Detaching Implements, Telescopic Stabilizers, Drawbar Length
Hydraulic Unit		3-Point Hitch Control System (Position Control, 3-Point Hitch Lowering Speed), Auxiliary Hydraulics (Hydraulic Block Type Outlet)
Tires, Wheels and Ballast		Tires (Inflation Pressure, Dual Tires), Wheel Adjustment (Front Wheels, Rear Wheels, Treads), Ballast (Front Ballast, Rear Ballast)

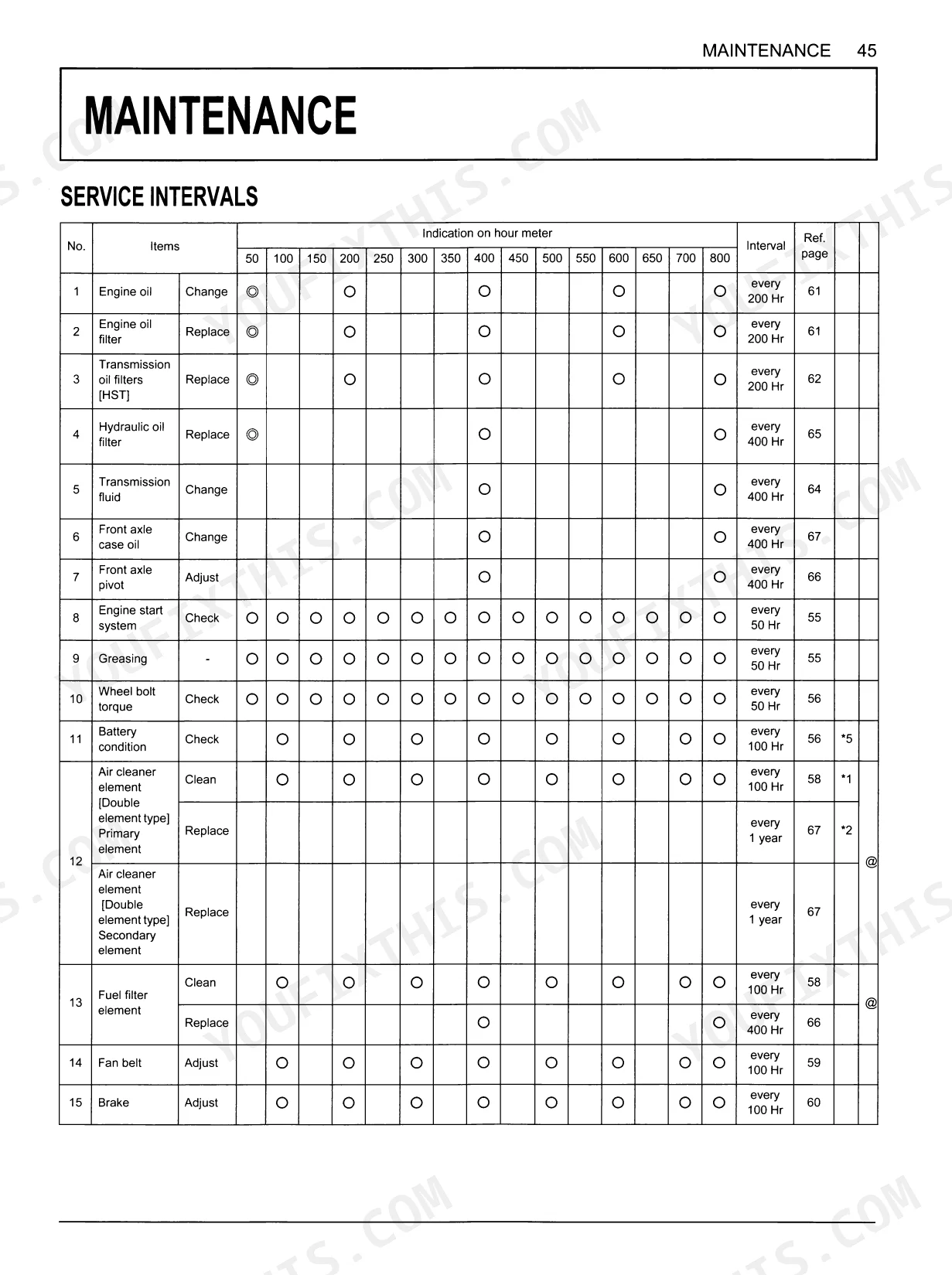

Maintenance		Service Intervals, Lubricants, Fuel and Coolant, For North American Market, For Other Than North American Market
Periodic Service		How to Open the Hood (Engine Side Cover)
Storage		Warning for Storing, Tractor Storage, Removing the Tractor From Storage
Troubleshooting		Engine Troubleshooting, Engine Is Difficult to Start or Won't Start, Insufficient Engine Power, Engine Stops Suddenly, Exhaust Fumes Are Colored, Engine Overheats
Options		Rear Work Light, Front End Weights, Engine Block Heater, Rear Remote Hydraulics, Alternator Kit
Appendices		Index, Kubota Corporation Is, Kubota Corporation Contact Information

Quick Reference Specifications

Specification	Value	Page
All Models
Front wheel bolt torque	79 to 92 N-m (8.1 to 9.4 kgf-m, 58.3 to 67.9 ft-lbs)	p. 58
Rear wheel bolt torque	145 to 150 N-m (14.8 to 15.3 kgf-m, 107.0 to 110.6 ft-lbs)	p. 58
Primary and Secondary Air Cleaner Element Replacement Interval	every 1 year	p. 67
Primary Air Cleaner Element Cleaning Pressure	under 205 kPa (2.1 kgf/cm², 30 psi)	p. 76
Hydraulic Oil Filter Replacement Interval	every 400 Hr	p. 63
Hydraulic Oil Filter Tightening	tighten it by hand an additional 1/2 turn only	p. 83
Engine Oil Filter Replacement Interval	every 200 Hr	p. 63
Engine Oil Filter Tightening	Tighten filter by hand an additional 1/2 turn only	p. 79
Hydraulic Pump Capacity	31.4 L/min (8.3 gals / min)	p. 21
Fuel Tank Capacity	23 L (6.1 U.S. gals.)	p. 20
B2301HSD
PTO Power, B2301HSD	13.0 kW (17.5 HP)	p. 20
B2601HSD
PTO Power, B2601HSD	14.5 kW (19.5 HP)	p. 20

Brand	Kubota
Model	B2301, B2601
Machine Type	Tractor
Manual Type	Operator Manual
Language	English
Format	Searchable PDF (Digital Download)
Pages	95
File Size	17 MB
Manual No.	6C540-6311-1
Wiring Diagrams	No
Hydraulic Schematics	No
Torque Specifications	Yes
Bookmarked / Indexed	Yes
