Need the factory operator playbook for your Kubota B-series tractor? This 25-page Kubota B1200 Operator Manual PDF covers the B1200, B1400, B1500, B1600, B1702, B1902, and the DT 4WD variants in one bound reference. Eight pages walk every dashboard light and control lever, three pages handle operating and driving procedure, six pages cover daily and interval maintenance, and two pages of wiring diagrams show fuse positions and starter circuits. Implement limitations for front loaders and rear attachments sit up front, so you know what your frame can pull. Drop in an NT60 35Ah battery on the B1200DT, an NT80 45Ah on the B1400DT, or an NS70L 65Ah on the B1600DT, and confirm the 25A T1 fuse before cranking. Your tractor belongs in the field, not the shop. The bookmarked PDF opens on phone or tablet. Pull it up, find the control, get moving.
What's Inside This Kubota B1200–B1902 Series Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Operator's Manual | 1 | Dashboard & Controls, Operating & Driving, Maintenance & Checks, Specifications, Electrical |

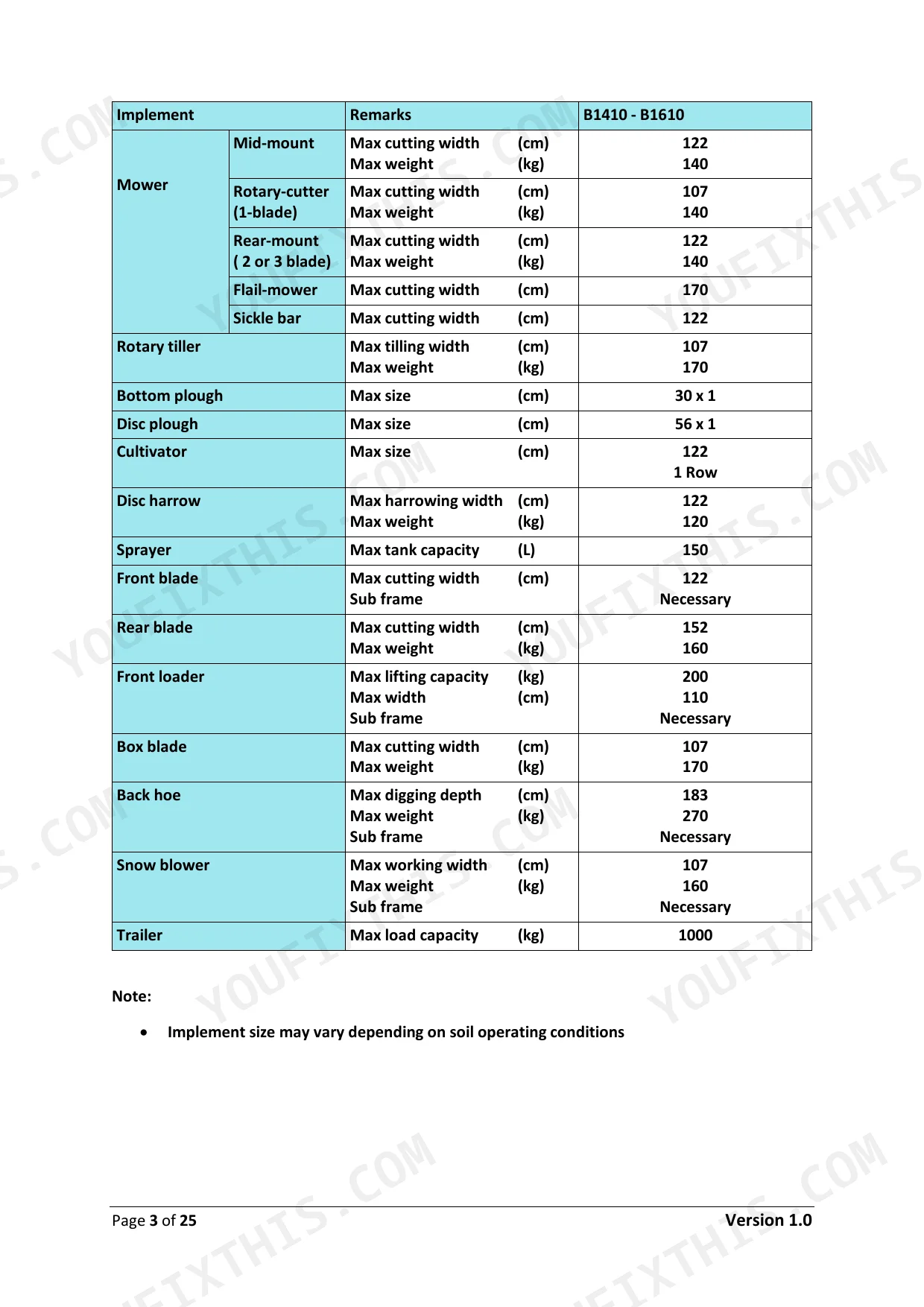

| Implement Limitations | 2-4 | Tread (max. width), Lower link end max. loading weight, Implement weight, Max. Drawbar Load, Trailer loading weight, Implement size |

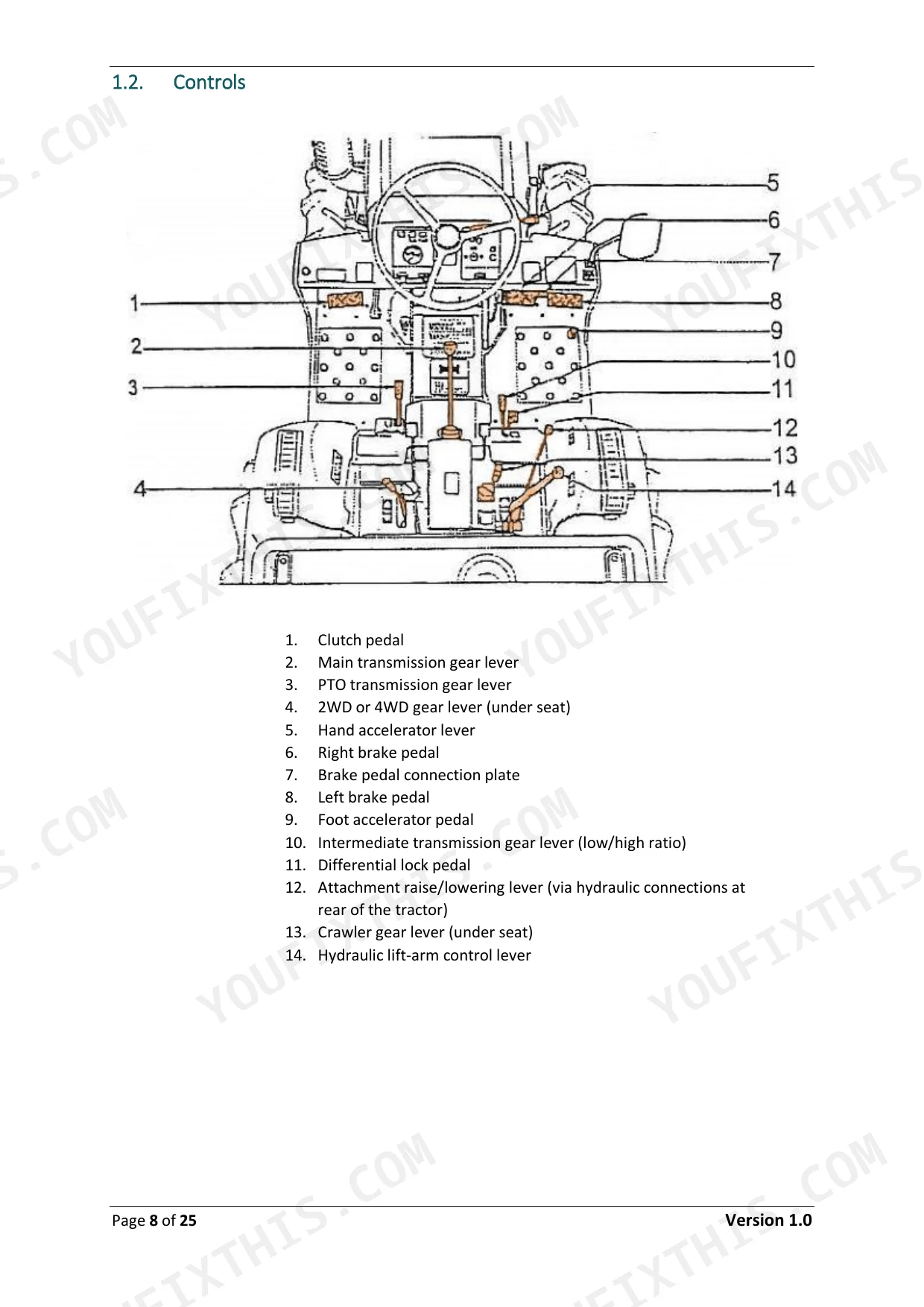

| Dashboard & Controls | 5-13 | Dashboard, Controls |

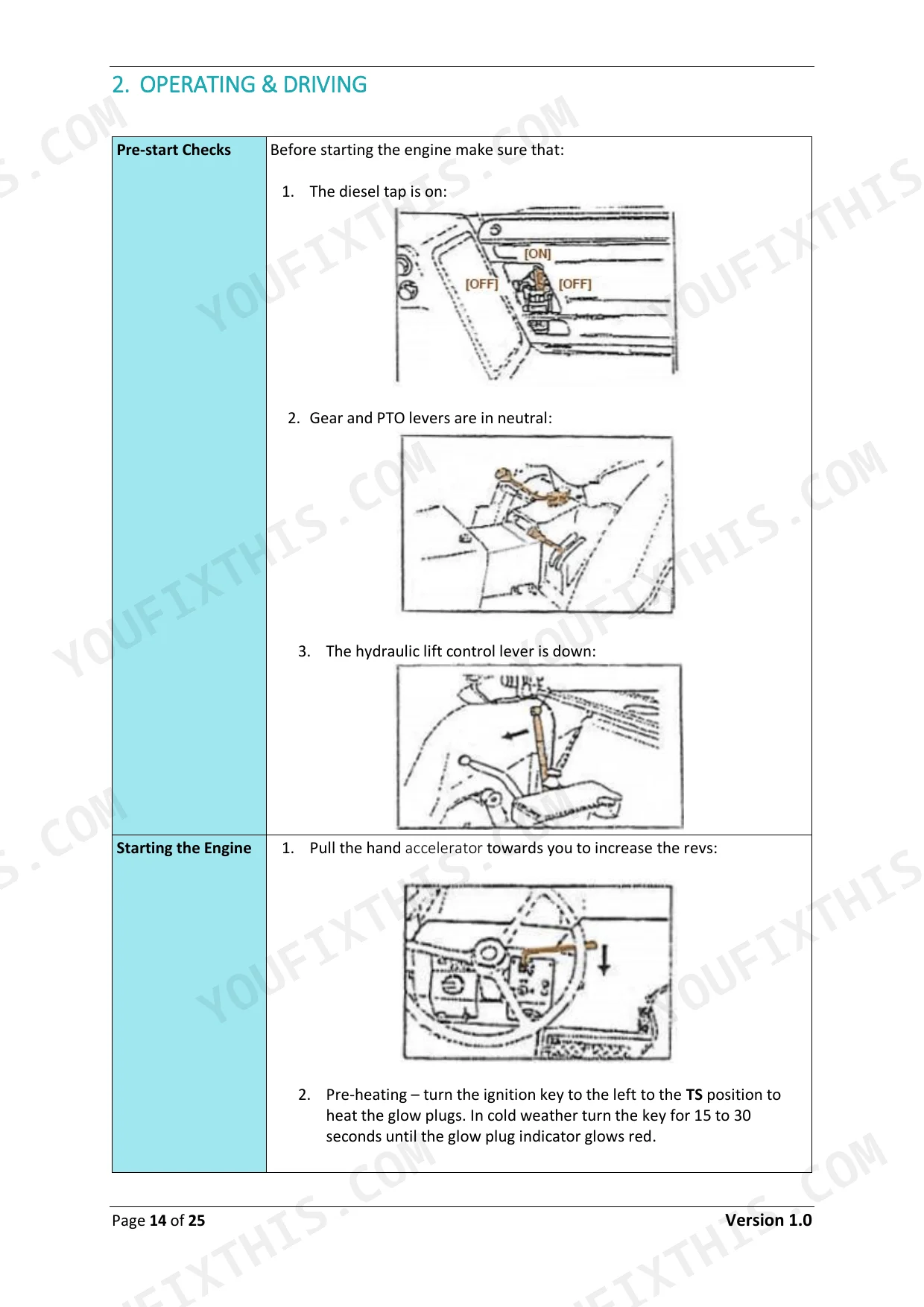

| Operating & Driving | 14-16 | Pre-start Checks, Starting the Engine, Stopping the Engine, Driving the Tractor |

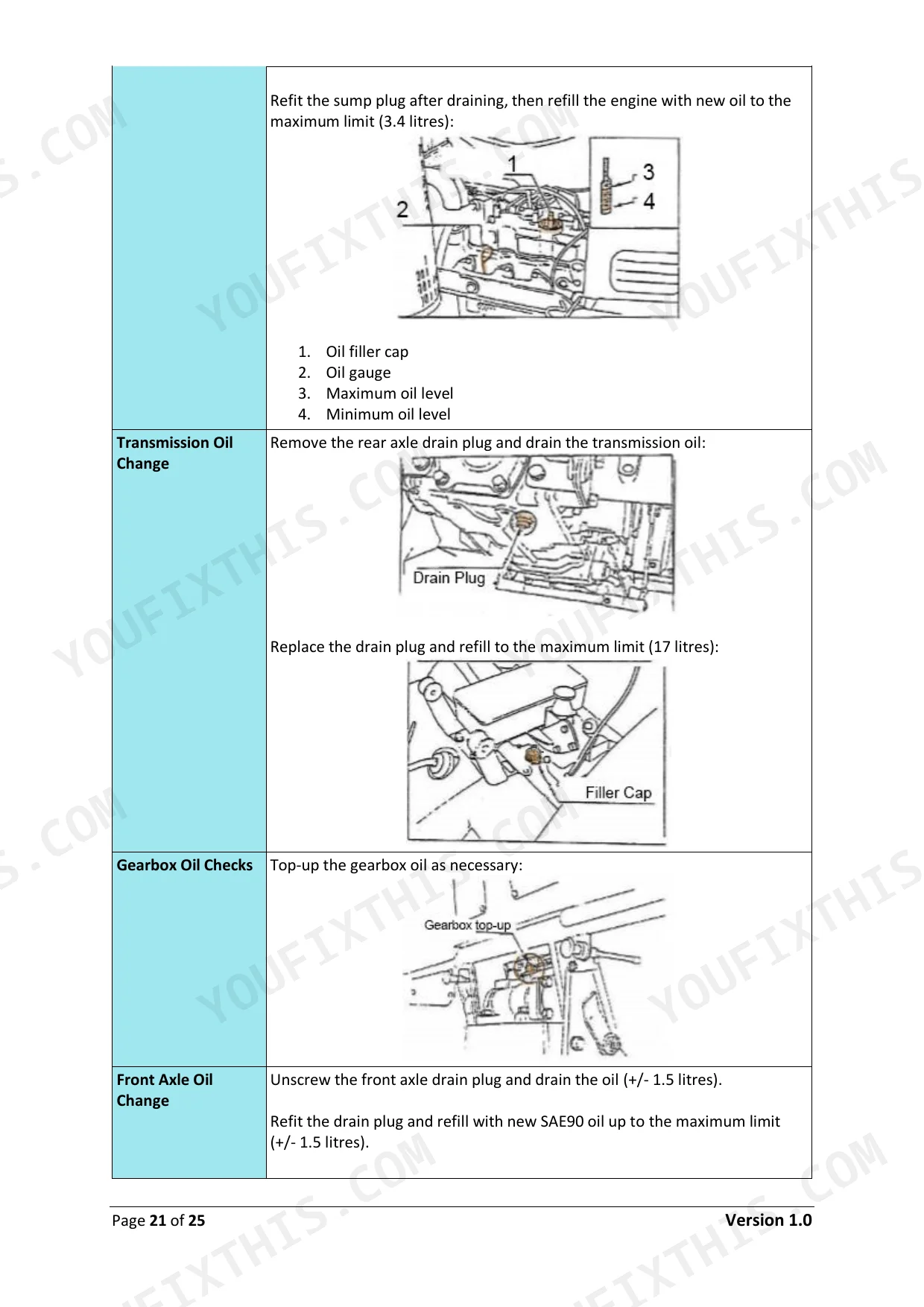

| Maintenance & Checks | 17-22 | Rear Axle Oil Level, Engine Oil Level, Water Level, Air Filter Cleaning, Fan Belt Tension, Brake Pedal Adjustment |
| Specifications | 23 | Engine, Dimensions, Tread, Tyre Size, PTO, Transmission Type |
| Electrical | 24-25 | Wiring Diagram, Component Location, Glow Plug Indicator, Main Switch, Ignition Switch, Battery |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| B1200DT | ||
| Battery Capacity | NT60 (35Ah) | p. 23 |
| B1400DT | ||
| Battery Capacity | NT80 (45Ah) | p. 23 |
| B1200DT, B1400DT | ||
| Self-starter Power | 12V/0.6kw | p. 23 |
| B1600DT | ||
| Self-starter Power | 12v/0.8kw | p. 23 |
| Engine Power | 16HP/2600RPM | p. 23 |
| B1400 | ||
| Fuse T1 | 25A | p. 24 |
| Fuse T2 | 25A | p. 24 |
| B1410, B1610 | ||
| Lower Link End Max Loading Weight | 300kg | p. 2 |
| Max Drawbar Load | 330kg | p. 2 |
| Trailer Max Load Capacity | 1000kg | p. 3 |
| B1200DT, B1400DT, B1600DT | ||
| Fuel Tank Capacity | 20L | p. 23 |
| Transmission Oil Capacity | 17L | p. 23 |
Kubota B1200–B1902 Series Common Problems This Manual Covers
Kubota B1200 engine won't crank or starts intermittently when key is turned p. 24
Check the battery terminals for corrosion and verify charge before suspecting the starter. On B1600DT models the battery should be NS70L (65Ah) per the specifications on page 23. Inspect the speed control pedal plunger switch and main fuse link (0.5mm² on B1400). Replace any blown fuse before retrying.
Manual Section: ElectricalEngine hard to start in cold weather or when battery charge is low
Use the decompression lever as described on page 6 to assist starting in cold conditions. Verify fuel is fresh and the fuel filter is not blocked. Bleed air from the fuel system after any filter service following the procedure on page 20. Confirm engine oil capacity is topped to 3.4L before extended cranking.
Manual Section: Dashboard & ControlsBlack or white smoke from exhaust with rough idle and noticeable loss of power p. 20
Match the exhaust color to the diagnostic guide on page 20. Black smoke points to a rich mixture: clean the air filter immediately to prevent dust ingestion and engine seizure per page 18. White smoke at low temperature can be normal during warm-up. Clean a blocked fuel filter and bleed air from the lines before next start.
Manual Section: Maintenance & ChecksEngine overheating under load with possible battery charge warning p. 18
Stop the tractor and let it cool before opening the radiator cap. Inspect fan belt tension following the slack measurement procedure on page 18. A loose belt causes both charging issues and overheating. Clean radiator fins of chaff and check coolant level. Confirm the fan shroud is intact before resuming work.
Manual Section: Maintenance & ChecksClutch slipping with reduced power transmission or pedal feels wrong underfoot p. 19
Measure clutch pedal free play at the pedal pad. It must fall between 20mm and 30mm on all models. Adjust the linkage per the procedure on page 19 if play is out of range. Slipping with correct play indicates worn linings requiring service. Recheck brake pedal play at the same time, target 30mm to 40mm.
Manual Section: Maintenance & ChecksDifferential lock will not release after engaging in soft ground p. 11
Release the clutch fully or lightly depress both brake pedals together to free the lock, following the procedure on page 11. Never force the lever. Avoid engaging the differential lock during turns or on hard surfaces. PTO 1st gear runs at 550 RPM, confirm PTO is disengaged before parking.
Manual Section: Dashboard & ControlsFrequently Asked Questions
How do I bleed the fuel system on a Kubota B1500 after replacing the fuel filter?
Turn the fuel filter to the ON position after refitting. Then open taps 1-2 at the top of the injection pump, followed by taps 3-4 at the top of the filter. The manual warns to only open the pump and filter taps when draining.
What does a Kubota B1702 overheating or low-oil-pressure warning mean?
The Oil Pressure Warning Light flags a drop in engine oil pressure. It comes on when the ignition is in the ON position and goes out once the engine is running. Overheating on the B1702 can be caused by a badly adjusted fan belt, which should have a slack movement of +/- 0.7mm.
What are the replacement specifications for battery?
Battery capacity varies by model. The B1200DT takes an NT60 (35Ah), the B1400DT takes an NT80 (45Ah), and the B1600DT requires an NS70L (65Ah).
How quickly can I access this Kubota B1200, B1600 manual after buying?
This is a 25-page searchable PDF ready for immediate download. Works on any device, so you can pull it up on your phone while under the hood. No shipping, no waiting.
Are there any print restrictions on this Kubota B1200, B1600 manual?
Yes. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Are there wiring harness diagrams in this Kubota B1200, B1600 manual?

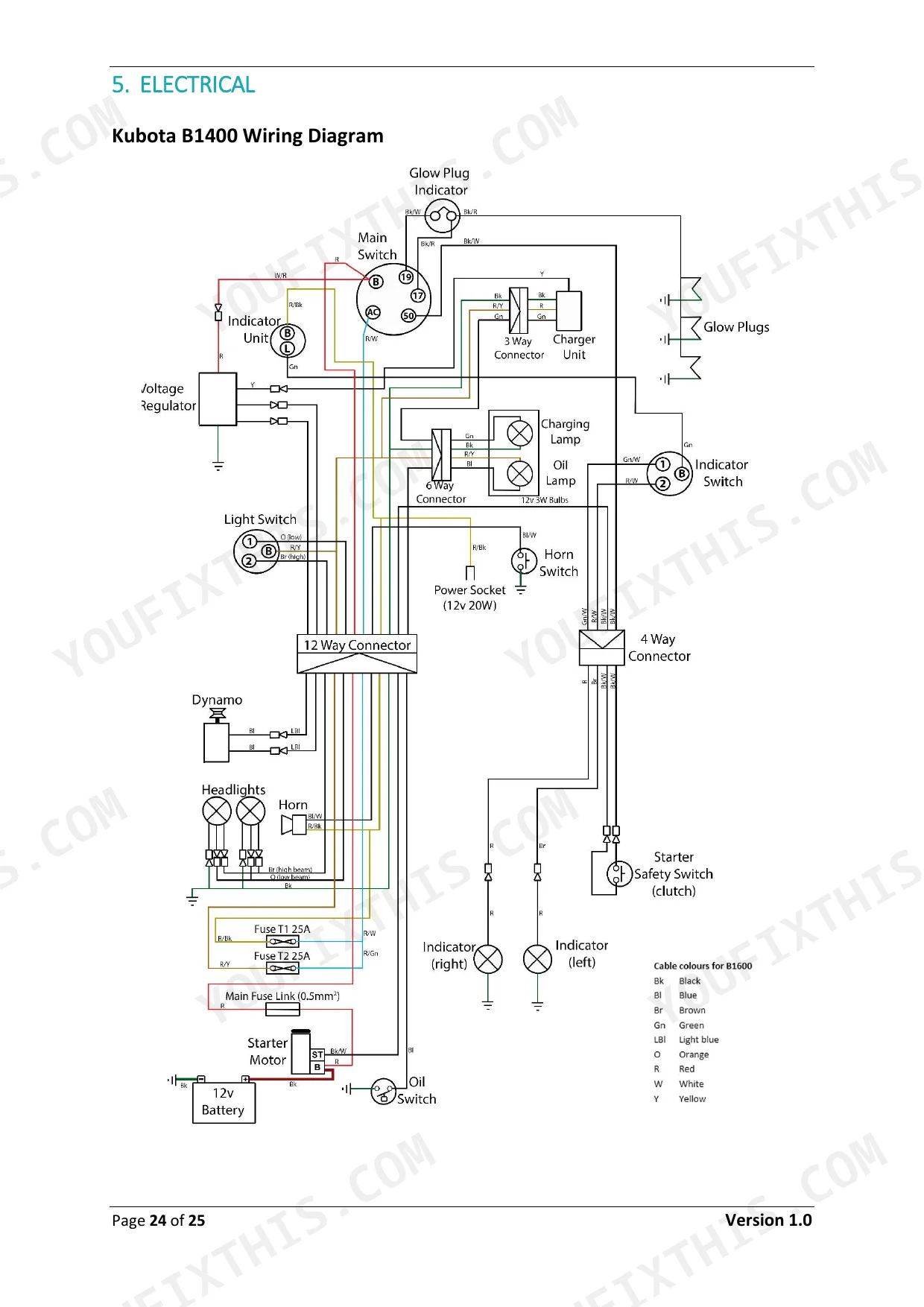

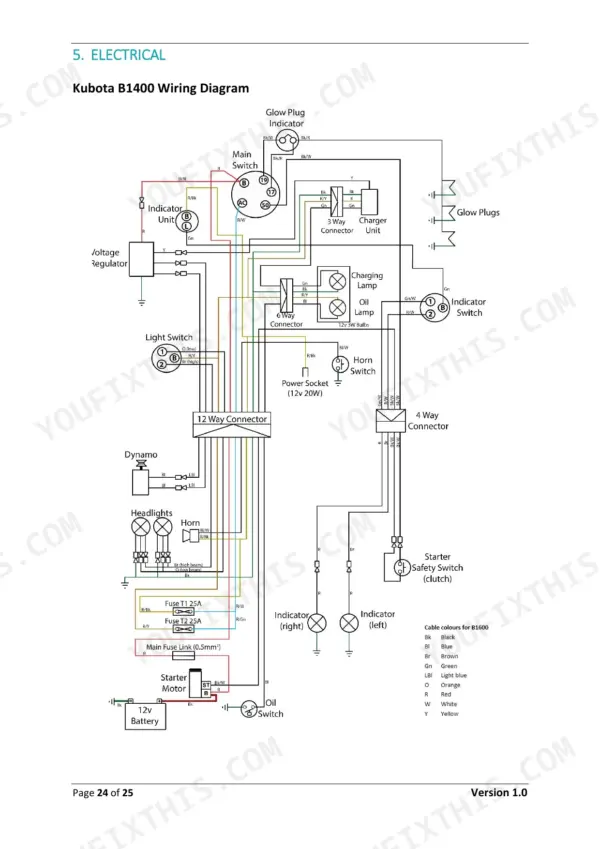

A wiring diagram and electrical component location chart for the Kubota B1400 model are included on pages 24-25.
Document Quality
This document is a clean, full-color scan of an original printed operator's manual. The text is fully searchable and copyable thanks to an OCR layer, making it easy to find specific information. While the text is clear and readable, the diagrams and illustrations are raster images from the scan, so they may appear slightly soft or pixelated when zoomed in closely. The pages are straight and free of any handwriting, stains, or major scanning artifacts.
