This is the parts catalog for the Kubota BT820 backhoe attachment, the backhoe fitted to compact tractors such as the B26. Across 75 pages it breaks the attachment down assembly by assembly, from the main frame, swing frame and boom to the dipperstick, bucket, stabilizer and thumb arm.Every section pairs an exploded diagram with the reference numbers, Kubota part numbers, part names and quantities, so you can identify the exact component you need and order it with confidence. It covers the hydraulic control valve and its BT820 and BT820V component parts, the swing, boom, dipper, bucket, stabilizer and thumb arm cylinders, the hydraulic hoses, the control levers and the step.Use it to source wear parts like pins, bushings, seals, bucket teeth and hoses without guessing at numbers. Download the PDF after purchase and print any diagram page you need at the bench.
What's Inside This Kubota BT820 Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Hydraulics & 3-Point Hitch | Swing Cylinder, Control Valve, Control Valve ##, Hydraulic Hose, Hydraulic Hose ##, Cylinder, Cylinder LH, Cylinder RH | |
| Loader, Backhoe & Attachments | Swing Frame, Boom, Dipperstick, Bucket Link, Bucket, Stabilizer Arm | |
| Body & Operator Station | Main Frame, Step | |
| Decals & Accessories | Label | |
| Other Components | Thumb Arm, Control Lever 1, Control Lever 2, Control Lever 3 ## |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Weight: Fitting Grease | 0.022 Lbs | p. 3 |
Kubota BT820 Common Problems This Manual Covers
Weak or slow digging force

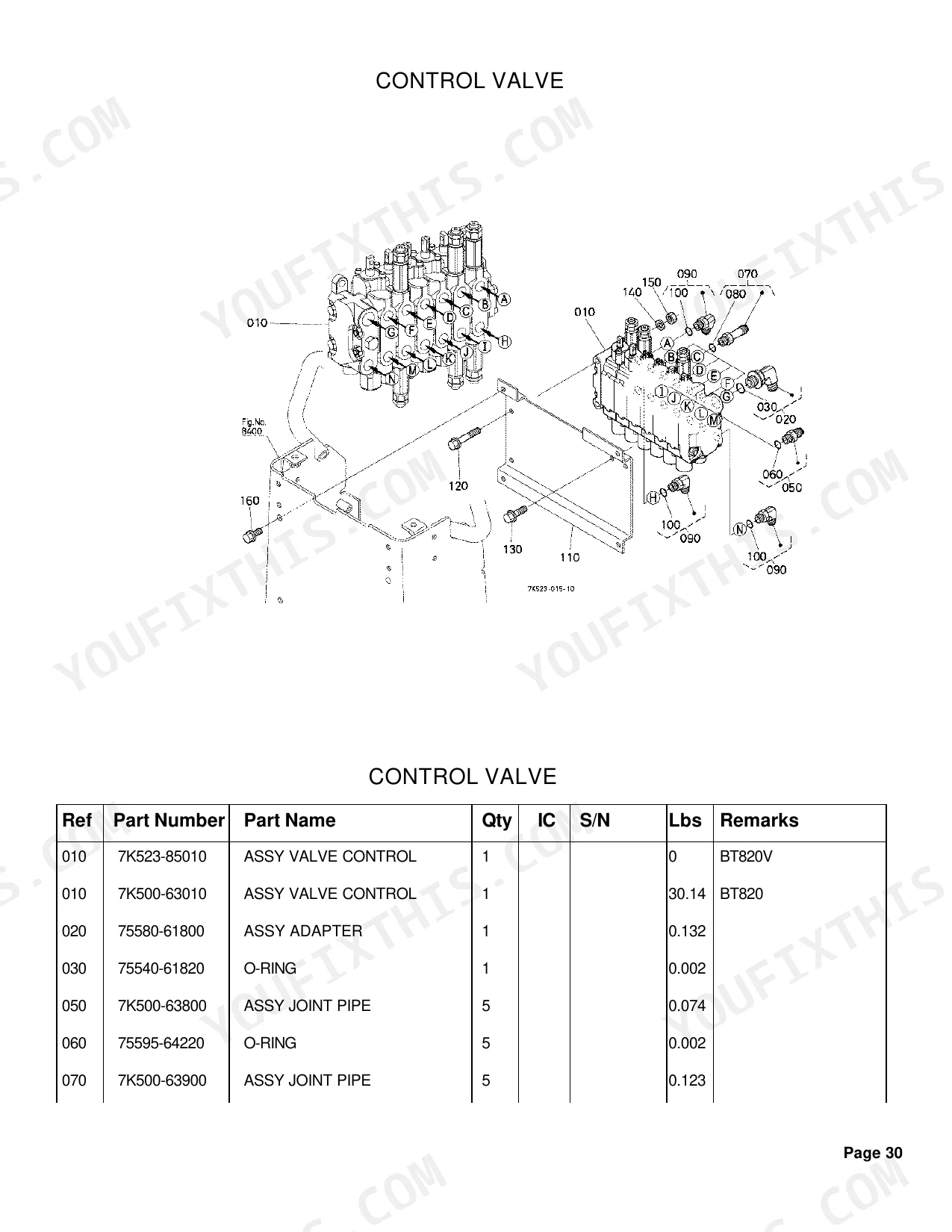

Weak boom and dipper force usually points to the backhoe control valve, including the spool and relief components, rather than a cylinder. The Control Valve section gives the exploded view and part numbers to identify what to replace.
Manual Section: Control Valve p. 31Loose, sloppy backhoe joints

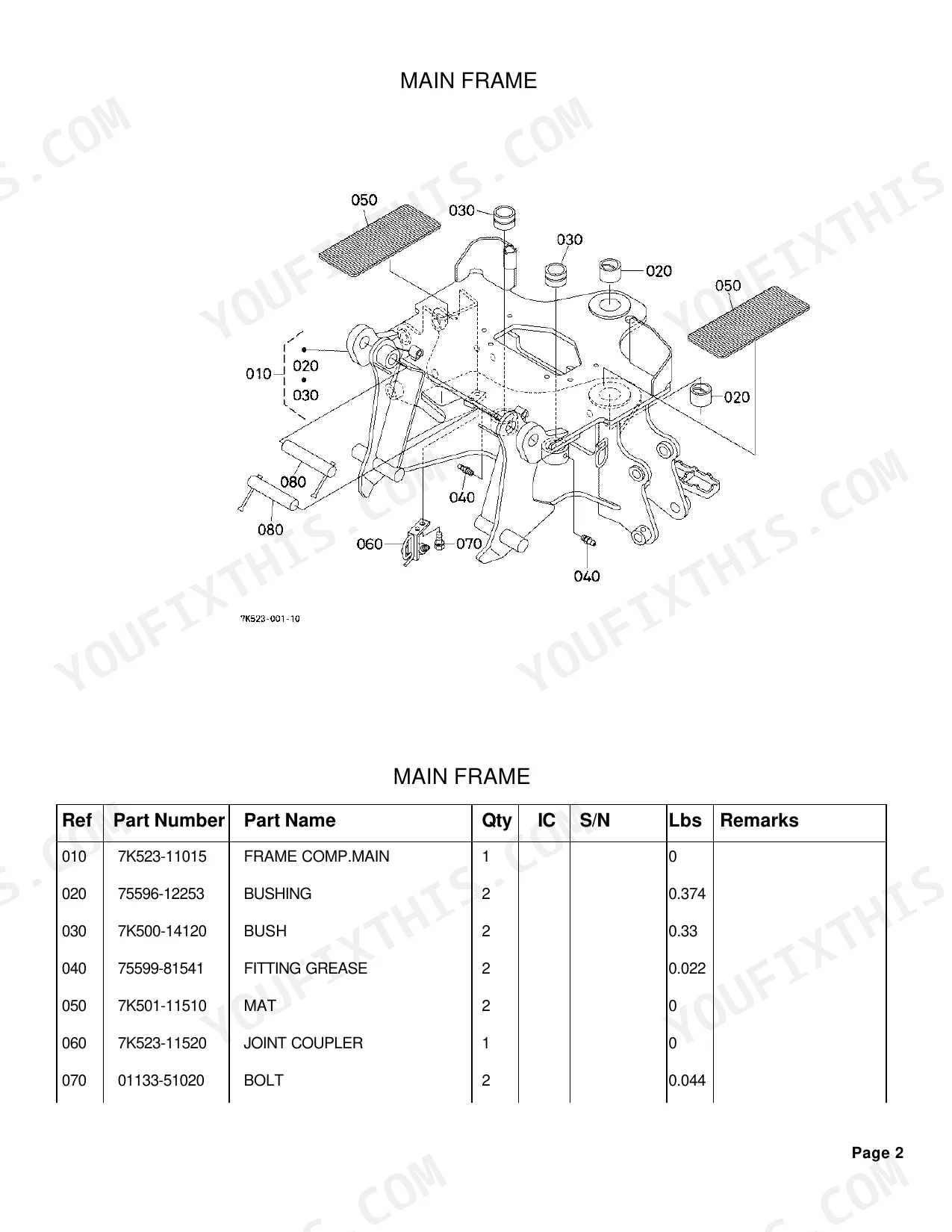

Play in the boom and swing joints comes from worn pins and bushings that need periodic replacement. The Main Frame section lists the bushings, bush and mounting pins with their part numbers.
Manual Section: Main Frame p. 3Bucket teeth and edge wear
Bucket teeth and cutting edges wear down with digging and are common replacement items. The Bucket section covers the bucket parts across its diagrams so you can match the right numbers.
Manual Section: Bucket p. 15Hydraulic hose leaks
Aging hydraulic hoses seep or burst and cause slow, weak function. The Hydraulic Hose(Intake) section identifies the intake hose and fittings for replacement.
Manual Section: Hydraulic Hose(Intake) p. 42Swing cylinder leaks or drifts
A swing cylinder that leaks or lets the backhoe drift needs seals or a rebuild. The Swing Cylinder section shows the cylinder assembly, adapters and bushes with part numbers.
Manual Section: Swing Cylinder p. 7Stabilizer will not hold
A stabilizer that will not hold the machine steady often has worn pins or a tired cylinder. The Stabilizer Arm section lists the arm pins and related parts.
Manual Section: Stabilizer Arm p. 27Frequently Asked Questions
What machine is this parts catalog for?
It is the parts catalog for the Kubota BT820 backhoe attachment, the backhoe fitted to compact tractors such as the B26. It also covers BT820V variant parts where the sections note them.
Does it list part numbers and quantities?
Yes. Every assembly page pairs an exploded diagram with reference numbers, Kubota part numbers, part names and quantities, so you can identify and order the exact component you need.
Where are the hydraulic control valve parts?
The Control Valve section starts the valve breakdown, with separate component-parts diagrams following for the BT820 and BT820V so you can match spools and relief parts to your unit. p. 31
Can I find the bucket and pin parts?
Yes. The Bucket section covers the bucket parts, and the frame sections list the pins and bushings used through the backhoe, each with its part number. p. 15
How will I receive this Kubota BT820 Parts Catalog?
A 75-page searchable PDF, ready for instant download. Opens on any device, so you can pull it up on your phone while you're under the hood. No shipping, no waiting.
Is this Kubota BT820 Parts Catalog printable?
Print whatever you need: individual pages, full chapters, or the entire manual. The PDF is fully unlocked.
Are hydraulic system diagrams in this Kubota BT820 Parts Catalog?
This is a parts catalog. It includes exploded-view diagrams for all BT820 hydraulic components, control valves, cylinders, hose runs, with OEM part numbers for each assembly. It does not contain hydraulic circuit schematics, flow diagrams, or pressure specifications; those live in the BT820 service manual.
