Part of the Kubota Parts Manuals.
This is the factory parts catalog for the Kubota LA844 front loader, a 49 page reference organized by system with exploded diagrams matched to Kubota part numbers, quantities and serial number ranges. It covers the loader from the frame and front attachments through the control valve, control lever and full hydraulic system, with the optional quick hitch, bale spear and pallet fork broken out separately.Use it to identify the exact replacement part before ordering. Each section pairs a picture page carrying reference numbers with a part number page, so you can trace a worn component straight to its part number.For owners and independent mechanics servicing a loader that lifts weakly, drifts or leaks, it removes the guesswork of matching hydraulic cylinders, hoses, valves, pins and bushings to the correct Kubota part numbers.
What's Inside This Kubota LA844 Parts Manual
| System | Pages | Key Topics |
|---|---|---|

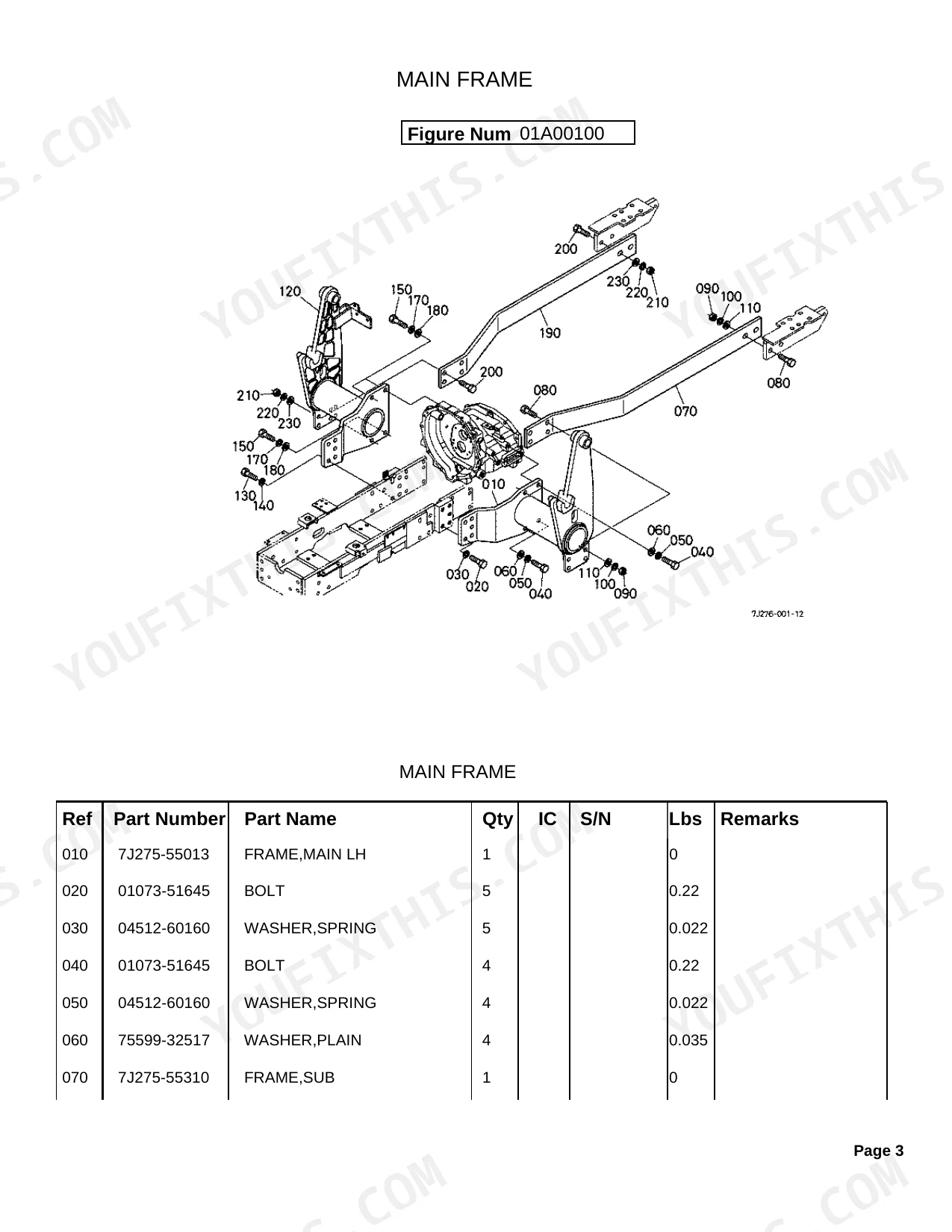

| Frame | 3-9 | Main Frame, Side Frame, Front Guard ## [Mx8190 Option] |

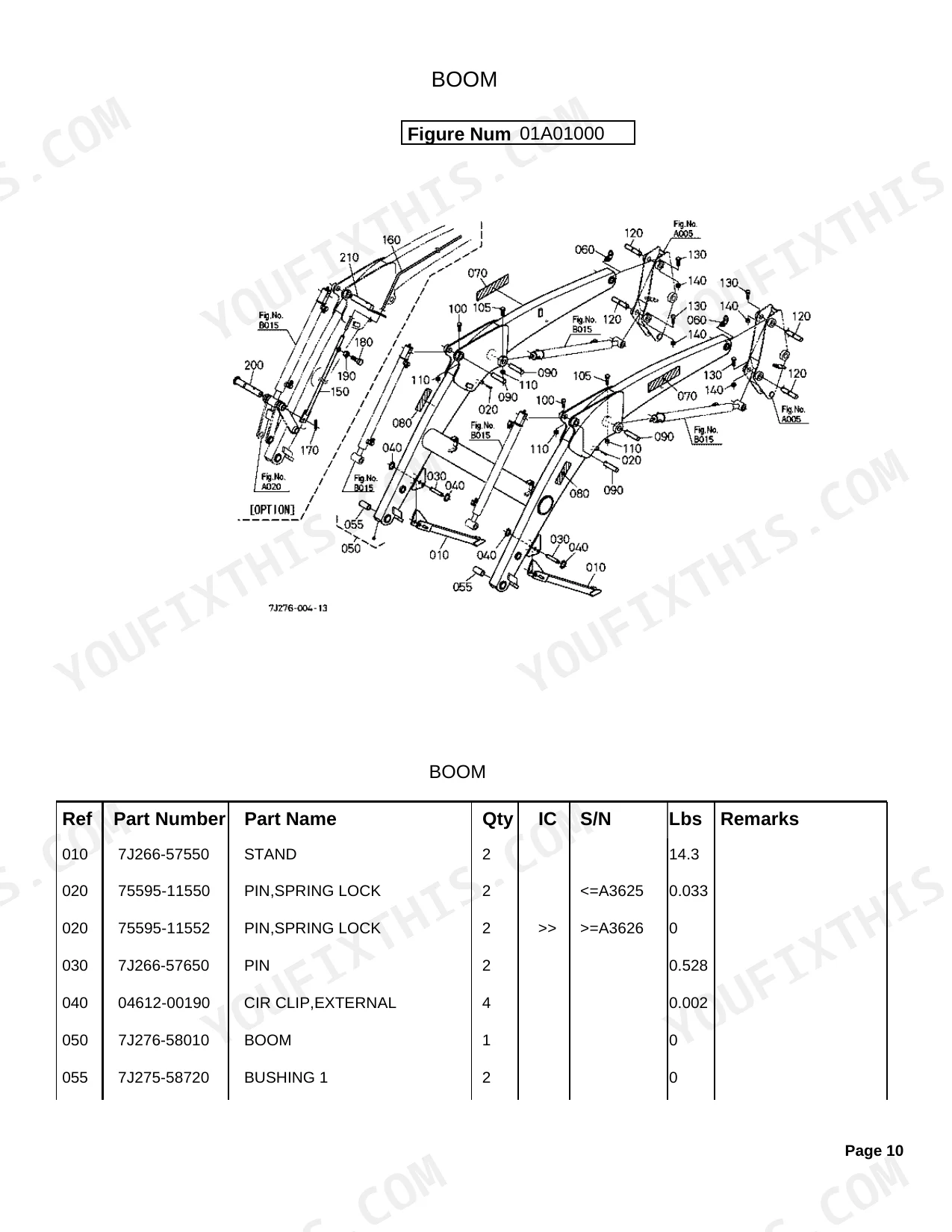

| Front Attachments | 10-22 | Boom, Bucket Link, Bucket ## [L2276], Bucket ## [L2286] Blade, Bolt on (Tl1748) [Option], Bucket ## [L2296] Blade, Bucket ## [L2236] |

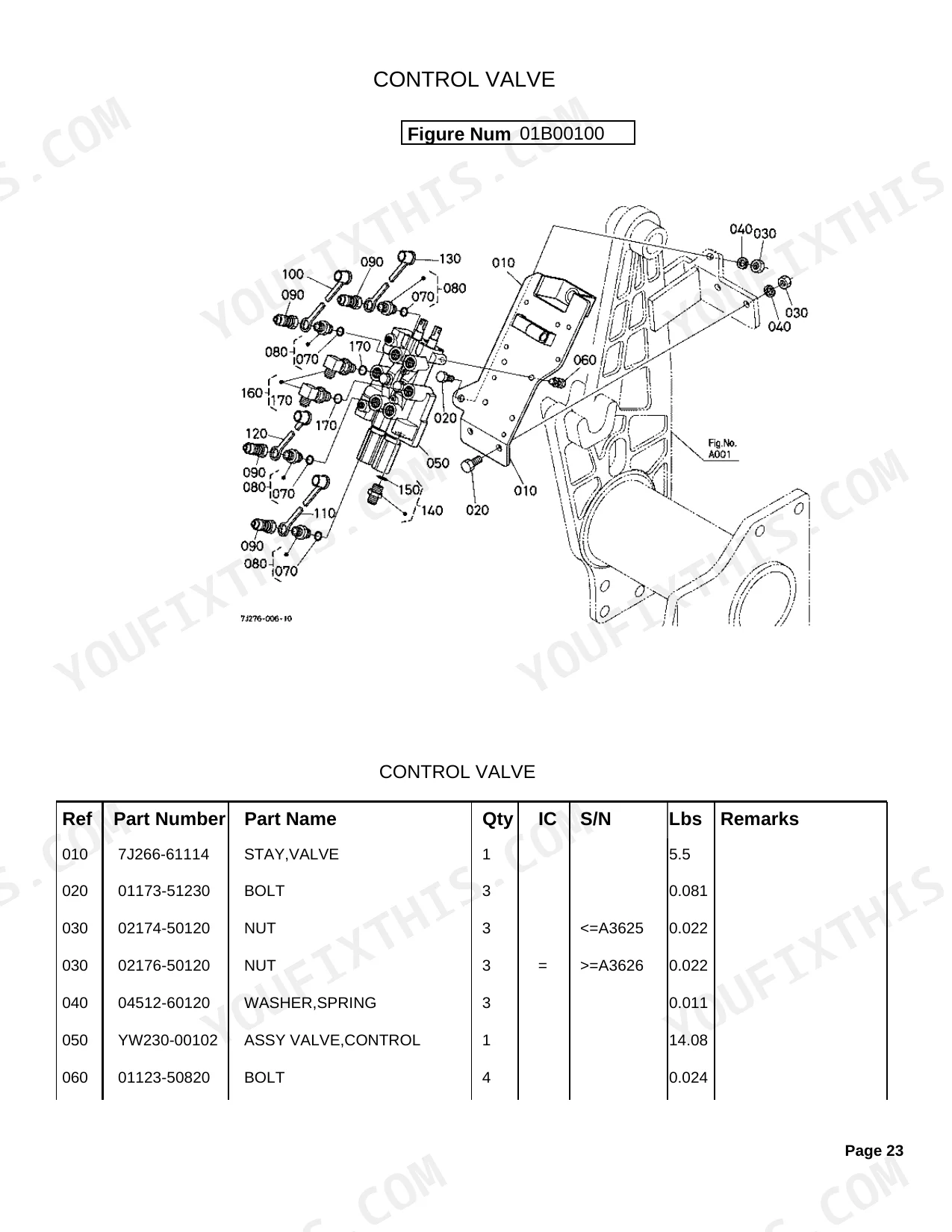

| Control Valve | 23-27 | [Component Parts] |
| Control Lever | 28-31 | Lever, Joint, Rod End, Nut, Pin, Washer, Spring, Boot |

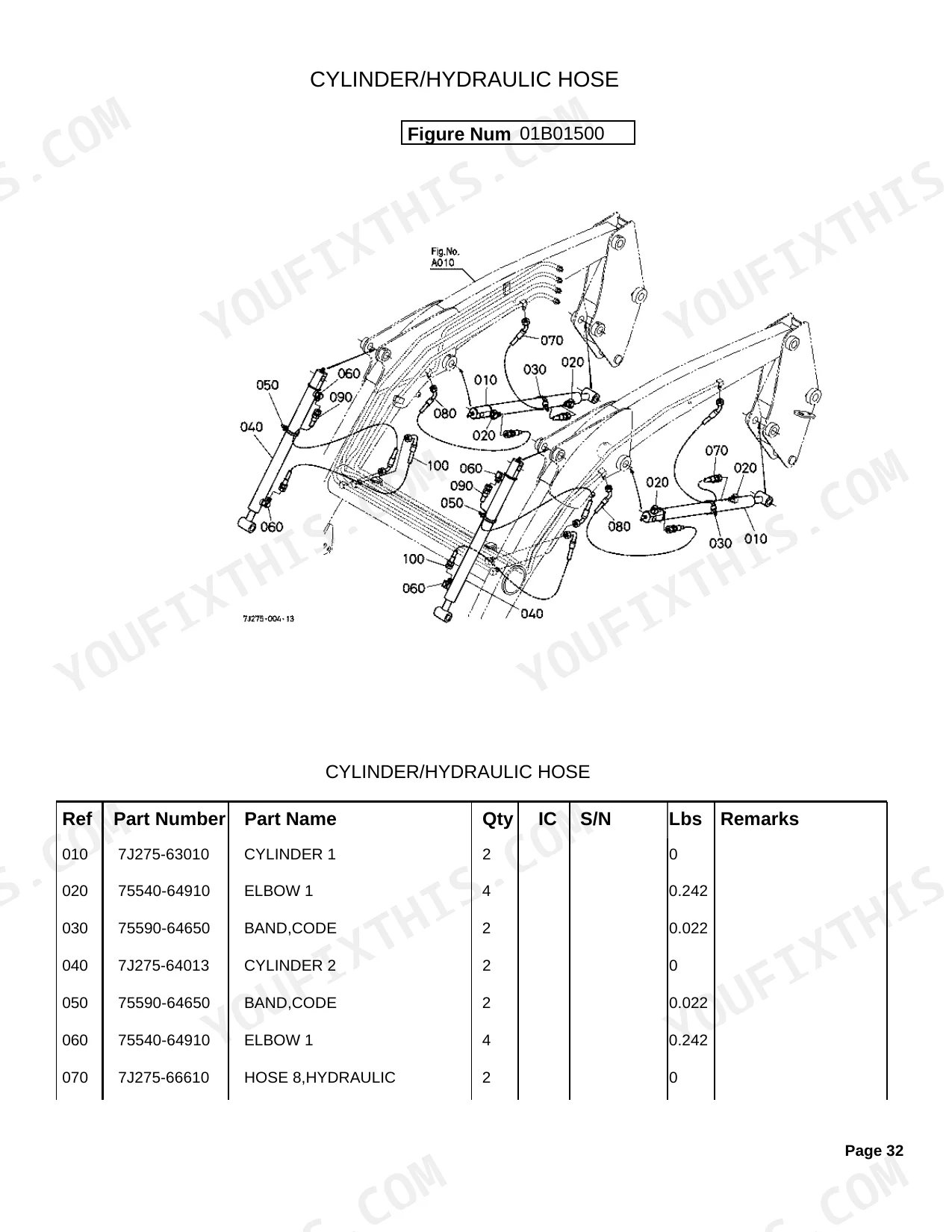

| Hydraulic System | 32-42 | Cylinder/Hydraulic Hose, Hydraulic Hose (Hyd.Outlet Block), Hydraulic Tube, Cylinder (Boom) [Component Parts], Cylinder (Bucket) [Component Parts] |

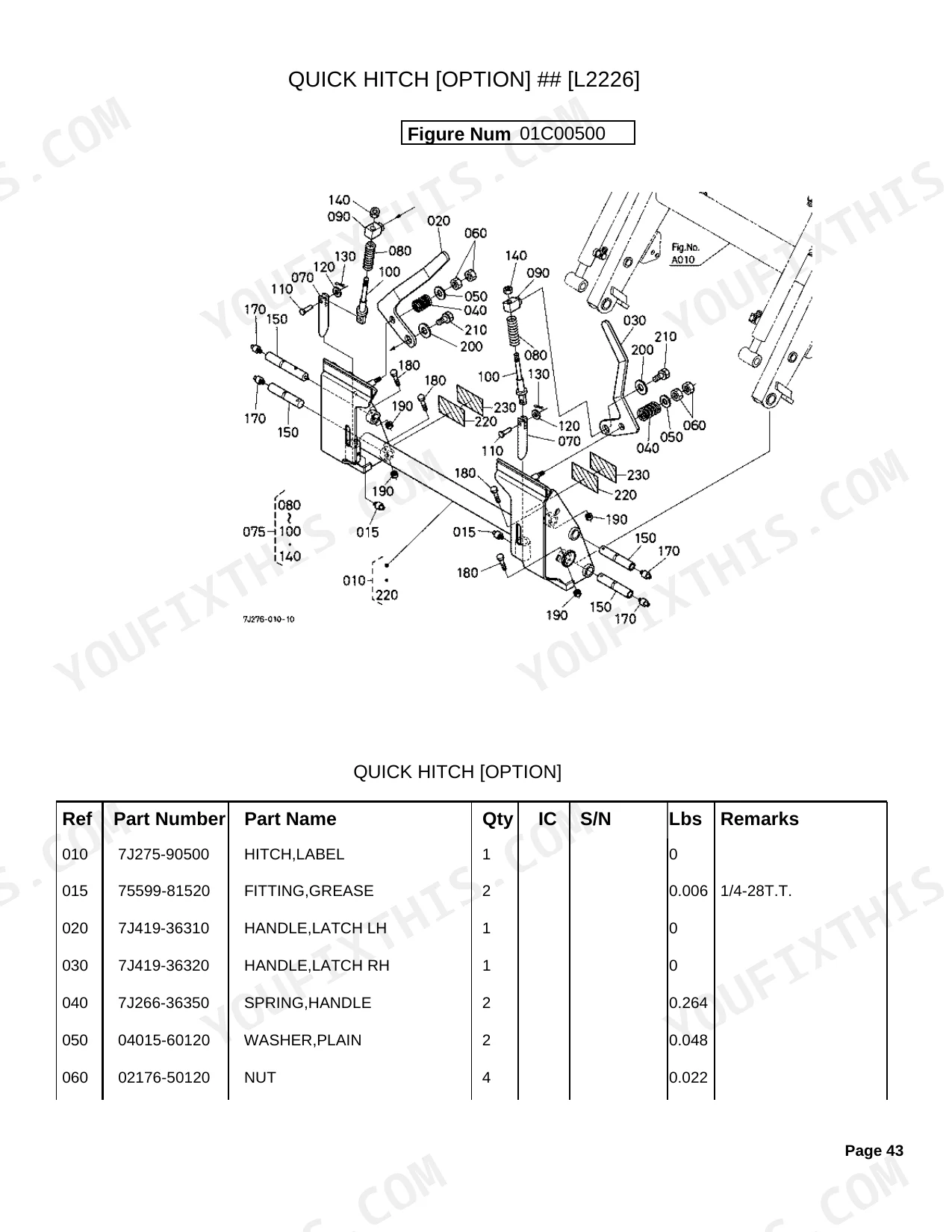

| Option | 43-47 | Quick Hitch [Option] ## [L2226], Bale Spear [Option] ## [L2237], Pallet Fork [Option] ## [L2238] |
| Accessories and Service Parts | 48-49 | Operator'S Manual(F., Operator'S Manual(E., Tag |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| FITTING,GREASE Thread Specification | 1/4-28T.T.*.68 | p. 13 |
| HEX.BOLT Size | M8*1.25*60 | p. 15 |
| PLOW BOLT Thread Specification | 1/2-13UNC*1- | p. 17 |
| NUT Thread Specification | 1/2-13UNC | p. 17 |
| WASHER,SPRING LOCK Size | 1/2 | p. 17 |
| NUT Thread Specification (Cylinder Boom) | M22*1.5 | p. 39 |
| NIPPLE,GREASE Thread Specification | M8*1.25 | p. 40 |
| FITTING,GREASE Thread Specification (Quick Hitch) | 1/4-28T.T. | p. 44 |
Kubota LA844 Common Problems This Manual Covers
Slow, jerky, or weak lift
Contaminated fluid, a restricted filter or internal cylinder leakage make the loader move slowly or jerk under load. The hydraulic system section breaks out the cylinders, hoses and tubes for replacement.
Manual Section: Hydraulic System p. 32Bucket tilt lowers by itself
A bucket that drops after lifting, even after resealing, often has a leaking control valve spool. The control valve section exploded the valve so you can identify the internal parts.
Manual Section: Control Valve p. 23Loader unresponsive to joystick input
Inconsistent response can come from worn joystick linkage or a damaged control lever joint. The control lever section diagrams the lever, joint, rod end and boot parts.
Manual Section: Control Lever p. 28Loose linkage, worn pins and bushings
Play in the boom and bucket linkage comes from worn pins and bushings in the front attachments. This section breaks out the boom, bucket link and bucket hardware for replacement.
Manual Section: Front Attachments p. 10Hydraulic leaks at hoses and fittings
Aging hoses, tubes and fittings weep oil around the loader circuit. The hydraulic system section lists the individual hoses, outlet block and tube parts for accurate replacement.
Manual Section: Hydraulic System p. 32Quick-attach hardware wear
Worn latch pins and springs keep option attachments from seating securely. The option section breaks out the quick hitch, bale spear and pallet fork hardware.
Manual Section: Option p. 43Frequently Asked Questions
Which loader does this catalog cover?
It covers the Kubota LA844 front loader, produced between 2003 and 2013, including the frame, front attachments, control valve, control lever and hydraulic system, plus the optional quick hitch, bale spear and pallet fork.
Is this a repair manual or a parts catalog?
It is a parts catalog. It provides exploded diagrams, reference numbers, Kubota part numbers, quantities and serial number ranges for identifying and ordering loader parts. It does not contain repair or torque procedures.
Where do I find the hydraulic cylinder and hose parts?
The hydraulic system section covers the cylinder and hose assemblies, outlet block hoses, tubes and the boom and bucket cylinder component parts, so you can match the correct parts for a leak or reseal. p. 32
Does it break out the control valve parts?
Yes. The control valve section diagrams the valve and its component parts, so you can source the exact internal parts for a valve that leaks or causes tilt drop. p. 23
What do I get after purchasing this Kubota LA844 manual?
A 49-page searchable PDF, ready to download the moment you check out. It opens on any device, so you can pull it up on your phone right at the machine. No shipping, no waiting.
Is this Kubota LA844 Parts Catalog printable?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
