This is the factory Kubota LA844 Workshop Manual, a 51-page PDF covering the LA844 front loader (Kubota publication 9Y111-01680). It is written for the mechanic who services, disassembles, and rebuilds the loader rather than just operates it.Inside you get the loader's hydraulic control valve broken down section by section, the boom and bucket circuits, servicing specifications, troubleshooting charts, and full tightening torque tables. Step-by-step procedures walk through dismounting the loader from the tractor, checking and adjusting, and disassembling and assembling the cylinders and frame.With this manual you can diagnose a boom or bucket that drifts down, reseal a leaking cylinder to the correct dimensions, set the relief valve pressure, and torque every fastener to spec. It downloads as a printable PDF you can keep on the bench or on your phone while you work.
What's Inside This Kubota LA844 Manual
| System | Pages | Key Topics |
|---|---|---|

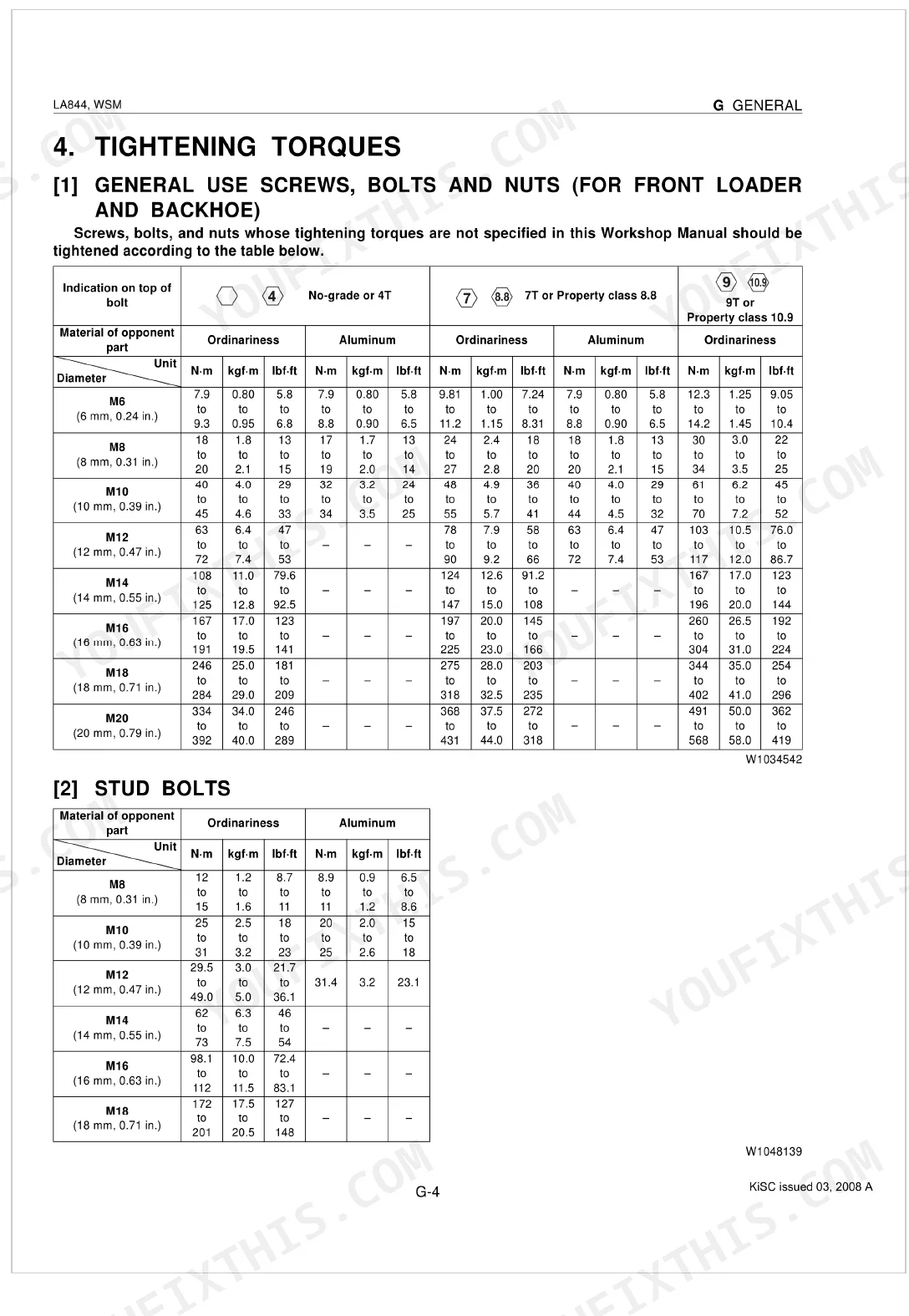

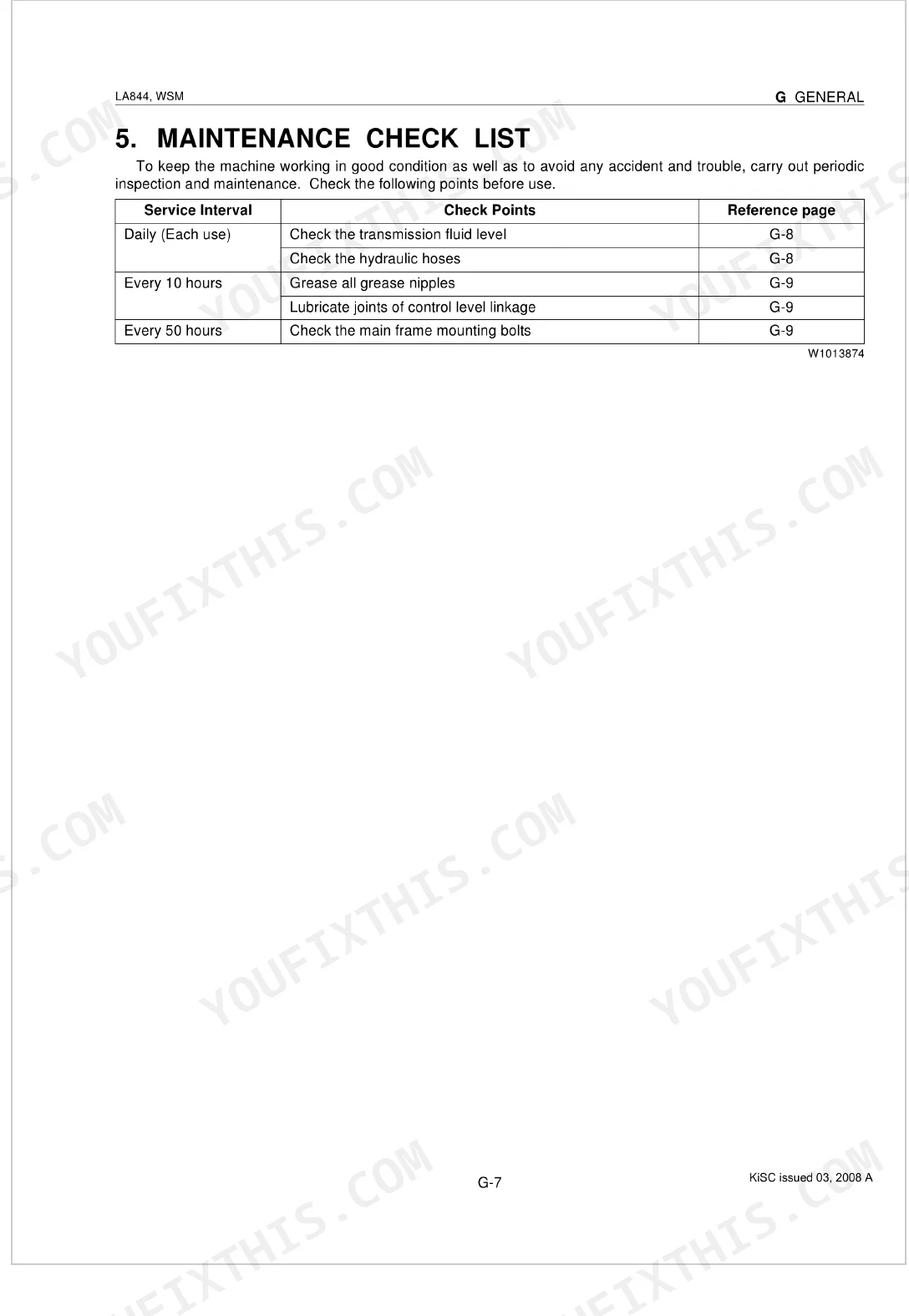

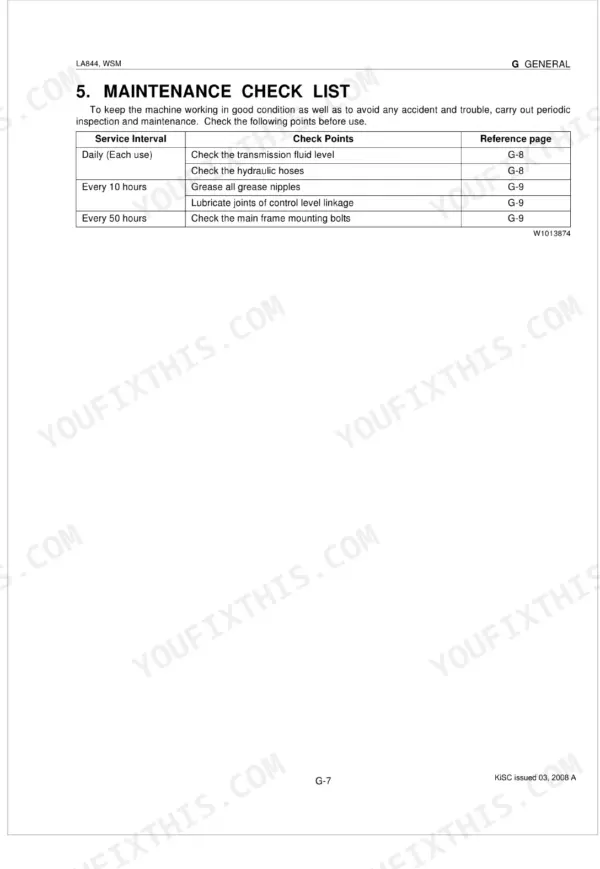

| General | 3-22 | Loader Identification, Lubricants, Tightening Torques (Stud Bolts, American Standard Screws, Bolts and Nuts with Unc or Unf Threads, Plugs, Hydraulic Fittings) |

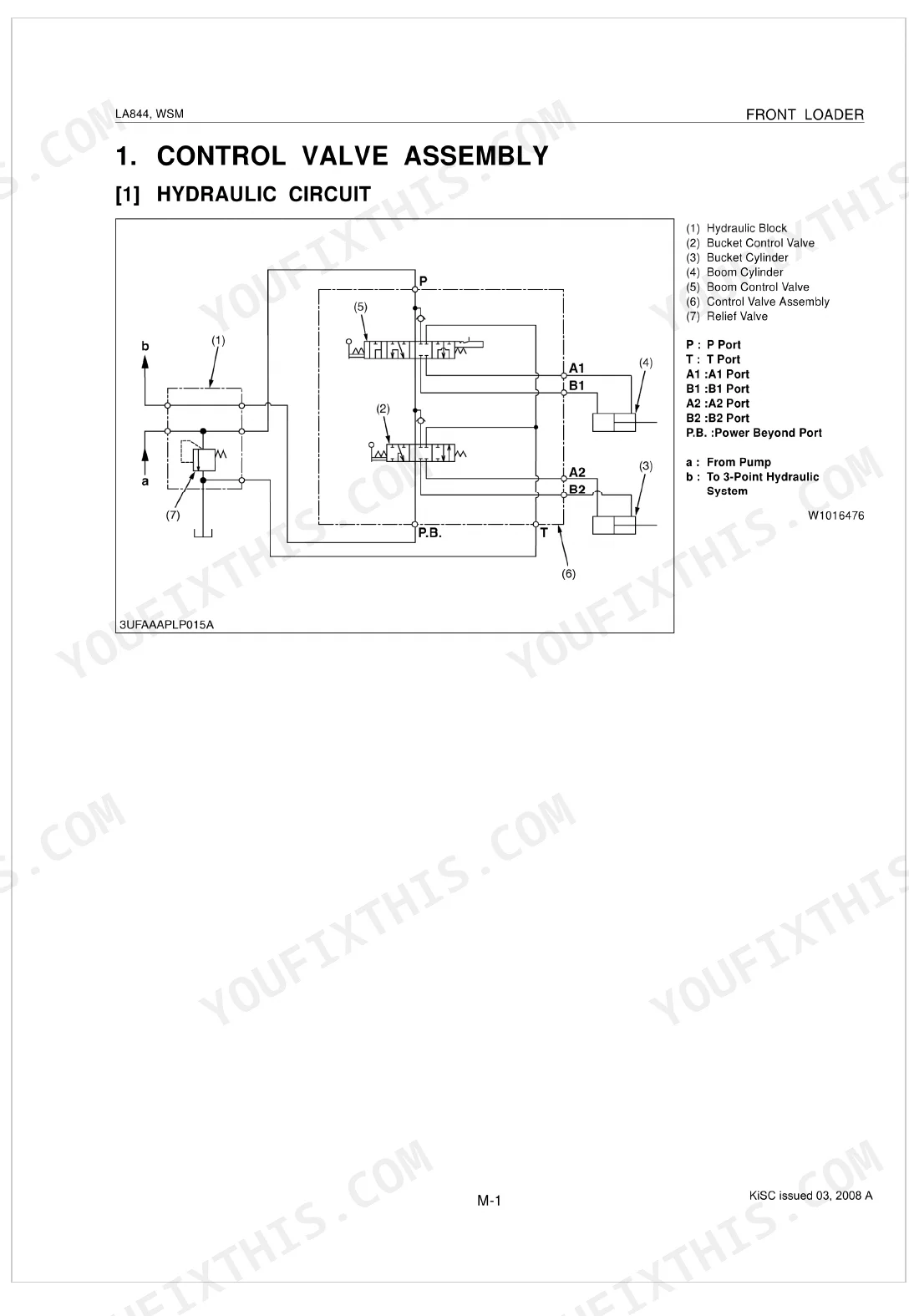

| Mechanism | 23-33 | Control Valve Assembly (Hydraulic Circuit, Hydraulic Block, Structure, Operation, Inlet and Outlet Section, Boom Control Section, Bucket Control Section, Power Beyond, Neutral, Down, Floating, Roll-Back, Dump) |

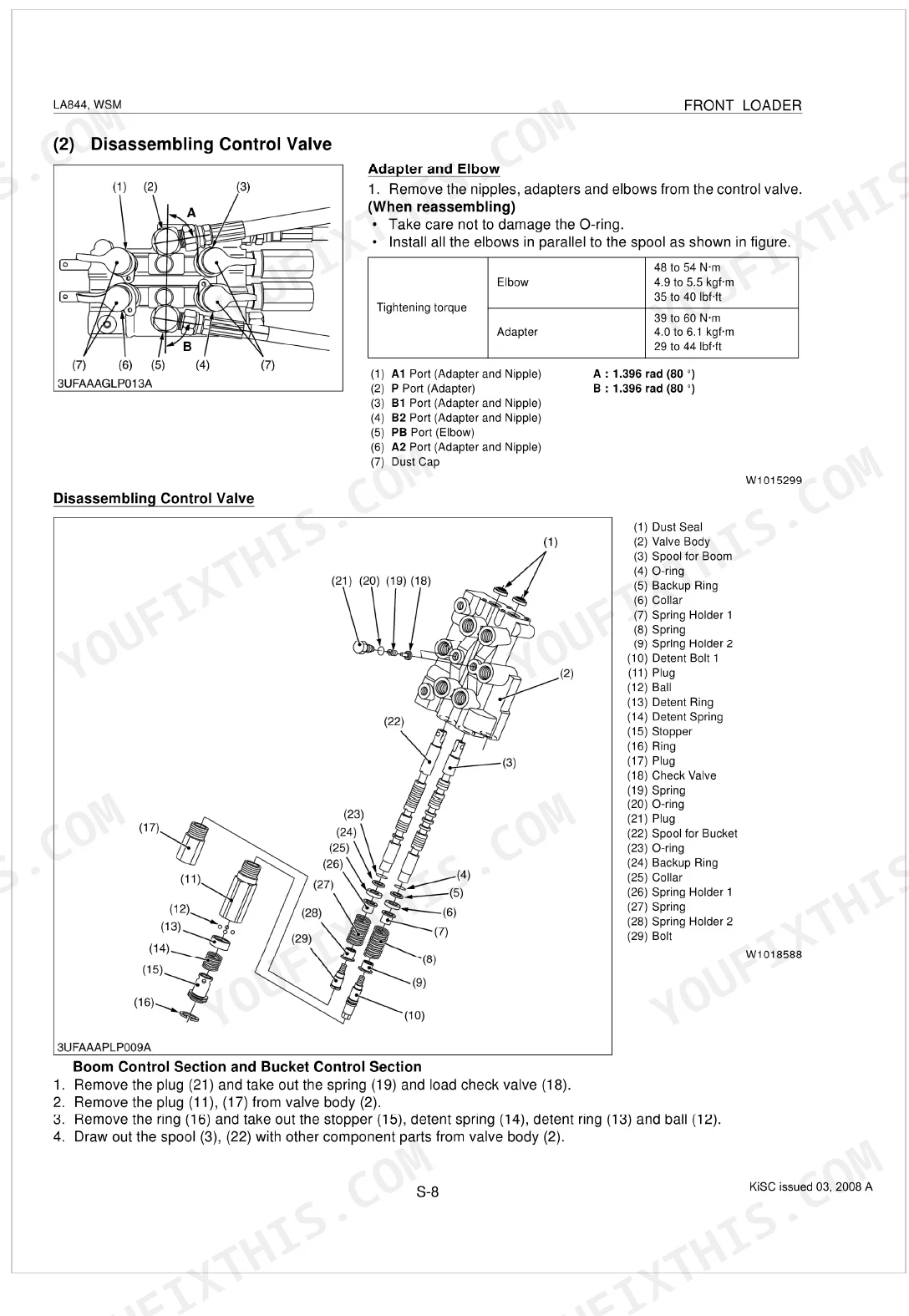

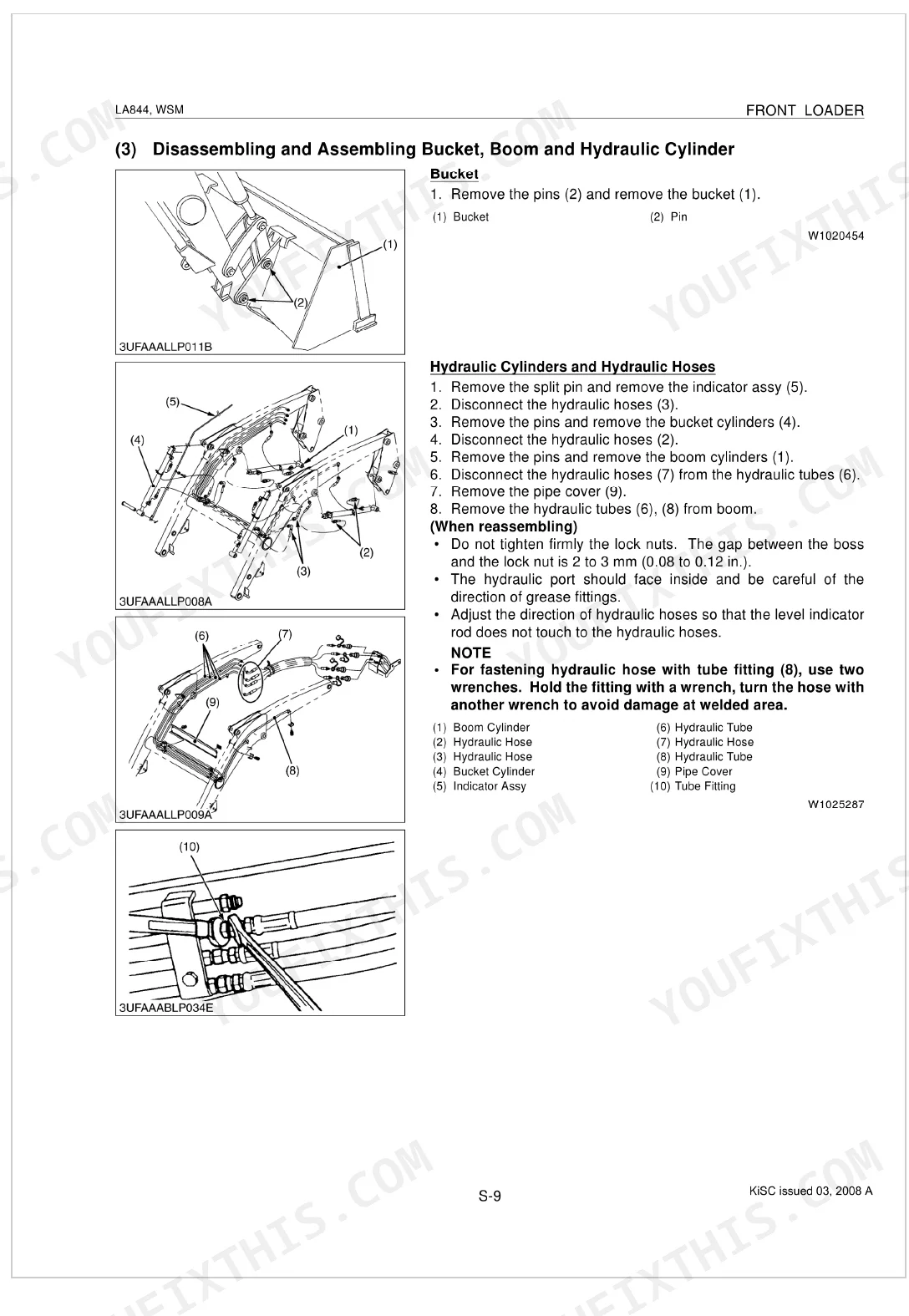

| Servicing | 34-51 | Control Valve, Hydraulic Hose, Control Lever, Bucket, Boom, Hydraulic Cylinder, Piston Rod, Piston Seal |

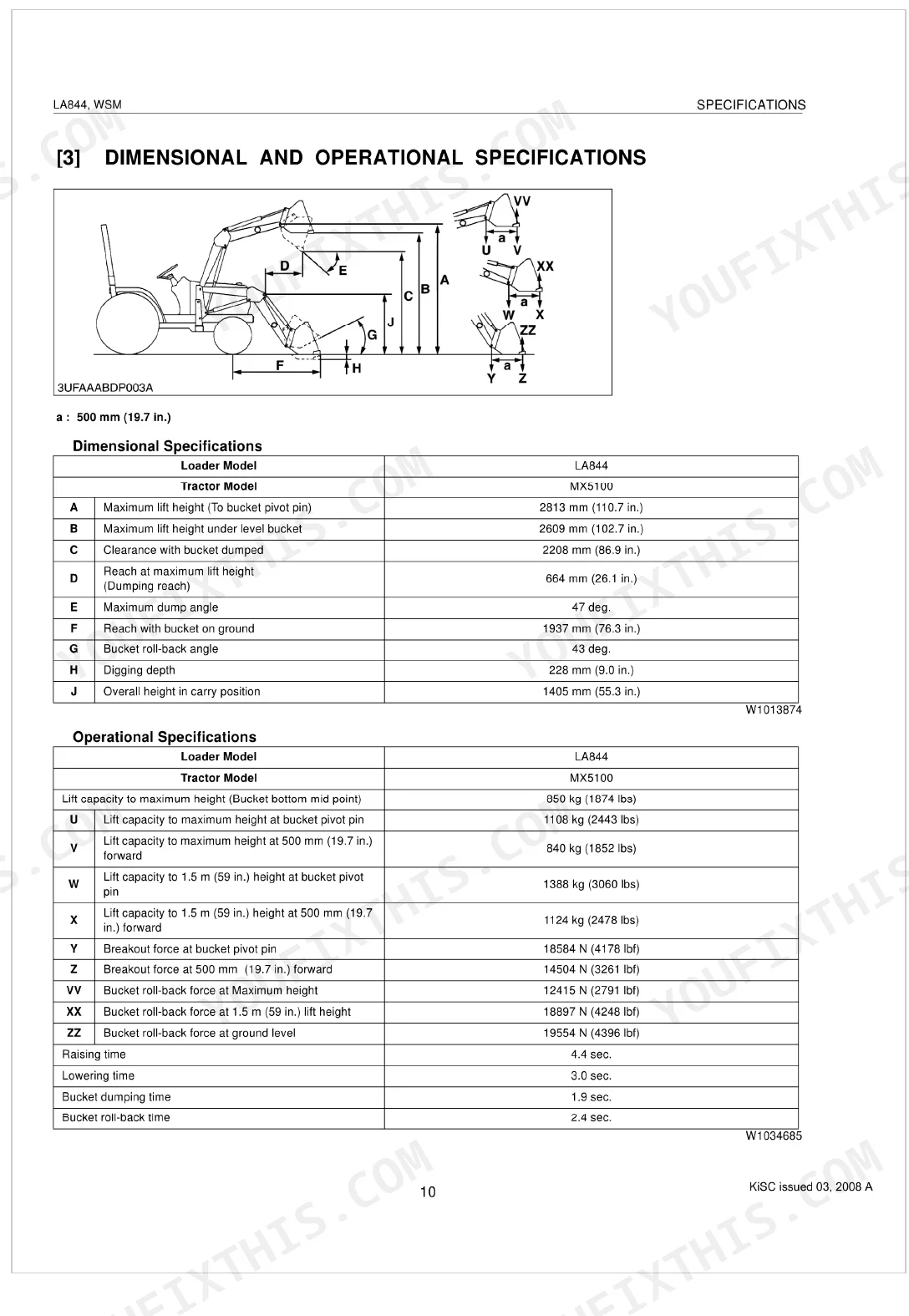

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Bucket cylinder head mounting torque | 460 to 480 N·m | p. 37 |
| Boom and bucket cylinder piston mounting nut | 300 to 320 N·m | p. 37 |
| Boom cylinder head mounting torque | 580 to 600 N·m | p. 37 |
| Piston Seal (A) installation clearance (Boom) | 80 μm (0.0031 in.) | p. 45 |
| Control valve mounting bolt torque | 24 to 27 N·m | p. 41 |
| Elbow tightening torque | 48 to 54 N·m | p. 42 |
| Adjustable elbow, Adapter (O-ring port) (UNF) 9/16 thread size torque | 37 to 44 N·m | p. 19 |
| Adjustable elbow, Adapter (O-ring port) (UNF) 3/4 thread size torque | 48 to 54 N·m | p. 19 |
| Transmission case capacity | 44.0 L | p. 16 |
| Hydraulic fluid type | KUBOTA UDT or SUPER UDT fluid | p. 16 |
| Relief valve setting pressure | 17.7 to 18.1 MPa | p. 36 |
| Relief valve setting condition - Engine Speed | Approx. 2700 min¯¹ (rpm) | p. 36 |
Kubota LA844 Common Problems This Manual Covers
Bucket or boom drifts down after lifting
A loaded bucket or boom that slowly settles on its own points to internal leakage past worn cylinder seals, a leaking spool, or control valve wear. The disassembly and servicing procedures cover pulling the cylinders and resealing them to the listed dimensions.
Manual Section: Checking, Disassembling And Servicing p. 40Loader lift becomes weak or jerky
Slow, weak, or jerky lift and curl usually trace to low hydraulic fluid, air in the system, a clogged filter, or valve restriction. The troubleshooting charts walk the symptoms back to a cause.
Manual Section: Troubleshooting p. 35One loader function stops working
When one motion still works but another suddenly stops, suspect a stuck spool, damaged section of the control valve, or an isolated cylinder fault. The mechanism section explains how each boom and bucket section of the valve operates.
Manual Section: Control Valve Assembly p. 23Loader will not raise under load
A loader that stalls or will not lift under load often has a relief valve set too low or a pressure loss. The servicing specifications give the relief valve setting of 17.7 to 18.1 MPa to check against.
Manual Section: Servicing Specifications p. 36Oil leaks at hydraulic fittings
Weeping fittings and connections are commonly loose or under-torqued rather than failed. The tightening torque tables list hydraulic fitting and cylinder head values so joints seal without being stripped.
Manual Section: Tightening Torques p. 37Frequently Asked Questions
Which loader does this manual cover?
It is the workshop manual for the Kubota LA844 front loader, Kubota publication number 9Y111-01680. It is a single-model service manual for repairing and rebuilding the loader.
Does it include torque specifications?
Yes. The Tightening Torques section lists values such as the boom cylinder head at 580 to 600 N-m and the bucket cylinder head at 460 to 480 N-m, plus fitting and frame torques. p. 37
What hydraulic pressure does the LA844 run?
The loader runs a maximum hydraulic pressure of 18.1 MPa, and the Servicing Specifications give a relief valve setting of 17.7 to 18.1 MPa to verify during repair. p. 36
Does it explain how the control valve works?
Yes. The mechanism chapter breaks the control valve into its inlet, boom, and bucket sections and walks through neutral, up, down, floating, roll-back, and dump operation. p. 23
What do I get after purchasing this Kubota LA844 manual?
A 51-page searchable PDF, ready to download right away. It opens on any device, so you can pull it up on your phone while you're under the hood. No shipping, no waiting.
Is this Kubota LA844 Workshop Manual printable?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
Can I find hydraulic circuit diagrams in this Kubota LA844 manual?
Full hydraulic system diagrams are included, covering circuits, valve locations, and hydraulic component specs for the Kubota LA844.
