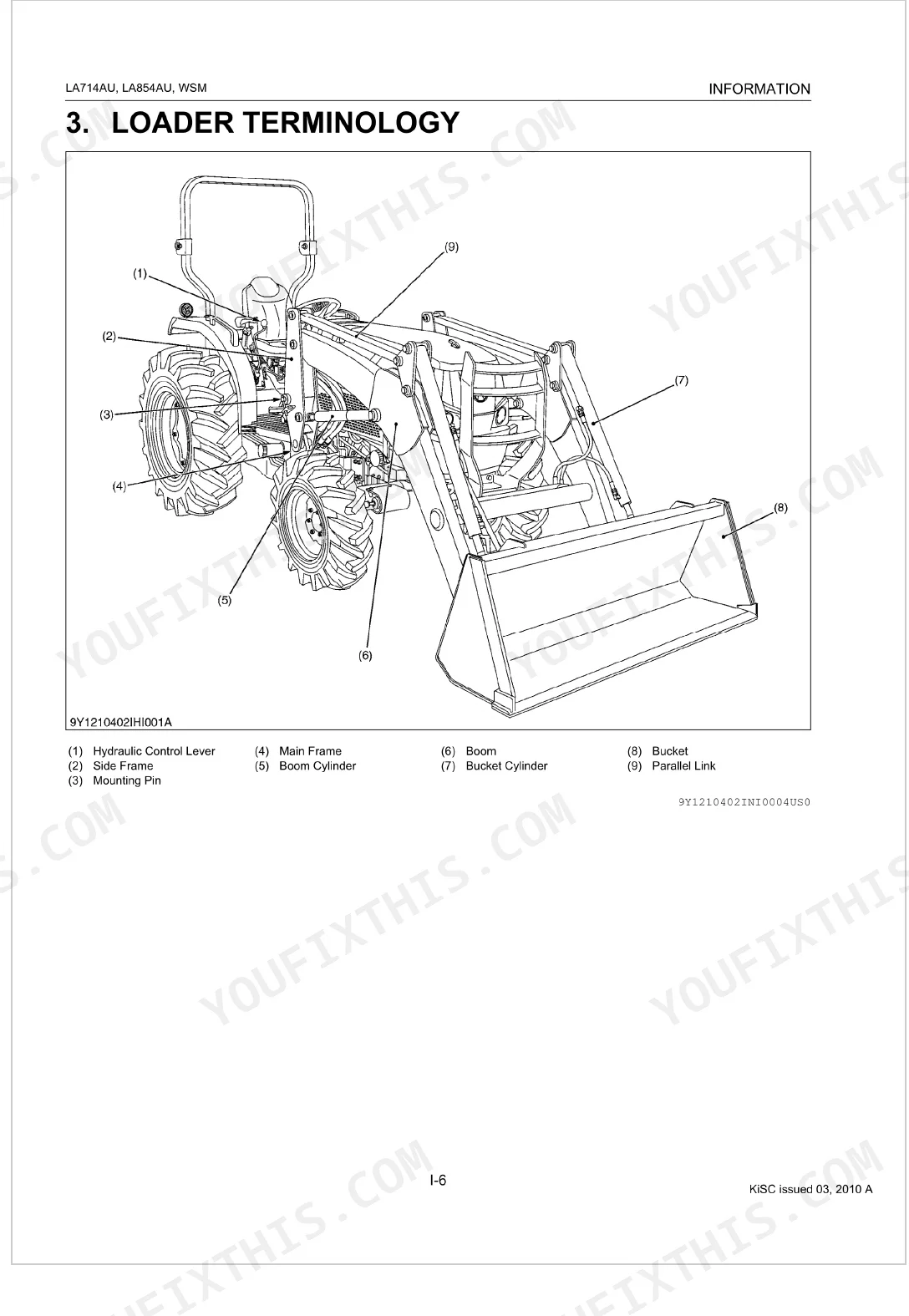

This is the Kubota LA714AU and LA854AU front loader workshop manual, publication 9Y111-04020, a 55-page PDF with a full text layer covering both loader models. It documents loader identification and lubricants, the self-leveling parallel linkage and port relief valve, the hydraulic circuit and block, and the four-position bucket control valve assembly.The Servicing section carries the repair material: troubleshooting charts, servicing specifications, tightening torques, and the procedure for dismounting the loader from the tractor. Model-specific figures include the boom and bucket cylinder torques for each loader, the main frame bolt torque, relief valve setting pressures, and the piston rod bend limit, so a repair can be checked against factory numbers.Buyers download the manual instantly as a PDF that opens on a phone, tablet, or shop computer and prints cleanly, keeping the torque tables and troubleshooting charts ready at the bench.
What's Inside This Kubota LA714AU, LA854AU Manual
| System | Pages | Key Topics |
|---|---|---|
| Information | 3-12 | - |
| General | 13-24 | Loader Identification, Lubricants |
| Mechanism | 25-37 | Self-Leveling (Parallel Linkage Type, Port Relief Valve), Hydraulic Circuit (Oil Flow), Hydraulic Block, Control Valve Assembly (Position Bucket Control Type) |
| Servicing | 38-55 | Control Valve, Port Relief Valve, 3rd. Function Valve, Hydraulic Cylinders, Hydraulic Hoses, Piston Rod Assembly, Cylinder Head, Piston |
Quick Reference Specifications

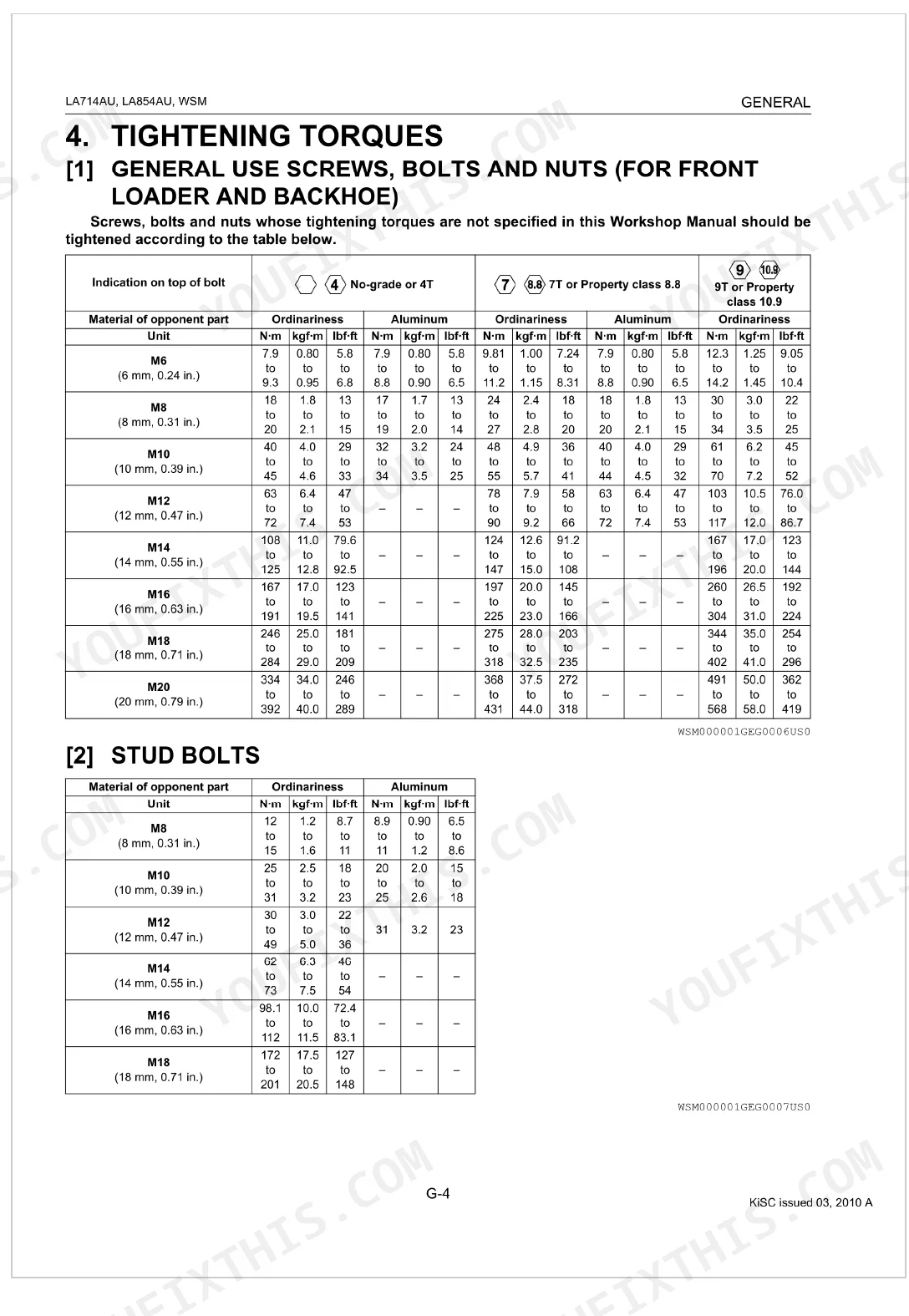

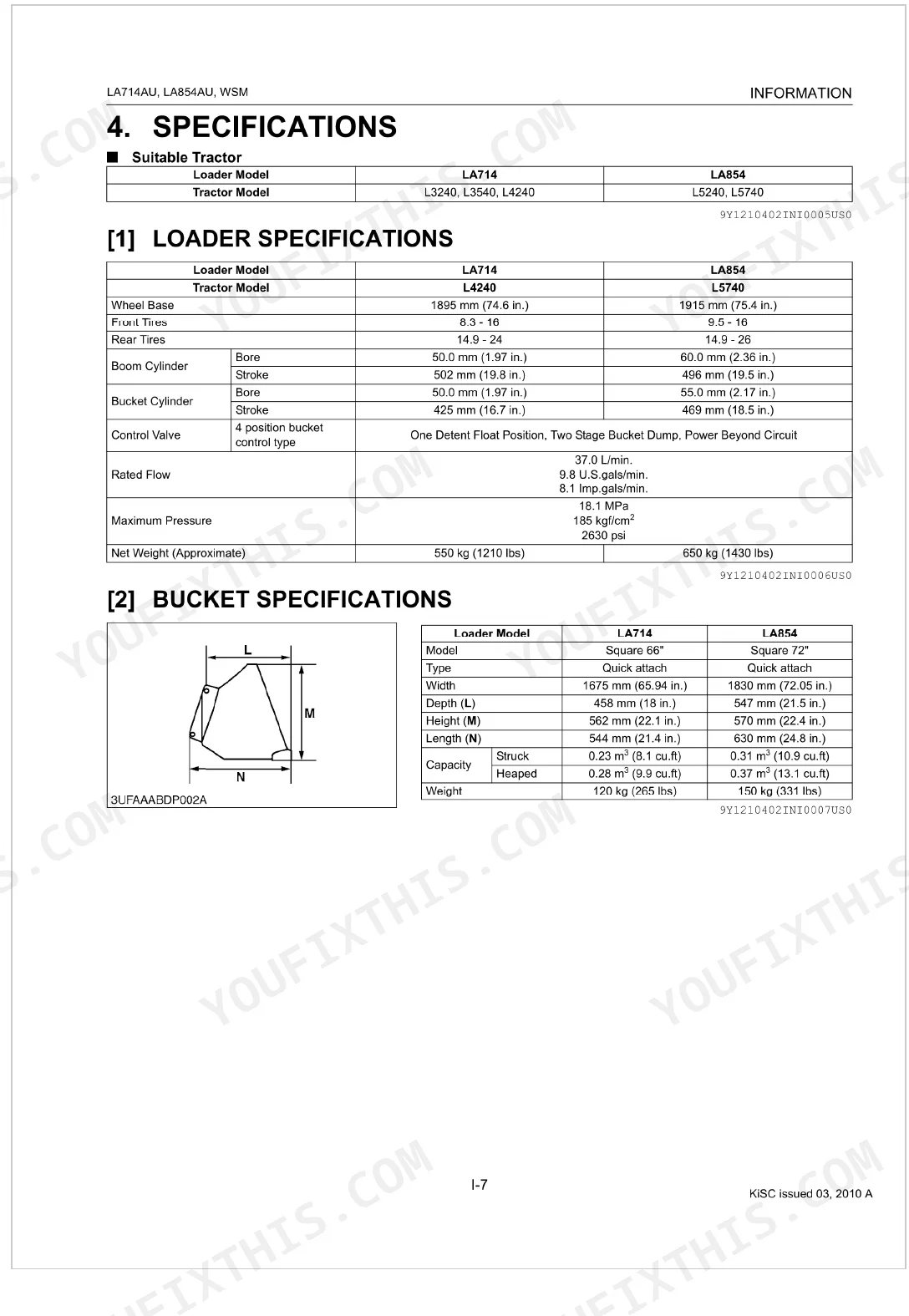

| Specification | Value | Page |
|---|---|---|
| LA714AU | ||
| Boom and bucket cylinder head mounting torque | 380 to 400 N·m (281 to 295 lbf·ft) | p. 41 |
| Boom cylinder piston mounting nut | 165 to 185 N·m (122 to 136 lbf·ft) | p. 41 |
| Relief valve setting pressure | 17.1 to 18.1 MPa (2480 to 2620 psi) | p. 44 |
| LA854AU | ||
| Boom cylinder head mounting torque | 580 to 600 N·m (428 to 442 lbf·ft) | p. 41 |
| Bucket cylinder head mounting torque | 460 to 480 N·m (340 to 354 lbf·ft) | p. 41 |
| Transmission case capacity | 45 L (11.9 U.S.gals, 9.9 Imp.gals) | p. 17 |
| Relief valve setting pressure | 18.1 to 19.1 MPa (2630 to 2770 psi) | p. 44 |
| All Models | ||
| Gap between boss and lock nut for hydraulic hose fitting | 2 to 3 mm (0.08 to 0.12 in.) | p. 50 |
| Tightening torque for Hose fitting, Flare nut (UNF) 9/16 thread size | 22 to 25 N·m (17 to 18 lbf·ft) | p. 20 |
| Main frame bolt tightening torque | 226 N·m (166 lbf·ft) | p. 23 |
| Main frame mounting bolt and nut | 226 N·m (166 lbf·ft) | p. 41 |
| LA714 | ||
| LA714 Wheel Base | 1895 mm | p. 11 |
Kubota LA714AU, LA854AU Common Problems This Manual Covers
Slow, weak, or jerky loader movement
Dirty or low oil, a clogged filter, or internal leakage makes the loader hesitate under load. The troubleshooting charts step through the checks to find where the pressure is being lost.
Manual Section: Troubleshooting p. 38Bucket or boom will not lower normally
A hard catch near float or a bucket that will not drop points to a sticking valve spool or a control valve fault. The four-position bucket control valve coverage explains its operation.
Manual Section: Control Valve Assembly p. 25Support bar or frame twisted
Uneven attachment loading or a side disconnect event can twist the loader linkage or bend the support bar. The dismounting procedure covers correct attachment and support to avoid this.
Manual Section: Dismounting Front Loader From Tractor p. 38Mounting bolts working loose
The main frame and sub frame hardware can loosen under vibration and heavy use. The Tightening Torques figures give the main frame bolt value so fasteners are reset to spec.
Manual Section: Tightening Torques p. 38Self-leveling not holding the bucket level
Poor bucket leveling ties to the parallel linkage or the port relief valve being out of adjustment. The self-leveling coverage explains the linkage and relief valve setting.
Manual Section: Self-Leveling p. 25Hydraulic leaks at hoses and fittings

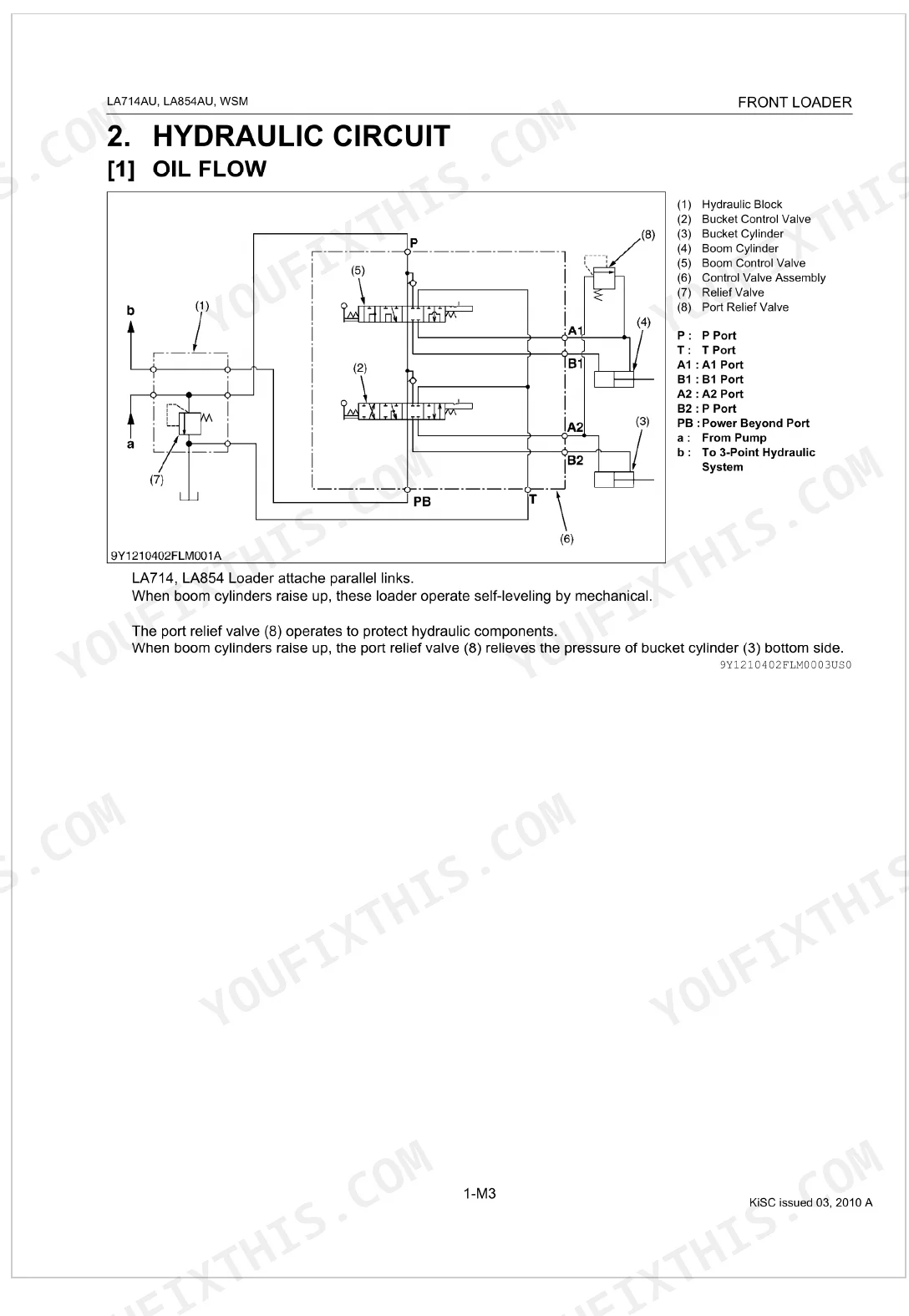

Aged seals, loose couplers, or damaged hoses cause weeping around the connections. The hydraulic circuit and fitting coverage shows oil flow and the correct fitting torques for sealing joints.
Manual Section: Hydraulic Circuit p. 25Frequently Asked Questions
Which loaders does this manual cover?
It covers the Kubota LA714AU and LA854AU front loaders, publication number 9Y111-04020. It is a workshop manual focused on repair, servicing, and specifications for both models.
Are the torque specs different for each model?
Yes. The tightening torques are listed per model, for example the LA714AU boom and bucket cylinder head at 380 to 400 N·m and the LA854AU boom cylinder head at 580 to 600 N·m. p. 41
Does it cover removing the loader from the tractor?

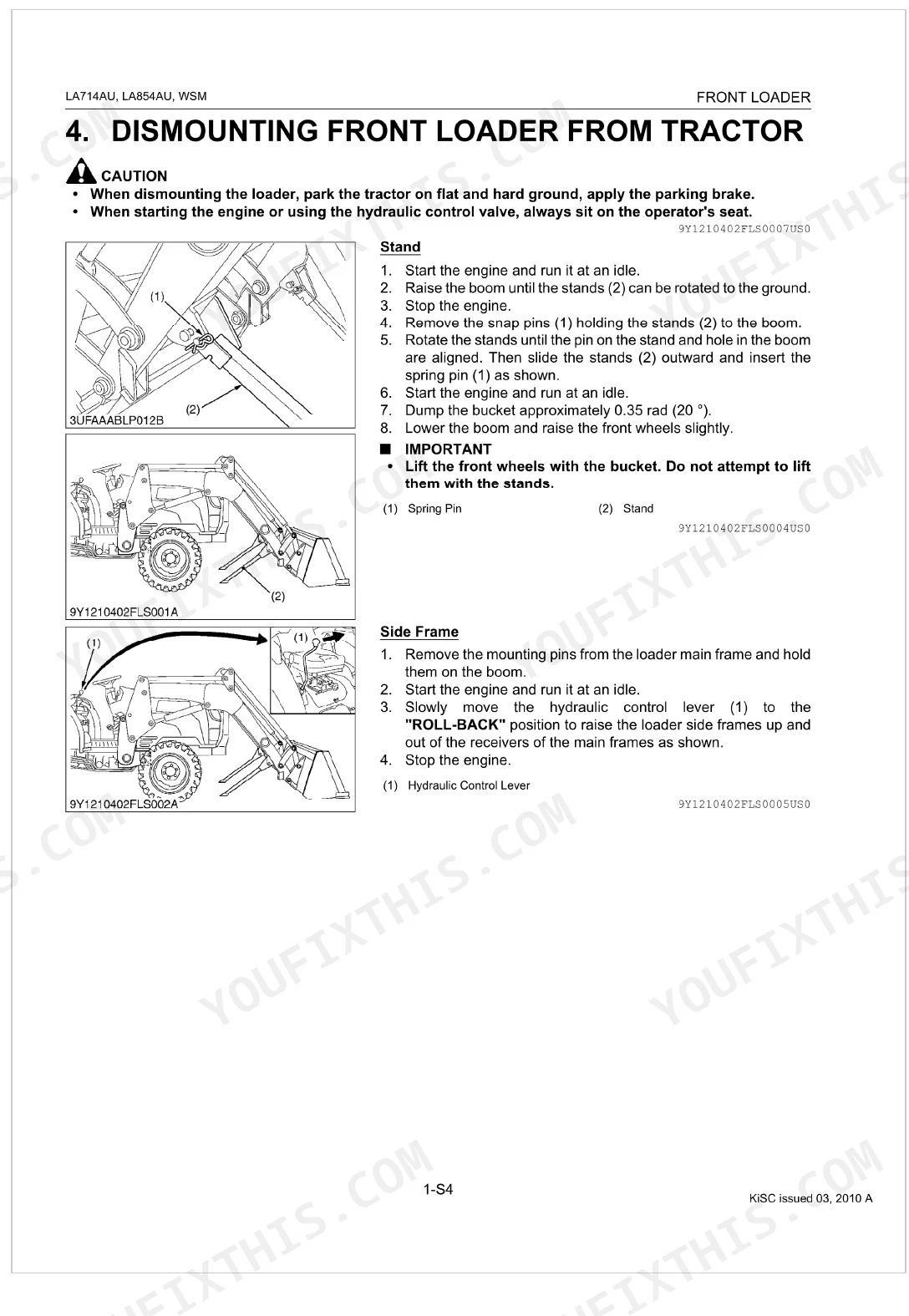

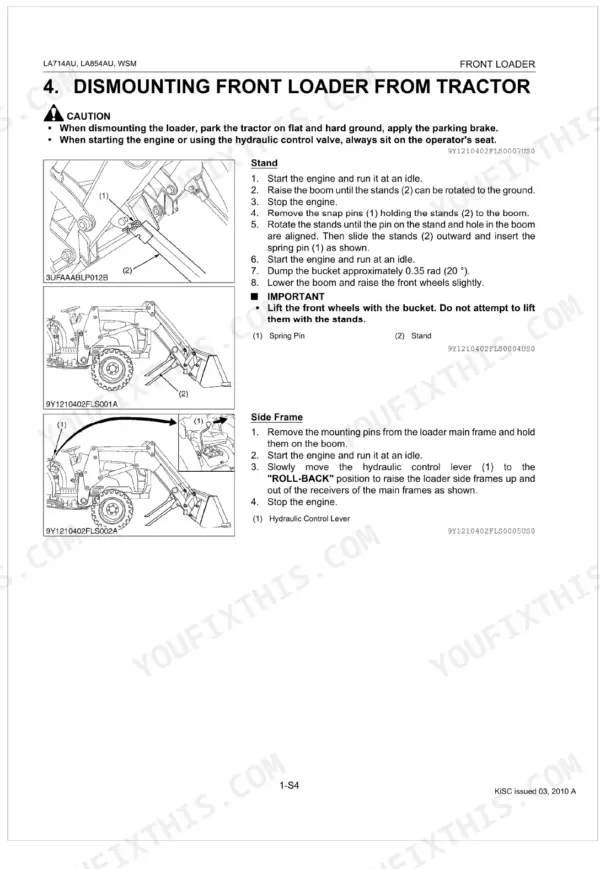

Yes. The Servicing section includes a procedure for dismounting the front loader from the tractor, covering the correct order of release and disconnection. p. 38
How do the LA714 and LA854 differ in capacity?
The specifications give the LA714 a lift capacity of 600 kg and a net weight of 550 kg, and the LA854 a lift capacity of 800 kg and a net weight of 650 kg. p. 12
How quickly can I access this manual after buying?
Checkout gives you the 55-page searchable PDF as an instant download. Open it on a laptop, tablet, or phone and take it straight to the shop floor.
Can I print this manual?
Yes, print as many copies as you like; there are no restrictions. Plenty of mechanics just print the section they're working on and keep it at the bench.
Are hydraulic diagrams part of this Kubota LA714AU Workshop Manual?
Yes. The manual includes hydraulic circuit diagrams, system schematics, and component specifications with pressure ratings.
