This is the Kubota Workshop Manual for the 03-M-E2B Series diesel engines, publication number 9Y011-02813. It runs 131 pages with a full text layer and covers the D1503-M, D1703-M, D1803-M, V2003-M, V2203-M, V2003-M-T, and V2403-M engines.

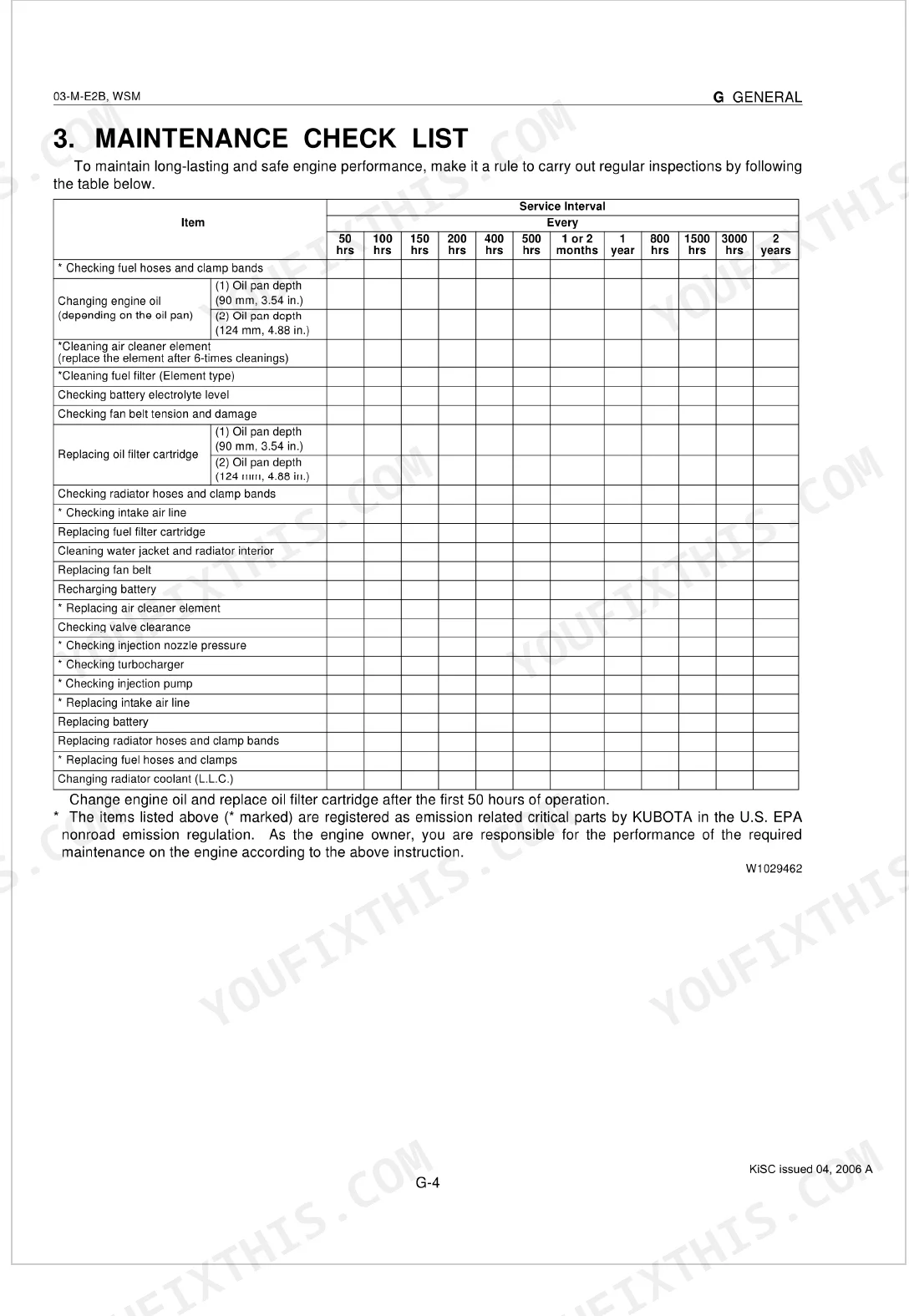

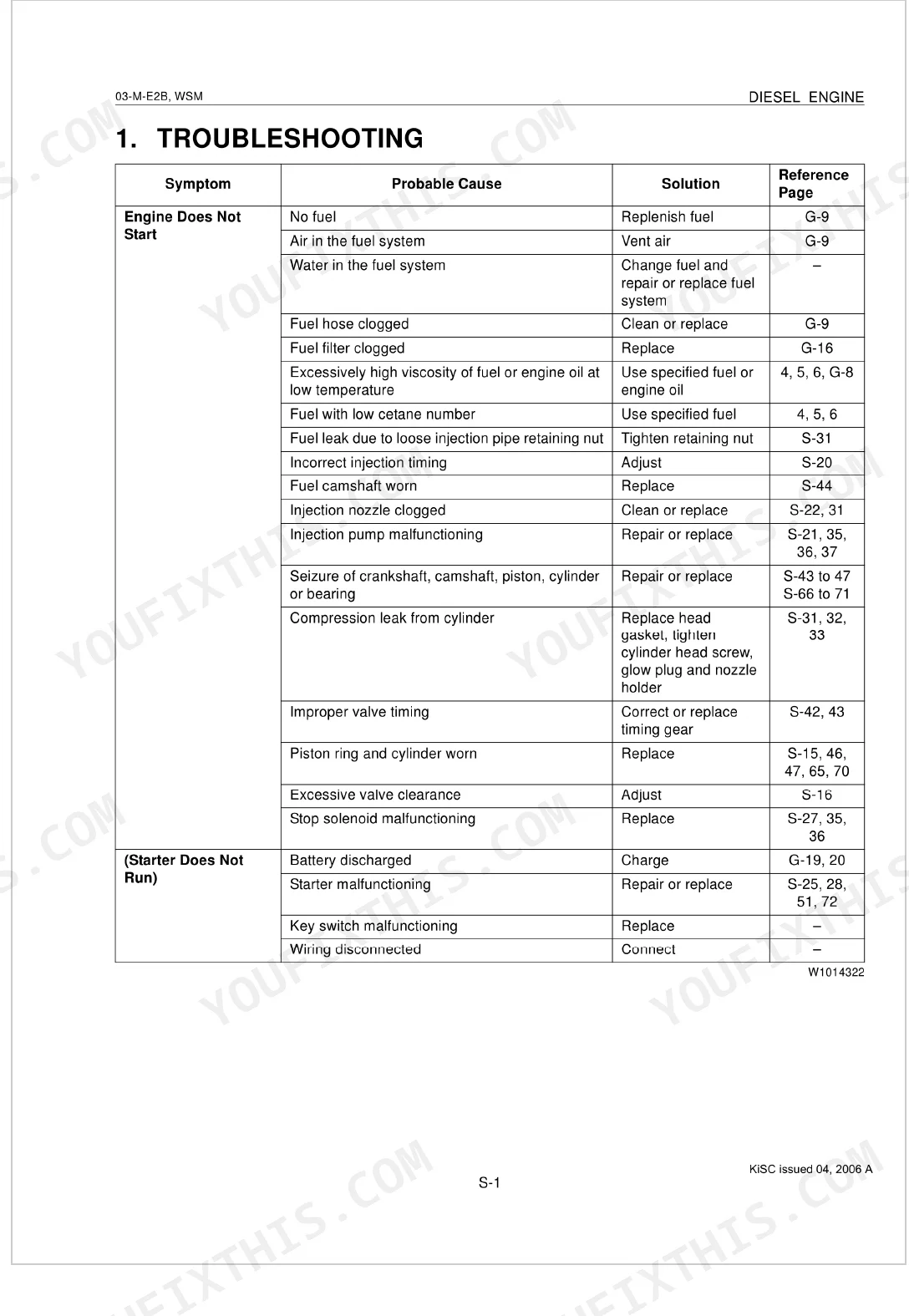

The manual works from engine identification and the maintenance check list through the engine body, cooling, fuel, and turbocharger systems, then into servicing: troubleshooting, servicing specifications, tightening torques, checking and adjusting, and full disassembly and assembly.
Owners and independent mechanics can use it to test compression, torque the cylinder head and main bearing case, set fan belt tension, and rebuild these engines to factory figures. Detailed servicing specifications and clearance limits support every repair.
What's Inside This Kubota 03-Series Diesel Engines Manual

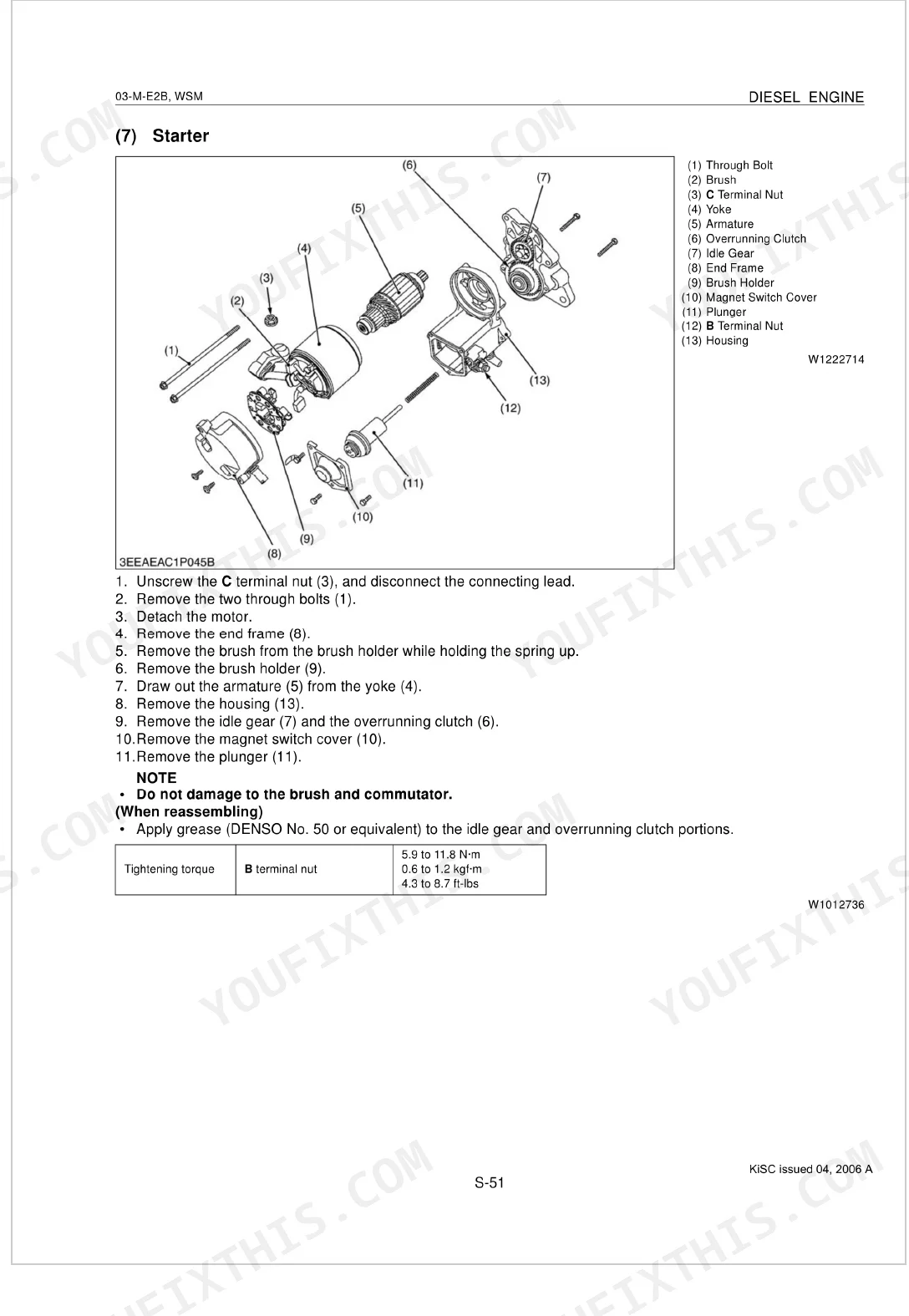

| System | Pages | Key Topics |
|---|---|---|
| General | - | Engine Identification, General Precautions, Maintenance Check List, Check and Maintenance, Special Tools |
| Mechanism | - | Engine Body, Cooling System, Fuel System, Turbocharger System |
| Servicing | - | Troubleshooting, Servicing Specifications, Tightening Torques, Checking and Adjusting, Disassembling and Assembling, Component Servicing |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Nozzle holder assembly tightening torque | 49.0 to 68.6 N·m | p. 68 |
| Fuel Injection Pressure | 13.73 to 14.71 MPa | p. 33 |
| Valve Opening Temperature (At Beginning) | 69.5 to 72.5 °C | p. 65 |
| Valve Opening Temperature (Opened Completely) | 85 °C | p. 65 |
| Fan Belt Tension (Deflection) | 7.0 to 9.0 mm (at 98 N of force) | p. 65 |
| Cylinder head screw tightening torque | 93.2 to 98.1 N·m | p. 68 |
| Main bearing case screw 1 (M9 x 1.25) tightening torque | 46.1 to 51.0 N·m | p. 68 |
| Main bearing case screw 2 (M10 x 1.25) tightening torque | 68.6 to 73.5 N·m | p. 68 |
| Compression Pressure (Allowable Limit) | 2.55 MPa / 290 min⁻¹ (rpm) | p. 59 |
| Radiator Cap Pressure Falling Time | More than 10 seconds for pressure fall from 88 to 59 kPa | p. 65 |
| Injection Pressure | 13.73 MPa | p. 6 |
| Lubricating Oil Capacity (90 mm Oil Pan) | 5.6 L | p. 6 |
Kubota 03-Series Diesel Engines Common Problems This Manual Covers

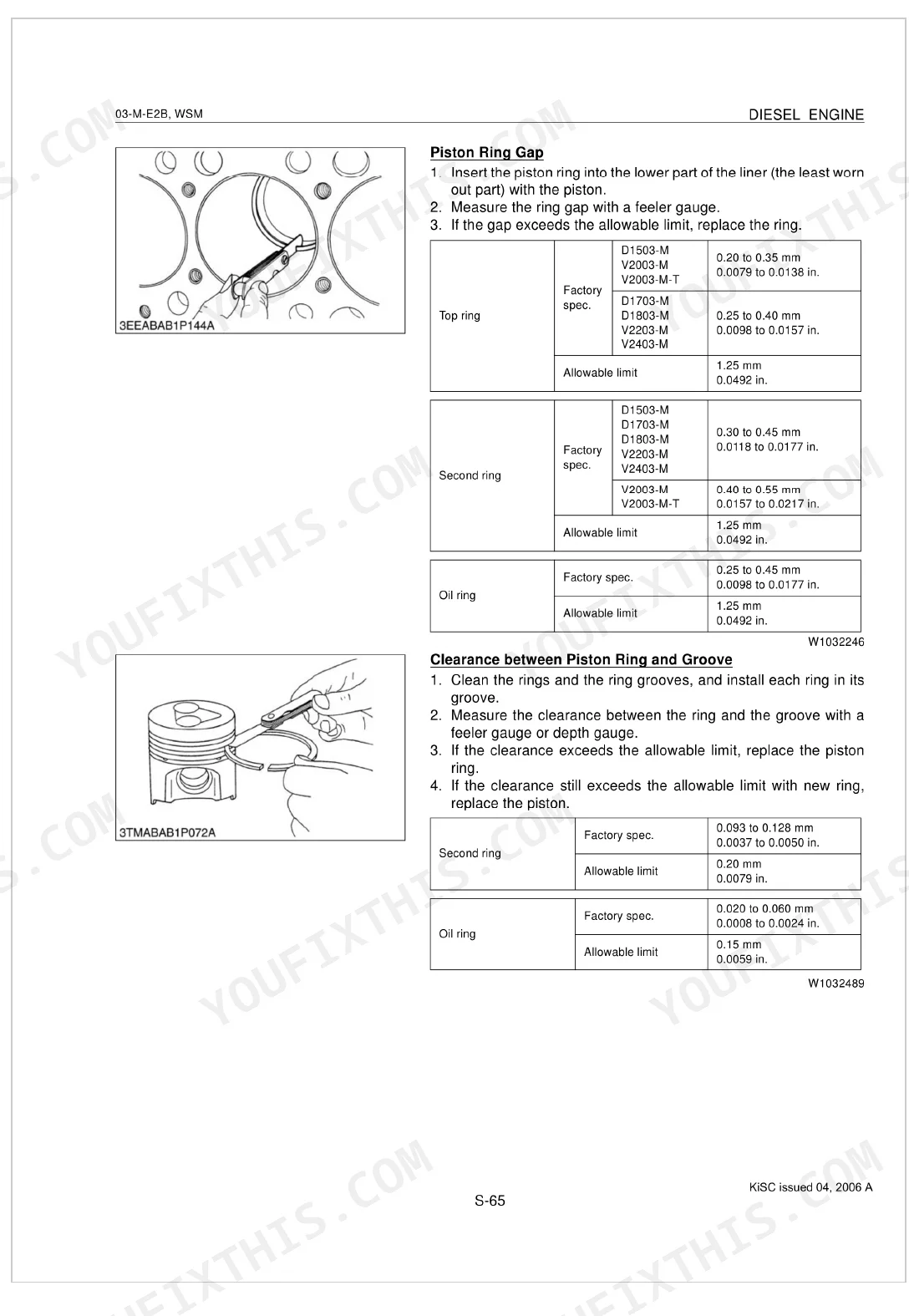

Low compression pressure
Worn piston rings, cylinders, or valves drop compression below the 2.55 MPa allowable limit and cause hard starting and lost power. The servicing specifications give the limits to measure against.
Manual Section: Servicing p. 54Engine overheating
A thermostat that fails to open at 69.5 to 72.5 degrees C, or a leaking radiator, leaves the engine overheating. The cooling system coverage explains the thermostat and radiator checks.
Manual Section: Mechanism p. 49Fuel leak from injection nozzle

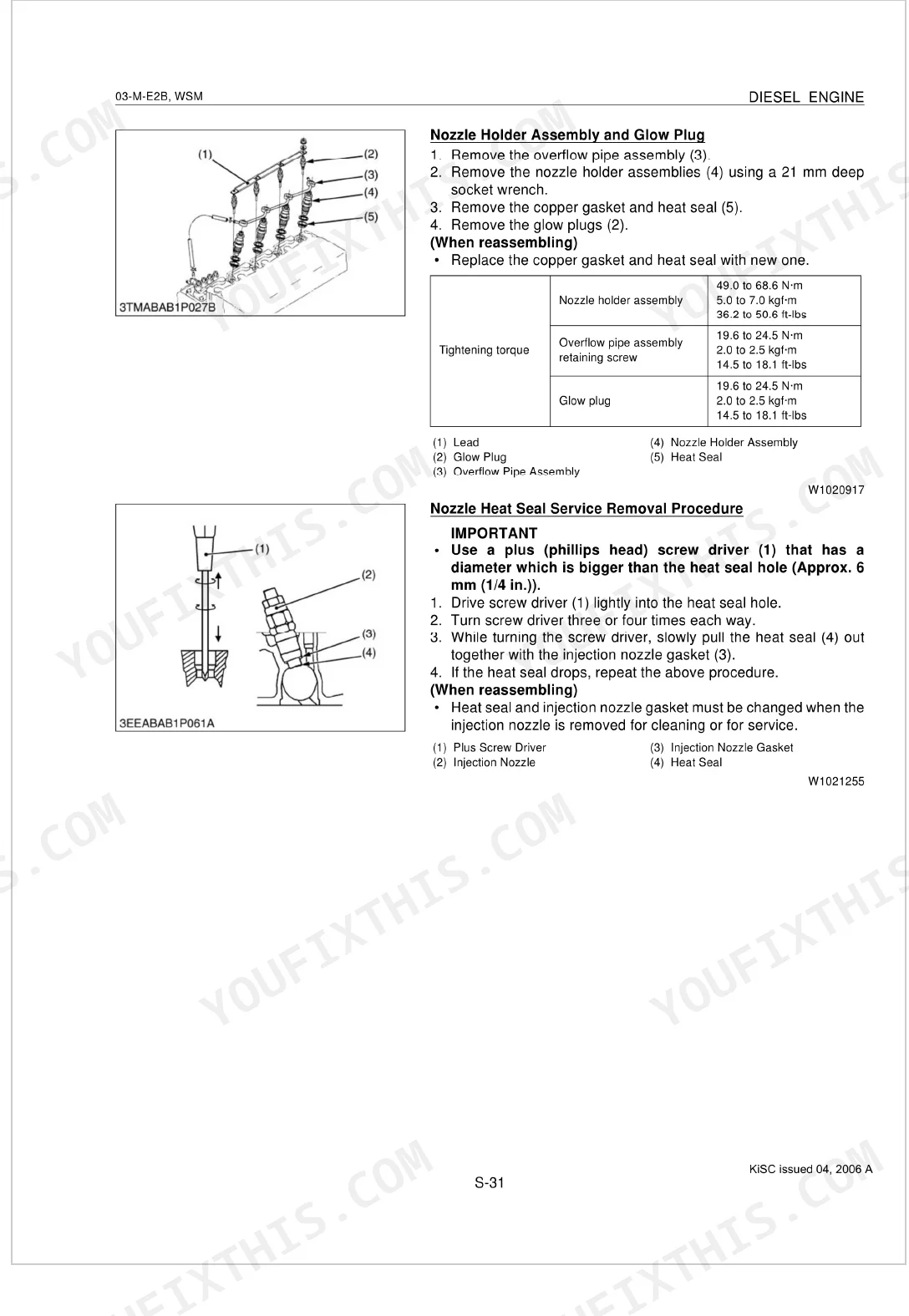

A worn valve seat lets the injection nozzle leak and fail its tightness test, upsetting the fuel spray. Servicing procedures cover nozzle testing and the correct opening pressure.
Manual Section: Servicing p. 54Oil leaks from wrong torque

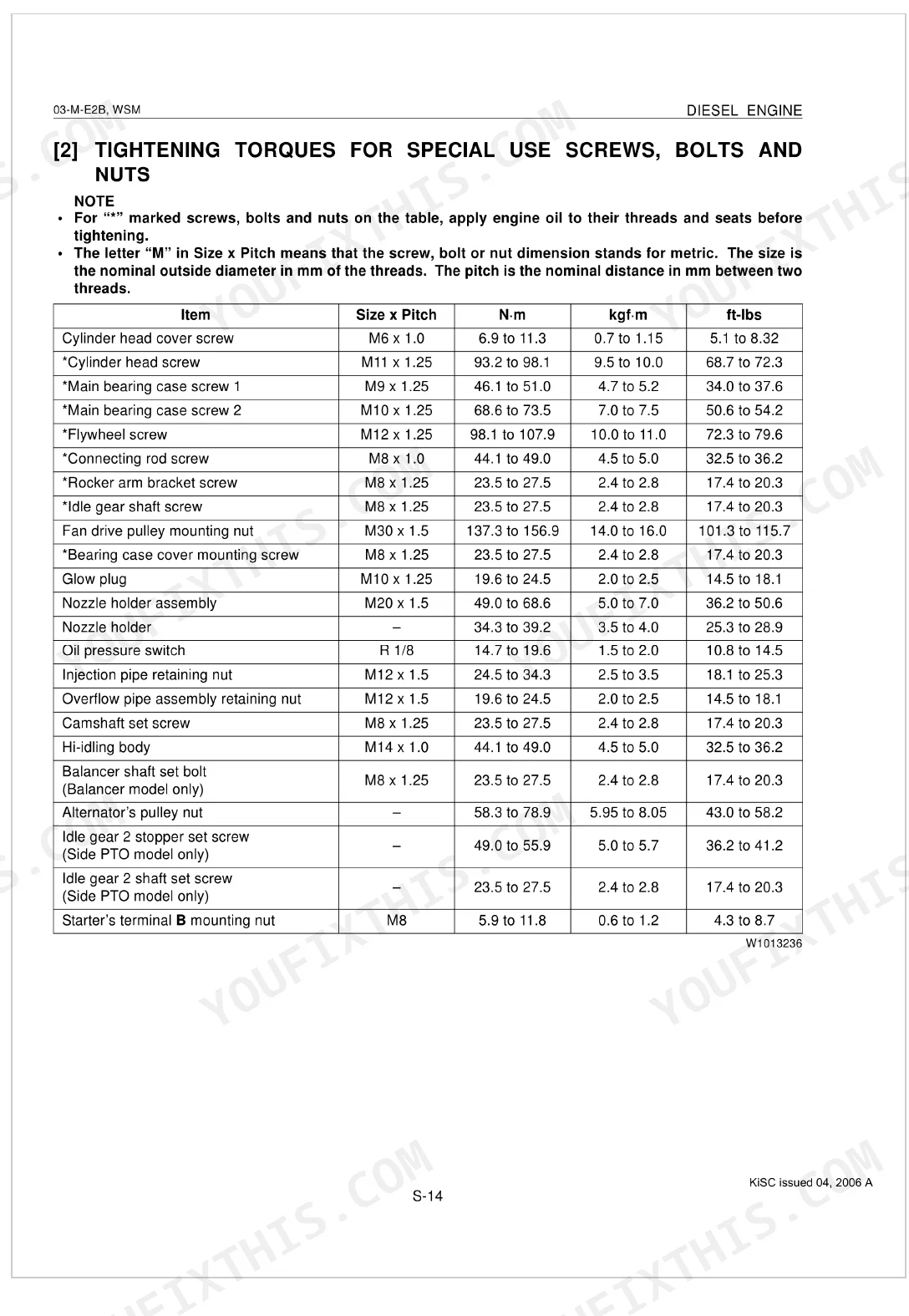

Cylinder head or main bearing case screws set to the wrong torque cause oil leaks and pressure problems. The tightening torque tables give the factory values.
Manual Section: Servicing p. 54Fan belt slip or noise
Incorrect fan belt tension, with deflection outside 7.0 to 9.0 mm at 98 N, causes slip, noise, and poor charging or cooling. The check and maintenance procedures set the tension.
Manual Section: General p. 11Governor and idle instability
The 03-M series can suffer unstable idle and governor hunting. The servicing procedures cover adjustment of the injection pump and governor settings.
Manual Section: Servicing p. 54Excessive vibration from worn gears
Backlash beyond spec in the crank, idle, cam, injection pump, or oil pump gears, or balancer wear on the V2203 and V2403, causes heavy vibration. Servicing checks the gear clearances.
Manual Section: Servicing p. 54Frequently Asked Questions
Which engines does this manual cover?
It covers the Kubota 03-M-E2B Series diesel engines: the D1503-M, D1703-M, D1803-M, V2003-M, V2203-M, V2003-M-T, and V2403-M, under publication 9Y011-02813.
What is the cylinder head bolt torque?
The cylinder head screw tightening torque is 93.2 to 98.1 N·m. The Servicing section lists this alongside the flywheel and connecting rod torques. p. 54
What is the cold valve clearance?
Valve clearance when cold is 0.18 to 0.22 mm. The General section covers the maintenance checks and the check and adjust procedure for setting it. p. 11
What exactly do I receive with this Kubota 03-M-E2B Series Workshop Manual?
This is a 131-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone and bring it straight to the shop floor.
Am I free to print this Kubota 03-M-E2B Series Workshop Manual?
No DRM or copy protection. Print the entire manual or just the pages you need. Any standard printer works.
