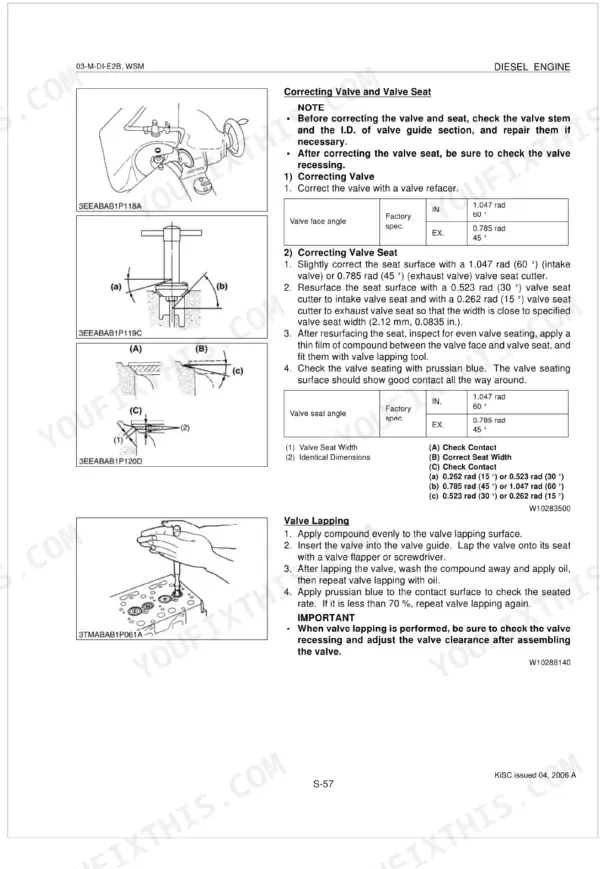

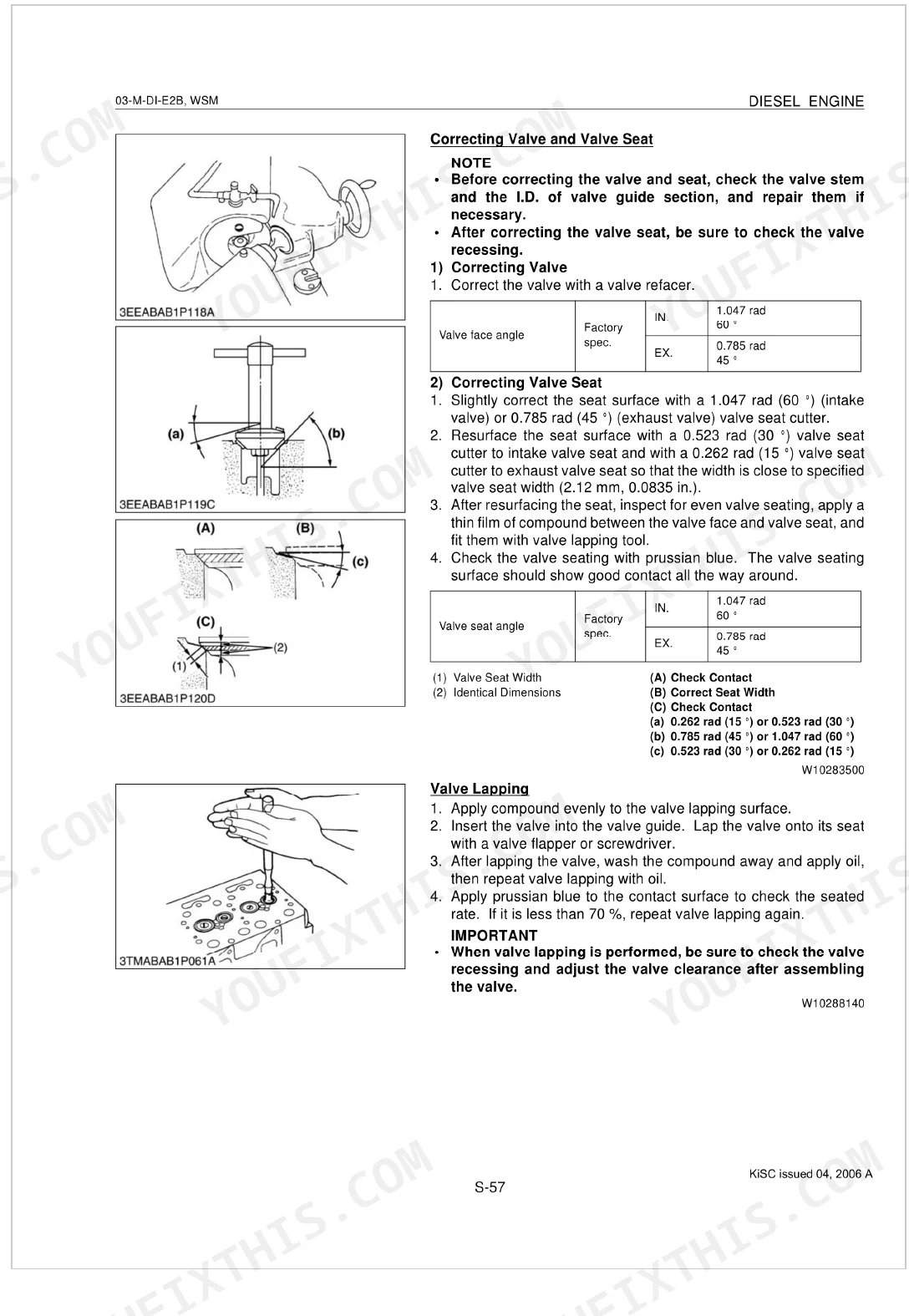

Kubota built seven engine variants in the 03-M-DI-E2B family: D1503-M-DI, D1503-M-DI-T, D1703-M-DI, D1803-M-DI, V2003-M-DI-T, V2203-M-DI, and V2403-M-DI. This 133-page OEM workshop manual (9Y011-02862) covers all of them. You get 15 exploded-view diagrams, 29 pages of maintenance procedures with interval schedules starting at the 50-hour oil and filter change, and a dedicated torque section for every critical fastener. Troubleshooting charts walk through diagnostics step by step, while 10 pages of clearance tables list wear limits for pistons, bearings, and valve train components. Key specs at a glance: valve clearance 0.18-0.22 mm cold, cylinder head screws torqued to 93.2-98.1 N·m, compression between 2.94 and 3.24 MPa. Factory numbers instead of forum guesswork. Bookmarked and searchable, so pull it up on your phone at the bench.
What's Inside This Kubota D1503-M, D1703-M, D1803-M, V2203-M, V2003-M, V2403-M Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety Instructions | 3-5 | - |
| Specifications | 6-8 | - |
| Dimensions | 9-10 | - |
| General | 11-47 | Engine Identification, General Precautions, Maintenance Check List, Check and Maintenance, Special Tools |
| Mechanism | 48-53 | - |
| Servicing | 54-133 | Troubleshooting, Servicing Specifications, Tightening Torques, Checking and Adjusting, Disassembling and Assembling, Servicing Procedures |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Valve Clearance | 0.18 to 0.22 mm | p. 71 |
| Compression pressure | 2.94 to 3.24 MPa | p. 70 |
| Valve Clearance (Cold) | 0.18 to 0.22 mm | p. 32 |

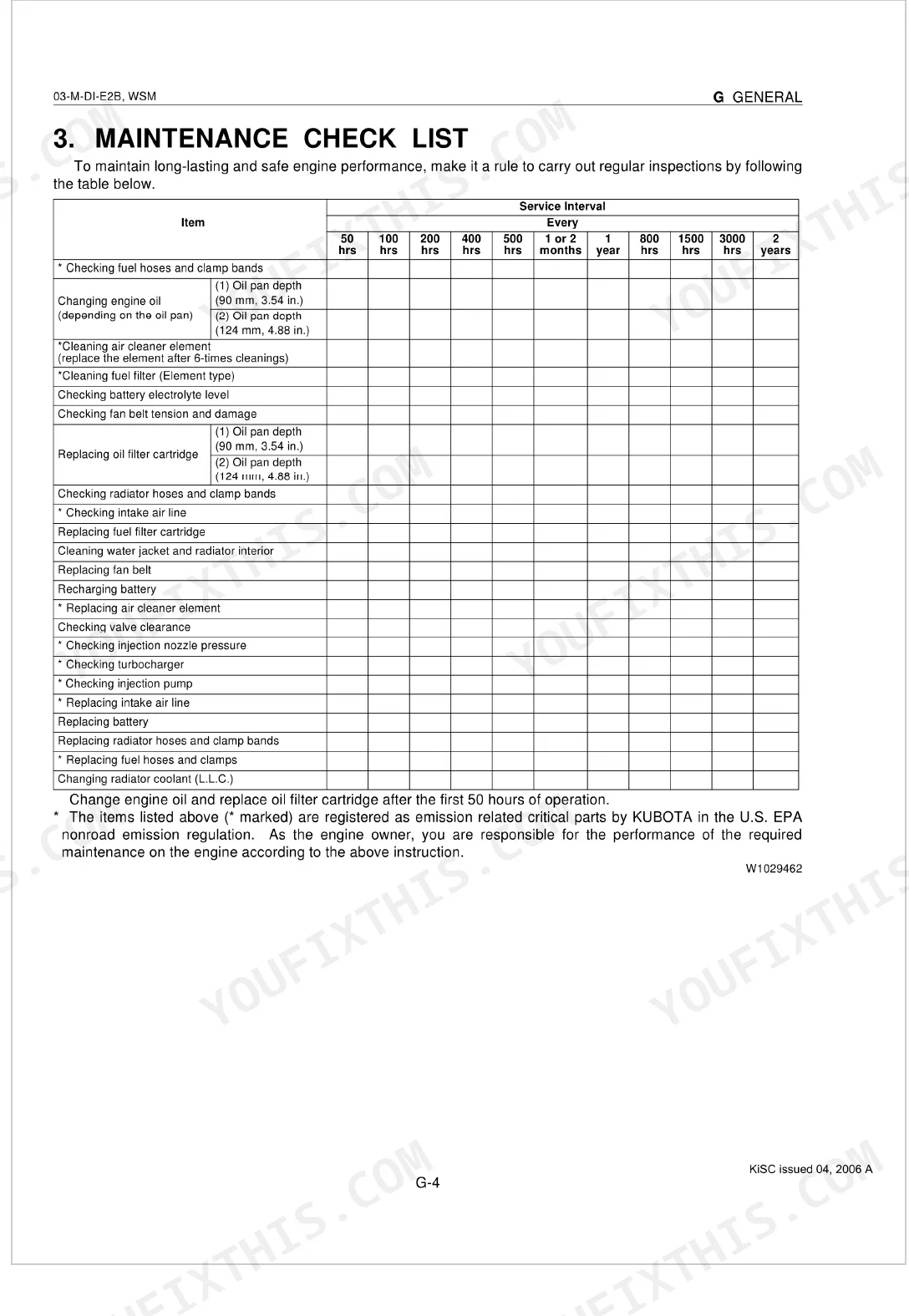

| Initial Engine Oil and Filter Change Interval | 50 hours | p. 15 |

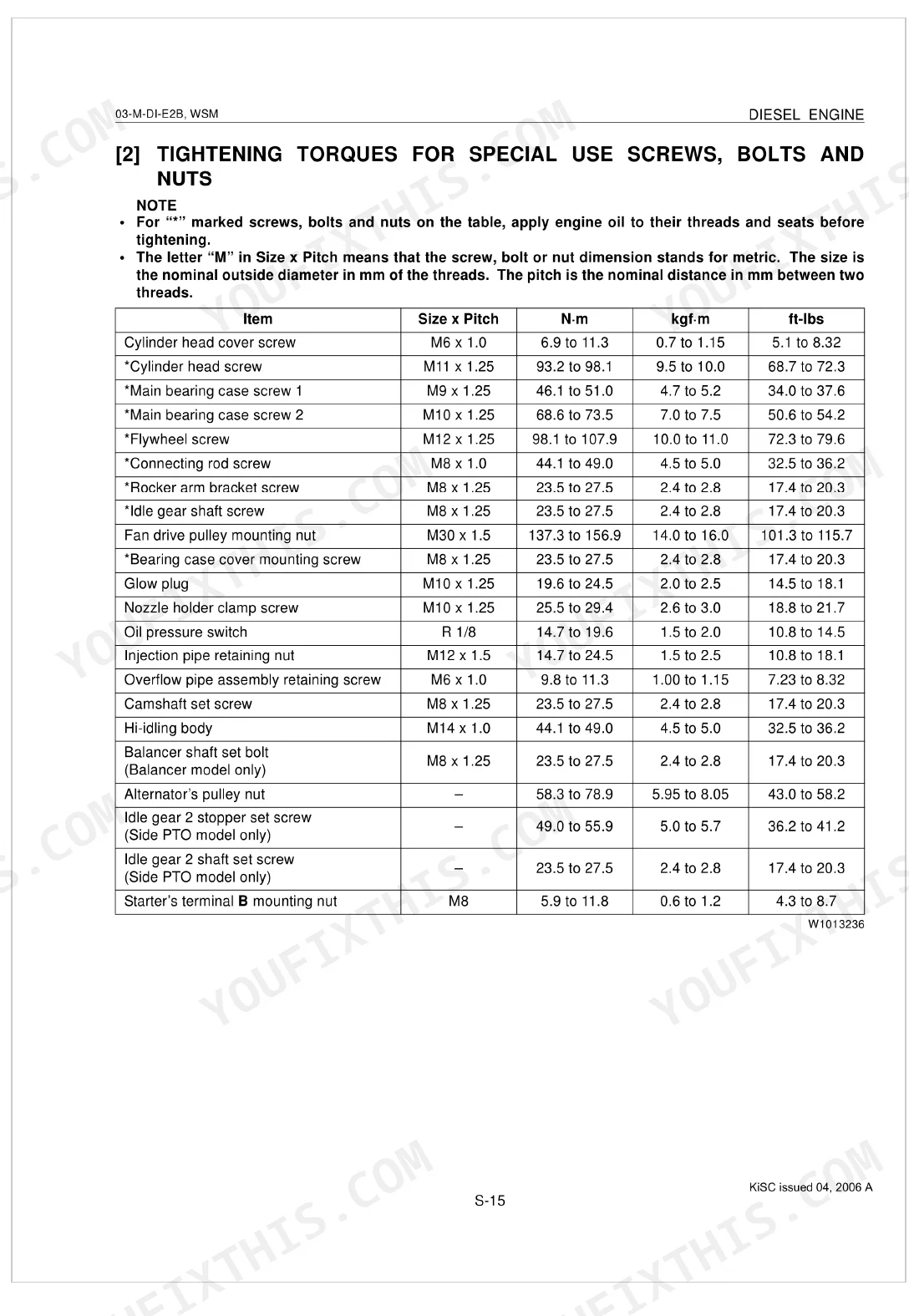

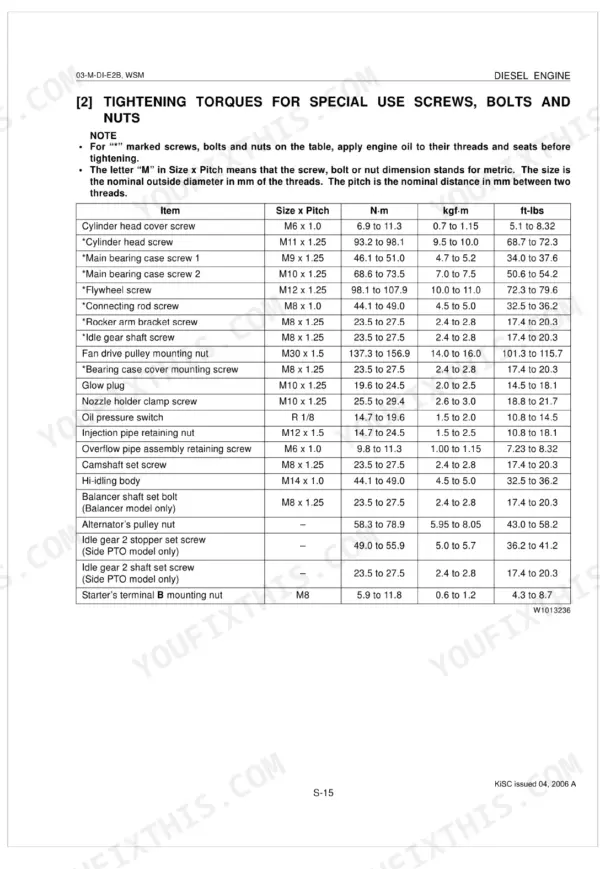

| Cylinder Head Screw Torque | 93.2 to 98.1 N·m | p. 69 |
| Connecting Rod Screw Torque | 44.1 to 49.0 N·m | p. 69 |
| Flywheel Screw Torque | 98.1 to 107.9 N·m | p. 69 |
| Fuel Injection Pressure (1st Stage) | 18.6 to 20.1 MPa | p. 33 |
| Fan Belt Deflection | 7.0 to 9.0 mm | p. 22 |
| Compression Pressure (Allowable Limit) | 2.35 MPa | p. 59 |
| Cylinder Head Surface Flatness (Allowable Limit) | 0.05 mm | p. 59 |
| Engine Oil Pressure (At Idle Speed, Allowable Limit) | 49 kPa | p. 64 |
Kubota D1503-M, D1703-M, D1803-M, V2203-M, V2003-M, V2403-M Common Problems This Manual Covers

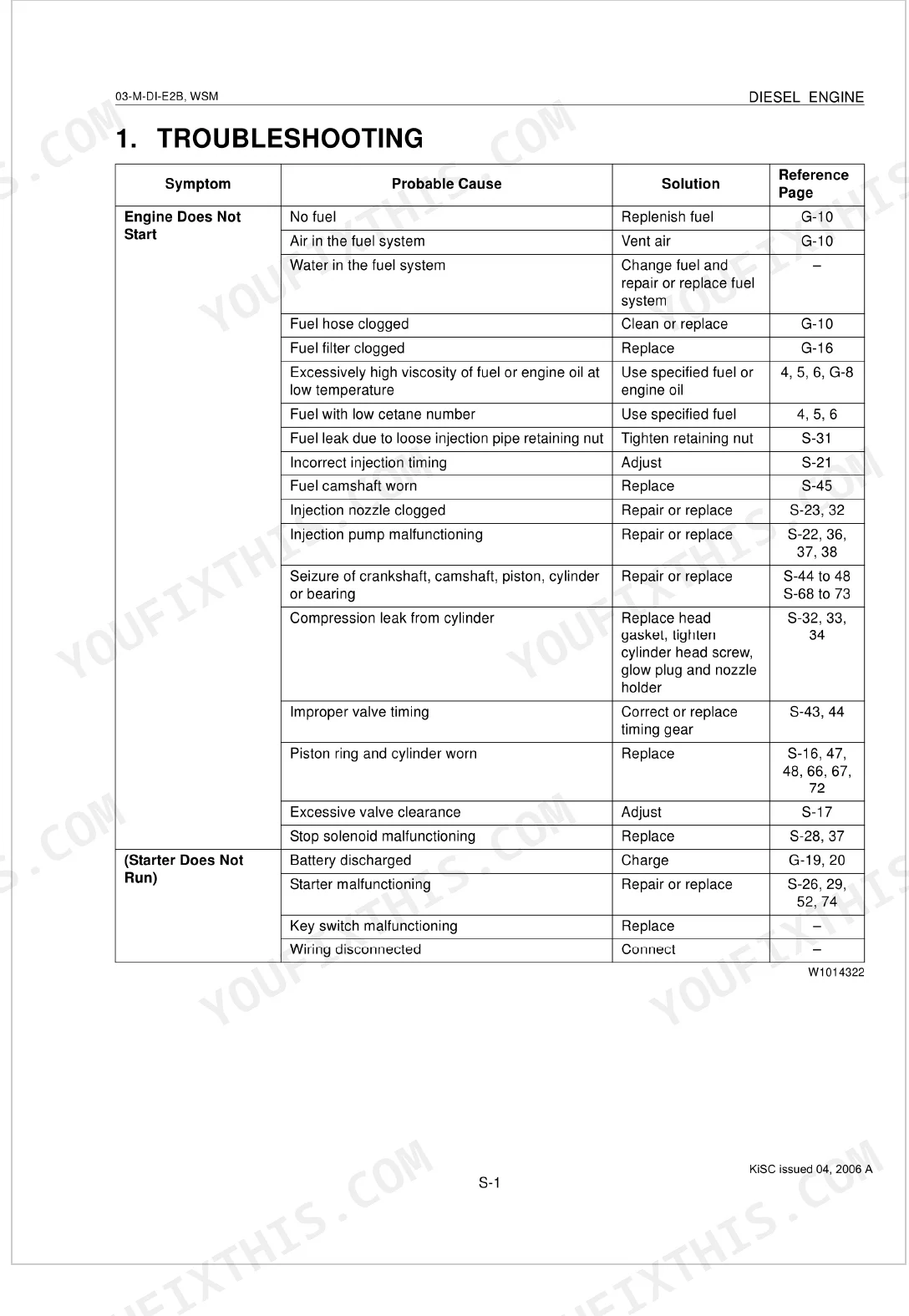

Kubota 03-M-DI-E2B series engine runs rough, loses power with water in fuel system
Drain the water separator and swap in a fresh fuel filter element. Bleed air from the system by loosening the injection line nuts and cranking until fuel flows bubble-free. Confirm injection nozzle spray pressure per page 33; first-stage reading should be 18.6 to 20.1 MPa. Tighten all fittings and verify smooth idle before returning to service.

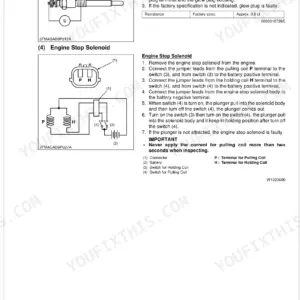

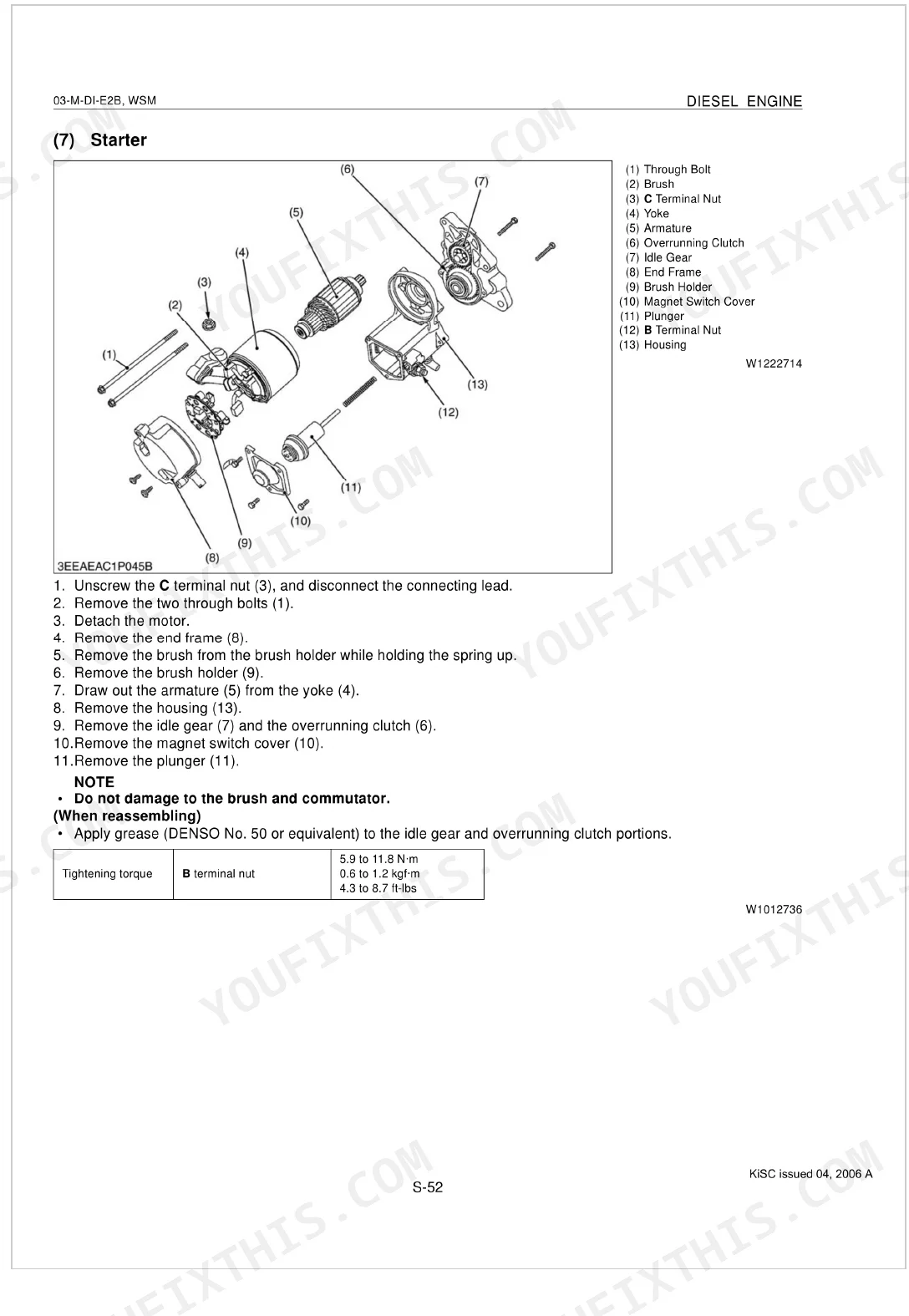

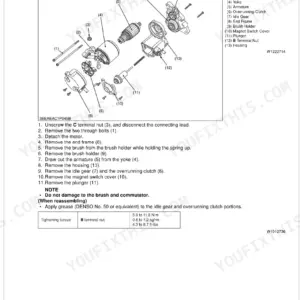

Manual Section: ServicingEngine won't start or cranks slowly, glow plugs not heating properly in cold weather
Test battery voltage first; a weak battery mimics glow plug failure. Use a multimeter to check each glow plug for continuity. Inspect the relay and wiring harness for corroded connectors. Replace any plug showing an open circuit. Verify starter draw is within spec and the battery holds at least 12.4 V under load.
Manual Section: ServicingCylinder head gasket blown, coolant mixing with engine oil after overheating p. 69
Pull the cylinder head and check the mating surface for warpage with a straightedge and feeler gauge; the flatness limit is 0.05 mm per page 59. Clean both surfaces thoroughly, then install a new head gasket and O-rings. Torque cylinder head screws to 93.2 to 98.1 N·m following the sequence on page 69. Refill coolant and run a compression test to confirm the seal.
Manual Section: ServicingLow oil pressure warning light stays on at idle, ticking noise from top end p. 64
Confirm oil level and condition right away. Verify you are running the correct oil weight for ambient temperature. Measure oil pressure at idle; the allowable limit is 49 kPa per page 64. If pressure reads low, inspect the oil pump rotor clearances and crankshaft oil clearances. Separately, check valve clearance cold at 0.18 to 0.22 mm per page 32, since excessive clearance causes top-end ticking regardless of oil pressure.
Manual Section: ServicingExcessive black or white exhaust smoke at startup and under load
Start with injection timing and nozzle spray pattern using the fuel system diagnostic procedures. White smoke typically points to incorrect timing or low compression; run a compression test with a minimum allowable reading of 2.35 MPa per page 59. Black smoke usually means a clogged air filter or faulty injector. Inspect the intake path for restrictions and test each nozzle individually.

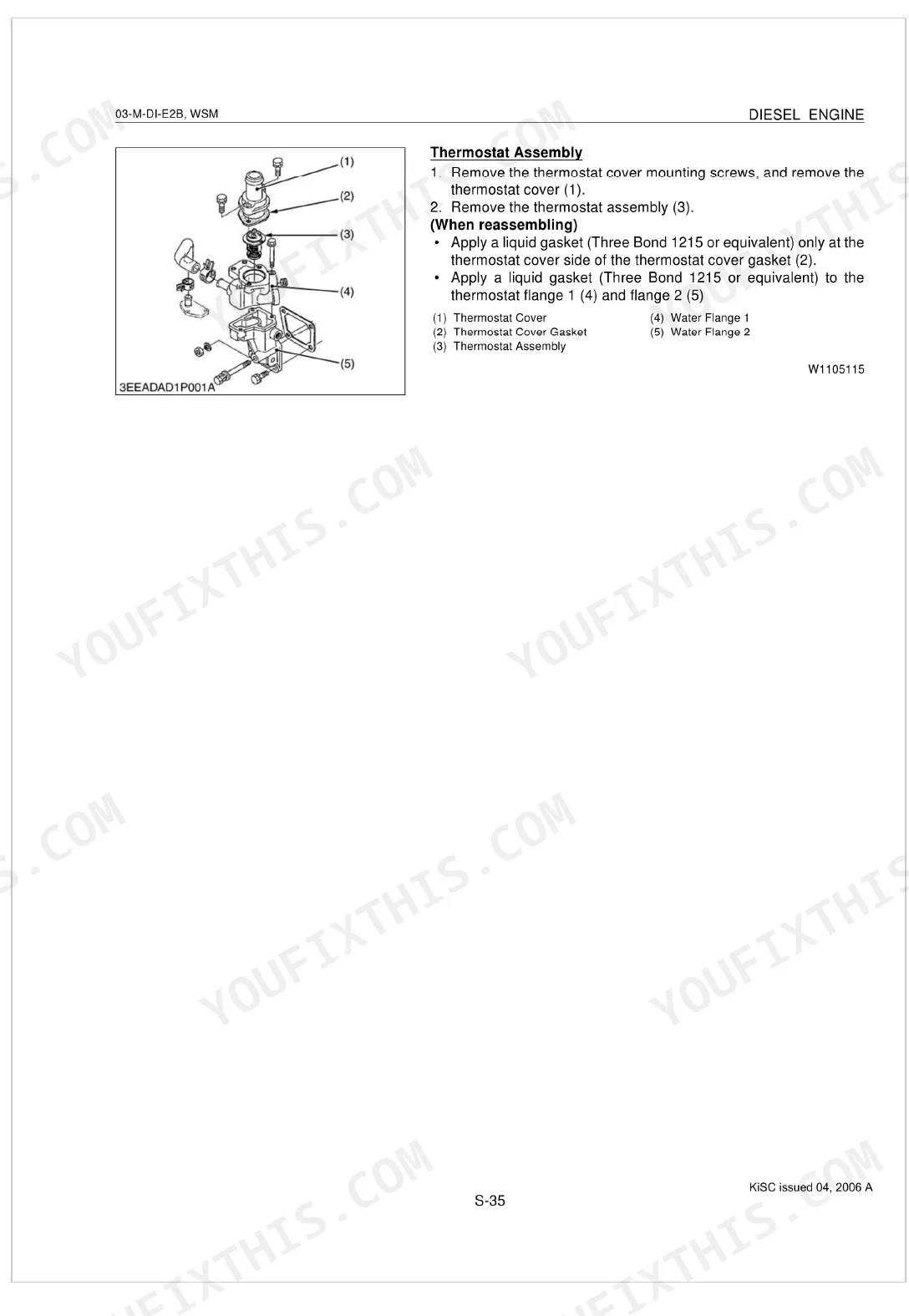

Manual Section: ServicingFan belt squealing, engine overheating with coolant temperature climbing
Look for cracks, glazing, and proper tension on the fan belt. Correct deflection is 7.0 to 9.0 mm as specified on page 22. Replace the belt if worn. Test the radiator cap for leaks and check thermostat operation per the cooling system diagnostics. Flush the radiator if sediment is visible, and verify the water pump turns freely with no bearing play.
Manual Section: ServicingFrequently Asked Questions
What are the torque specifications for the cylinder head bolts on Kubota 03-M-DI series engines?
Cylinder head screws (M11 x 1.25) torque to 93.2 to 98.1 N·m (68.7 to 72.3 ft-lbs). Apply engine oil to the threads and seats before tightening. Follow a diagonal sequence starting from the center to prevent head deformation. The full procedure is on page S-33 of the manual.
How to bleed air from the fuel system on Kubota D1703-M-DI?
Fill the fuel tank and open the fuel cock. Loosen the air vent plug on the fuel filter until bubble-free fuel flows, then retighten. Open the air vent cock on the injection pump and run the fuel feed pump for 10 to 15 seconds to purge remaining air. Close the vent cock securely.
What is the valve clearance for Kubota V2403-M-DI-E2B?
With the engine cold, valve clearance should be 0.18 to 0.22 mm (0.0071 to 0.0087 in.). If the reading falls outside that range, correct it using the adjusting screw on the rocker arm.
How to adjust valve clearance on Kubota V2403-M-DI?
With the engine cold, rotate the crankshaft to align the "1TC" mark on the flywheel, setting No. 1 piston at top dead center. Measure clearance with a feeler gauge; the spec is 0.18 to 0.22 mm. Turn the adjusting screw as needed, then tighten the lock nut firmly. See the table on page S-17 for the correct valve adjustment sequence per cylinder.
How to bleed fuel system Kubota D1503-M-DI-T?
Fill the tank, then loosen the fuel filter's air vent plug until fuel runs clear with no bubbles. Retighten the plug. Open the air vent cock on the injection pump and run the feed pump for 10 to 15 seconds. Close the vent cock once all air is purged.
Is this Kubota D1503-M, V2403-M Workshop Manual a digital download?
It's a 133-page searchable PDF, available instantly after checkout. Works on laptops, tablets, and phones, so you can reference it right at the workbench.
Can I print specific sections of this Kubota D1503-M, V2403-M Workshop Manual?
No DRM or copy protection. Print the entire manual or just the sections you need. Works with any standard printer.
Document Quality
This is a native digital PDF, not a scanned copy, so you can search the full text and copy content. The text is consistently crisp and easy to read, while the technical diagrams are a mix of sharp vector graphics and clear raster images with fully legible labels. All pages are clean and well-aligned, free from any digital artifacts, marks, or stains. The overall quality is high, providing clear visuals and readable content throughout the manual.
