This 187-page factory workshop manual (OEM #9Y111-02570) covers the entire Kubota 03-M-E3B engine family: D1503-M through V2403-M-DI-T, including naturally aspirated, direct injection, and turbocharged variants. Over 100 pages of step-by-step disassembly and servicing procedures are paired with 20 pages of exploded view diagrams showing every bolt, gasket, and component relationship in the block. Seven troubleshooting charts help isolate faults quickly, backed by 18 pages of servicing specifications and a dedicated torque section. Cylinder head screws torque to 93.2 to 98.0 N·m; injection timing sits between 15.5 and 17.0 degrees BTDC; fuel filter cartridges swap out every 400 hours. When your engine is apart and you need the factory spec (not a forum guess), this bookmarked PDF lets you search any keyword and pull it up on your phone right at the bench.
What's Inside This Kubota 03-M-DI-E3B, 03-M-E3BG, 03-M-E3B Series, 03-M-DI-E3B Series, 03-M-E3BG Series, D1503-M, D1703-M, D1803-M, V2003-M, V2203-M, V2403-M, V2403-M-T, D1803-M-DI, V2403-M-DI, V2403-M-DI-T, D1703-M-BG, V2003-M-BG, V2003-M-T-BG, V2203-M-BG, V2403-M-BG Manual

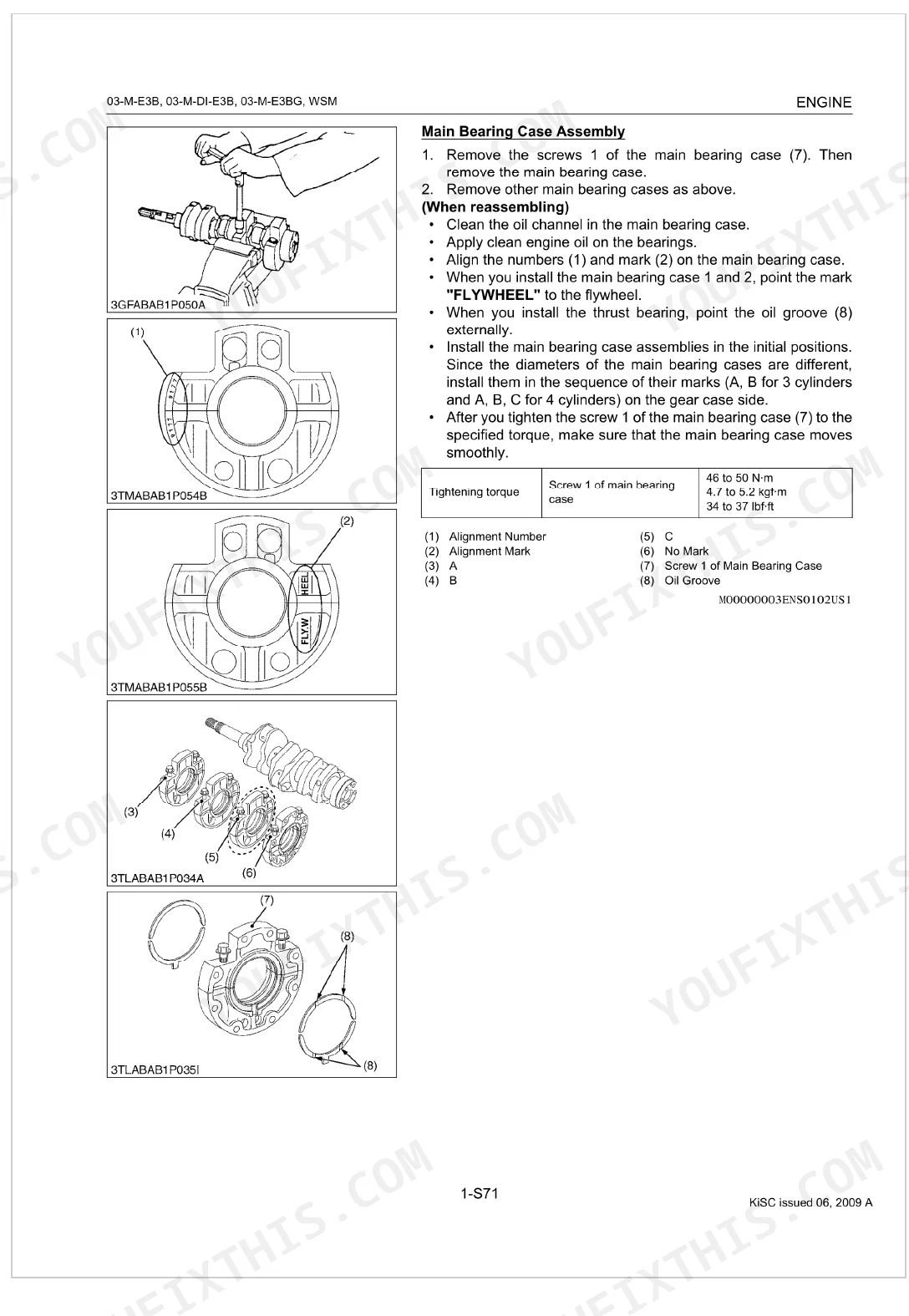

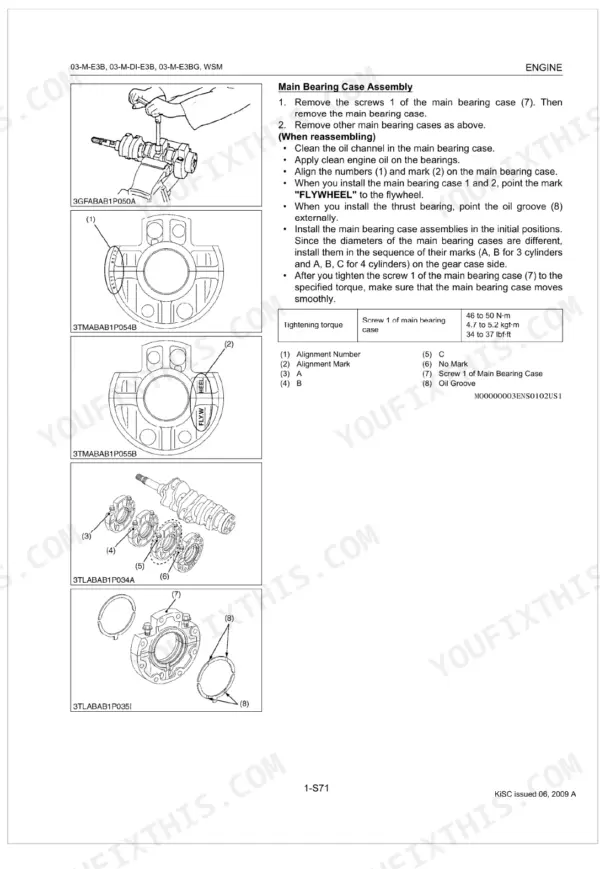

| System | Pages | Key Topics |
|---|---|---|
| Information | 3-25 | Safety First, Specification, Dimensions, Wiring Diagram |
| General | 26-73 | Engine Identification, General Precautions, Maintenance Check List, Check and Maintenance, Special Tools |
| Mechanism | 74-81 | Engine Body, Cooling System, Fuel System, Turbocharger System |
| Servicing | 82-187 | Troubleshooting, Servicing Specifications, Tightening Torques, Checking, Disassembling and Servicing, Disassembling and Assembling |
Quick Reference Specifications

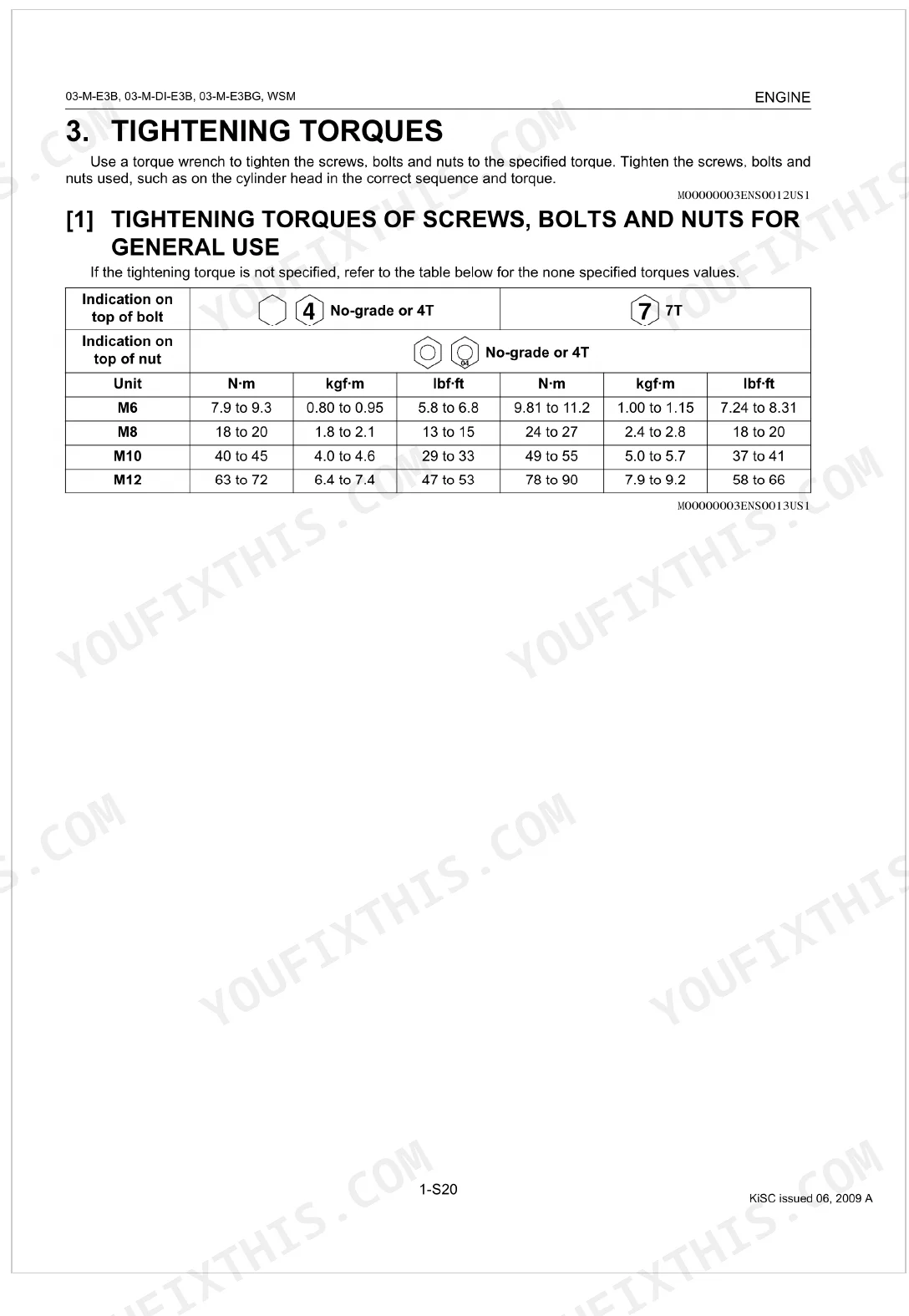

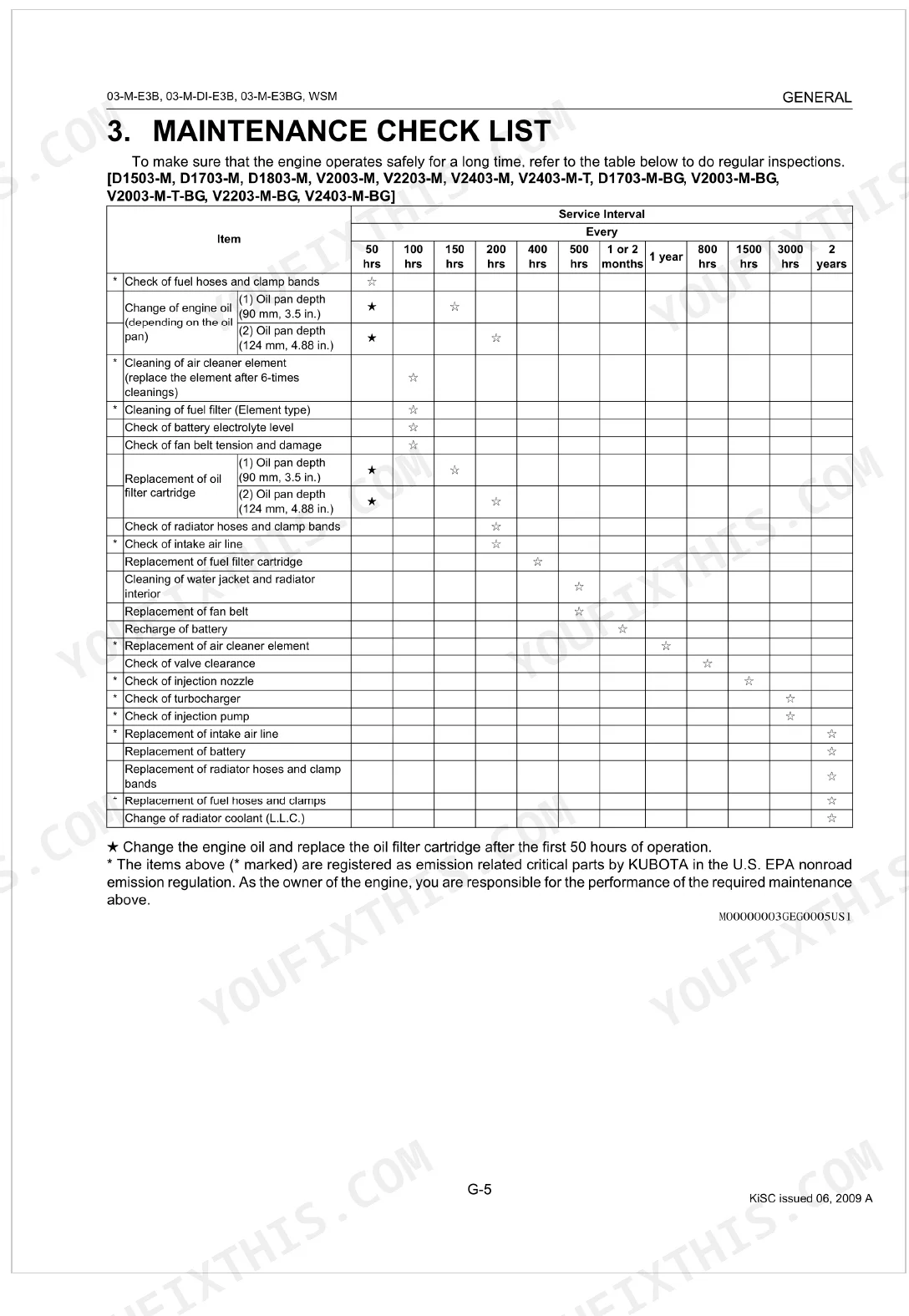

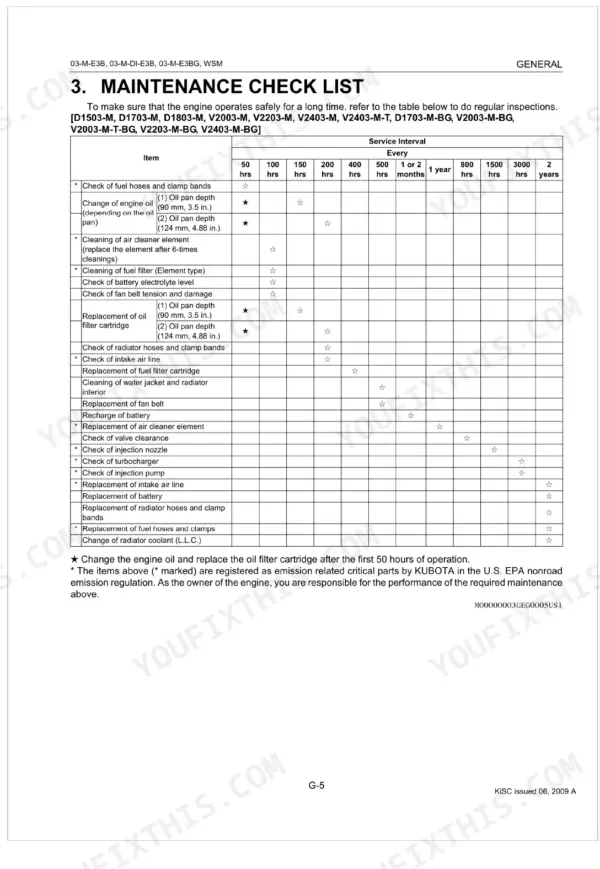

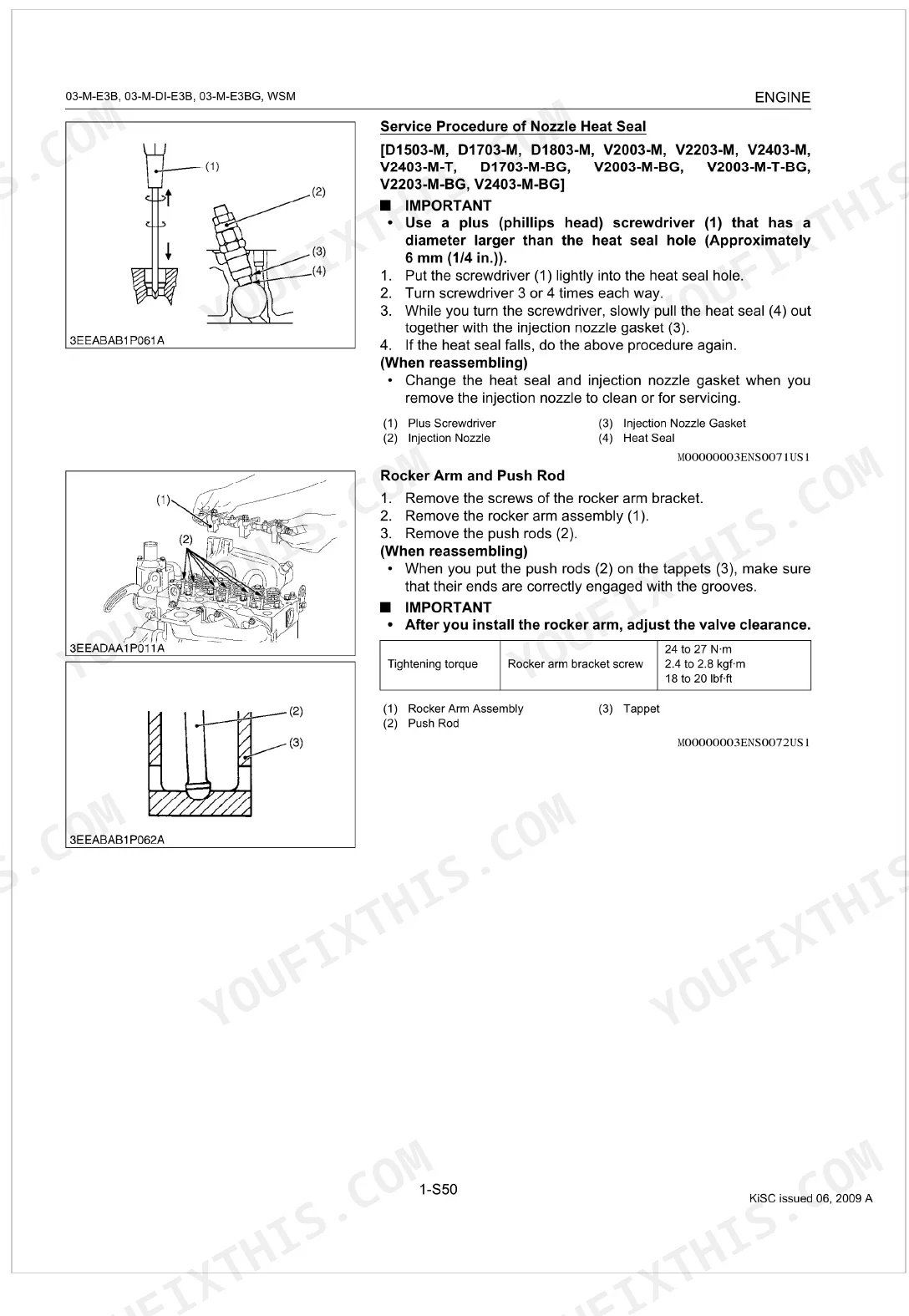

| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Cylinder head screw tightening torque | 93.2 to 98.0 N·m | p. 103 |
| Hi-idling body tightening torque | 45 to 49 N·m | p. 136 |
| Fuel filter cartridge replacement interval | Every 400 hours | p. 48 |
| Fuel hoses and clamps replacement interval | Every 2 years | p. 32 |
| Radiator hoses and clamps replacement interval | Every 2 years | p. 32 |
| Air cleaner element cleaning pressure | Less than 210 kPa (30 psi) | p. 40 |
| Engine oil level | Between the upper and lower lines of the dipstick | p. 35 |
| Valve Clearance (When Cold) | 0.18 to 0.22 mm | p. 92 |
| D1703-M, D1803-M, V2003-M, V2203-M, V2403-M | ||
| Injection Timing | 0.271 to 0.296 rad (15.5 to 17.0 °) before T.D.C. | p. 100 |
| D1503-M, D1703-M, D1803-M, V2003-M, V2203-M, V2403-M-T, D1703-M-BG, V2203-M-BG, V2403-M-BG | ||
| Nozzle holder assembly (IDI) tightening torque | 49 to 68 N·m | p. 103 |
| D1503-M | ||
| Engine Oil Capacity (90 mm pan) | 5.6 L (1.5 U.S.gals) | p. 8 |
| V2403-M-T | ||
| Engine Oil Capacity (124 mm pan) | 9.5 L (2.5 U.S.gals) | p. 11 |
Kubota 03-M-DI-E3B, 03-M-E3BG, 03-M-E3B Series, 03-M-DI-E3B Series, 03-M-E3BG Series, D1503-M, D1703-M, D1803-M, V2003-M, V2203-M, V2403-M, V2403-M-T, D1803-M-DI, V2403-M-DI, V2403-M-DI-T, D1703-M-BG, V2003-M-BG, V2003-M-T-BG, V2203-M-BG, V2403-M-BG Common Problems This Manual Covers

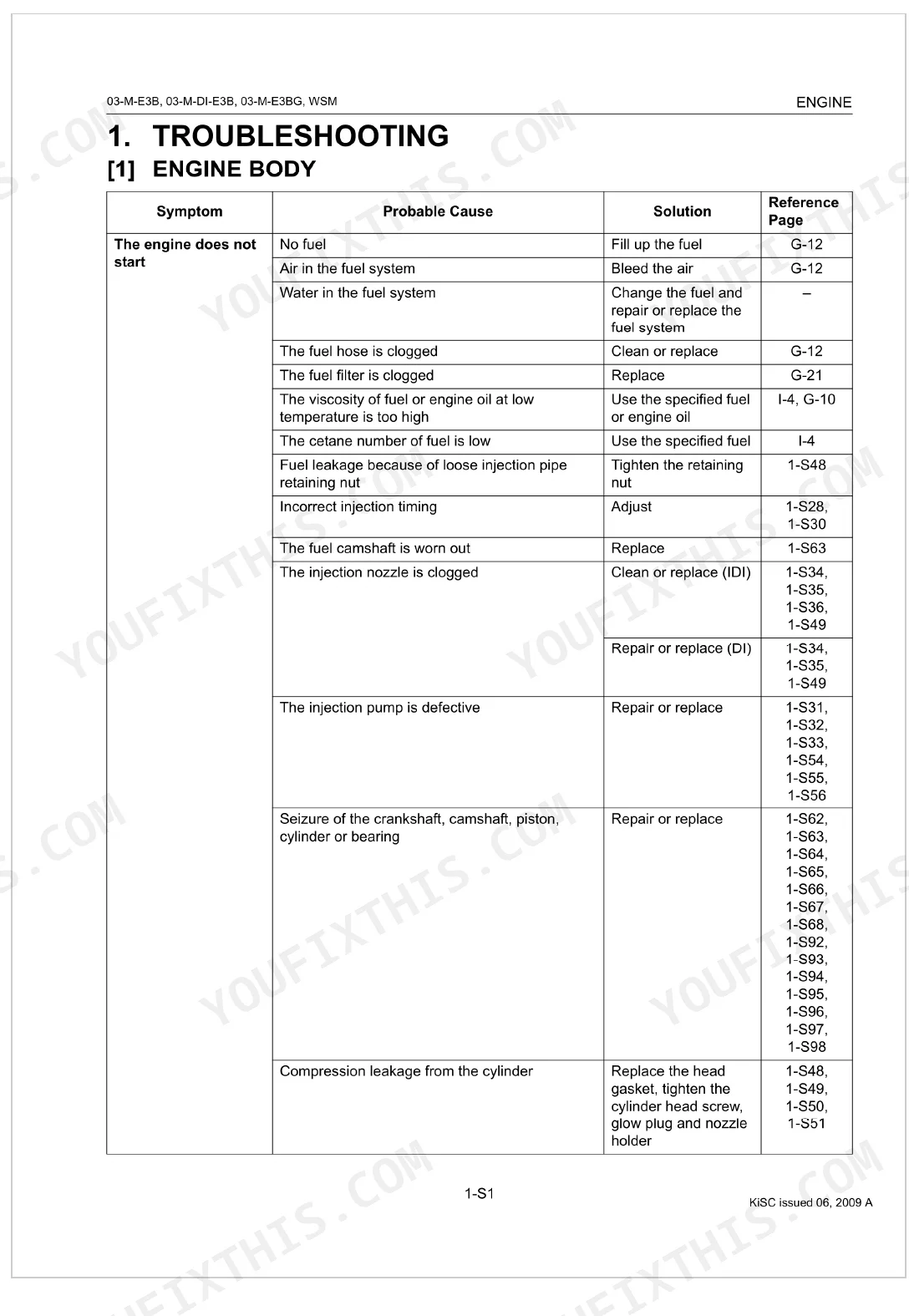

Kubota 03-M-E3B series engine cranks but won't start, no combustion
Start with the troubleshooting procedures for no-start conditions. Loosen an injection pipe nut and crank briefly to confirm fuel is reaching the injectors. Bleed air from the fuel system and inspect the fuel filter; replace the cartridge every 400 hours per the maintenance schedule on page 48. If fuel delivery checks out, test compression pressure against the allowable limit of 2.55 MPa.
Manual Section: TroubleshootingEngine overheats under load, coolant temperature climbs past normal range
Examine the fan belt for cracks and proper tension; deflection should measure 7.0 to 9.0 mm at 98 N (22 lbf) per the specs on page 99. Pressure-test the cooling system and verify the radiator cap seal. Submerge the thermostat in a water bath to confirm opening temperature. Clear any debris from the radiator fins and top off coolant before returning to service.
Manual Section: ServicingLow oil pressure warning light stays on at idle, gauge reads below spec
Confirm oil level sits between the upper and lower dipstick lines per page 35. Match oil viscosity to the ambient temperature range listed in the specifications. Measure oil pressure at rated speed with a mechanical gauge; factory spec is 300 to 440 kPa as noted on page 99. If pressure remains low with correct oil, inspect the relief valve and oil pump. Replace oil and filter at the initial 50-hour interval or at every scheduled change.
Manual Section: ServicingExcessive white or black exhaust smoke at startup and during operation
Refer to the troubleshooting chart for abnormal exhaust smoke conditions. Test injection nozzles for proper spray pattern and verify injection pressure per the fuel system procedures. Confirm valve clearance falls within 0.18 to 0.22 mm when cold, as outlined on page 92. Clean or replace the air filter element using compressed air below 210 kPa (30 psi) per page 40.
Manual Section: TroubleshootingEngine runs rough, surges or hunts at idle, speed fluctuates

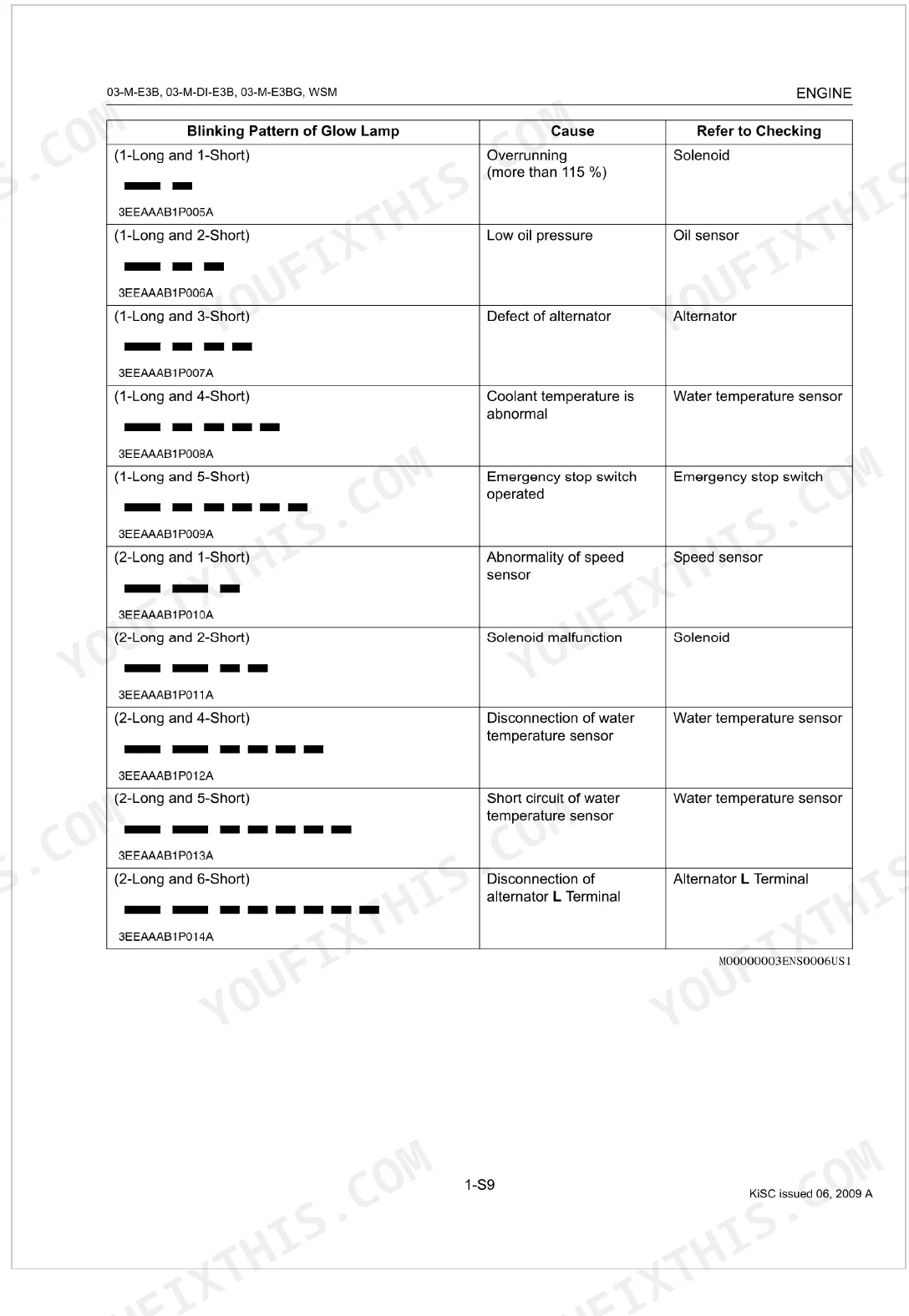

Pull electronic governor diagnostics and note any glow lamp fault codes. Trace fuel lines and hoses for air leaks; replace fuel hoses and clamps if older than 2 years per the maintenance schedule on page 32. Verify the engine stop solenoid operates correctly using the electrical testing procedure. Set valve clearance to 0.18 to 0.22 mm cold if out of spec.
Manual Section: TroubleshootingFrequently Asked Questions
What are the torque specifications for the cylinder head on a Kubota 03-M-E3B series engine?
Cylinder head screw torque is 93.2 to 98.0 N·m (9.50 to 10.0 kgf·m, or 68.8 to 72.3 lbf·ft). Tighten the screws following the sequence shown in the manual.
What is the injection timing specification for a Kubota V2403-M-E3B engine?
Factory injection timing for the V2403-M is 0.271 to 0.296 radians, or 15.5 to 17.0 degrees before Top Dead Center (T.D.C.).
What are the replacement specifications for the fuel filter?
Replace the fuel filter cartridge every 400 hours. For engines with an element-type fuel filter, clean the element every 200 hours.
What are the replacement specifications for the injection nozzle?
Inspect injection nozzles every 800 hours. No fixed replacement interval is specified; replace the nozzle only if it fails the fume condition check during inspection.
How quickly can I access this Kubota D1503-M, V2403-M-BG manual after buying?
Immediate download of the full 187-page searchable workshop manual. Open it on any device, whether that's a laptop at your desk or a phone in the shop.
Can I print this Kubota D1503-M, V2403-M-BG manual?
Yes, print as many copies as you need. No restrictions. Most mechanics print the relevant section and bring it to the shop floor.
Document Quality
This is a native digital PDF, not a scanned document, so you can search the full text and copy content. The text is crisp and easy to read, and the technical line drawings are high-quality vector illustrations that remain sharp when you zoom in. Photographs of engine components are clear, and all pages are clean without any scan artifacts or marks. The document includes a few nearly blank pages that serve as section dividers.
