Three Kubota variants share this workshop manual: the B3150HSD, B3150HSDCC, and B3150SUHSD, with 486 pages reaching from engine and hydrostatic transmission to cabin HVAC (OEM #KISC issued 05, 2021 A). The wiring section runs 7 pages with separate circuit breakdowns per variant, and 10 pages of hydraulic schematics map the full three-point hitch circuit, front loader control valve, and the SUHSD quarter-inching valve. Add 100 pages of exploded views and 23 pages of drivetrain and electrical troubleshooting charts. Service points span daily checks out to the 3,000-hour mark. Cylinder head screws torque to 64-68 N-m, rear wheel mounting nuts to 167-191 N-m: numbers that end the argument fast. When your machine is down, the factory figure beats a forum guess. Bookmarked by section and keyword-searchable, so it opens on a tablet right at the bench.

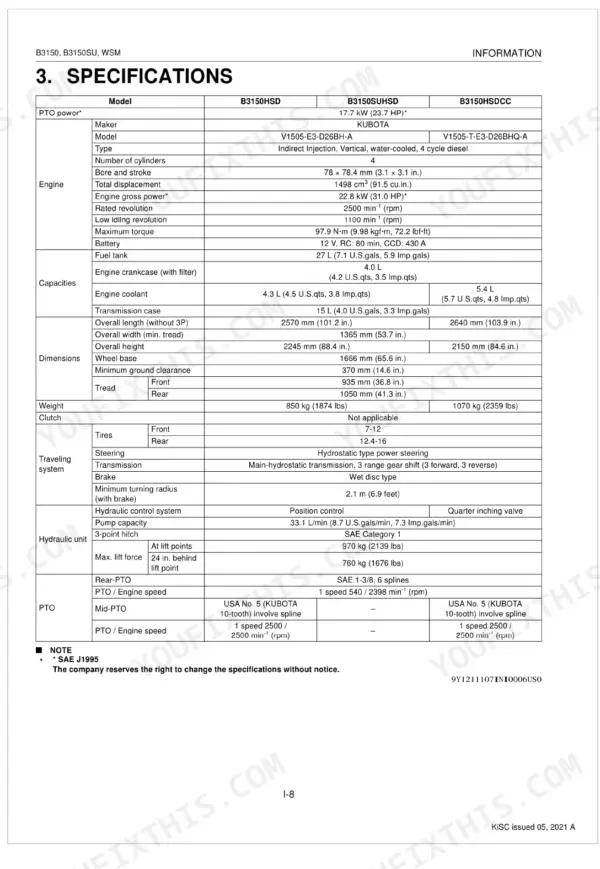

What's Inside This Kubota B3150, B3150SU Manual
| System | Pages | Key Topics |
|---|---|---|
| Information | 4-16 | Safety First, Safety Decals, Specifications, Traveling Speeds, Dimensions, Troubleshooting, Tightening Torques, Disassembling And Servicing (Disassembling And Assembling) |

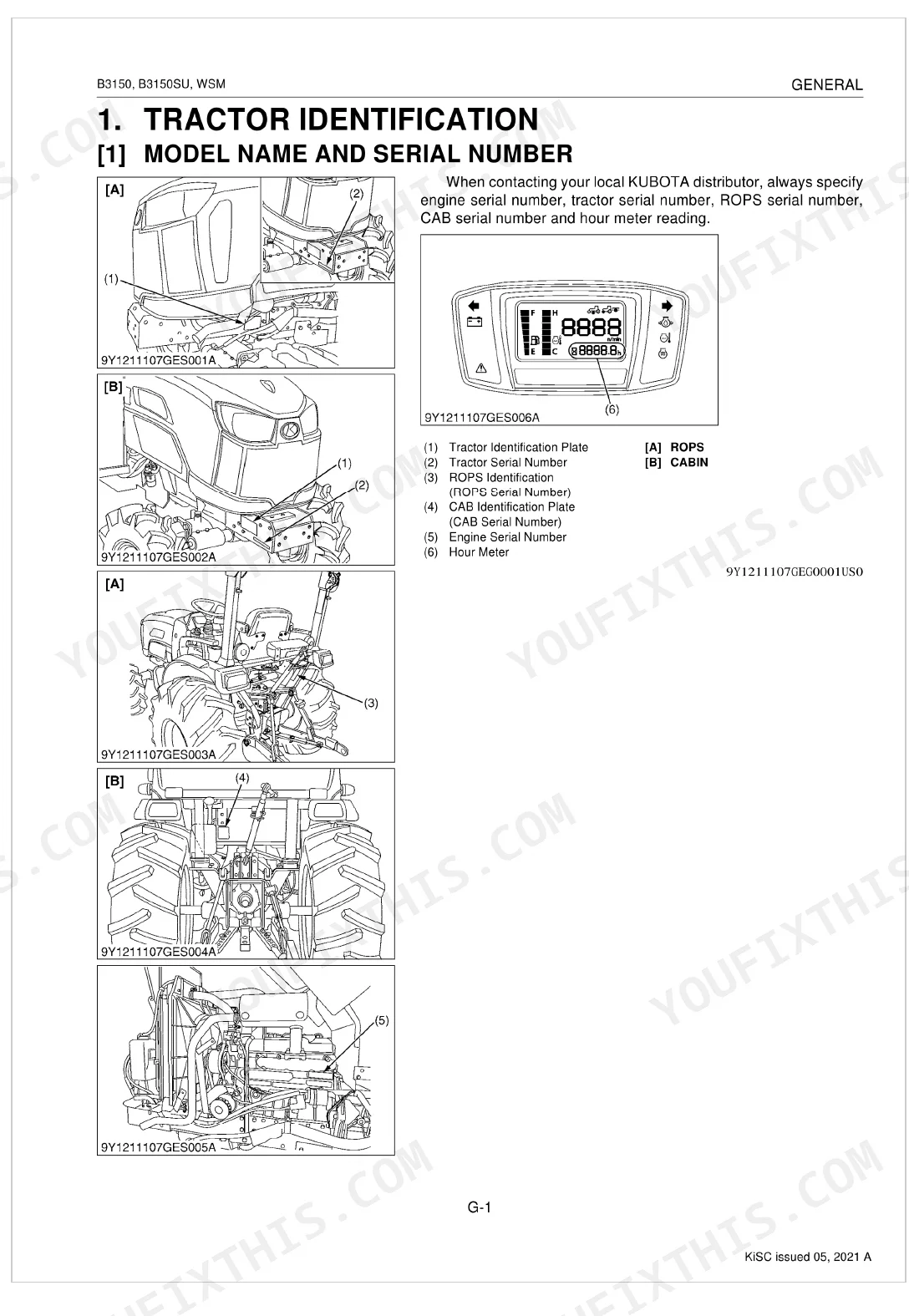

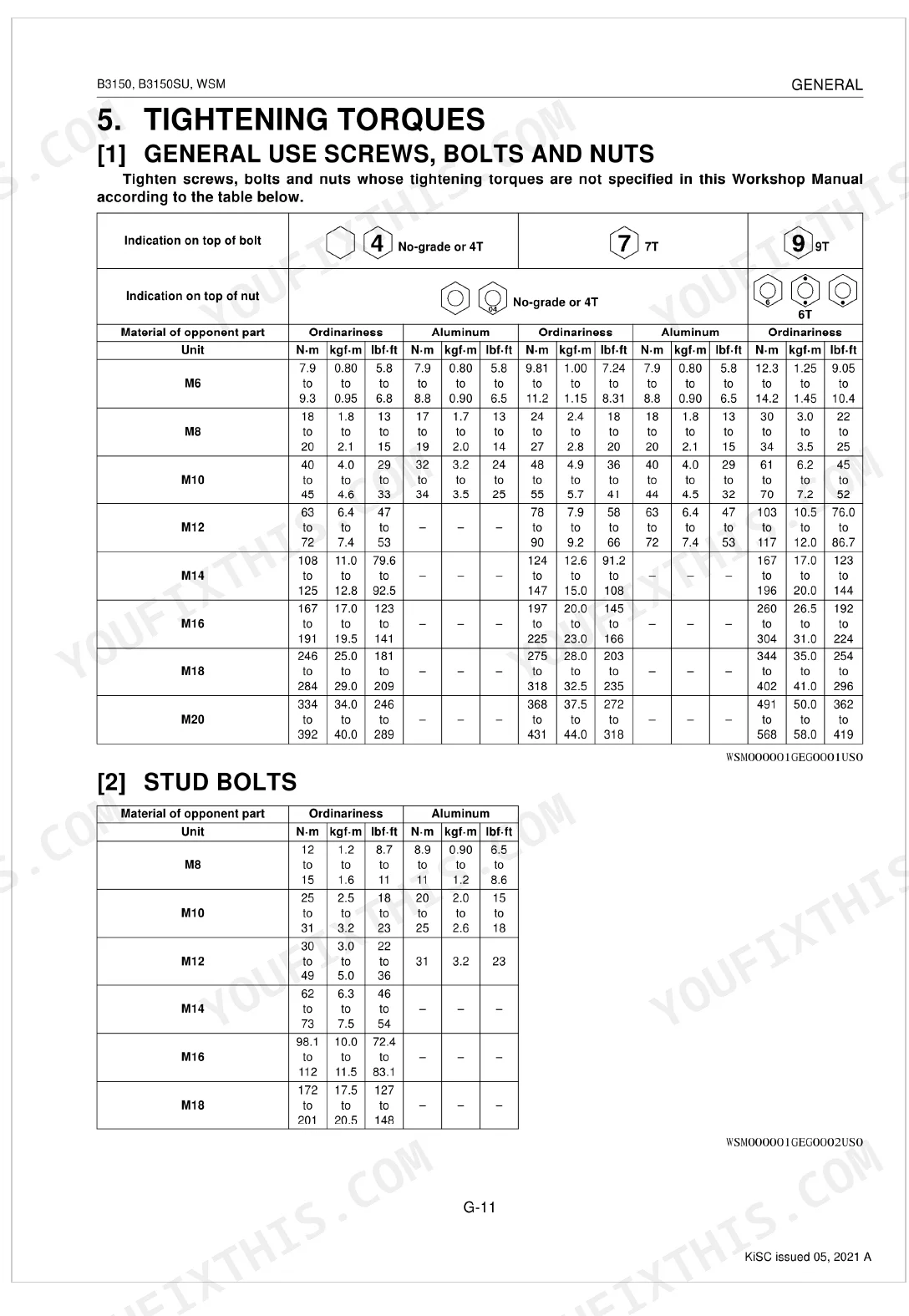

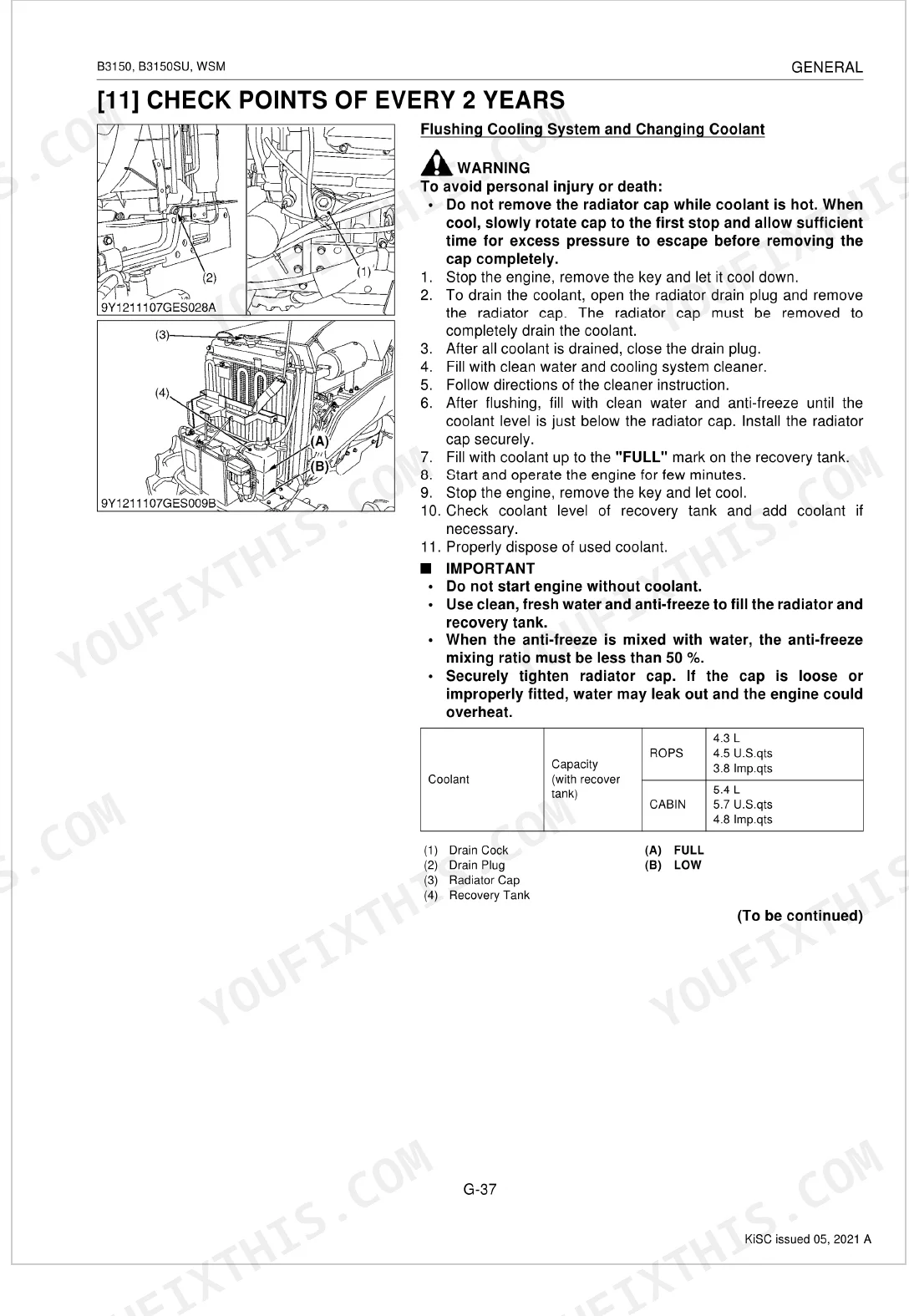

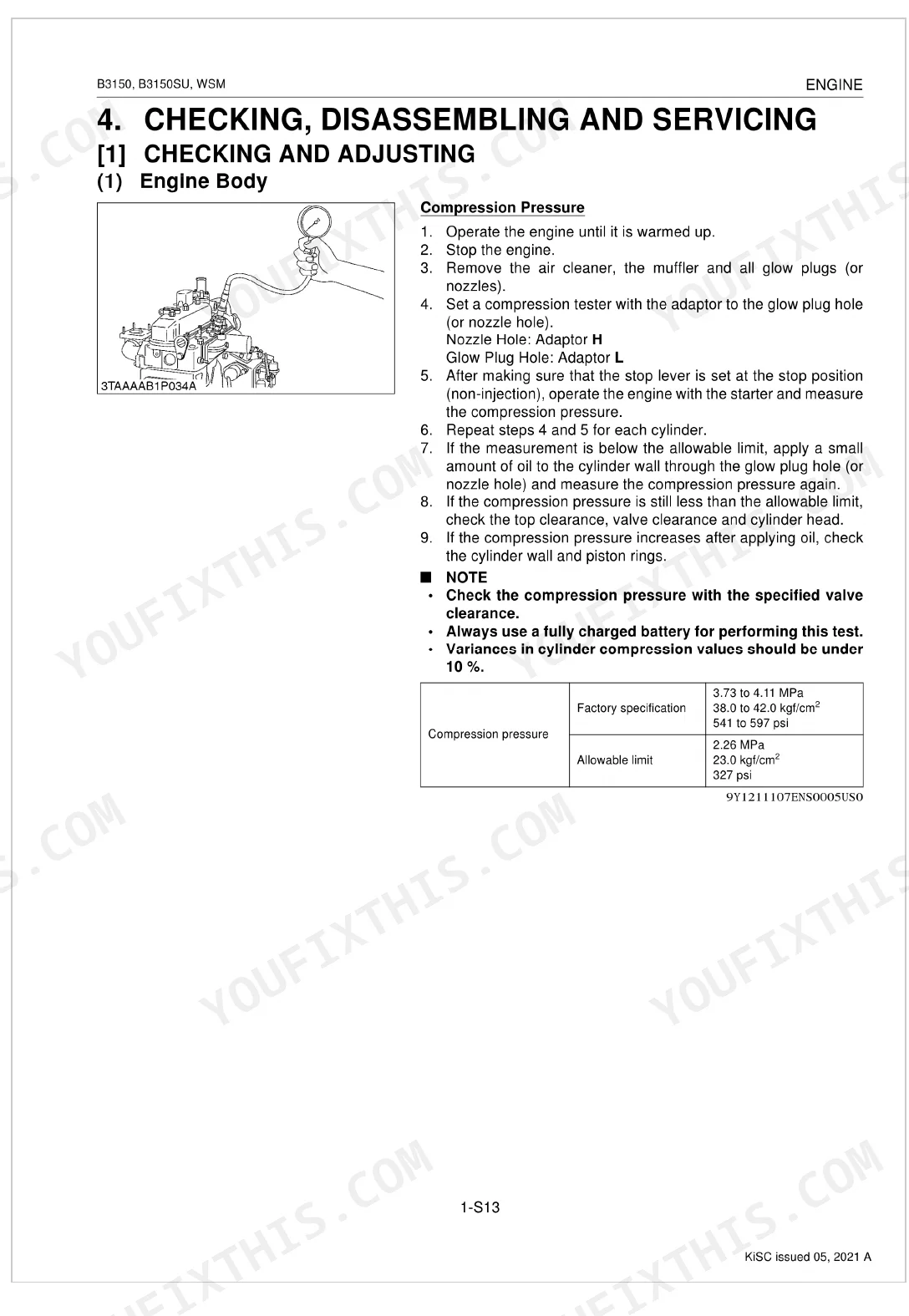

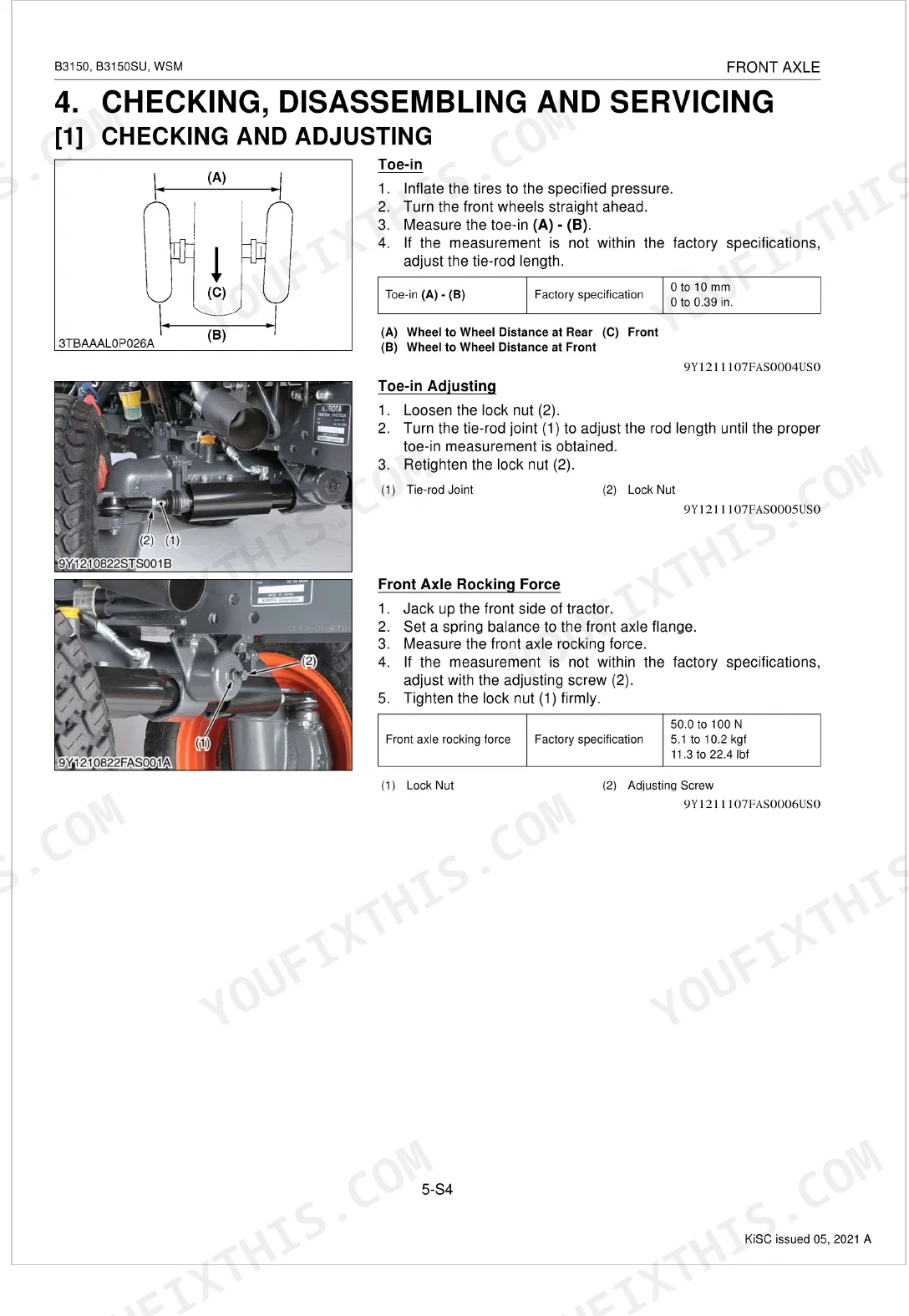

| General | 17-83 | Tractor Identification (Model Name And Serial Number, Cylinder Number) |
| Engine | 84-90 | Lubricating System, Cooling System, Fuel System (General), Governor |
| Engine Servicing | 91-122 | Troubleshooting, Servicing Specifications, Tightening Torques, Checking, Disassembling And Servicing (Checking And Adjusting, Preparation, Disassembling And Assembling) |
| Transmission | 123-154 | Structure, Front Case, Hydrostatic Transmission, Cruise Control, Range Gear Shift Section, Front Wheel Drive Section, PTO System, Differential Gear System |
| Transmission Servicing | 155-213 | Troubleshooting, Servicing Specifications, Tightening Torques, Checking, Disassembling and Servicing |
| Rear Axle | 214-216 | Structure, Rear Axle Type, Differential Gear Function |
| Rear Axle Servicing | 217-223 | Troubleshooting, Tightening Torques, Disassembling and Servicing |
| Brakes | 224-228 | Linkage (ROPS, Cabin), Operation (During Braking) |
| Brakes Servicing | 229-239 | Troubleshooting, Servicing Specifications, Tightening Torques, Checking, Disassembling and Servicing |
| Front Axle | 240-242 | Structure (Wheel Drive Model), Front Axle Construction, Power Transmission, Differential System Function |
| Front Axle Servicing | 243-259 | Troubleshooting, Servicing Specifications, Tightening Torques, Checking, Disassembling and Servicing |
| Steering | 260-265 | Hydraulic Circuit, Steering Controller, Steering Cylinder, Hydraulic Pump |
| Steering Servicing | 266-277 | Troubleshooting, Servicing Specifications, Tightening Torques, Checking, Disassembling and Servicing |
| Hydraulic System | 278-286 | Hydraulic Circuit, Hydraulic Pump, Three Points Hydraulic System |
| Hydraulic System Servicing | 287-313 | Troubleshooting, Servicing Specifications, Tightening Torques, Checking, Disassembling and Servicing |
| Electrical System | 314-328 | Electrical Circuit, Engine Starting System and Stopping, Lighting System, Easy Checker, Digital Display |
| Electrical System Servicing | 329-375 | Troubleshooting, Servicing Specifications, Tightening Torques, Checking and Adjusting |
| Cabin | 376-388 | Air Conditioner System, Refrigeration System, System Control, Electrical System |
| Cabin Servicing | 389-486 | Troubleshooting, Servicing Specifications, Tightening Torques, Precautions at Repairing Refrigerant Cycle, Checking and Charging Refrigerant Cycle, Checking |

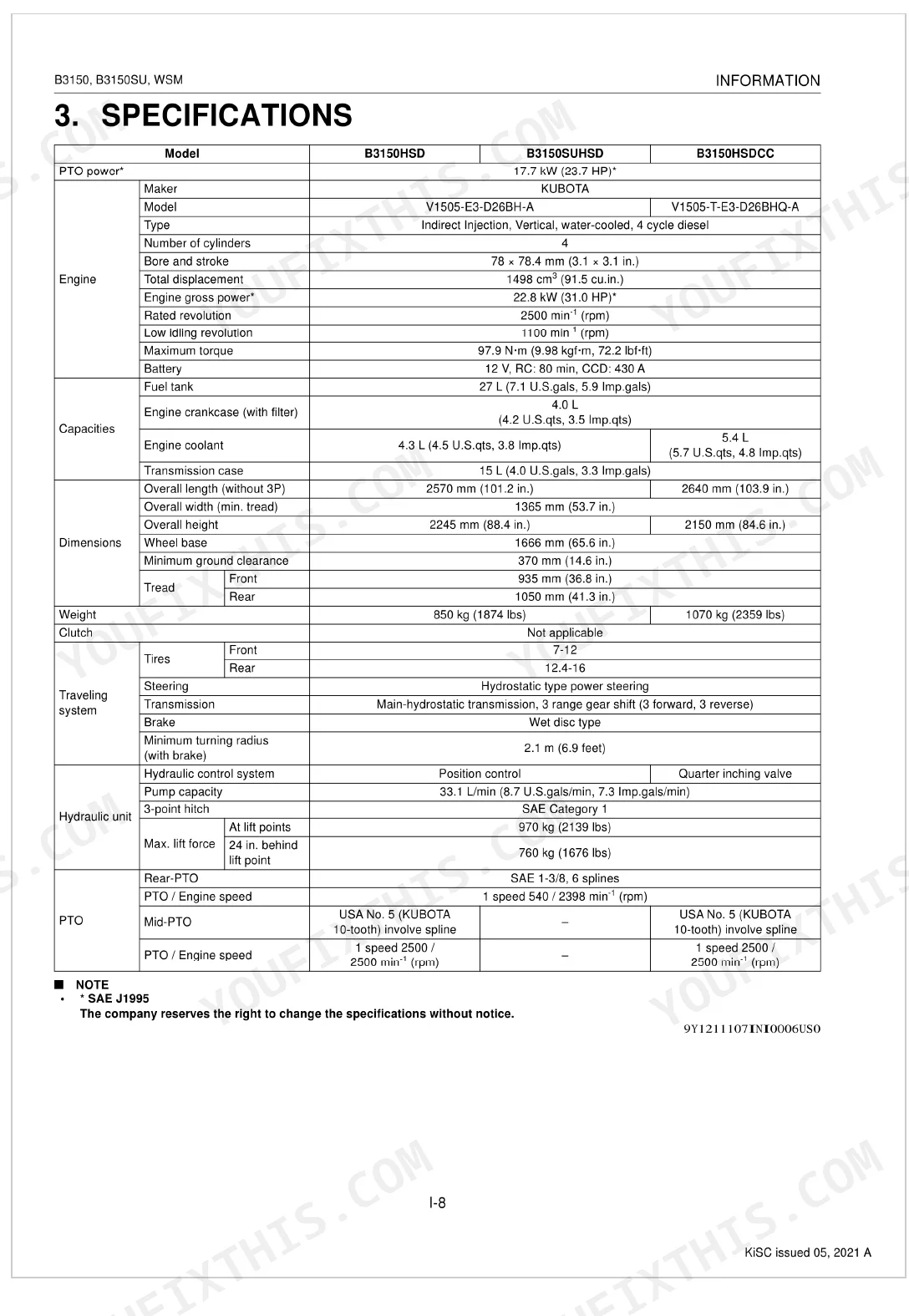

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Front wheel mounting nut torque | 77 to 90 N-m (57 to 67 lbf-ft) | p. 246 |
| Rear wheel mounting nut torque | 167 to 191 N-m (123 to 141 lbf-ft) | p. 77 |
| Cylinder head cover screw torque | 7 to 8 N-m | p. 102 |
| Cylinder head screws torque | 64 to 68 N-m (47 to 50 lbf-ft) | p. 104 |
| Hydraulic oil filter replacement interval | Replace every 400 Hr | p. 32 |
| Transmission oil filter cartridge replacement interval | Replace every 400 Hr | p. 32 |
| Fuel filter element replacement interval | every 400 Hr | p. 32 |
| Air cleaner element (Double element type) Primary element replacement interval | Replace every 1 year | p. 32 |
| Air cleaner element (Double element type) Secondary element replacement interval | Replace every 1 year | p. 32 |
| Engine oil filter replacement interval | Replace every 200 Hr | p. 32 |
| Hydraulic Hose Fittings (Hose size 02) torque | 13.8 to 15.6 N-m (10.2 to 11.5 lbf-ft) | p. 29 |
| Pipe size (φ4 x t1.0) torque | 19.7 to 29.4 N-m (14.5 to 21.6 lbf-ft) | p. 29 |

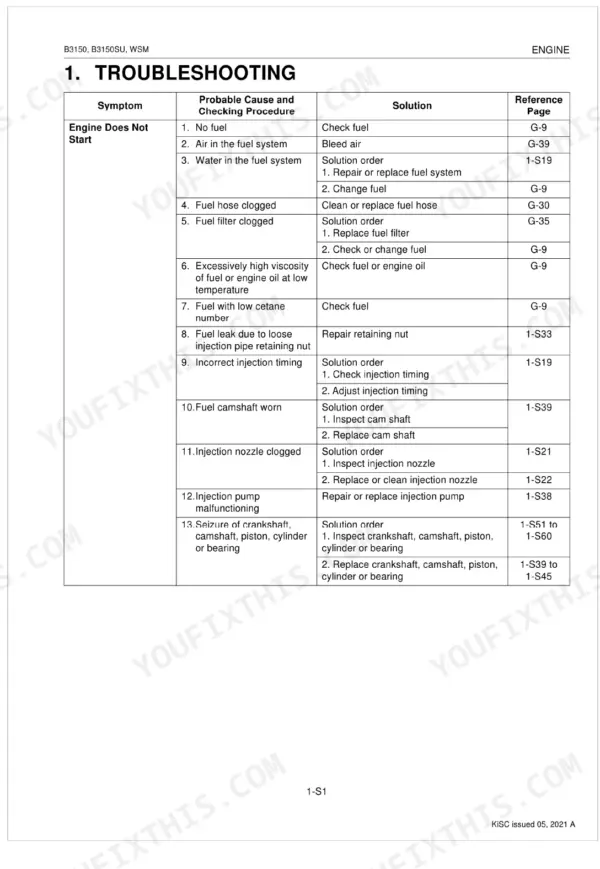

Kubota B3150, B3150SU Common Problems This Manual Covers
Kubota B3150 hydraulic lift weak or slow after 400 hours, loader won't raise to full height p. 288
Check hydraulic fluid level first; low oil is the most common cause. Inspect and replace the hydraulic oil filter if you're past 200 hours (HSD/SUHSD) or 400 hours (HSDCC) per the maintenance schedule on page 32. Pull the troubleshooting chart on page 288 to trace whether the pump is running noisy or silent, then work each branch to isolate the fault.

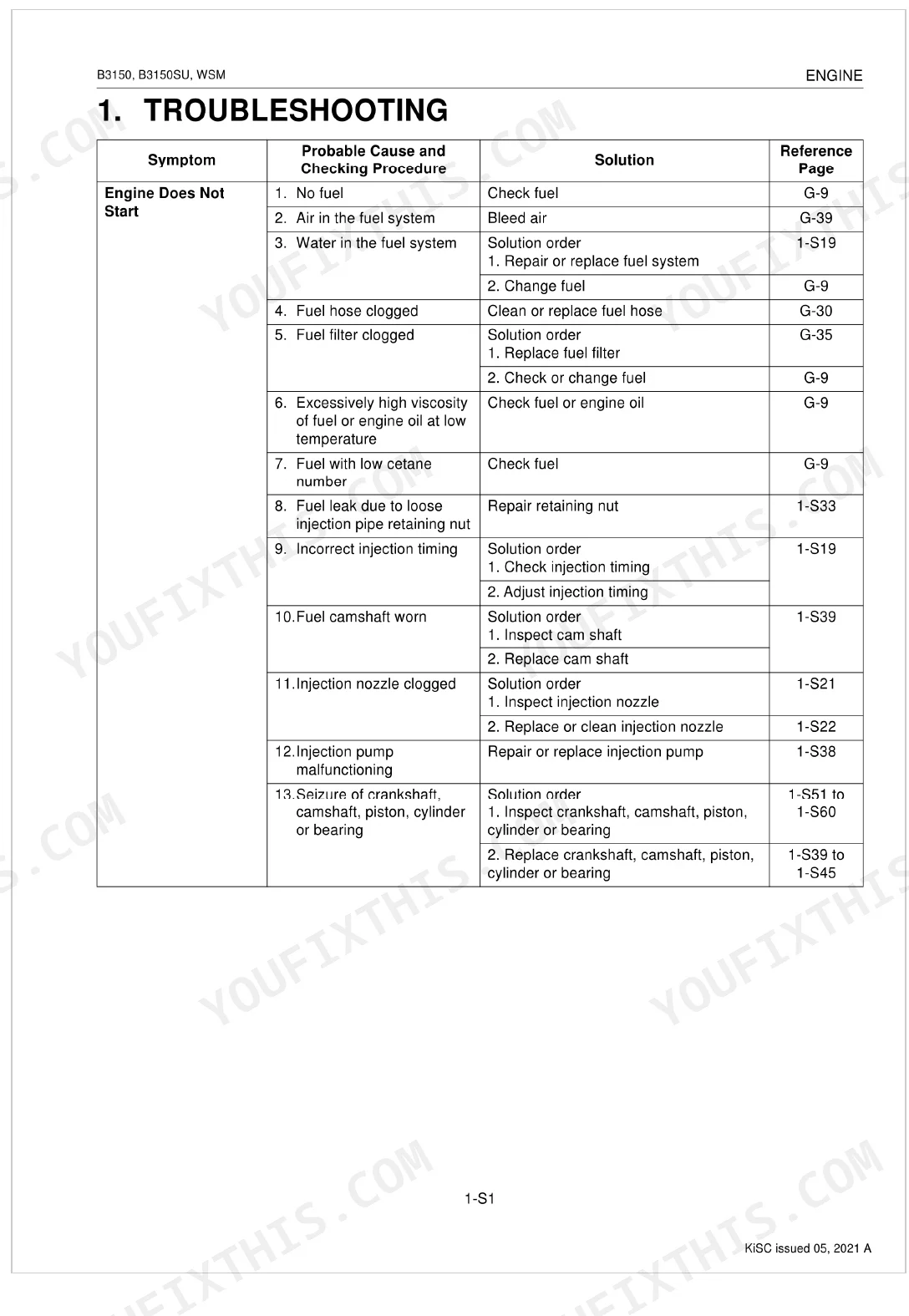

Manual Section: Hydraulic System ServicingEngine hard to start or cranks slowly in cold weather, won't fire p. 92
Test each glow plug with an ohmmeter; resistance should be approximately 1.1 Ω per the spec on page 335. Confirm battery voltage stays above 12 V (page 337), since cold cranking capacity drops fast on a weak battery. Replace the fuel filter at 100-hour (HSD/SUHSD) or 400-hour (HSDCC) intervals per page 32 to rule out fuel restriction before suspecting injectors.
Manual Section: Engine ServicingThree-point hitch fails to reach maximum height or drops the implement under load p. 288
Inspect hydraulic fluid level and look for external leaks at the lift cylinder seals. Turn to the troubleshooting procedures on page 288, which treat a complete no-lift condition and a max-height shortfall as separate fault paths. Confirm the control valve moves freely before disassembling, and replace the hydraulic oil filter if it is past 200 hours (HSD/SUHSD) or 400 hours (HSDCC) per page 32.
Manual Section: Hydraulic System ServicingHydrostatic transmission feels jerky or sluggish, tractor loses drive in both directions p. 155
Pull the transmission dipstick to read oil level and condition; dark or burnt-smelling oil means a change is overdue. Verify charge relief valve pressure falls within 0.4 to 0.6 MPa (60 to 80 psi) per the spec on page 160. Inspect the HST pedal linkage for binding or misadjustment before opening the transmission case to check internal pump or motor wear.
Manual Section: Transmission ServicingEngine overheats during loader or mowing work, temperature gauge in the red zone p. 92
Clean debris from the radiator core first; it is the top culprit on loader and mowing duty. Measure fan belt deflection against the factory spec of 7.0 to 9.0 mm (0.28 to 0.35 in.) per page 101, with adjustment due every 50 hours per page 32. Confirm the thermostat begins opening at 69.5 to 73.5 °C (157.1 to 162.5 °F) before suspecting a head gasket or water pump fault.
Manual Section: Engine ServicingPTO shaft won't engage at all or disengages and slips under implement load p. 155
Verify the PTO control linkage moves freely with no binding and engages fully through its travel. Inspect clutch disc condition using the Transmission Servicing section starting on page 155, which covers PTO clutch drag diagnostics. Replace the transmission oil filter at 200 hours (HSD/SUHSD) or 400 hours (HSDCC) per page 32 if overdue, since contaminated oil accelerates clutch disc wear. Check the hydraulic interlock circuit last.
Manual Section: Transmission ServicingFrequently Asked Questions
What do the error codes mean on a Kubota B3150?
Three power train error codes appear here: ERROR-1 is a water temperature sensor fault, ERROR-2 a fuel sensor fault, and ERROR-3 a meter panel memory reading fault. When one trips, the master warning indicator blinks and the LCD shows the code, pointing you to where the trouble sits.
What are the replacement specifications for Hydraulic filters?
Replace the hydraulic oil filter (No. 5) every 200 hours on the HSD/SUHSD or every 400 hours on the HSDCC. The Maintenance Check List records this interval.
What are the replacement specifications for Fuel filters?
Swap the fuel filter element (No. 14) every 100 hours on the HSD/SUHSD or every 400 hours on the HSDCC. You'll find this interval in the Maintenance Check List.
What format is this Kubota B3150, B3150SU manual in?
A 486-page searchable PDF, ready to download right away. It runs on any device, so you can pull it up on your phone while you're under the hood. Nothing ships, nothing waits.
Can I print specific sections of this Kubota B3150, B3150SU Workshop Manual?
Yes. With no DRM on the PDF, you can print any page or section for the shop on any standard printer.
Are there wiring harness diagrams in this Kubota B3150, B3150SU manual?
Yes. Full electrical schematics are included, with wire routing diagrams, connector identification, and circuit descriptions.
