Part of the Kubota Operator Manuals.
This is the Kubota Parts and Owner's Manual for the B3548 rear mount rotary mower, a 17 page PDF (form 551-14006) for the 48 inch three blade deck starting with serial number 3548-101.
It covers safe setup and operation, from front end ballast and weight distribution through attaching the mower to the tractor, V belt tension, cutting height, and the lubrication and maintenance schedule with blade maintenance. Bolt torque specifications and gearbox and spindle repair procedures are included, along with a full specification table and illustrated parts lists.
For owners this is the reference for correct assembly, safe PTO operation at the rated speed, keeping an even cut, and ordering blades, bearings, belts, and driveline parts by factory part number.
What's Inside This Kubota B3548 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Approved Tractor Models, Serial Number Record | 2 | Approved Tractor Models, Ser. No. Record, Approved Tractor Models for the B3548 Mower, Serial Number Record |
| Introduction | 3 | Manual Purpose, Reading the Manual, Safety Precautions, Safety Alert Symbol Identification, Inspect Mower Assembly, Operator Familiarity, Stop Engine and Remove Ignition Key, Mow Up and Down Slopes |
| Safety Signs on the Machine | 4 | Decal Replacement, Decal, PTO Danger, Caution, Discharge, Operating Safety, Shield, PTO Speed |
| Tractor Equipment Required | 5 | Front End Ballast, Proper Weight Distribution, Front Axle Weight Formula, Additional Ballast, Assembly Instructions, Attach Discharge Shield, Lift Mast Up and Attach Rear Brace, Adjust V-Belt Tension |

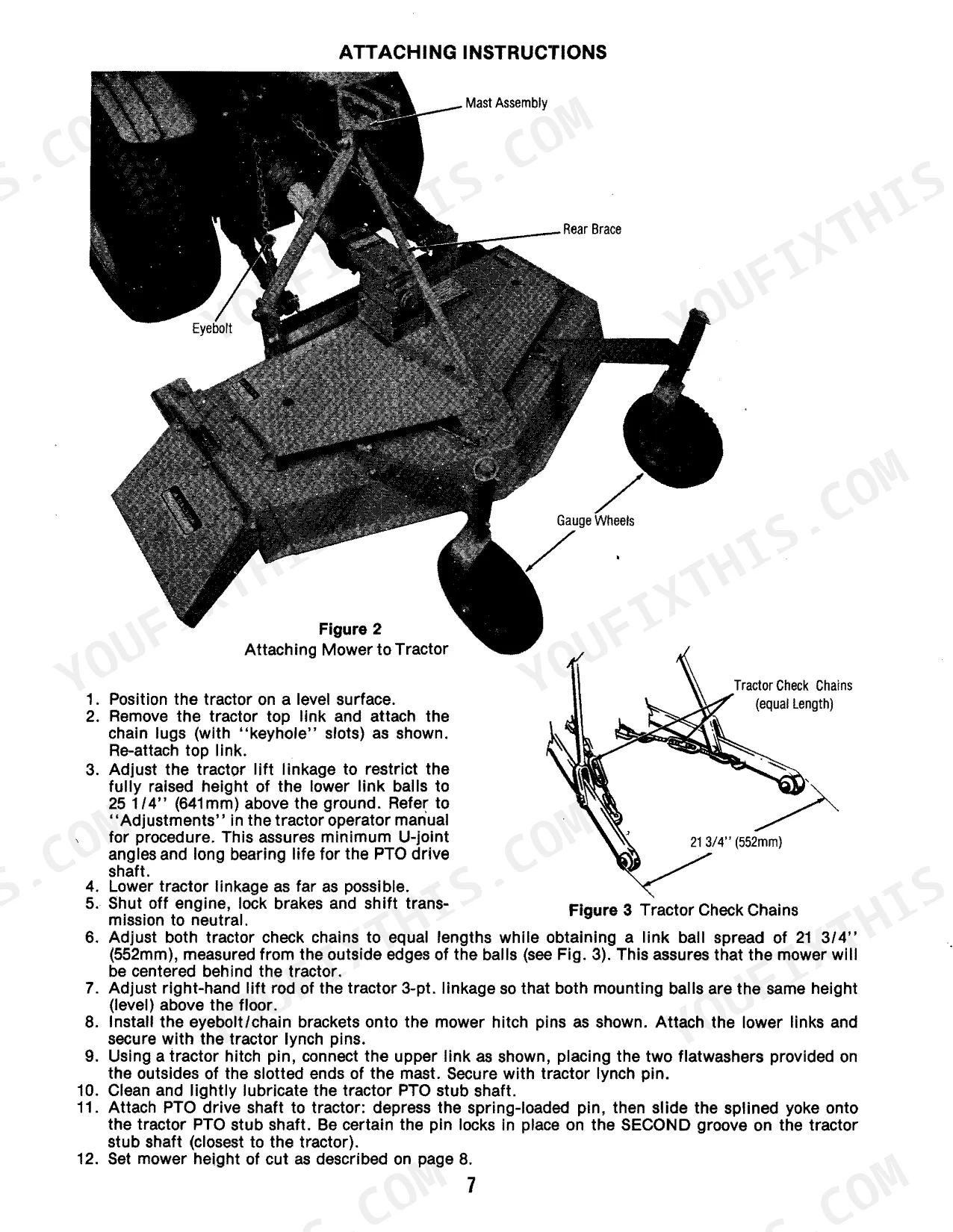

| Attaching Instructions | 6 | Figure 2 Attaching Mower to Tractor, Position the Tractor, Remove and Re-Attach Tractor Top Link, Adjust Tractor Lift Linkage, Lower Tractor Linkage, Shut Off Engine, Lock Brakes, And Shift Transmission |
| Adjustments | 7 | V-Belt Tension |
| Lubrication & Maintenance Instructions | 8 | Lubrication & Maintenance, Lubrication and Maintenance Schedule, Blade Maintenance |
| Bolt Torque Specifications | 9-10 | Gearbox Repair, Spindle Repair |
| Specifications | 11 | Kubota B3548 Rear-Mount 48'' Rotary Mower, Overall Length, Overall Width, Number of Blades, Cutting Height, Cutting Width, Blade Length and Width, Blade Overlap |

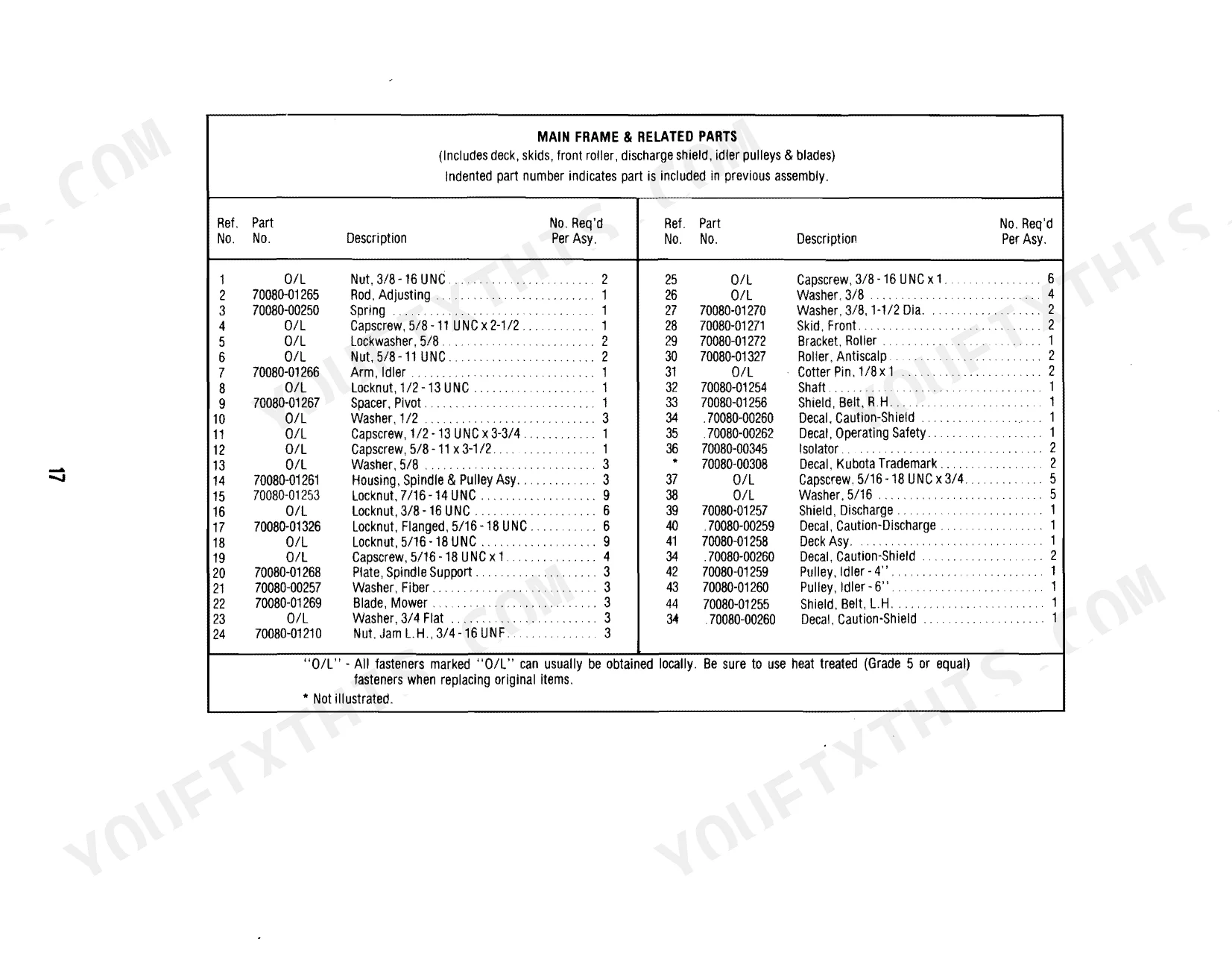

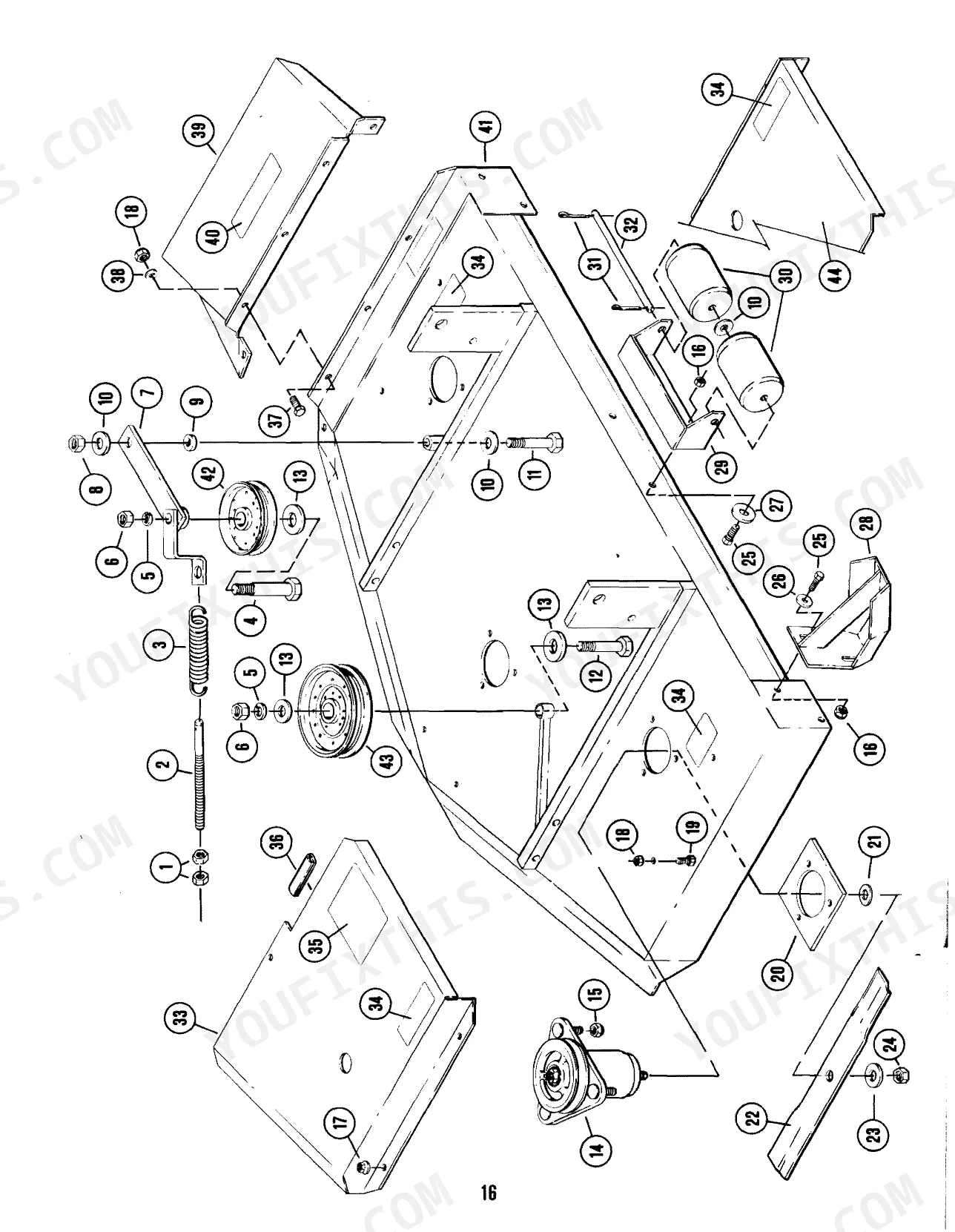

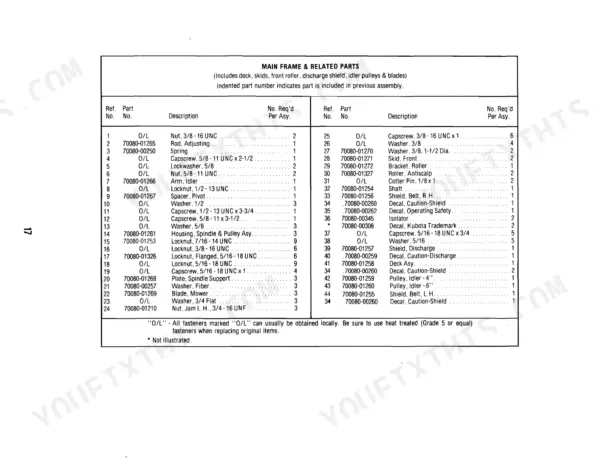

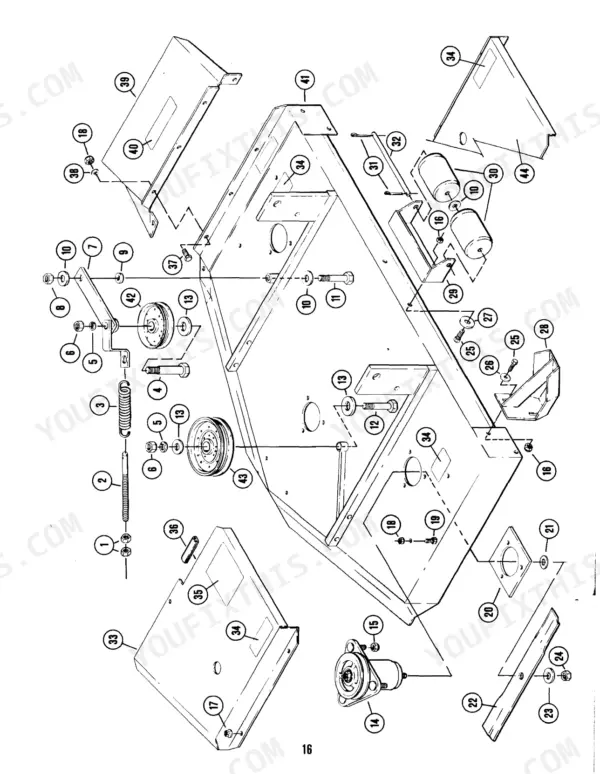

| Illustrated Parts Lists | 12-17 | PTO Driveshaft Assembly, Gearbox Assembly, Mounting Brackets & Shields, Main Frame & Related Parts, Housing & Spindle Assembly |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Blade Retaining Nut, 3/4-16 UNF LH Thread torque | 65-75 ft-lb (87-100 N-m) | p. 9 |
| V-Belt Tension Spring Length | 6 1/2 to 6 3/4 inches (165-171 mm) | p. 7 |
| Gearbox Connecting Bolts Torque | 15-20 ft-lb (20-25 N-m) | p. 9 |
| Gearbox Pulley Capscrews Torque | 7-9 ft-lbs (9-12 N-m) | p. 9 |
| Spindle Bearing Spacer Length | .8751-.8731" (22.228-22.177mm) | p. 10 |
| Spindle Bearing Seat Distance | .937-.935" (23.80-23.75mm) | p. 10 |
| Spindle Pulley Nut Torque | 60-70 ft. lbs. (80-93 N-m) | p. 11 |
| Overall Length | 42" (1067mm) | p. 11 |
| Overall Width | 58.5'' (1486mm) | p. 11 |
| Number of Blades | 3 | p. 11 |
| Blade Tip Speed at 2800 Erpm (876 PTO) | 15,134 feet/min. (277 Km/h) | p. 11 |
Kubota B3548 Common Problems This Manual Covers
V-belt slips or squeals
A drive belt that slips or squeals under load usually needs its tension reset to spec. The adjustments section covers V-belt tension and how to set the spring length correctly.
Manual Section: Adjustments p. 7Uneven cut or poor mowing
An uneven or ragged cut is most often dull blades or a deck out of adjustment. The lubrication and maintenance section covers blade maintenance and sharpening to restore a clean cut.
Manual Section: Lubrication & Maintenance Instructions p. 8Excess vibration or knocking
Vibration or knocking during mowing points to a bent blade, loose fasteners, or imbalance. The bolt torque specifications section gives the blade and gearbox hardware values to secure everything correctly.
Manual Section: Bolt Torque Specifications p. 9Deck scalps or sits unevenly
A deck that scalps or leaves uncut strips is usually a lift linkage or height setup issue. The attaching instructions section covers adjusting the tractor lift linkage and leveling the mower.
Manual Section: Attaching Instructions p. 6Light front end or poor traction
With a rear mount mower the front of the tractor can become light, reducing steering and braking. The tractor equipment required section explains front end ballast and proper weight distribution.
Manual Section: Tractor Equipment Required p. 5Spindle bearing noise or play
A noisy spindle or blade wobble usually means worn spindle bearings. The illustrated parts lists identify the housing and spindle assembly components so you order the right bearings and hardware.
Manual Section: Illustrated Parts Lists p. 17Frequently Asked Questions
What does this manual cover?
It is the parts and owner's manual for the Kubota B3548 rear mount rotary mower, the 48 inch three blade deck starting with serial number 3548-101. It covers setup, operation, maintenance, repair, specifications, and parts. p. 1
What is the blade bolt torque?
The blade retaining nut, a 3/4-16 UNF left hand thread, is torqued to 65 to 75 ft-lb (87 to 100 N-m). The bolt torque specifications and maintenance pages list the blade and gearbox hardware values. p. 9
Does it include parts diagrams?
Yes. The illustrated parts lists cover the PTO driveshaft, gearbox, mounting brackets and shields, main frame, and housing and spindle assembly, each with factory part numbers for ordering. p. 13
What format is this manual in?
Instant PDF download. You receive the full 17-page searchable Operator Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Am I able to print pages from this manual?
No restrictions. The PDF is DRM-free, so print whatever sections you need to bring out to the shop. Standard letter or A4 paper works fine.
