Kubota built this RCK60D-26BX / RCK54D-26BX Operator Manual (OEM #K5384-7111-1) around one job: running and maintaining your mid-mount rotary mower the way the factory intended, across 45 pages. Four pages of safety come first, covering pre-operation blade inspection, working-area hazards, and danger label identification. From there it walks through tractor-mounting procedures, anti-scalp roller setup, cutting height adjustment, and a maintenance section with gearbox oil service, blade and belt replacement, and a tightening torque chart. A problem-solving section covers streaking, scalping, excessive vibration, and belt slip. Blade mounting bolts torque to 102.9-117.6 N-m (75.9 to 86.8 ft-lbs); the RCK60D deck swings a 523 mm blade, the RCK54D a 475 mm blade. Stop chasing specs in a grease-stained paper copy. Every section is bookmarked and the text is keyword-searchable, so the answer loads on whatever screen you have at the machine.
What's Inside This Kubota RCK60D-26BX, RCK54D-26BX Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safe Operation | 3-6 | Before Operation (Operator, Machine, Blades and Equipment, Working Area), Maintenance and Storage, Danger |
| Service | 7 | Introduction, Specifications, Mower Terminology |
| Important | 12 | Adjust the Anti-Scalp Rollers and Wheels According to the Mowing Height, Before Attaching the Mower Links, Adjust Their Lengths According to the Table Below |
| Setting Up | 13-20 | Pre-Assembly, Setting Up the Mower, Mower Links, Set the Front Link and Hook Link, Frame Link, Attaching Front Link to the Tractor, Attaching the Frame Link |
| Mounting to the Tractor | 21-26 | Mounting the Mower to the Tractor (Adjust All the Anti-Scalp Rollers to the F Position, Unlock the Lever to Lift Up the Rear Anti-Scalp Roller, Pull the L-Pin and Extend the Ramps to Front and Rear Sides) |
| Mower Adjustments | 27-29 | Front Link (Park the Machine on a Firm, Flat and Level Surface and Set the Parking Brake, Tire Pressure Must Be Correct, Turn the Cutting Height Control Dial to 2.0, Make Sure the Level of the Mower Blades Is Adjusted As Shown Below, To Adjust L1, Loose 2 Nuts Then Turn 3 Nuts) |
| Operation | 30-34 | Making the Most of Your Mower, Cutting Height, Operating Mower, Using 3 Point Hitch Attachment or Front Loader, Dismounting the Mower From the Tractor |
| Maintenance | 35-40 | Maintenance Check List, Check and Maintenance (Gear Box Oil, Greasing.)), Blade Replacement, Belt Replacement, Tightening Torque Chart |
| Long-Term Storage | 41 | Remove the Mower Deck Covers, Loosen the Mower Drive Belt, Clean All Pulleys and Wipe with a Dry Cloth and Oil, Clean All Grass and Dirt From the Mower Deck |
| Troubleshooting | 42-43 | Discharge Cover Plugged, Streaking of Uncut Grass, Uneven Cut, Blades Scalping Grass, Belt Slipping, Excessive Vibration, Mower Loads Down Tractor |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Blade mounting bolt torque | 102.9 to 117.6 N-m (10.5 to 12 kgf-m, 75.9 to 86.8 ft-lbs.) | p. 39 |
| Belt replacement condition | Worn belt | p. 42 |
| Bracket bolts torque (related to belt replacement) | 77.6 to 90.2 N-m (8.0 to 9.2 kgf-m, 57.1 to 66.5 ft-lbs) | p. 39 |
| Spindle bearing replacement condition | Spindle bearing worn | p. 42 |
| Pulley replacement condition | Damaged pulleys | p. 42 |
| Anti-scalp roller clearance to ground | 6 mm to 13 mm (0.2 to 0.5 in.) | p. 30 |
| General bolt torque (7T, M14) | 123.6 to 147.0 N-m (12.6 to 15.0 kgf-m, 91.1 to 108.5 ft-lbs) | p. 40 |
| Front link joint nut torque | 60 to 70 N-m (6.2 to 7.1 kgf-m, 45 to 51 lbf-ft) | p. 15 |
| Engine overheating prevention | keep the radiator and radiator screen clean | p. 31 |
| Potential cause for burning smell/smoke from mower deck | Worn belt | p. 42 |
| RCK60D-26BX | ||
| Blade length | 523 mm (20.6 in.) | p. 8 |
| RCK54D-26BX | ||
| Blade length | 475 mm (18.7 in.) | p. 8 |
Kubota RCK60D-26BX, RCK54D-26BX Common Problems This Manual Covers
Cut quality drops off: the RCK60D-26BX deck leaves streaks of uncut grass and scalps high spots p. 42
Inspect the blades and replace any that are worn. Torque the blade bolts to 102.9 to 117.6 N-m (75.9 to 86.8 ft-lbs.) as shown on page 38, then adjust the anti-scalp rollers to hold 6 mm to 13 mm (0.2 to 0.5 in.) ground clearance per page 30.
Manual Section: TroubleshootingHeavy vibration or shaking sets in when the PTO engages p. 42
Check the drive belt and idler pulleys for wear or damage. When fitting a new belt, torque the belt bracket bolts to 77.6 to 90.2 N-m (57.1 to 66.5 ft-lbs) per page 39. Confirm all three blades are balanced and seated correctly.
Manual Section: TroubleshootingGearbox runs hot or comes due for service after the break-in period p. 36
Drain and refill the gearbox after the first 50 hours. Refill the case with exactly 0.36 L (0.38 qts.) of fresh gear oil as specified on page 36, then clear the tractor radiator screen to head off the overheating covered on page 31.
Manual Section: MaintenanceFront linkage feels loose, or the deck shifts during drive-over mounting p. 13
Examine the front link and hook link setup for wear. Tighten the front link joint nut to 60 to 70 N-m (45 to 51 lbf-ft) following page 15, and set the stay link torque to 43.3 to 50.3 N-m (32 to 37 lbf-ft) on page 18.
Manual Section: Setting UpFrequently Asked Questions

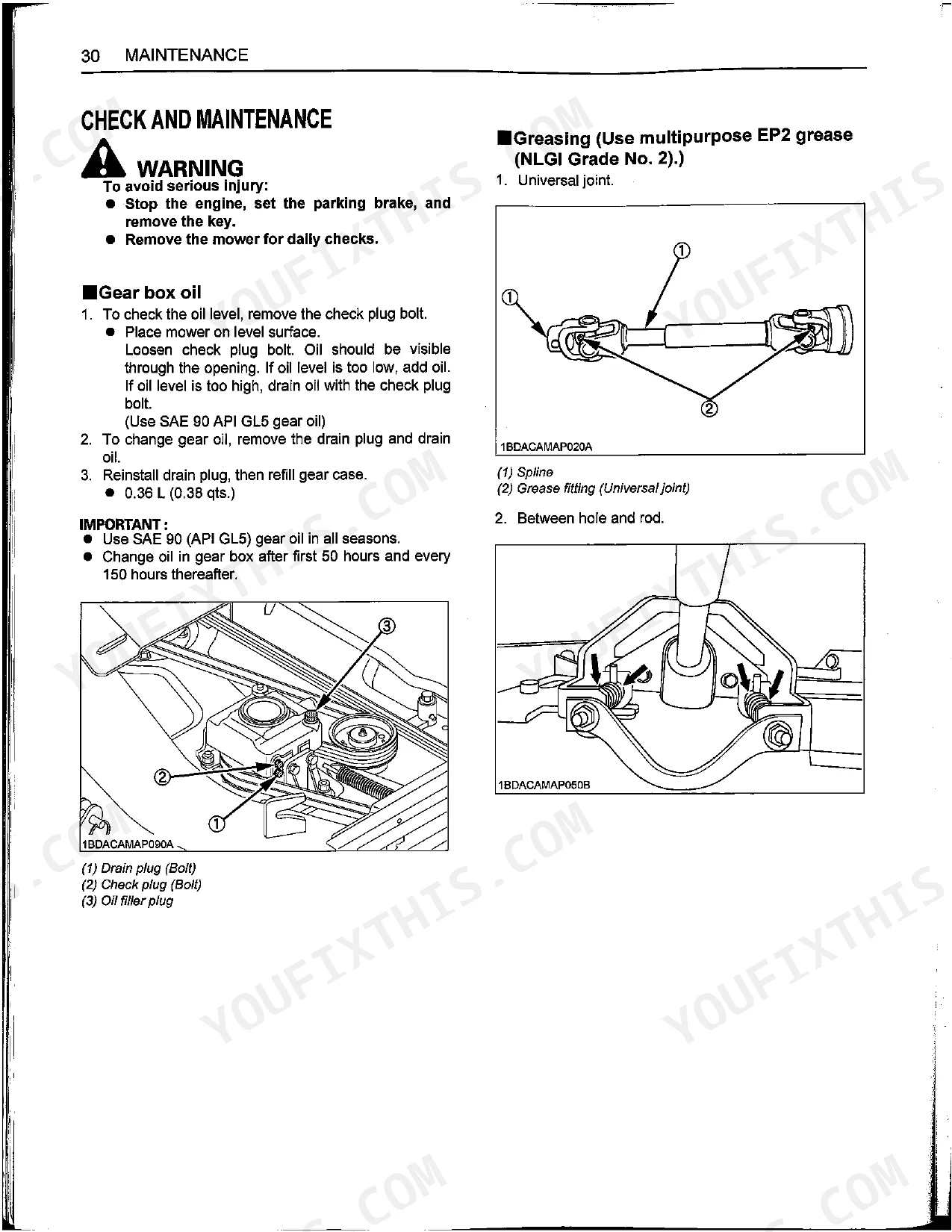

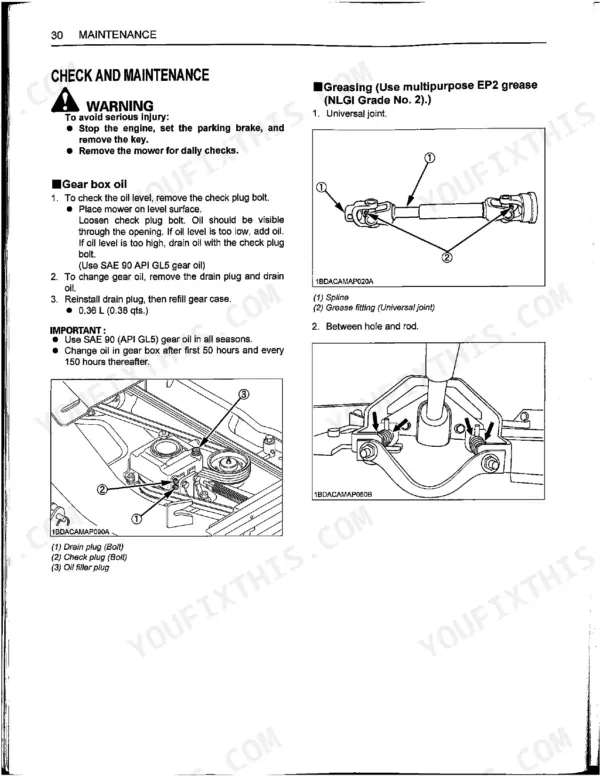

How do I grease and change the oil on a Kubota RCK60D-26BX?
Grease points take multipurpose EP2 grease (NLGI Grade No. 2): the universal joint, three spindle shafts, belt tension pulley, belt tension pivot, front and rear anti-scalp rollers, and frame link. The gear box uses SAE 90 (API GL5) gear oil at a capacity of 0.36 L (0.38 qts.). Change that oil after the first 50 hours, then every 150 hours after that.
How do I install or remove a Kubota RCK60D-26BX drive-over deck?

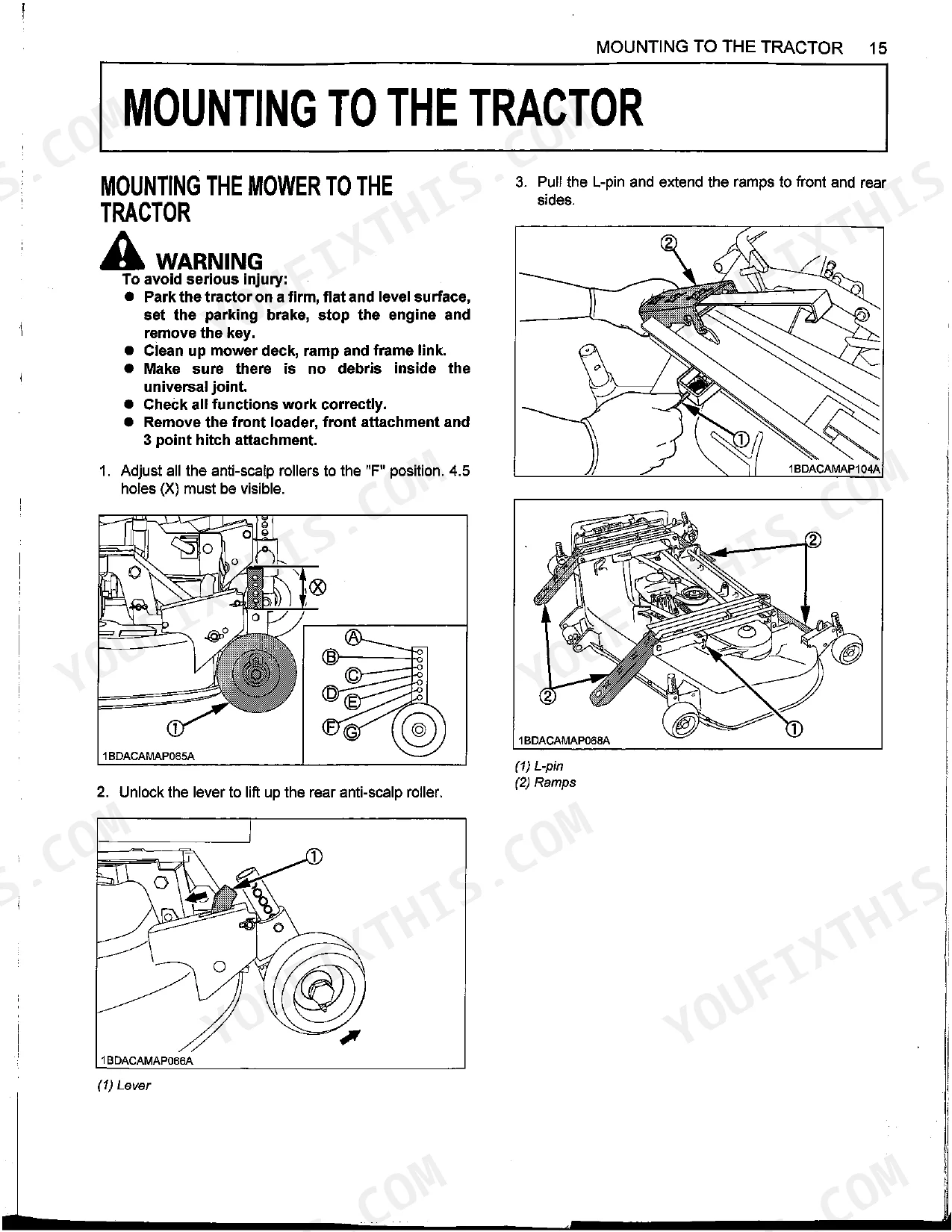

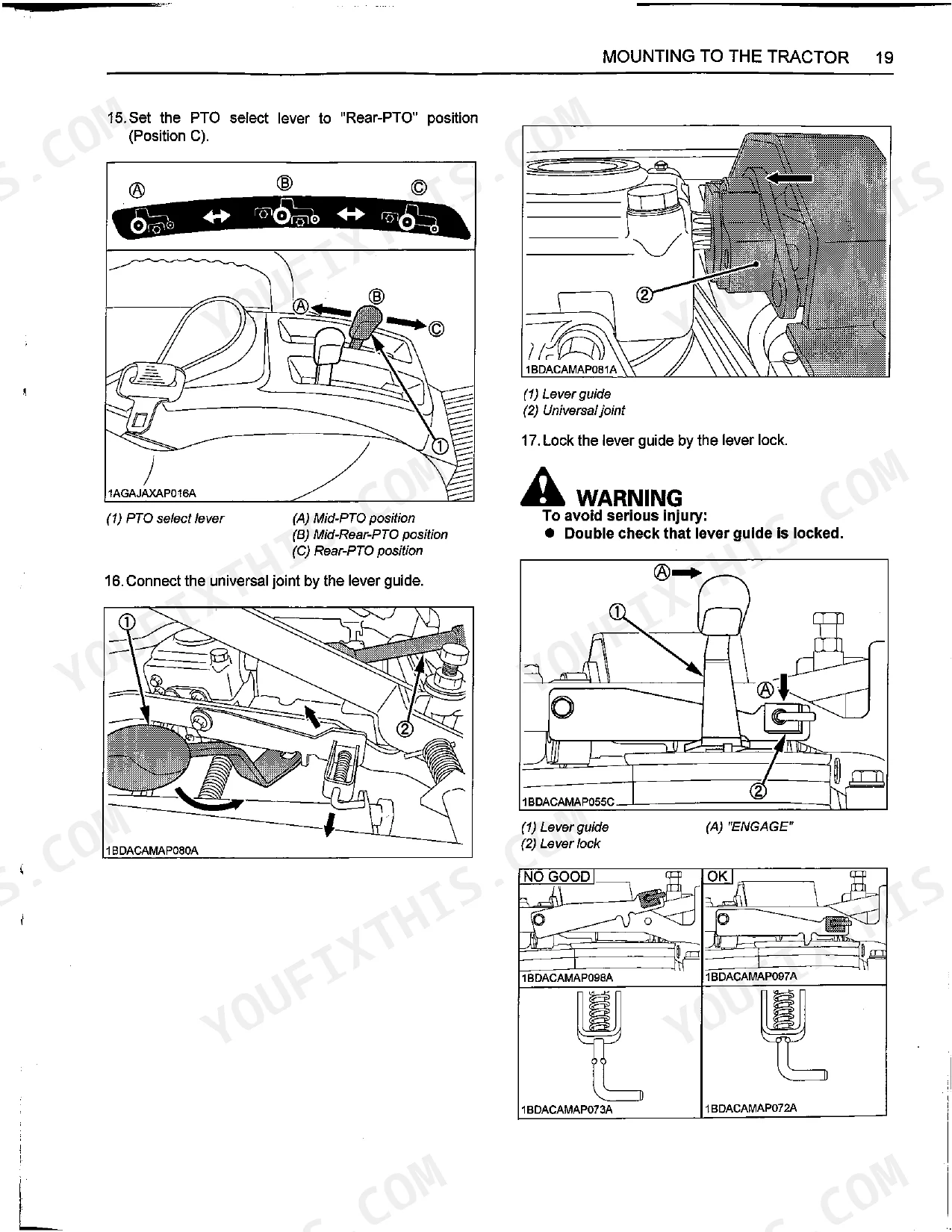

Installing the mower starts by setting all anti-scalp rollers to the "F" position (4.5 holes visible), pulling the L-pin to extend the front and rear ramps, then driving the tractor over the ramp. Lock all pins and connect the universal joint, with the PTO select lever in the "Rear-PTO" position. To remove, park the tractor in the "TOP" position, set the rollers to "F", unlock the lever to raise the rear anti-scalp roller, set cutting height to 0", pull the L-pin to extend the ramps, release the rear lock, and drive backward over the ramp.
How do I fix poor cut quality on a Kubota RCK60D-26BX?
Streaking or uneven cuts usually trace back to grass that is too wet or too long, cutting too low, low engine RPM, or excessive ground speed. Dull or damaged blades, debris in the deck, an unlevel deck, low tire inflation, or misadjusted anti-scalp rollers also play a part. Fixes: wait for the grass to dry, raise the cutting height, mow at full throttle, slow down, sharpen or replace blades, clear the deck, level it, correct tire pressure, and adjust the anti-scalp rollers.
What does the operator’s manual say about operating the mower in transport position?
A DANGER warning in the manual is blunt about this: never operate the mower in transport position. Doing so risks serious injury or death.

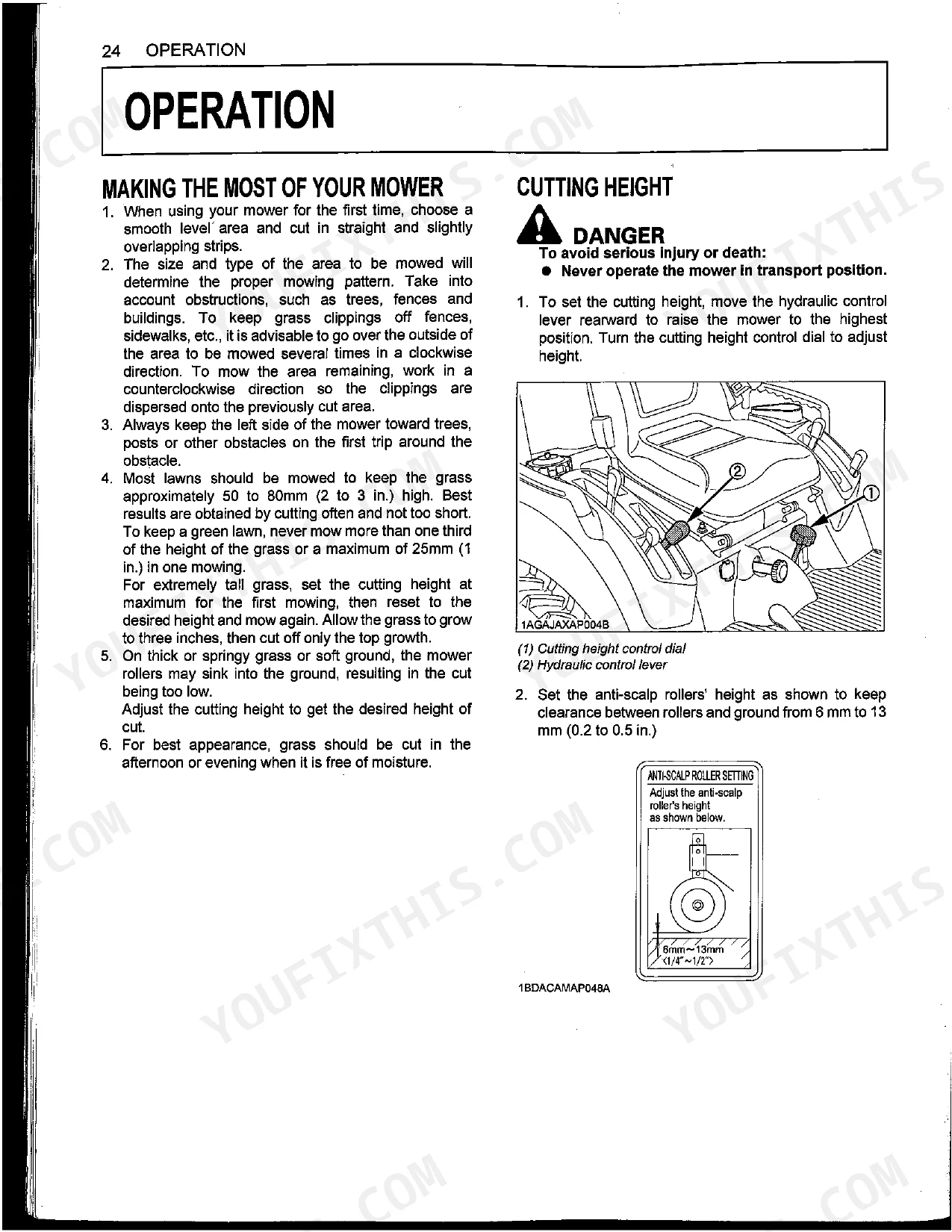

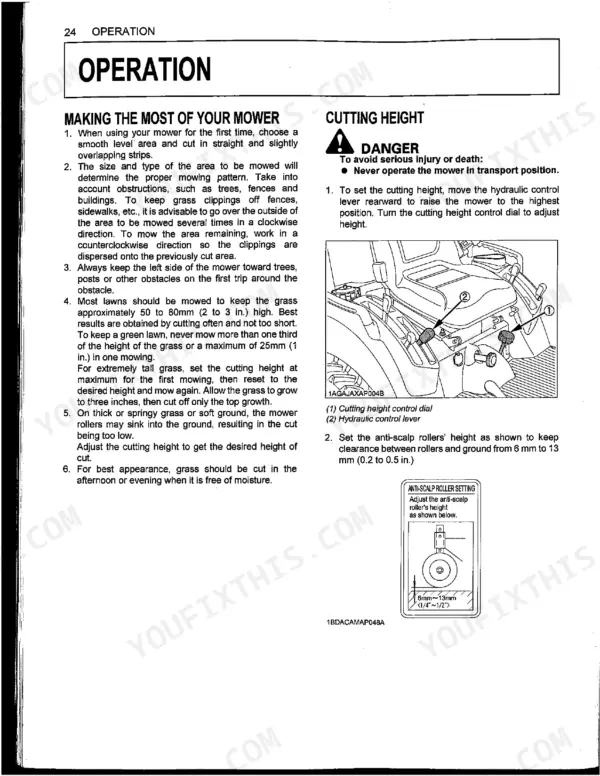

How to reset Kubota RCK60D-26BX mower deck height
Set cutting height by moving the hydraulic control lever rearward to raise the mower to its highest position, then turning the cutting height control dial to the height you want. Set the anti-scalp rollers so clearance between the rollers and the ground stays between 6 mm and 13 mm (0.2 to 0.5 in.).
How quickly can I access this manual after?
The download is instant: the full 45-page searchable Operator Manual lands in your hands right after payment. Open it on a laptop, tablet, or phone out in the shop.
Are there any print restrictions on this manual?
Yes. Print as many copies as you like; there are no restrictions. Plenty of mechanics print just the section they need and carry it to the shop floor.
