This is the Kubota workshop manual supplement for the M9000DT-M tractor, publication number 9Y011-18033. It documents the added functions and altered positions specific to the M9000DT-M, so it is meant to be used together with the M6800, M6800S, M8200, and M9000 workshop manual for anything not repeated here.Across 39 pages it covers General, Transmission, Rear Axle, and Front Axle, each split into Mechanism and Servicing. The M9000DT-M runs the V3300-TIE / V3300-TIE2 diesel engine, and the manual lists factory data such as 90 L fuel capacity, 10.7 L engine oil capacity, 19.6 MPa hydraulic system pressure, and wheel mounting nut torque of 260 to 304 N-m.Use it to understand the transmission and axle construction, follow servicing procedures, and confirm adjustment values and torques when working on this specific model. Delivered as a downloadable, printable PDF.
What's Inside This Kubota M9000DT-M Manual
| System | Pages | Key Topics |
|---|---|---|

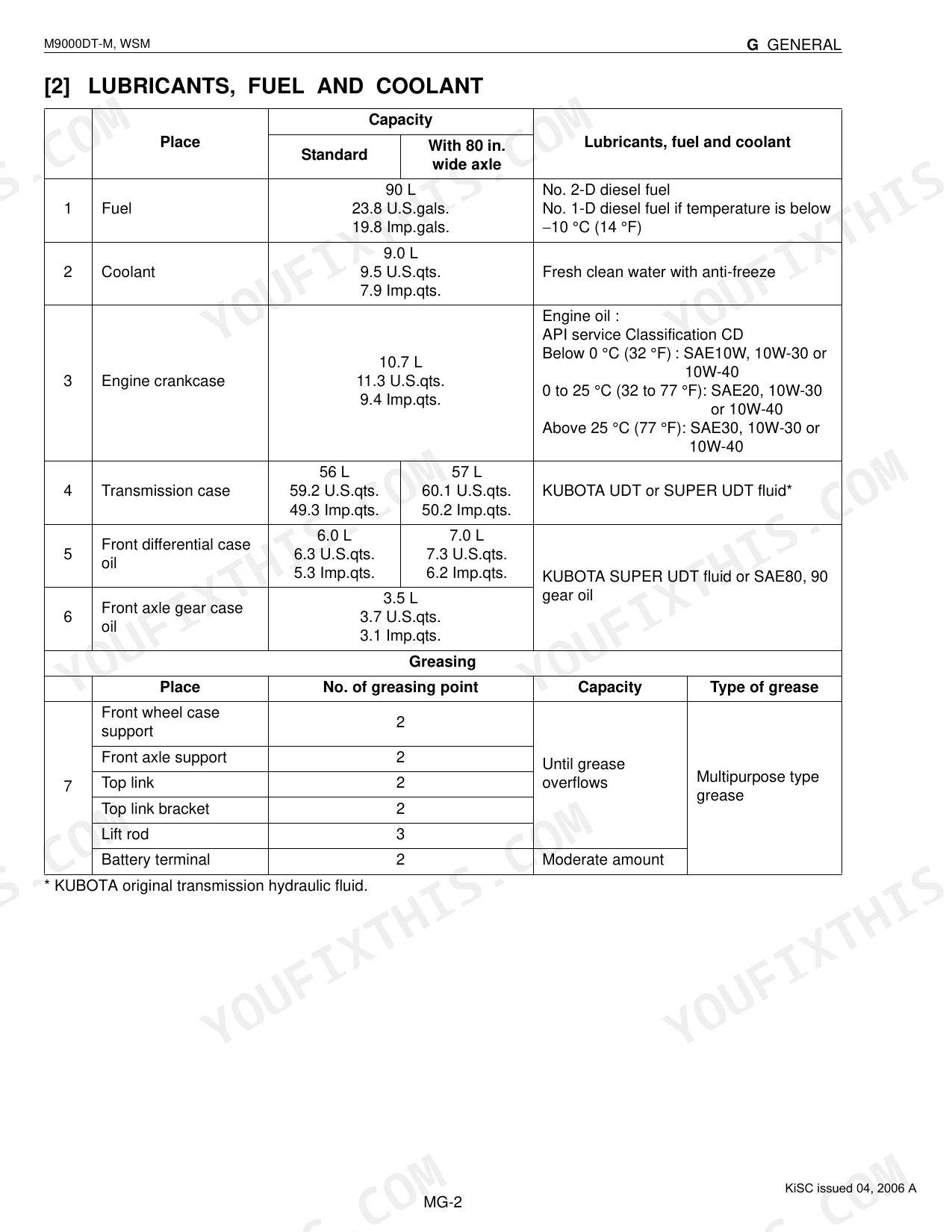

| Mg General | 8-17 | Transmission, Engine Crankcase, Front Differential Case, Front Axle Gear Case, Front Wheel Case Support, Front Axle Support, Top Link, Top Link Bracket |
| M3 Transmission | 18-33 | Transmission, Travelling System, Four Wheel Shift Section, Shuttle Rod, Auxiliary Shift Rod, Main Delivery Pipe, Turning Delivery Hose, Steering Controller |

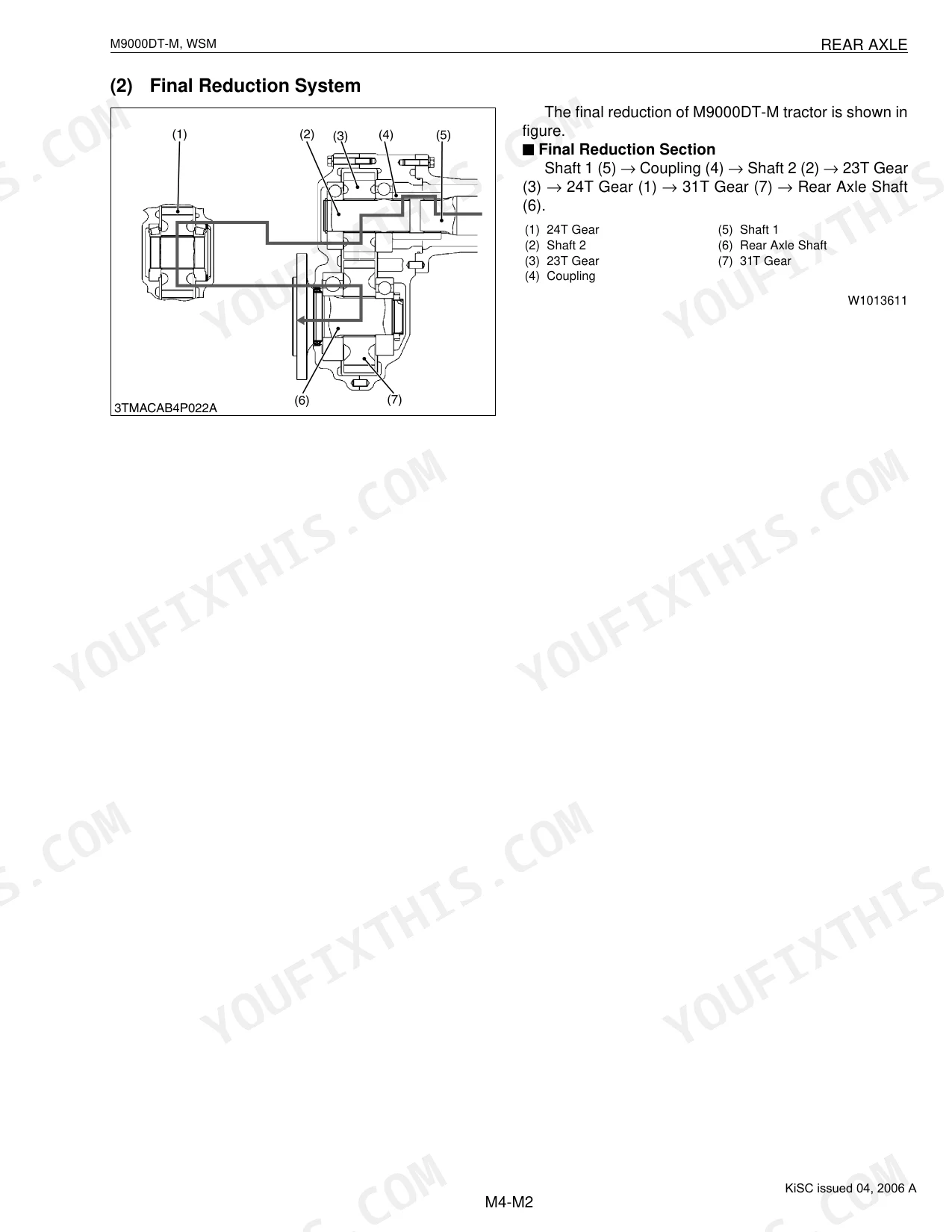

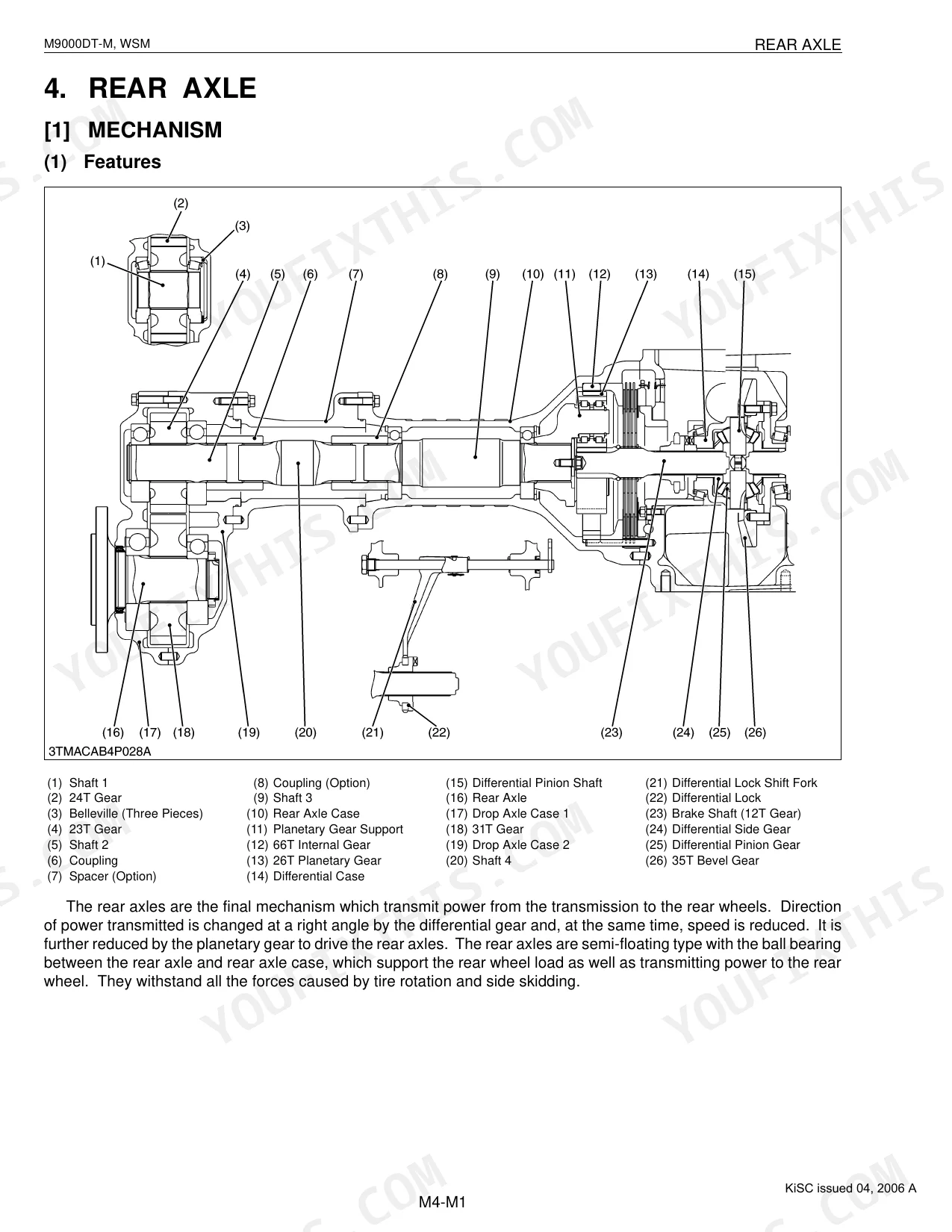

| M4 Rear Axle | 34-37 | Mechansim |
| M6 Front Axle | 38-39 | Mechansim |

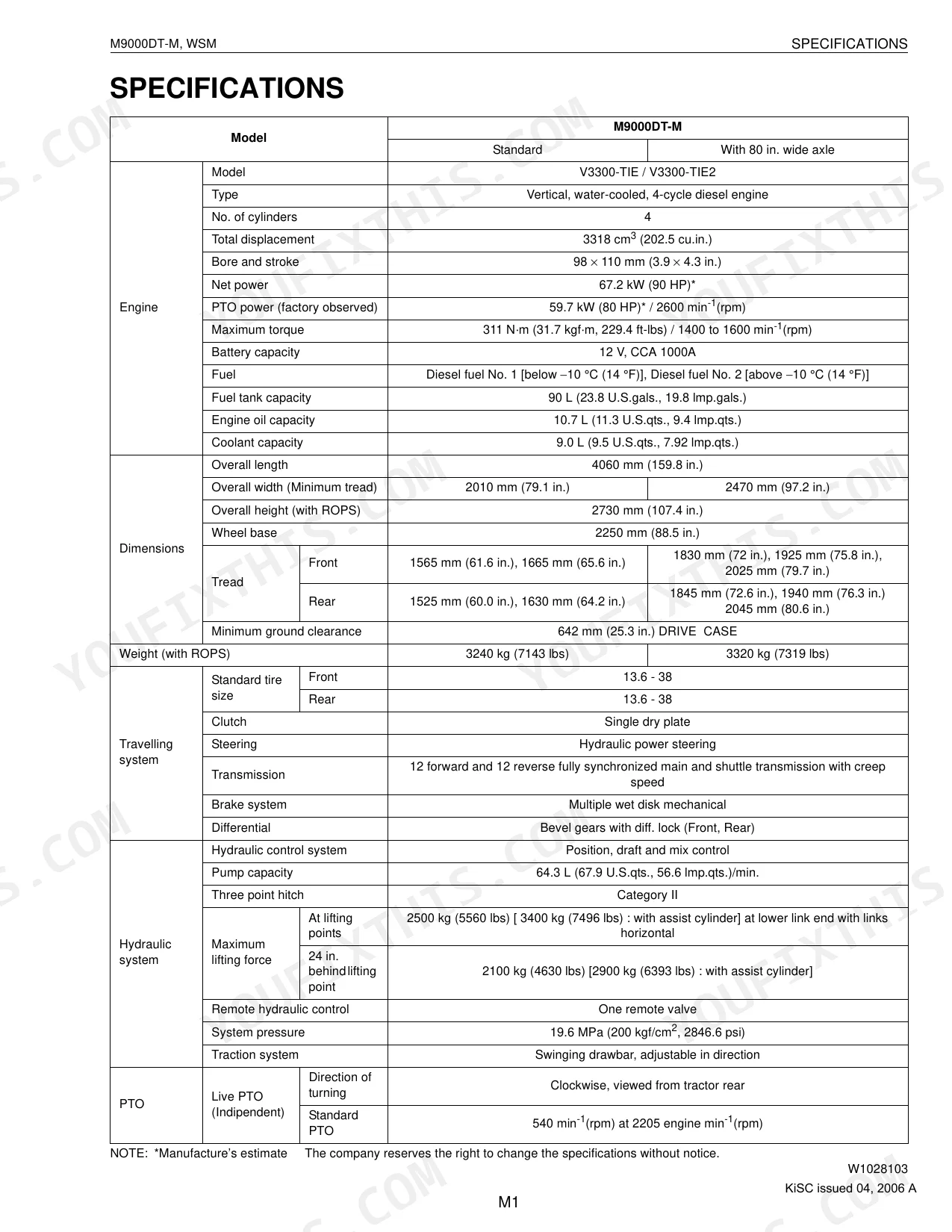

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

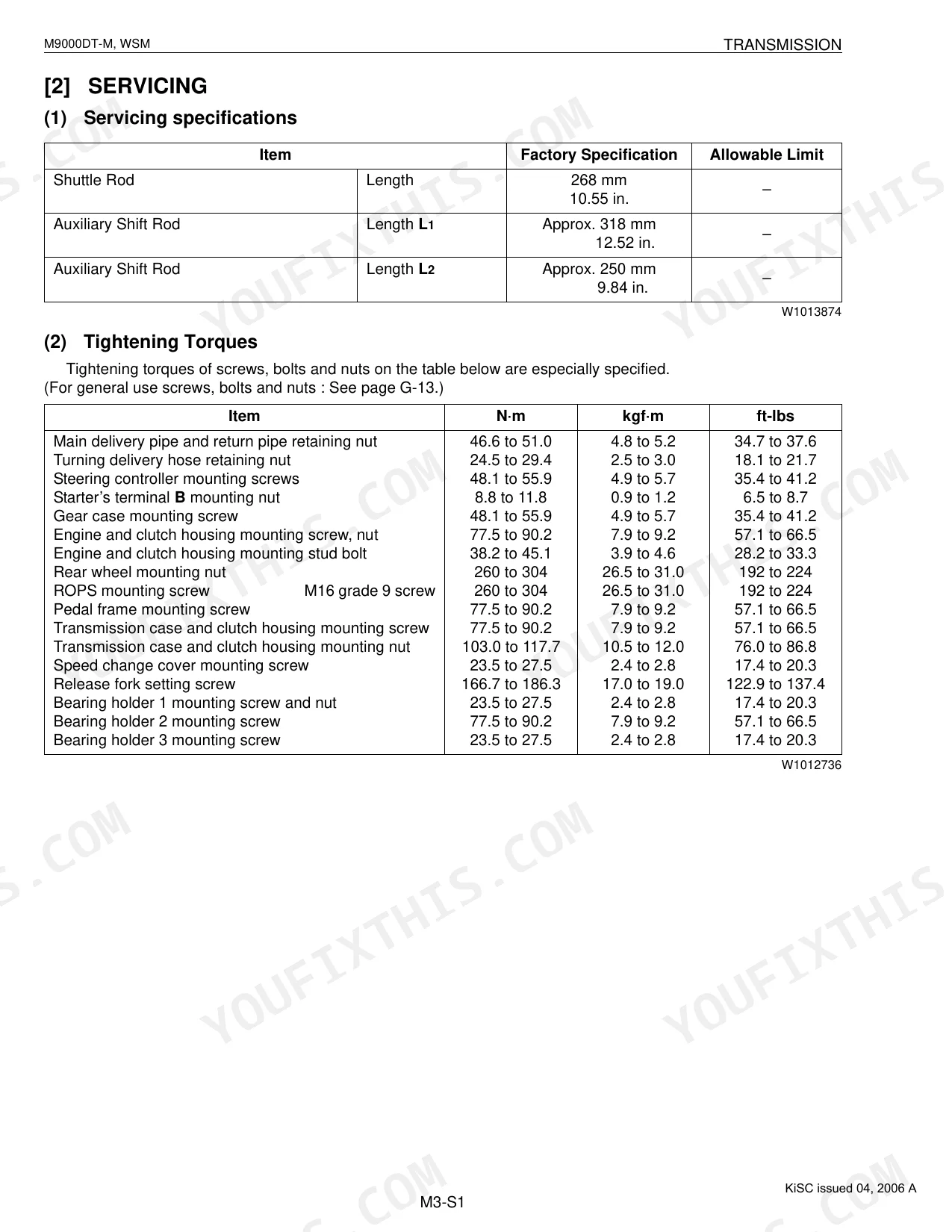

| Rear wheel mounting nut torque | 260 to 304 N-m | p. 22 |
| Fuel filter element replacement interval | 200 hours | p. 10 |
| Water separator cleaning interval | 50 hours | p. 10 |
| Battery condition check interval | 200 hours | p. 10 |
| Shuttle Rod Length | 268 mm | p. 22 |
| Auxiliary Shift Rod Length L1 | Approx. 318 mm | p. 22 |
| Engine Oil Capacity | 10.7 L | p. 4 |
| Coolant Capacity | 9.0 L | p. 4 |
| Fuel Tank Capacity (Standard) | 90 L | p. 4 |
| Hydraulic System Pressure | 19.6 MPa | p. 4 |
| Front Wheel Mounting Nut Torque | 260 to 304 N-m | p. 11 |
| Front Tire Pressure (13.6-38, 6PR) | 150 kPa | p. 14 |
Kubota M9000DT-M Common Problems This Manual Covers
Tractor will not hold high range
Owners report the M9000 acting as if it is in low range, then returning to high range after a restart. The transmission section covers the mechanism and servicing of the range and shift components.
Manual Section: M3 Transmission p. 18Shuttle shift feels off or misadjusted
Shuttle and range shifting problems often trace to linkage length. The transmission servicing section gives the shuttle rod length of 268 mm and the auxiliary shift rod lengths to set.
Manual Section: M3 Transmission p. 18Wheel wobble from loose mounting nuts
Loose wheel hardware causes vibration and uneven wear. The general section specifies front and rear wheel mounting nut torque of 260 to 304 N-m.
Manual Section: Mg General p. 8Rear axle noise or play
Noise or play at the rear axle calls for inspection and correct reassembly torque. The rear axle section covers the mechanism and servicing, including a rear axle nut torque of 441.3 to 539.4 N-m.
Manual Section: M4 Rear Axle p. 34Steering play or front axle wear
Wander or uneven front tire wear points to front axle and toe-in adjustment. The front axle section documents its construction and the 2 to 8 mm front wheel toe-in setting.
Manual Section: M6 Front Axle p. 38Neglected transmission fluid service
Skipping fluid changes shortens transmission life. The general section lists the transmission fluid change interval at 600 hours as part of routine service.
Manual Section: Mg General p. 8Frequently Asked Questions
Which tractor does this manual cover?
It is the workshop manual supplement for the Kubota M9000DT-M, publication 9Y011-18033, covering the functions specific to that model.
Do I need any other manual with it?
Yes. This is a supplement, so it should be used together with the M6800, M6800S, M8200, and M9000 workshop manual for items it does not repeat.
What engine and hydraulic specs are listed?
The M9000DT-M uses the V3300-TIE / V3300-TIE2 diesel engine. Listed data includes 10.7 L engine oil capacity, 9.0 L coolant, 90 L fuel, and 19.6 MPa hydraulic system pressure. p. 8
What is the wheel mounting nut torque?
The general section specifies front and rear wheel mounting nut torque of 260 to 304 N-m. Rear axle nut torque is 441.3 to 539.4 N-m in the rear axle section. p. 8
What format is this manual in?
This is a 39-page searchable PDF, ready to download right away. It works on any device, so you can pull it up on your phone while you're under the hood. No shipping, no waiting.
Can I print specific sections of this Kubota M9000DT-M Workshop Manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
