Covering one machine and one machine only, this Operator Manual PDF (OEM #6C435-6311-1) runs the full 125 pages for the B3150 and B3150SU, from cold-start procedures to every scheduled service interval. Safety takes the first 10 pages: slope operation, ROPS use, PTO engagement, and road travel. A dedicated instrument panel and controls section walks through each gauge, the Easy Checker system, and LCD monitor alerts. Maintenance schedules run from 50-hour grease points to 3,000-hour injection pump checks, alongside fluid capacities for engine and transmission, implement limitations, 3-point hitch procedures, and a complete cab operation section. Rear wheel nuts torque to 167-191 N-m (123-141 ft-lbs.); engine oil capacity with filter is 4.0 L (4.2 U.S.qts.). Bookmarks jump you to any section, and keyword search pulls any spec fast, so idle time stays short.
What's Inside This Kubota B3150, B3150SU Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Universal Symbols | 3-3 | Safety Alert Symbol, Diesel Fuel, Fuel-Level, Engine-Rotational Speed, Hourmeter/Elapsed Operating Hours |
| Safe Operation | 11-20 | Before Operating the Tractor, Cab, Rops, Starting, Working, Operating the Tractor, Safety for Children, Operating on Slopes |
| Servicing of Tractor | 21-22 | - |

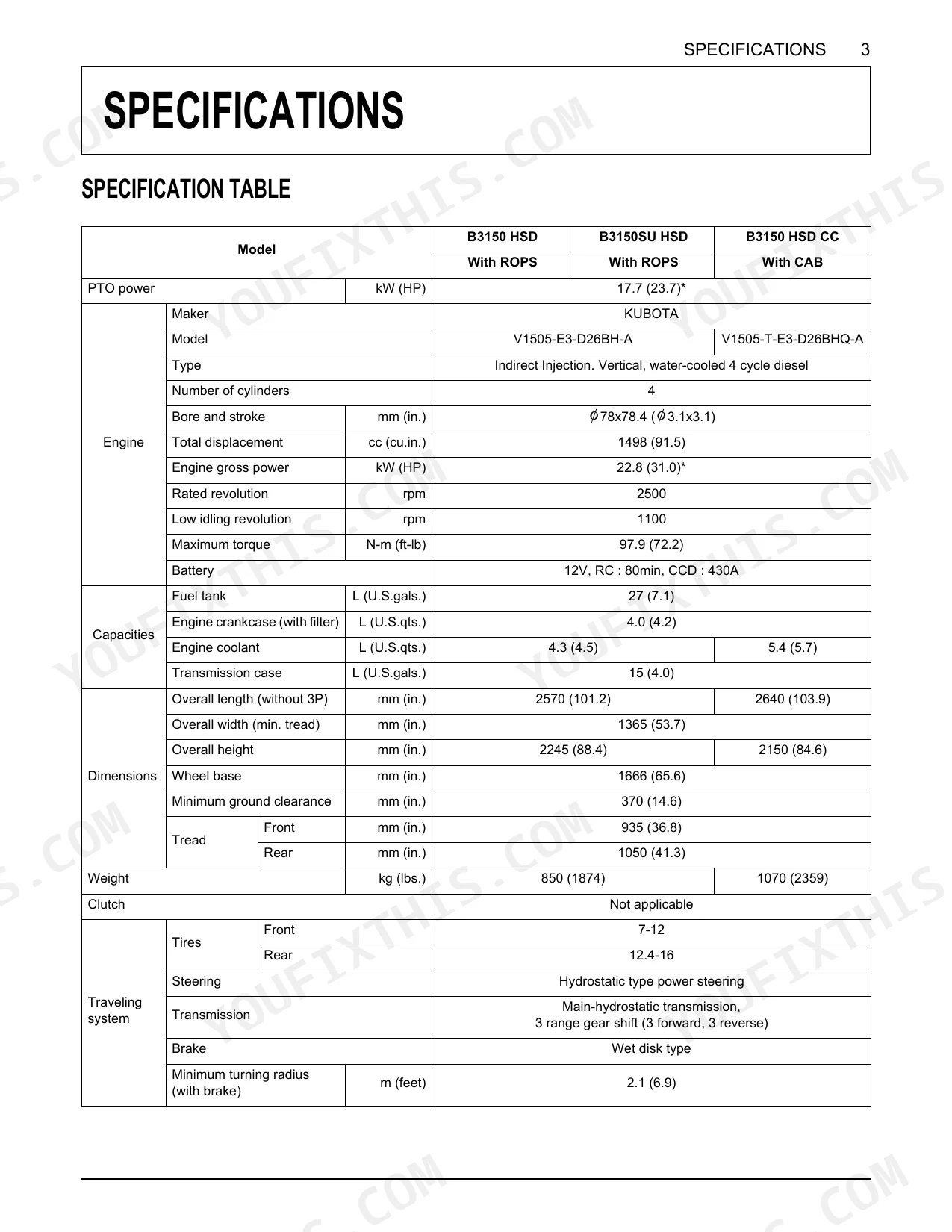

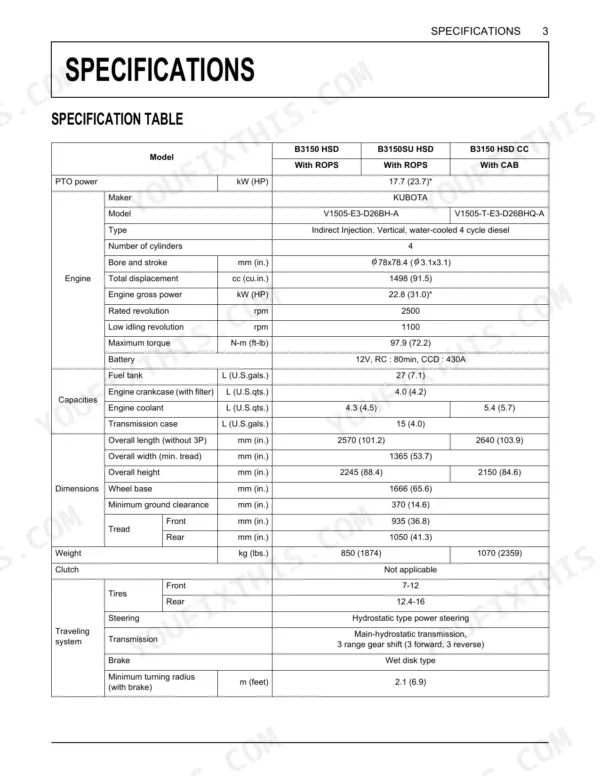

| Specifications | 23-25 | Specification Table, Traveling Speeds |
| Implement Limitations | 26-27 | - |

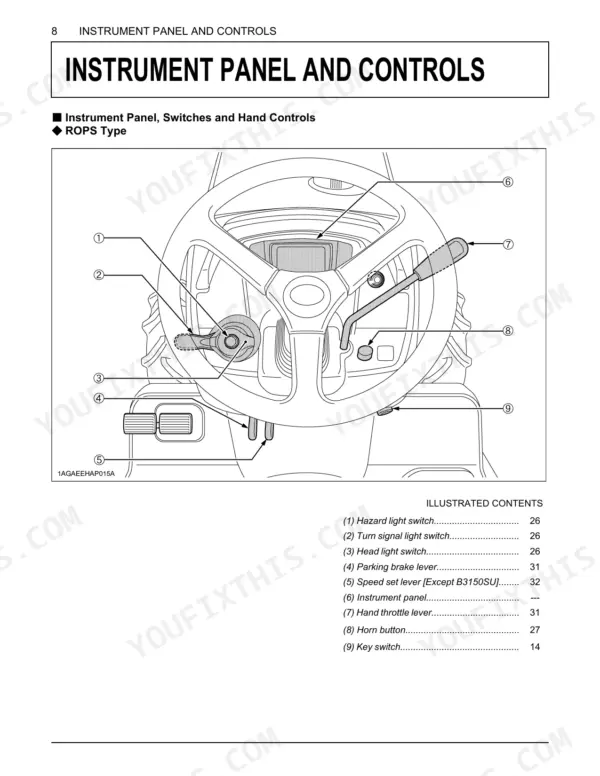

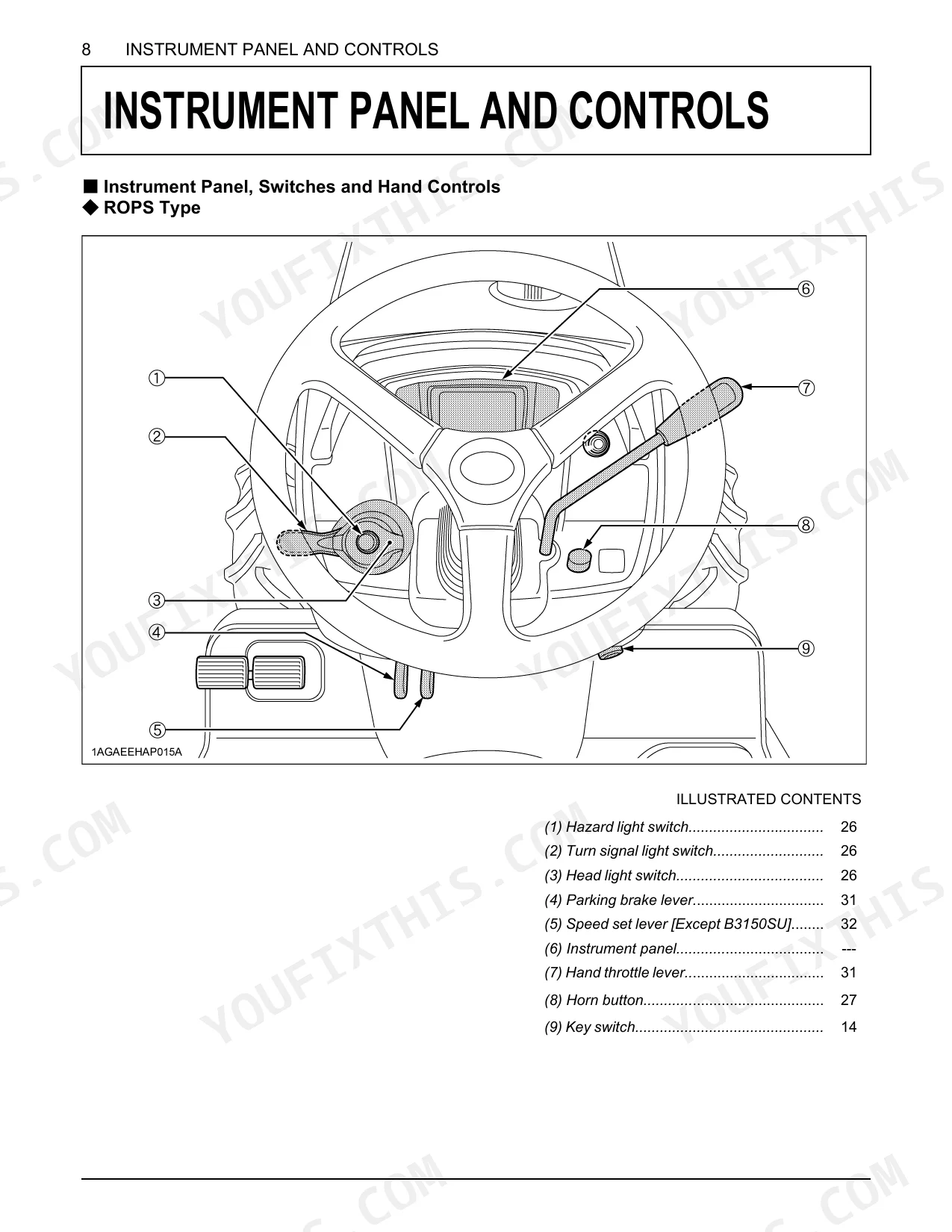

| Instrument Panel and Controls | 28-32 | - |
| Pre-Operation Check | 33-33 | Daily Check |

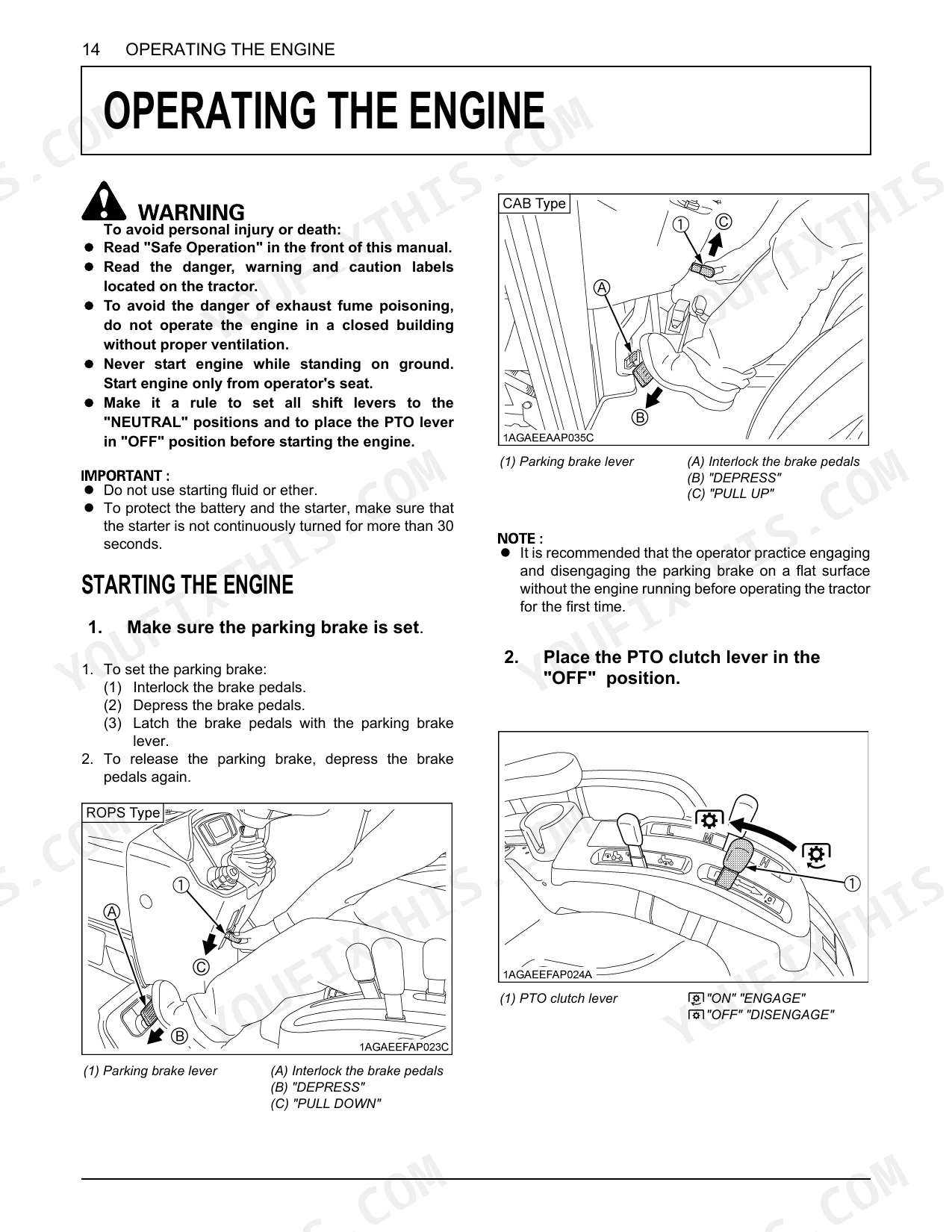

| Operating the Engine | 34-40 | Starting The Engine (Block Heater), Stopping The Engine, Warming Up (Warm-Up Transmission Oil At Low Ambient Temperatures), Jump Starting |
| Operating the Tractor | 41-59 | Operating New Tractor (Do Not Operate The Tractor At Full Speed For The First 50 Hours, Changing Lubricating Oil For New Tractors), Boarding And Leaving The Tractor |
| PTO | 60-63 | PTO Operation, Stationary PTO |

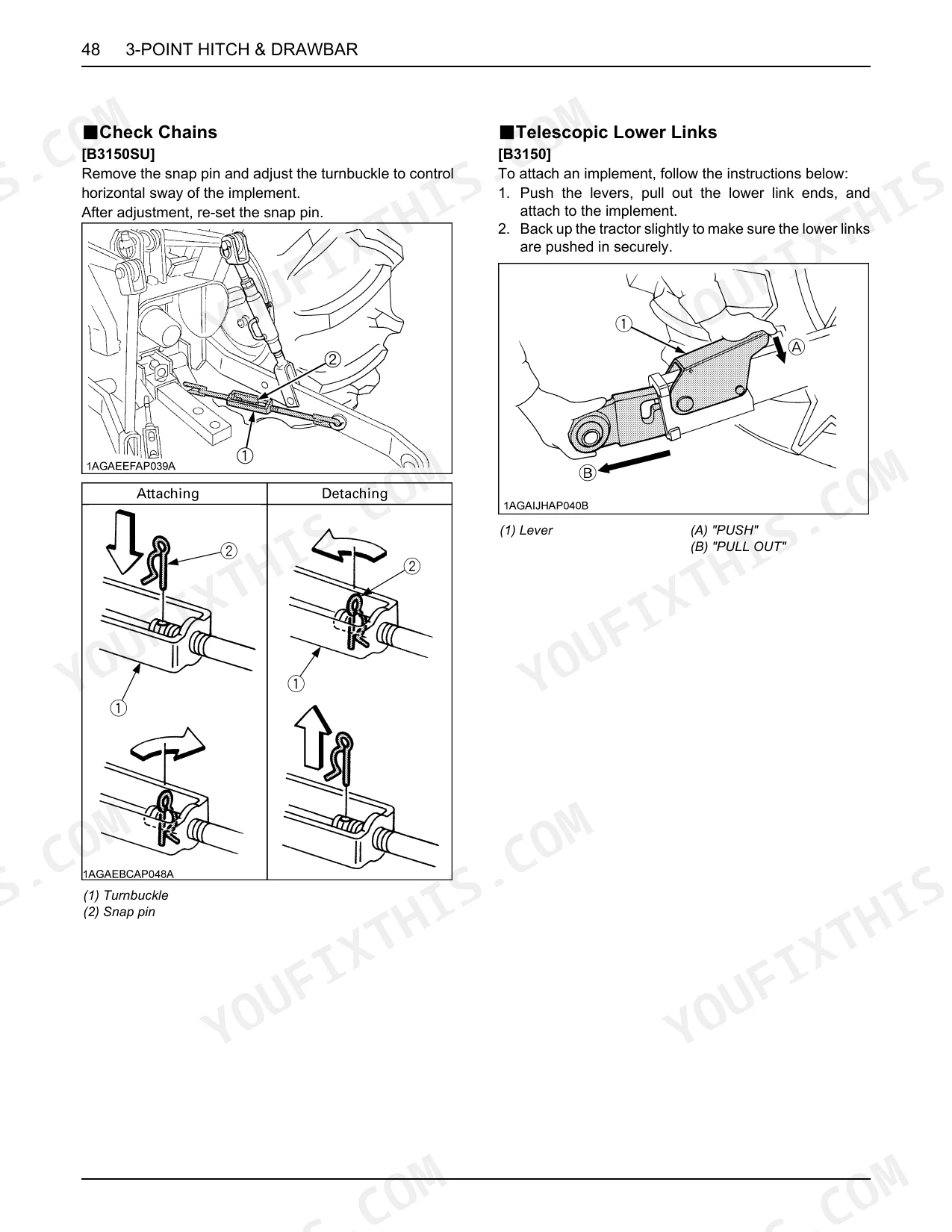

| Point Hitch & Drawbar | 64-69 | Point Hitch, Drawbar |
| Hydraulic Unit | 70-74 | 3-Point Hitch Control System (Position Control, Hydraulic Control, 3-Point Hitch Lowering Speed), Auxiliary Hydraulics (Hydraulic Block Type Outlet) |
| Tires, Wheels and Ballast | 75-78 | Tires (Inflation Pressure, Dual Tires), Wheel Adjustment (Front Wheels, Rear Wheels, Treads), Ballast (Front Ballast, Rear Ballast) |
| Cab Operation | 79-87 | Door And Window (Locking And Unlocking The Door, Opening The Door, Rear Window, Rear Window Half-Lock, Emergency Exit), Dome Light |
| Maintenance | 88-92 | Service Intervals, Lubricants, Fuel and Coolant |
| Periodic Service | 93-119 | How To Open The Hood (Engine Side Cover) |
| Storage | 120-120 | Tractor Storage |
| Troubleshooting | 121-122 | Engine Troubleshooting, Power Train Trouble Shooting |
| Options | 123-123 | - |
| Appendices | 124-125 | - |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Front wheel nut torque | 77 to 90 N-m (57 to 67 ft-lbs.) | p. 79 |
| Front wheel bolt torque | 196 to 225 N-m (145 to 166 ft-lbs.) | p. 79 |
| Air cleaner primary element cleaning air pressure | under 205 kPa (2.1 kgf/cm², 30 psi) | p. 81 |
| Air cleaner primary element replacement interval | Once yearly or after every sixth cleaning | p. 81 |
| Engine oil capacity (with filter) | 4.0 L (4.2 U.S.qts.) | p. 91 |
| Engine oil change interval | every 200 Hr | p. 88 |
| Transmission oil filter replacement interval [HST] | every 200 Hr | p. 88 |
| Transmission oil filter tightening [HST] | additional 1 turn with filter wrench | p. 86 |
| Air conditioner condenser screen cleaning interval | Daily | p. 88 |
| Greasing interval | every 50 hours | p. 98 |
| Number of top link greasing points | 1 | p. 91 |
| Fan belt tension deflection | 7 to 9 mm (0.28 to 0.35 in.) | p. 83 |
Kubota B3150, B3150SU Common Problems This Manual Covers
Kubota B3150 high temperature warning light illuminates and engine overheats during heavy mowing operations. p. 121
Run the engine at idle for 5 minutes before stopping it as directed on page 87. Wait 10 minutes for the system to cool. Inspect the radiator screens for debris. Verify the coolant level is correct, noting the ROPS models hold 4.3 L (4.5 U.S.qts.) total capacity.
Manual Section: Engine TroubleshootingEngine starts normally but hydrostatic transmission pedal feels weak and tractor will not move forward. p. 122
Check the transmission fluid level on the dipstick. If low, fill to the correct mark, remembering the total transmission case capacity is 15 L (4.0 U.S.gals.). Inspect the transmission oil filter. If replacing the filter, tighten it an additional 1 turn with a filter wrench as shown on page 86.
Manual Section: Operating the TractorThree-point hitch implements lift slowly, jerk erratically, or fail to hold position under load. p. 70
Verify the load does not exceed the maximum lift force of 970 kg (2139 lbs.) listed on page 24. Inspect the hydraulic oil level and check for leaks. If installing a new hydraulic oil filter, tighten it an additional 1/2 turn by hand according to page 92.
Manual Section: Hydraulic UnitElectrical charge warning lamp flashes on dashboard and high pitched squealing noise comes from engine area. p. 103
Inspect the fan belt for wear or glazing. Measure the fan belt tension deflection halfway between the pulleys. Adjust the alternator position until the deflection measures 7 to 9 mm (0.28 to 0.35 in.) as specified on page 103. Replace the belt if it appears cracked or frayed.
Manual Section: Periodic ServiceEngine produces dark exhaust fumes and loses power when operating PTO driven implements. p. 121

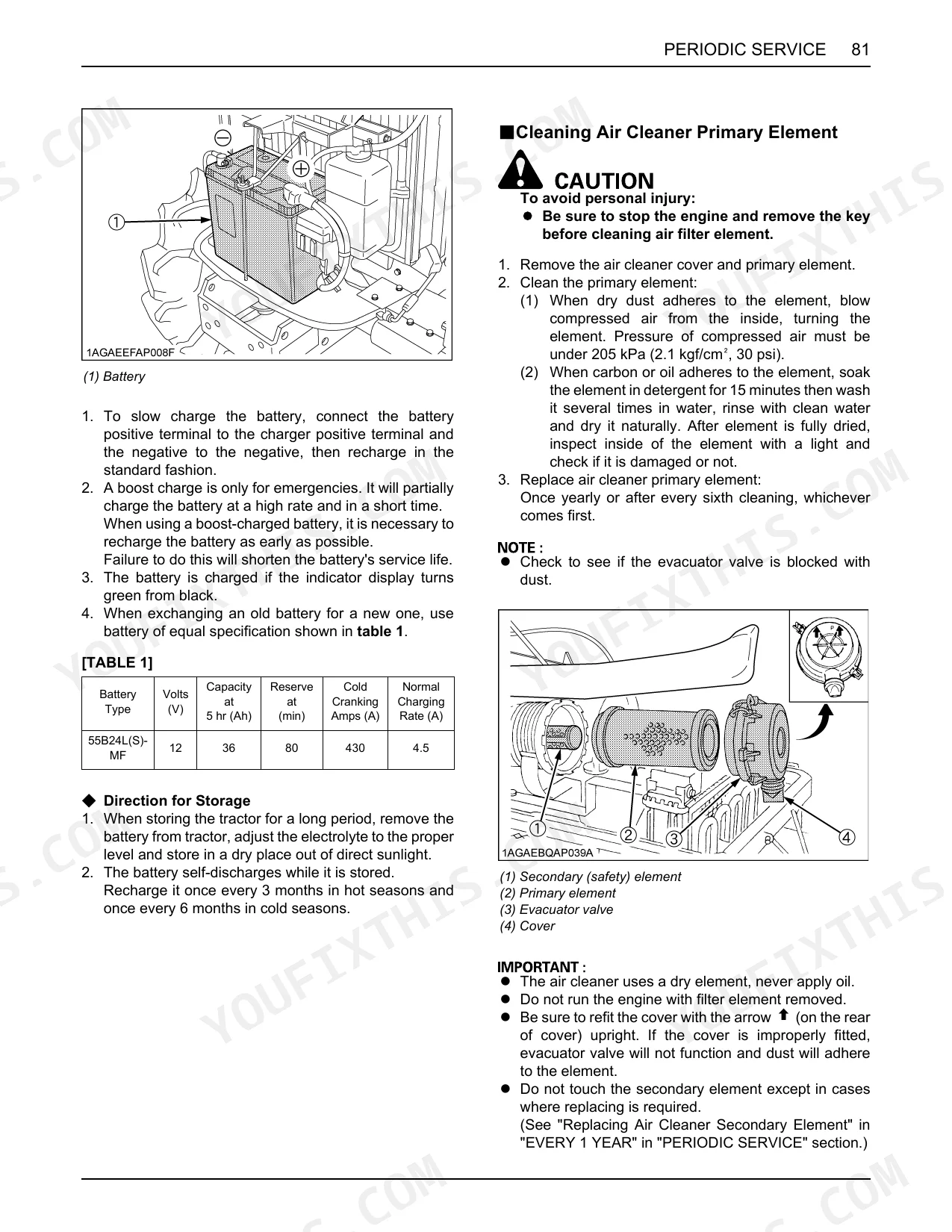

Remove and inspect the air cleaner primary element. Blow out loose dust from the inside using compressed air. Keep the cleaning air pressure under 205 kPa (2.1 kgf/cm², 30 psi) as noted on page 81. Replace the secondary element if it has been in service for 1 year.
Manual Section: Engine TroubleshootingFrequently Asked Questions
What are the torque specs for Kubota B3150 wheel lug nuts / mower deck / loader bolts?
The manual specifies torque for wheel bolts. For the nut, the torque is 77 to 90 N-m (7.9 to 9.2 kgf-m, 57 to 67 ft-lbs). For the bolt, it is 196 to 225 N-m (20 to 23 kgf-m, 145 to 166 ft-lbs), or 167 to 191 N-m (17 to 19.5 kgf-m, 123 to 141 ft-lbs) for a different type of nut. No information is provided for mower deck or loader bolts.
How do I troubleshoot a Kubota B3150 that won’t start?
If the engine is difficult to start or won't start, common causes include no fuel flow, air or water in the fuel system, or a weak battery. Countermeasures involve checking the fuel tank and filter, bleeding the fuel system, cleaning battery cables, and charging the battery. In cold weather, using an engine block heater is recommended if oil viscosity is high.
How to find torque specs for Kubota B3150 wheel lugs
The torque specifications for wheel bolts are provided in the "Checking Wheel Bolt Torque" section on page 99. For the nut, the torque is 77 to 90 N-m (57 to 67 ft-lbs), and for the bolt, it is 196 to 225 N-m (145 to 166 ft-lbs) or 167 to 191 N-m (123 to 141 ft-lbs) depending on the type.
What are the replacement specifications for air filter?
The primary air cleaner element should be replaced once yearly or after every sixth cleaning, whichever comes first, as detailed on page 101. The secondary air cleaner element should be replaced every 1 year. The air cleaner uses a dry element and should not have oil applied.
What are the replacement specifications for engine oil and oil filter?
Engine oil and the engine oil filter should both be changed/replaced every 200 hours. The engine crankcase capacity with the filter is 4.0 L (4.2 U.S.qts.). The manual specifies different SAE engine oil types (SAE30, SAE20, SAE10W-30, 15W-40) depending on ambient temperatures. When replacing the filter, apply a film of clean engine oil to the rubber seal and tighten by hand an additional 1/2 turn after contact, using only a KUBOTA genuine filter.
What format is this Kubota B3150, B3150SU manual in?
This is a 125-page searchable PDF ready for immediate download. It works on any device, so you can pull it up on your phone while you're under the hood. No shipping, no waiting.
Can I print specific sections of this Kubota B3150, B3150SU Operator Manual?
Yes. The PDF carries no DRM restrictions, so print any page or section you need for your shop. It works with any standard printer.
Document Quality
This is a scanned PDF document with an OCR layer, allowing you to search and copy the full text. The text is crisp and consistently easy to read throughout the manual. Diagrams and illustrations are clear raster images with readable labels, though they may pixelate if zoomed in very closely. The pages are clean, free of scan artifacts or skewing, and page 10 is intentionally blank as part of the original layout.
