Five Kubota diesels, one bookmarked PDF. This 125-page shop manual (OEM #9Y011-02132) covers the D1503-M, D1703-M, D1803-M, V2203-M, and V2403-M engines with 40 pages of step-by-step engine body procedures, 20 pages of exploded views for every major assembly, and torque values called out at each fastener. Troubleshooting charts on pages 22-24 map symptoms to causes, and 25 pages of maintenance schedules lay out intervals from 50 to 3,000 hours. Snug main bearing cap bolts to 68.6 to 73.5 N·m and confirm cylinder head surface flatness holds within 0.05 mm before buttoning anything up. Your engine is apart on the bench; guessing is not an option. Search any spec by keyword and pull it up on your phone right at the workbench.
What's Inside This Kubota 03-M Series Manual
| System | Pages |
|---|---|
| Safety Instructions | 3-5 |
| Dimensions | 8-9 |
| Mechanism | 10-15 |
| Servicing | 16-66 |
| Engine Body | 67-106 |
| Lubricating System | 107-108 |
| Cooling System | 109-111 |
| Fuel System | 112-115 |
| Electrical System | 116-125 |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Main bearing case screw 2 | 68.6 to 73.5 N·m | p. 84 |

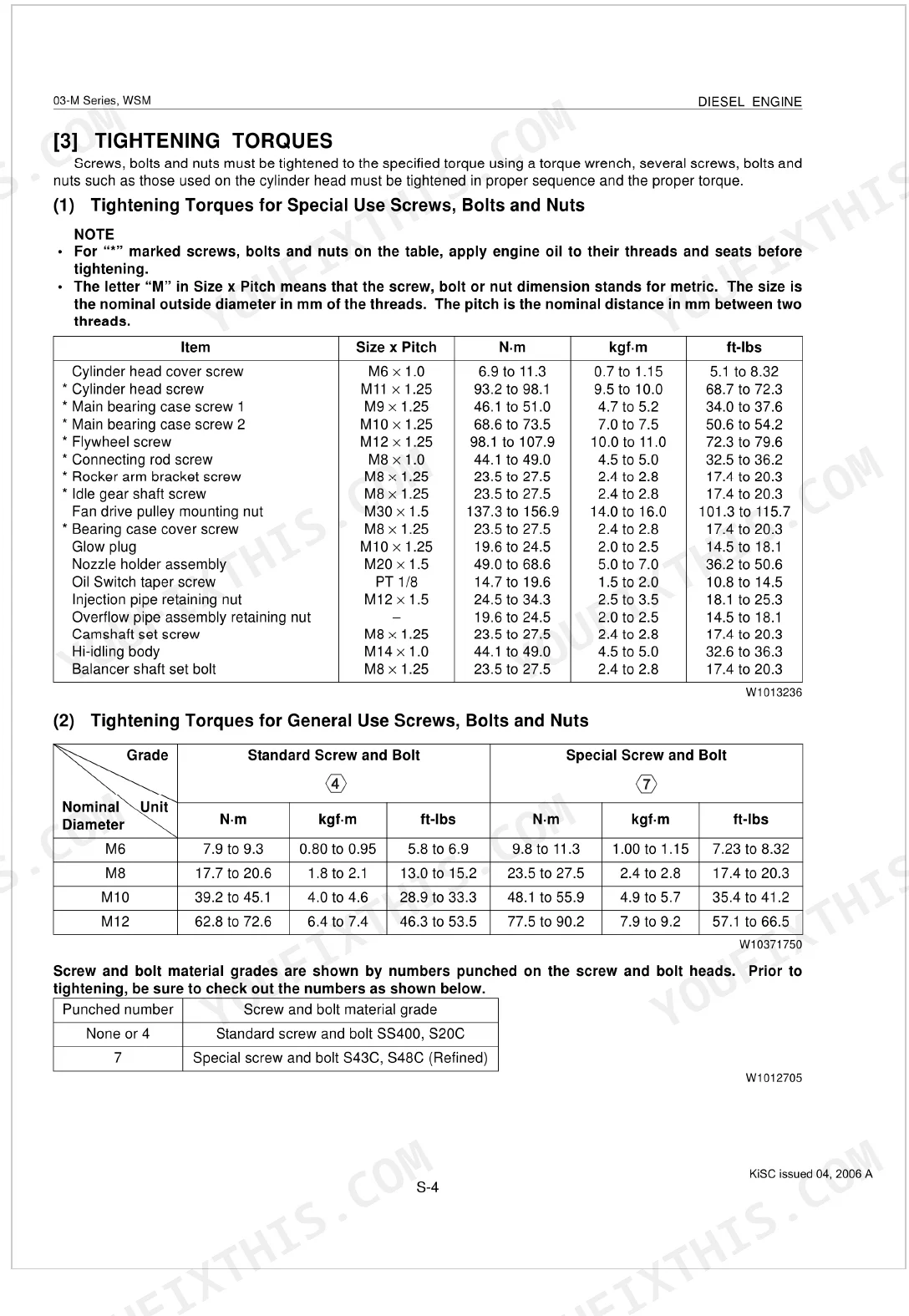

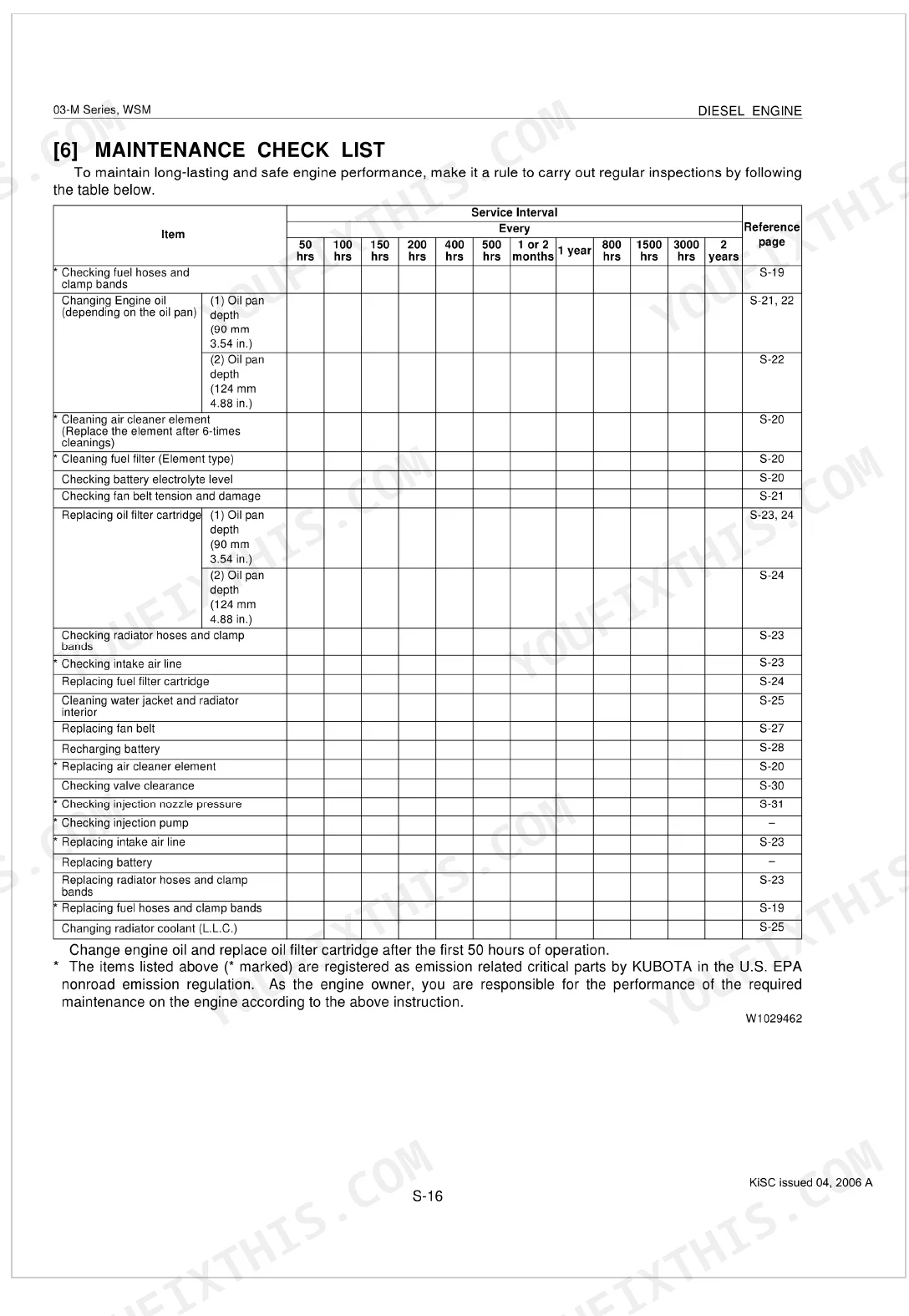

| Replacing fuel filter cartridge | 400 hrs | p. 33 |
| Injection pipe retaining nut | 24.5 to 34.3 N·m | p. 21 |
| Cylinder Head Surface Flatness | 0.05 mm | p. 25 |

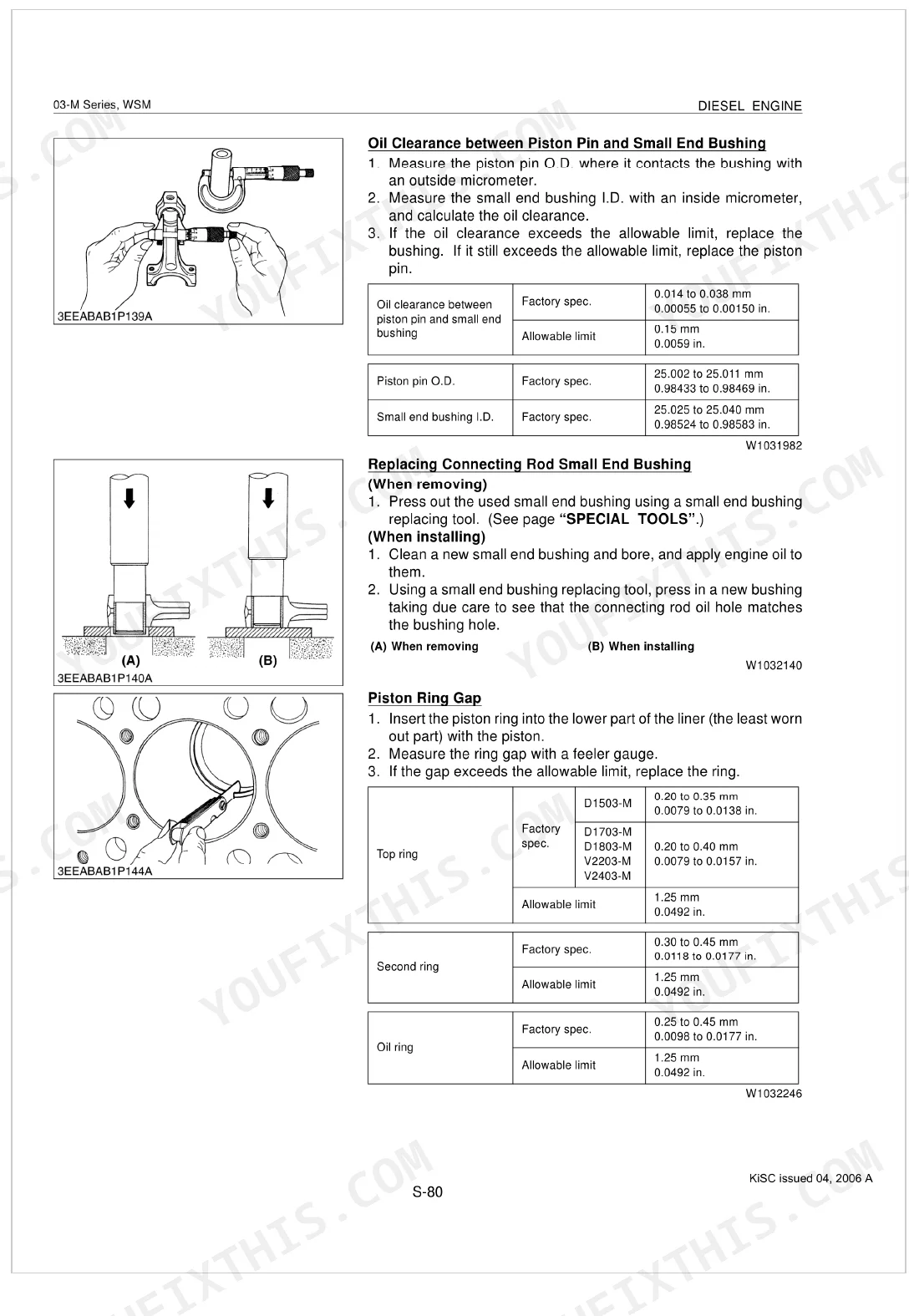

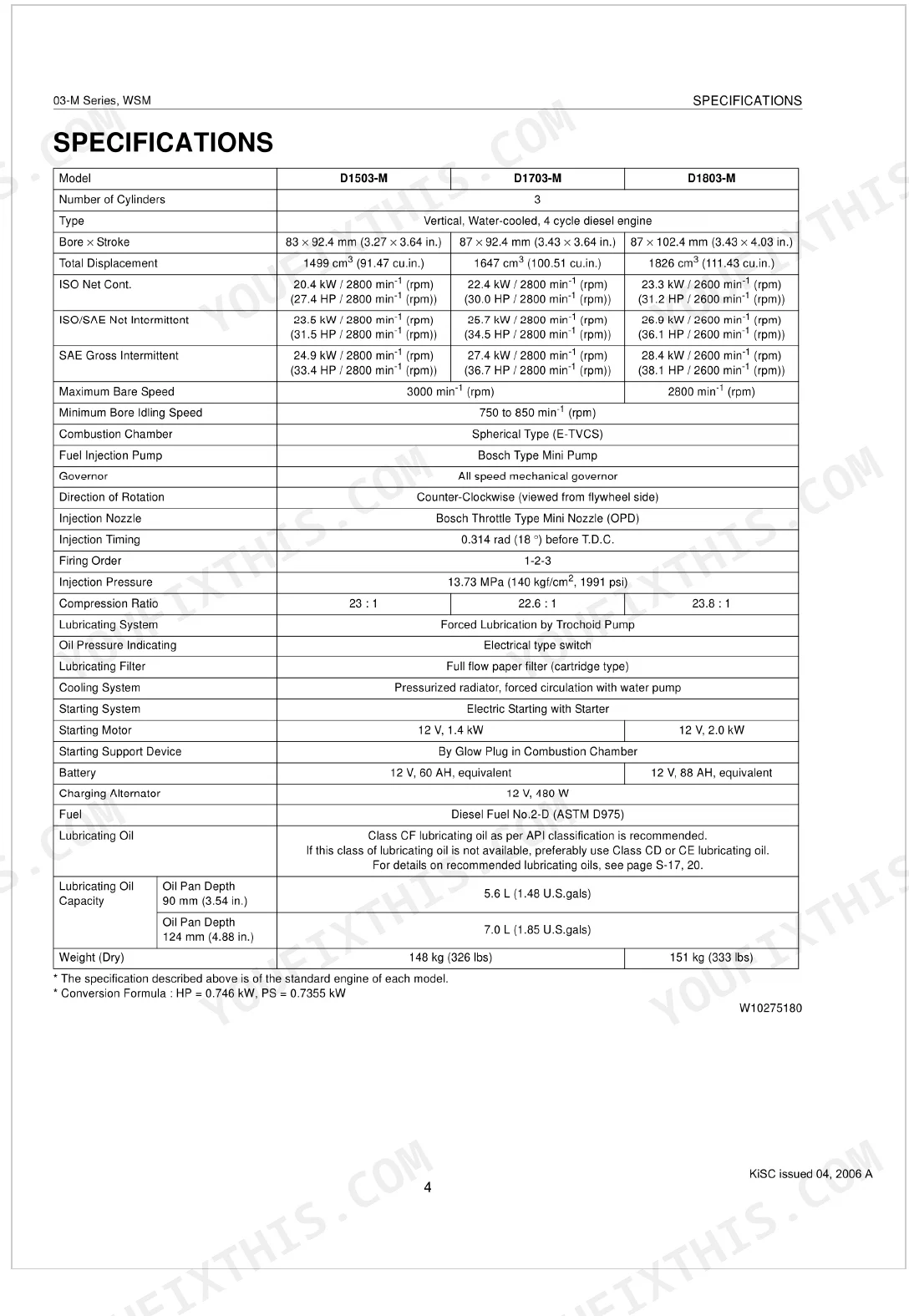

| Injection Pressure | 13.73 MPa (140 kgf/cm², 1991 psi) | p. 6 |
| Engine Weight (Dry, D1503-M) | 148 kg (326 lbs) | p. 6 |
| Lubricating Oil Capacity (V2403-M, 124 mm pan) | 9.5 L (2.51 U.S.gals) | p. 7 |
| Flywheel Screw Tightening Torque | 98.1 to 107.9 N·m | p. 21 |
| Connecting Rod Screw Tightening Torque | 44.1 to 49.0 N·m | p. 21 |
| Valve Clearance (Cold) | 0.18 to 0.22 mm | p. 25 |
| Engine Oil Pressure (At Rated Speed) | 294 to 441 kPa | p. 31 |
| Thermostat Opening Temperature (Beginning) | 69.5 to 72.5 °C | p. 31 |
Kubota 03-M Series Common Problems This Manual Covers
Engine runs rough, loses power, black or white exhaust smoke p. 112

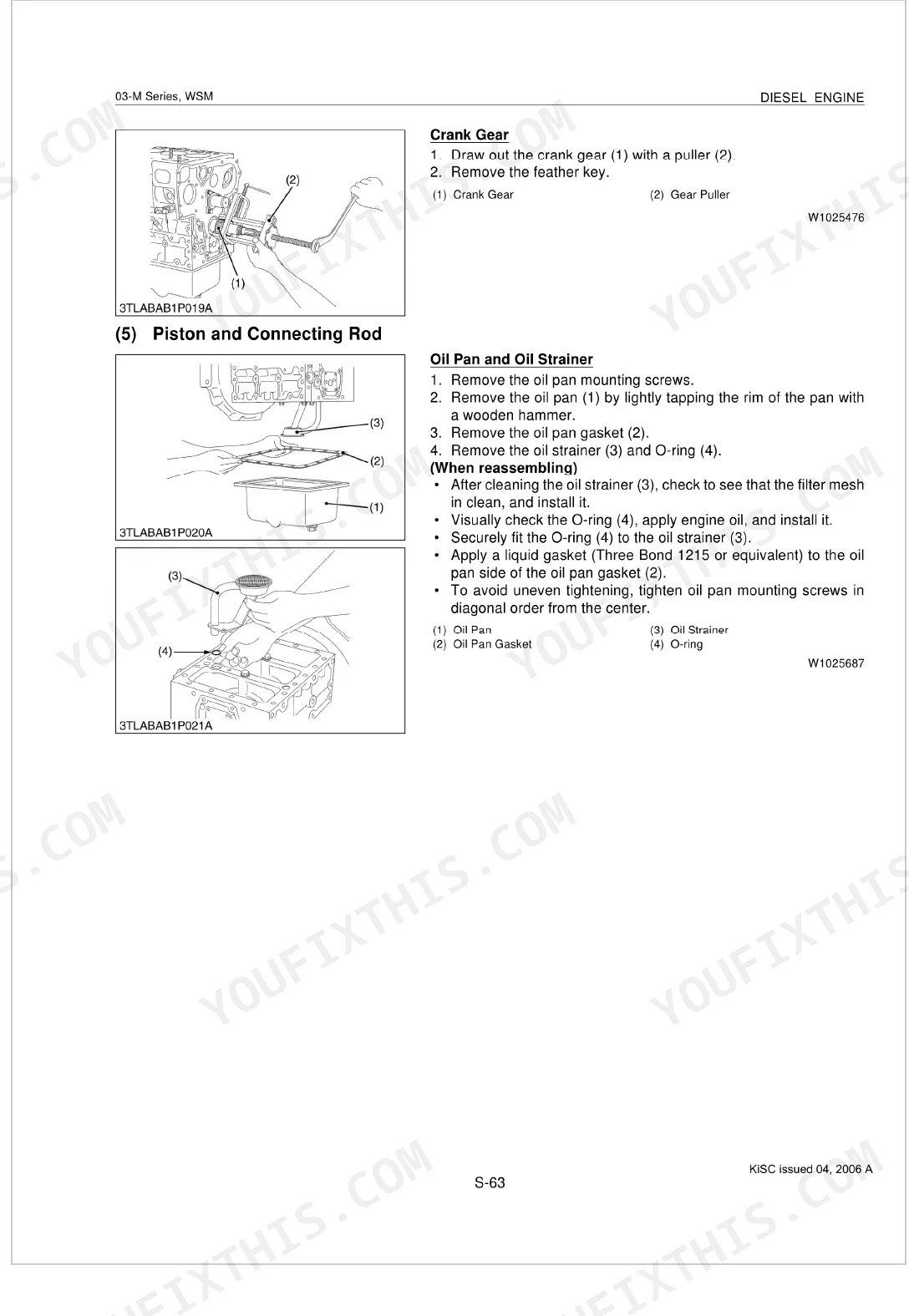

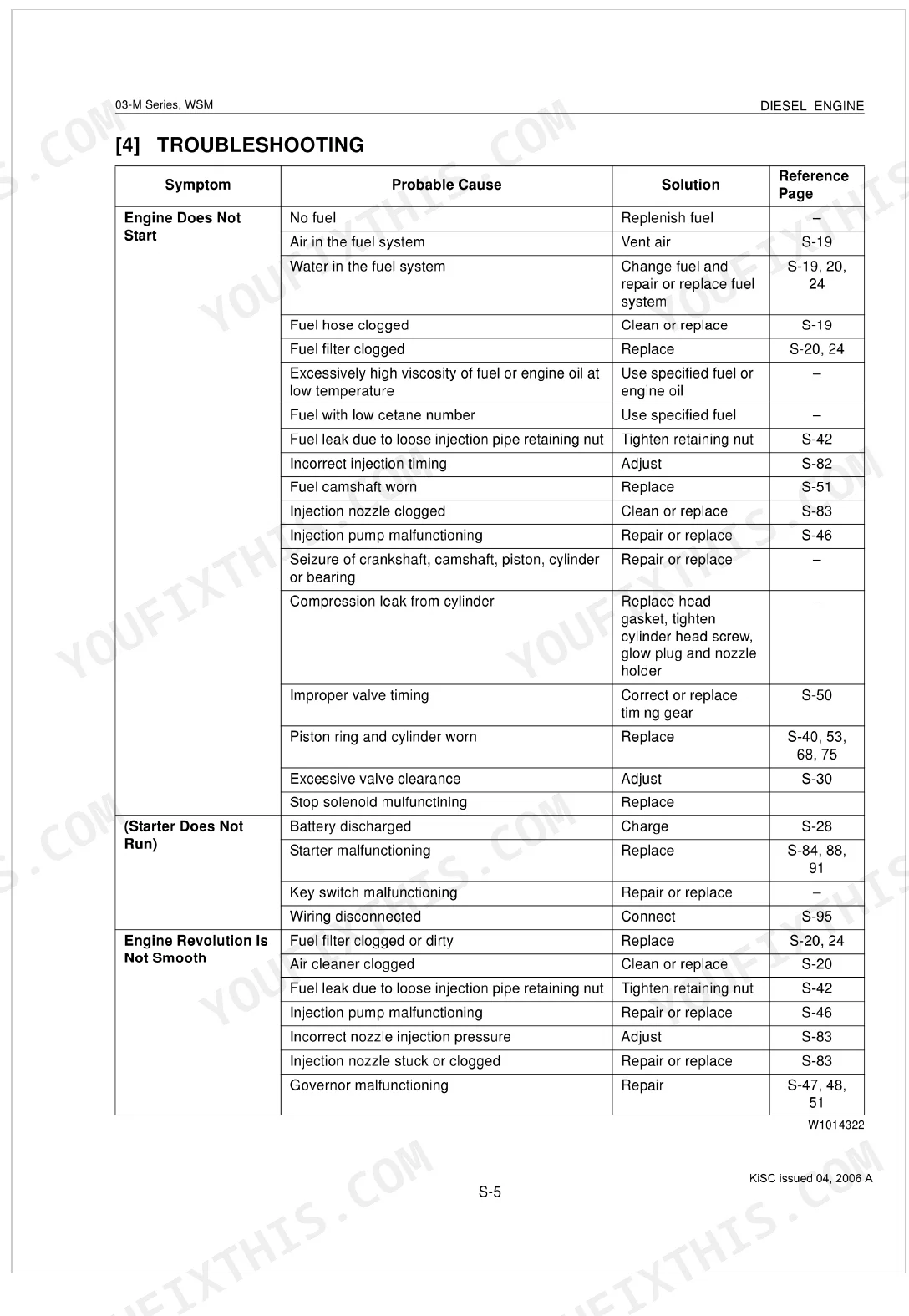

Start with the troubleshooting charts on page 22 for rough running and page 23 for abnormal exhaust. Drain the fuel filter housing and inspect for water contamination. Swap the fuel filter cartridge at the 400-hour interval listed on page 33. If smoke persists, confirm injection pressure reads 13.73 MPa (1991 psi) per the spec on page 6 and inspect each injector nozzle for fouling or dribble.
Manual Section: Fuel SystemEngine won't start, starter cranks slowly or not at all in cold conditions p. 116

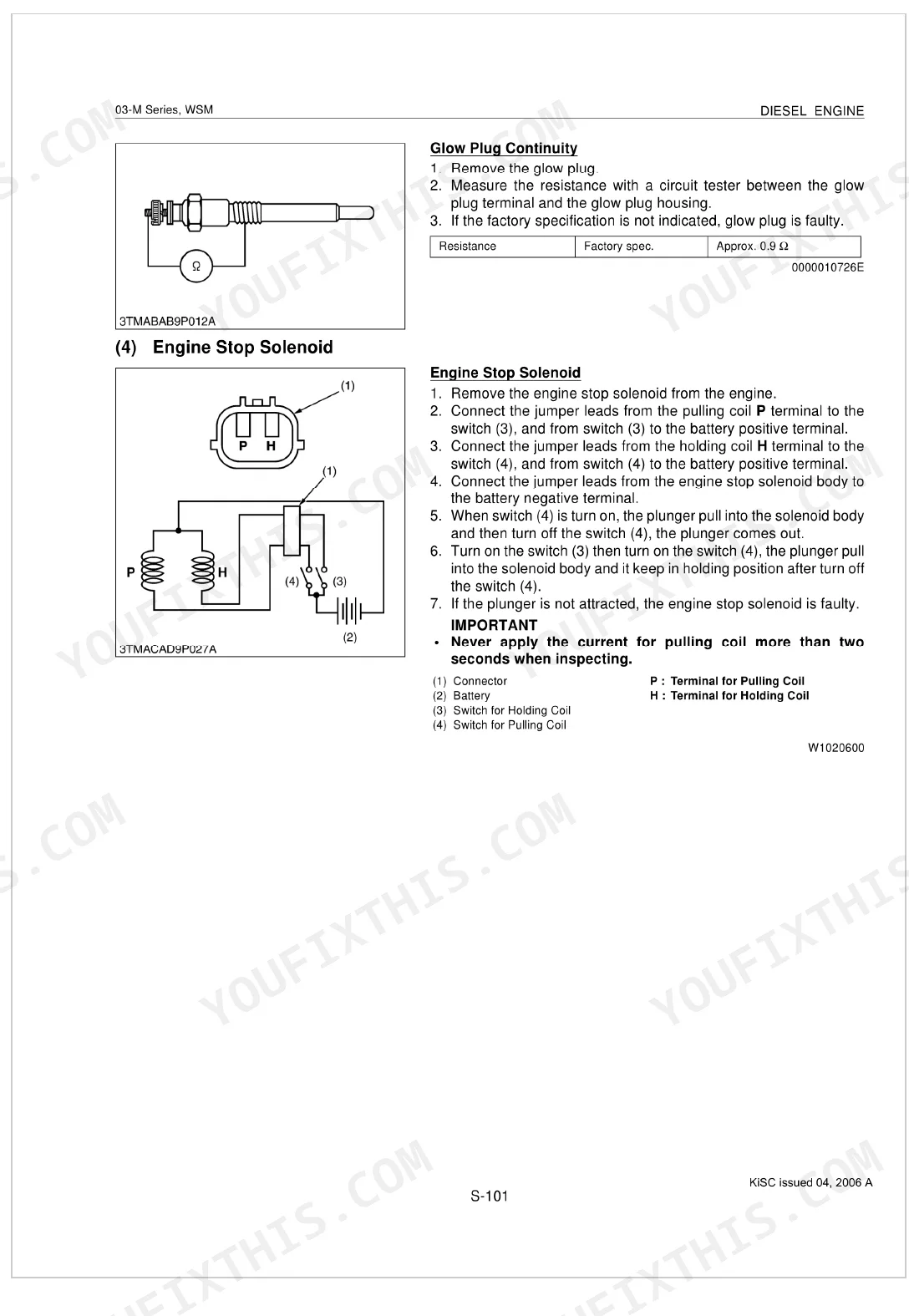

Inspect battery terminals for corrosion and verify cable continuity per the electrical troubleshooting on page 22. Test each glow plug with an ohmmeter; resistance should read approximately 0.9 ohms as specified on page 32. If plugs test good but cranking is sluggish, load-test the battery and check starter solenoid wiring. Confirm the fuel stop solenoid clicks when the key turns to RUN.
Manual Section: Electrical SystemOil pressure warning light on, gauge reads low at operating temperature p. 107
Verify oil level and condition immediately. Check oil pressure at rated speed against the spec of 294 to 441 kPa on page 31. If pressure is below spec, inspect the oil pump drive gear and relief valve in the lubricating system section on page 107. Look for fuel dilution by smelling the dipstick; fuel in the oil points to leaking injector seals or a cracked injection pump diaphragm.
Manual Section: Lubricating SystemEngine overheats, coolant boiling over, temperature gauge pegged at high p. 109
Look at the fan belt first; deflection should measure 7.0 to 9.0 mm as specified on page 39. Clear the radiator fins of debris and flush if airflow is restricted. Pull the thermostat and confirm it begins opening between 69.5 and 72.5 degrees C per the spec on page 31. If overheating continues, run a combustion gas test on the coolant to rule out a blown head gasket.
Manual Section: Cooling SystemEngine runs away at high RPM, won't respond to throttle or key shutoff p. 112
Disconnect the air intake hose immediately to stall the engine by cutting airflow. Once stopped, do not attempt to restart. Examine the injection pump linkage and governor mechanism detailed on page 22 for a stuck fuel rack or seized governor sleeve. Rule out engine oil being drawn through a failed turbo seal or crankcase ventilation system, which can fuel a runaway independent of the injection pump.
Manual Section: Fuel SystemWater found in engine oil, milky residue on dipstick or fill cap p. 67
Pull the cylinder head and inspect the gasket surface for damage. Measure head flatness with a straight edge; warpage must not exceed 0.05 mm as specified on page 25. Torque replacement head gasket bolts to 93.2 to 98.1 N·m per the spec on page 72 in the correct sequence. Check for rainwater entry through the exhaust system and inspect the exhaust manifold and valve for water staining.
Manual Section: Engine BodyFrequently Asked Questions
What are the torque specs for Kubota 03-M cylinder head bolts?
Tightening torque for the M13 x 1.25 cylinder head screws is 93.2 to 98.1 N·m (9.5 to 10.0 kgf·m, or 68.7 to 72.3 ft-lbs). Always use a new cylinder head gasket during reassembly and follow the tightening sequence shown on page 72.
What are the torque specifications for the main bearing cap bolts on a Kubota 03-M engine?
Two separate torque specs apply. Screw 1: 46.1 to 51.0 N·m (34.0 to 37.6 ft-lbs). Screw 2: 68.6 to 73.5 N·m (50.6 to 54.2 ft-lbs). Both are M10 x 1.25 fasteners.
How do you adjust the valves on a Kubota 03-M series engine?
Adjust valves every 800 hours with the engine cold. Factory spec is 0.18 to 0.22 mm (0.0071 to 0.0087 in.). Align the 'TC' mark on the flywheel, measure clearance with a feeler gauge, and adjust any valve outside that range.
What are the replacement specifications for the water fuel filter?
Replace the fuel filter cartridge every 400 hours. Water and dust accumulate in the cartridge and degrade performance over time. The procedure for both cartridge and element-type filters is in the 'Check Points of Every 400 hours' section on page 45.
What are the replacement specifications for the fuel filter?
Replace the cartridge every 400 hours per the maintenance checklist. Close the fuel cock, remove the old filter with a wrench, apply a thin film of fuel to the new gasket, and hand-tighten. Full procedure is on page 45.
What format is this Kubota 03-M Series manual in?
Instant download of the full 125-page searchable shop manual in PDF format. Open it on any device, from a laptop at your desk to a phone in the shop.
Are there any print restrictions on this Kubota 03-M Series manual?
No restrictions. The PDF is DRM-free, so you can print any page or section you need. Works with any standard printer.
Document Quality
This is a high-quality, native digital PDF, not a scanned document, so you can search and copy the full text. The text is consistently crisp and easy to read at any zoom level. Technical diagrams are sharp vector line art with clear, legible labels, while any photographic images are of good resolution. The pages are clean and free from any marks, skewing, or scan artifacts.
