This is the service manual for the Kubota B1600 and B1600DT compact tractors, both powered by the Kubota D950 diesel engine. It is a 48 page PDF with a searchable text layer, built from 1983 to 1988 model information.

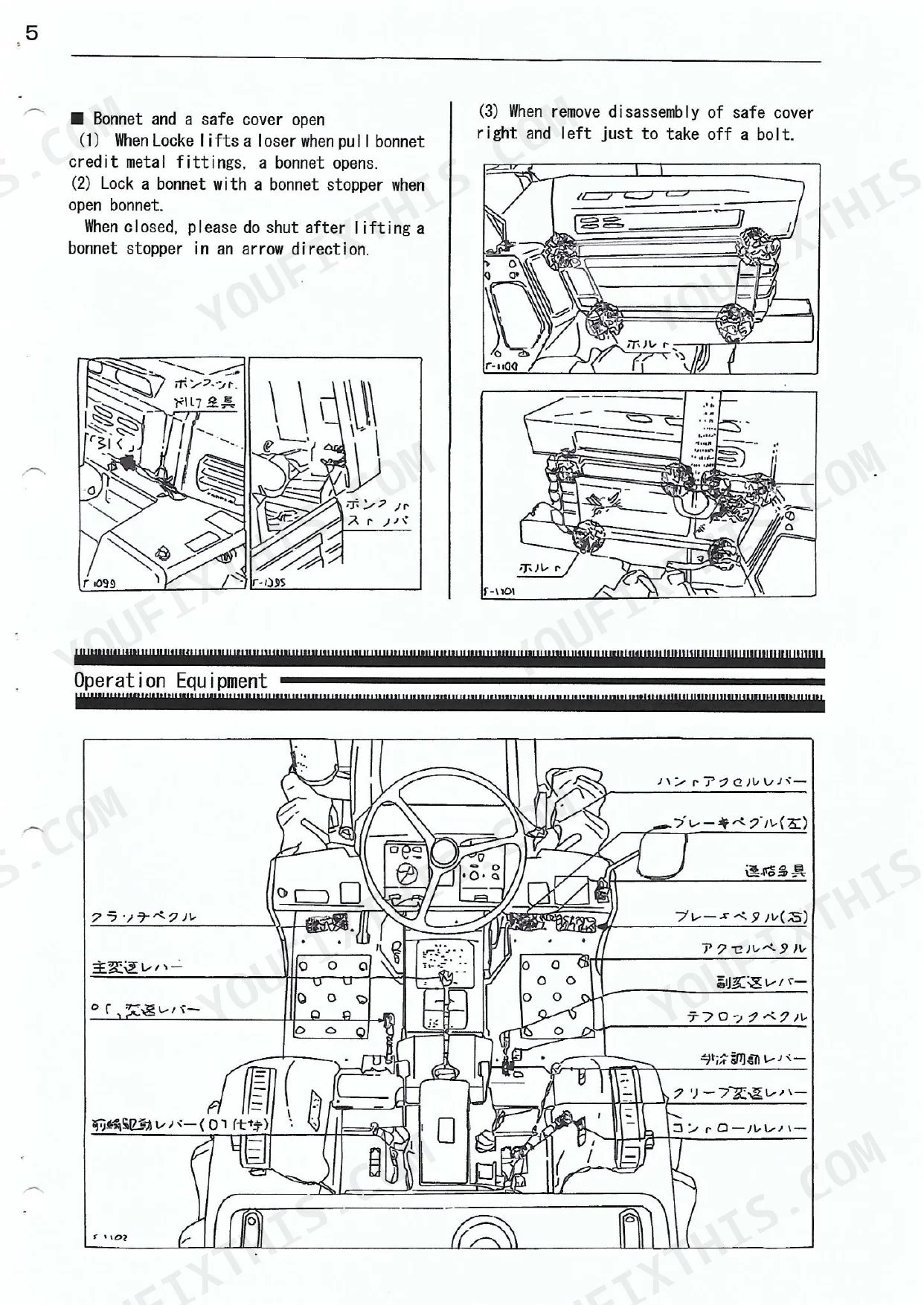

The manual walks through knowing the equipment and its controls, skillful operation techniques, fitting and using the rotary tiller, and a large maintenance and care section. That section covers fuel, oil and filter changes, coolant, the air cleaner element, battery service, greasing points, plus adjustment of the clutch, brakes, fan belt, and steering.
Owners and independent mechanics use it to service the tractor on schedule, adjust the clutch and belts to spec, and diagnose engine faults using the malfunction and specification tables at the back. Full machine specifications, including oil capacities and tire pressures, are listed as well.
What's Inside This Kubota B1600, B1600DT Manual
| System | Pages | Key Topics |
|---|---|---|
| Knowledge of Equipment | - | Switch and Metre, Operation Equipment, Rotary Tiller up?down, Caltivate Adjuster, Points Linkage |

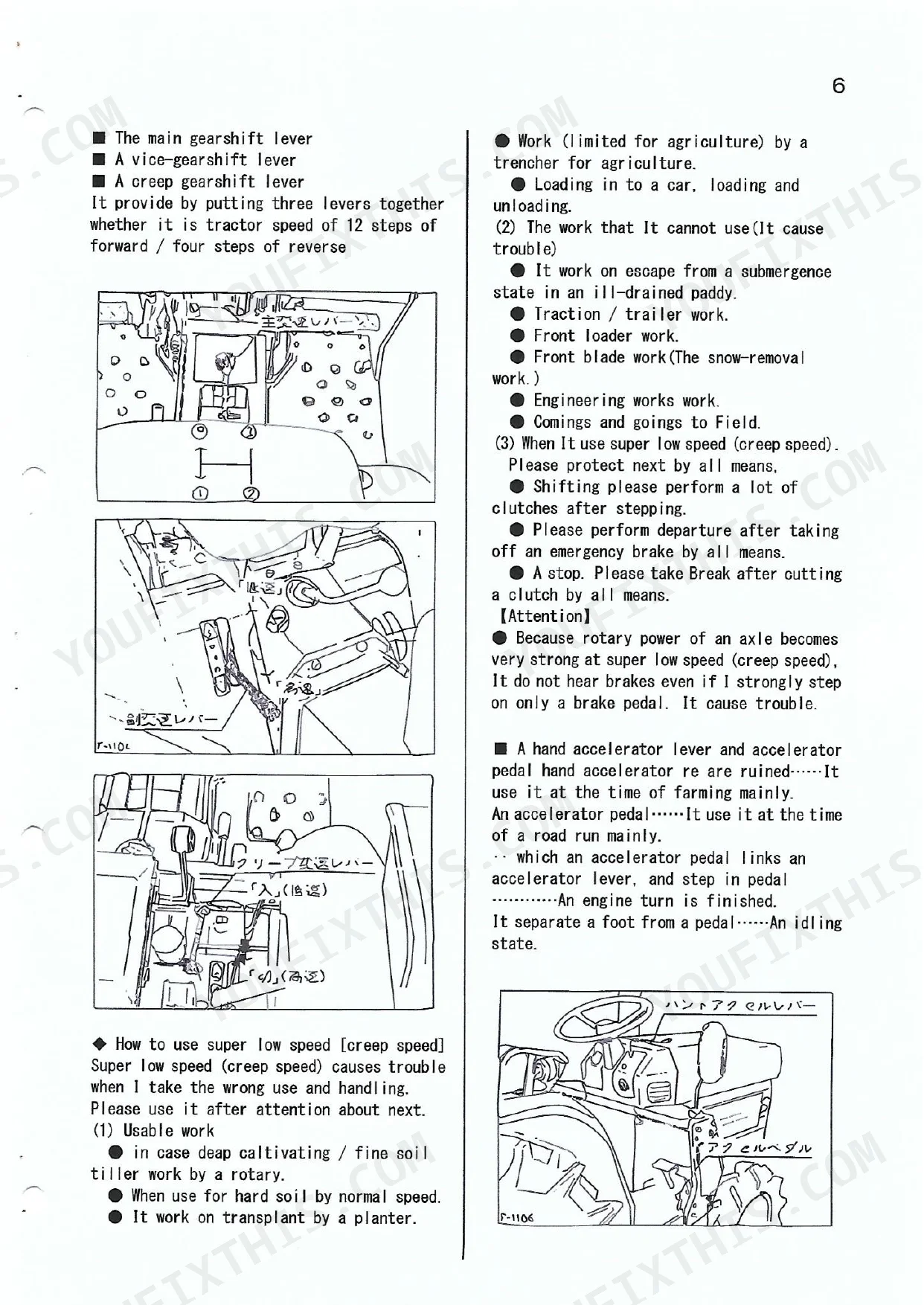

| Method of Skillful Operation | - | Starting of Engine, Stop of Engine, Start Operation, It Accustoms and Is About Operation, Way of Start and a Run, Way of a Stop, Method of Operation on a Slope, Way of Revolution, Loading/unloading, Cautions Under Public Road Run, Loading to Truck |

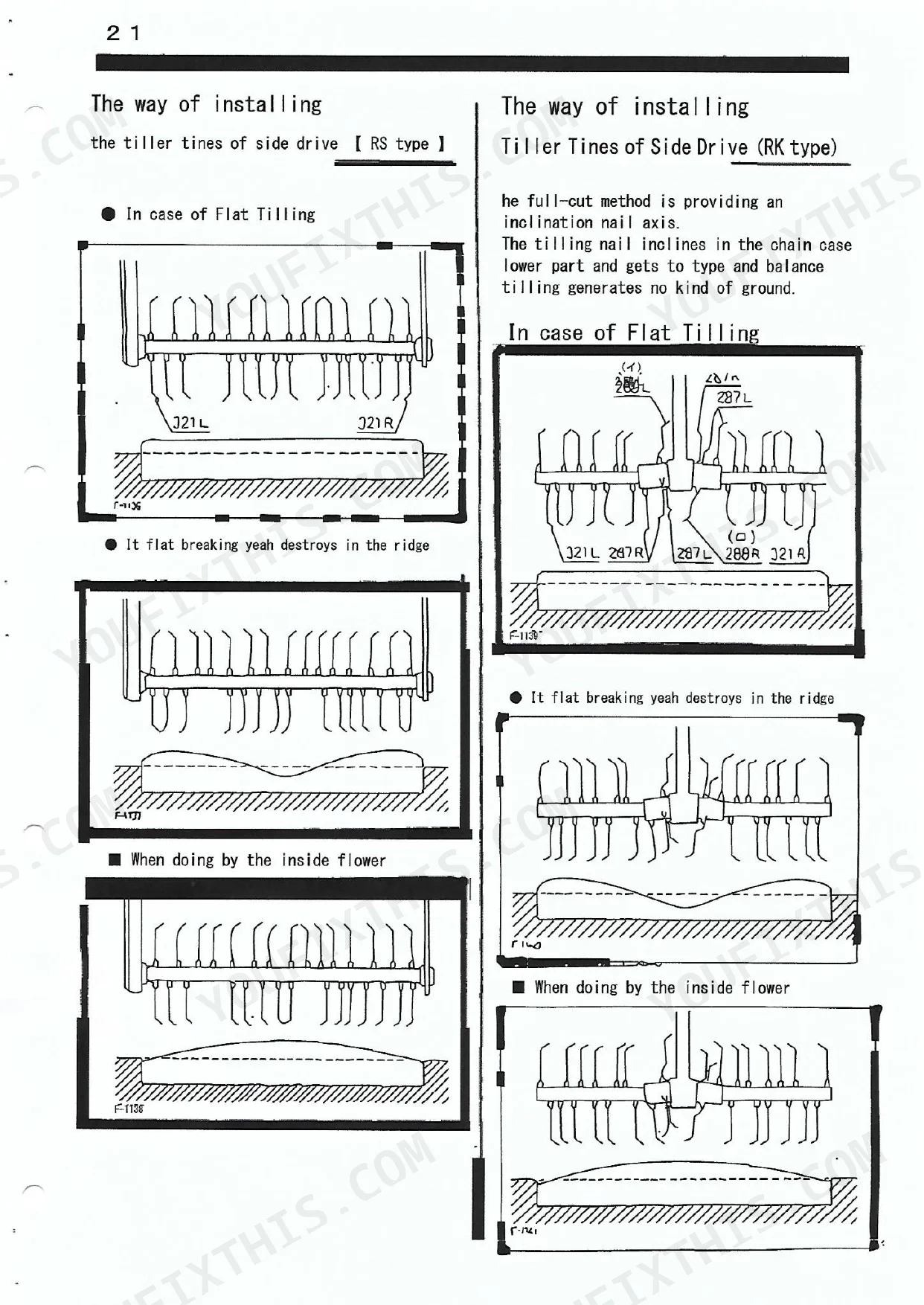

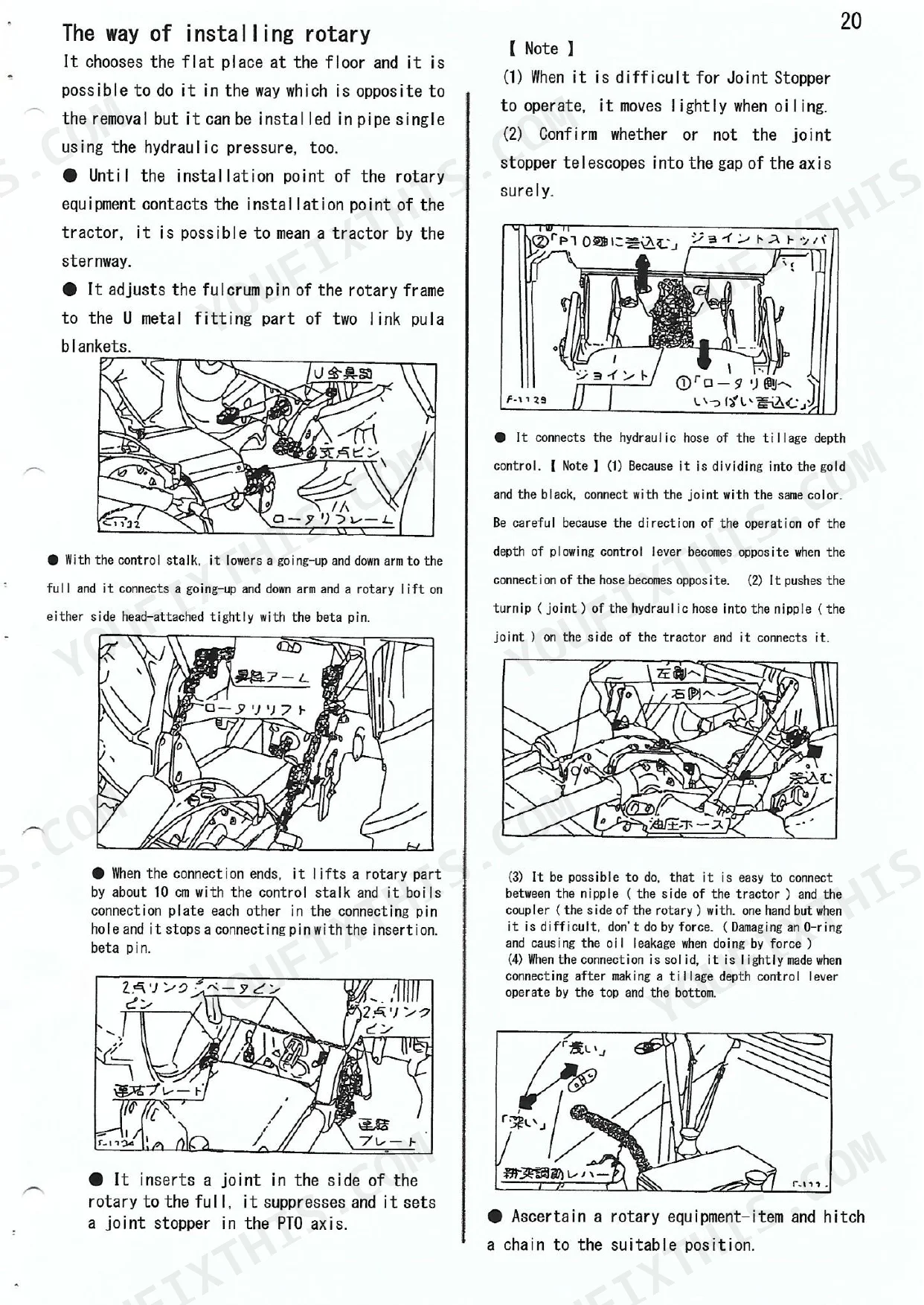

| Rotary Equipment | - | How to Remove Rotary Equipment, How to Attach the PTO Equipment of Side Drive, How to Attach Tiller Tine of Side Drive, How to Attach Tiller Tine of Centre Drive, Attachment-And-Detachment Method, Regulation of Rear Cover, How to Treat Rotary Tiller, Effective Use of Rotary Tiller, Cautions at a Farm of Handling |
| Maintenance and Care | - | Check Points, How to Check, Simple Care and Measures of a Tractor, Fuel, A Way of Ventilation, Refueling and Exchange Oil, Exchange Filters, Exchange Coolant, Exchange Air Cleaner Element, Battery Liquid Supply, Check of Pipes, Injection Points of Grease, Adjust of Wheel Width, Adjust of Lifting Machine, Adjust of Cultivate Speed, Break Adjustment, Adjust of Clutch, Adjust of Fan Belt, Adjust of Steering Wheel, Toe in Check and Adjust, Front Axel Leg Gutter Adjust, Exchange Fuse and Bulb, Care of Long-Tern Storage |

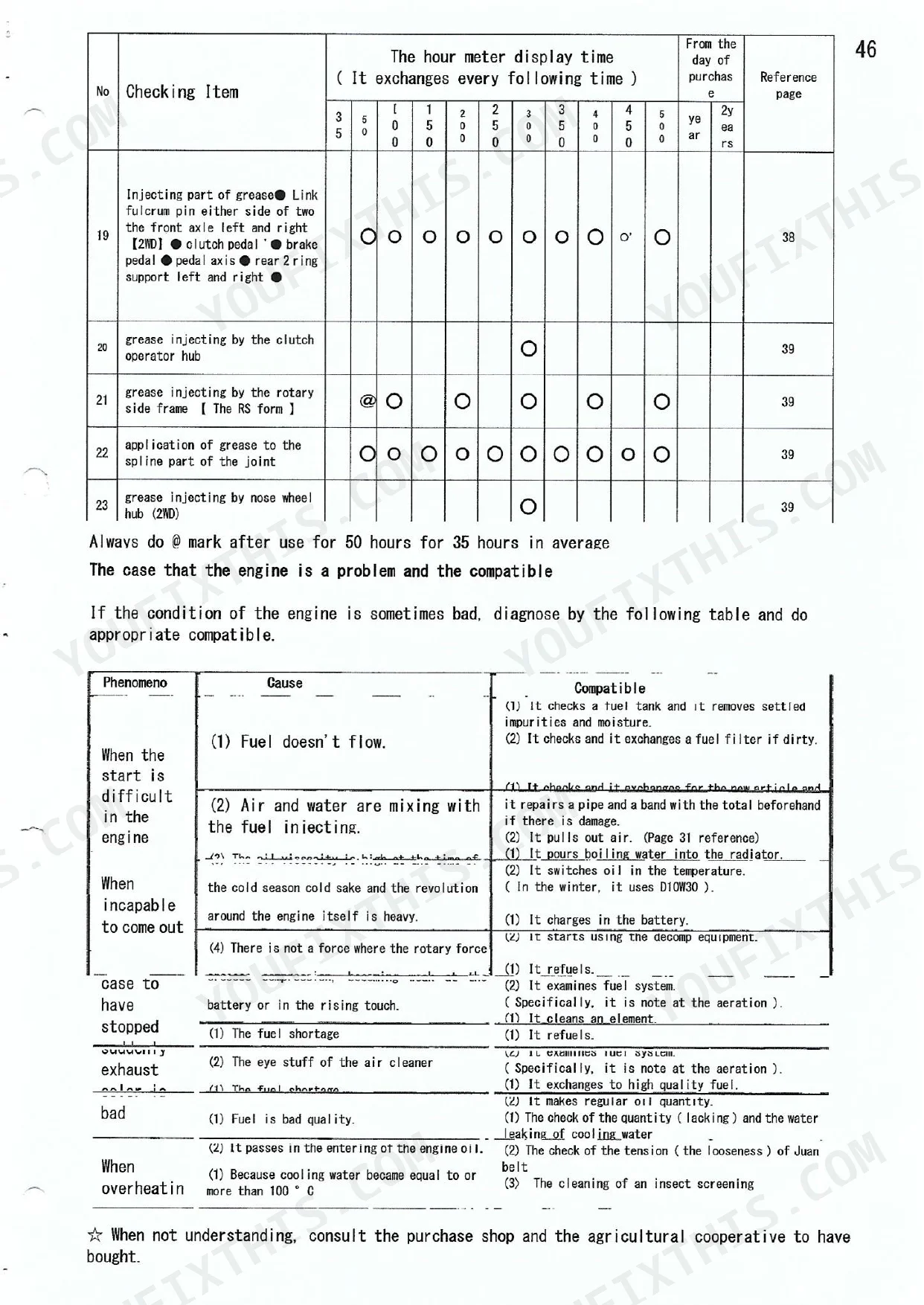

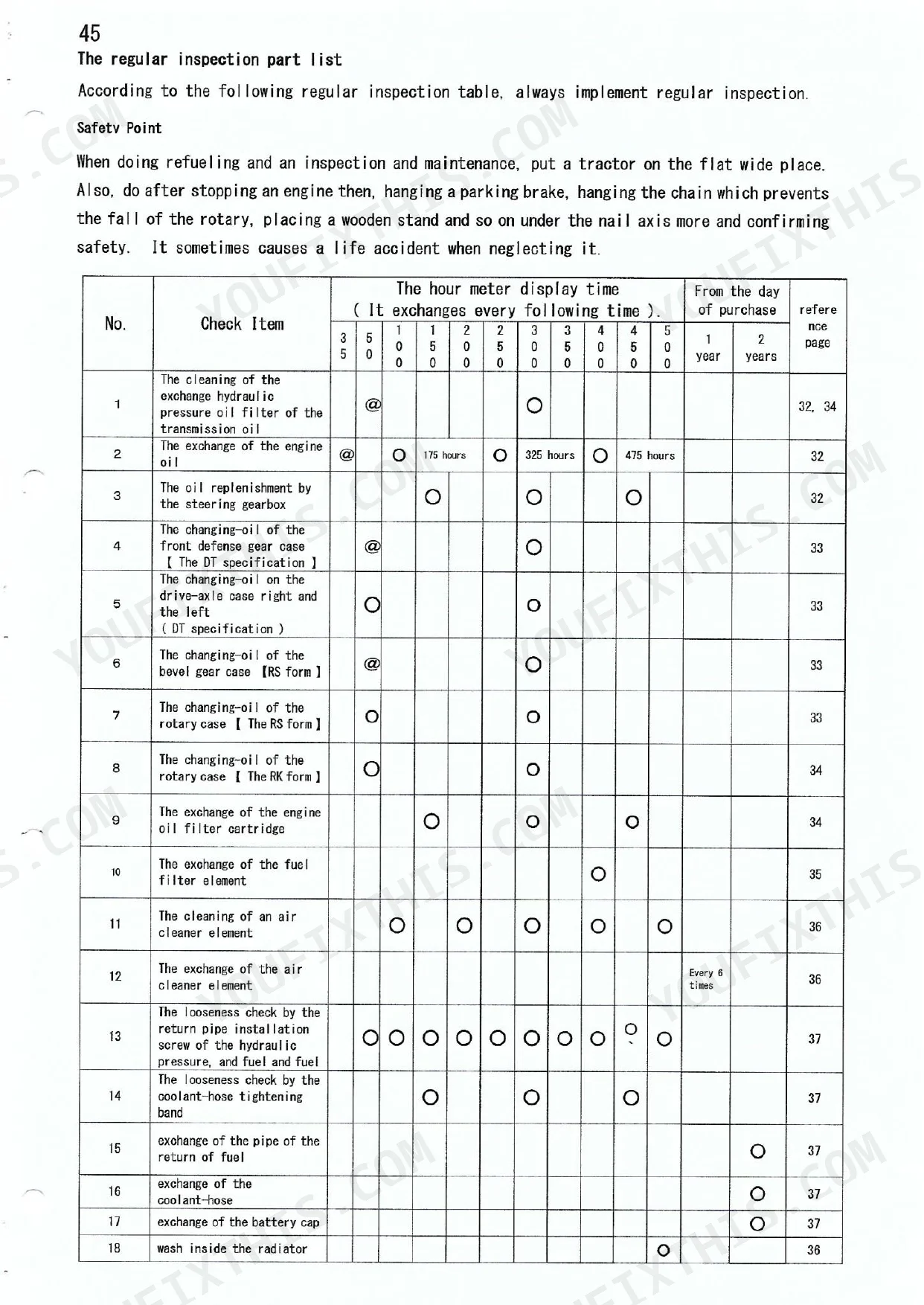

| Additional Information | - | Periodic Inspection Point Table, Malfunction and Measures of an Engine, Specification |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Transmission Oil Capacity | 17 Liters | p. 48 |
| Exchange Interval | 350 hours | p. 46 |
| Cleaning Interval | 50 hours | p. 46 |
| Battery Capacity | NS70L (12V65Ah) equivalent | p. 48 |
| Cell Start Output | 12V, 0.8kW | p. 48 |
| Initial Cleaning Interval | 50 hours | p. 46 |
| First Exchange Interval | 150 hours | p. 46 |
| Engine Model | D950 | p. 48 |
| Engine Capacity | 927cc | p. 48 |
| Maximum Engine Output | 16PS/2600 r.p.m. | p. 48 |
| Fuel Tank Capacity | 20 Liters | p. 48 |
| Engine Oil Capacity | 3.4 Liters | p. 48 |
Kubota B1600, B1600DT Common Problems This Manual Covers
Engine cranks but will not start
Hard or no starting on these older diesels usually comes down to a weak battery, air in the fuel system, or a clogged fuel filter. The malfunction table walks through engine faults and their measures.
Manual Section: Additional Information p. 46Excessive smoke or low power
A restricted air cleaner or dirty fuel filter starves the D950 and causes smoke and lost power under load. The filter exchange procedure covers cleaning and replacing both elements.
Manual Section: Exchange filters p. 35Slow or weak three point hitch
Sluggish lifting often traces to low or contaminated transmission oil and out of spec lift linkage. The lifting machine adjustment section covers setting it correctly.
Manual Section: Adjust of lifting machine p. 41Clutch drag or hard shifting
Too little clutch pedal free play causes drag and crunching gears, while too much prevents full disengagement. This section sets the clutch to the correct free play.
Manual Section: Adjust of Clutch p. 42Overheating during heavy work
Old coolant, a clogged radiator, or a debris-packed screen cause the engine to run hot during tiller or field work. The coolant exchange procedure covers draining, flushing, and refilling.
Manual Section: Exchange Coolant p. 36Weak battery or electrical faults
Low electrolyte and corroded terminals cause slow cranking and intermittent electrical problems. The battery service section covers checking and topping up the electrolyte level.
Manual Section: Battery Liquid supply p. 38Frequently Asked Questions
Which tractors does this service manual cover?
It covers the Kubota B1600 and B1600DT compact tractors, both fitted with the Kubota D950 diesel engine. The 48 page manual reflects models built between 1983 and 1988.
What are the engine oil and transmission capacities?
The specification page lists engine oil capacity at 3.4 liters, transmission oil at 17 liters, and a 20 liter fuel tank, so you can order the right amount before a service. p. 48
How much clutch pedal free play should it have?
The clutch adjustment section sets pedal free play at 20 to 30 mm. Adjusting to this range restores clean shifting and prevents clutch drag. p. 42
What are the filter service intervals?
The maintenance information lists the fuel filter exchange interval at 350 hours and air cleaner element cleaning every 50 hours, helping you keep the D950 running clean. p. 46
Is this Kubota B1600 manual a PDF I download?
A 48-page searchable PDF, ready to download right after checkout. Opens on any device, so you can pull it up on your phone while you're under the hood. No shipping, no waiting.
Can I print specific sections of this Kubota B1600 Service Manual?
Yes. No DRM, no copy protection. Print the whole manual or just the pages you need on any home or office printer.
