Covering five engine variants in the D1803-CR and V2403-CR family, this 315-page workshop manual (OEM #9Y311-00671) walks you from teardown through final assembly. It packs 13 pages of wiring diagrams, 20 pages of exploded views with part callouts, 8 system diagrams for fuel and coolant routing, and over 116 pages of step-by-step service procedures. Troubleshooting charts and a maintenance checklist fill out the rest. Main bearing case screw 1 torques to 46.1 to 51.0 N·m; screw 2 torques to 68.6 to 73.5 N·m. Compression pressure must hold above 2.35 MPa at 290 rpm before you button things up. Oil capacity runs 7.0 L on D1803-CR models and 9.5 L on V2403-CR variants. Bookmarked, searchable PDF you can pull up on your phone right at the bench.
What's Inside This Kubota 03-CR-E4, 03-CR-TE4BG Manual

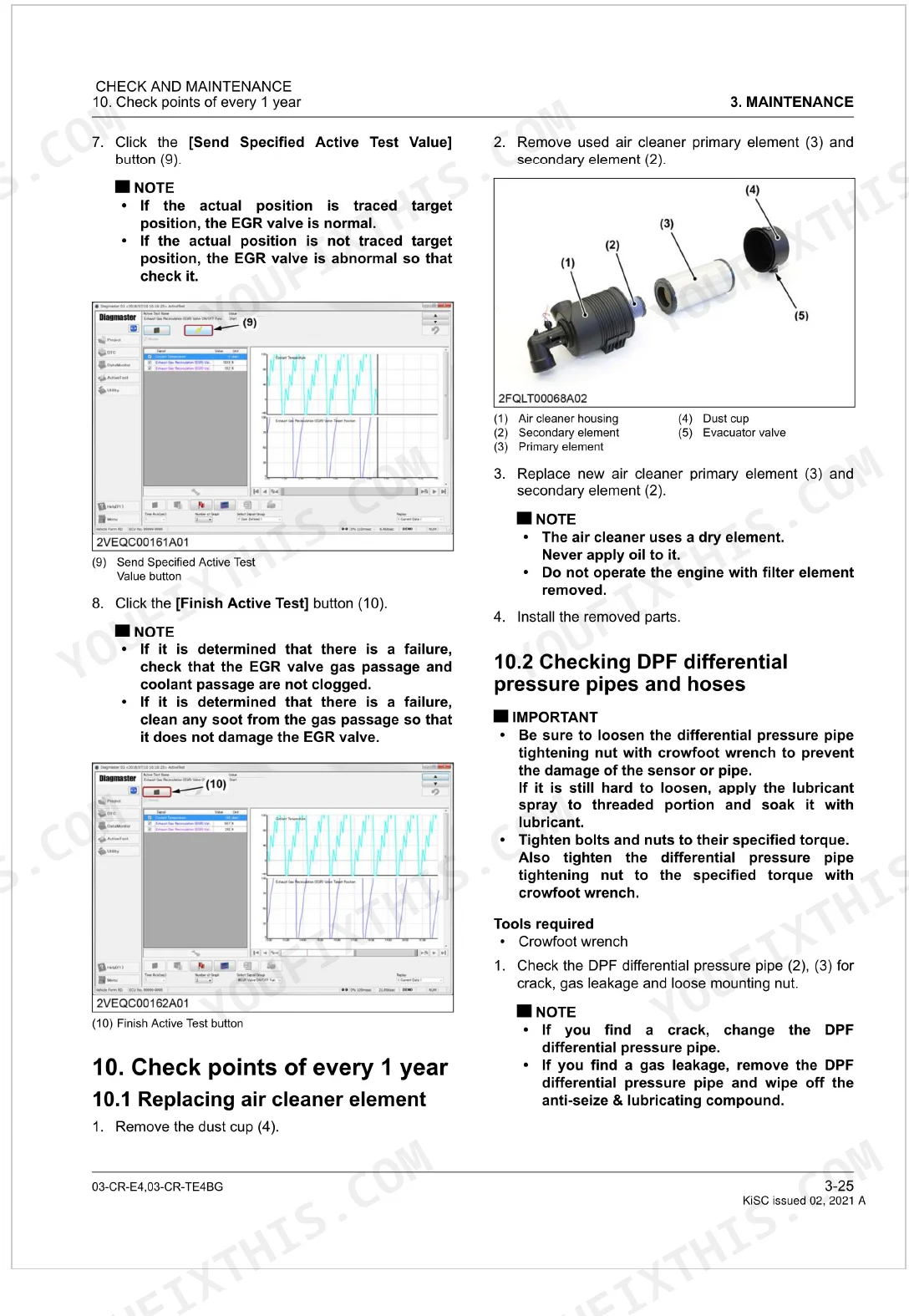

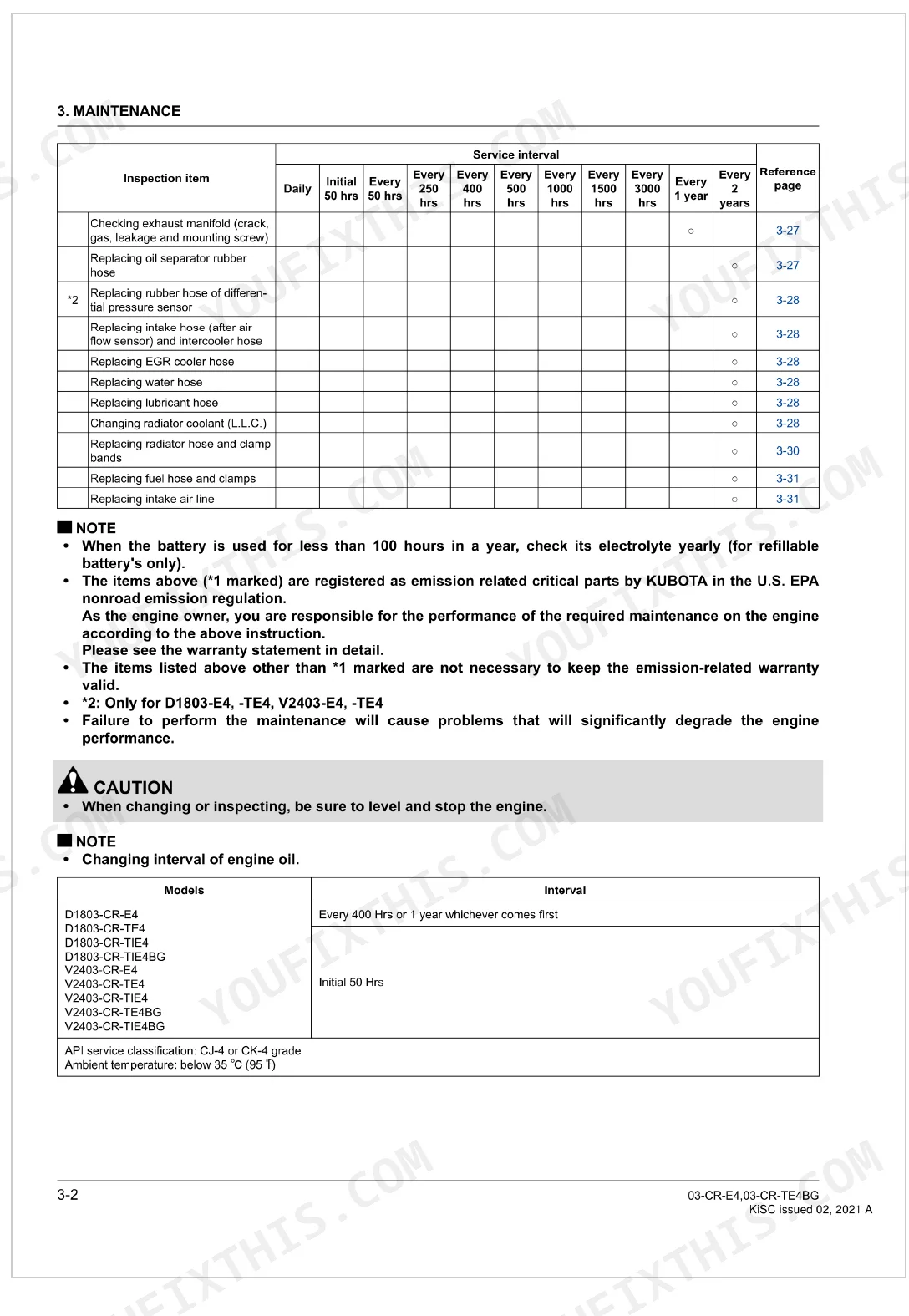

| System | Pages | Key Topics |
|---|---|---|
| Safety | 19-25 | - |
| General | 26-70 | General Working Precautions, General Machine Information, Special Tools |
| Maintenance | 71-102 | Maintenance Check List, Check and Maintenance |
| Engine | 103-308 | Mechanism, Servicing |

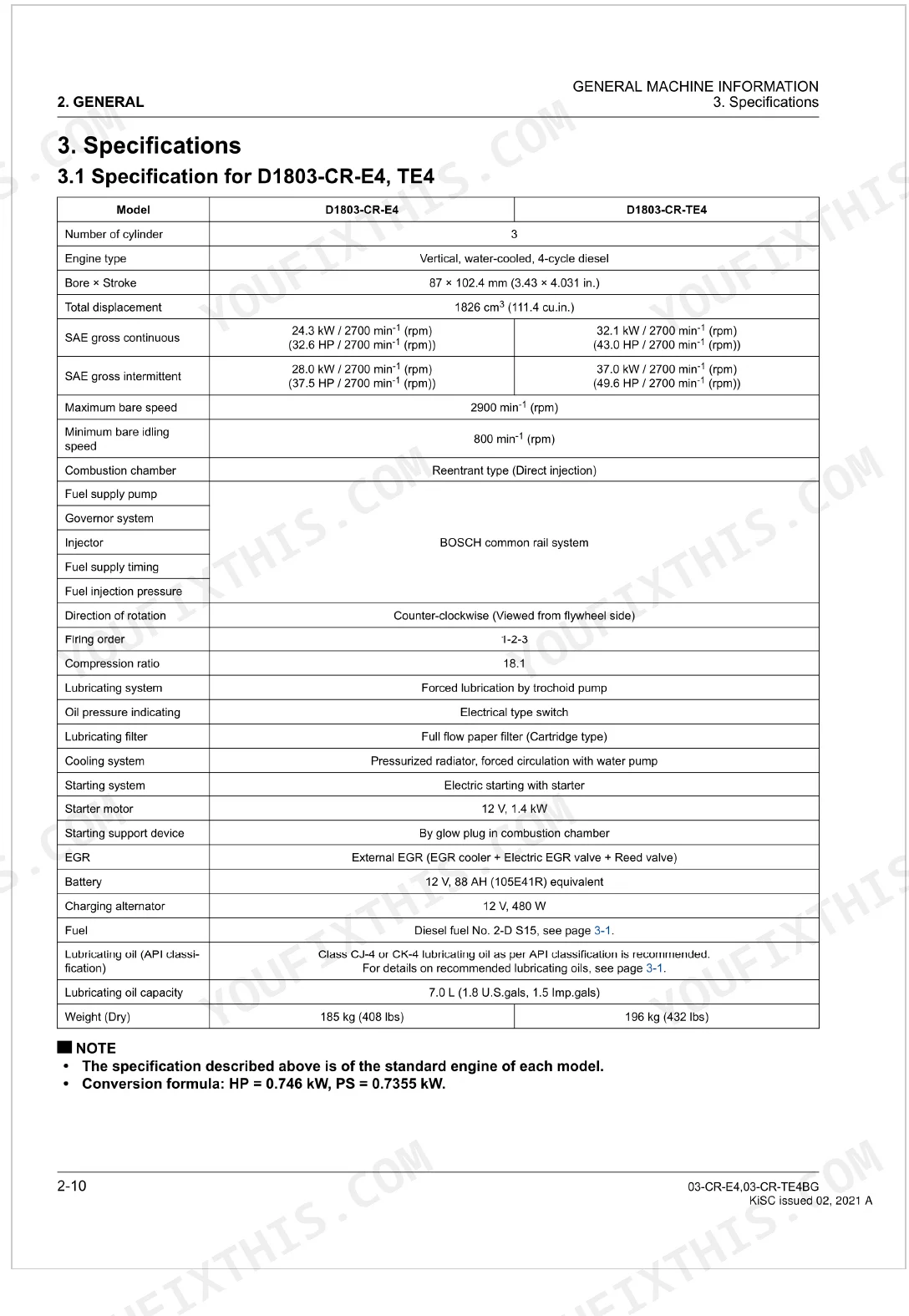

Quick Reference Specifications

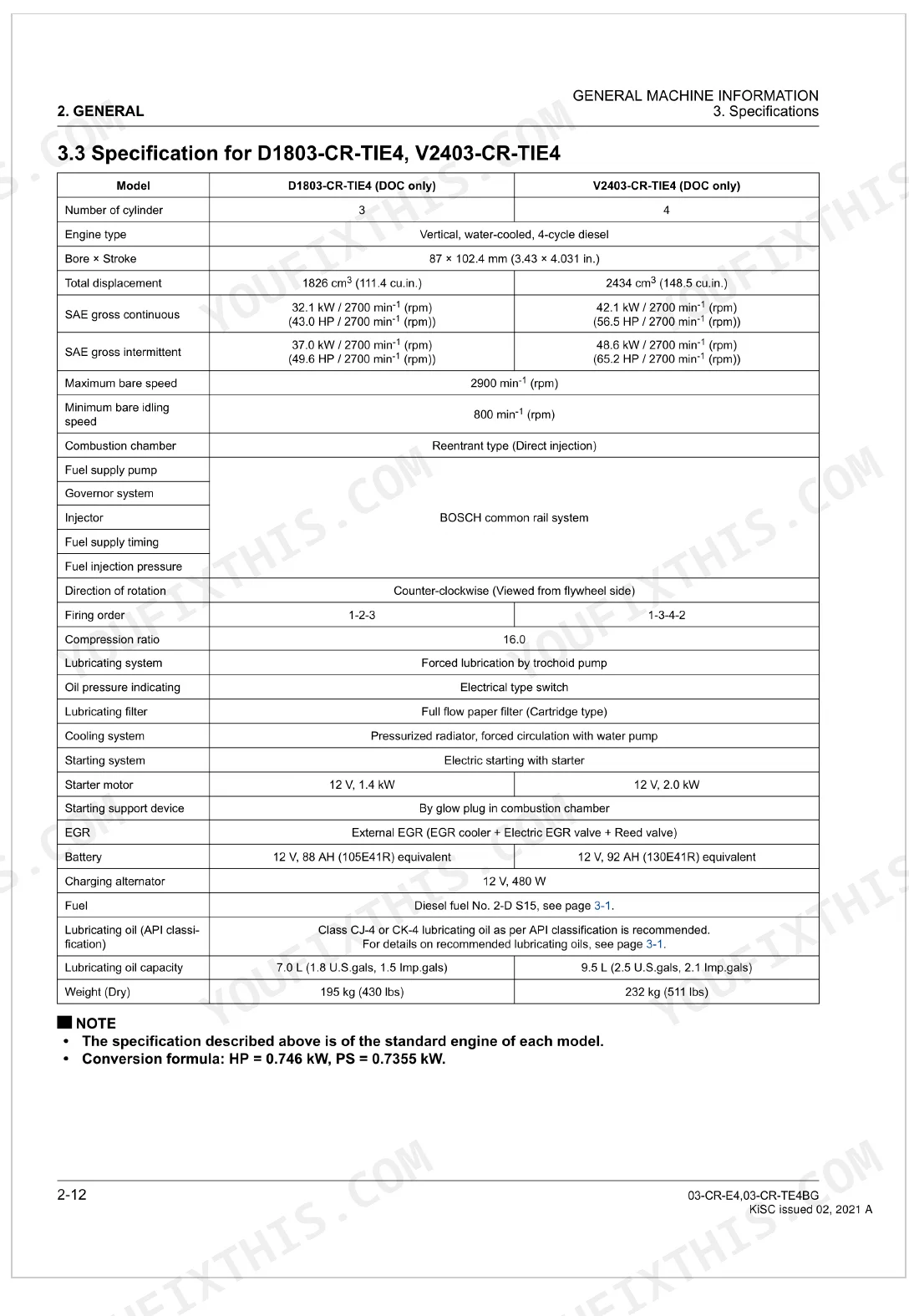

| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Main bearing case screw 1 | 46.1 to 51.0 N·m | p. 174 |
| Main bearing case screw 2 | 68.6 to 73.5 N·m | p. 174 |
| Compression Pressure (Service Limit) | 2.35 MPa / 290 min-1 (rpm) | p. 170 |
| Valve Clearance (Cold) | 0.18 to 0.22 mm | p. 170 |
| Cylinder Head Mounting Screw Torque | 93.2 to 98.1 N·m | p. 171 |
| Flywheel Screw Torque | 98.10 to 107.9 N·m | p. 174 |
| Connecting Rod Screw Torque | 40.0 to 45.0 N·m | p. 210 |
| Bore x Stroke | 87 x 102.4 mm | p. 36 |
| Glow Plug Resistance | Approx. 0.8 Ω | p. 185 |
| D1803-CR-E4, D1803-CR-TE4, D1803-CR-TIE4, D1803-CR-TIE4BG | ||
| Engine Oil Capacity | 7.0 L | p. 76 |
| V2403-CR-E4, V2403-CR-TE4, V2403-CR-TIE4, V2403-CR-TE4BG, V2403-CR-TIE4BG | ||
| Engine Oil Capacity | 9.5 L | p. 76 |
| D1803-CR-E4, D1803-CR-TE4 | ||
| Maximum Bare Speed | 2900 min-1 (rpm) | p. 36 |
Kubota 03-CR-E4, 03-CR-TE4BG Common Problems This Manual Covers
Kubota 03-CR-E4 engine does not start, starter cranks but fails to fire in cold conditions
Test glow plug continuity with a multimeter; resistance should read approximately 0.8 Ω per plug (page 185). Replace any open-circuit plugs. Verify battery voltage and specific gravity are within spec. Confirm fuel cetane rating meets the minimum of 45 (page 74). If plugs and fuel check out, test the crankshaft position sensor and camshaft sensor for correct signal output.
Manual Section: Engine Troubleshooting (Symptom-Based)Excessive white or blue exhaust smoke at idle, clears partially under load
Measure valve clearance with feeler gauges on a cold engine; spec is 0.18 to 0.22 mm (page 170). Worn valve stems or guides let oil past the seals into the combustion chamber. Run a compression test on all cylinders; service limit is 2.35 MPa at 290 rpm. If one or more cylinders read low, pull the cylinder head and inspect for worn piston rings or scored bores.
Manual Section: Engine Troubleshooting (Symptom-Based)Low power output under load, engine bogs down and won't reach full RPM

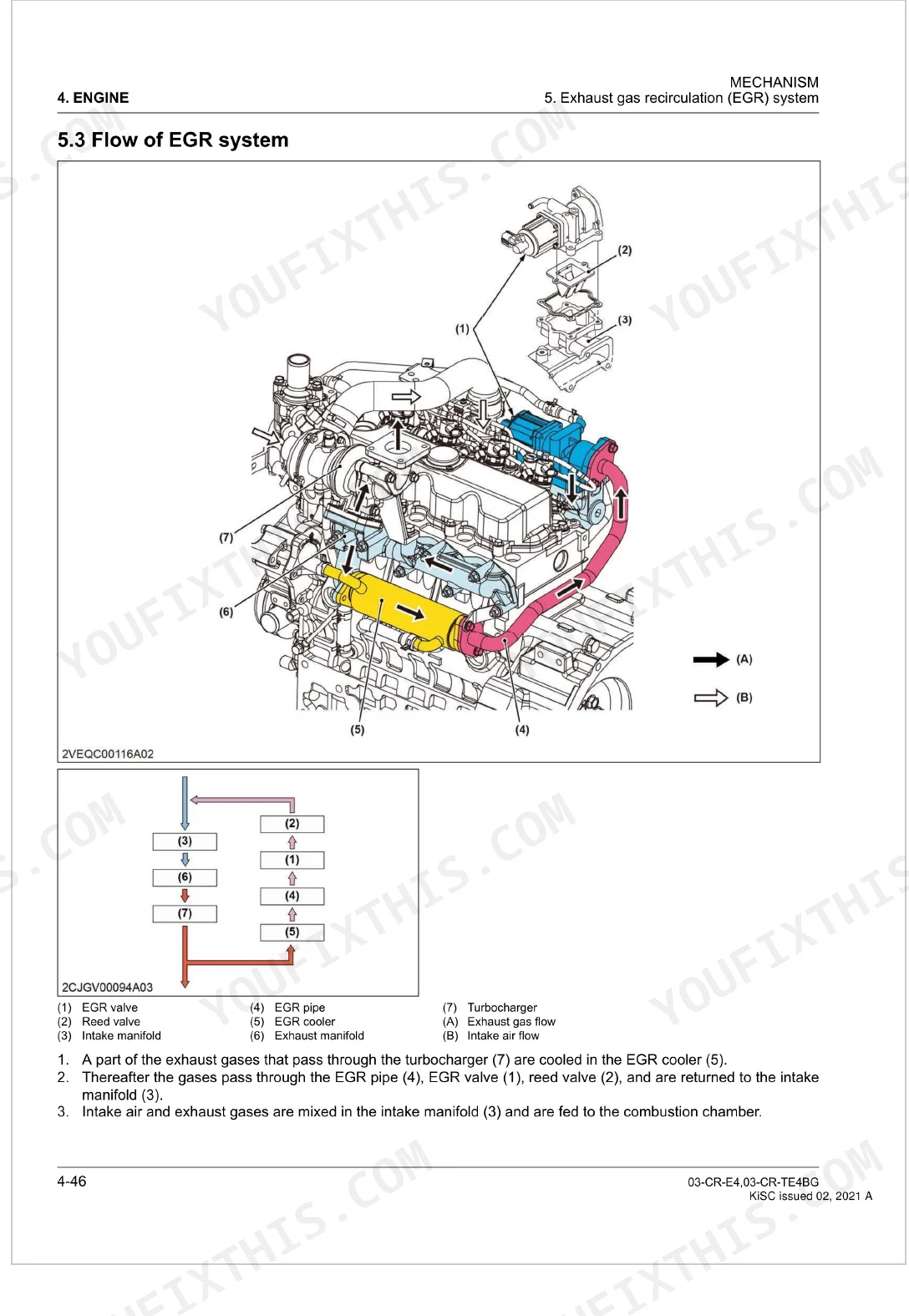

Pull the DPF and inspect for excessive soot buildup or cracks. Clean or replace based on reusability criteria. Examine the EGR valve for carbon deposits restricting movement. Verify boost pressure sensor readings match actual turbo output. Confirm injector operation using the Diagmaster active test procedure.
Manual Section: Engine Troubleshooting (Symptom-Based)Engine oil pressure warning light comes on at idle, pressure drops when hot

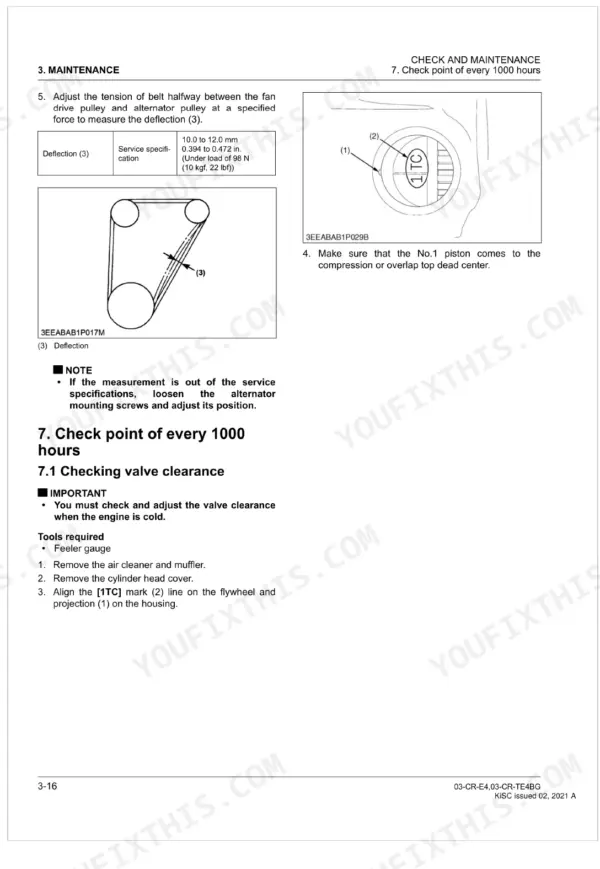

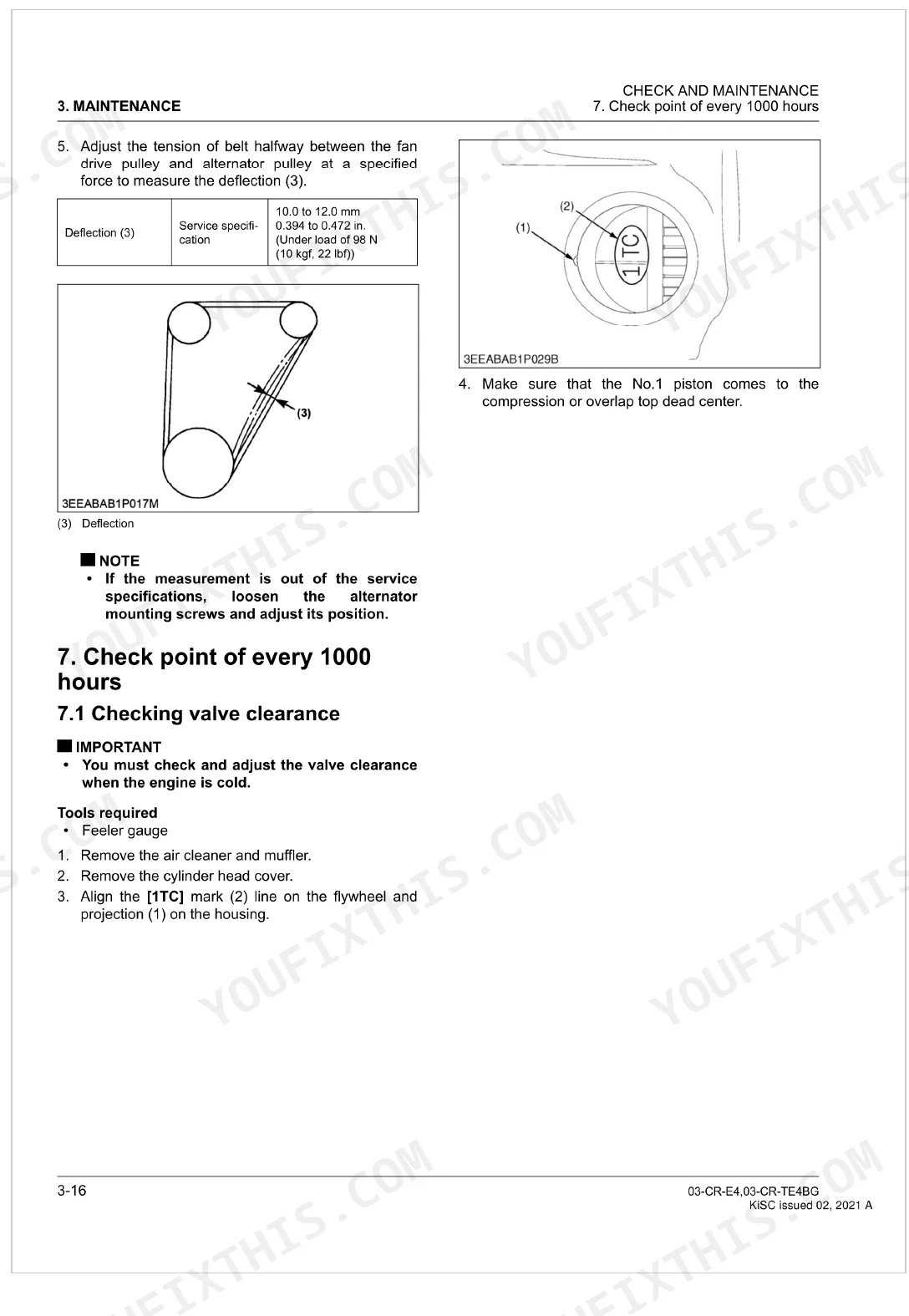

Confirm oil level and condition first. Drain and refill with the correct grade if contaminated. Verify fan belt deflection is within 10.0 to 12.0 mm (page 78), since a loose belt can reduce water pump flow and cause overheating that thins the oil. Measure actual pressure with a mechanical gauge. If pressure reads low, inspect main bearing clearances; torque main bearing case screw 1 to 46.1 to 51.0 N·m and screw 2 to 68.6 to 73.5 N·m per page 174.
Manual Section: Engine Troubleshooting (Symptom-Based)Rough running and misfiring, engine shakes noticeably at all speeds
Run compression across all cylinders; any reading below the 2.35 MPa service limit at 290 rpm (page 170) flags a mechanical issue in that cylinder. Isolate faulty injectors using the Diagmaster active test. If compression is even but low across the board, remove the cylinder head and torque mounting screws to 93.2 to 98.1 N·m on reassembly (page 171). Inspect valve seats for pitting or carbon buildup.
Manual Section: Engine Troubleshooting (Symptom-Based)Frequently Asked Questions
How do I reset the check engine light on a Kubota 03-CR-TE4BG?
Connect the service engine ECU to the engine and turn the key switch ON. Open Diagmaster, then click the [DTC] button (16) in the project window. Click [Clear DTC] (17), then confirm by clicking [Clear DTC] (18) again. This clears all stored codes and exits the function.
What are the torque specs for the cylinder head on a V2403-CR-TE4BG?
Cylinder head mounting screw (M11 x 1.25) torque is 93.2 to 98.1 N·m (68.8 to 72.3 lbf·ft). Apply engine oil to the threads and seats before tightening.
How do I reset error codes on a Kubota 03-CR-E4?
You need the Diagmaster diagnostic tool. Connect the service engine ECU, turn the key on, and launch the software. Click [DTC] (16), then [Clear DTC] (17), followed by the final [Clear DTC] (18) to finish.
What are the torque specs for the main bearings on a Kubota 03-CR-TE4?
Two screw sizes apply. Screw 1 (M9 x 1.25): 46.1 to 51.0 N·m (34.0 to 37.6 lbf·ft). Screw 2 (M10 x 1.25): 68.6 to 73.5 N·m (50.6 to 54.2 lbf·ft). Oil the threads before tightening.
What do I get after purchasing this Kubota 03-CR-E4, 03-CR-TE4BG manual?
A 315-page searchable PDF, available for instant download after checkout. Works on laptop, tablet, or phone, so you can bring it straight to the shop floor.
Are there any print restrictions on this Kubota 03-CR-E4, 03-CR-TE4BG manual?
No restrictions. There's no DRM or copy protection. Print the whole manual or just the pages you need on any home or office printer.

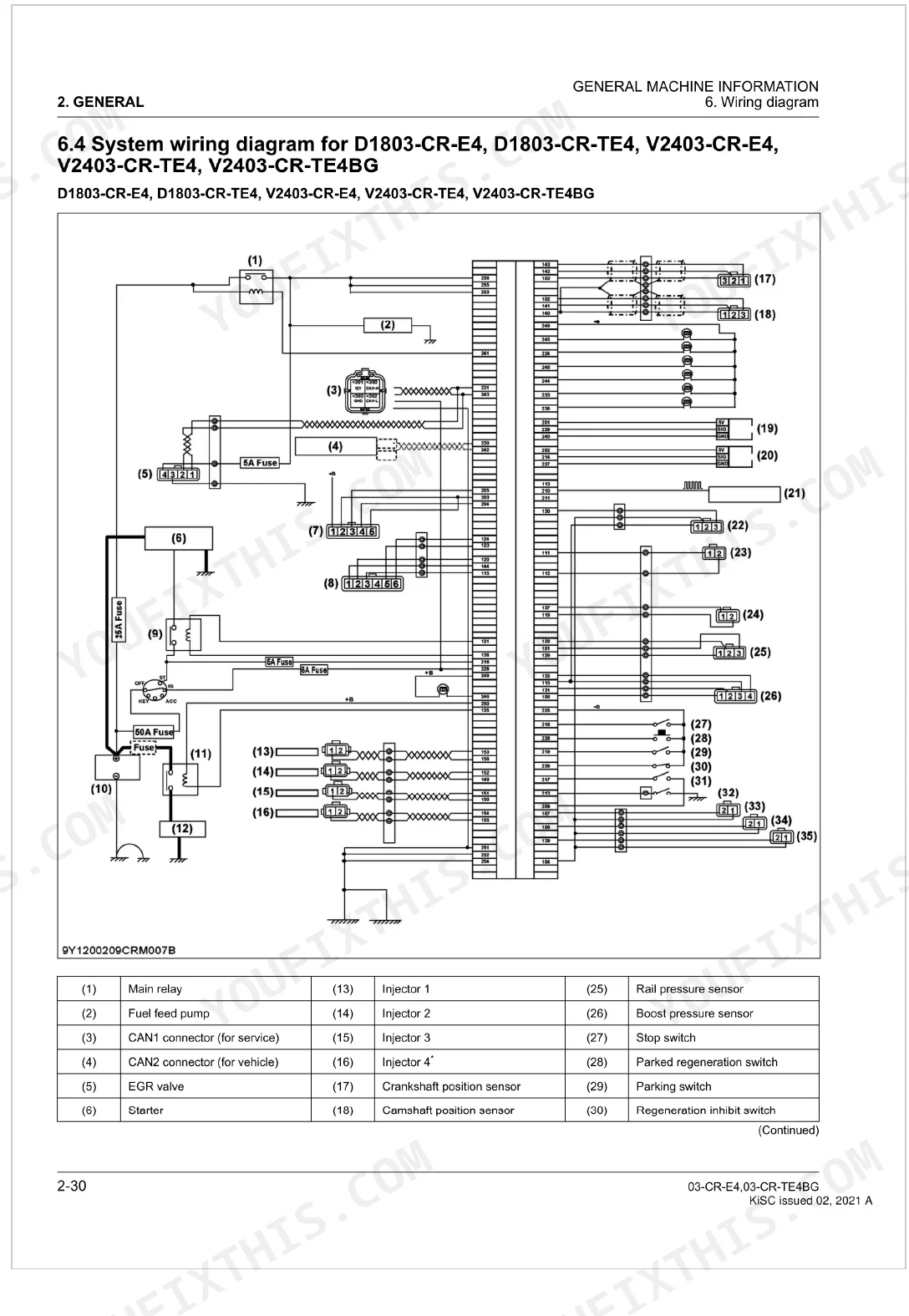

Can I find wiring schematics in this Kubota 03-CR-E4, 03-CR-TE4BG manual?
Yes. The manual includes 13 pages of electrical schematics with wire routing diagrams, connector identification, and circuit descriptions.
Document Quality
This is a native digital PDF, not a scanned document, so the full text is searchable and you can easily copy and paste content. The text is crisp and easy to read, and most diagrams and performance charts are high-quality vector graphics that remain sharp at any zoom level. Photographs of the engine and tools are clear raster images, and all pages are clean without any marks or scan artifacts. There are a few blank pages that act as section dividers, which is typical for this type of manual.
