Order the right part number for your LA210 front loader before anything ships. This 70-page Kubota LA210 parts catalog is built around exploded-view diagrams that cover the chassis frame, every hydraulic line assembly, the boom, the bucket, and each control valve sub-assembly, with individual part numbers and cross-reference data for both 3-C/V and 4-C/V configurations. The parts lists alone run 66 pages deep, and component weights are recorded throughout: 112 kgf for the main frame assembly, 7 kgf for the boom cylinder, and 7.5 kgf for the control valve assembly. No more guessing which hose or seal kit your machine actually takes. Bookmarks jump you to any section, and you can search by part name to confirm the right number before the order goes in.
What's Inside This Kubota LA210 Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Side Frame | 2-9 | Main Frame, LA210 |
| Hydraulic Hose 1(C/V) | 10-23 | Hydraulic Oil Line(flame), Side Frame, Hydraulic Hose(boom), Hydraulic Tube(arm) |
| Boom | 24-34 | Hydraulic Hose 2(C/V) [3-C/V], Hydraulic Hose 1(C/V), Hydraulic Hose 2(C/V) [4-C/V], Hydraulic Hose 2(C/V) |
| Bucket Cylinder | 35-42 | Boom Cylinder [Component Parts], Boom Cylinder, Bucket |
| Control Valve | 43-50 | Control Valve [3-C/V(BX2013)], Bucket Cylinder [Component Parts], Control Valve [4-C/V(BX2014)] |
| Control Lever | 51-58 | Control Valve [Component Parts] [4-C/V], Control Valve [Component Parts] [3-C/V], Control Valve [Component Parts] |
| Label [French] | 59-66 | Label [English], Control Lever |
| Label [French] | 67-69 | - |
| Accessories and Service Parts | 70-70 | Operator's Manuals, Part Interchangeability Details, Part Quantity and Weight Specifications |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| replacement value (weight) | 0.04 kgf | p. 18 |
| FRAME MAIN LH(LABEL) Weight | 112 kgf | p. 5 |
| HEX.BOLT (9/16-18UNF*1-1/2) Weight | 0.067 kgf | p. 5 |
| FRAME SIDE LH(LABEL) Weight | 6.7 kgf | p. 9 |
| TUBE 1 DELIVERY Weight | 0.34 kgf | p. 14 |
| HOSE 8 LH HYDRAULIC Weight | 0.16 kgf | p. 18 |
| TUBE 1 HYDRAULIC Weight | 0.35 kgf | p. 20 |
| CYLINDER 1 (BOOM) Weight | 7 kgf | p. 36 |
| PIN 4 (BUCKET) Weight | 0.23 kgf | p. 40 |
| CYLINDER 2 (BUCKET) Weight | 8 kgf | p. 42 |
| VALVE CONTROL (3-C/V) Weight | 7.5 kgf | p. 46 |
| LEVER (CONTROL) Weight | 0.13 kgf | p. 58 |
Kubota LA210 Common Problems This Manual Covers
Need exact seal kit part numbers for a Kubota LA210 boom cylinder because the loader drifts down under load p. 38
Open the exploded view on page 37 to pin down the seal kit. The boom cylinder kit carries a replacement weight of 0.002 kgf on page 38, so match that part number against your machine's serial range before you order.
Manual Section: Boom Cylinder [Component Parts]Cannot locate correct replacement hose part numbers for boom lines showing visible hydraulic oil leakage p. 18
Check the hydraulic hose diagram on page 17. Locate the Hose 8 LH hydraulic assembly and match it against your damaged line. Confirm the replacement part weighs 0.16 kgf as shown on page 18. Order the corresponding sleeve and fittings at the same time.
Manual Section: Hydraulic Hose(Boom)Trouble identifying the proper mounting pins and split pins after bucket movement becomes loose and jerky p. 40

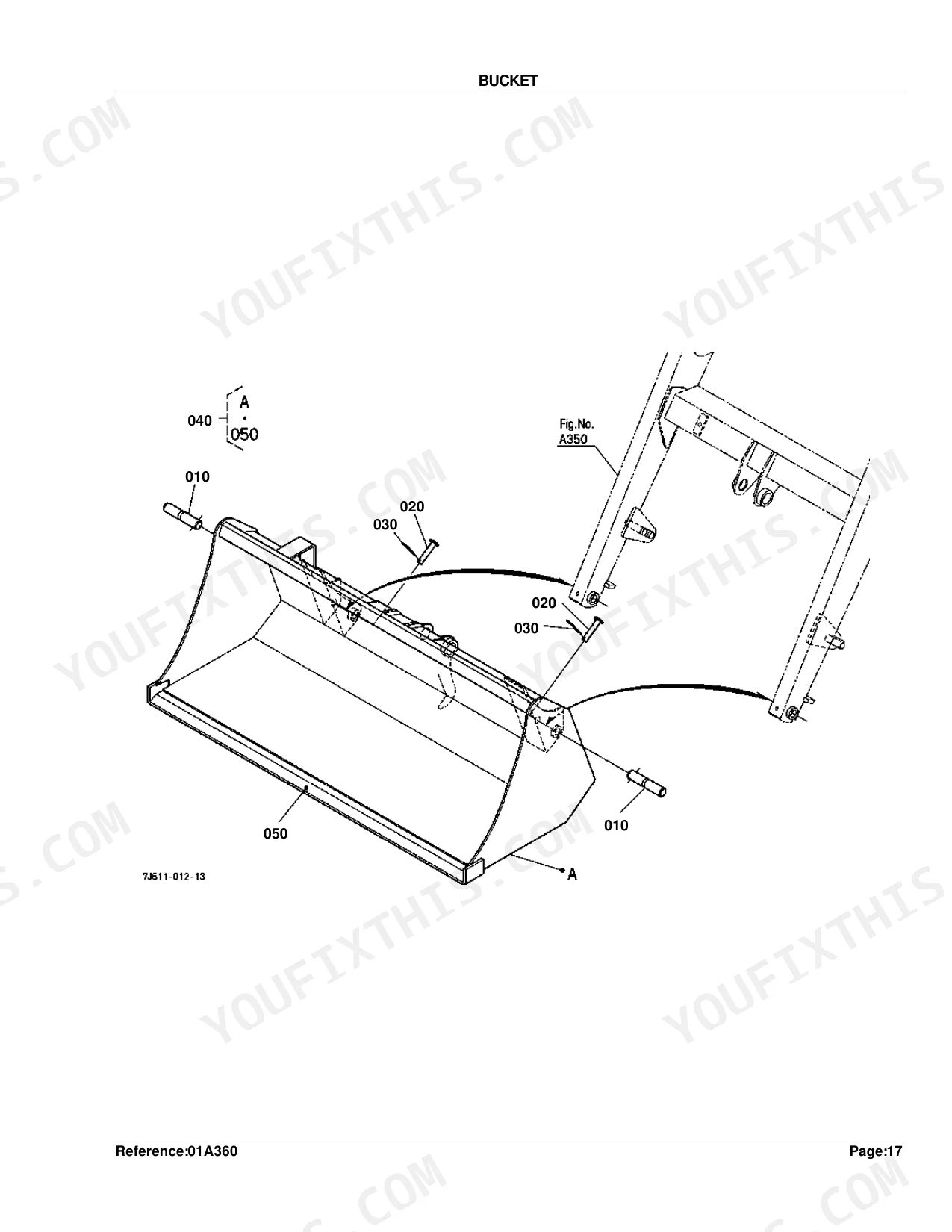

Measure your worn pin against the Pin 4 listing on page 40, where it shows 0.23 kgf, then use the bucket diagram on page 39 to confirm the clevis and joint pins. Order the exact pin plus a fresh cotter pin.
Manual Section: BucketUnable to find original safety label part numbers after warning decals become faded and completely illegible p. 62

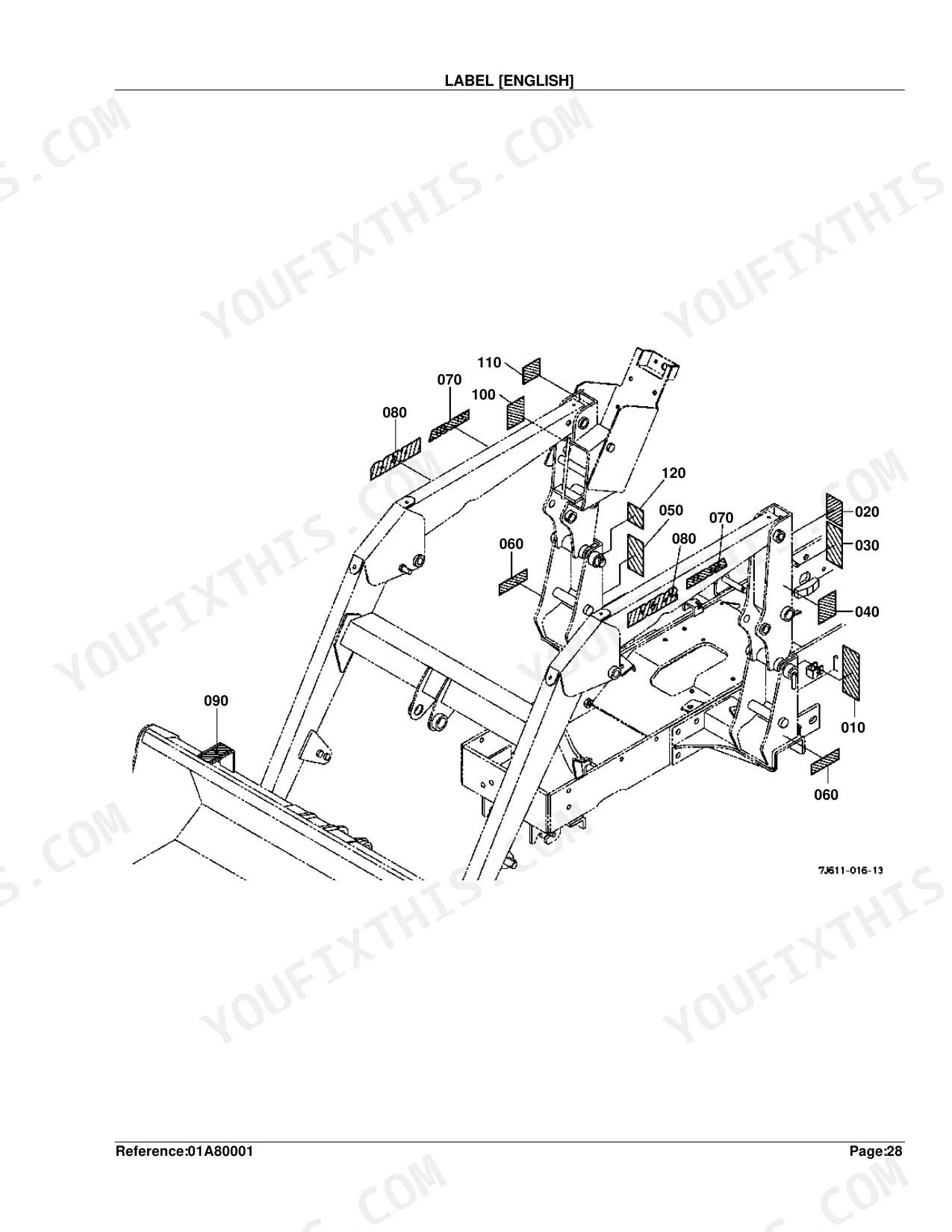

Trace the missing danger and warning decals against the English label layout on page 61. Each replacement decal lists a shipping weight of 0.002 kgf on page 62. Order the exact label part numbers that fit your frame style.
Manual Section: Label [English]Frequently Asked Questions
What are the replacement specifications for Hydraulic cylinders?
The Boom Cylinder takes either Part No. 75538-63010 (CYLINDER 1) at 7 kgf (15.4 lb) or Part No. 75538-63110 (CYLINDER 1) at 6.3 kgf (13.86 lb). The Bucket Cylinder uses Part No. 75538-64010 (CYLINDER 2) at 8 kgf (17.6 lb) or Part No. 75538-64110 (CYLINDER 2) at 7.8 kgf (17.16 lb).
Where do I find the seal kit part number for a LA210 boom cylinder that drifts down under load?
Open the exploded view on page 37 to identify the correct seal kit. The boom cylinder seal kit is listed on page 38 with a replacement weight of 0.002 kgf. Match the part number to your machine serial range before ordering.
How do I find the correct replacement part number for a LA210 boom hydraulic hose that is leaking?
Check the hydraulic hose diagram on page 17 to locate the Hose 8 LH hydraulic assembly. The replacement part is listed on page 18 at 0.16 kgf. Order the matching sleeve and fittings at the same time.
Which part number covers the bucket mounting pins on the LA210 when bucket movement becomes loose?
Measure the worn pin against the Pin 4 listing on page 40, which shows 0.23 kgf. Use the bucket diagram on page 39 to confirm the clevis and joint pin positions. Order the exact pin plus a fresh cotter pin.
How quickly can I access this manual after buying?
Download the 70-page searchable PDF the moment you buy. It opens on any device, so you can pull it up on your phone right at the machine. No shipping, no waiting.
Is this Kubota LA210 Parts Catalog printable?
Yes, and there is no DRM or copy protection. Print the entire manual or just the pages you need on any home or office printer.
