This Kubota RC72-29A parts catalog is the factory illustrated parts list for the RC72-29A mid-mount mower deck. It provides exploded diagrams and Kubota part numbers for the universal joint, gear box and center pulley, pulley holder, blade and side pulley, tension pulley, mower deck, front and rear wheels, roller and discharge deflector, lift linkage, mower link stay, lift arm, and clutch dumper assemblies.Use it to identify the exact replacement part before ordering, cross-check reference numbers against each diagram, and confirm quantities and serial-number interchangeability. Each section pairs a numbered drawing with its parts table, so tracing a worn component to its Kubota part number is straightforward.This is a parts reference, not a repair-procedure guide. It is aimed at owners and independent mechanics servicing the deck drivetrain, blade spindles, belt drive, wheels, and the lift and clutch linkage on the RC72-29A belly mower.
What's Inside This Kubota RC72-29A Parts Manual
| System | Pages | Key Topics |
|---|---|---|

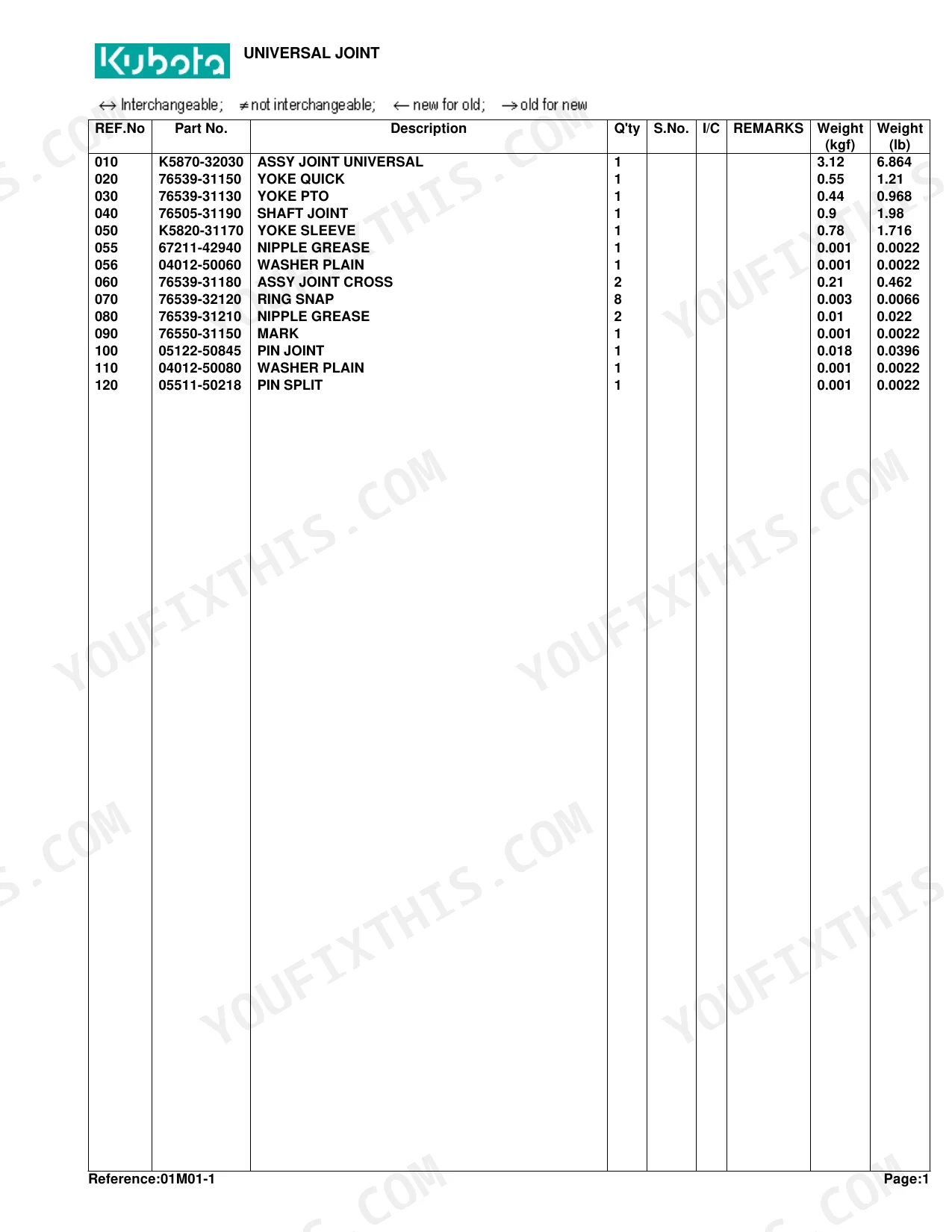

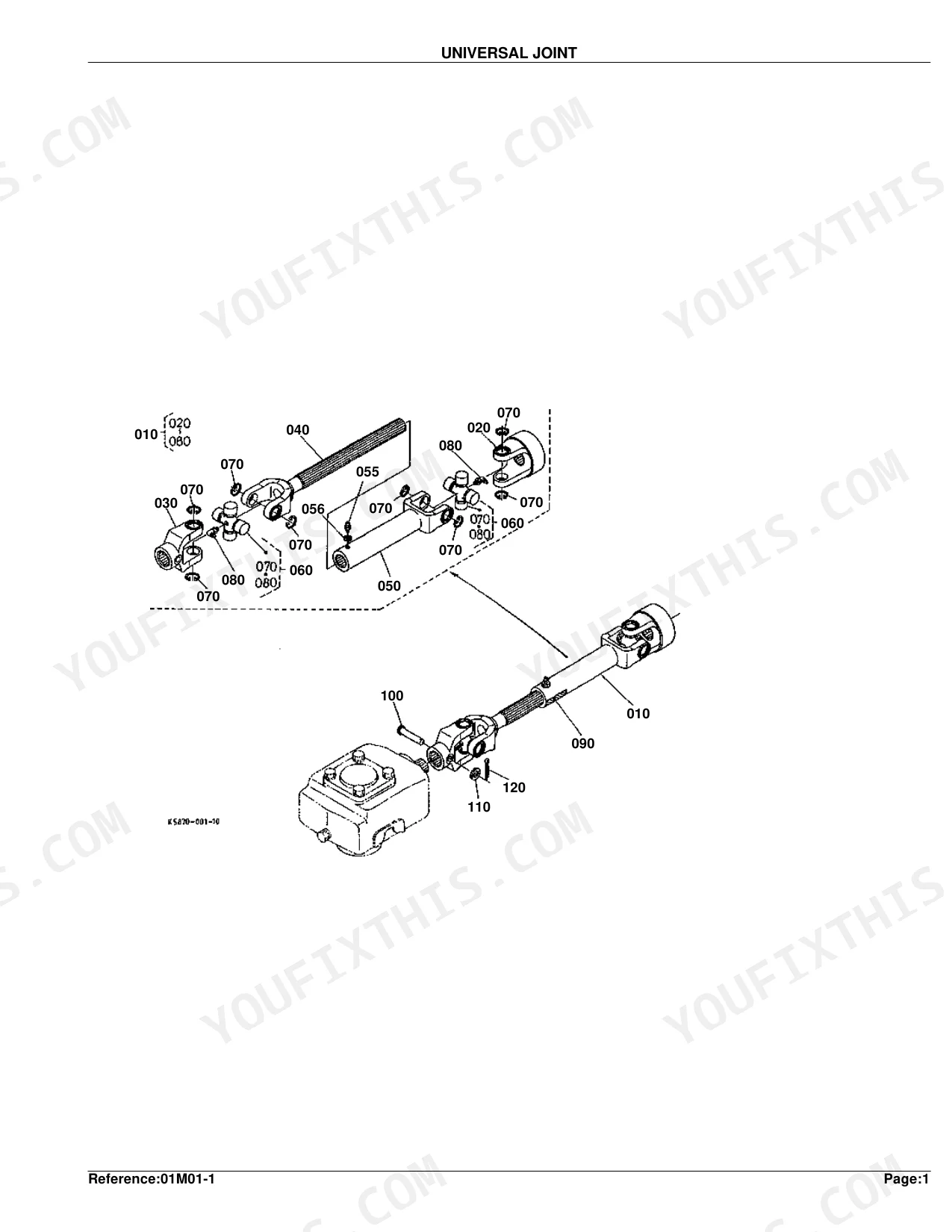

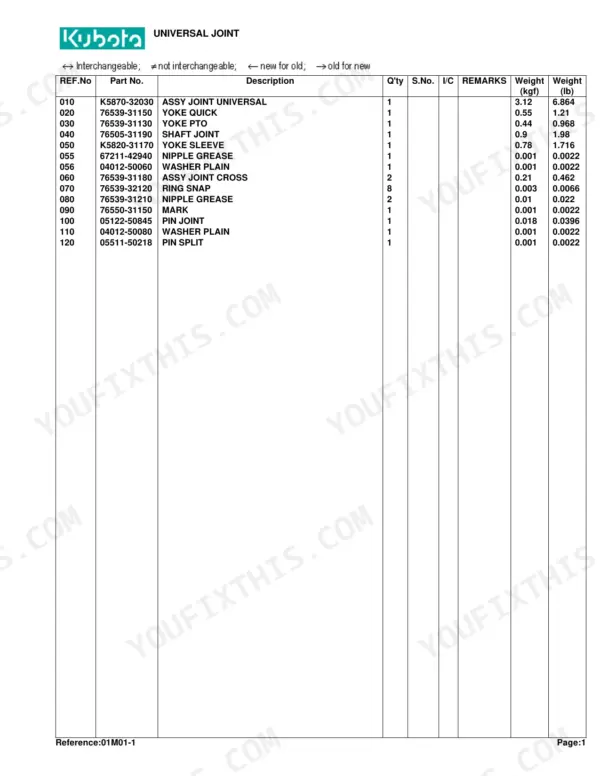

| Universal Joint | 4-5 | Assy Joint Universal, Yoke Quick, Yoke PTO, Shaft Joint, Assy Joint Cross, Pin Joint |
| Gear Box/Center Pulley | 6-7 | Stay Bevel Case LH, Assy Case Bevel Gear, Shaft Pinion, Gear Bevel, Bearing Ball, Assy Pulley Center |
| Pulley Holder | 8-9 | Holder Pulley, Bearing Ball, Cir Clip Internal, Seal Oil, Pipe Extension, Boss Blade |

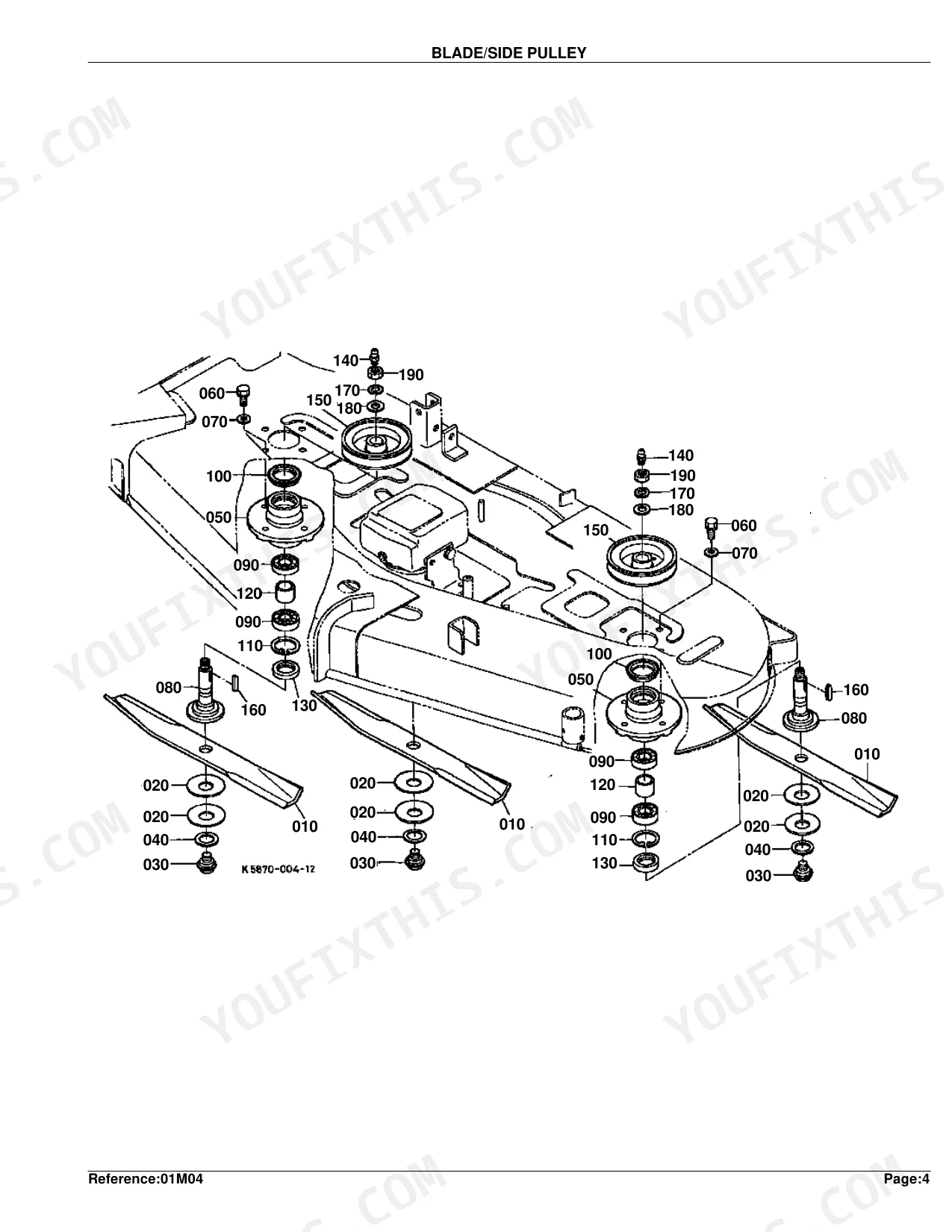

| Blade/Side Pulley | 10-11 | Blade, Retainer Blade, Holder Pulley, Shaft Blade, Bearing Ball, Pulley |
| Tension Pulley | 12-13 | Belt, Shaft Tension, Arm Tension, Pulley Tension, Bearing Ball, Spring Tension |
| Mower Deck | 14-15 | Deck Mower, Cover Belt, Label Grease Up, Cover RH, Plate Front, Nut |

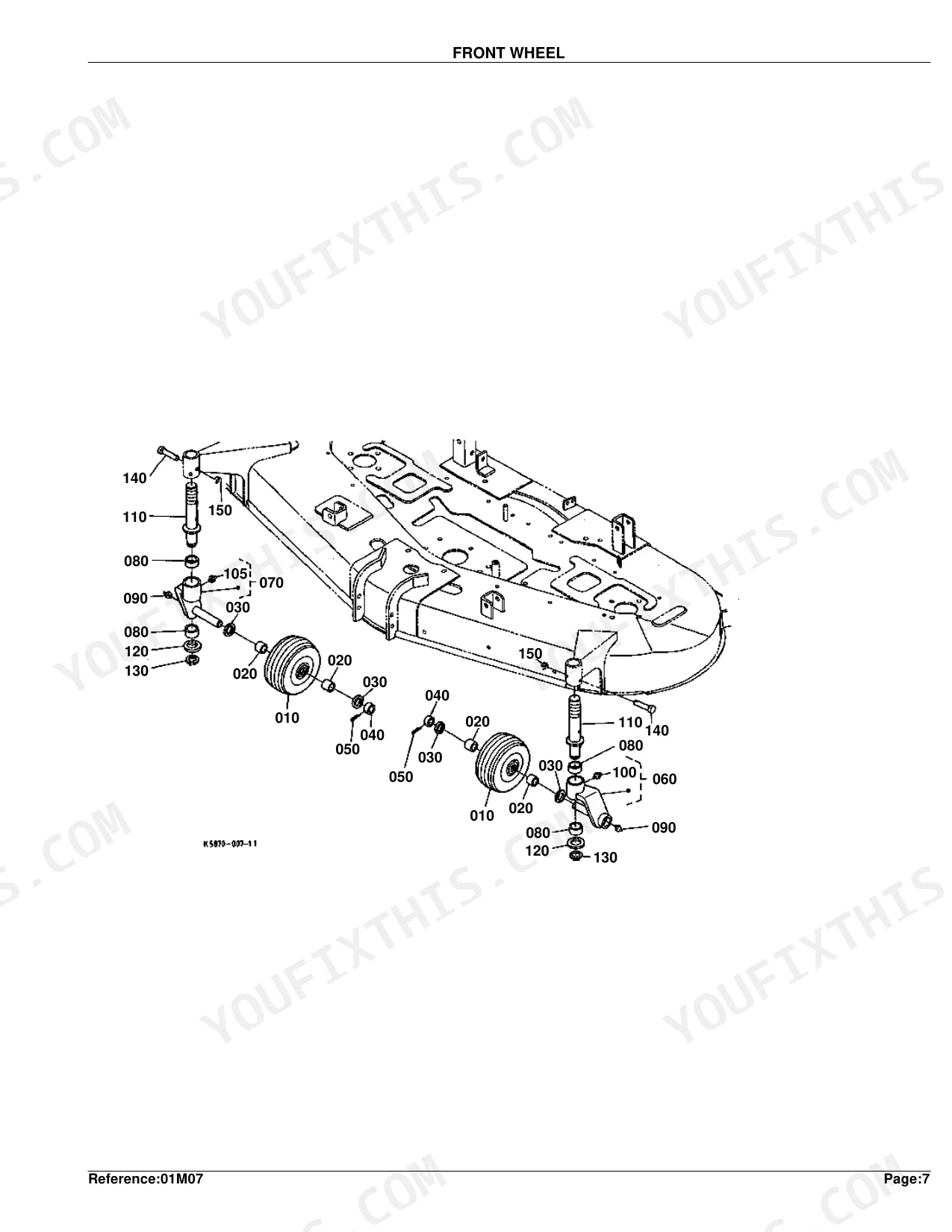

| Front Wheel | 16-17 | Bush, Assy Stay F.Wheel LH, Shaft Front Wheel, Collar Front Wheel, Pin Joint |
| Rear Wheel | 18-19 | Arm Rear Wheel, Bracket Rear Wheel, Shaft Rear Wheel, Guide Rear Wheel, Lever Rear Wheel |
| Roller/Discharge Deflector | 20-21 | Stay Roller, Stay Front Roller, Roller Anti-Scalp, Pin Gauge Wheel, Cover Chute, Stopper Chute |
| Lift Linkage | 22-23 | Stay Front LH, Stay Front RH, Rod Front, Stay Rear, Arm Lift LH, Arm Lift RH |
| Mower Link Stay | 24-25 | Stay Lift LH, Stay Fift RH, Hook, Comp.Rubber, Link, Pin Joint |
| Lift Arm | 26-27 | Assy Chain, Rod, Turnbuckle, Arm Lift LH, Arm Lift RH, Rod Lower Link |
| Clutch Dumper | 28-29 | Damper Clutch, U Joint, Pin Joint, Washer Plain, Pin Split |
| Accessories and Service Parts | 30 | Interchangeability and Serial Number Information |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Gear Bevel tooth count | 20T | p. 7 |
| Shim thickness | 0.2MM | p. 7 |
