This is the Kubota parts catalog for the P-TB210R-AEXA engine, the D722-E4B-BHTU-1 diesel that powers the Takeuchi TB210R compact excavator. Its 95 pages are organized as exploded assembly diagrams paired with parts lists, each figure keyed by reference number to a Kubota part number and quantity.The catalog covers the full engine: crankcase, oil pan, cylinder head, gear case, pistons and crankshaft, camshaft, the injection pump, nozzle holders and glow plugs, fuel filter and pump, starter and alternator, and the complete cooling system from water pump to radiator and fan.Use it to identify the exact part you need before you order, confirm quantities, and see how each assembly fits together. Delivered as an instant PDF download you can view on any device or print for the workbench.
What's Inside This Kubota P-TB210R-AEXA Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Fuel System | Fuel Camshaft and Governor Shaft, Idle Apparatus, Stop Solenoid, Injection Pump, Speed Control Plate, Nozzle Holder and Glow Plug, Fuel Filter, Fuel Pump, Fuel Pump Cover, Air Cleaner | |
| Cooling System | Water Flange and Thermostat, Water Pump, Radiator, Water Pipe, Fan, Reserve Tank | |
| Engine | Crankcase, Oil Pan, Cylinder Head, Gear Case, Head Cover, Oil Filter, Dipstick and Guide, Oil Pump, Main Bearing Case, Camshaft and Idle Gear Shaft, Piston and Crankshaft, Flywheel, Valve and Rocker Arm, Inlet Manifold, Exhaust Manifold, Muffler | |
| Electrical System | Alternator and Pulley, Starter, Oil Switch/Thermometer and Plug, Glow Lamp and Timer | |

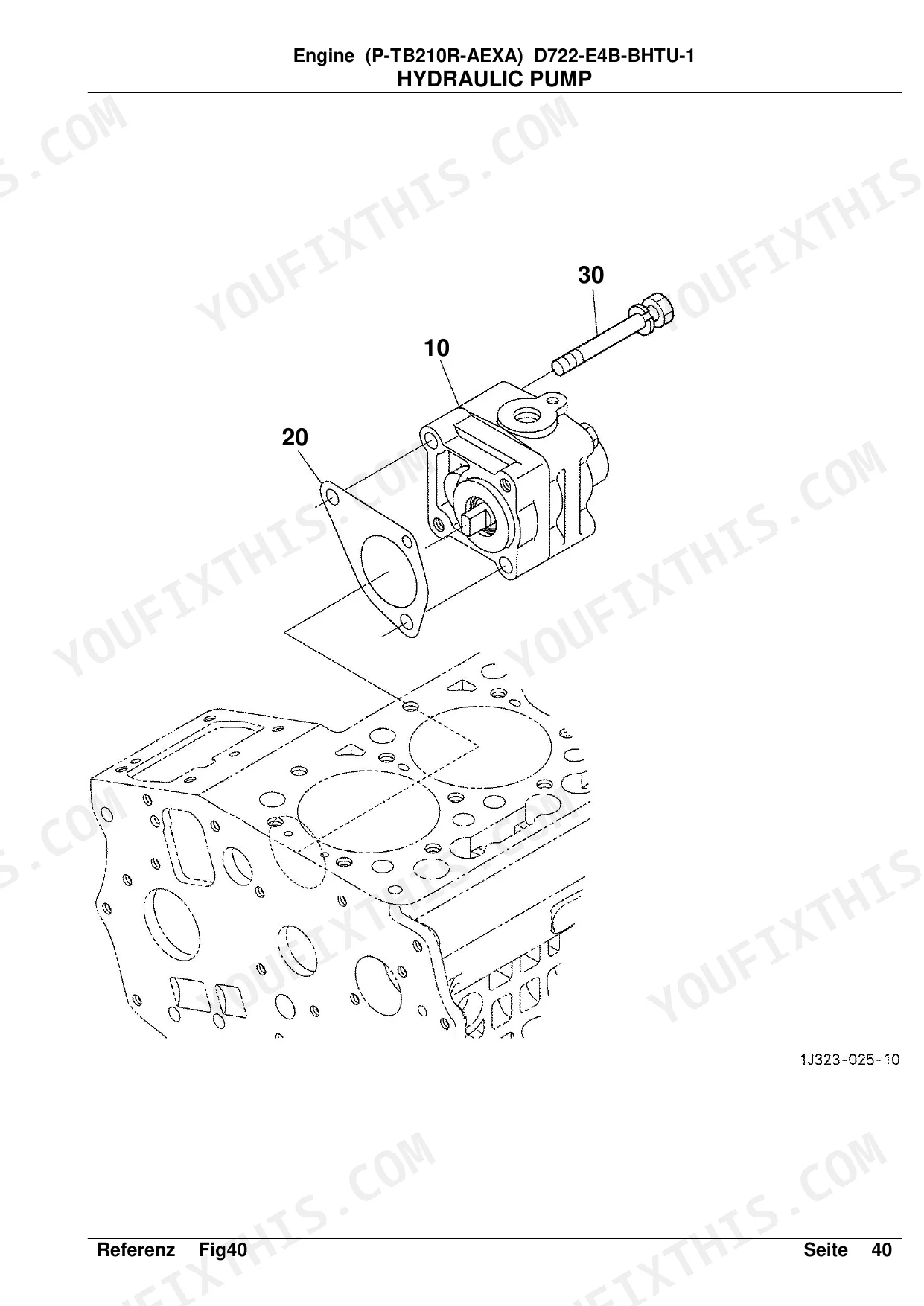

| Hydraulics & 3-Point Hitch | Hydraulic Pump | |
| Decals & Accessories | Accessories and Service Parts, Label and Operator's Manual | |
| Other Components | Fork Lever, Metal Kit |
Every system also includes a parts list.
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Injector adjustment washer thickness (range) | 0.900mm to 1.950mm | p. 41 |
| Injection Shim Thickness | 0.175mm | p. 35 |
| Washer Adjusting Thickness | 0.900mm | p. 41 |
Kubota P-TB210R-AEXA Common Problems This Manual Covers
Hard starting or no-crank
A weak starter, failed solenoid, or worn starter components leave the engine cranking slowly or not at all. The Starter section gives the exploded view and part numbers to identify and order the right replacements.
Manual Section: Starter p. 54Rough running from fuel contamination
Water and dirt collecting in the fuel filter cause rough running and stalling until the element is replaced. The Fuel Filter section identifies the filter and related parts by reference number.
Manual Section: Fuel Filter p. 44Smoke or hard starting from injector wear
Worn nozzles and glow plugs show up as smoke, misfire, and cold-start trouble. The Nozzle Holder And Glow Plug section lists the nozzle holder, glow plug, and adjustment washer parts.
Manual Section: Nozzle Holder And Glow Plug p. 38Overheating under load
A clogged or damaged radiator restricts cooling and lets the engine overheat when worked hard. The Radiator section provides the exploded view and part numbers for the core and its fittings.
Manual Section: Radiator p. 64Coolant leaks or weak coolant flow
A failing water pump leaks or moves too little coolant, driving temperatures up. The Water Pump section identifies the pump assembly and its seals and gaskets by reference number.
Manual Section: Water Pump p. 62Charging faults or dead battery

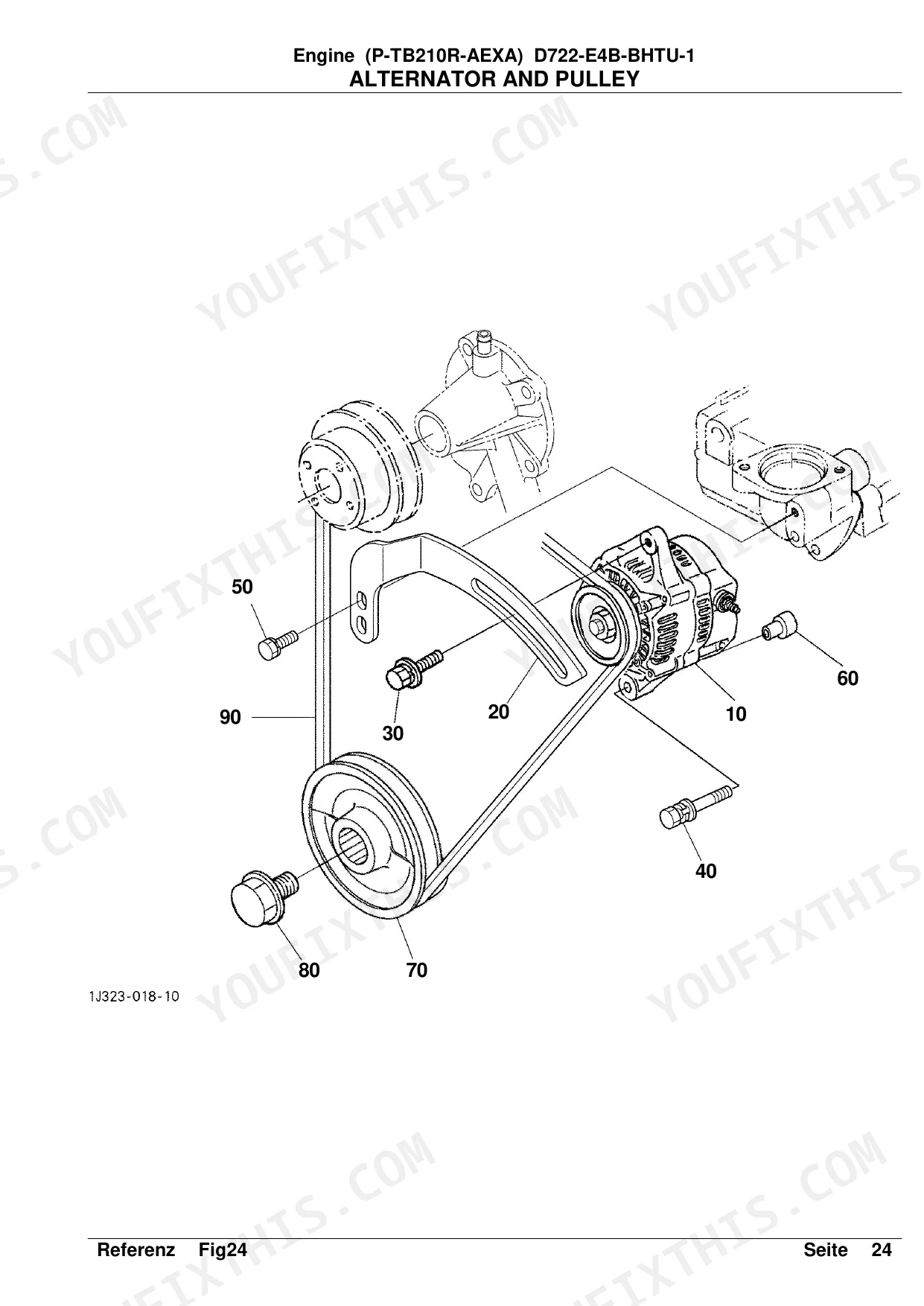

A worn alternator or pulley leaves the battery undercharged. The Alternator And Pulley section lists the alternator, pulley, and mounting hardware so you order the correct parts.
Manual Section: Alternator And Pulley p. 50Low oil pressure
A worn oil pump or its relief components can drop oil pressure and risk engine damage. The Oil Pump section provides the exploded view and part numbers for the pump assembly.
Manual Section: Oil Pump p. 18Frequently Asked Questions
What does this parts catalog cover?
It covers the complete Kubota P-TB210R-AEXA engine, the D722-E4B-BHTU-1 diesel used in the Takeuchi TB210R. Every engine assembly is shown, from crankcase and cylinder head to the fuel, starting, charging, and cooling systems.
Does it list actual Kubota part numbers?

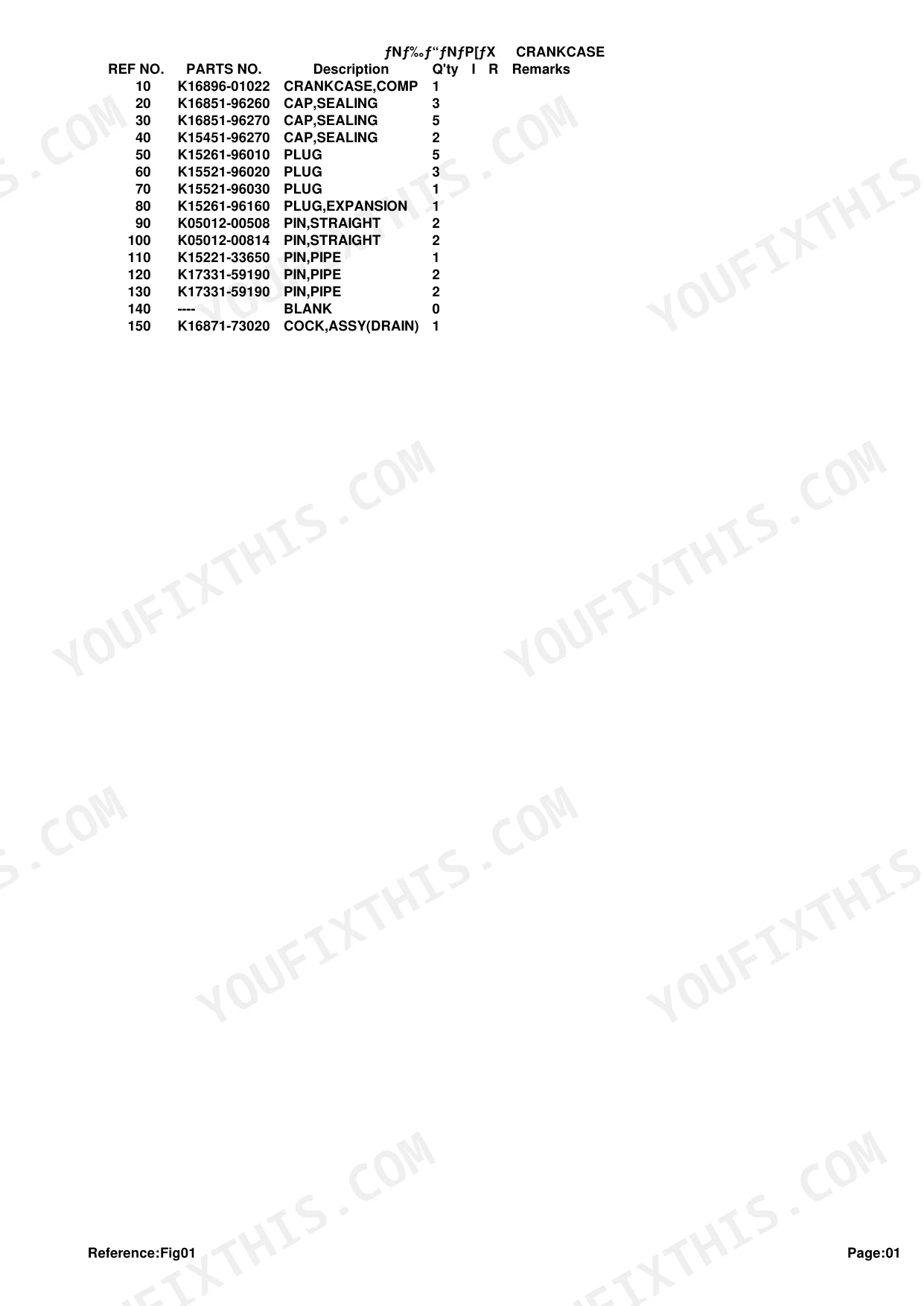

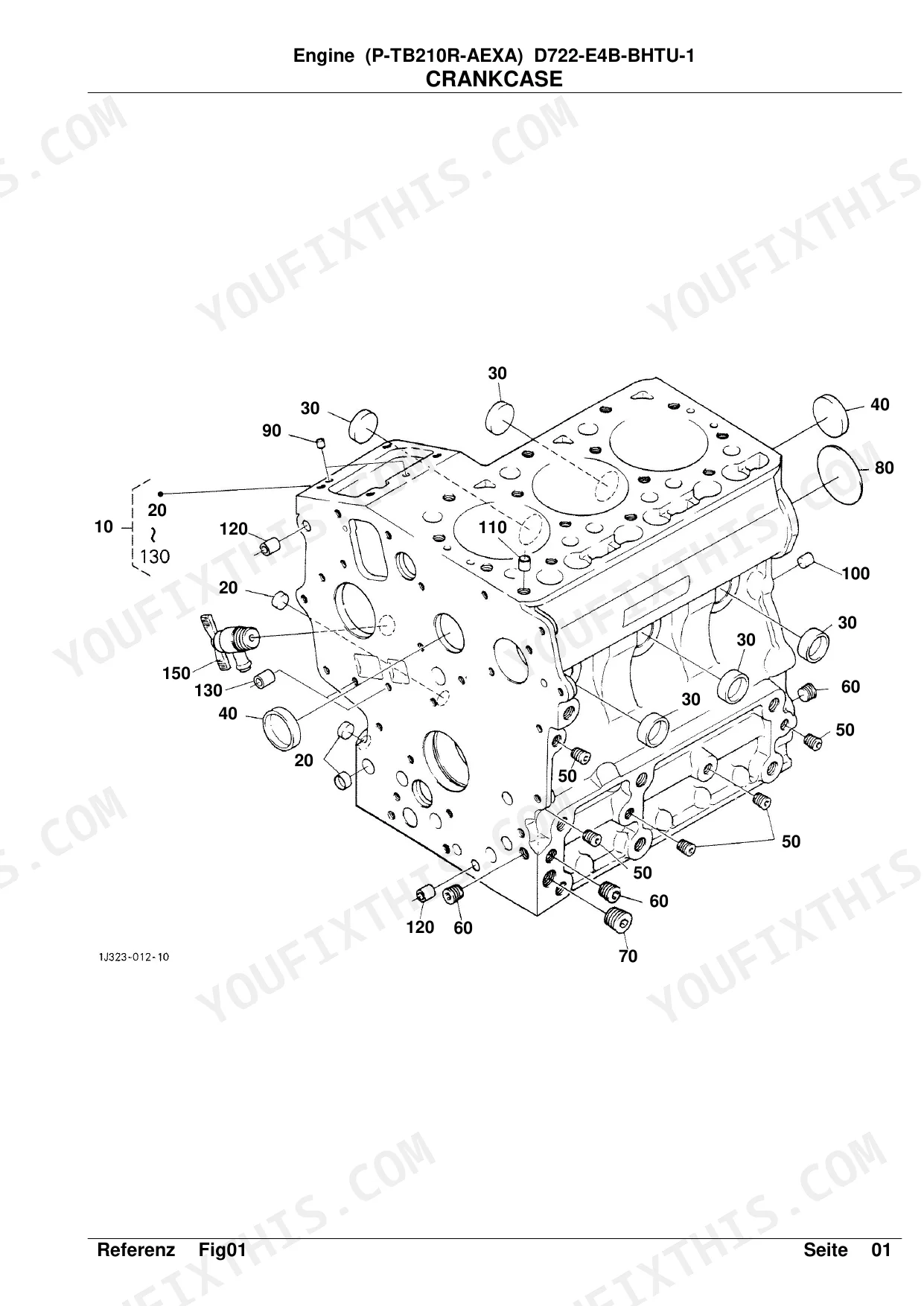

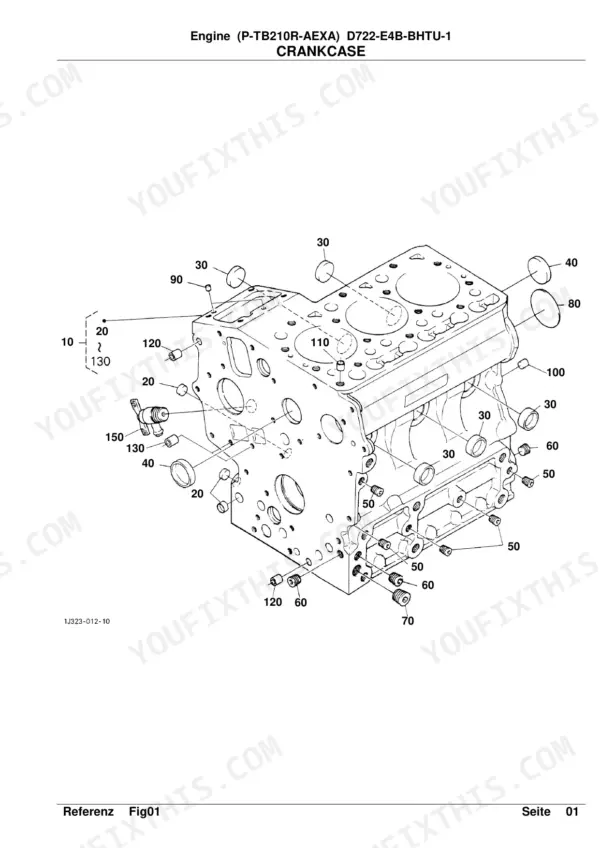

Yes. Each figure pairs an exploded diagram with a parts list, and every reference number ties to a Kubota part number, description, and quantity, so you can order the exact component you need.
Which machine is this engine used in?
This is the Kubota P-TB210R-AEXA (D722-E4B-BHTU-1) engine as fitted to the Takeuchi TB210R compact excavator. The catalog is engine-focused rather than a whole-machine parts book.
Can I find injector adjustment washer sizes?
Yes. The Nozzle Holder And Glow Plug section lists the injector nozzle holders, glow plugs, and adjustment washers, with washer thicknesses ranging from 0.900mm to 1.950mm. p. 38
