Part of the Kubota Parts Manuals.
Ordering the wrong part for your FL1270(B Series) rotary tiller costs you a second trip to the dealer. This Kubota parts catalog (OEM #100K0067) runs 29 pages built around one job: matching the exact component to your machine. Exploded-view assemblies map every major group, from the Gear Box, Universal Joint, and Support Arms 1 and 2 to the Chain Case and its interior, Bearing Case, Blade Shaft, Main and Rear Shield, Skid, Top Mast, and Accessories. Every figure ties to a numbered list with REF.No., Part No., Description, Quantity, and country-code notes, so fitment is never a guess. The Gear Box assembly runs 6.9 kgf, the Universal Joint 9.6 kgf. Bookmarks by assembly group drop you onto Chain Case or Blade Shaft in a single click, whether you read it at the bench or on your phone.
What's Inside This Kubota FL1270(B SERIES) Parts Manual
| System | Pages | Key Topics |
|---|---|---|

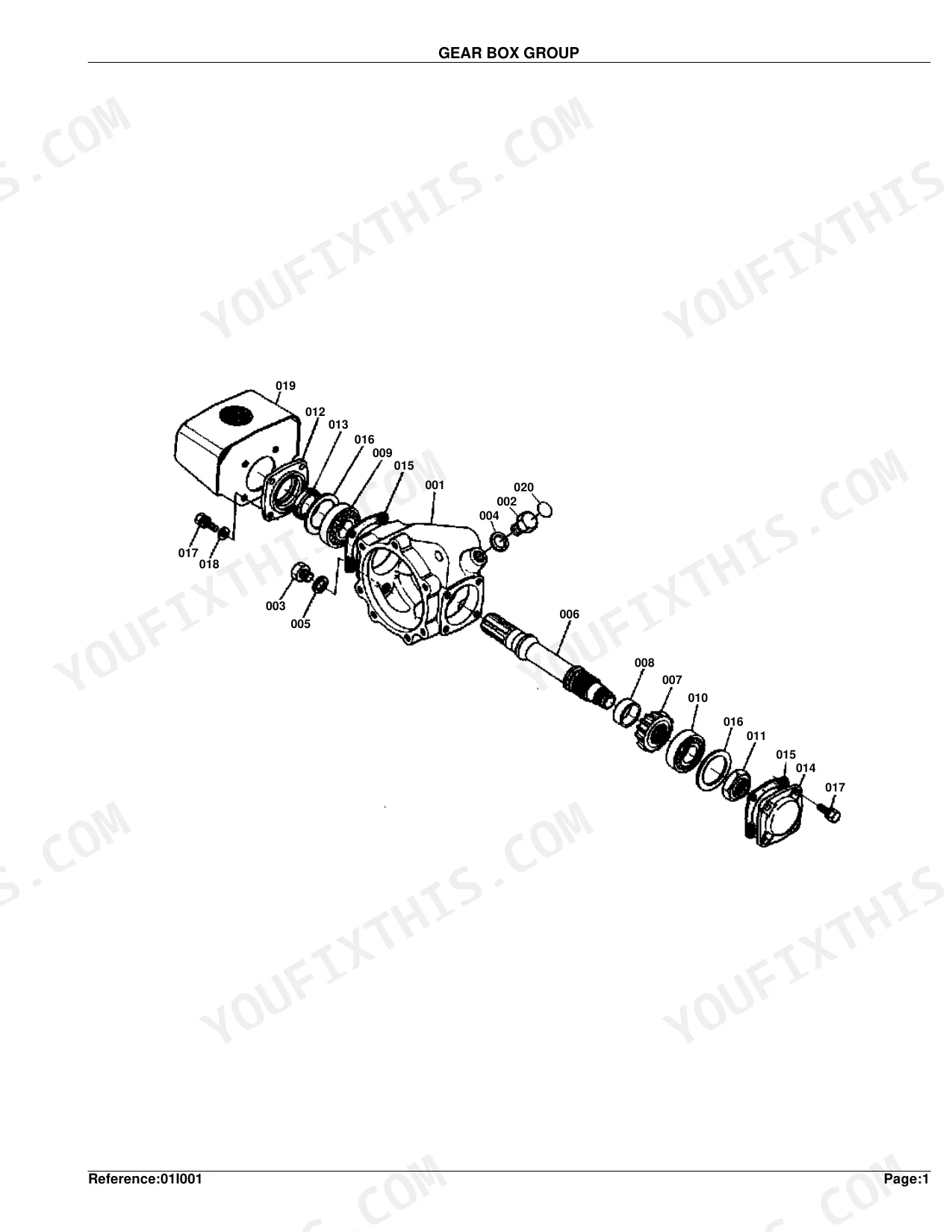

| Gear Box Group | - | Gear Box, Pinion Shaft, Collar, Taper Bearing, End Cover, Oil Seal, Bearing Retainer |
| Universal Joint Group | - | Universal Assy Joint, Joint, Yoke, Assy Spider, Boots, Cover, Bearing, Chain |

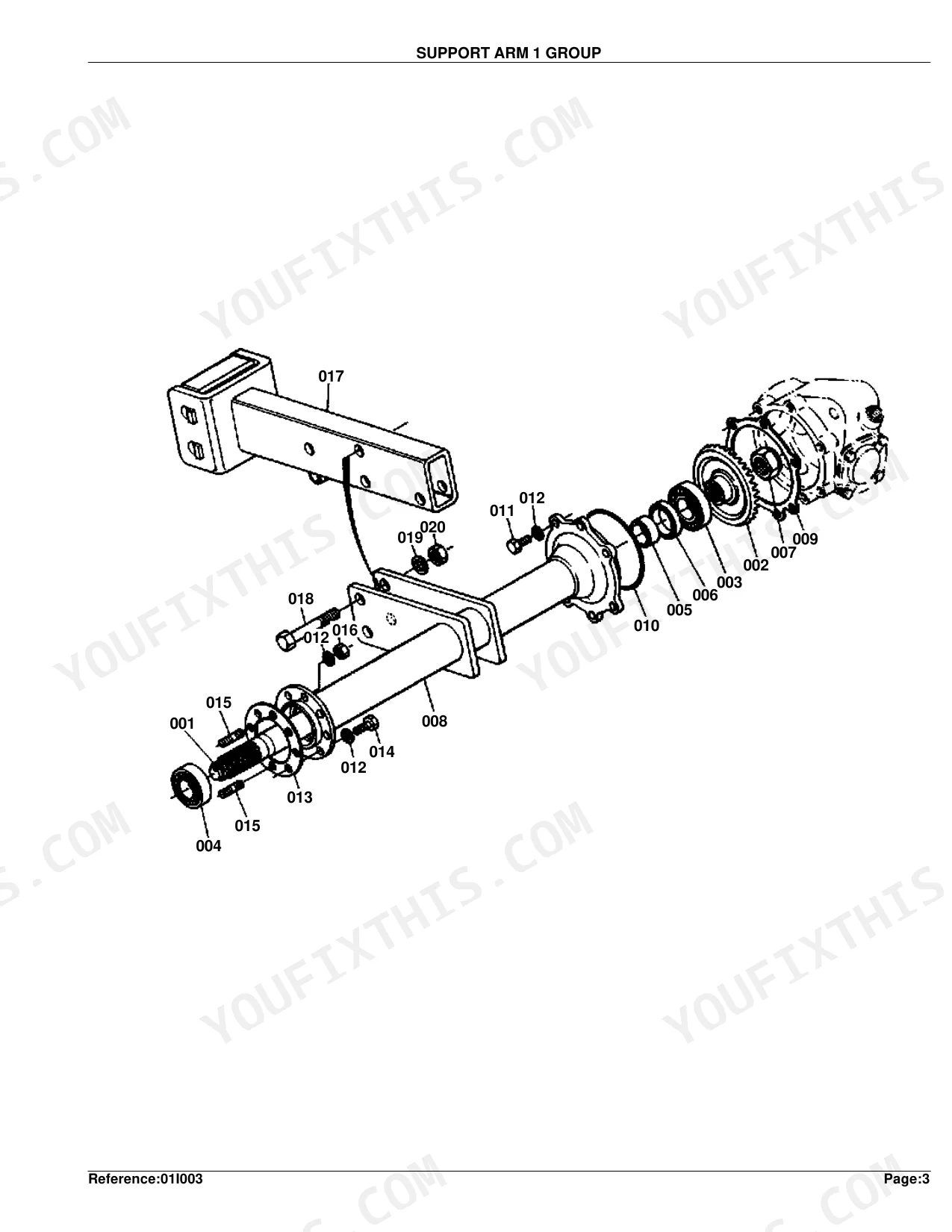

| Support Arm 1 Group | - | Shim, Washer, Bolt |
| Support Arm 2 Group | - | Rotary Support, Gasket, Side Frame, Name Plate, Support Arm, Skid Support |
| Chain Case Group | - | Chain Case Plate, Gasket, Chain Case Cover, Protecting Cover, Label |
| Chain Case Interior Group | - | Chain, Sprocket, Tightener, Tightener Shaft, Gasket, Lod, Spring, Collar |
| Bearing Case Group | - | Blade Shaft End, Bearing Case, Gasket, Oil Seal, Dust Cover, Seal Collar, Bearing Cover |
| Blade Shaft Group | - | Blade Shaft, Curved LH Blade, Curved RH Blade |

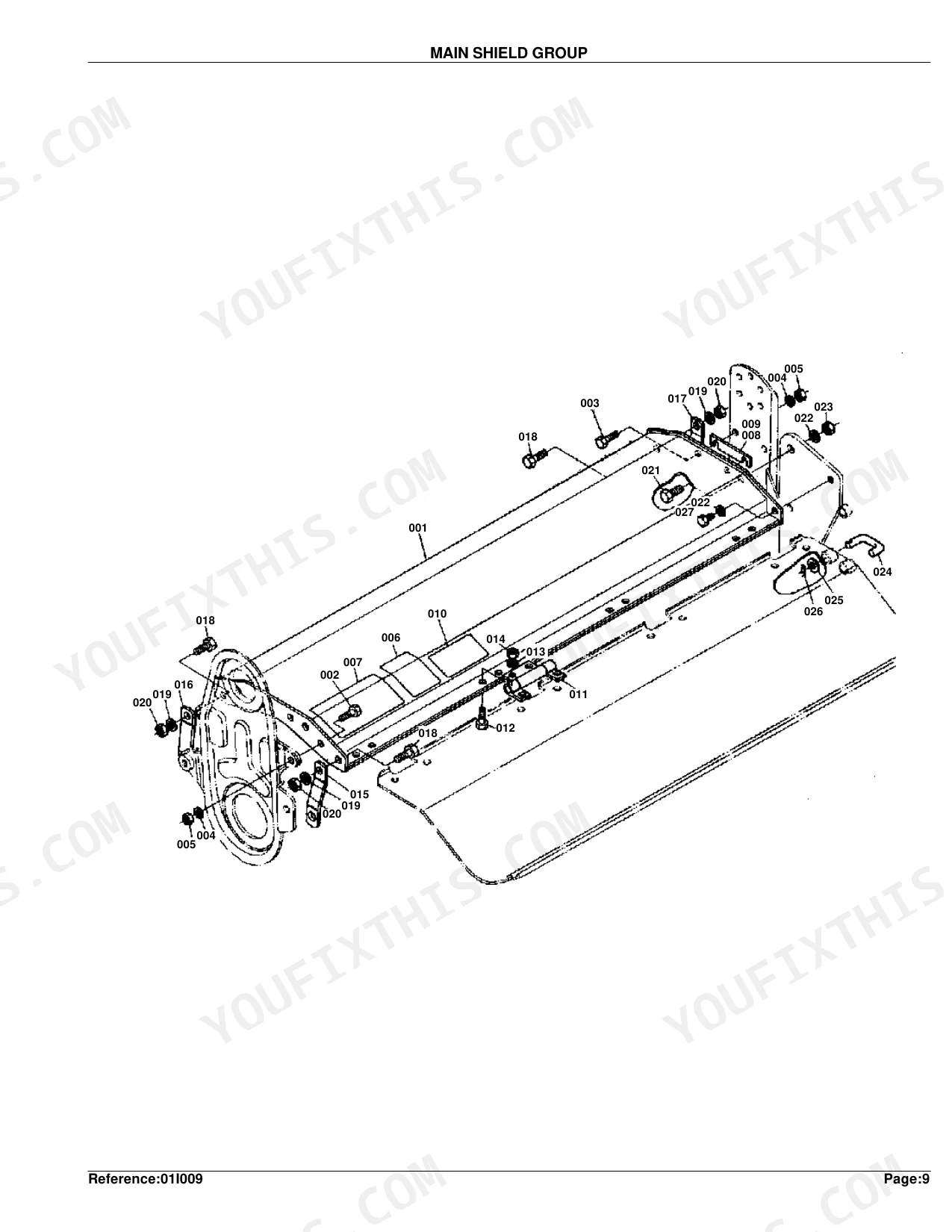

| Main Shield Group | - | Shield Main, Label, Hinge, Link Plate, Interlocker |
| Rear Shield Group | - | Rear Shield, Lift Stay, Assy Chain, Label |
| Skid Group | - | RH Skid, LH Skid, Adjusting Bar, Adjusting Plate, Handle |
| Top Mast Group | - | Top Mast, Support Link, Support Bar, Bolt |
| Accessories and Service Parts | - | Curved LH Blade, Curved RH Blade, Universal Asy Joint |
Every system also includes a parts list and a figure.
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| GEAR BOX weight | 6.9 kgf | p. 5 |
| SHAFT, PINION weight | 2.2 kgf | p. 5 |
| ASSY JOINT, UNIVERSAL weight | 9.6 kgf | p. 7 |
| JACKSHAFT weight | 5.2 kgf | p. 9 |
| SUPPORT, ROTARY 2 weight | 13.9 kgf | p. 11 |
| PLATE, CHAIN CASE weight | 6.2 kgf | p. 13 |
| CHAIN weight | 4.9 kgf | p. 15 |
| SHAFT, BLADE weight | 35 kgf | p. 19 |
| SHIELD MAIN weight | 21 kgf | p. 21 |
| SHIELD, REAR weight | 32 kgf | p. 23 |
| SKID, RH weight | 4.3 kgf | p. 25 |
| MAST, TOP weight | 2.5 kgf | p. 27 |
Kubota FL1270(B SERIES) Common Problems This Manual Covers
Kubota FL1270 tiller stopped spinning mid-field, need shear bolt part number before going back out
Open the Accessories and Service Parts list on page 29, where shear bolts appear as a stocked service part. Cross-reference the Blade Shaft Group exploded view on page 18 to confirm the bolt position in the rotor and the quantity per shaft. Order by the REF.No. shown in the list so you don't substitute a wrong-grade bolt.
Manual Section: Accessories and Service Parts p. 29Gearbox oil is leaking and need the correct seal kit part numbers to order
Locate the Gear Box Group parts list on page 5, then pick out the seal and gasket REF.No. entries in assembly L.No.0B02-L0. The gearbox assembly weighs 6.9 kgf, so check you're on the right unit before ordering. Order by REF.No.021, listed in the key topics, to pull the full seal group.
Manual Section: Gear Box Group p. 5Tines are bent after hitting rocks, need replacement blade part numbers and how many are in the set
Go to the Blade Shaft Group diagram on page 18, where the exploded view shows tine mounting positions across the shaft (full shaft assembly weight 35 kgf, page 19). REF.No.005 through 007 cover the blade components; order by REF.No.004, noted in the parts key, for the complete blade set. Match your serial number range against the catalog header first so the tines fit.
Manual Section: Blade Shaft Group p. 18Chain case is open and need to identify the chain and sprocket part numbers before reassembling
Pull up the Chain Case Interior Group on page 14 for the internal drive layout, then flip to page 12 for the Chain Case Group outer parts diagram. The chain assembly carries its own REF.No. entries and weighs 4.9 kgf (page 15), a quick way to verify the part in your hand. Case-specific fasteners sit in the Chain Case Group key topics: REF.No.006 (01150-50820), No.007 (01150-50816), and No.008 (04512-50080) on pages 12-13.
Manual Section: Chain Case Interior Group p. 14Slip clutch and driveline parts needed after storage seizure, looking for universal joint part number
Check the Universal Joint Group diagram on page 6, where REF.No.002 through 011 cover the full joint assembly. A complete unit weighs 9.6 kgf (page 7); a noticeably lighter part likely means missing components. For slip clutch items listed separately, scan the Accessories and Service Parts on page 29.
Manual Section: Universal Joint Group p. 6Skid shoes are worn through and need replacement part numbers for both sides
Find the Skid Group parts diagram on page 24 and its parts list on page 25. The RH skid weighs 4.3 kgf; left and right aren't interchangeable, so order both sides together and verify the REF.No. for each one. Check the Accessories and Service Parts on page 29 to see whether skids are stocked as a service pair.
Manual Section: Skid Group p. 24Frequently Asked Questions
What are the replacement specifications for tines?
On the FL1270(B Series), replacement tines are listed as BLADE, CURVED LH (Part No. 70741-55850) and BLADE, CURVED RH (Part No. 70741-55860). Each blade weighs 0.75 kgf (1.65 lb). p. 19
Is this Kubota FL1270(B SERIES) Parts Catalog a digital download?
A 29-page Parts Catalog in searchable PDF, ready to download the moment checkout completes. Open it on a computer, tablet, or phone with no shipping wait.
Can I print specific sections of this Kubota FL1270(B SERIES) Parts Catalog?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
Where can I find gearbox seal kit part numbers in the FL1270(B Series) parts catalog?
The Gear Box Group parts list on page 5 shows seal and gasket entries under assembly L.No.0B02-L0. Order by REF.No.021 to pull the complete seal group. The gearbox assembly weighs 6.9 kgf. p. 5
How do I find the shear bolt part number for the Kubota FL1270(B Series) tiller?
Shear bolts are listed as a stocked service part in the Accessories and Service Parts section on page 29. Cross-reference the Blade Shaft Group exploded view on page 18 to confirm the correct bolt position in the rotor and quantity per shaft before ordering. p. 29
What does the Universal Joint Group section of the FL1270(B Series) parts catalog cover?
The Universal Joint Group diagram is on page 6 and the parts list on page 7. REF.No.002 through 011 cover the complete joint assembly, which weighs 9.6 kgf. For slip clutch items, check the Accessories and Service Parts list on page 29. p. 7
