This is the Kubota Diesel Particulate Filter handling manual for the V3800 and V6108 diesel engines, the factory reference for servicing the DPF muffler assembly on these engines. It runs 37 pages.It explains how the DPF works, how regeneration and cleaning differ, and when a filter should be cleaned or exchanged. The core of the manual is the DPF cleaning procedure: separating and disassembling the DPF muffler full assembly, judging whether the filter can be reused by measuring cell depth, reassembling with the correct bolt and sensor torques, remounting, and resetting the system with a diagnosis tool.This is a focused DPF service document, not a full engine overhaul manual. Delivered as an instant PDF download you can read on any device or print for the shop.
What's Inside This Kubota V3800, V6108 Manual
| System | Pages | Key Topics |
|---|---|---|
| Information | - | - |
| Servicing | - | Function of Diesel Particulate Filter, DPF Regeneration and DPF Cleaning, DPF Maintenance Flow (Cleaning & Return Flow, DPF Exchange Flow) |
| Function of Diesel Particulate Filter (DPF) | - | - |

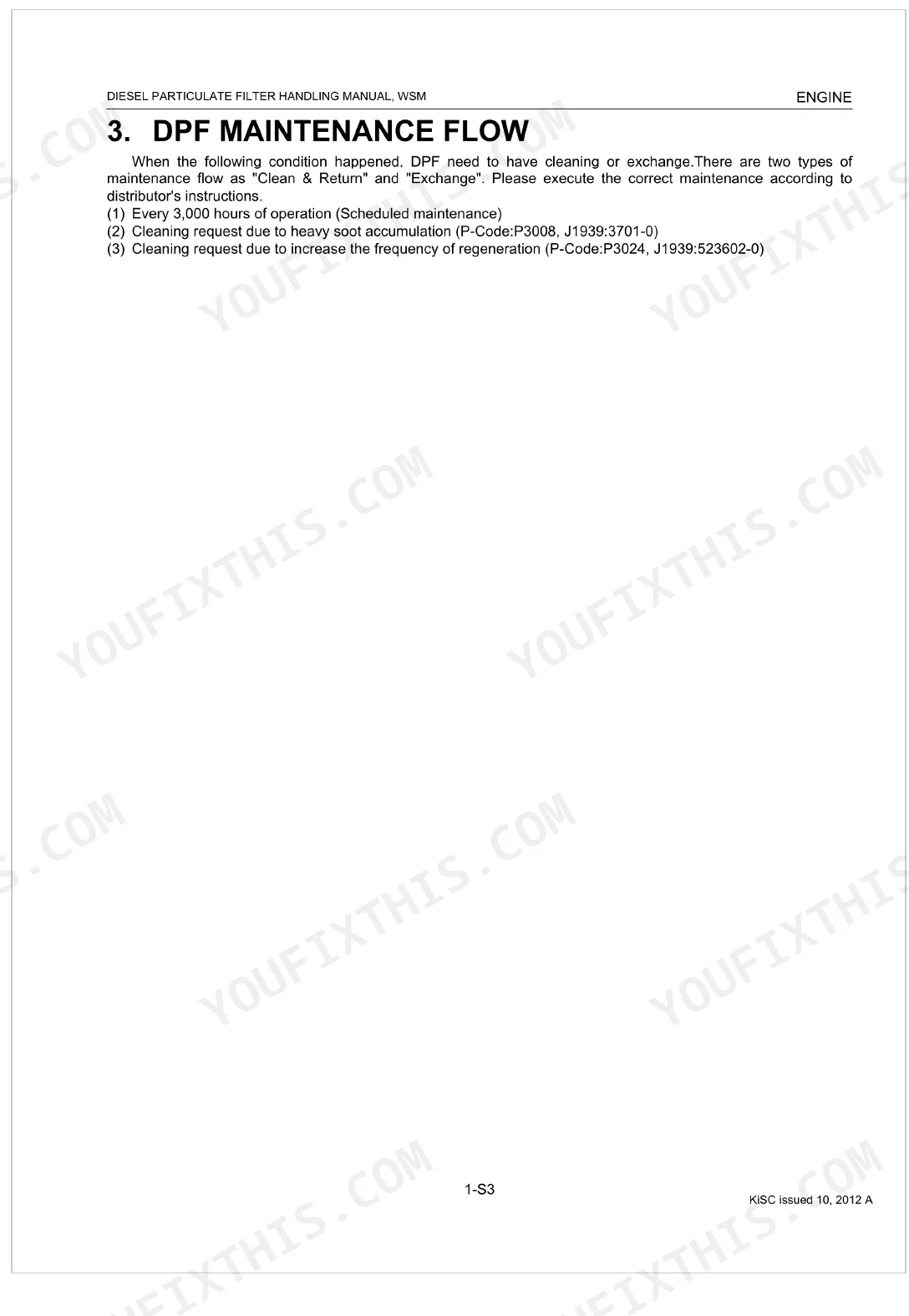

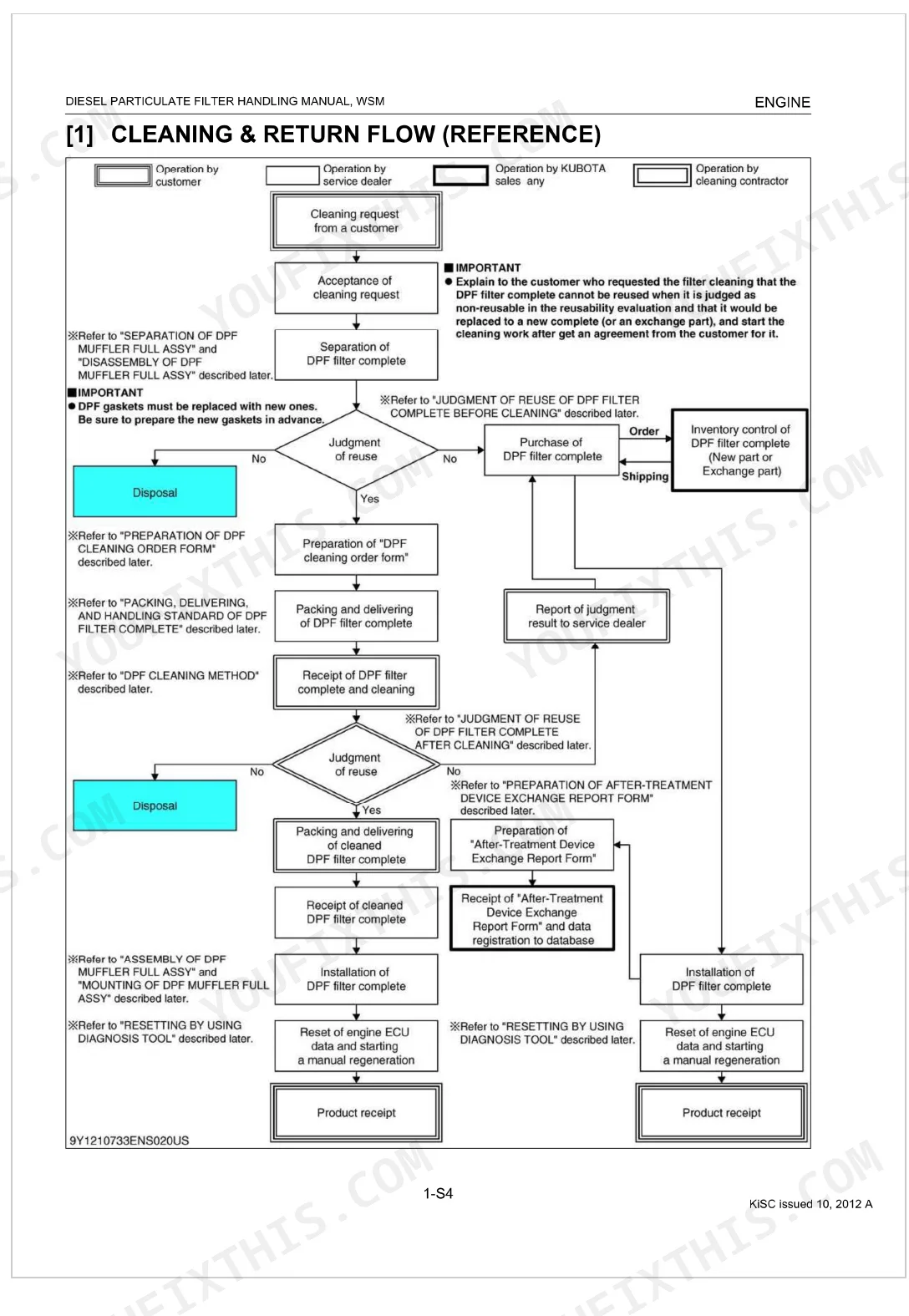

| DPF Maintenance Flow | - | Cleaning & Return Flow (Reference), DPF Exchange Flow (Reference) |

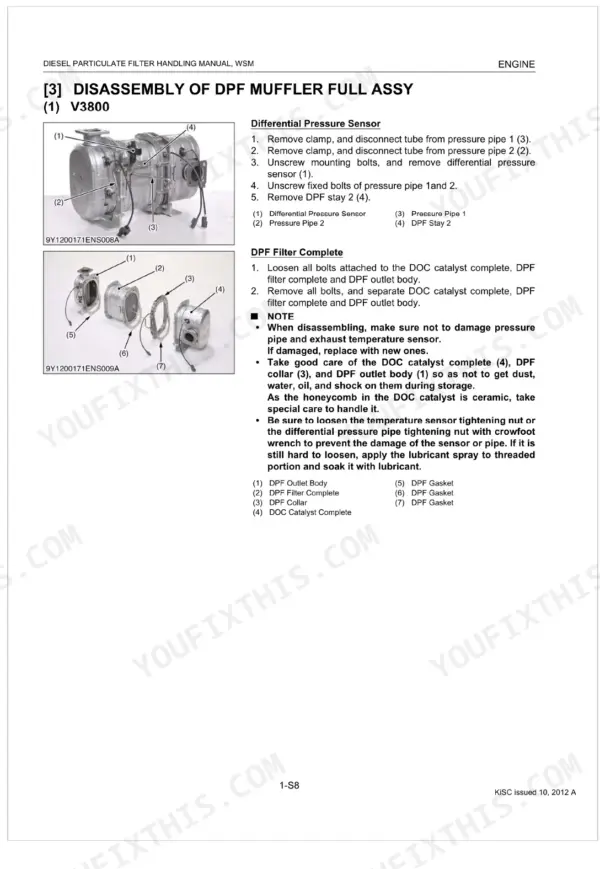

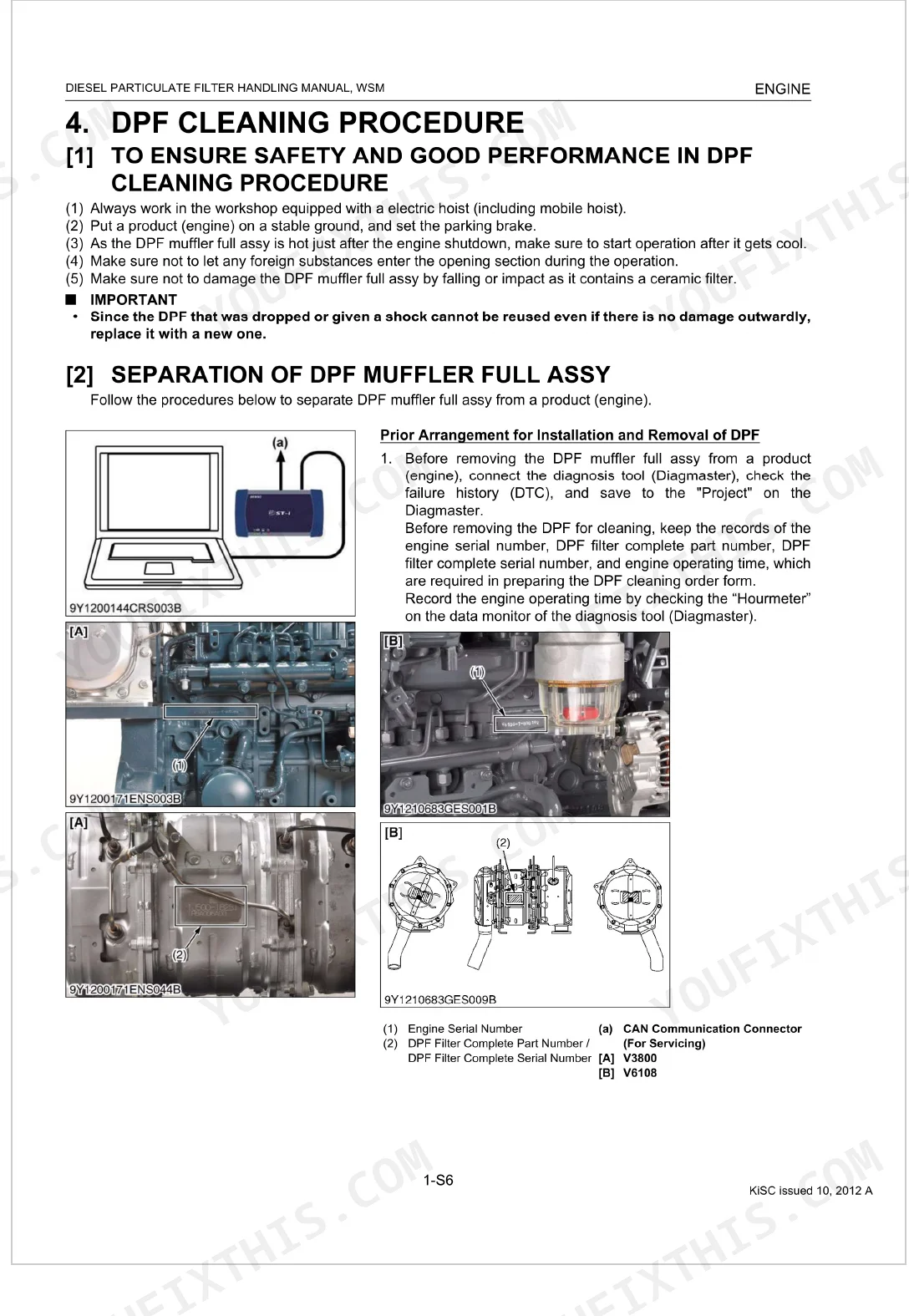

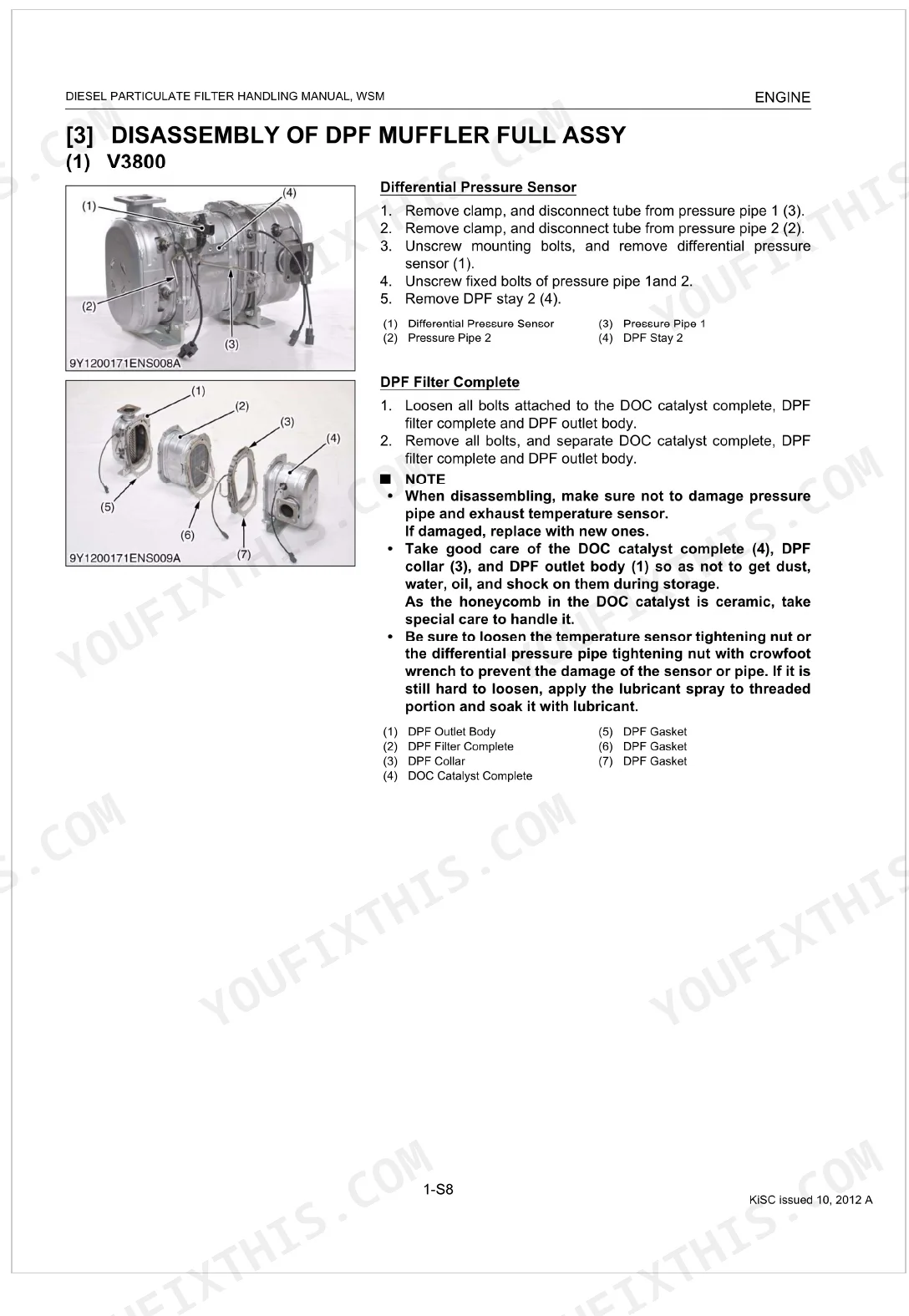

| DPF Cleaning Procedure | - | To Ensure Safety and Good Performance in DPF Cleaning Procedure, Separation of DPF Muffler Full Assy, Disassembly of DPF Muffler Full Assy |
| Editor | - | Kubota Farm & Industrial Machinery Service, Ltd, Address, Contact Information, Publication Details |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Exhaust Temperature Sensor T0, T1, T2 tightening torque | 25.0 to 35.0 N·m | p. 24 |
| DPF Cleaning Interval | 3,000 hours | p. 11 |
| Pin Gauge Diameter for DPF Cell Depth Measurement | 0.60 to 0.80 mm | p. 23 |
| DPF Muffler Assembly Bolt Torque (Catalyst Complete - Collar - Filter Complete) | 49.0 to 55.9 N·m | p. 24 |
| Exhaust Temperature Sensor Torque (T0, T1, T2) | 25.0 to 35.0 N·m | p. 24 |
| Pressure Pipe Torque (Pipe 1 & 2) | 16.0 to 23.0 N·m | p. 25 |
| Differential Pressure Sensor Mounting Bolt Torque | 9.80 to 11.3 N·m | p. 25 |
| DPF Muffler Full Assy Mounting Bolt Torque | 49.0 to 55.9 N·m | p. 26 |
| DPF Stay 1 Mounting Bolt Torque | 49.0 to 55.9 N·m | p. 26 |
| V3800 | ||
| DPF Filter Allowable Cell Depth | 106 mm | p. 23 |
| V6108 | ||
| DPF Filter Allowable Cell Depth | 106 mm | p. 23 |
Kubota V3800, V6108 Common Problems This Manual Covers
Frequent regeneration or clogged DPF
As soot loads up, the DPF forces more frequent regeneration and eventually needs cleaning. The Servicing section explains DPF regeneration versus cleaning and the maintenance flow to follow.
Manual Section: Servicing p. 9Unsure when the DPF needs cleaning
Cleaning is scheduled by hours rather than symptoms, and missing the interval accelerates clogging. The DPF function section gives the 3,000 hour cleaning interval and how regeneration keeps the filter in service between cleanings.
Manual Section: Function of Diesel Particulate Filter (DPF) p. 10Deciding whether to reuse or replace the filter

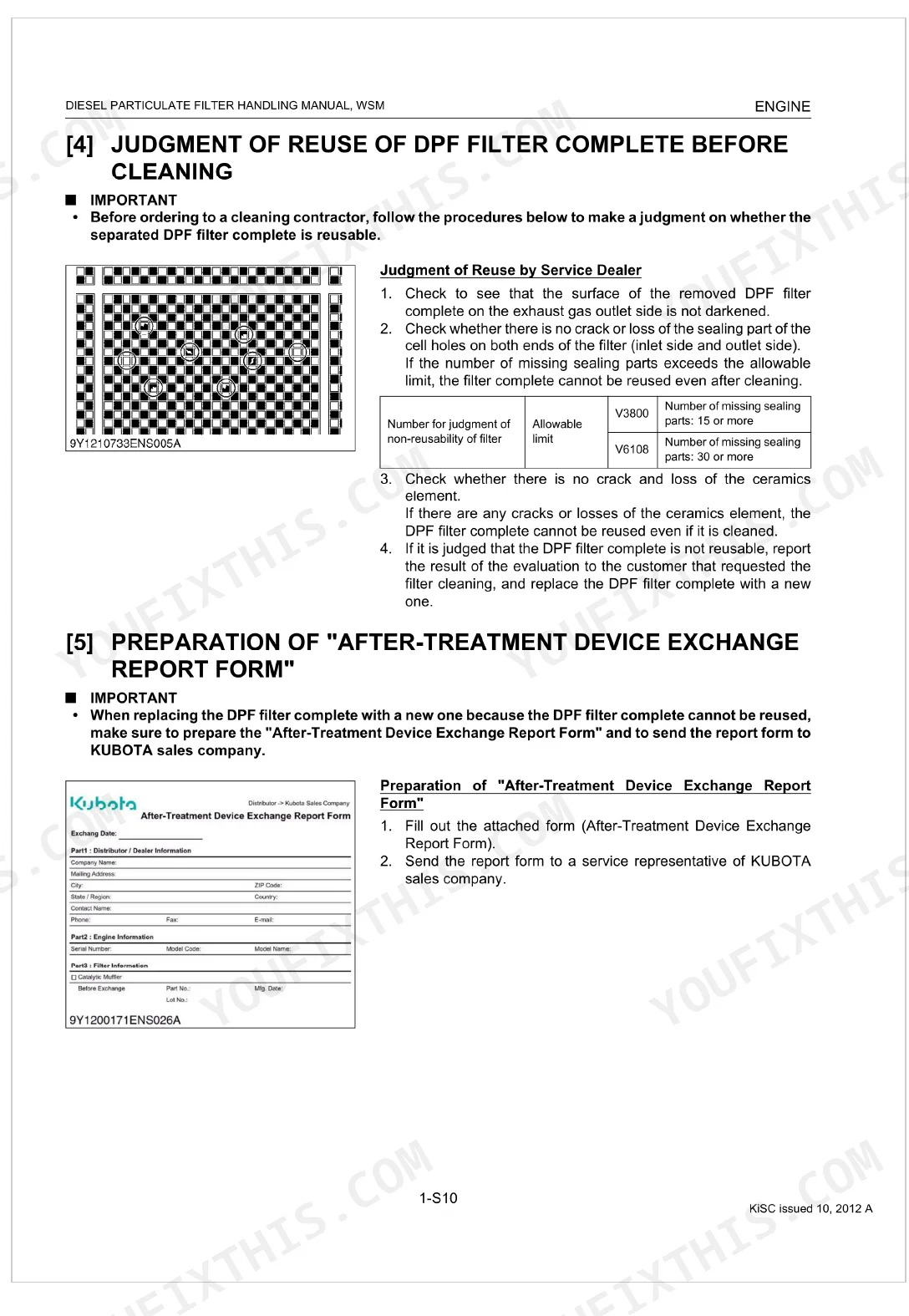

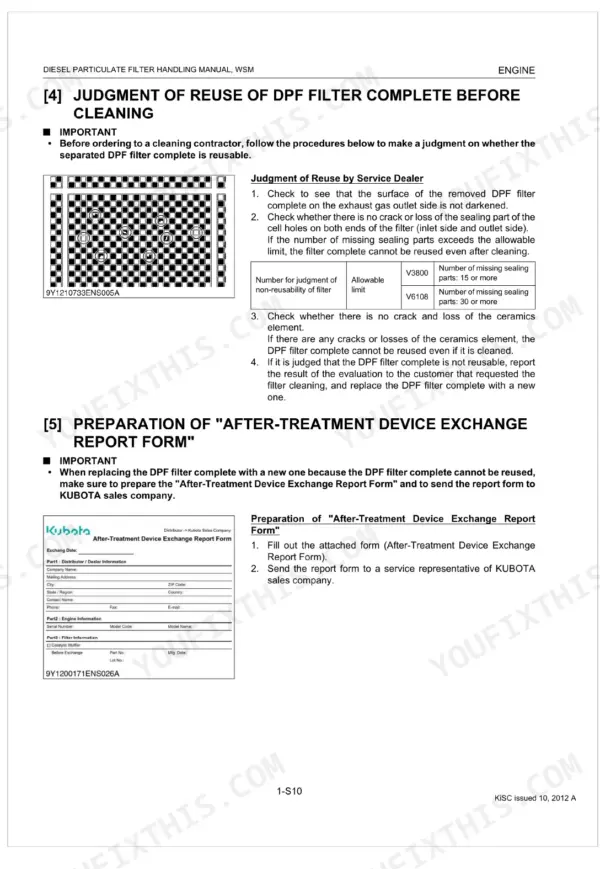

A filter that is cracked or worn past its limit must be exchanged rather than cleaned. The DPF Maintenance Flow section lays out the cleaning and return flow against the exchange flow so you take the right path.
Manual Section: DPF Maintenance Flow p. 12Leaks or rattles after DPF service
Under or over torqued muffler bolts cause leaks, rattles, and cracked joints after reassembly. The DPF Cleaning Procedure section gives the muffler full assembly mounting bolt torque of 49.0 to 55.9 N·m and the assembly sequence.
Manual Section: DPF Cleaning Procedure p. 15Sensor faults after DPF work
The differential pressure sensor and exhaust temperature sensors must be reinstalled to spec or they read wrong and flag faults. The DPF Cleaning Procedure section lists the exhaust temperature sensor torque of 25.0 to 35.0 N·m and the resetting steps.
Manual Section: DPF Cleaning Procedure p. 15Frequently Asked Questions
What does this manual cover?

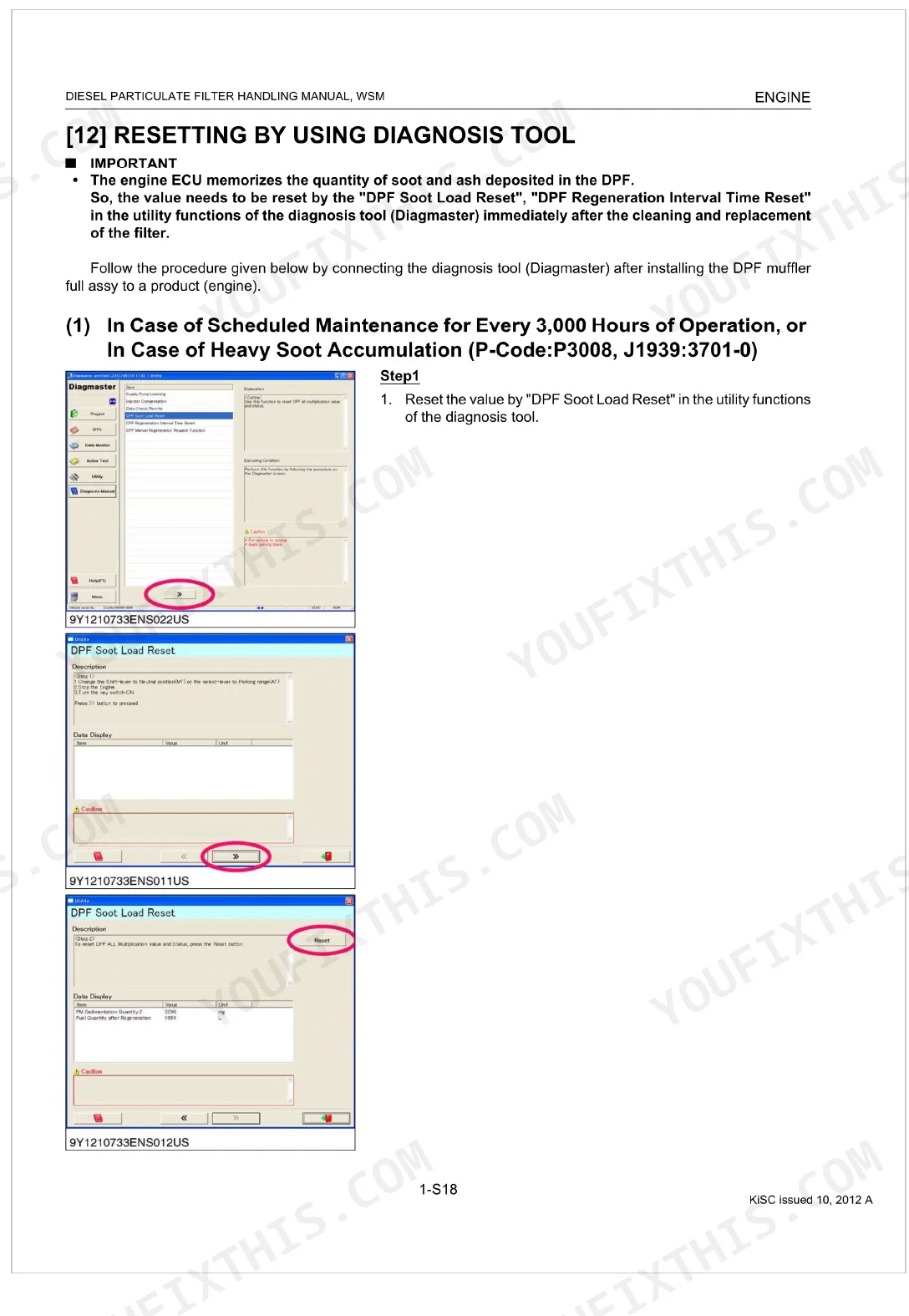

It is a Kubota DPF handling manual focused on the diesel particulate filter: how it works, regeneration versus cleaning, the full DPF muffler cleaning and reassembly procedure, sensor and bolt torques, and resetting the system with a diagnosis tool.
Which engines does it apply to?
It covers the Kubota V3800 and V6108 diesel engines. The DPF cell depth limit and torque values in the manual apply to both, with model-specific values noted where they differ.
How often does the DPF need cleaning?
The manual gives a DPF cleaning interval of 3,000 hours. The DPF function section explains how regeneration burns off soot between cleanings and when a scheduled cleaning becomes due. p. 10
Does it give the torque specs for reassembly?
Yes. The DPF cleaning procedure lists the muffler assembly bolt torque of 49.0 to 55.9 N·m and the exhaust temperature sensor torque of 25.0 to 35.0 N·m, among others, for correct reassembly. p. 15
How is the manual delivered?
It is an instant PDF download after checkout, with no shipping. You can open it on any device or print it for the shop.
Is this Kubota V3800 Workshop Manual a digital download?
Right after checkout. It is a 37-page searchable PDF you download on the spot and open on a computer, tablet, or phone. Nothing ships, so no waiting.
Can I print this Kubota V3800 manual?
Yes, with no limits. The PDF is DRM-free, so print whatever sections you want to carry out to the shop. Standard letter or A4 paper both work fine.
