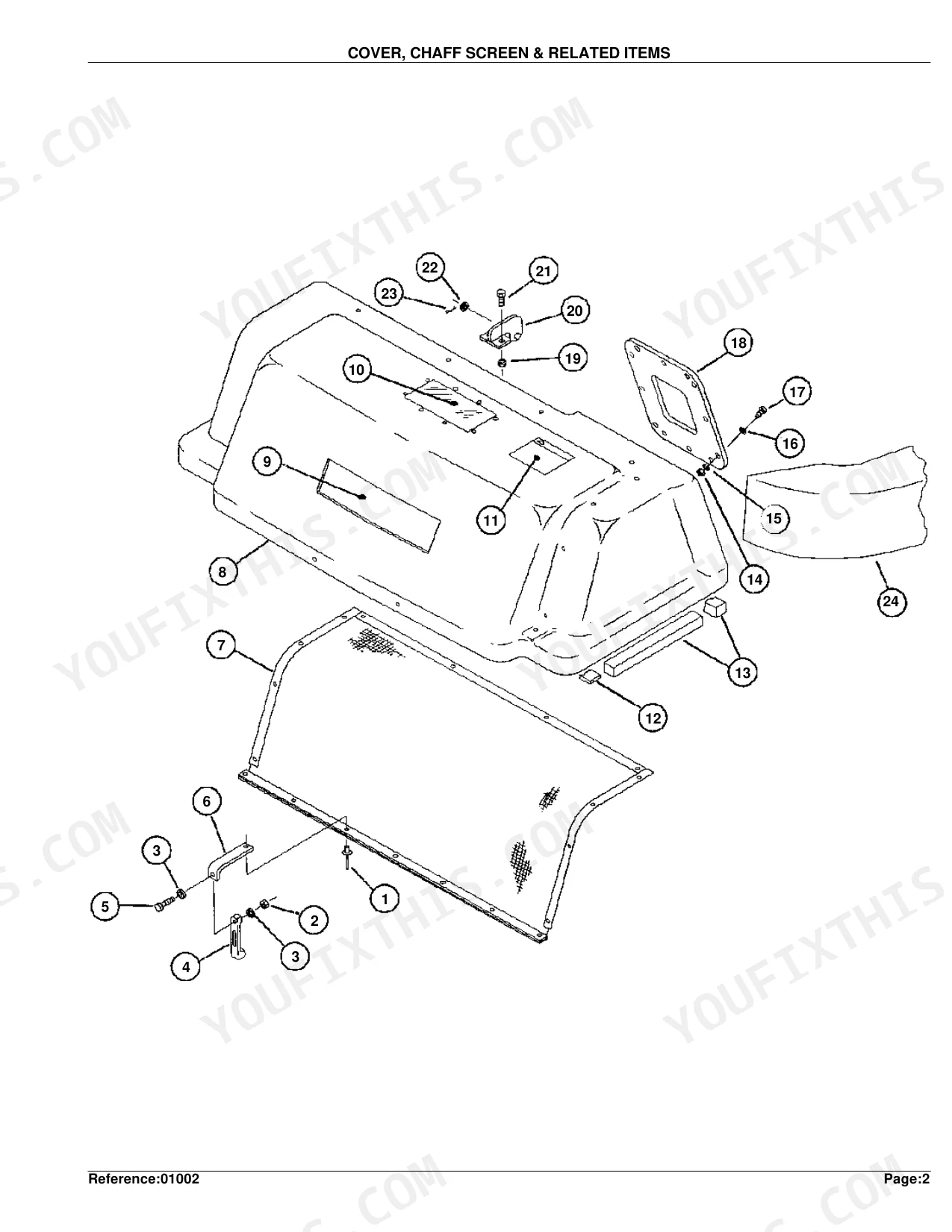

Finding the right part number for your GC60B Grass Catcher shouldn't mean a three-day wait on a dealer callback. This 12-page Parts Catalog PDF (OEM #100Z0060) lays out exploded views for assemblies: rear frame and bags, cover and chaff screen, blower components, gearbox internals, and blower parts. Each view ties to a numbered list showing Ref.No, Part No, description, quantity, serial number applicability, and interchangeability codes, so you can confirm which version fits your machine. Weight columns come straight from Kubota factory data rather than dealer guesses; the gearbox assembly, for instance, lists at 4.4 kgf. Open to the gearbox breakdown, match the exploded view to the numbered list, and read the part number off yourself. Bookmarks are set by assembly, so any section loads in a single tap.
What's Inside This Kubota GC60B Parts Manual
| System | Pages |
|---|---|
| Instructions for Parts Books | - |
| GC60B Grass Catcher | - |
| Rear Frame Components & Bags | - |
| Cover, Chaff Screen & Related Items | - |
| Blower & Related Parts | - |
| Gearbox Parts Breakdown | - |
| Blower Parts | - |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Grass Bag Set of 3 Weight | 0.43 kgf | p. 4 |
| Hairpin Clip Weight | 0.001 kgf | p. 4 |
| Bolt M12-1.75 X 75 Weight | 0.075 kgf | p. 4 |
| Gearbox Assy Weight | 4.4 kgf | p. 8 |
| Bolt M8-1.25 X 14 Weight | 0.009 kgf | p. 8 |
| O-Ring Weight | 0.001 kgf | p. 10 |
| Ball Bearing (08101-06206) Weight | 0.196 kgf | p. 10 |
| Snap Ring Internal (04611-00620) Weight | 0.011 kgf | p. 10 |
| Shaft Output Weight | 0.8 kgf | p. 10 |
| Washer (70050-93198) Weight | 0.005 kgf | p. 12 |
| Bearing Shaft Weight | 0.142 kgf | p. 12 |
Kubota GC60B Common Problems This Manual Covers
Need to find replacement part numbers for seized bolts in the Kubota GC60B aluminum gear housing
Pull the part numbers straight off page 10, then inspect the aluminum threads for damage. While the housing is open, replace the O-ring (0.001 kgf) and internal snap ring (0.011 kgf) together. Cross-check the interchangeability symbols before ordering new hardware.

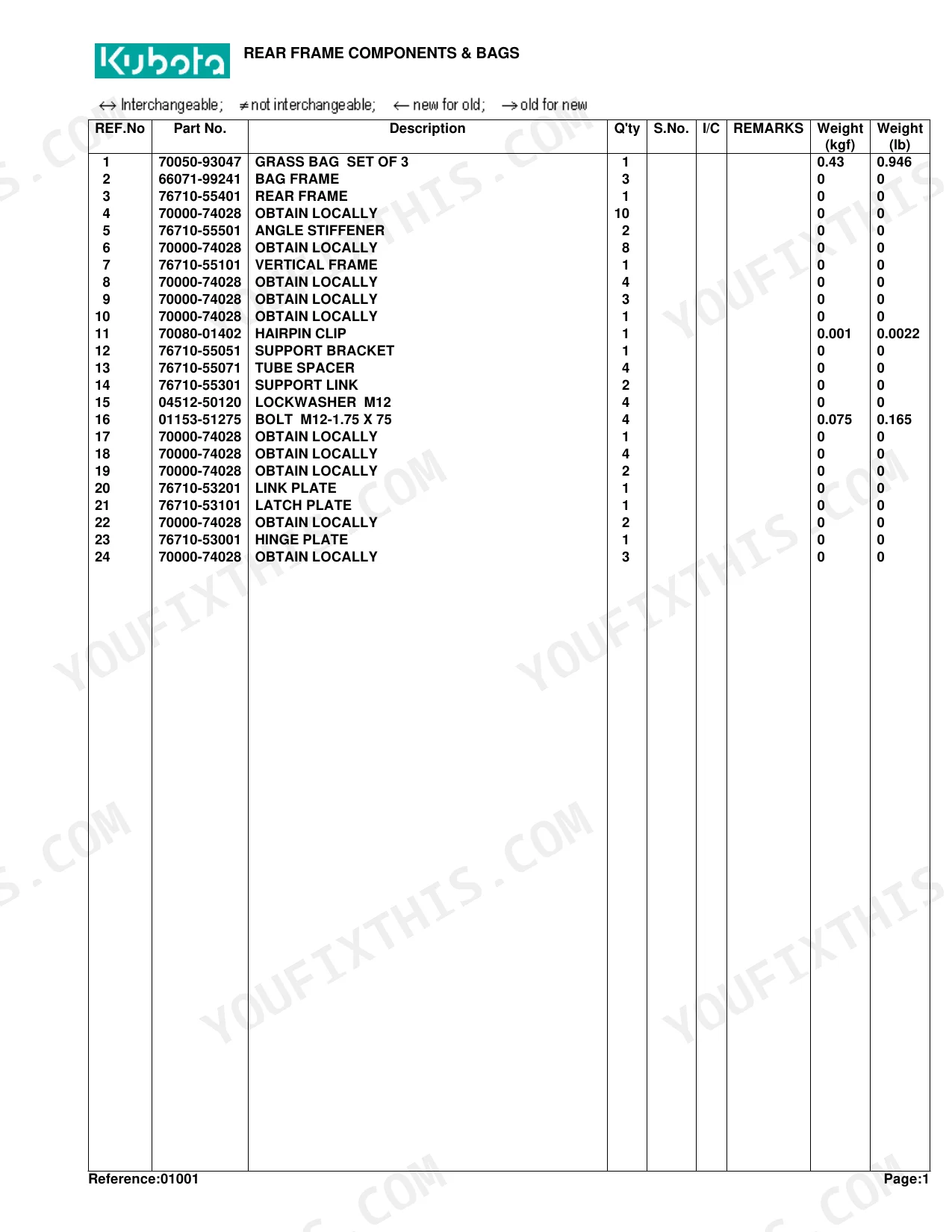

Manual Section: Gearbox Parts Breakdown p. 10Cannot locate the correct part numbers for torn grass bags or missing mounting frame pins
Match the exploded view on page 4 against your frame to spot the right pins and bags. The grass bag set of 3 runs 0.43 kgf; order it by the listed number. Check the interchangeability symbols against your serial number before buying.
Manual Section: Rear Frame Components & Bags p. 4Need the exploded parts diagram to replace the worn blower drive components and mounting bolts

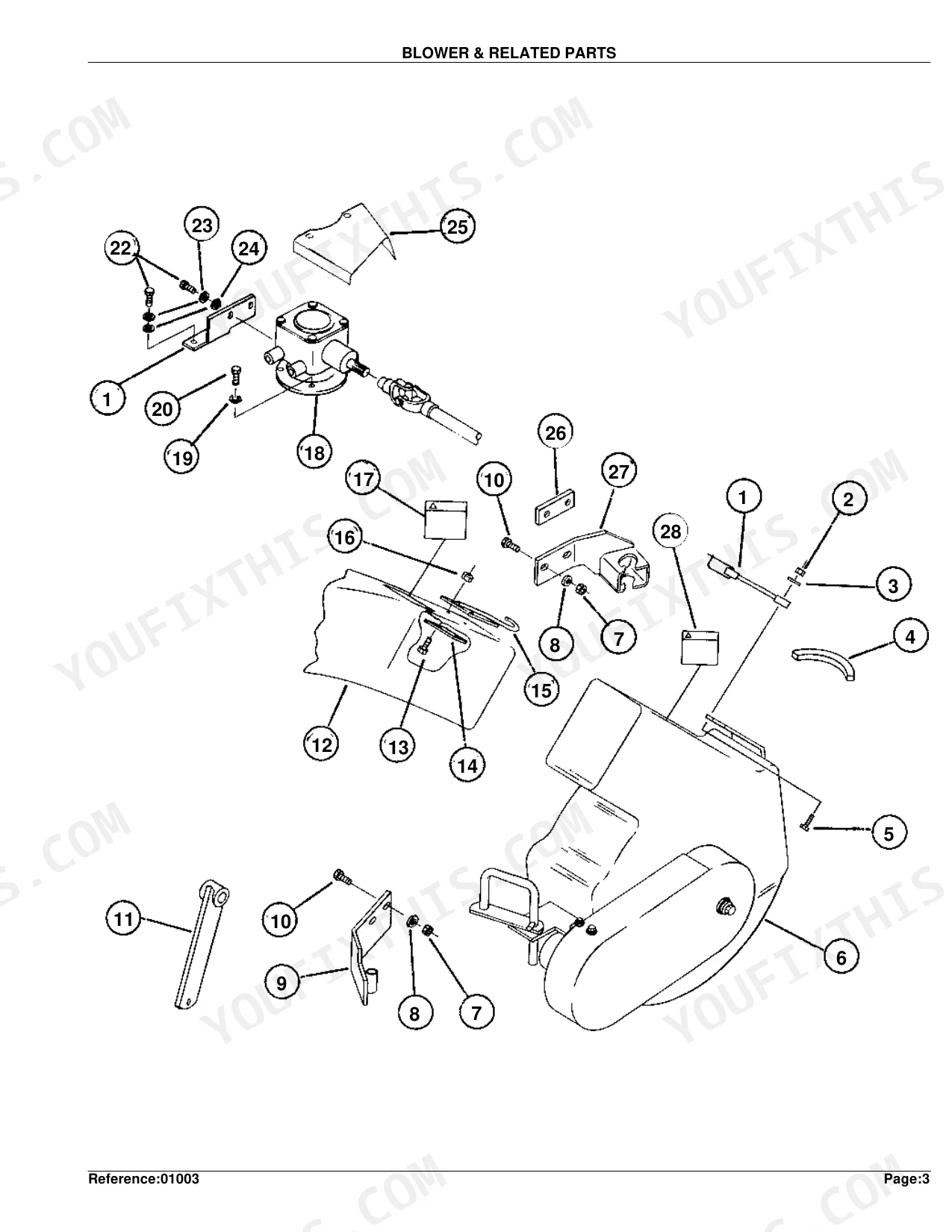

Trace the drivetrain diagram on page 7 to the correct blower components, then confirm the mounting hardware part numbers. The M8-1.25 X 14 bolts show 0.009 kgf on page 8. If the housing is cracked, order the full gearbox assembly (4.4 kgf).
Manual Section: Blower & Related Parts p. 8Unable to identify correct part numbers for the worn blower shaft bearing and missing washers
Read the blower shaft replacement numbers off page 12. Order the bearing shaft (0.142 kgf), and don't skip the 70050-93198 washer at 0.005 kgf. It sets the spacing when you reassemble the blower unit.
Manual Section: Blower Parts p. 12Frequently Asked Questions
What are the replacement specifications for OEM boot / chute connector?

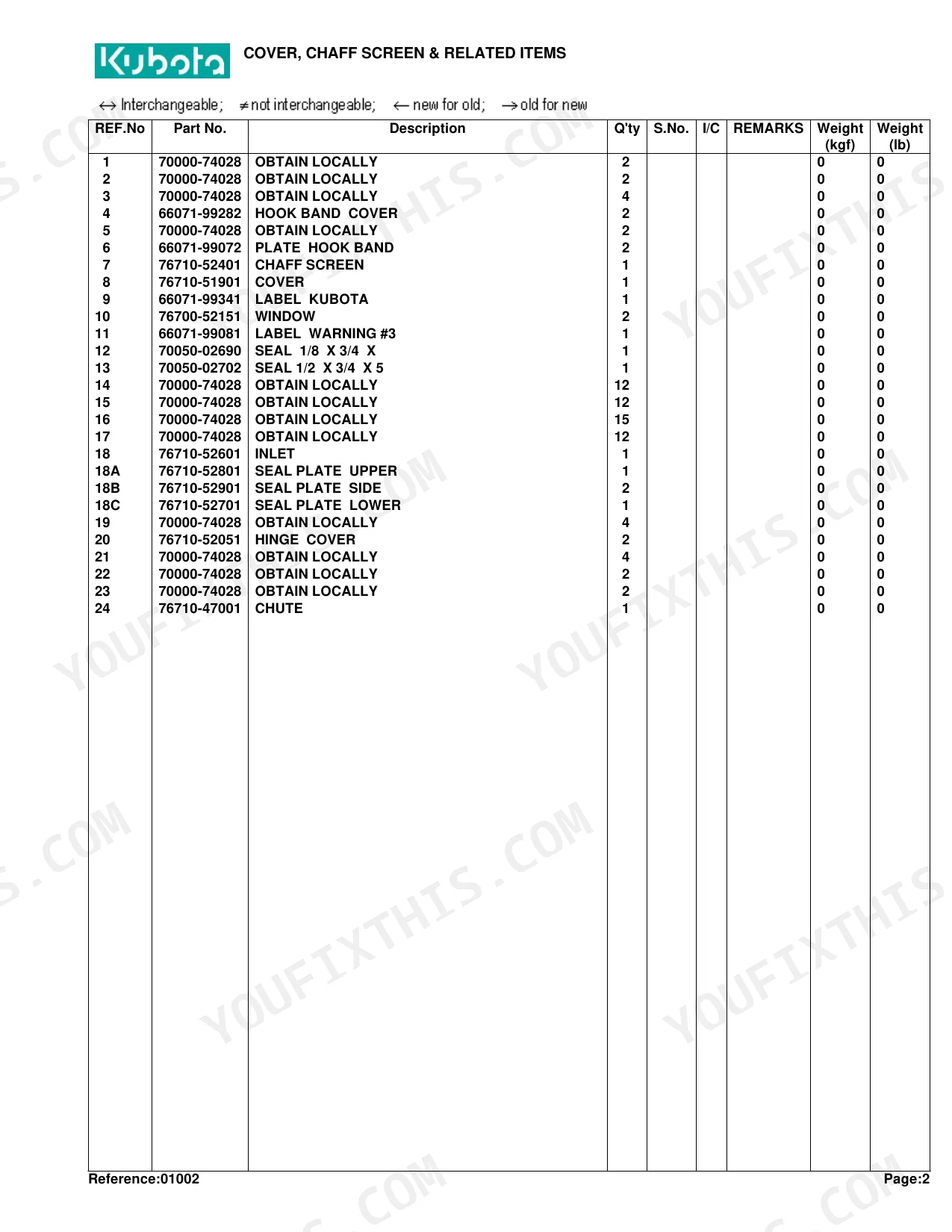

Part number 76710-47001 covers the chute. It appears at a quantity of 1 in both the COVER, CHAFF SCREEN & RELATED ITEMS and BLOWER & RELATED PARTS sections, which marks it as a standard replacement component. p. 6
What part numbers cover torn grass bags and missing mounting frame pins on the GC60B?
Check the exploded view on page 4 to match pins and bags to your frame. The grass bag set of 3 is listed at 0.43 kgf. Review the interchangeability symbols in the parts list to confirm which version fits your serial number before ordering. p. 4
What individual gearbox part numbers does the GC60B catalog include?
Pages 9-10 cover the gearbox breakdown. Listed parts include the O-ring at 0.001 kgf, internal snap ring (04611-00620) at 0.011 kgf, ball bearing (08101-06206) at 0.196 kgf, and output shaft at 0.8 kgf. The full gearbox assembly lists at 4.4 kgf. p. 10
What blower shaft parts are covered in the GC60B parts catalog?
Pages 11-12 list the blower parts, including the bearing shaft at 0.142 kgf and the 70050-93198 washer at 0.005 kgf. These weights come directly from the Kubota factory parts list and help confirm you have the correct components before ordering. p. 12
What format is this manual in?
It's a searchable PDF. The full 12-page catalog downloads the moment payment clears, ready to open on a laptop, tablet, or phone right at the workbench.
Are there any print restrictions on this manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
