This is the factory Kubota Operator Manual for the Z231BR-AU, Z231KH-AU, Z251BR-AU, and Z251KH-AU zero-turn mowers, an 89 page PDF for the Australian market machines. It walks owners through safe operation, controls, mounting the mower deck, running the engine, and the day to day care these mowers need.Inside you will find the specification table, service intervals, periodic service steps, deck and motion control adjustment procedures, storage guidance, and a troubleshooting section for the engine, battery, and machine. The engines covered are the GH731V-1, GH736V, GH733V-1, and GH750V.This is the manual to keep on hand for correct starting, maintenance timing, tire pressures, and leveling the cut. It arrives as an instant PDF download you can read on any phone, tablet, or computer, or print for the shed so it is ready whenever you service the machine.
What's Inside This Kubota Z231–Z251 Series Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safe Operation | 8-17 | General, Before Operating the Machine, ROPS, Safety for Children, Operators, Age 60 Years and Older, Operating on Slopes, Stopping the Machine |
| Servicing of Machine | 18-19 | Date of Purchase, Name of Dealer, To Be Filled in by Purchaser, Machine Identification Plate, Product Identification Number, Engine Serial Number, ROPS Serial Number |

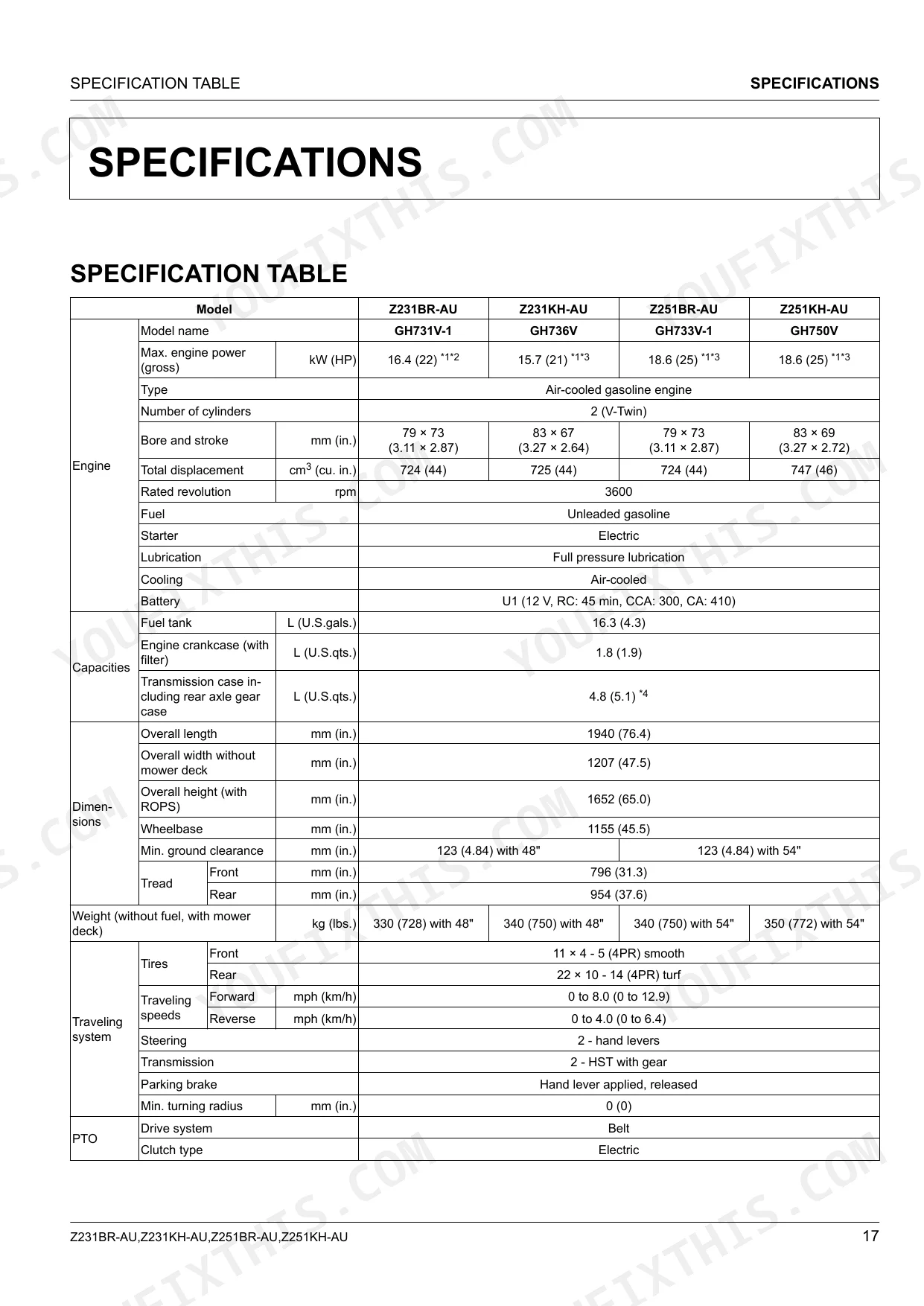

| Specifications | 20-21 | Specification Table (Model, Engine, Capacities, Dimensions, Weight, Tires, Traveling Speeds, Traveling System, PTO) |
| Implement Limitations | 22 | Terms of Use, Weight Limit Table, Maximum Loading Weight, Maximum Total Weight, Tongue Weight W1, Towing Capacity W2 |

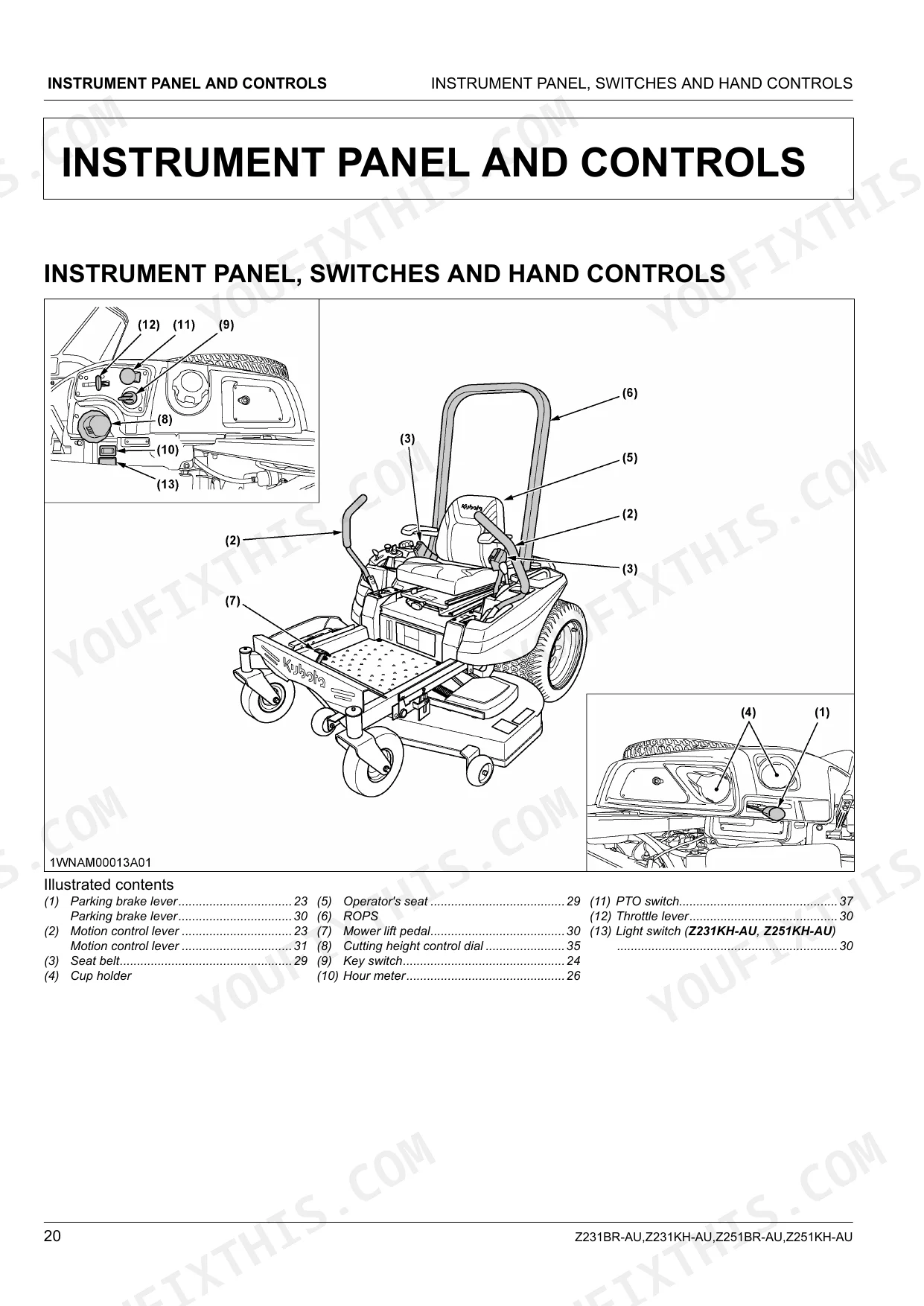

| Instrument Panel and Controls | 23-24 | Instrument Panel, Switches and Hand Controls |
| Mower Mounting | 25 | Mounting the Mower Deck, Mower, Dismounting the Mower Deck |
| Operating the Engine | 26-30 | Getting on and Off the Machine Safely, Starting the Engine |

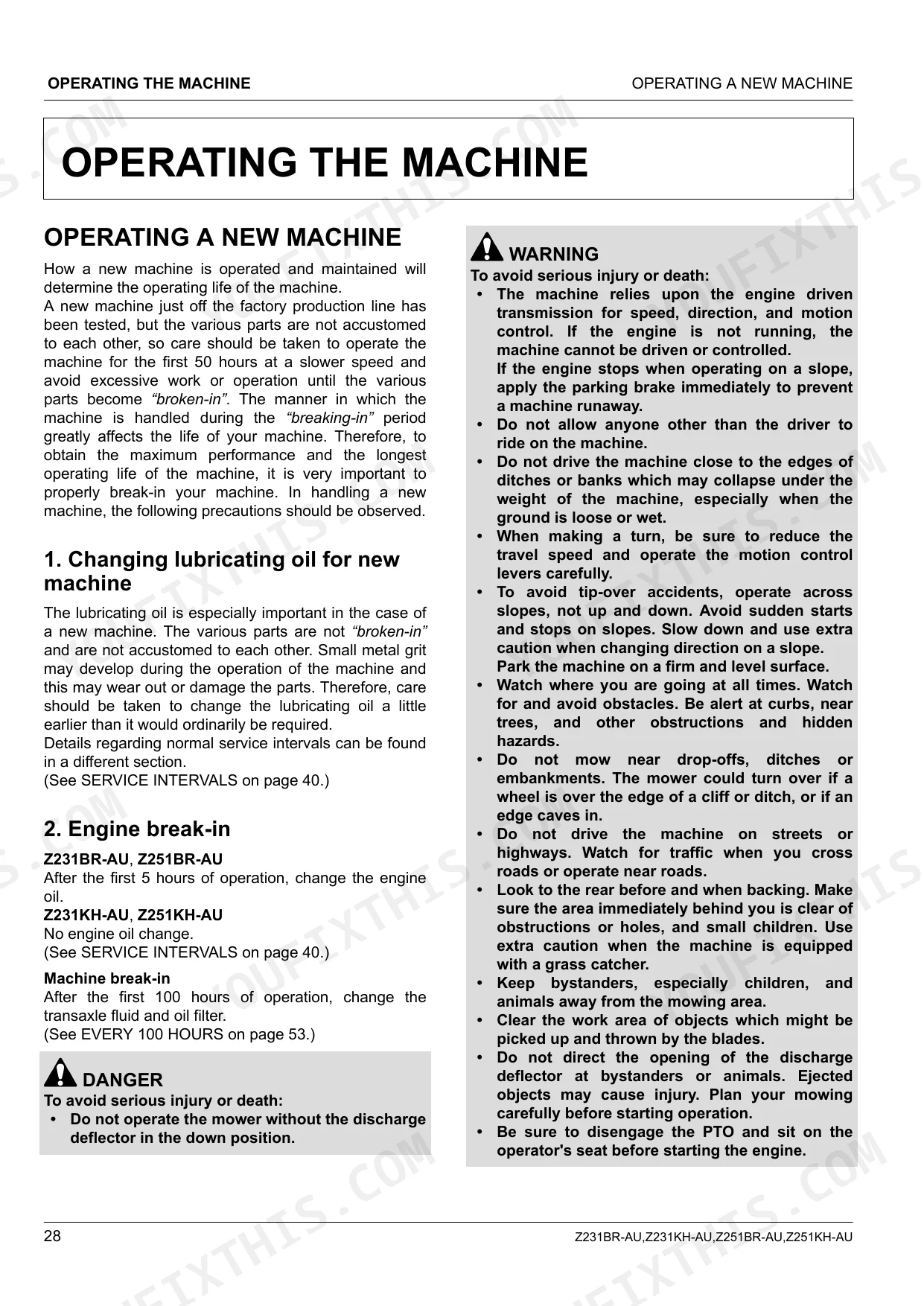

| Operating the Machine | 31-37 | Operating a New Machine (Changing Lubricating Oil for New Machine, Engine Break-In) |
| Operating the Mower | 38-40 | Mowing Tips, Cutting Height |
| Tires and Wheels | 41-42 | Tires, Inflation Pressure (Tire Sizes, Recommended Inflation Pressure), Wheels, Removing the Front Caster Wheels |

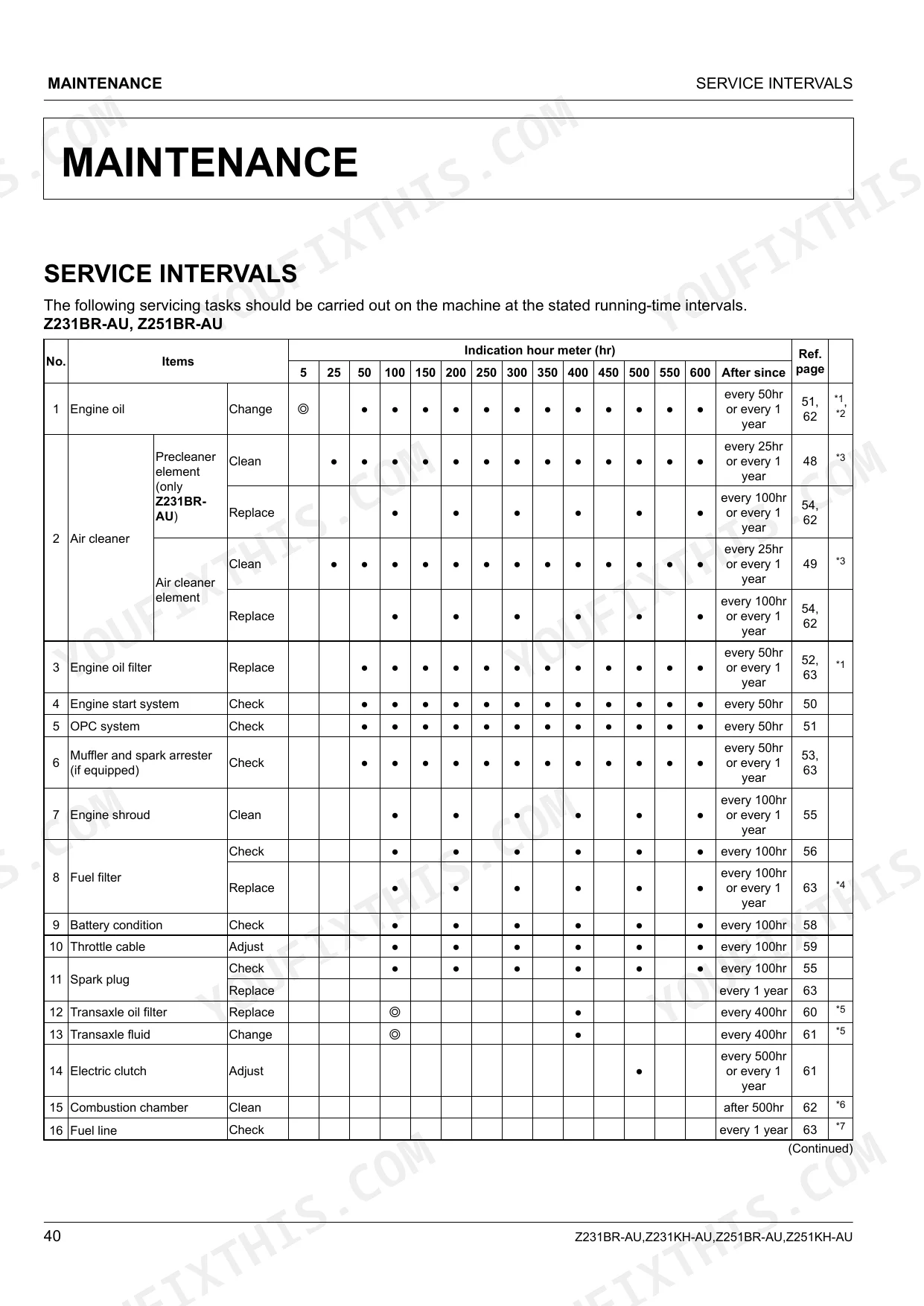

| Maintenance | 43-46 | Service Intervals, Z231Br-Au |
| Periodic Service | 47-69 | Raising and Lowering the Operator's Seat, Daily Check (Fuel Line, Hydraulic Hose, Engine Valve Clearance, Fuse, Blade, Mower Belt) |
| Adjustment | 70-76 | Motion Control Lever (HST Neutral, Maximum Speed, Alignment, Checking the Alignment, Aligning the Motion Control Levers) |
| Storage | 77 | Storing the Machine, Repair Parts As Necessary, Check Bolts and Nuts and Tighten As Necessary, Apply Grease or Engine Oil to Parts Most Likely to Rust |

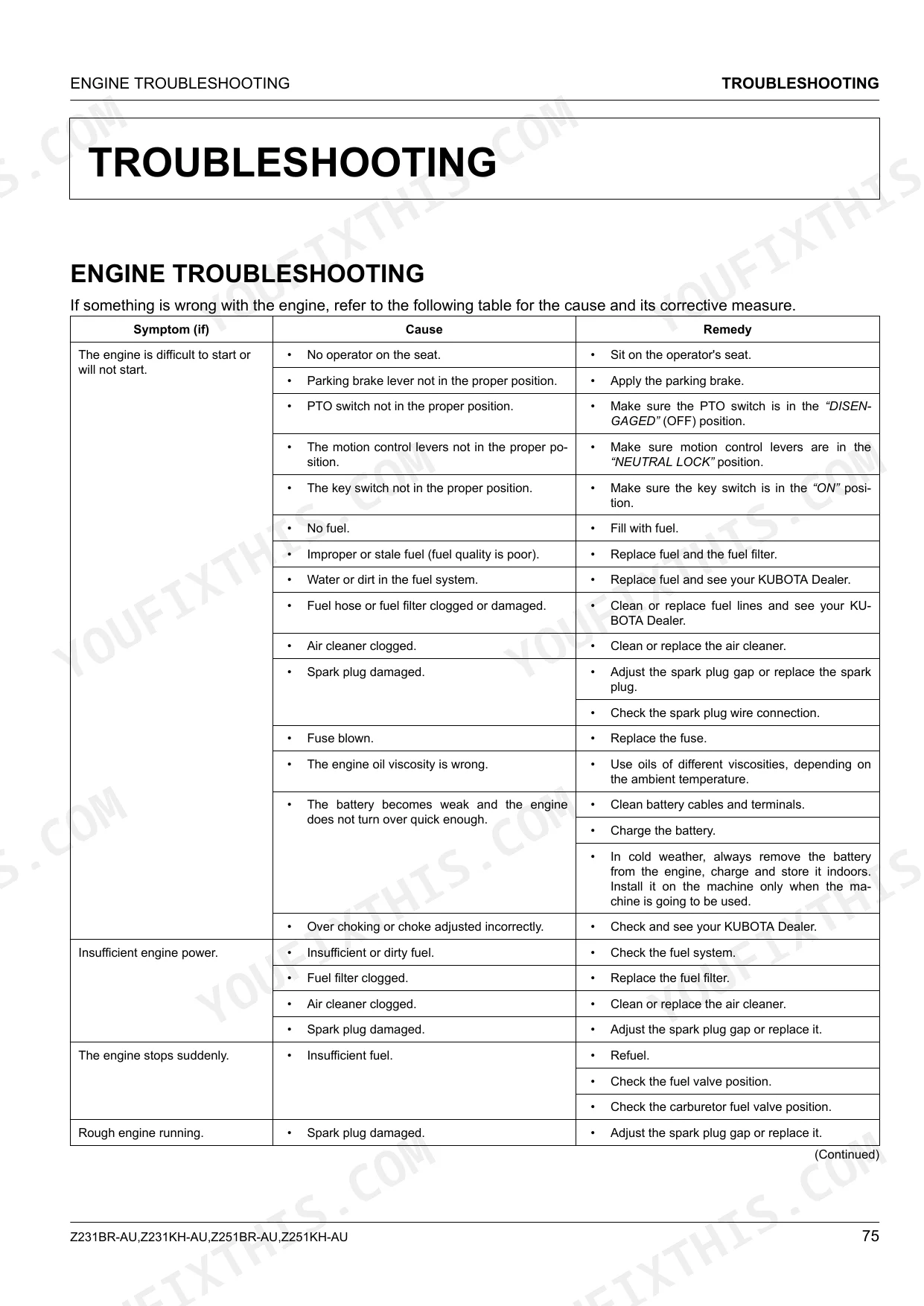

| Troubleshooting | 78-82 | Engine Troubleshooting, Battery Troubleshooting, Machine Troubleshooting |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Rear wheel bolt tightening torque | 108.5 to 130.2 N·m (80 to 96 lbf·ft 11.1 to 13.3 kgf·m) | p. 41 |
| Front caster wheel nut tightening torque | 48 to 56 N·m (36 to 41 lbf·ft 4.9 to 5.7 kgf·m) | p. 42 |
| Fuel tank capacity | 16.3 L | p. 20 |
| Engine crankcase oil capacity (with filter) | 1.8 L | p. 20 |
| Transmission case oil capacity (including rear axle gear case) | 4.8 L | p. 20 |
| Front tire inflation pressure | 170 kPa | p. 41 |
| Rear tire inflation pressure | 110 kPa | p. 41 |
| Electric clutch air gap | 0.4 mm | p. 65 |
| Blade bolt tightening torque | 103 to 118 N·m | p. 68 |
| Motion control lever alignment gap | 0 to 2 mm | p. 71 |
| Mower deck side-to-side level difference | Less than 3 mm | p. 72 |
| Mower deck front-to-rear level difference | Less than 6 mm | p. 73 |
Kubota Z231–Z251 Series Common Problems This Manual Covers
Engine cranks but will not start
Starting failures on these mowers are often fuel, battery, or safety-switch related. The Troubleshooting section lists the engine and battery checks to run first.
Manual Section: Troubleshooting p. 78Mower deck cuts unevenly
A stepped or uneven cut usually means the deck is not level side to side or front to rear. The Adjustment section covers leveling the mower deck to spec.
Manual Section: Adjustment p. 70Machine will not track straight
Drifting to one side or a mismatch between the levers points to motion control alignment. The Adjustment section explains setting HST neutral and aligning the control levers.
Manual Section: Adjustment p. 70Tires losing pressure
Underinflated or mismatched tires hurt handling and cut quality on a zero-turn. The Tires and Wheels section gives the correct sizes and inflation pressures.
Manual Section: Tires and Wheels p. 41Blades or mower belt worn
Poor cutting and slipping drive to the deck often trace back to worn blades or a stretched belt. The Periodic Service section covers checking the blade and mower belt.
Manual Section: Periodic Service p. 47Problems from missed service intervals
Running past oil, filter, and inspection intervals leads to avoidable breakdowns. The Maintenance section lays out the service schedule so nothing gets skipped.
Manual Section: Maintenance p. 43Frequently Asked Questions
Which models does this manual cover?
It covers the Kubota Z231BR-AU, Z231KH-AU, Z251BR-AU, and Z251KH-AU zero-turn mowers, the Australian market versions. It is the factory Operator Manual for that group.
Does it list capacities and specifications?
Yes. The Specifications section gives the model, engine, fluid capacities, dimensions, weight, tires, traveling speeds, and PTO details for these mowers. p. 20
Does it cover maintenance intervals?
Yes. The Maintenance section lists the service intervals so you know when to change oil and filters and inspect the machine. p. 43
How quickly can I access this manual after buying?
An 89-page operator manual in searchable PDF format, ready the moment you complete checkout. View it on a computer, tablet, or phone, with no shipping wait.
Am I able to print pages from this manual?
Yes, print as many copies as you want; there are no restrictions. Plenty of mechanics print just the section they need and take it to the shop floor.
