This Kubota ZD25F Workshop Manual is the 234-page factory service manual for the ZD25F zero-turn mower, powered by the Kubota D1005-E2-ZD three-cylinder diesel. It is written for owners and mechanics doing their own repairs rather than routine operating tasks.Coverage is split into General information, Specifications, Engine, Transaxle, Front Axle, Hydraulic System, Electrical, and Mower sections. You get servicing specifications, tightening torque tables, fluid capacities, maintenance intervals, hydrostatic transmission and travelling system service, the hydraulic circuit and lift cylinder, the wiring diagram with starting and charging systems, and mower deck power transmission and lifting mechanism.Use it to diagnose hard starting, weak hydrostatic drive, cutting or lift problems, and charging faults, then disassemble, measure, and reassemble each system to Kubota specifications with the correct torque values and clearances.
What's Inside This Kubota ZD25F Manual
| System | Pages | Key Topics |
|---|---|---|
| General | 1-46 | Identification, General Precautions, Lubricants, Fuel And Coolant, Tightening Torques, Maintenance Check List, Check And Maintenance, Special Tools, G. General |
| Intro | 47-52 | Specifications, Dimensions, G. General, Engine, Servicing |
| Sect 1 Engine | 53-106 | Servicing Specifications [D1005-E2-2D] (Engine Body, Lubricating System, Cooling System, Fuel System), Fuel System, Checking |
| Sect 2 Transaxle | 107-144 | Travelling System, Hydrostatic Transmission, Separating Transaxle, Transmission Case |
| Sect 3 Front Axle | 145-156 | Structure, Checking, Disassembling and Servicing (Checking and Adjusting, Disassembling and Assembling), Servicing Specifications, Tightening Torques |
| Sect 4 Hydraulic System | 157-176 | Hydraulic Circuit, Hydraulic Pump, Hydraulic Control Valve and Valve Adaptor, Lift Cylinder, Mower Linkage, Checking |
| Sect 5 Electrical | 177-210 | Wiring Diagram, Starting System (Starter, Glow Plug, Safety Switch, Fuel Pump, Engine Stop Solenoid), Charging System (AC Dynamo, Regulator, Easy Checker) |
| Sect 6 Mower | 211-234 | Power Transmission, Lifting Mechanism, Checking. Disassembling and Assembling (Checking and Adjusting), Servicing Specifications, Tightening Torques |

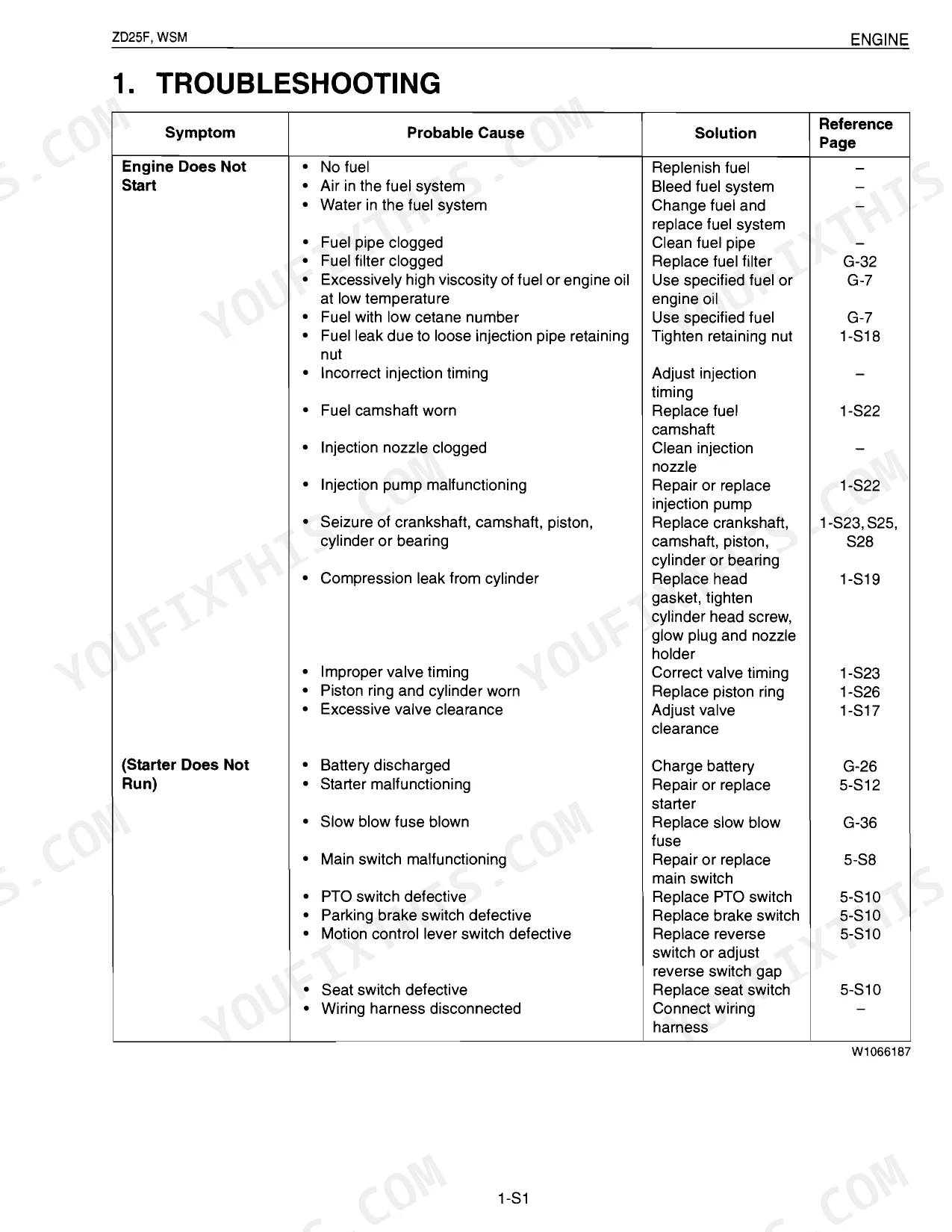

Every system also includes troubleshooting.

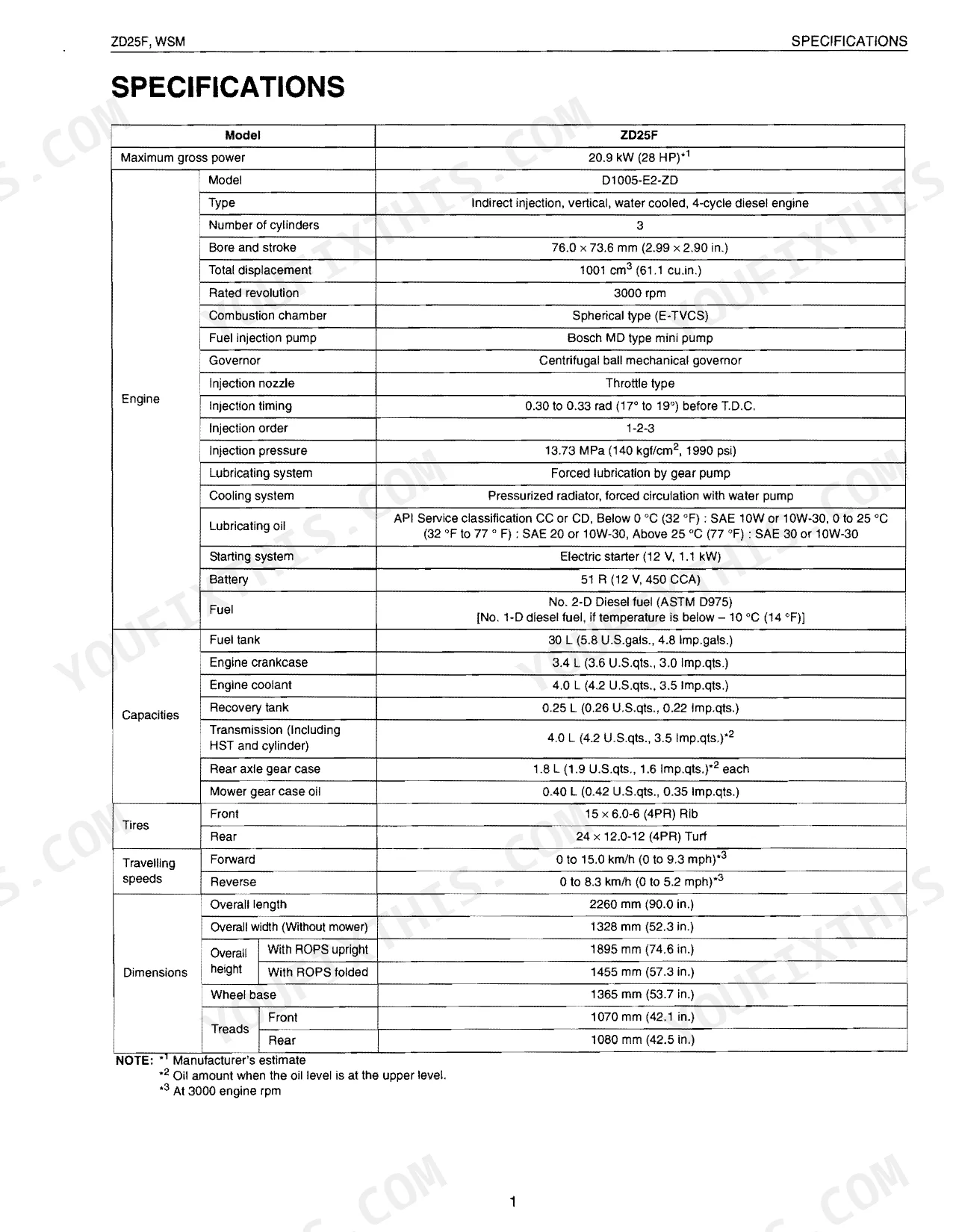

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Fuel Capacity | 30 L (7.9 U.S.gals., 6.6 Imp.gals.) | p. 9 |
| Cooling system Capacity | 4.0 L (4.2 U.S.qts., 3.5 Imp.qts.) | p. 9 |
| Fuel tank capacity | 30 L | p. 9 |

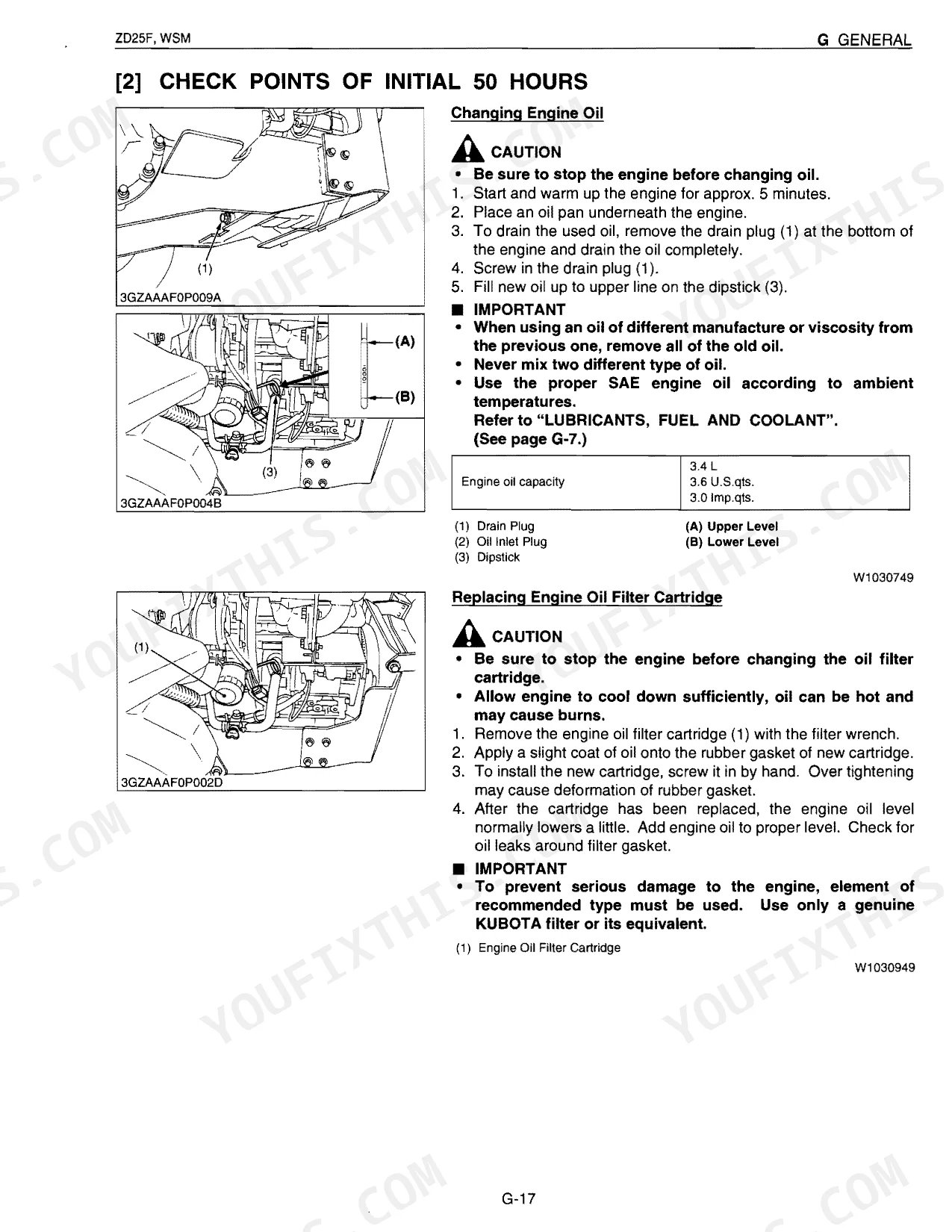

| Engine crankcase oil capacity | 3.4 L | p. 9 |
| Front tire pressure | 207 kPa | p. 15 |
| Rear tire pressure | 140 kPa | p. 15 |
| M8 bolts (No-grade or 4T) tightening torque | 17.7 to 20.5 N·m | p. 11 |
| Cylinder Head Surface Flatness (Allowable Limit) | 0.05 mm | p. 59 |
| Valve Clearance (Cold) Factory Spec | 0.145 to 0.185 mm | p. 59 |
| Engine Oil Pressure (At Rated Speed) Factory Spec | 196 to 441 kPa | p. 63 |
| Fan Belt Tension (Deflection) | Approx. 10 mm | p. 63 |
| Cylinder head screw tightening torque | 63.7 to 68.6 N·m | p. 65 |
Kubota ZD25F Common Problems This Manual Covers
Hard starting or no crank
A diesel that will not start often traces to the glow plug, safety switch, or engine stop solenoid rather than the engine itself. The electrical section covers the starting system so you can test each component in order.
Manual Section: Sect 5 Electrical p. 177Weak or creeping hydrostatic drive

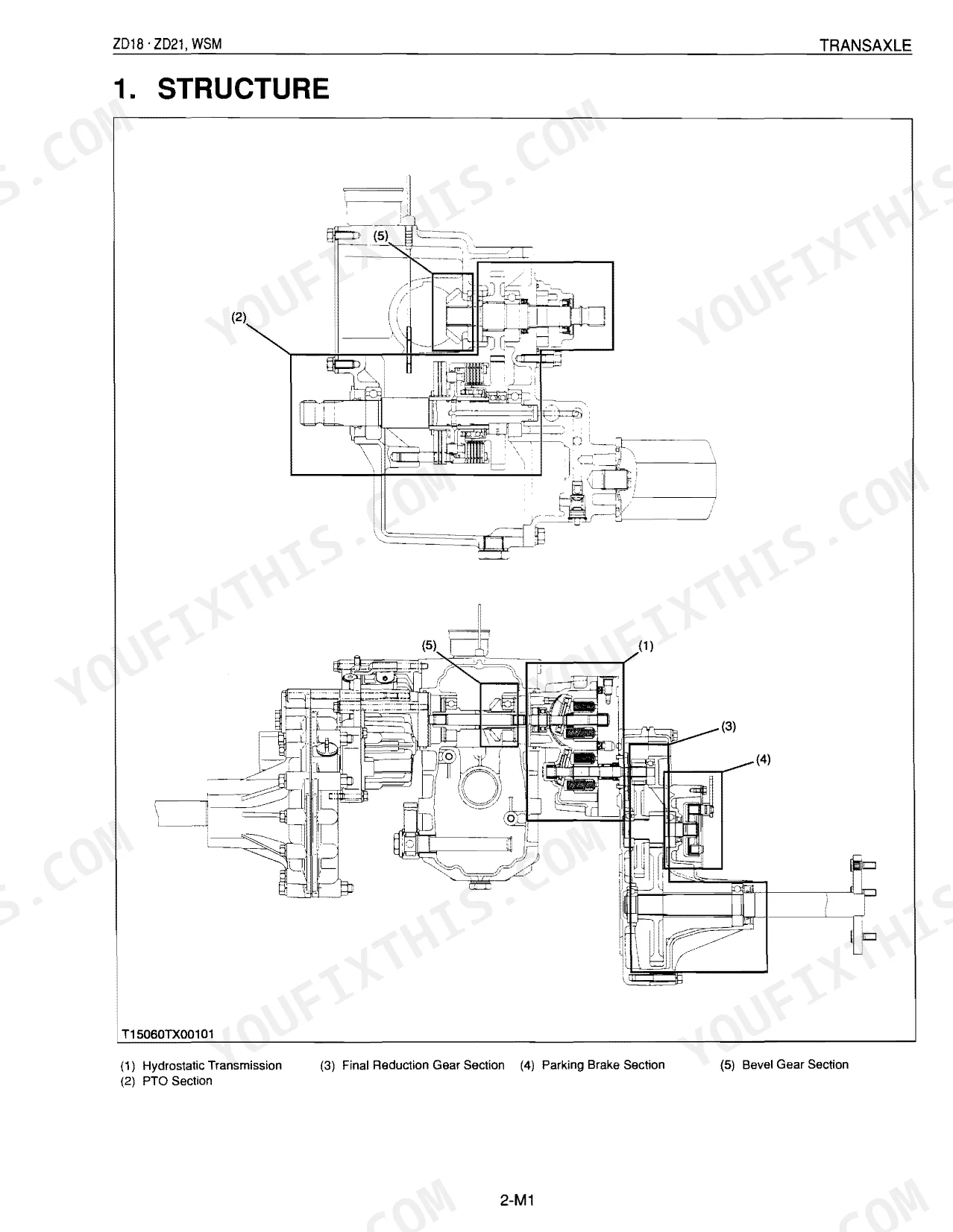

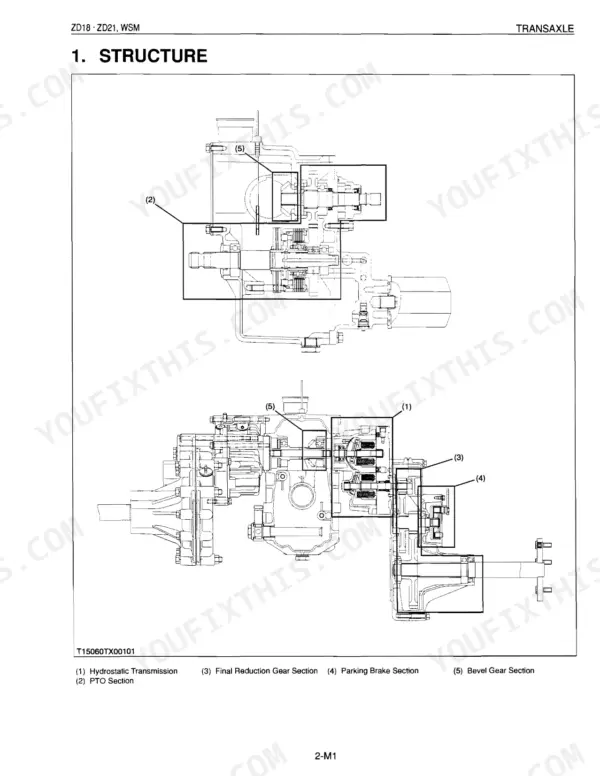

Loss of ground speed, creeping in neutral, or uneven tracking points to the hydrostatic transmission or its adjustment. The transaxle section covers the travelling system, hydrostatic transmission, and separating the transaxle.
Manual Section: Sect 2 Transaxle p. 107Uneven cut or deck vibration
Scalping, streaking, or heavy vibration usually comes from the mower deck drive, blades, or lifting mechanism. The mower section covers power transmission, the lifting mechanism, and the related servicing specifications.
Manual Section: Sect 6 Mower p. 211Slow or weak deck lift

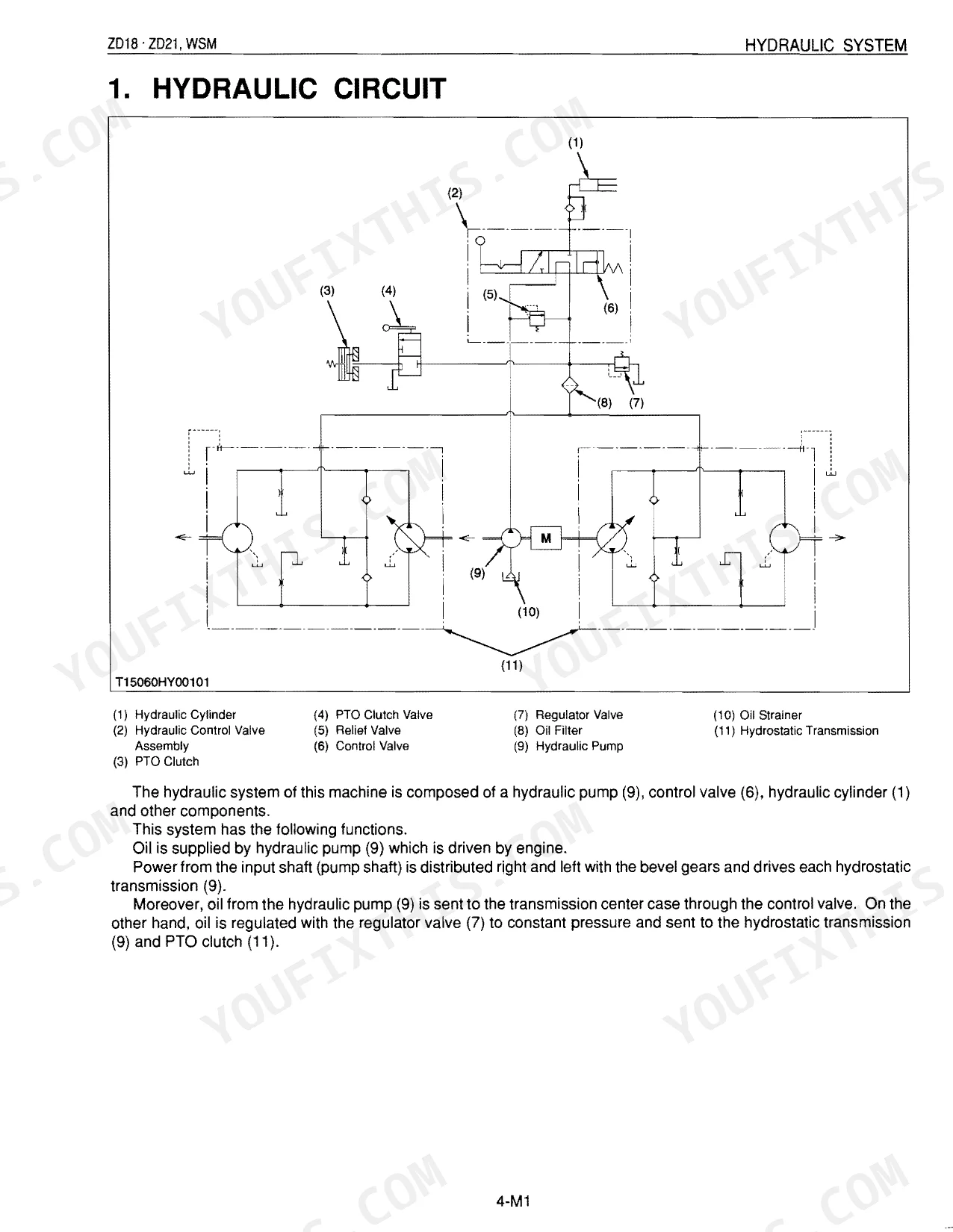

A deck that raises slowly or drops on its own points to the hydraulic pump, control valve, or lift cylinder. The hydraulic system section covers the circuit, pump, control valve, and lift cylinder in detail.
Manual Section: Sect 4 Hydraulic System p. 157Engine overheating
Rising temperature and coolant loss on the D1005-E2-ZD often trace to the cooling system or a slack fan belt. The engine section carries the cooling system servicing specifications and fan belt tension.
Manual Section: Sect 1 Engine p. 53Steering or front axle wander
Loose or notchy steering and front-end wobble on the zero-turn come back to the front axle and its adjustment. The front axle section covers checking, adjusting, disassembling, and the servicing specifications.
Manual Section: Sect 3 Front Axle p. 145Frequently Asked Questions
Which mower does this manual cover?
It is the workshop service manual for the Kubota ZD25F zero-turn mower with the D1005-E2-ZD diesel engine, covering engine, transaxle, front axle, hydraulics, electrical, and mower systems across 234 pages.
Does it include tightening torque values?

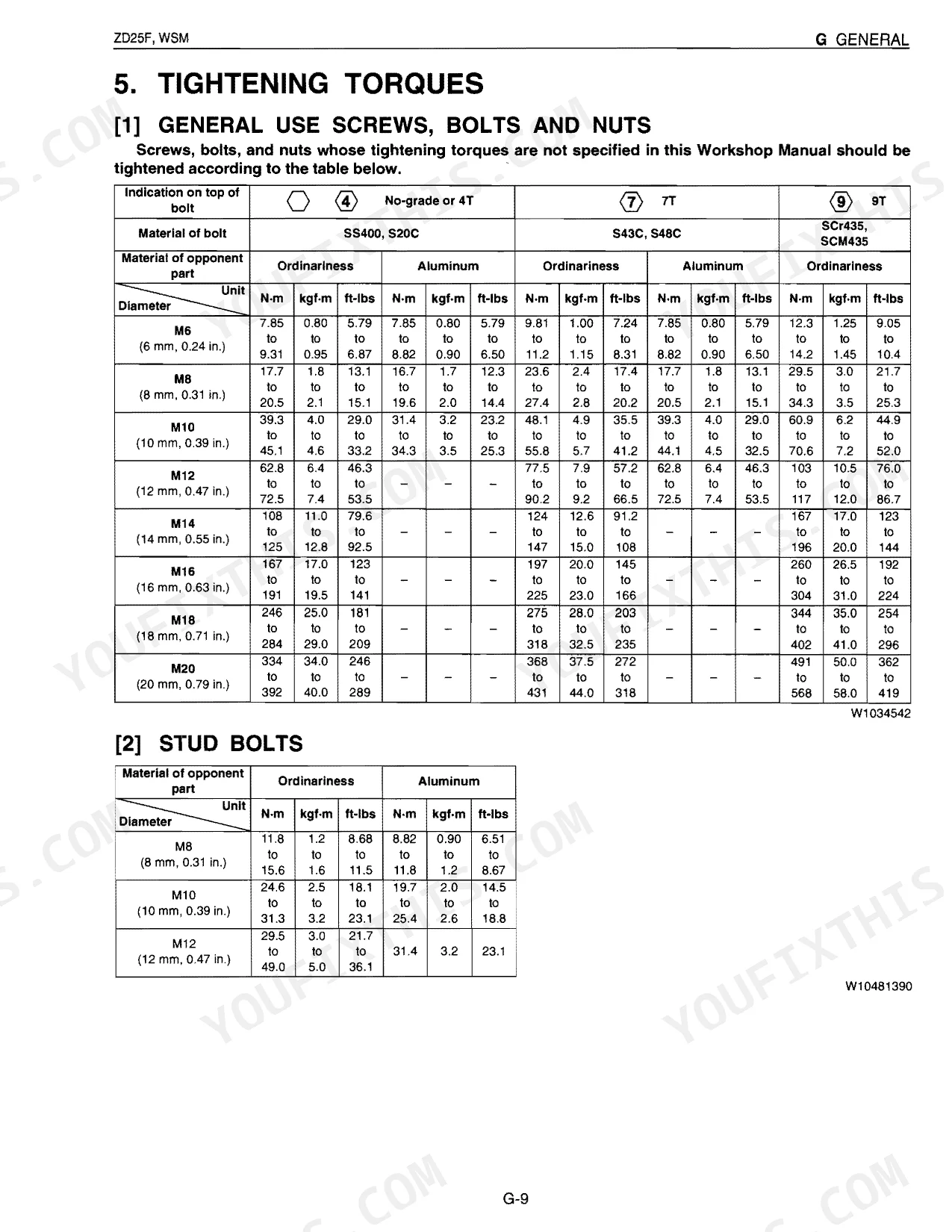

Yes. The General section lists general-use screw, bolt, and nut torques from M6 to M12, with more torque tables in the engine, transaxle, and mower sections for specific fasteners. p. 11
Is there a wiring diagram?

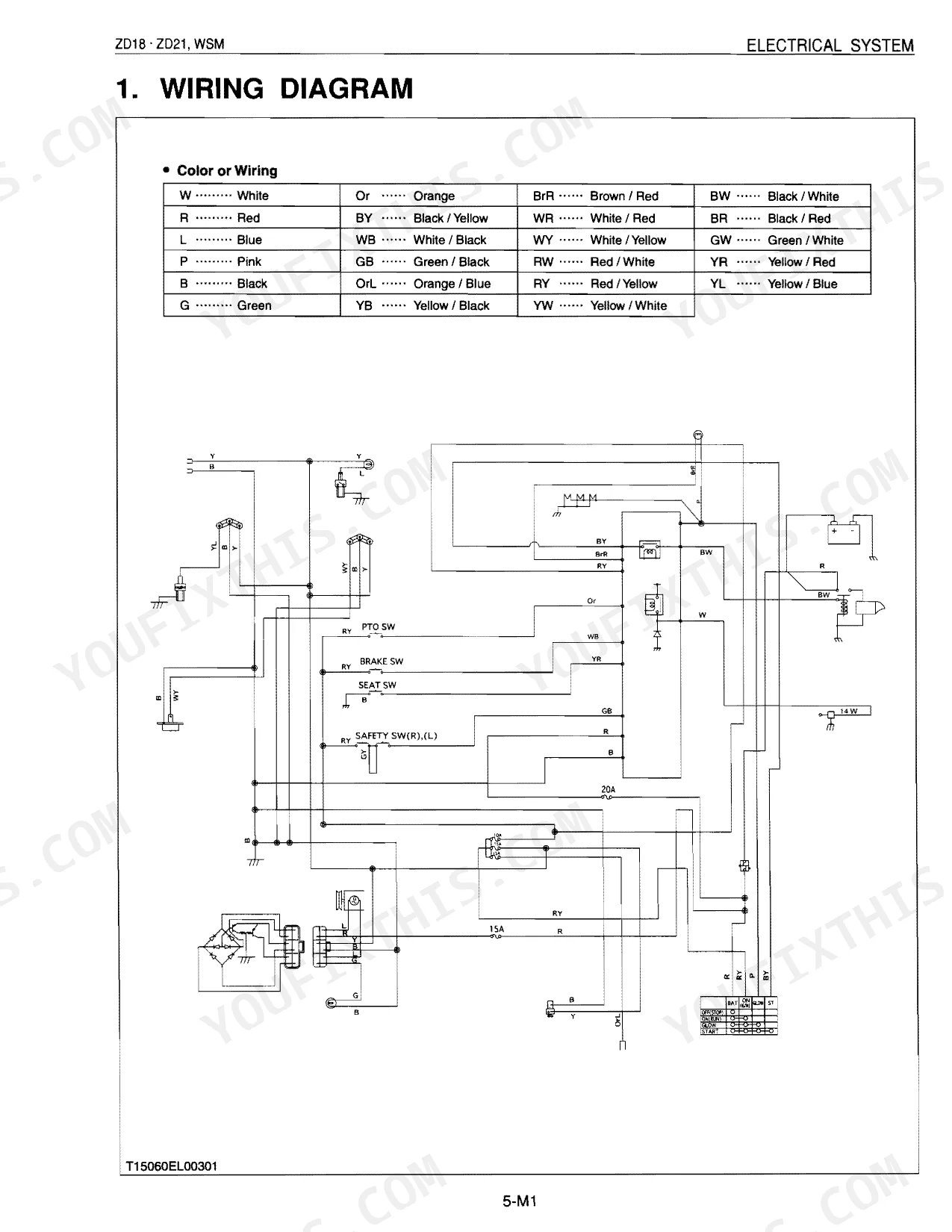

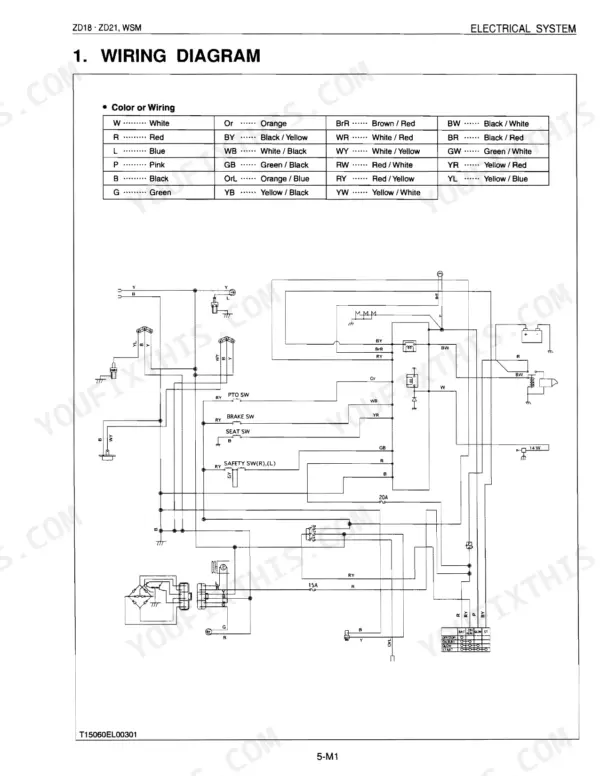

Yes. The electrical section includes the wiring diagram along with the starting system, glow plug, safety switch, engine stop solenoid, and the charging system with the AC dynamo and regulator. p. 177
How is the manual delivered?
You receive the PDF as an instant download after purchase, so you can save it to your own device and keep a permanent copy for repairs.
What format is this Kubota ZD25F manual in?
Instant PDF download. The full 234-page searchable Service Manual lands in your hands the moment payment clears. Open it on a laptop, tablet, or phone right in the shop.
Can I print specific sections of this Kubota ZD25F Service Manual?
Yes, print as many copies as you want; there are no restrictions. Plenty of mechanics print just the section they need and carry it to the shop floor.
Can I find wiring schematics in this Kubota ZD25F manual?
Yes. Full electrical schematics are included, with wire colors, connector locations, and circuit descriptions.
