This Kubota illustrated parts catalog covers the STV32, STV36 and STV40 compact tractors built from 1998 to 2012. Across 246 pages it breaks the tractor down into exploded diagrams with matching part numbers, so you can identify and order the exact component you need.The catalog is organized by system, including the engine, fuel system, clutch and transmission, rear axle and brake, front axle and chassis, steering, three-point linkage, hood and ROPS. Serial number locations and interchangeability notes help you confirm the right part for your machine and its production changes.For an owner, restorer or parts counter working on an STV series tractor, this PDF download is the factory parts reference in searchable form, ready to open on any device or print the pages you need for ordering.
What's Inside This Kubota STV32, STV36, STV40 Parts Manual

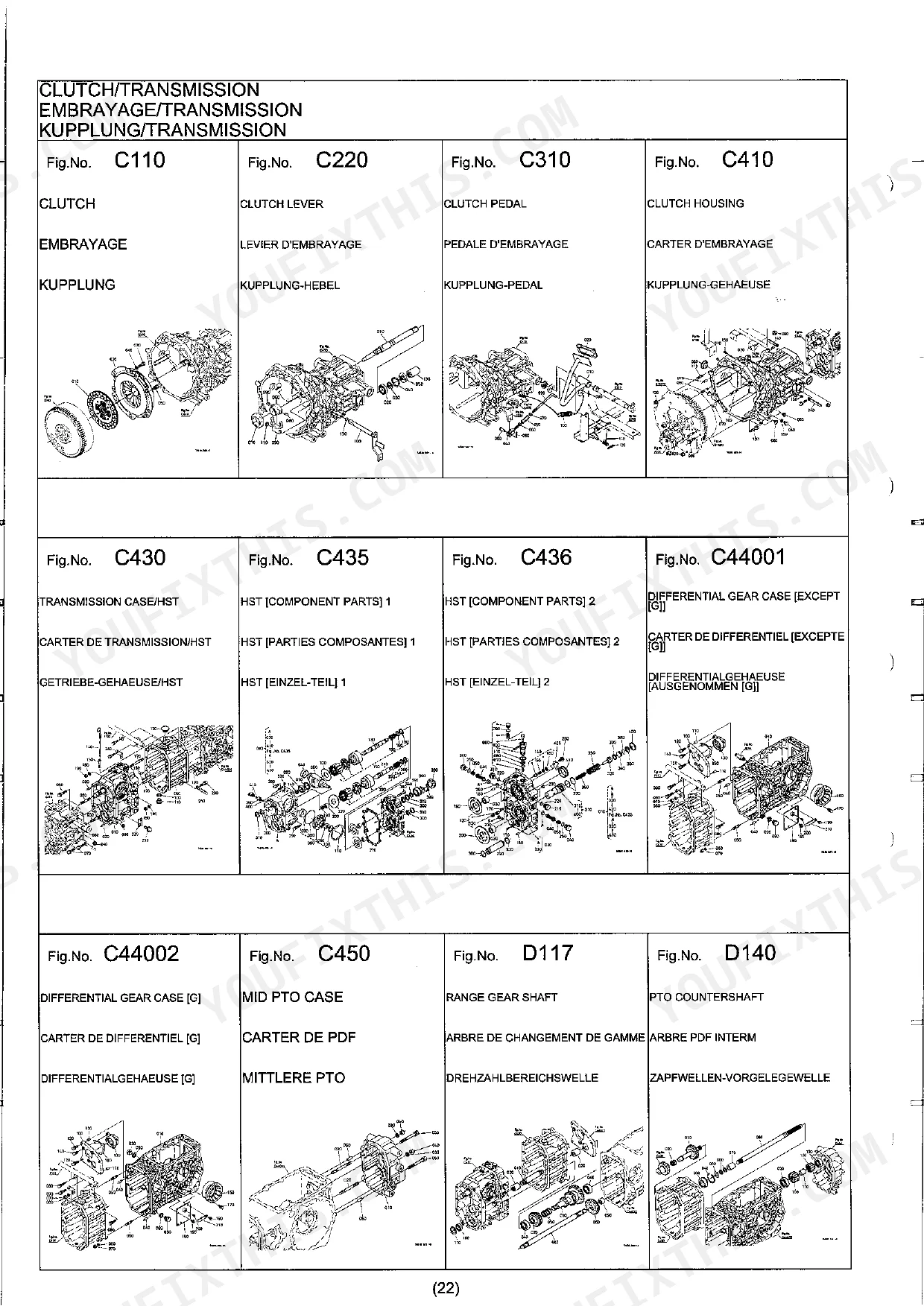

| System | Pages | Key Topics |
|---|---|---|
| General Information | 2-18 | Important Notices, Instructions for Using the Parts List, Serial Number Locations |
| Engine | 19-21 | Crankcase, Oil Pan, Cylinder Head, Gear Case, Head Cover, Main Bearing Case, Camshaft and Idle Gear Shaft, Piston and Crankshaft |
| Fuel System | 22-23 | Fuel Tank, Fuel Pipe, Fuel Filter (Component Parts) |
| Clutch / Transmission | 24 | Clutch, Clutch Lever, Clutch Pedal, Clutch Housing, Transmission Case/Hst, HST (Component Parts), Differential Gear Case (Except [G]), Mid PTO Case |
| Speed Change Shift Fork / Shift Lever | 25 | PTO Clutch, PTO Shaft, Mid PTO Drive Shaft, Mid PTO, Hypoid Pinion Shaft, Rear Differential, Bi-Speed Turn Shaft, Bi-Speed Turn Clutch |
| Rear Axle / Brake | 26 | Speed Control Pedal, Speed Control Pedal Rink, Neutral Holder, Neutral/Cruise Link, Renge Gear Shift Lever, Front Wheel Drive Lever, PTO Gear Shift Lever, Mid PTO Gear Shift Lever |
| Front Axle / Chassis | 27 | Brake Pedal, Parking Brake, Differential Lock Pedal, Front Axle Frame, Propeller Shaft, Front Differential Case, Bevel Gear, Differential |
| Steering | 28-29 | Handle, Controller, Linkage, Cylinder (Component Parts), Hydraulic Pump, Regulater Valve, Hydraulic Oil Line, Hydraulic Pipe |
| Point Linkage / Drawbar / Hitch | 30 | Remote Control Valve Lever (Except [G]), Top Link (Except [G]), Lower Link, Lift Rod, Drawbar (Except [G]), Front Hitch, PTO Protector |
| Hood / Bonnet | 31-32 | Front Grille, Bonnet, Bonnet Grille/Side Cover, Front Grille Support (Except [G]), Rear Bonnet Support, Panel Frame, Fender RH (Except [G]), Fender LH (Except [G]) |
| ROPS | 33 | Roll Bar, Comp. Frame Under, LH, RH, Support, Seat Under, Mirror |
Kubota STV32, STV36, STV40 Common Problems This Manual Covers

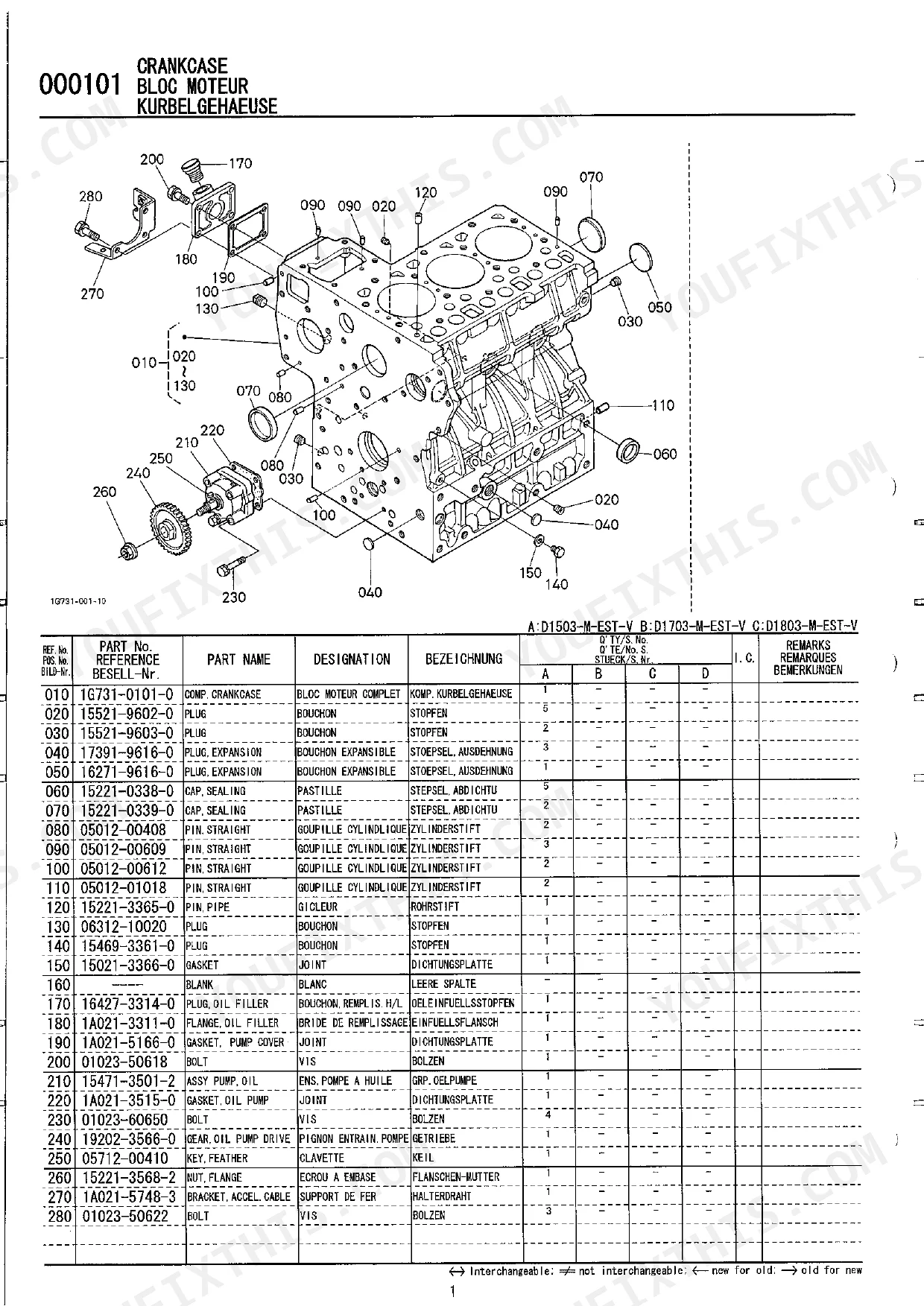

Sourcing engine rebuild parts

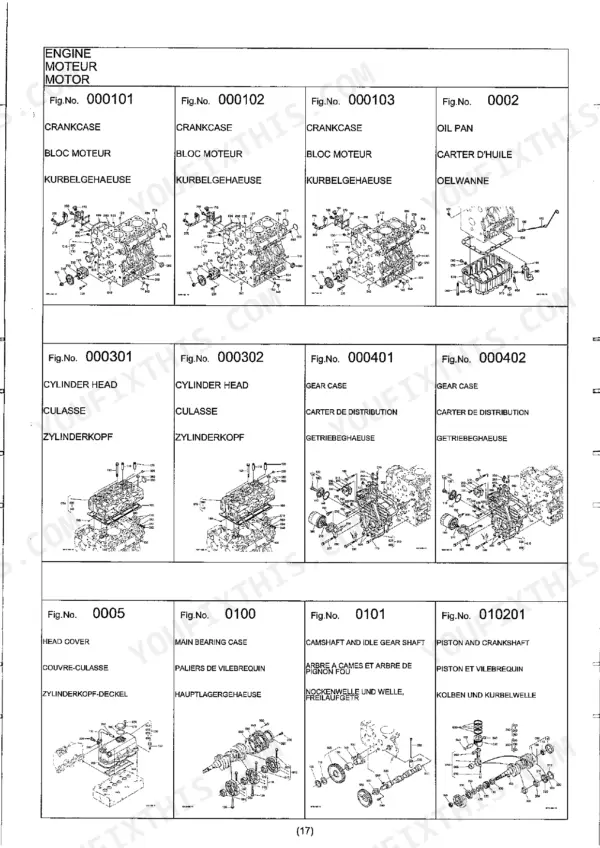

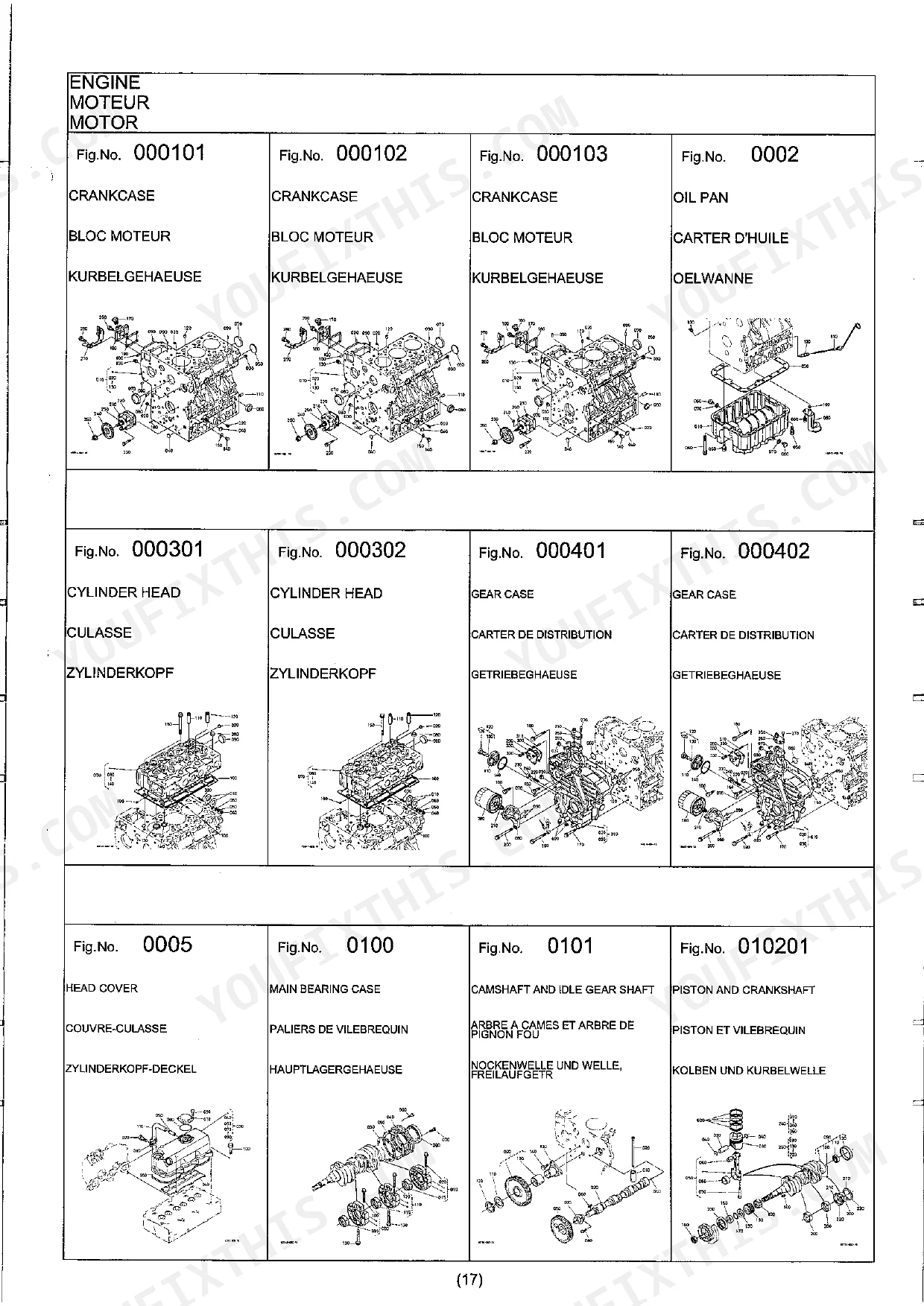

Rebuilding the engine means matching pistons, crankshaft, bearings and gaskets to the right serial range. The Engine section provides exploded diagrams and part numbers for the crankcase, cylinder head, piston and crankshaft.
Manual Section: Engine p. 19Identifying worn clutch components
A clutch overhaul needs the correct disc, housing and HST parts for your build. The Clutch / Transmission section lays out the clutch, clutch housing, transmission case and HST components with their part numbers.
Manual Section: Clutch / Transmission p. 24Ordering fuel system parts

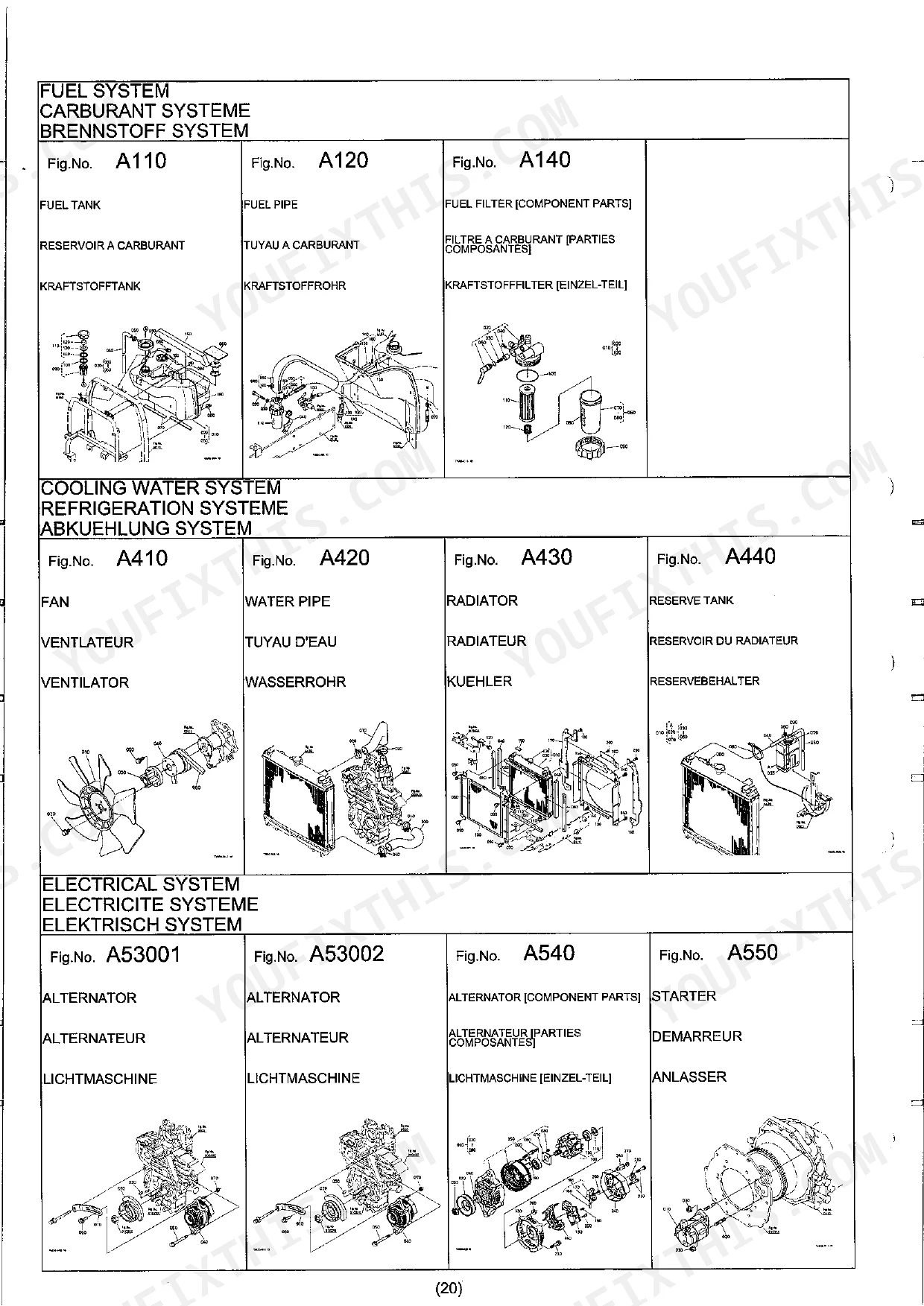

Fuel leaks or a clogged supply often mean replacing the tank, pipe or filter. The Fuel System section shows the fuel tank, fuel pipe and fuel filter component parts so you order the correct pieces.
Manual Section: Fuel System p. 22Steering pump and cylinder parts

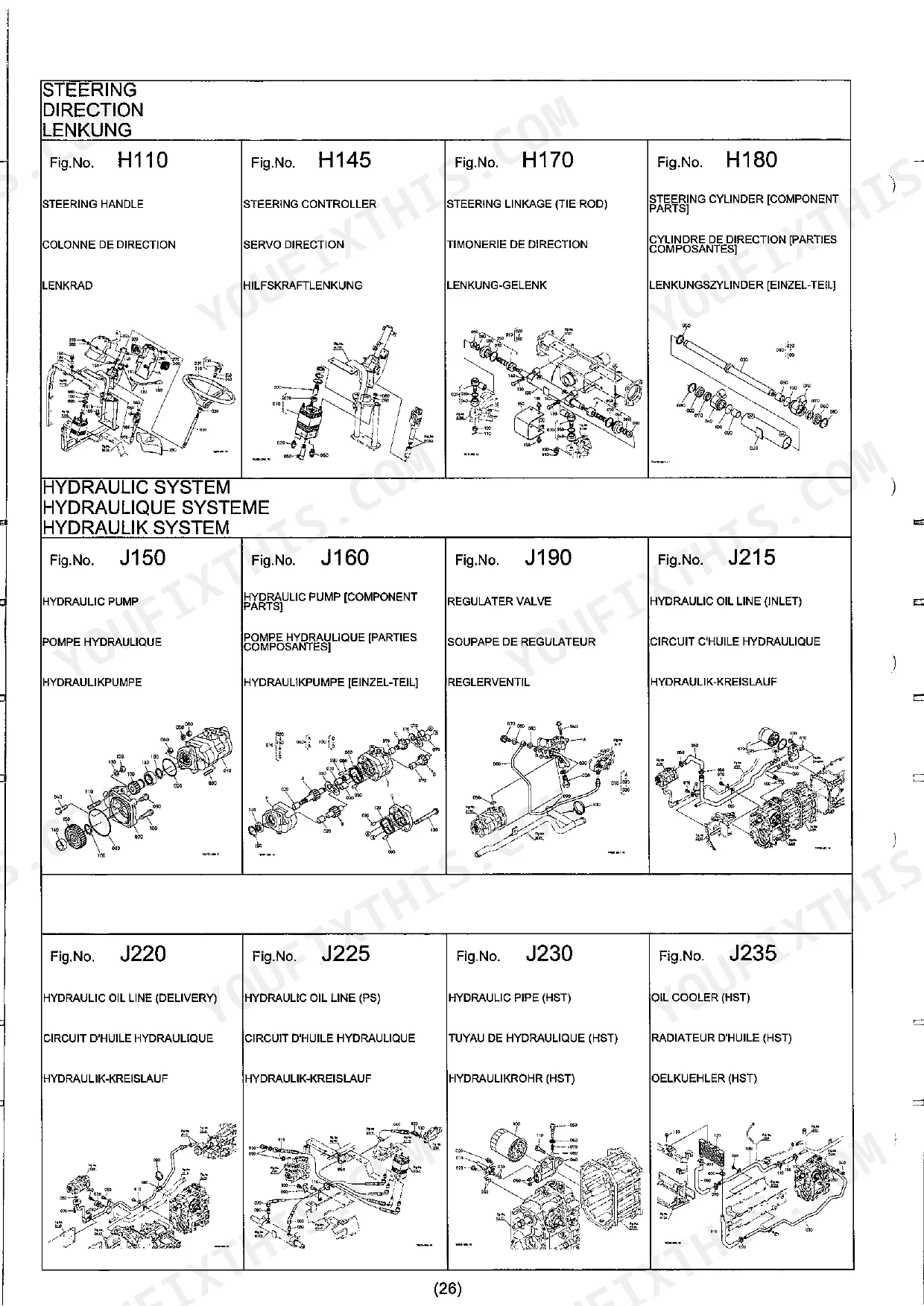

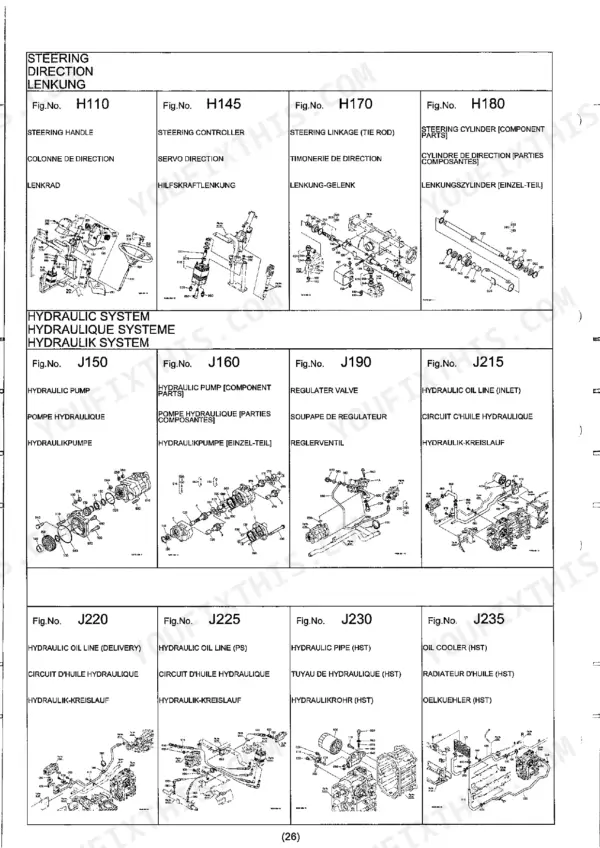

Weak or leaking power steering calls for the right pump, valve or cylinder parts. The Steering section illustrates the handle, controller, linkage, cylinder, hydraulic pump and oil line components for ordering.
Manual Section: Steering p. 28Front axle and bevel gear parts
Play or noise in the front drive means sourcing axle, bevel gear or differential parts. The Front Axle / Chassis section covers the front axle frame, propeller shaft, front differential case and bevel gear.
Manual Section: Front Axle / Chassis p. 27Three-point linkage replacement parts
Bent or worn hitch components need exact replacements to keep implements mounting correctly. The Point Linkage / Drawbar / Hitch section lists the top link, lower link, lift rod and drawbar parts.
Manual Section: Point Linkage / Drawbar / Hitch p. 30Frequently Asked Questions
Which tractors does this parts catalog cover?
It covers the Kubota STV32, STV36 and STV40 compact tractors produced from 1998 to 2012. All three models are listed together, with sister-model and market-specific notes throughout.
What does the catalog contain?
It is an illustrated parts list with exploded diagrams and matching part numbers for every major system, from the engine and fuel system to the transmission, axles, steering, linkage, hood and ROPS.
How do I find the right part for my tractor?
The General Information section explains the serial number locations, model indication and interchangeability notes, so you can confirm which part number applies to your machine and its production changes. p. 2
How is the catalog delivered?
You download the PDF immediately after purchase. Nothing is shipped; the file is yours to keep and reopen every time you need to order parts.
How quickly can I access this Kubota STV32/36/40 manual after buying?
Download it the moment you buy: a 246-page searchable PDF, no shipping and no waiting. It runs on any device, so you can pull it up on your phone right at the machine.
Are there any print restrictions on this Kubota STV32/36/40 manual?
None. The file carries no DRM or copy protection, so print the entire manual or just the pages you need on any home or office printer.
