Ordering parts for a tractor this age means matching numbers to your exact serial range, and this Kubota B4200D Parts Catalog (OEM #11035) is built for that. Of its 156 pages, 120 are exploded-view parts lists spanning every system: crankcase, piston and crankshaft assemblies, injection pump component parts, clutch housing, and the full drivetrain. The electrical breakdown runs 16 pages, splitting dynamo, starter, panel wiring, switches, and lighting by country variant [A] [CA] [FR] [AU]. Hydraulic coverage maps pipe routing, control valve component parts, the lift arm, hydraulic cylinder cap, and 3-point linkage. Every entry is indexed by ref number, part number, quantity, and serial number applicability, so you can confirm which variant fits before you order. Search by part name or number on any device, and jump straight to the system you need.
What's Inside This Kubota B4200D Parts Manual
| System | Pages |
|---|---|

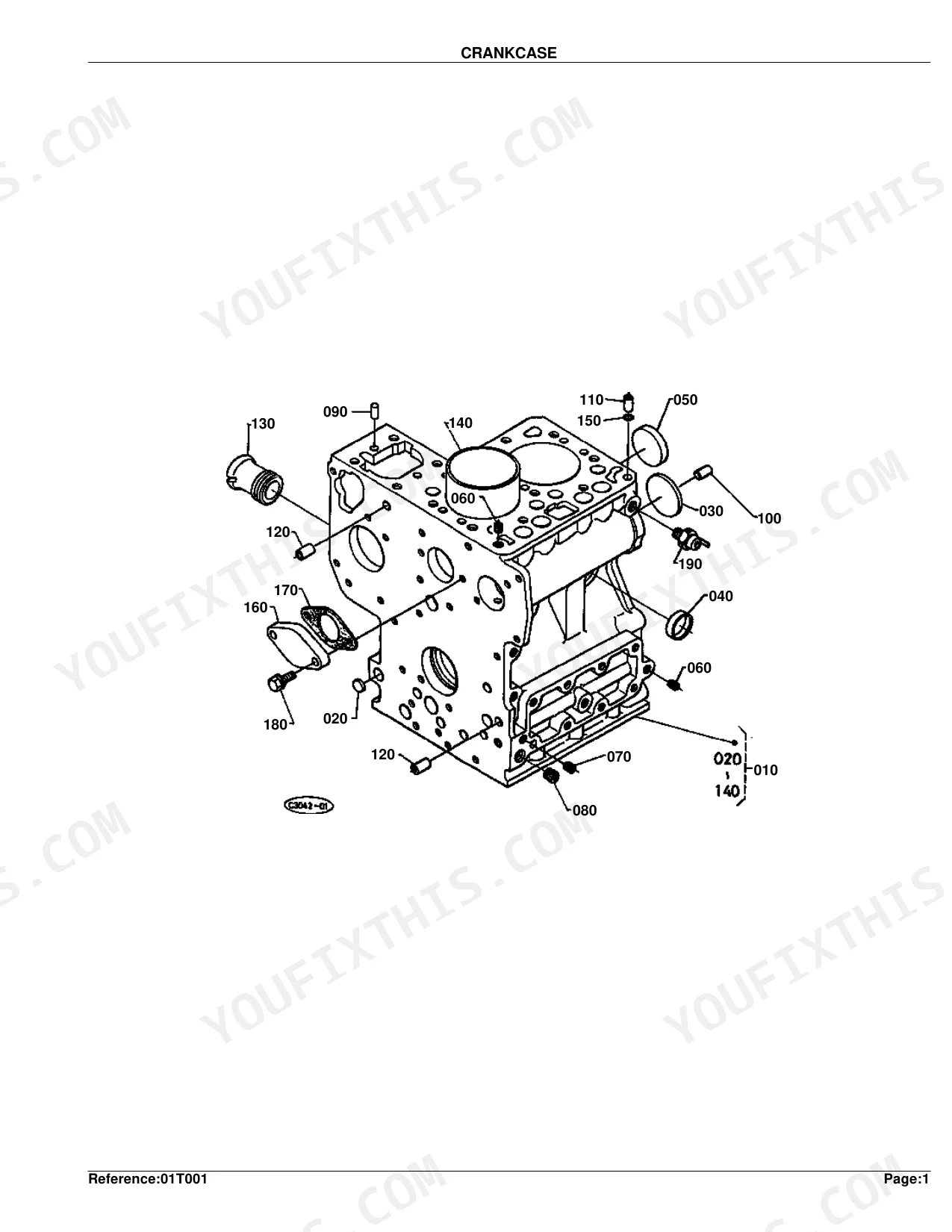

| Crankcase | 5-6 |
| Oil Pan | 7-8 |
| Piston/Crankshaft | 9-10 |
| Main Bearing Case | 11-12 |
| Flywheel | 13-14 |
| Cylinder Head | 15-16 |
| Valve/Rocker Arm | 17-18 |
| Nozzle Holder [A] [CA] [Fr] [AU] | 19-20 |
| Nozzle Holder (Component Parts) | 21-22 |
| Cylinder Head Cover | 23-24 |
| Inlet Manifold | 25-26 |
| Exhaust Manifold | 27-28 |
| Camshaft | 29-30 |
| Gear Case | 31-32 |
| Hydraulic Gear Pump | 33-34 |
| Hydraulic Gear Pump (Component Parts) | 35-36 |
| Fuel Pump | 37-38 |
| Injection Pump | 39-40 |
| Injection Pump (Component Parts) | 41-42 |
| Speed Control Plate | 43-44 |
| Governor | 45-46 |

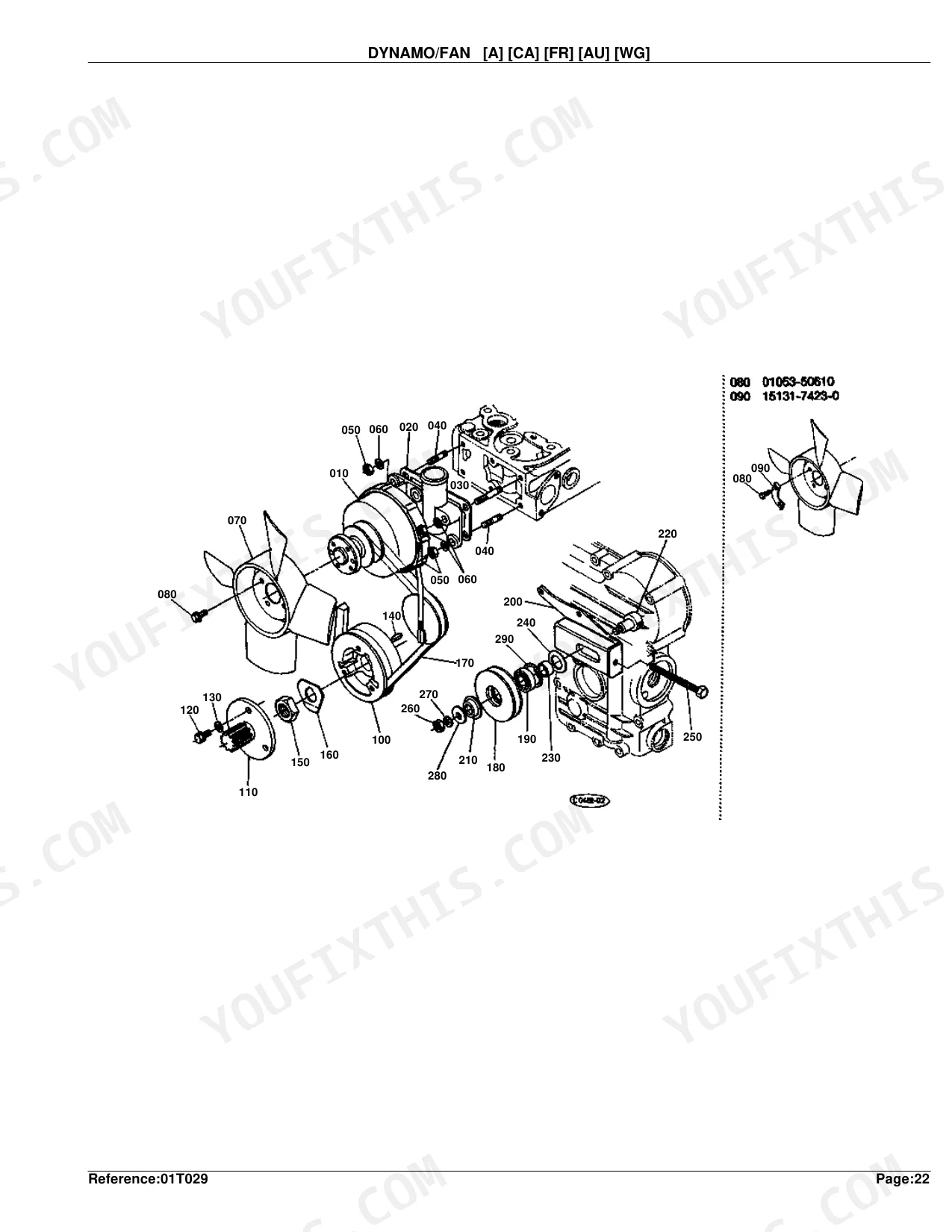

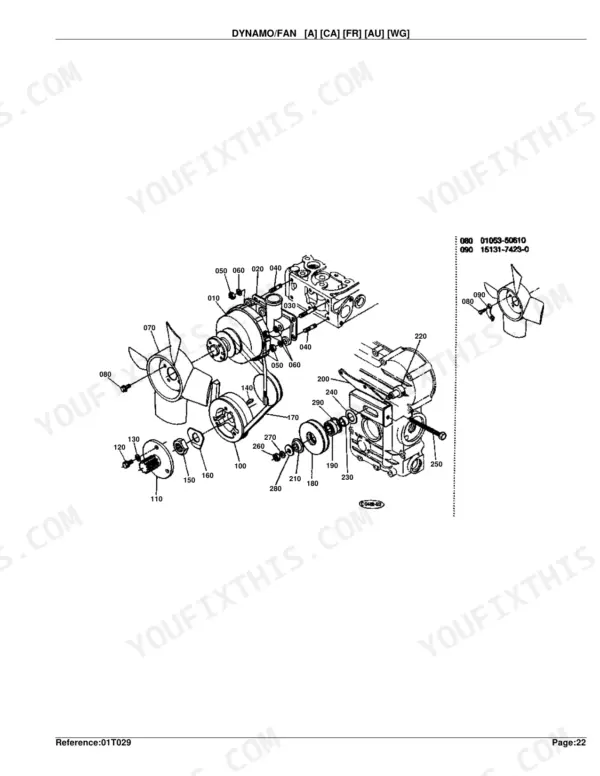

| Dynamo/Fan [A] [CA] [Fr] [AU] [Wg] | 47-48 |
| Dynamo (Component Parts) [A] [CA] [Fr] [AU] [Wg] | 49-50 |
| Clutch | 51-52 |
| Label | 53-54 |
| Air Cleaner | 55-56 |
| Muffler | 57-58 |
| Accelerator | 59-60 |
| Fuel Tank | 61-62 |
| Fuel Filter | 63-64 |
| Radiator | 65-66 |
| Starter | 67-68 |
| Starter (Component Parts) | 69-70 |
| Battery | 71-72 |
| Panel Wiring [A] [CA] | 73-74 |
| Light/Horn [A] [CA] [U] | 75-76 |
| Switch | 77-78 |
| Clutch Pedal/Propeller Shaft | 79-80 |
| Clutch Housing | 81-82 |
| Transmission Case | 83-84 |
| Case Cover | 85-86 |

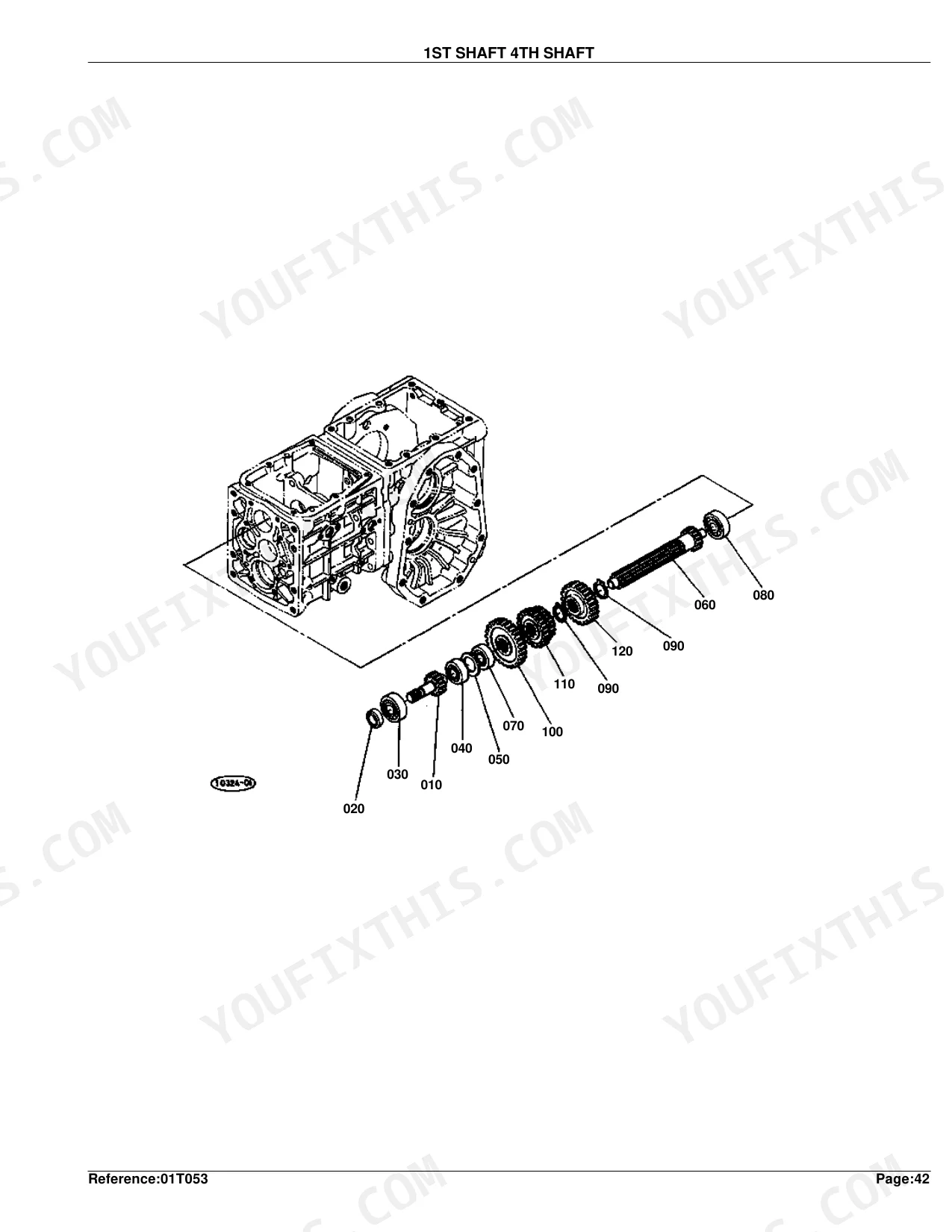

| 1st Shaft 4th Shaft | 87-88 |
| 2nd Shaft Reverse Shaft | 89-90 |
| 3rd Shaft 5th Shaft PTO Shaft [A] [CA] [U] | 91-92 |
| Mid P.T.O. | 93-94 |
| Main Gear Shift Lever | 95-96 |
| Hi-Lo Gear Shift Lever | 97-98 |
| Differential Rear | 99-100 |
| Axle Case | 101-102 |

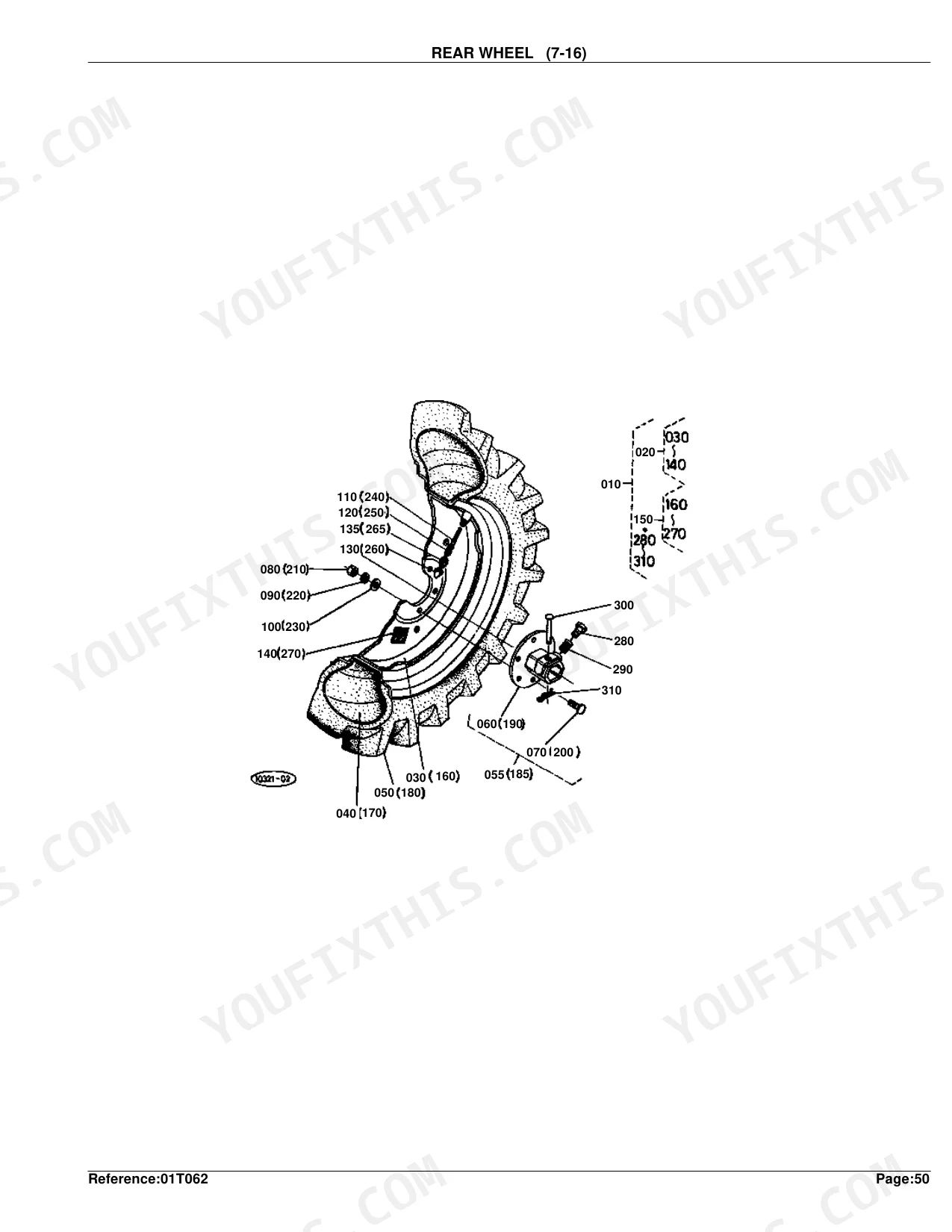

| Rear Wheel (7-16) | 103-104 |
| Rear Wheel (212/80D-15) [A] [CA] | 105-106 |
| Brake | 107-108 |
| Brake Pedal [A] [CA] [Fr] [U] [AU] | 109-110 |
| Drive Shaft | 111-112 |
| Front Axle Case | 113-114 |
| Front Wheel Gear Case | 115-116 |
| Differential Front | 117-118 |
| Front Axle Joint | 119-120 |
| Front Wheel Drive Lever | 121-122 |
| Front Wheel (4.50-10) | 123-124 |
| Front Wheel (20 X 8.00-10) | 125-126 |
| Front Axle Frame [A] [CA] [Fr] [U] [AU] | 127-128 |
| Knuckle Arm | 129-130 |
| Steering | 131-132 |

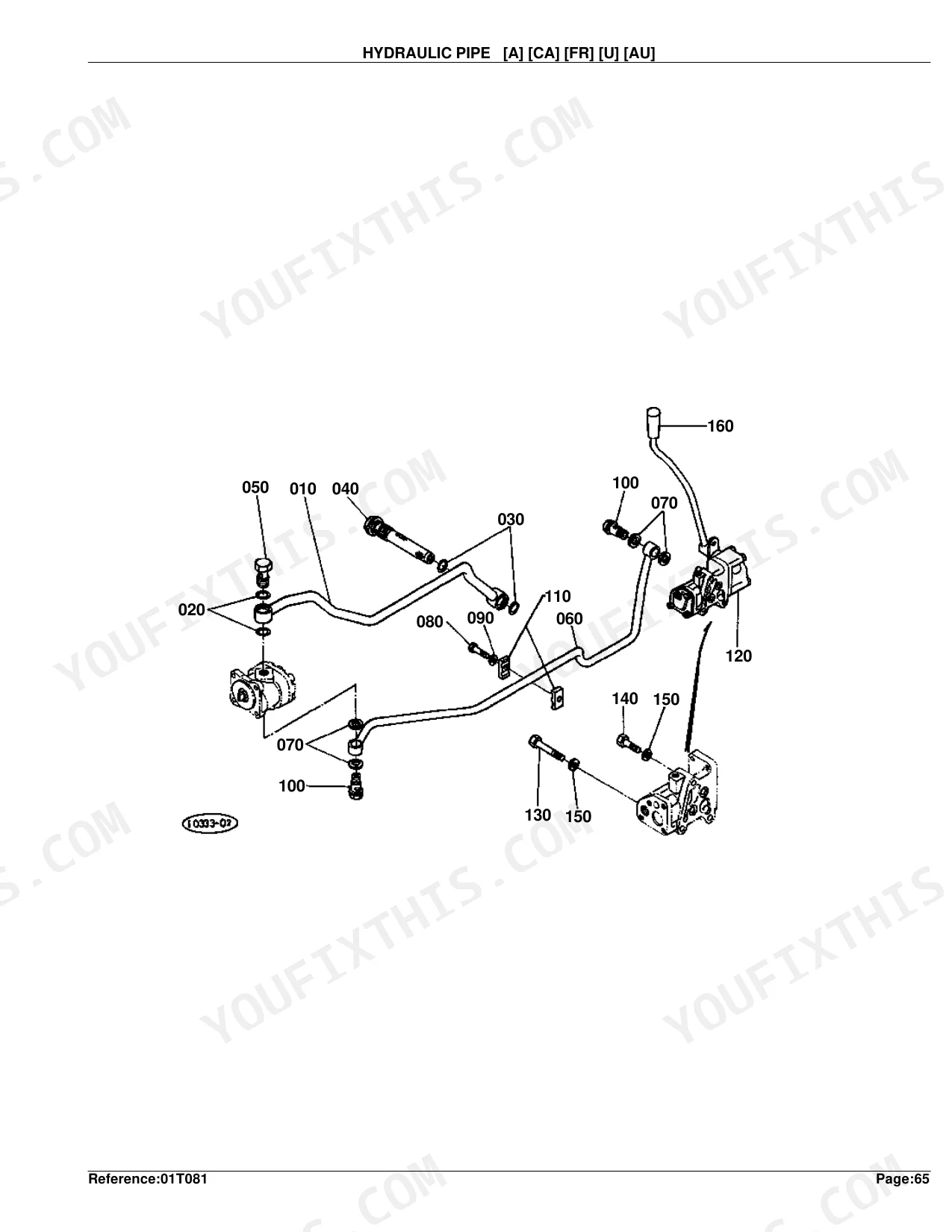

| Hydraulic Pipe [A] [CA] [Fr] [U] [AU] | 133-134 |
| Control Valve (Component Parts) | 135-136 |
| Hydraulic Lift Arm | 137-138 |
| Hydraulic Cylinder Cap | 139-140 |
| 3-Point Linkage [A] [CA] [Fr] [U] [AU] | 141-142 |
| Hood (Bonnet) [A] [CA] [U] | 143-144 |
| Rearview Mirror (Option) [A] [CA] [U] | 145-146 |
| Fender [A] [CA] [Fr] [U] [AU] | 147-148 |
| Seat [A] [CA] [Fr] [U] [AU] | 149-150 |
| Step/Foot Cover | 151-152 |
| Accessories | 156 |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| PISTON (STD) weight | 0.32 kgf | p. 10 |
| PISTON (+0.5MM) weight | 0.33 kgf | p. 10 |
| WASHER ADJUSTING (1.00MM) weight | 0.001 kgf | p. 22 |
| WASHER ADJUSTING (1.95MM) weight | 0.003 kgf | p. 22 |
| 1ST SHAFT 4TH SHAFT GEAR (29T) weight | 0.322 kgf | p. 88 |
| 2ND SHAFT REVERSE SHAFT GEAR (21T) weight | 0.28 kgf | p. 90 |
| 3RD SHAFT 5TH SHAFT PTO SHAFT GEAR (17T) weight | 0.17 kgf | p. 92 |
| MID P.T.O. GEAR (23T) weight | 0.46 kgf | p. 94 |
| DIFFERENTIAL REAR GEAR DIFF.PINION (11T) weight | 0.1 kgf | p. 100 |
| AXLE CASE GEAR (52T) weight | 1.68 kgf | p. 102 |
| REAR WHEEL (7-16) TIRE weight | 11.5 kgf | p. 104 |
| FRONT WHEEL (4.50-10) TIRE weight | 5 kgf | p. 124 |
Kubota B4200D Common Problems This Manual Covers
Kubota B4200D rear differential making clunking noises and specific pinion gear replacement part numbers are unidentified p. 99
Open to page 99 and read the exploded differential view to pull the exact pinion gear part number. The 11T replacement should weigh 0.1 kgf, the figure listed on page 100. Match that number against your serial range before ordering.
Manual Section: Differential RearTransmission slipping out of gear and specific 1st or 4th shaft gear replacement part numbers are unknown p. 88
Trace the transmission case diagrams from page 87 to find the right gear assembly. The 29T gear on page 88 weighs 0.322 kgf, so confirm your replacement matches. Add the lock washers and snap rings shown alongside it to finish the rebuild.
Manual Section: 1St Shaft 4Th ShaftEngine blowing blue smoke and standard size replacement piston part numbers are missing from the workshop manual p. 9
Cross-reference the engine parts diagram on page 9 for the standard piston and ring set numbers. A standard piston runs 0.32 kgf, listed on page 10. Add the wrist pin and clip part numbers so the assembly arrives complete.
Manual Section: Piston/CrankshaftFront tire sidewalls severely cracked and OEM replacement rim or tire part numbers are illegible p. 123
Compare the front wheel assembly layout on page 123 to identify the 4.50-10 tire and rim part numbers. The factory tire spec weighs 5 kgf, shown on page 124. Note the valve stem part number for a proper seal.
Manual Section: Front Wheel (4.50-10)Frequently Asked Questions
What are the replacement specifications for 3-point hitch assembly components?
Three components cover the hitch assembly: the 'ASSY 3-POINT LINKAGE' (Part No. 66494-65100) at 27.6 kgf (60.72 lb), the 'BRACKET TOP LINK' (Part No. 96316-06110) at 1.22 kgf (2.684 lb), and the 'LINK TOP' (Part No. 66706-65332) at 1 kgf (2.2 lb). All sit in the '3-POINT LINKAGE [A] [CA] [FR] [U] [AU]' section.
What are the replacement specifications for top link bracket?
The top link bracket is listed as 'BRACKET TOP LINK' (Part No. 96316-06110), weighing 1.22 kgf (2.684 lb). Look for it in the '3-POINT LINKAGE [A] [CA] [FR] [U] [AU]' section of the manual.
Is this Kubota B4200D Parts Catalog a digital download?
Yes. It's a 156-page Parts Catalog in searchable PDF, ready the moment checkout completes. Open it on a computer, tablet, or phone, with no shipping wait.
Can I print this Kubota B4200D manual?
Go ahead: the PDF carries no DRM. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works fine.
Are hydraulic system diagrams in this Kubota B4200D Parts Catalog?
This is a parts catalog, so it shows exploded parts diagrams rather than circuit schematics. It includes detailed exploded views of the hydraulic components, pump, control valve, cylinder, and oil lines, with OEM part numbers, not wiring-style circuit diagrams.
Document Quality
This document is a high-quality scanned PDF with an accurate OCR layer, enabling full text search and copying. All text, including the detailed part number tables, is crisp, clear, and easy to read. The exploded view diagrams are clear raster images, with part labels and reference numbers generally legible, though they may pixelate if zoomed excessively. Pages are clean with no scan artifacts, but some contain an 'IMAGE NOT AVAILABLE' placeholder where diagrams would typically be.
