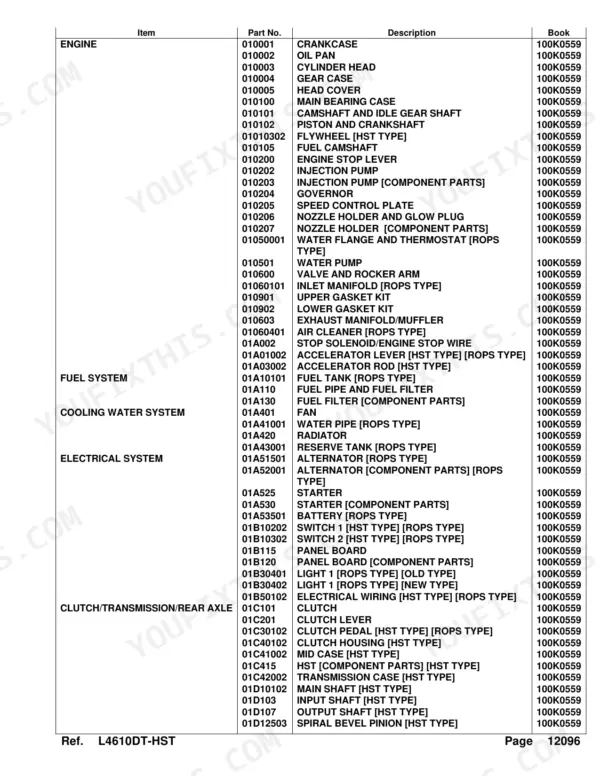

What's Inside This Kubota L4610DT-HST Parts Manual

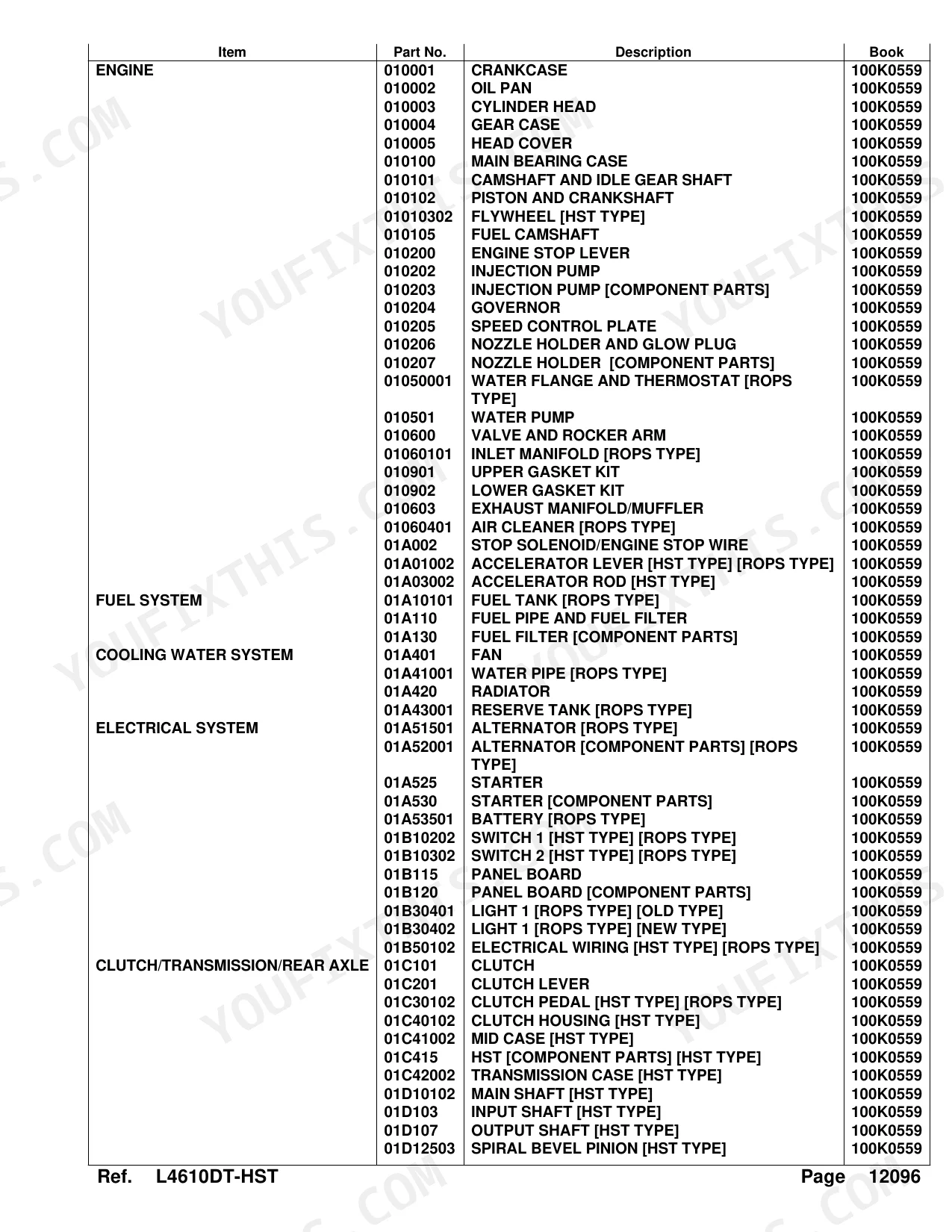

| System | Pages | Key Topics |
|---|---|---|

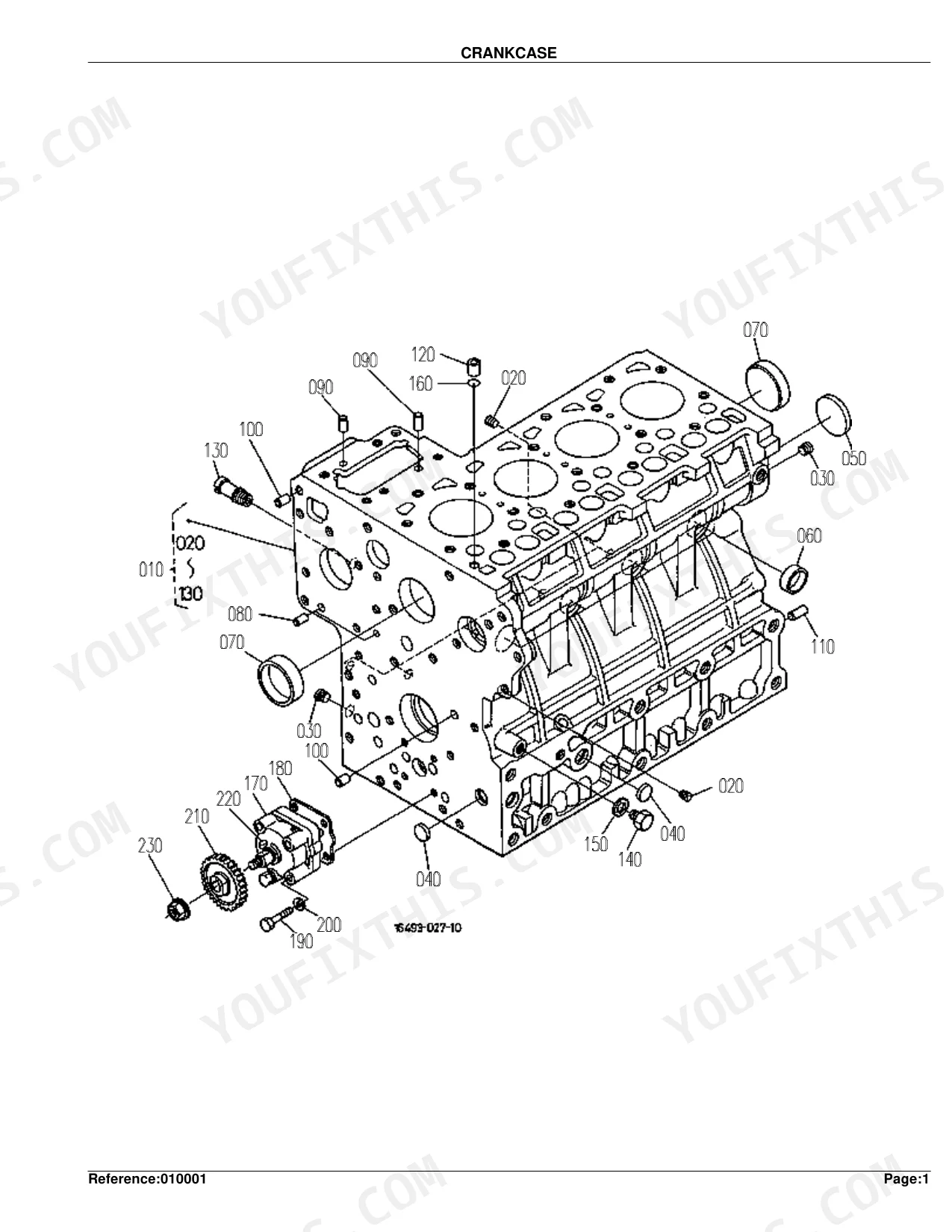

| Crankcase | 6-7 | Cap Sealing, Pipe Water Return, Gasket, O Ring, Assy Pump Oil, Gasket Oil Pump, Gear Oil Pump Drive |
| Oil Pan | 8-9 | Gasket Oil Pan, Filter Oil, O Ring |
| Cylinder Head | 10-11 | Cap Protector, Hook Engine, Cap Sealing, Guide Inlet Valve, Guide Exhaust Valve, Seat Inlet Valve, Seat Exhaust Valve |
| Gear Case | 12-13 | Assy Case Gear, O Ring, Support Oil Filter, Gasket, Cover, Gasket Gear Case, Joint Pipe, Spring |
| Head Cover | 14-15 | Plate B/ther Element, Element Breather, Oil Shield Breather, Joint Breather, Cover Cylinder Head, Gasket Head Cover, Gasket, O Ring |
| Main Bearing Case | 16-18 | Assy Brg.case Wheel, Gasket Bearing Case, Cover Bearing Case, Gasket Brg.case Cover, Seal Oil, Assy Brg.case Main |
| Camshaft and Idle Gear Shaft | 19-20 | Tappet, Push Rod, Assy Camshaft, Gear Camshaft, Stopper Camshaft |
| Piston and Crankshaft | 21-22 | Piston Std, Piston + .5MM, Assy Piston Ring Std, Assy Piston Ring + .5MM, Assy Connecting Rod, Metal Crankpin Std Set, Metal Crankpin - .2MM Set, Crankshaft |
| Flywheel [HST Type] | 23-24 | Flywheel, Gear Ring, Cover, Packing Cover |
| Fuel Camshaft | 25-26 | Assy Camshaft Fuel, Gear Injection Pump, Sleeve Governor, Stopper Fuel C/shaft |
| Engine Stop Lever | 27-28 | Apparatus Idling, Assy Bolt Adjustment, Spring, Gasket, Cap, Assy Lever Eng.stop, Cover Injection Pump, Shaft Lever |
| Injection Pump | 29-30 | Joint Eye, Assy Cock Jet Start, Assy Pump Fuel, Gasket Fuel Pump, Assy Pipe Fuel, Clip Pipe |
| Injection Pump [Component Parts] | 31-32 | Plunger Pump, Valve Delivery, Spring Delivery Valve, Gasket Delivery Valve, Holder Delivery Valve, Assy Plate Lock, Assy Tappet, Plate |
| Governor | 33-35 | Lever Governor, Lever Fork, Shaft Fork Lever, Holder Fork Lever, Spring Start, Spring, Spring Governor |
| Speed Control Plate | 36-37 | Gasket, Lever Speed Control, O Ring, Collar, Plate Speed Control |
| Nozzle Holder and Glow Plug | 38-39 | Kit Holder Nozzle, Gasket, Seal Heat, Pipe Injection, Assy Pipe Over Flow, Assy Tube Fuel, Clip Pipe |
| Nozzle Holder [Component Parts] | 40-41 | Kit Holder Nozzle, Spring Nozzle, Piece Distance, Push Rod, Piece Nozzle, Assy Washer Adjust Option, Gasket, Seal Heat |
| Water Flange and Thermostat [ROPS Type] | 42-43 | Flange Water, Pipe Water Return, Gasket Water Flange, Band Pipe, Cover Thermostat, Gasket Thermostat, Assy Thermostat |
| Water Pump | 44-46 | Assy Pump Water, Body Water Pump, Bearing, Impeller Water Pump, Assy Seal Mechanical, Flange Water Pump, Gasket Water Pump |
| Valve and Rocker Arm | 47-49 | Valve Inlet, Valve Exhaust, Spring Valve, Retainer Valve Sp, Collet Valve Spring Set, Seal Valve Stem, Cap Valve, Assy Shaft R-arm |
| Inlet Manifold [ROPS Type] | 50-52 | Manifold Inlet, Gasket In-manifoludo, Bolt |
| Upper Gasket Kit | 53-54 | Kit Gasket Upper, O Ring, Gasket Cylinder Head, Seal Valve Stem, Gasket, Seal Heat, Gasket Head Cover, Gasket In-manifoludo |
| Lower Gasket Kit | 55-57 | Kit Gasket Lower, Gasket, Gasket Oil Pump, Gasket Oil Pan, O Ring, Seal Oil, Gasket Bearing Case, Gasket Brg.case Cover |
| Exhaust Manifold/Muffler | 58-60 | Manifold Exhaust, Gasket Muffler, Gasket Ex-manifold, Stud |
| Air Cleaner [ROPS Type] | 61-62 | Assy Indicator, Bolt, Clamp |
| Stop Solenoid/Engine Stop Wire | 63-64 | Solenoid Stop, Lever Stop, Wire Engine Stop, Holder Wire, Breaker Stop Wire, Band Cord |
| Accelerator Lever [HST Type] [ROPS Type] | 65-66 | Support Accel.lever, Cap Spring, Spring Accel.lever, Rod Connecting, Spring, Lever Accel.link, Piece Guide |
| Accelerator Rod [HST Type] | 67-68 | Assy Rod Accel, Cushion, Nut, Washer |
| Fuel Tank [ROPS Type] | 69-71 | Assy Cap Fuel Tank, Gasket Tank Cap, Cushion Battery, Cushion, Spacer, Shutter, Plate Fuel Tank, Plate Shutter Not Sale Order By |
| Fuel Pipe and Fuel Filter | 72-74 | Assy Filter Fuel, Assy Tube Fuel, Clip Pipe, Tube, Pipe Fuel |
| Fuel Filter [Component Parts] | 75-76 | Assy Filter Fuel, Assy Body, Handle Filter, Gasket, Retainer Handle, Plate Thrust, O Ring, Ring Retainer |
| Fan | 77-78 | Pulley Fan, V Belt A, Flange Fan |
| Water Pipe [ROPS Type] | 79-80 | Hose, Band, Hose Drain, Band Pipe, Band Cord |
| Radiator | 81-82 | Cap Radiator, O Ring, Rubber, Clip Button, Shield |
| Reserve Tank [ROPS Type] | 83-84 | Tank Reserve, Cap, Gasket, Pipe Water Over Flow, Clip Pipe, Label Caution, Stay Reserve Tank |

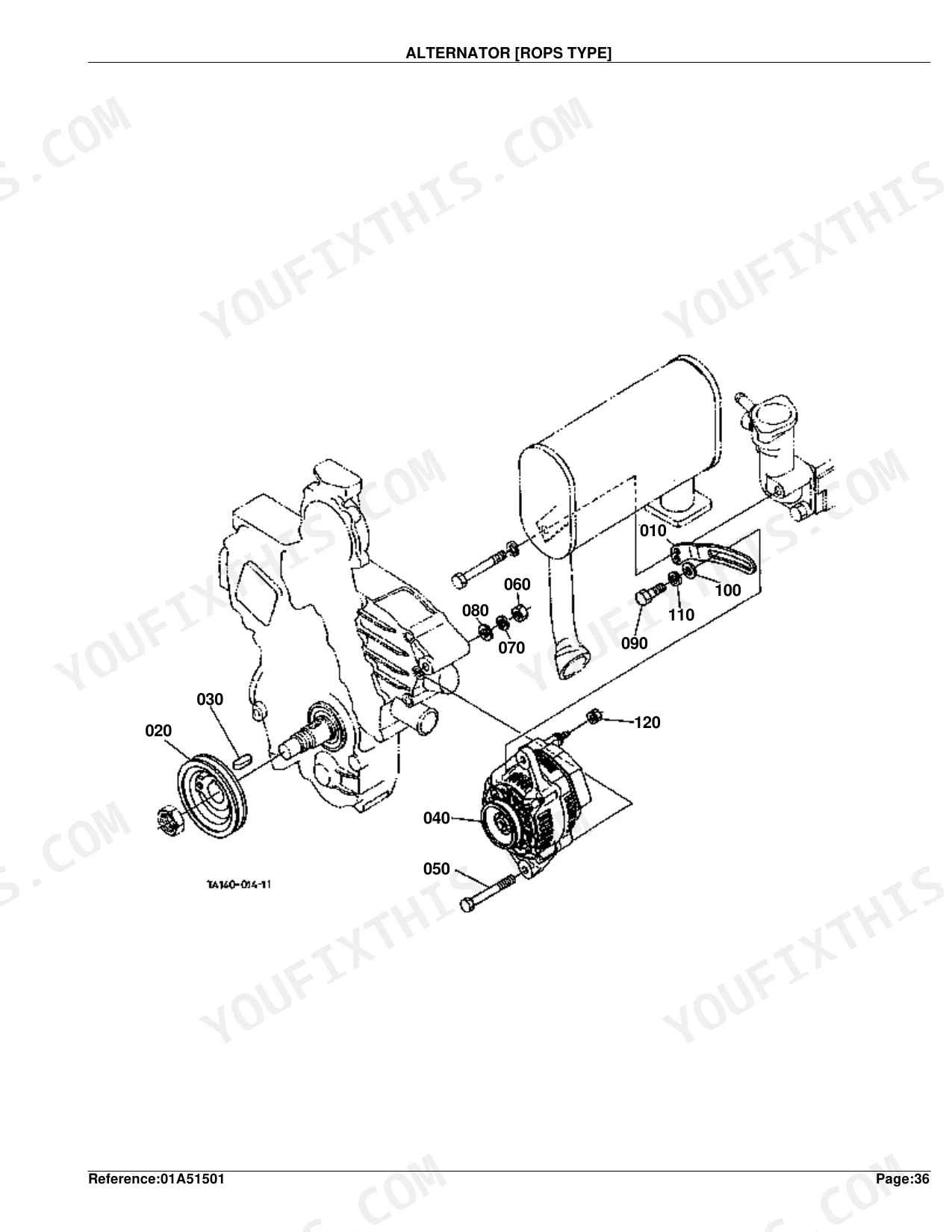

| Alternator [ROPS Type] | 85-87 | Pulley Fan Drive, Assy Alternator, Key, Bolt |
| Alternator [Component Parts] [ROPS Type] | 88-89 | Assy Alternator, Pulley Alternator, Collar, Rotor Not Sale, Rotor, Cover Bearing, Frame Drive End, Plate Retainer |
| Starter | 90-91 | Assy Starter, Stud, Nut, Bolt |
| Starter [Component Parts] | 92-93 | Assy Starter, Assy Yoke, Assy Armature, Bearing, Clutch Over Running, Pinion Bevel, Frame Drive End, Assy Switch Magnetic |
| Battery [ROPS Type] | 94-95 | Battery 80D26R-MF, Cap, Band Cord, Retainer Battery |
| Switch 1 [HST Type] [ROPS Type] | 96-97 | Timer Key Stop, Controller, Relay Glow, Relay Starter, Switch Main, Assy Key Main Switch, Switch Safety |
| Switch 2 [HST Type] [ROPS Type] | 98-100 | Switch Oil, Sensor Thermo, Gasket, Cap Safety Switch |
| Panel Board | 101-102 | O Ring, Plate Panel, Seal Panel, Screw |
| Panel Board [Component Parts] | 103-104 | Glass, Assy Lamp Electric, Bulb .4W, Socket, Plate Window, Lens |
| Light 1 [ROPS Type] [Old Type] | 105-106 | Bulb 25W, Assy Wire Harness, Grille Light RH, Grille Light LH, Assy Light Hazard, Lens Hazard Light, Bulb Light 27W |
| Light 1 [ROPS Type] [New Type] | 107-108 | Bulb 25W, Assy Wire Harness, Grille Light RH, Grille Light LH, Assy Light Hazard, Lens Hazard Light, Bulb Light 27W, Assy Light Combi.rh |
| Electrical Wiring [HST Type] [ROPS Type] | 109-111 | Assy Case Fuse, Fuse 10A, Band Cord, Washer |
| Clutch | 112-113 | Assy Plate Pressure, Pin Straight, Bolt, Comp.Disk Clutch |
| Clutch Lever | 114-115 | Bolt, Pin, Key |
| Clutch Pedal [HST Type] [ROPS Type] | 116-117 | Bush, Seal Oil, Cover Pedal, U Joint, Cushion |

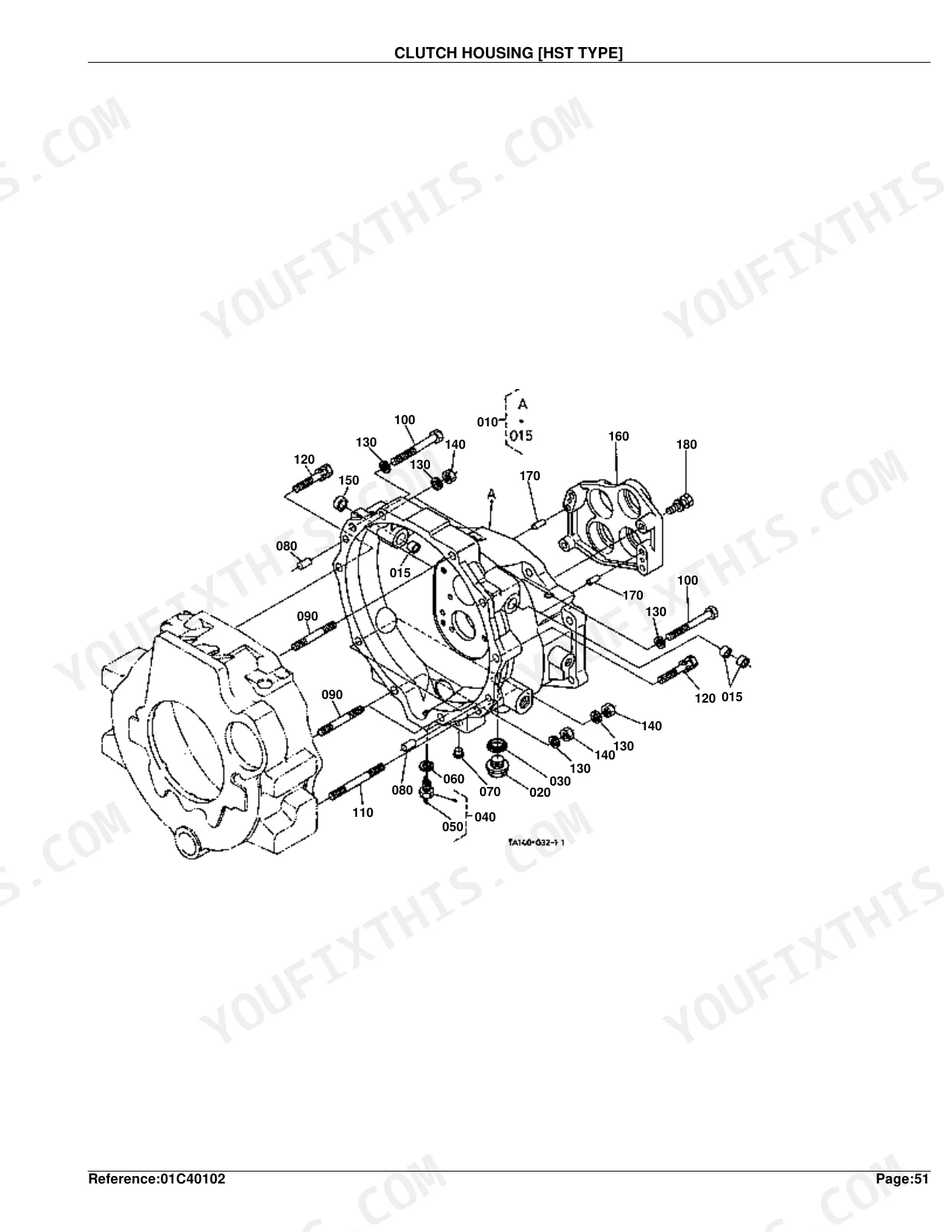

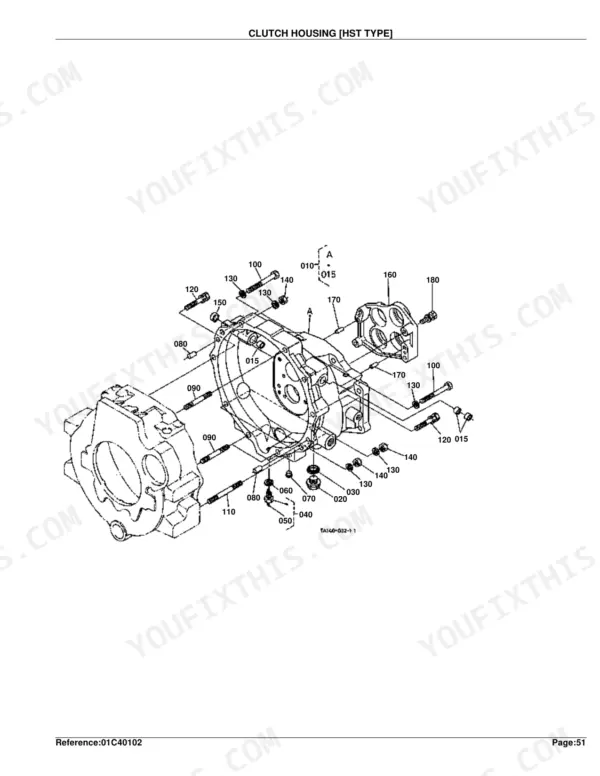

| Clutch Housing [HST Type] | 118-119 | Bush, Holder Bearing, Plug, Washer |
| Mid Case [HST Type] | 120-121 | Pin, Bolt, Washer, Nut |
| HST [Component Parts] [HST Type] | 122-125 | Seal Oil, O Ring, Circlip, Screw |
| Transmission Case [HST Type] | 126-127 | Gauge Oil, Pin, Bolt, Washer |
| Main Shaft [HST Type] | 128-129 | Seal Oil, Ball |
| Input Shaft [HST Type] | 130-131 | Circlip, Ball |
| Output Shaft [HST Type] | 132-133 | Coupling, Pin, Ball |
| Spiral Bevel Pinion [HST Type] | 134-135 | Coupling, Collar Thrust, Case, Bearing Taper-roller, Cover Bearing, Bearing Needle, Gear Creep 46T, Bearing Roller |
| Rear Differential | 136-137 | Shaft Diff.pinion, Pinion Diff, Gear Diff.side RH, Gear Diff.side LH, Shifter Diff.lock, Bearing Taper-roller, Support Diff |
| PTO Clutch [HST Type] | 138-139 | Ball, Bolt, Washer |
| PTO Shaft [HST Type] | 140-141 | Collar Thrust, Bearing Needle, Collar Oil Seal, Case Bearing, Seal Oil, Slinger, O Ring, Cap |
| Range Gear Shift Fork [HST Type] | 142-143 | Spring, O Ring, Stopper, Arm Shift |
| Differential Lock Shift Fork [HST Type][Rops Type] | 144-146 | Fork Diff.lock Shift Not Sale, Fork Diff.lock Shift, Seal Oil, Rod Diff.lock, Spring |
| Rear Axle [ROPS Type] | 147-148 | Axle Rear, Spacer, Seal Oil, Gear 60T, Case Rear Axle |
| Brake | 149-151 | O Ring, Cam Brake LH, Cam Brake RH, Plate Brake Cam LH, Plate Brake Cam RH, Disk Brake, Disk Brake Main, Plate |
| Brake Rod 1 [HST Type] [ROPS Type] | 152-153 | Assy Lever Brake LH, Bush, Assy Lever Brake RH, Shaft Brake LH, Shaft Brake RH, Assy Rod Brake, Rod Brake Lower, Rod Clutch Brake |
| Brake Rod 2 [HST Type] | 154-155 | Rod Brake LH, Rod Brake RH, Pin Joint, Washer Plain, Pin Split |
| Cruise Control Lever [HST Type] | 156-157 | End Rod, Lever Spring, Seal Oil, Bush |
| Cruise Control Cable [HST Type] | 158-159 | Grommet, Washer, Pin |
| Neutral Holder Link [HST Type] | 160-161 | Bush, Shaft Holder, Spring, End Rod |
| Speed Control Pedal [HST Type] [ROPS Type] | 162-163 | End Rod, Bush, Screw, Nut |
| Range Gear Shift Lever [HST Type] [ROPS Type] | 164-165 | Bush, Nut, Bolt, Circlip |
| Range Gear Shift Rod [HST Type] | 166-167 | Lever Range Shift, Pin, Nut |
| PTO Gear Shift Lever [HST Type] | 168-169 | O Ring, Stopper, Grommet, Grip PTO Lever, Spring |
| Front Wheel Drive Lever | 170-171 | O Ring, Stopper, Bolt, Pin |
| Brake Pedal [HST Type] [ROPS Type] | 172-173 | Shaft Pedal, Support Pedal Shaft, Seal Oil, Bearing Needle, Spring, Spring Lock, Cover Pedal |

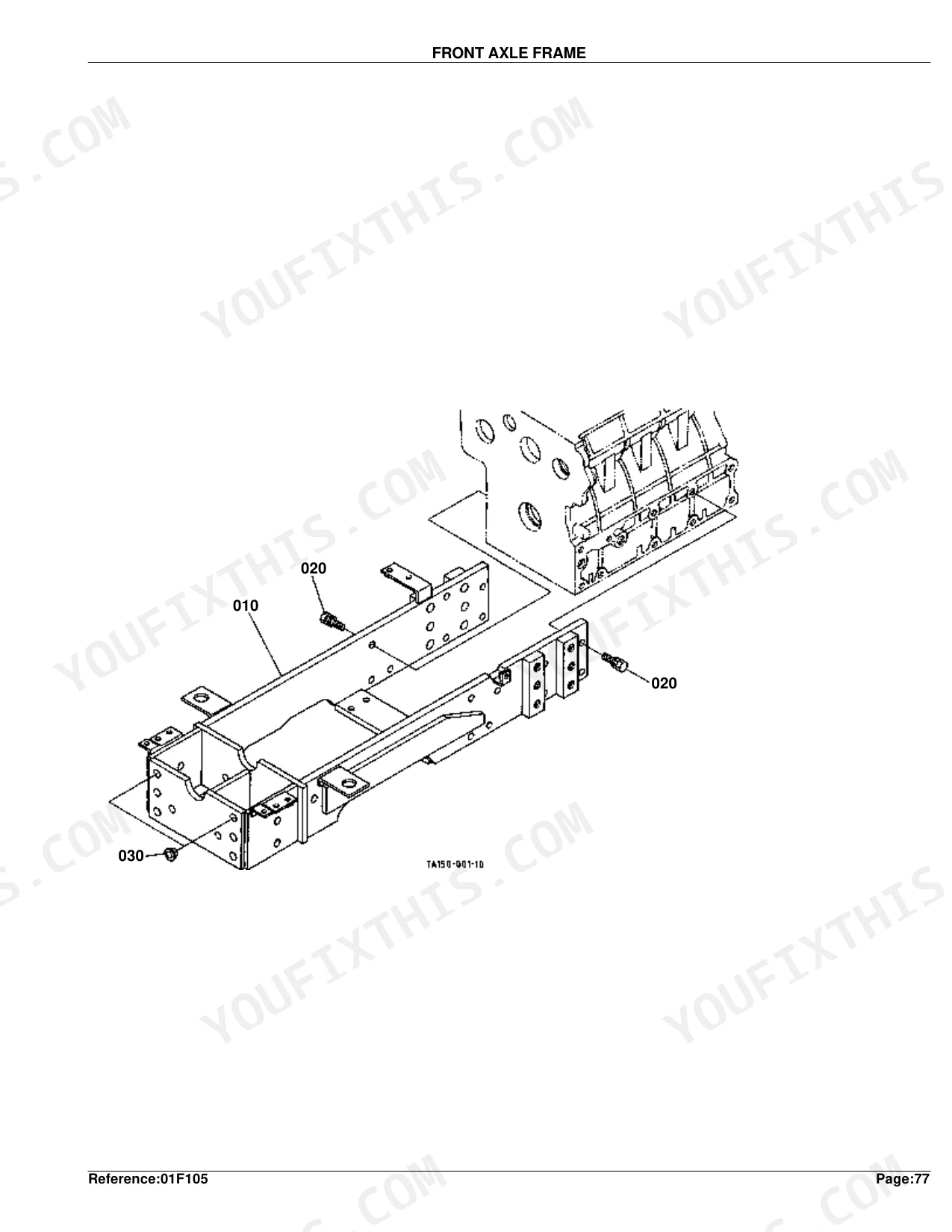

| Front Axle Frame | 174-175 | Comp.Frame F-Axle, Bolt, Plug |
| Propeller Shaft | 176-178 | Coupling, Collar, Seal Oil, Sleeve, O Ring |
| Front Wheel Drive Shaft | 179-180 | Spring, Ball |
| Front Differential Case | 181-182 | Gasket, O Ring, Nipple Grease, Collar Thrust |
| Bevel Gear (Front) | 183-184 | Bearing Taper-roller, Collar .8MM, Circlip |
| Differential(Front) | 185-186 | Shaft Pinion, Pinion Diff. 12T, Collar Pinion Thrust, Pin |
| Front Axle Case | 187-188 | Nipple Grease, Bolt, Plug, Washer |
| Differential Gear Shaft | 189-190 | O Ring, Pin, Bolt, Plug |
| Front Axle | 191-192 | Axle Front, Collar, Seal Oil, O Ring |
| Steering Handle [HST Type] [ROPS Type] | 193-194 | Cover Handle Post, Bush Post, Coupling Steering, Shaft Joint, Lever Tilt, Holder Tilt, Grip, Assy Wheel Steering |
| Steering Controller | 195-197 | Seal Oil, O Ring, Adapter Cylinder, Joint, Joint Pipe |
| Steering Cylinder | 198-199 | Clip, Cover Dust, Joint Tie Rod, Ring Set |
| Steering Cylinder [Component Parts] | 200-201 | Cylinder Hydraulic, Kit Head Hyd.Cyl., Kit Seal, O Ring, Seal, U-Ring |

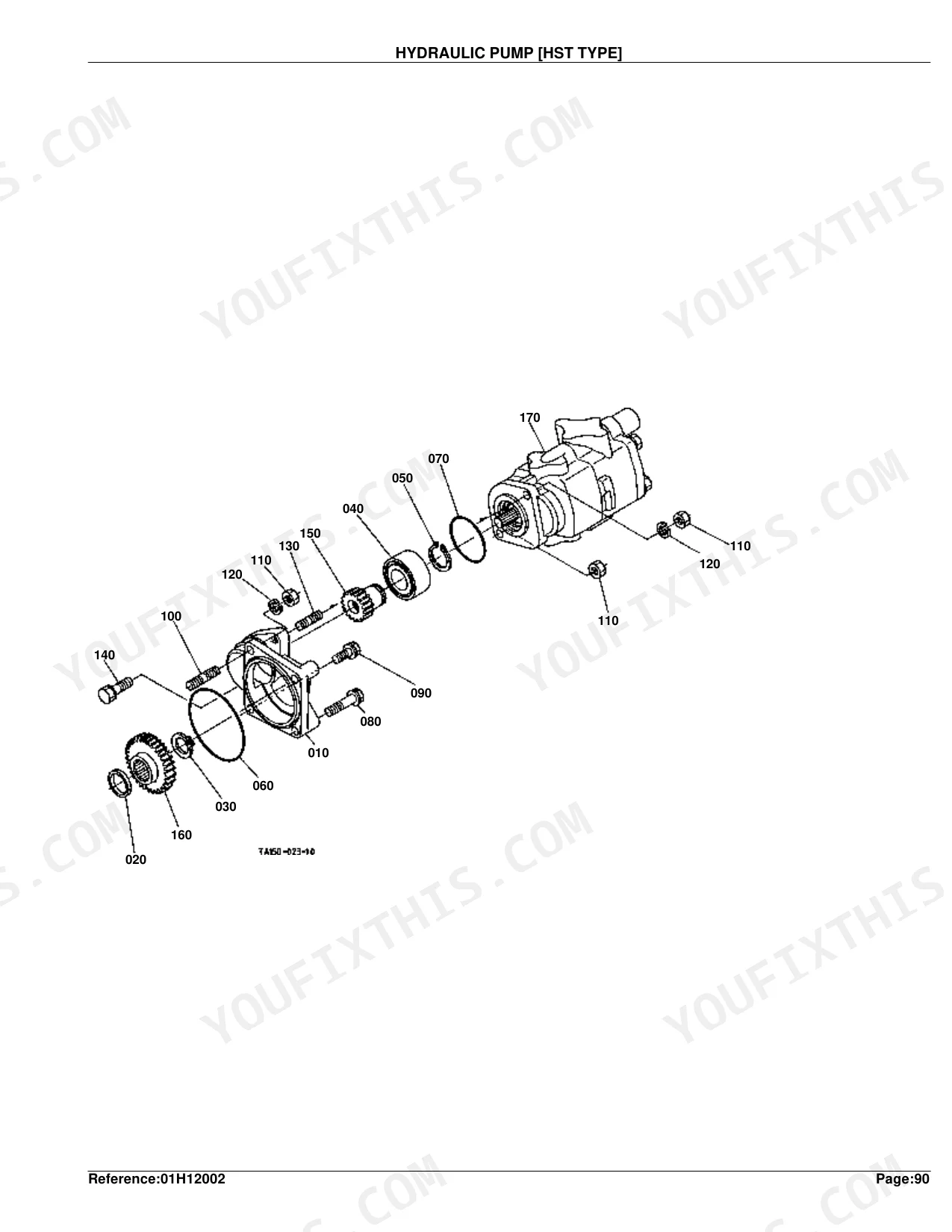

| Hydraulic Pump [HST Type] | 202-203 | Holder Pump, Collar, O Ring, Circlip |
| Hydraulic Pump [Component Parts] [HST Type] | 204-205 | Gear Hydraulic Pump, Square Ring, Seal Oil, Coupling, O Ring |
| Hydraulic Oil Line(Inlet) [HST Type] | 206-207 | Cartridge Oil Filter, Ring, O Ring, Band Pipe |
| Hydraulic Oil Line(Delivery) [HST Type] | 208-209 | O Ring, Joint, Gasket, Bolt |
| Hydraulic Oil Line(Ps) [HST Type] | 210-211 | Joint, Gasket, Adapter Cylinder, Band Cord, Band Pipe, Spring Protector, Assy Hose Return |
| Hydraulic Outlet Block [HST Type] | 212-214 | O Ring, Spring Relief, Seat Relief Valve, Poppet, Joint, Joint Pipe |
| Hydraulic Pipe [HST Type] | 215-216 | O Ring, Filter, Adapter, Bolt |
| Oil Cooler [HST Type] | 217-218 | Tube, Joint, O Ring, Band Pipe, Rubber Protector |
| Hydraulic Cylinder | 219-221 | Gasket, Breather, O Ring, Plug |
| Lift Arm | 222-223 | Piston Hydraulic, O Ring, Ring Back Up, Rod Hydraulic, Bush, Collar, Link Control |
| Feed Back Lever | 224-226 | Joint Spool, Lever Spool Drive, Arm Control, O Ring, Set Plate, Spring Plate, Shaft Back Lever, Lever Feed Back |
| Control Valve | 227-229 | Cover Cylinder Front, O Ring, Collar Adjusting, Shaft, Grip, Spring, Assy Valve Control, Assy Bolt C/v |
| Control Valve [Component Parts] [Old Type] | 230-231 | Assy Valve Control, Spring Spool, Holder Spring, Poppet, Spring, O Ring, Plate, Ring Back Up |
| Control Valve [Component Parts] [New Type] | 232-233 | Assy Valve Control, Spring Spool, Holder Spring, Poppet, Spring, O Ring, Plate, Sleeve |
| Position Control Lever [ROPS Type] | 234-236 | Grip Lever w/ O Draft, Stopper, Pin, Bolt |
| Top Link | 237-238 | Assy Link Top, Nipple Grease, Joint Top Link, Nut |
| 3-Point Linkage 1(Lower Link) [Old Type] | 239-241 | Ring Snap, Pin, Washer, Nut |
| 3-Point Linkage 1 (Lower Link) [New Type] | 242-243 | Spring, Washer, Nut, Pin |
| 3-Point Linkage 2(Lift Rod) | 244-245 | Joint Gear Case, Case Lift Rod Gear, Handle Lift Rod, Stopper Handle, Nipple Grease, Pipe, Rod Lift LH, Ring Snap |
| Drawbar | 246-248 | Holder Top Link RH w/ O Draft, Holder Top Link LH w/ O Draft, Bolt |
| PTO Protector [ROPS Type] | 249-250 | Spring Plate, Bolt, Washer, Nut |
| Front Grille | 251-252 | Sponge, Grille Front, Cushion, Rubber Release Rod, Spacer |
| Front Grille Support [HST Type] [ROPS Type] | 253-255 | Bolt, Washer |

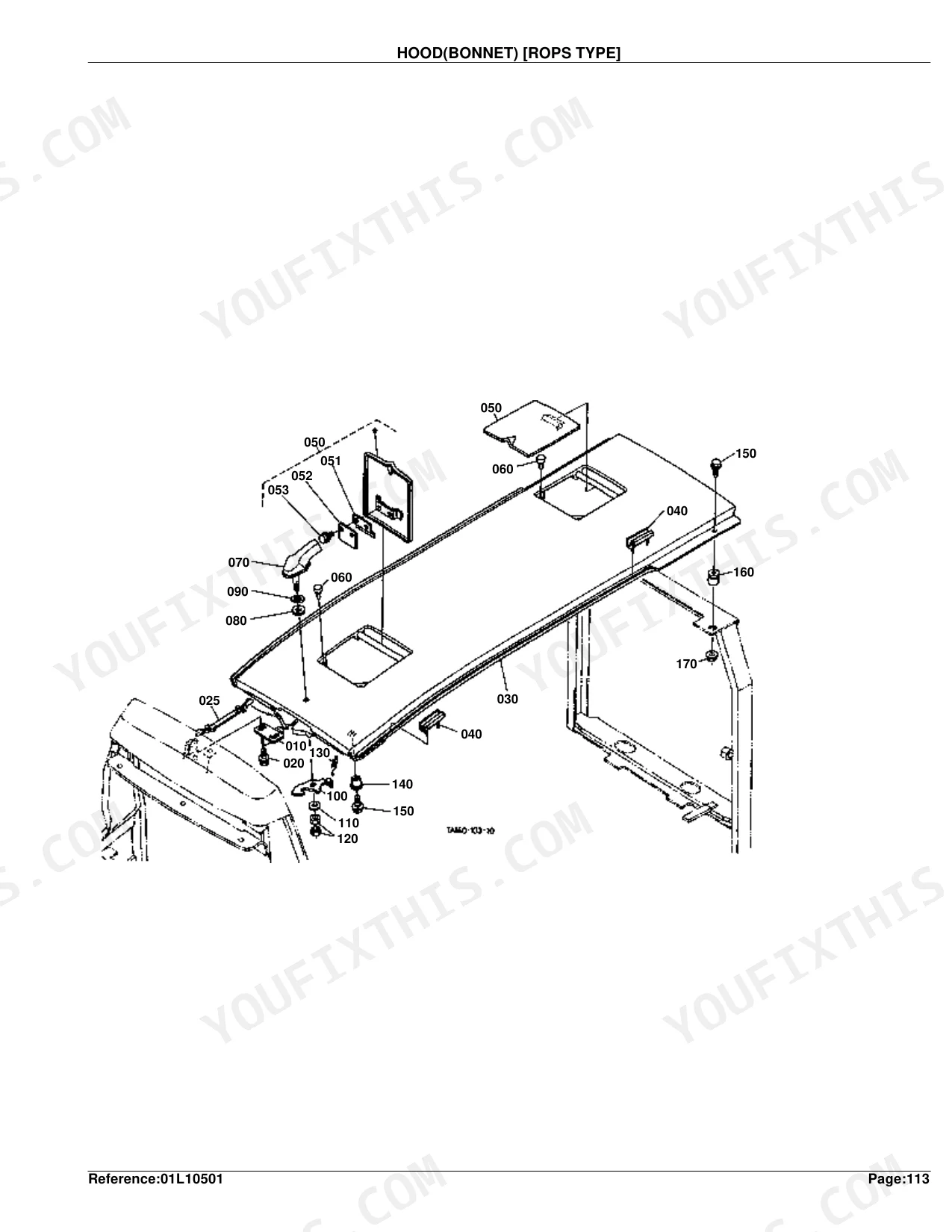

| Hood(Bonnet) [ROPS Type] | 256-257 | Striker Front Grille, Suspender, Cover Bonnet, Spring Bonnet Cover, Cushion, Handle Mascot, Lock Front Grille, Spring Lock |
| Hood(Bonnet) Side RH | 258-259 | Holder, Grip Handle, Hook Bonnet, Bonnet Side RH |
| Hood(Bonnet) Side LH | 260-261 | Holder, Grip Handle, Hook Bonnet, Cover Muffler Pipe, Bonnet Side LH |
| Side Cover Lower [ROPS Type] | 262-263 | Cover RH, Kit Cover Lh(A), Kit Cover Lh(B), Bolt Flange, Rubber Block, Label Start Caution |
| Shutter Plate [ROPS Type] | 264-266 | Plate Shutter, Cushion, Shield, Washer |
| Panel Frame [HST Type] [ROPS Type] | 267-268 | Bonnet, Cover Panel Under, Bearing Needle, Seal Oil, Stay.panel Frame, Bracket Panel Cover, Cap, Grommet |
| Fender [HST Type] [ROPS Type] | 269-271 | Cap Rubber, Plate Fender LH, Plate Fender RH, Grip, Label Safety English |
| Floor Seat [HST Type] [ROPS Type] | 272-273 | Cover Tools Box, Spring Cord Straight, Cushion, Cover Floor Seat |
| Seat [ROPS Type] | 274-275 | Pin, Bolt, Nut |
| Seat Suspension [Component Parts] | 276-277 | Assy Suspension, Frame Suspension, Shaft, Spring Suspension, Knob Adjust, Cushion |
| Step [HST Type] [ROPS Type] | 278-279 | Cushion, Rubber Block, Washer, Bolt |
| ROPS [ROPS Type] [Old Type] | 280-281 | Frame LH, Frame RH, Connector ROPS, Hex.bolt |
| ROPS [ROPS Type] [New Type] | 282-283 | Frame LH, Frame RH, Connector ROPS, Manual Instruction |
| Smv Emblem | 284-285 | Smv Sign Kit, Sign Smv, Socket Smv Sign, Bolt Square Neck, Nut, Spade Smv Sign |
| Front Wheel (8.3-16) | 286-287 | Assy Tire, Assy Tire LH, Wheel, Label Tire LH, Assy Tire RH, Label Tire RH |
| Front Wheel (10-16.5) | 288-289 | Tire, Stud, Nut |
| Front Wheel (27*8.5-15) | 290-291 | Assy Front Wheel, Tire, Wheel, Label Tire, Stud, Nut |
| Front Wheel (29*12.50-15) | 292-293 | Assy Tire, Wheel, Label Tire, Stud |
| Rear Wheel (13.6-24) | 294-296 | Assy Rear Wheel, Assy Rear Wheel RH, Tire, Tube, Rim, Assy Disk, Label Tire RH, Assy Rear Wheel LH |
| Rear Wheel (14.9-24) | 297-299 | Assy Tire, Rim, Assy Disk, Bolt |
| Rear Wheel (17.5-24) | 300-302 | Rim, Disk, Hex.nut, Bolt |
| Rear Wheel (41*14.00-20) | 303-305 | Assy Rear Wheel, Assy Tire Rear, Wheel, Label Tire |
| Rear Wheel (21.5L-16.1) | 306-308 | Assy Tire, Wheel, Label Tire, Bolt |
| Label 1 [HST Type] [ROPS Type] | 309-310 | Label Front Grille, Label Key Stop English, Label Key Stop French, Label Fan Belt, Name Plate Not Sale |
| Label 2 [HST Type] [ROPS Type] | 311-312 | Label, Label Safety English, Label Hydraulic Block |
| Accessories and Service Parts | 313 | Assy Key Main Switch ROPS Type, Bolt, Nut, Stud |
| Air Cleaner Cover Kit [Option] | 314-315 | Kit Cover Air Cleane, Cover Air Cleaner, Bolt Flange, Washer Plain |
| Position Control Lever (with Draft) [Option] | 316-318 | Bush, Spring Plate, Gasket, Spring, Grip Lever, Manual Assembly |
| Draft Control Lever (with Draft) [Option] | 319-320 | Bush, Gasket, Spring Plate, Grip Lever |
| Top Link Holder (with Draft) [Option] | 321-323 | Comp Holder Top Link, Nipple Grease, Bush, Nut |
| Swinging Drawbar/Clevis Drawbar [Option] | 324-326 | Drawbar, Hitch Drawbar, Bolt, Washer |
| Remote Control Valve Lever 1 [ROPS Type] [Option] | 327-328 | O Ring, Grip Lever, Bolt, Washer |
| Remote Control Valve Lever 2 [ROPS Type] [Option] | 329-330 | O Ring, Grip Lever, Bolt, Washer |
| Remote Control Valve Lever 3 [ROPS Type] [Option] | 331-332 | O Ring, Grip Lever, Bolt, Washer |
| Remote Control Valve Coupler 1 [Option] | 333-334 | Adapter, O Ring, Assy Coupler Female, Support Coupler, Assy Coupler Male, Cap |
| Remote Control Valve Coupler 2 [Option] | 335-336 | Adapter, O Ring, Assy Coupler Female, Support Coupler, Assy Coupler Male, Cap |
| Remote Control Valve Coupler 3 [Option] | 337-338 | Adapter, O Ring, Assy Coupler Female, Support Coupler, Assy Coupler Male, Cap |
| ROPS [ROPS Type] [Option] [Old Type] | 339-340 | Frame LH, Frame RH, Upper Frame U, Bolt |
| ROPS [ROPS Type] [Option] [New Type] | 341-342 | Frame LH, Frame RH, Upper Frame U, Manual Instruction |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| COMP.CRANKCASE Weight | 49 kgf | p. 7 |
| OIL PAN Weight | 4.1 kgf | p. 9 |
| COMP.CYLINDER HEAD Weight | 19.1 kgf | p. 11 |
| ASSY CASE GEAR Weight | 4.2 kgf | p. 13 |
| COMP.FLYWHEEL Weight | 29.8 kgf | p. 24 |
| ASSY PUMP INJECTION Weight | 2.5 kgf | p. 30 |
| ASSY RADIATOR Weight | 4.1 kgf | p. 82 |
| ASSY STARTER Weight | 3.65 kgf | p. 91 |
| CASE MID HST Weight | 34 kgf | p. 121 |
| ASSY DIFFERENTIAL Weight | 6.2 kgf | p. 137 |
| AXLE REAR Weight | 11 kgf | p. 148 |
| ASSY SEAT Weight | 9.6 kgf | p. 275 |
Kubota L4610DT-HST Common Problems This Manual Covers
Hydrostatic drive loses movement and creeps weakly when you push the forward pedal p. 120
Check the exploded view on page 120 to pin down the hydrostatic transmission components, then match the filter part numbers to your serial number. Swapping the whole mid case means handling 34 kgf, so factor that into shipping.
Manual Section: Mid Case [Hst Type]Oil leakage spotted around the engine block base and front gear case p. 6
Inspect the engine diagram on page 6 for the right plug and cap sealing identifiers, and cross-reference the wear pins and gaskets against your serial range. The full crankcase assembly runs 49 kgf, so budget for the freight.
Manual Section: CrankcaseFront axle engagement grinds and fails to lock into four wheel drive mode p. 174
Review the chassis diagram on page 174 to locate the front axle frame components, then match the engagement linkage and bearing numbers to your cab variant. A complete rear axle assembly, by contrast, weighs 11 kgf.
Manual Section: Front Axle FrameOperator seat cushion is torn and the suspension base bottoms out over rough terrain p. 274
Confirm the seat component part numbers on page 274 before you order, and check the applicability notes so the hinge and suspension assemblies fit your ROPS variant. The complete seat assembly weighs 9.6 kgf.
Manual Section: Seat [Rops Type]Frequently Asked Questions
What transmission does the Kubota L4610DT-HST use?
The L4610DT-HST runs a Hydrostatic Transmission, which the model name itself makes clear. The parts book backs this up with dedicated sections such as "HST [COMPONENT PARTS] [HST TYPE]" on page 122.
How do I find Kubota L4610 parts by serial number?
Start with the "S.No." column in the parts list. When an entry shows ">=", your equipment's serial number needs to be greater than or equal to the number listed. When it shows "<=", your serial number should fall at or below the number shown.
What are the replacement specifications for hydrostatic transmission filters?
Two filters appear in the book. The "CARTRIDGE OIL FILTER" (Part No. T0070-37710) sits in the "HYDRAULIC OIL LINE(INLET) [HST TYPE]" section on page 207 at 0.725 kgf (1.595 lb). A "FILTER OIL" (Part No. TA240-59900) shows up in the "OIL COOLER [HST TYPE]" section on page 218 at 0.955 kgf (2.101 lb). Replacement procedures and torque specs, though, aren't included in this parts manual.
What are the replacement specifications for seals and gaskets?
For seals and gaskets, the book gives part numbers and weights. One example: the "GASKET CYLINDER HEAD" (Part No. 19077-03310) at 0.13 kgf (0.286 lb) on page 54. What it doesn't include is replacement procedures or torque specs for those parts.
How quickly can I access this Kubota L4610DT-HST manual after buying?
The 342-page searchable PDF downloads the moment checkout clears. Open it on a laptop, tablet, or phone and take it straight to the shop floor.
Are there any print restrictions on this Kubota L4610DT-HST manual?
Yes. Print as many copies as you like; there are no restrictions. Plenty of mechanics run off only the section they need for the job at hand.
Reviews
There are no reviews yet.
