Part of the Kubota Operator Manuals.
This is the factory operator's manual for the Kubota LA434 front loader, a 44 page PDF covering the loader that mounts to a suitable Kubota tractor. It walks through mounting, everyday operation, and the maintenance that keeps the loader working safely.Inside you get full loader and bucket specifications, dimensional and operational figures, and step by step guidance for filling, lifting, carrying, and dumping loads, plus operating with float control and working from a bank or pile. Pre-operation checks cover lubrication, transmission fluid, rear ballast, tire inflation, and bleeding air from the hydraulic system.Owners, independent mechanics, and equipment restorers can use it to remove, store, and reinstall the loader correctly, set the right tire pressures, and torque the mounting hardware to spec. Delivered as an instant PDF download you can read on any device or print for the shop.
What's Inside This Kubota LA434 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safe Operation | 6-10 | Before Operating the Loader, Danger, Warning and Caution Labels, Care of Danger |
| Servicing of Loader | 11 | Loader Specifications, Bucket Specifications, Lubrication, Transmission Fluid, Removing Air From the Hydraulic System, Re-Tightening of Hardware |

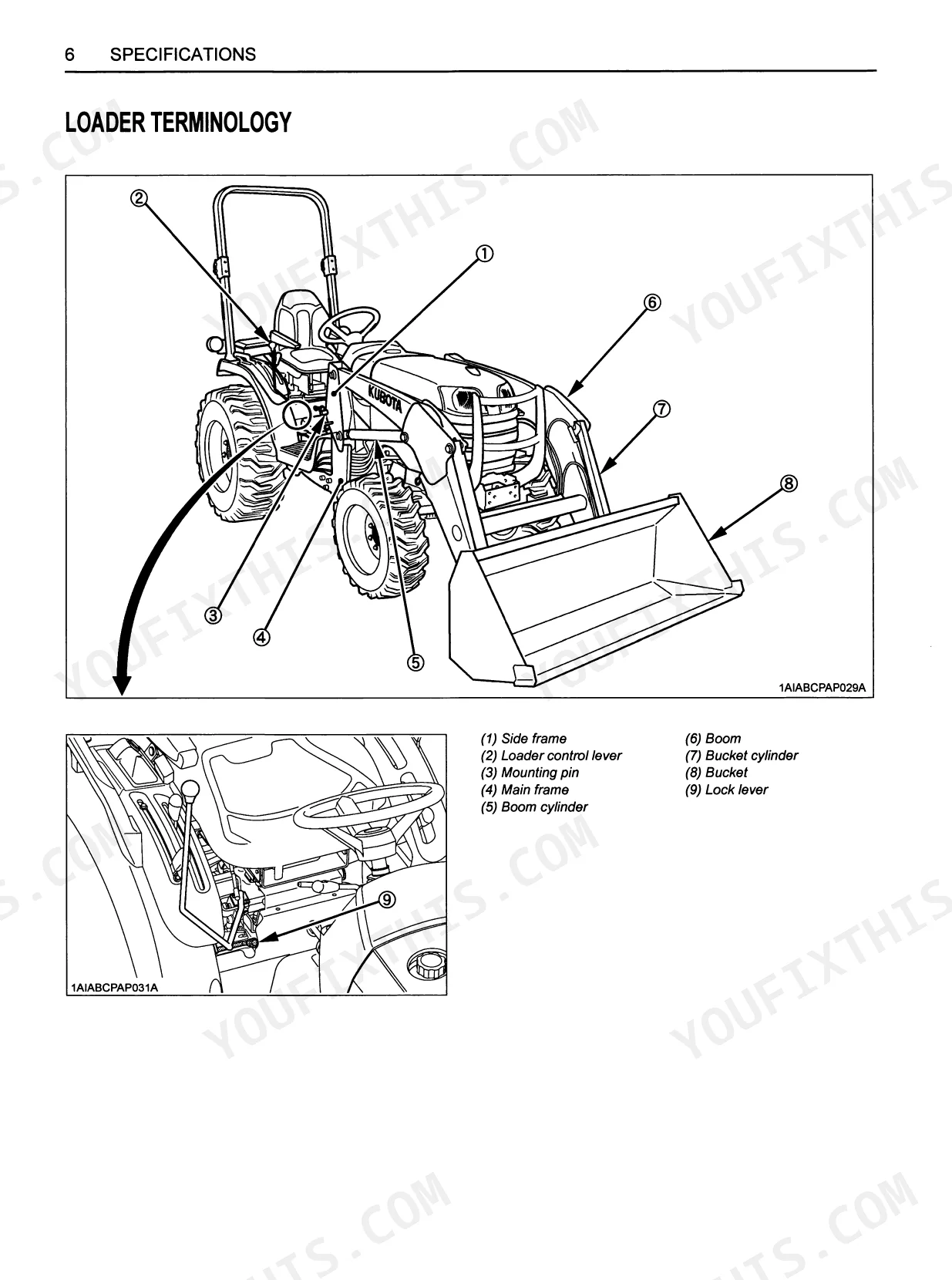

| Specifications | 12-16 | Suitable Tractor, Loader Specifications, Bucket Specifications, Dimensional Specifications, Operational Specifications, Loader Terminology |
| Pre-Operation Check | 17-20 | Lubrication, Transmission Fluid, Rear Ballast, Tire Inflation, Test Operation, Removing Air From the Hydraulic System |

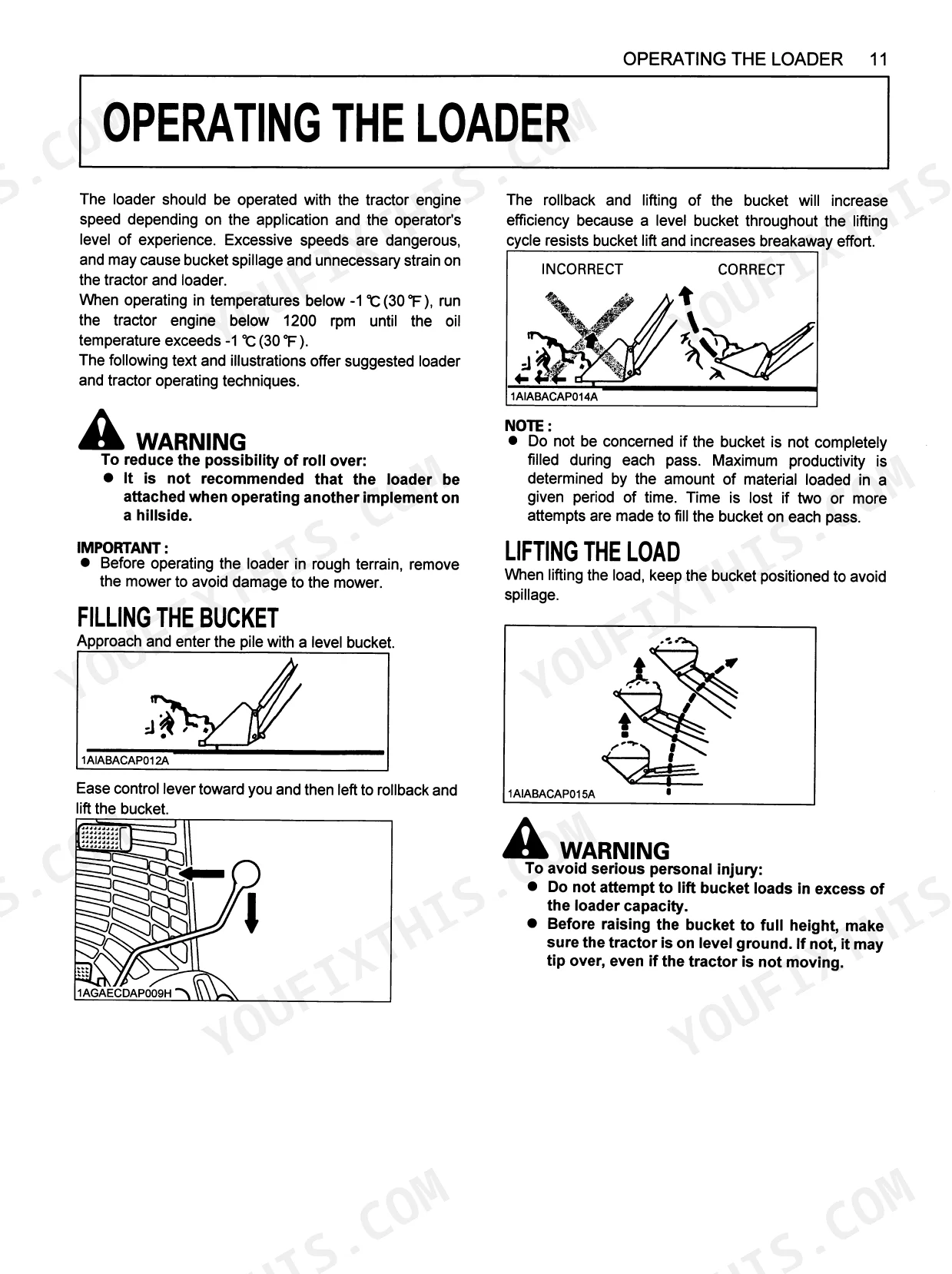

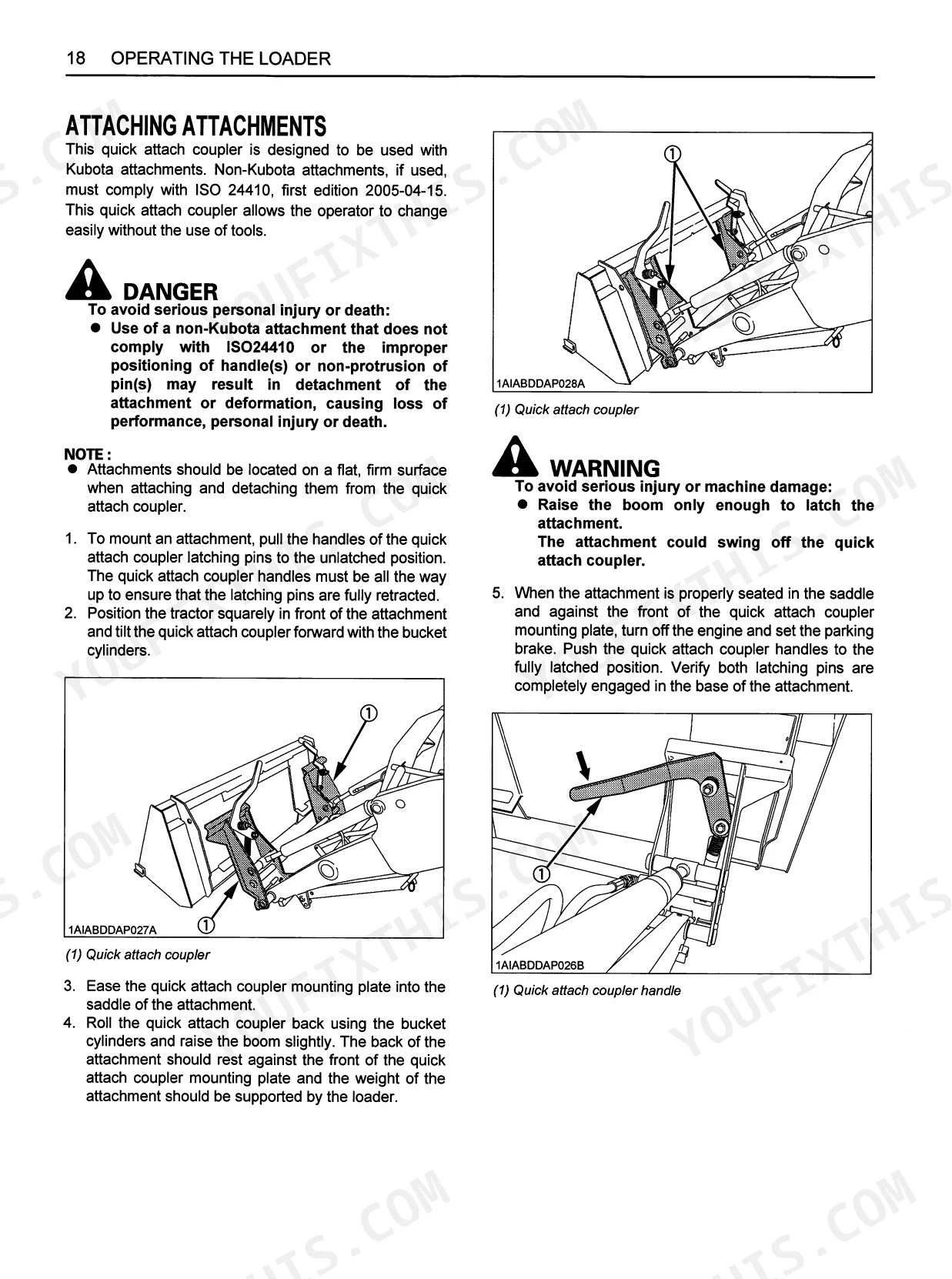

| Operating the Loader | 21-32 | Filling the Bucket, Lifting the Load, Carrying the Load, Dumping the Bucket, Lowering the Bucket, Operating with Float Control, Loading From a Bank, Peeling and Scraping |

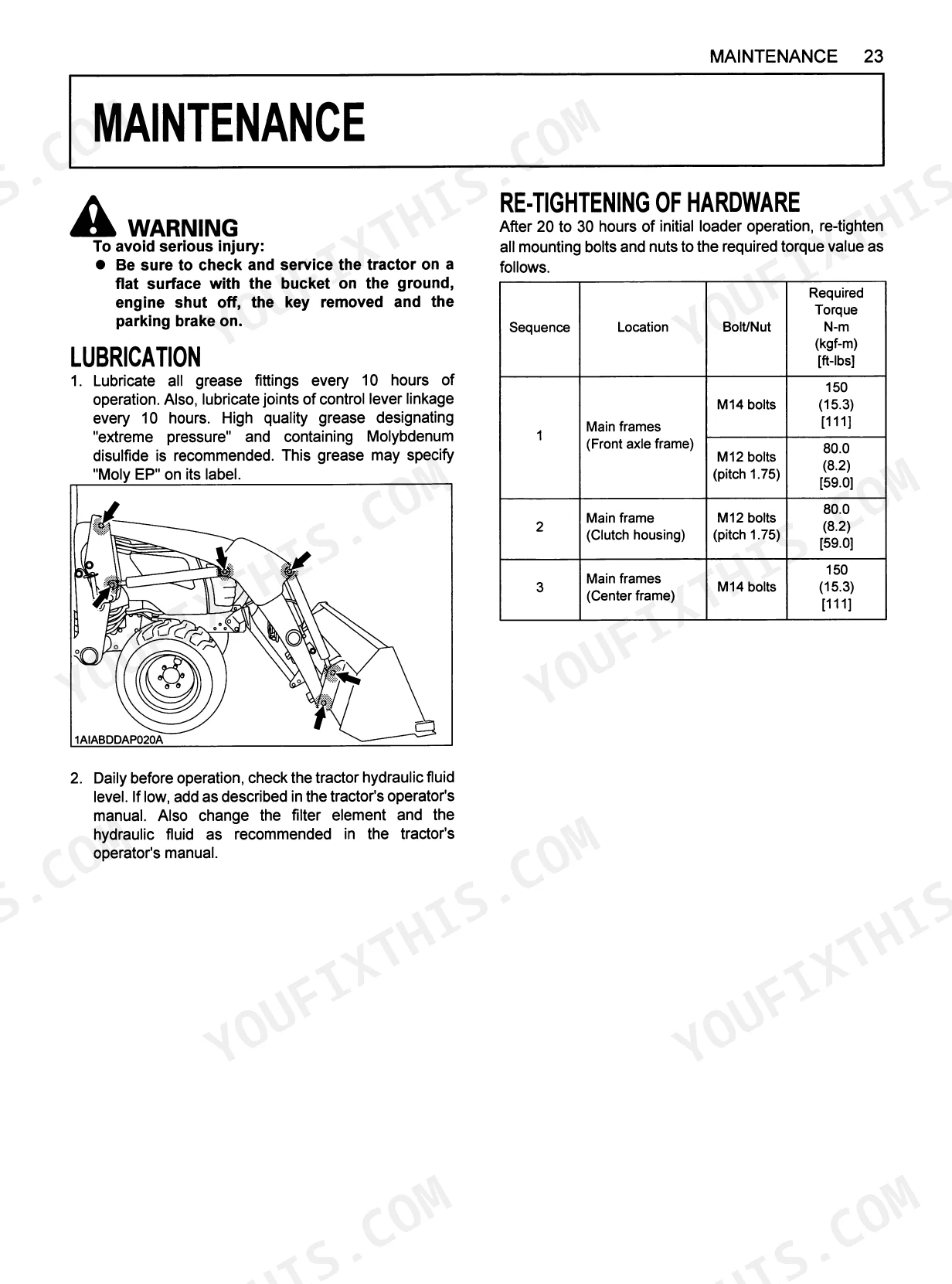

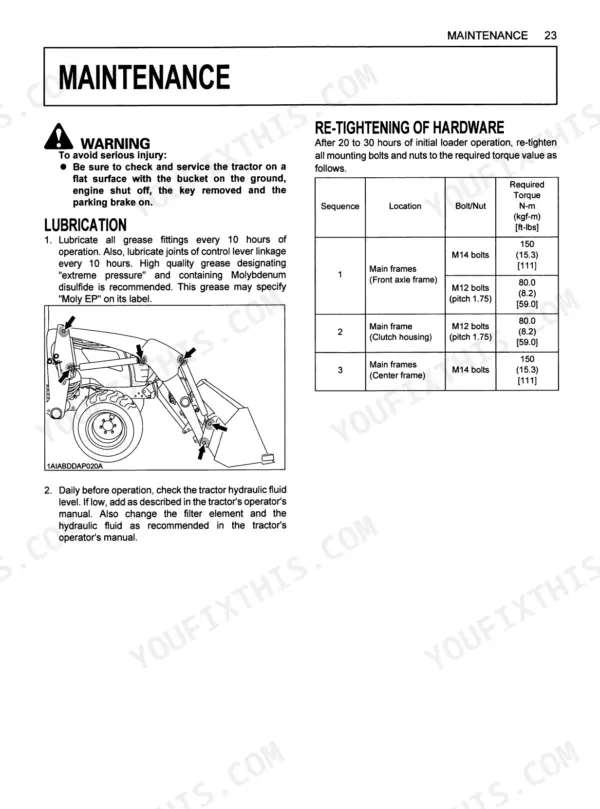

| Maintenance | 33-36 | Lubrication, Re-Tightening of Hardware, Daily Checks, Every 50 Hours (Checking Main Frame Bolt and Nut Torque) |
| Removing the Loader | 37-38 | Stands, Spring Pins, Mounting Pins, Loader Main Frame, Hydraulic Control Lever, Quick Couplers |
| Storing the Loader | 39 | Store the Loader in a Clean Dry Place, Make Sure the Loader Is Properly Supported, Attach the Protective Plugs and Caps to the Couplers to Protect Them From Dust |
| Reinstalling the Loader | 40-44 | Loader Side Frames, Main Frames, Hydraulic Control Lever, Hoses, Couplers, Mounting Pins |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Main frames (Front axle frame) M14 bolts torque | 150 N-m (15.3 kgf-m, 110 ft-lbs) | p. 35 |
| Main frames (Front axle frame) M12 bolts (pitch 1.75) torque | 80.0 N-m (8.2 kgf-m, 59.0 ft-lbs) | p. 35 |
| Metric cap screws M6 torque | 9.8 to 11.2 N-m (1.0 to 1.1 kgf-m, 7.2 to 8.3 ft-lbs) | p. 36 |
| Metric cap screws M8 torque | 23.6 to 27.4 N-m (2.4 to 2.8 kgf-m, 17.4 to 20.2 ft-lbs) | p. 36 |

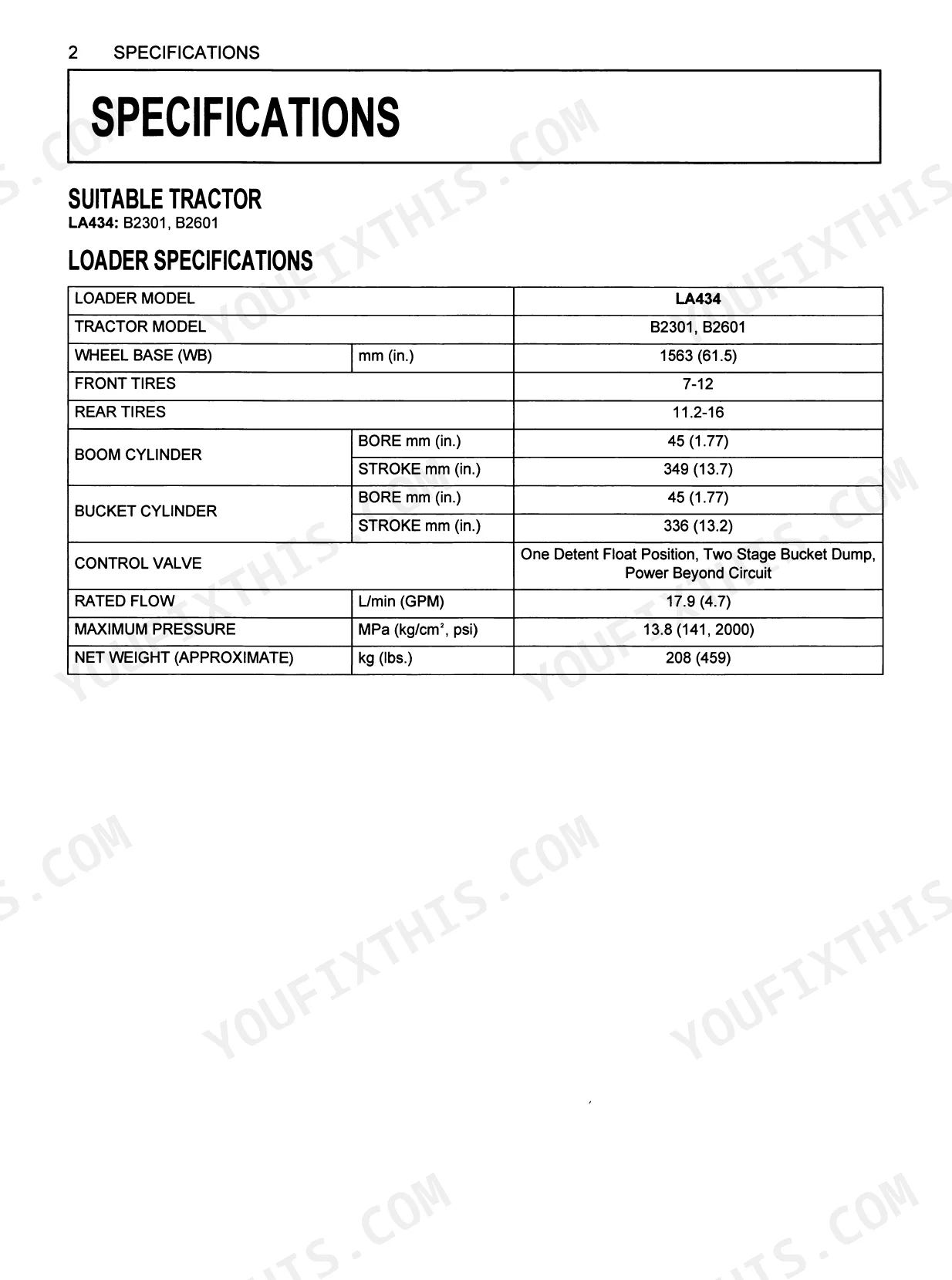

| Loader Model | LA434 | p. 12 |
| Wheel Base (WB) | 1563 mm | p. 12 |
| Maximum Hydraulic Pressure | 13.8 MPa (2000 psi) | p. 12 |
| Loader Net Weight (Approximate) | 208 kg (459 lbs.) | p. 12 |
| Max. Lift Height (to bucket pivot pin) | 1995 mm (78.5 in.) | p. 13 |
| Max. Dump Angle | 40 deg. | p. 13 |
| Raising Time | 3.7 sec. | p. 14 |
| Pallet Fork Rated Capacity (LA434) | 177 kg (390 lbs.) | p. 31 |
Kubota LA434 Common Problems This Manual Covers
Loader feels loose under load
If the locking levers and pins are not fully engaged during mounting, the loader can feel insecure or come loose when a load is applied. The manual details the correct mounting procedure and lock pin engagement.
Manual Section: Reinstalling the Loader p. 40Hydraulic leaks at hoses and fittings
Worn seals, damaged hoses, or loose connections show up as leaks around the cylinders and couplers. The pre-operation check tells you to inspect for hydraulic leaks and broken or missing parts before running.
Manual Section: Pre-Operation Check p. 17Arms move erratically or respond poorly
Air trapped in the hydraulic system, low fluid, or contamination make the loader arms and bucket move slowly or jerk. The manual covers removing air from the hydraulic system as part of setup.
Manual Section: Pre-Operation Check p. 17Stiff pivots from dry grease points
Loader pivot points and fittings need frequent greasing, and dry joints lead to stiffness and accelerated wear. Follow the lubrication schedule and grease points listed under maintenance.
Manual Section: Maintenance p. 33Main frame bolts working loose
Mounting and main frame hardware can loosen with use, which is why the every 50 hour check calls for verifying main frame bolt and nut torque. The maintenance section gives the re-tightening procedure.
Manual Section: Maintenance p. 33Loader sides out of sync at hookup
One side of the loader can mount or pivot before the other, making attachment alignment difficult during mounting. The reinstalling procedure covers aligning the side frames and main frames.
Manual Section: Reinstalling the Loader p. 40Frequently Asked Questions
Which loader does this manual cover?
It covers the Kubota LA434 front loader. The manual lists the suitable tractor, full loader and bucket specifications, and dimensional and operational figures in the Specifications section. p. 12
What are the mounting bolt torque values?
The Maintenance section gives torque figures, including the main frame M14 bolts at 150 N-m (110 ft-lbs) and a general metric torque table for the loader hardware. p. 33
Does it explain removing and reinstalling the loader?
Yes. Separate sections cover removing the loader onto its stands and reinstalling it, including the side frames, main frames, hydraulic control lever, hoses, couplers, and mounting pins. p. 37
Does it show correct tire pressure and ballast?
Yes. The Pre-Operation Check covers rear ballast and tire inflation, listing the rear tire inflation pressure so you can set the tractor up safely before loader work. p. 17
How quickly can I access this manual after buying?
A 44-page Operator Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone — no shipping wait.
Are there any print restrictions on this manual?
The PDF is DRM-free — print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
