Every component of the RC60-B mower deck is mapped here, from the PTO universal joint to the lift arm assembly, with factory part numbers and exploded views across 31 pages. Fourteen pages of indexed parts lists walk the drivetrain end to end: bevel gear case, center pulley, tension pulley, blade holders, and both side pulley assemblies. Another 8 pages break down the chassis, covering the mower deck shell, wheel stays, linkage, discharge chute, and lift linkage for both standard and HST-type configurations. Match the multi-belt on your first call (size 118 inches), with each blade listed at 1.6 kgf (3.52 lb) so the spec is right in front of you. Bookmarked and keyword-searchable, it opens on any device and rides out to the machine with you.
What's Inside This Kubota RC60-B Parts Manual
| System | Pages | Key Topics |
|---|---|---|

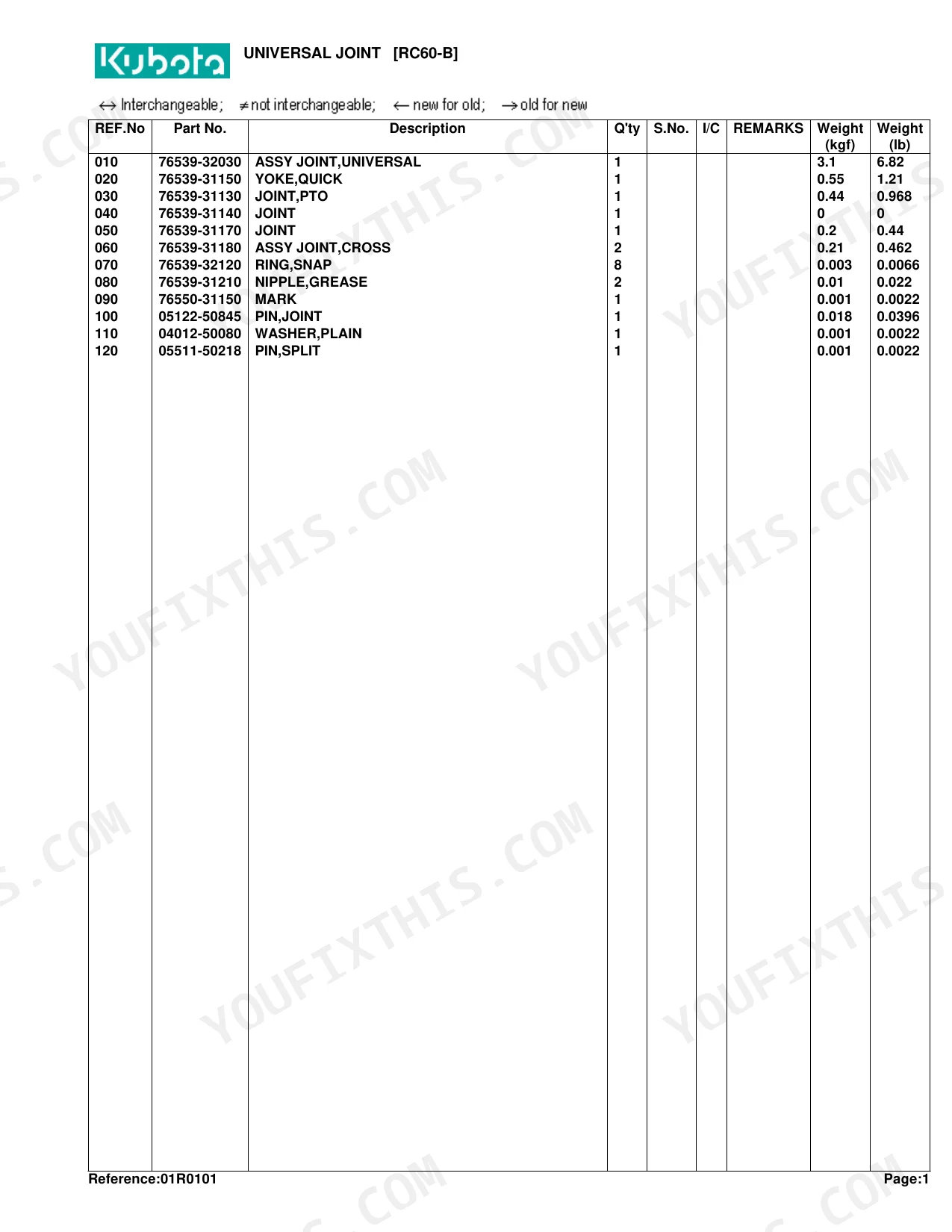

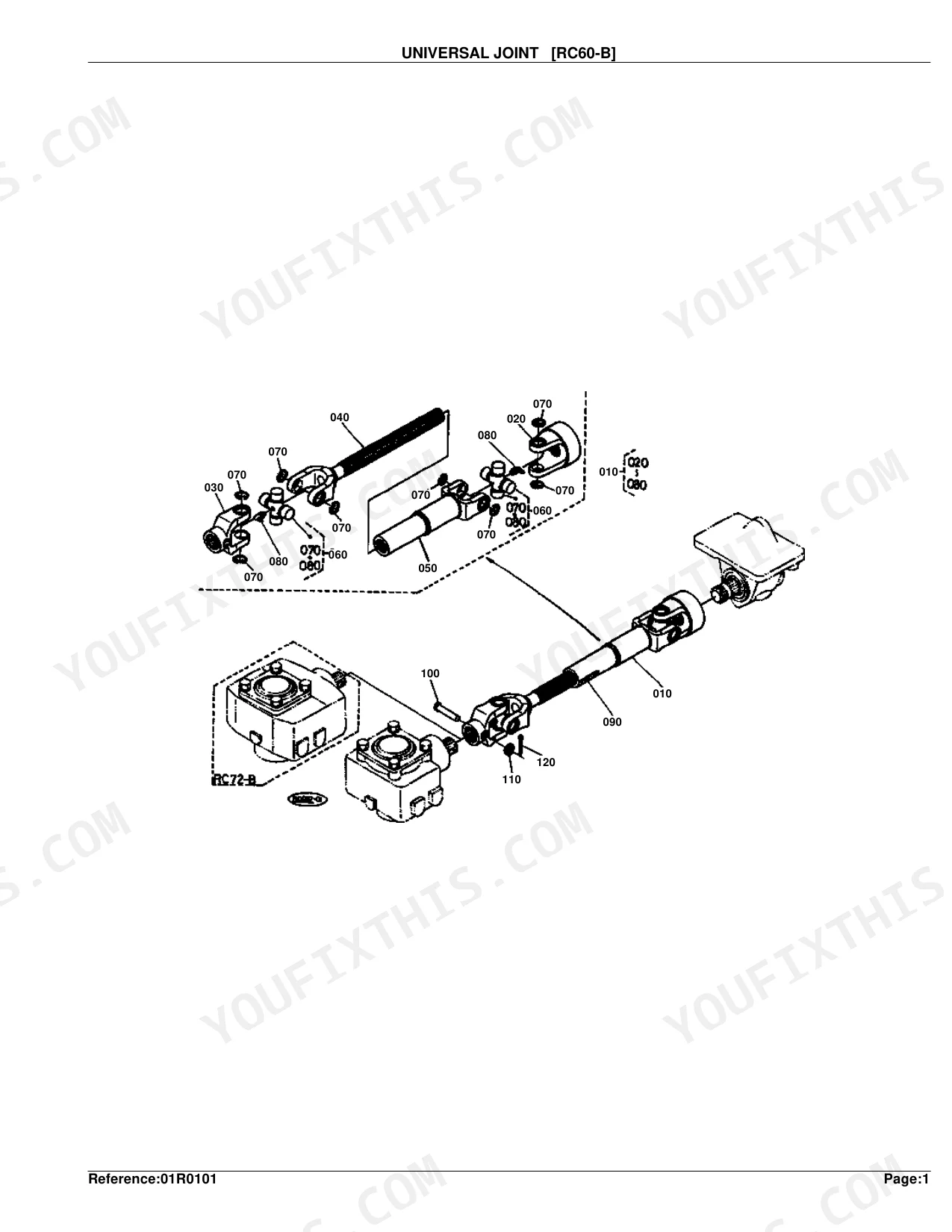

| Universal Joint [Rc60-B] | 4-5 | Universal Assy Joint, Quick Yoke, PTO Joint, Joint, Cross Assy Joint, Snap Ring, Grease Nipple, Mark |
| Gear Box/Center Pulley [Rc60-B] | 6-7 | Bevel Gear Assy Case, Pinion Shaft, Bevel -15T Kit Gear, Oil Seal, Ring, Bevel Case Cover, Center Assy Pulley, Bevel Gear Shaft |
| Pulley Holder/Blade [Rc60-B] | 8-9 | Pulley Holder, Oil Seal, Extension Pipe, Grease Nipple, Blade Boss, Blade, Blade Retainer, Blade Boss Joint |
| Side Pulley/Blade [Rc60-B] | 10-11 | Pulley LH Holder, Pulley RH Holder, Plate, Blade LH Shaft, Blade RH Shaft, Oil Seal, Grease Nipple, Side RH Pulley |
| Tension Pulley [Rc60-B] | 12-13 | Multi Inch Belt, Tension Arm, Bush, Tension Collar, Tension Assy Pulley, Grease Nipple, Tension Spring |

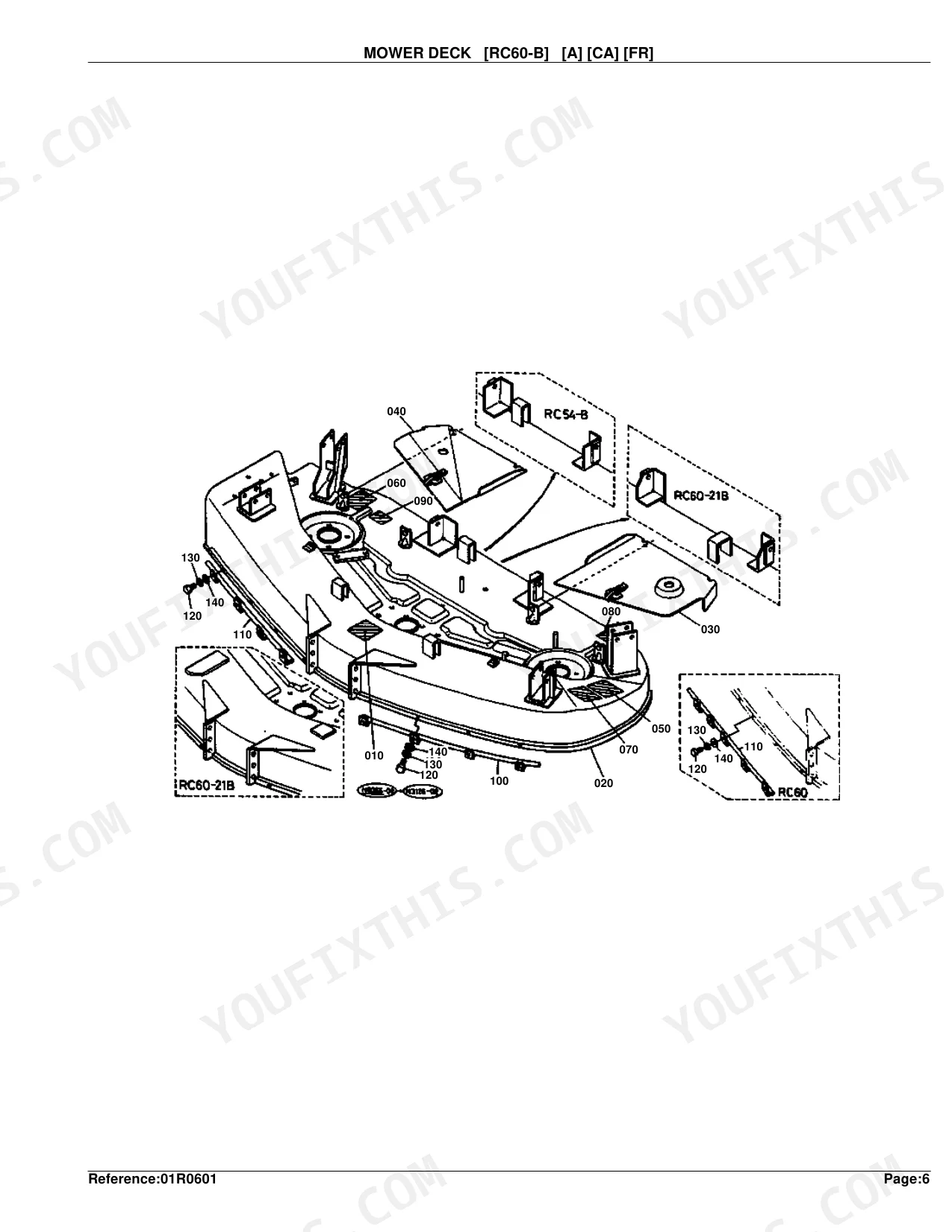

| Mower Deck [Rc60-B] [a] [Ca] [Fr] | 14-15 | Blade Label, Blade Name Plate, Mower Deck, LH Cover, RH Cover, Caution Label, Cutting Height Label, PTO Name Plate |
| Wheel [Rc60-B] [a] [Ca] | 16-17 | Front Wheel, Bush, Oil Seal, Front Wheel LH Stay, LH Stay, Front Wheel RH Stay, Grease Nipple, Collar |
| Linkage [Rc60-B] | 18-19 | LH Bracket, RH Bracket, Anti-Scalp Roller, Bush, LH Stay, RH Stay, Hinge Pin Spring, Link Fulcrum Lever |
| Discharge Cover [Rc60-B] | 20-21 | Anti-Scalp Roller, Bush, Chute Cover, Caution Label, Chute Stopper, Tension Spring, Spring |
| Lift Linkage [Rc60-B] (Except HST Type) | 22-23 | Front LH Stay, Front RH Stay, Rear Stay, Lift LH Fulcrum, Lift RH Fulcrum, Bush, Support, Lift Link |
| Lift Linkage [Rc60-B] (HST Type) | 24-25 | Front LH Stay, Front RH Stay, Rear LH Stay, Rear RH Stay, Lift LH Fulcrum, Lift RH Fulcrum, Bush, Support |
| Rear Linkage [Rc60-B] | 26-27 | Rear LH Link, Rear RH Link, Hinge Pin Spring, Link |
| Lift Arm [Rc60-B] | 28-30 | Rod, Turnbuckle, Lift LH Arm, Lift RH Arm, Check Chain Bracket, Collar |
| Accessories and Service Parts [Rc60-B] | 31 | Manual, Instruction |
Every system also includes washer.
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Mower Belt Size | 118 INCH | p. 13 |
| Blade Weight | 1.6 kgf | p. 9 |
| ASSY JOINT, UNIVERSAL Weight | 3.1 kgf (6.82 lb) | p. 5 |
| YOKE, QUICK Weight | 0.55 kgf (1.21 lb) | p. 5 |
| ASSY CASE, BEVEL GEAR Weight | 7.8 kgf (17.16 lb) | p. 7 |
| CASE, BEVEL GEAR Weight | 3.35 kgf (7.37 lb) | p. 7 |
| SHAFT, PINION Weight | 0.46 kgf (1.012 lb) | p. 7 |
| KIT GEAR, BEVEL Ratio | 17-15T | p. 7 |
| SHIM Thickness | 0.2MM | p. 7 |
| BEARING, BALL Weight | 0.11 kgf (0.242 lb) | p. 7 |
| SEAL, OIL Weight | 0.02 kgf (0.044 lb) | p. 7 |
| BELT, MULTI Length | 118 INCH | p. 13 |
Kubota RC60-B Common Problems This Manual Covers
Kubota RC60-B mower deck will not engage or blades do not spin when PTO is activated p. 13
Inspect the exploded view for the tension pulley assembly on page 13. Locate the replacement multi belt part number in the components list. Verify you are ordering the correct 118 INCH length belt to match your specific mower deck serial number.
Manual Section: Tension Pulley [Rc60-B]Center blade stops turning in tall grass and the bevel gear case exhibits severe grinding noises p. 7
Pull up the center pulley and gear box breakdown on page 7 to find part numbers for the bevel gear case and internal seals. Order the complete assembly at a factory weight of 7.8 kgf (17.16 lb), or pick the individual pinion shafts.
Manual Section: Gear Box/Center Pulley [Rc60-B]Severe streaking, stepped cutting, or uncut strips left behind in the grass after mowing heavy brush p. 9
Compare the blade holder parts diagram on page 9 to identify the left and right replacement blade part numbers. Confirm new blades hit the factory weight of 1.6 kgf (3.52 lb) each to keep the deck balanced as it spins.
Manual Section: Pulley Holder/Blade [Rc60-B]Excessive vibration and loud knocking noises traveling from the tractor PTO shaft into the primary deck drive p. 4
Review the driveline parts diagram on page 4. Locate the replacement quick yoke and cross joint part numbers. Confirm the complete universal joint assembly matches the factory specification of 3.1 kgf (6.82 lb) listed on page 5 before ordering your replacement components.
Manual Section: Universal Joint [Rc60-B]Frequently Asked Questions
What are the replacement specifications for mower belt?
The mower belt is part number 76539-34710, listed as "BELT, MULTI". Its length specification is "118 INCH" and it carries a weight of 1.1 kgf (2.42 lb). That is the spec to match when you order a replacement.
What are the replacement specifications for blades?
Order part number 76539-34330, listed simply as "BLADE", for the Kubota RC60-B. Each one carries a weight specification of 1.6 kgf (3.52 lb).
What does the RC60-B universal joint assembly weigh and how are its parts listed?
The complete universal joint assembly weighs 3.1 kgf (6.82 lb) per page 5. The parts list on page 4 breaks out the quick yoke, cross, and shaft as individual line items. Weigh your replacement kit against 3.1 kgf to confirm nothing is missing before assembly.
What is the bevel gear case assembly weight for the Kubota RC60-B?
The bevel gear case assembly weighs 7.8 kgf (17.16 lb) per the parts list on page 7. The exploded view on the same page itemizes the pinion shafts and internal seals separately, so you can order only the failed components rather than the full case.
How quickly can I access this manual after buying?
It is a 31-page searchable PDF you download the moment you buy. Open it on any device. Pull it up on your phone while you're under the hood. No shipping, no waiting.
Are there any print restrictions on this manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
