This is the Kubota workshop manual for the M59 tractor together with the TL1350 front loader and BT1200 backhoe, the machine covered here as one tractor loader backhoe package. Its 607 pages run from general information and preparation through the full mechanism and servicing of every system, all built around the V2403-M-TE3-TLB1 diesel engine.Coverage includes the engine and EGR system, PTO and traveling clutch, hydrostatic transmission, rear and front axles, brakes, and steering. The hydraulic system, front loader, and backhoe each get dedicated sections covering their cylinders, control valves, and circuits.Owners, independent mechanics, and restorers can use it to fix slow or weak loader and backhoe hydraulics, reseal cylinders, service the HST, trace ECU and electrical faults, and set torque values across the tractor and its implements. Delivered as an instant PDF download that reads on any device and prints page by page for shop use.
What's Inside This Kubota M59, TL1350, BT1200 Manual
| System | Pages | Key Topics |
|---|---|---|
| G General | 17-78 | Tractor Identification, E3 Engine, Cylinder Number, Electrical Parts, Wiring, Battery, Fuse, Connector |
| P Preparation | 79-106 | Tightening Torques, Disassembling Front Loader Assembly, Separating Canopy, Separating ROPS and Frame, Separating Tractor Frame, Assembling Tractor Frame |
| Engine | 107-174 | EGR System, Cylinder Head, Valves, Piston, Connecting Rod, Crankshaft |
| Clutch | 175-201 | PTO System, PTO Clutch, Clutch Pedal, PTO Clutch Valve, Clutch Disc, Traveling Clutch |
| Transmission | 202-275 | Hydrostatic Transmission (HST), Power Train, Shift Linkage Mechanism, Auto Throttle Advance (Ata), Crawl Control, Differential Gears |
| Rear Axle | 276-283 | Structure, Tightening Torques, Separating Rear Axle Case, Disassembling Rear Axle Case |
| Brakes | 284-299 | Linkage, Rear Parking Brake Linkage, Brake Pedal, Brake Case, Foot Brake, Rear Parking Brake |
| Front Axle | 300-322 | Structure, Tightening Torques, Separating Front Axle, Disassembling Front Axle, Differential Gear, Bevel Pinion Shaft |
| Steering | 323-340 | Structure, Hydraulic Circuit, Steering Controller, Hydraulic Pump, Steering Cylinder, Tightening Torques |
| Hydraulic System | 341-422 | Hydraulic Circuit, Position Control Linkage, Directional Valve, Relief Valve, Hydraulic Cylinder, Front Loader Control Valve |

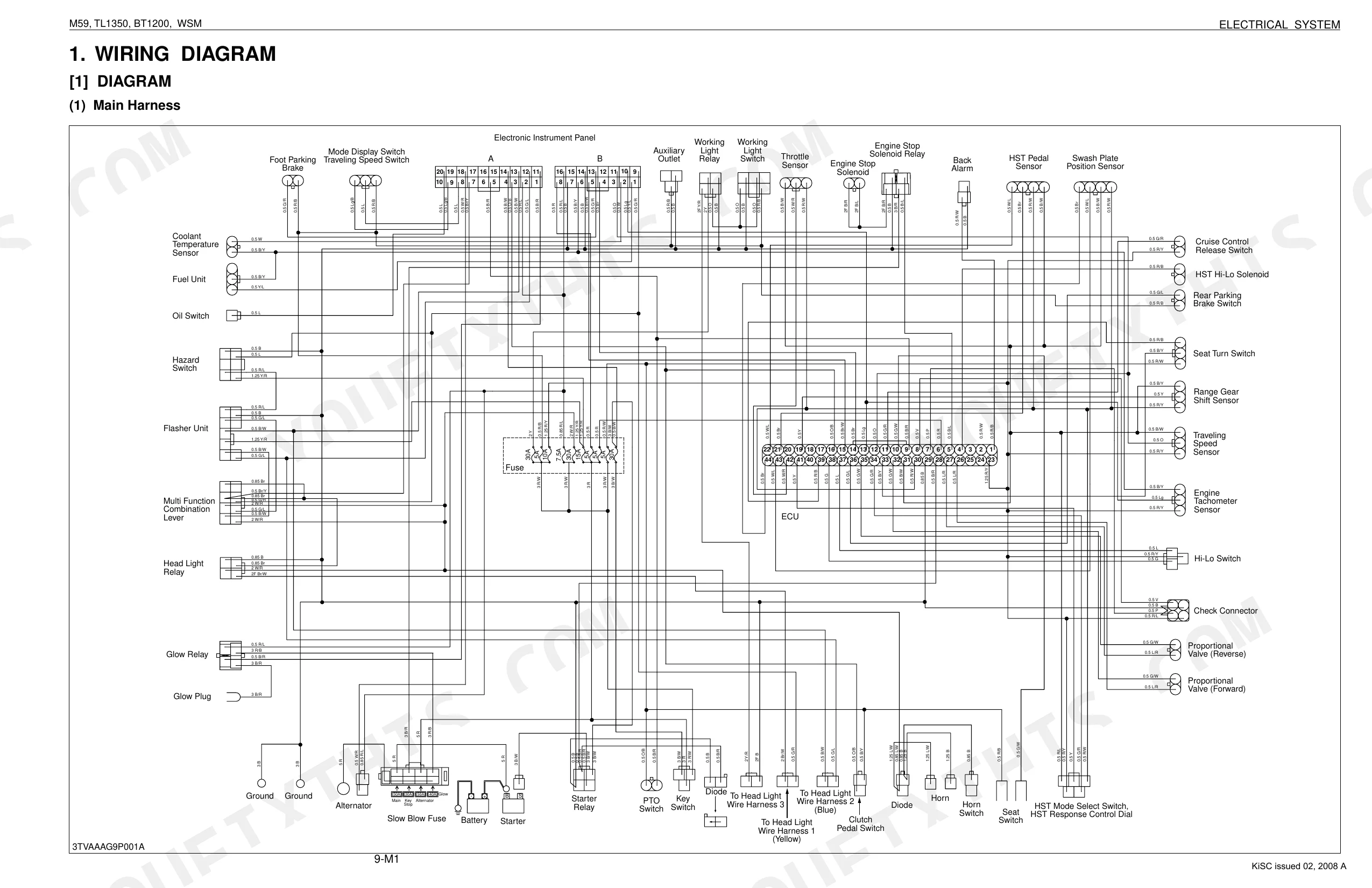

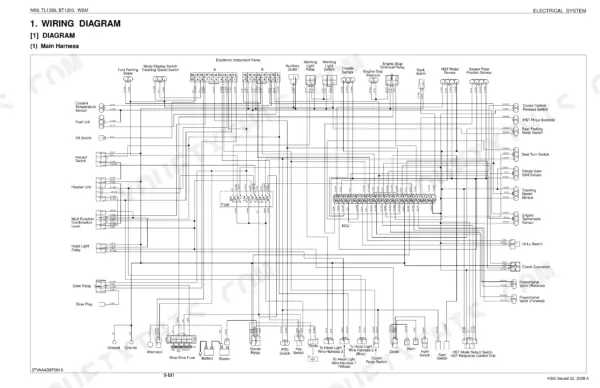

| Electrical System | 423-520 | Wiring Diagram, Electronic Control Panel, Main Switch, HST Pedal Sensor, ECU (Electronic Control Unit), Engine Starting System and Stopping System |
| Front Loader | 521-543 | Boom Cylinder, Bucket Cylinder, Front Loader Control Valve |
| Backhoe | 544-607 | Safety Decals, Backhoe Terminology, Hydraulic System, Control Valve, Hydraulic Cylinder |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||

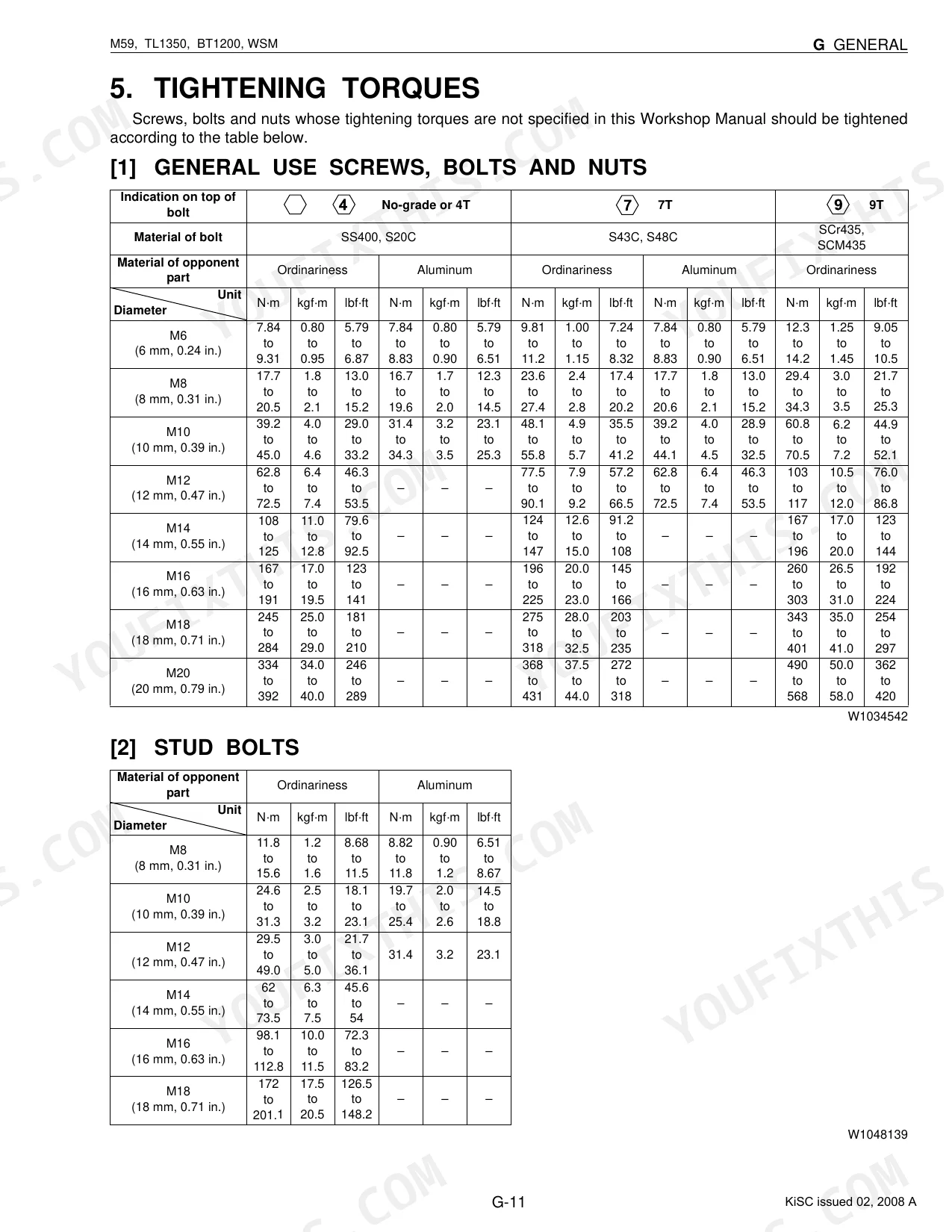

| M6 (6 mm, 0.24 in.) general use screws, bolts and nuts, Ordinariness, No-grade or 4T tightening torque | 7.84 to 9.31 N·m | p. 29 |
| Hydraulic pump malfunctioning (solution for insufficient boom speed) | Repair or replace | p. 403 |
| Hydraulic hose retaining nut (3/4) tightening torque | 35 to 41 N·m | p. 30 |
| Cylinder Safety Valve Operating Pressure | 19.7 to 22.5 MPa | p. 404 |

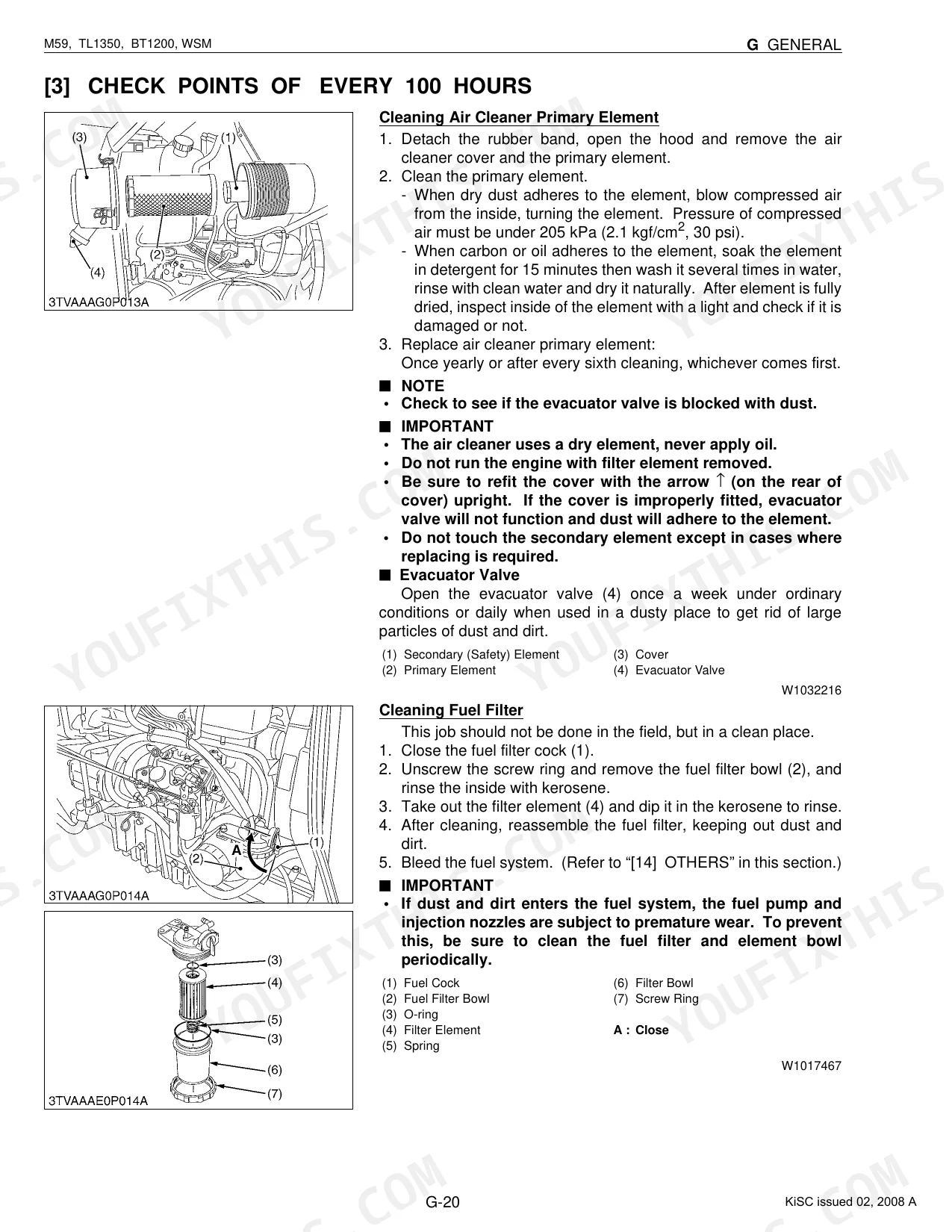

| Hydraulic oil filter replacement interval | every 200 Hr | p. 31 |
| Position control valve malfunctioning (solution for implement not rising) | Repair or replace | p. 403 |
| TL1350 | ||
| Front frame to loader frame mounting bolt and nut (M14 9T) tightening torque | 167 to 196 N·m | p. 81 |
| Pin to Cylinder Pin Hole clearance | 0.10 to 0.38 mm | p. 527 |
| BT1200 | ||
| Boom cylinder head tightening torque | 950.0 to 1000 N·m | p. 585 |
| M59 | ||

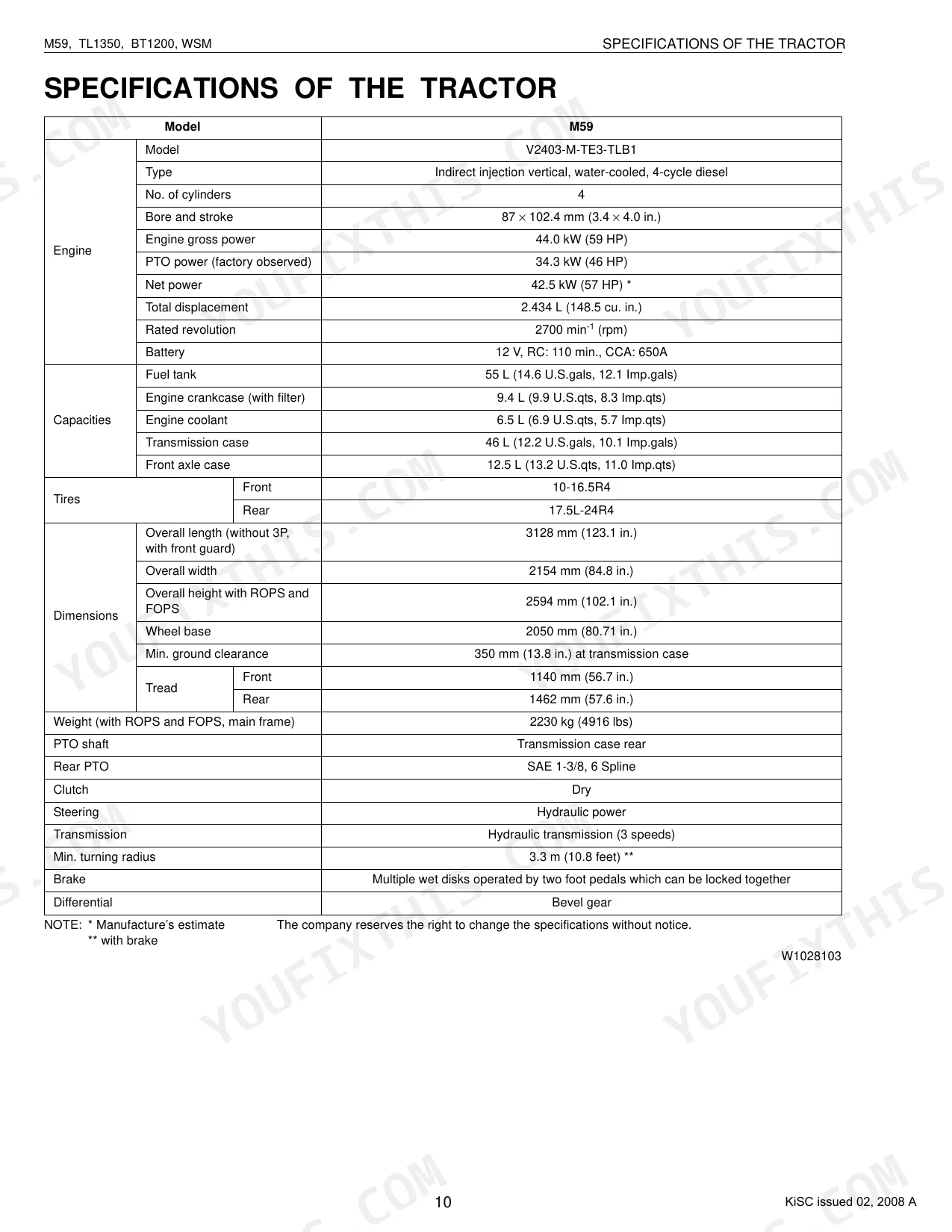

| Engine Model | V2403-M-TE3-TLB1 | p. 12 |
| Engine Gross Power | 44.0 kW (59 HP) | p. 12 |
Kubota M59, TL1350, BT1200 Common Problems This Manual Covers
Slow and weak loader hydraulics
Loader lift is slow or lacks force, often from a worn hydraulic pump or valve. The hydraulic system section covers the pump, directional valve, and relief valve so you can trace the loss.
Manual Section: 8 Hydraulic System p. 341Front loader cylinder leaks and pin wear
The TL1350 loader cylinders weep or the pins go sloppy with use. The front loader section covers the boom and bucket cylinders and their seals, with pin to bore clearances to check.
Manual Section: 10 Front Loader p. 521Backhoe hydraulic or cylinder fault
The BT1200 backhoe loses digging force or a cylinder leaks down. The backhoe section covers its mechanism and servicing, including cylinder head torque and valve pressures.
Manual Section: 11 Backhoe p. 544HST transmission trouble
The hydrostatic transmission feels weak or behaves oddly, which can involve the power train, shift linkage, or crawl control. The transmission section provides the mechanism and service detail.
Manual Section: 3 Transmission p. 202Electrical or ECU faults
Warning lights, no start, or sensor faults point to the control panel, main switch, or ECU. The electrical system section covers the wiring, HST pedal sensor, and starting and stopping systems.
Manual Section: 9 Electrical System p. 423Engine EGR or valve issues
Rough running or emissions faults can involve the EGR system or valve train wear. The engine section covers the EGR system, cylinder head, valves, and related service.
Manual Section: 1 Engine p. 107Frequently Asked Questions
Which machines does this manual cover?
It covers the Kubota M59 tractor, the TL1350 front loader, and the BT1200 backhoe in one workshop manual, publication number 9Y111-01120.
What engine is covered?
The M59 uses the V2403-M-TE3-TLB1 diesel rated at 44.0 kW (59 HP). The engine section covers its EGR system, cylinder head, valves, and servicing. p. 107
Does it include loader and backhoe torque specs?
Yes. The Preparation section lists tightening torques, including the front frame to loader frame mounting hardware, with more values in the front loader and backhoe sections. p. 79
How do I get it after purchase?
It is an instant download. The PDF is available right after checkout, with nothing shipped and no waiting.
Will this Kubota M59 Workshop Manual download right away?
Immediate download of the complete 607-page searchable Workshop Manual. Read it on any device, whether a laptop at your desk or a phone out in the field.
Am I able to print pages from this manual?
Yes, print as many copies as you want; there are no restrictions. Plenty of mechanics print just the section they need and carry it to the shop floor.
Does this Kubota M59 Workshop Manual include the hydraulic layout?

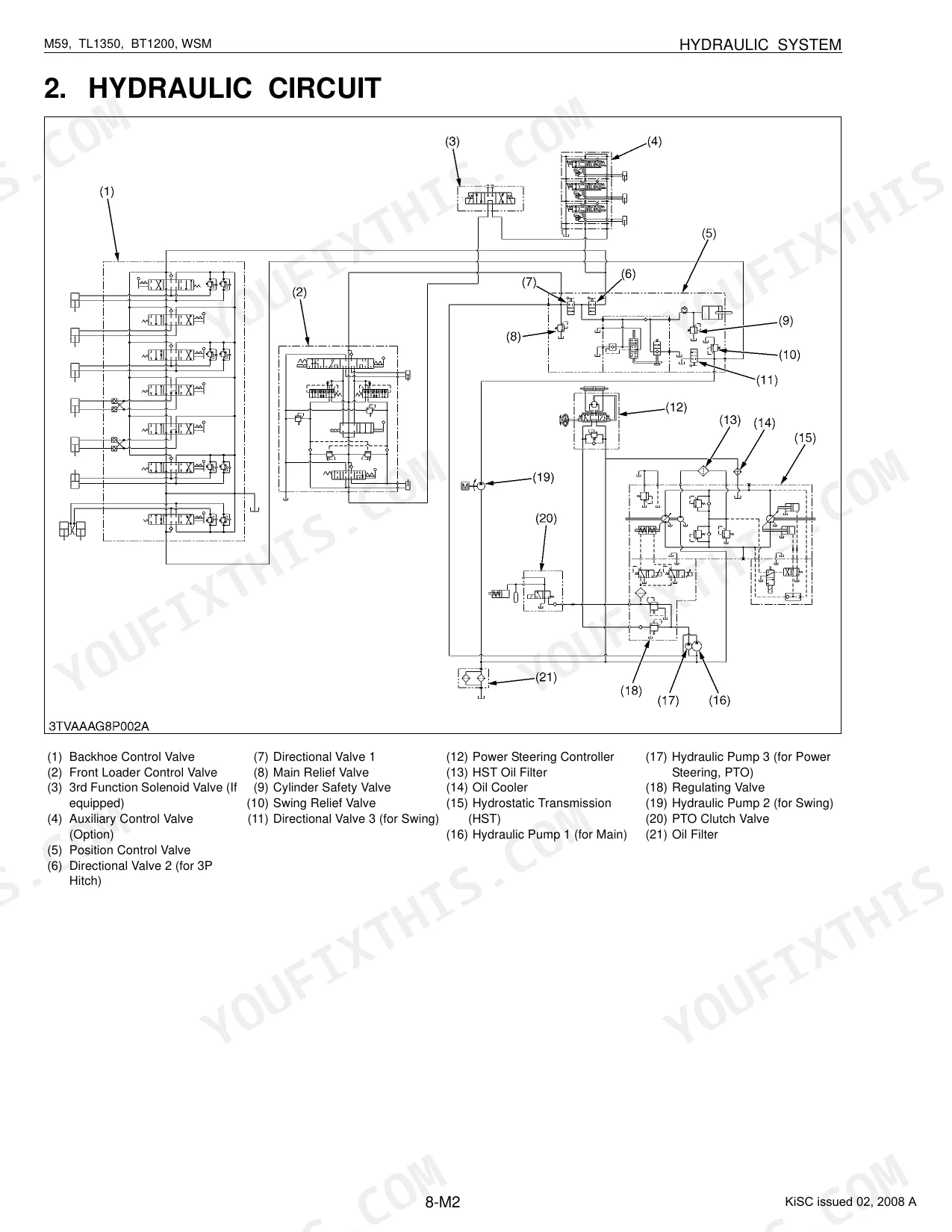

Yes, this Kubota M59, TL1350, BT1200 Workshop Manual includes hydraulic system diagrams, circuit schematics, and component specifications.
