This is the Kubota L2501 Workshop Manual, the factory service manual for the L2501 compact tractor powered by the D1703-M-DI-E4 diesel engine. It documents the machine in both gear-drive and hydrostatic (HST) forms, from identification and routine maintenance to complete component overhaul.Coverage spans the engine, clutch, transmission, rear and front axles, brakes, steering, the hydraulic system, and the electrical system with full wiring diagrams. Each section provides troubleshooting charts, servicing specifications, tightening torques, and detailed checking, disassembly, and assembly procedures.If you are working through an HST that drops power on hills, a no-start, or hydraulics acting up after a fluid change, this PDF download gives an owner or independent mechanic the factory numbers and steps to fix it correctly. The manual is fully searchable and prints on standard paper for shop use.
What's Inside This Kubota L2501 Manual

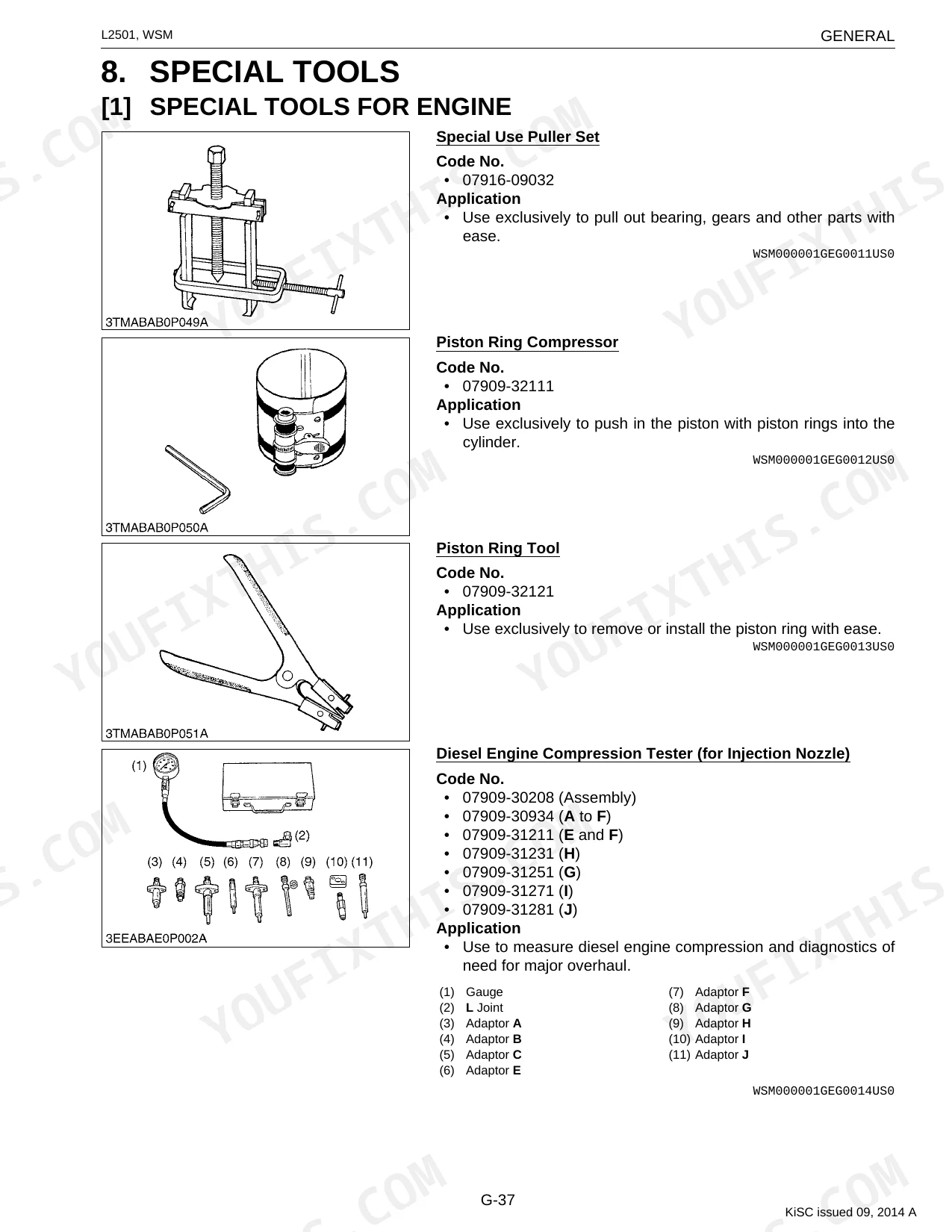

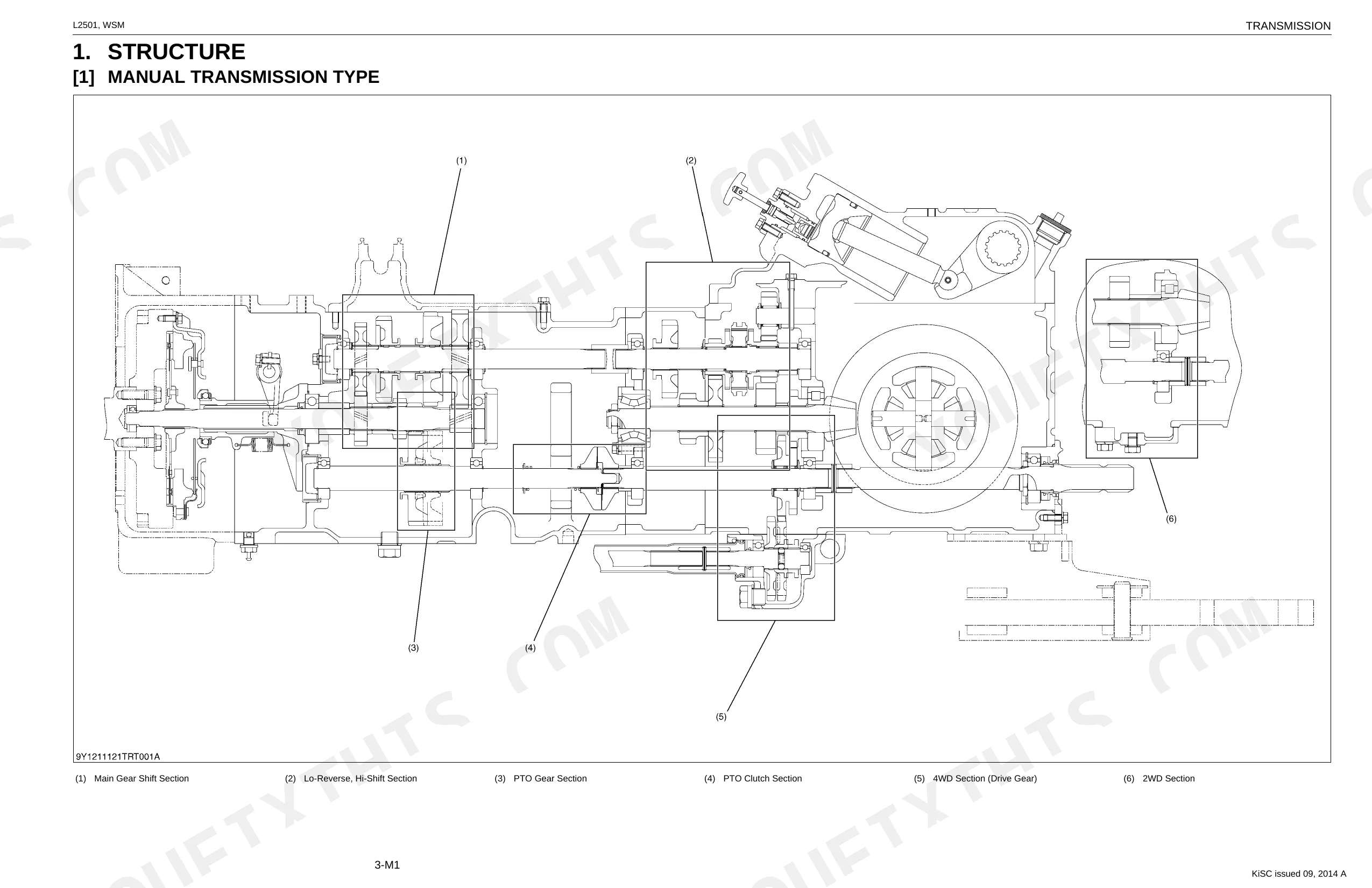

| System | Pages | Key Topics |
|---|---|---|
| I Information | - | - |
| G General | - | Tractor Identification (Model Name and Serial Numbers, Cylinder Number) |
| Engine | - | Engine Body (Piston, Half-Floating Head Cover), Fuel System (Outline, Governor, Injection Nozzle), Cooling System |
| Clutch | - | Structure, Troubleshooting, Servicing Specifications (Single Stage Clutch), Tightening Torques, Checking and Adjusting (Clutch Pedal Free Travel) |
| Transmission | - | Structure (Manual Transmission Type, HST Type) |
| Rear Axle | - | Structure, Troubleshooting, Tightening Torques |
| Brakes | - | Features, Operation, Troubleshooting, Servicing Specifications, Tightening Torques, Checking and Adjusting (Brake Pedal Free Travel) |
| Front Axle | - | Structure (2WD, 4WD), Troubleshooting, Servicing Specifications (2WD, Tightening Torques (2WD |
| Steering | - | Structure, Hydraulic Circuit, Steering Gear Box (Structure, Operation) |
| Hydraulic System | - | Structure (Manual Transmission Type, HST Type), Hydraulic Circuit (Manual Transmission Type |
| Electrical System | - | Wiring Diagram (Manual Transmission Type, HST Type), Electrical Circuit (Manual Transmission Type, Instrument Panel (Indication Items of Meter Panel, Easy Checker™) |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

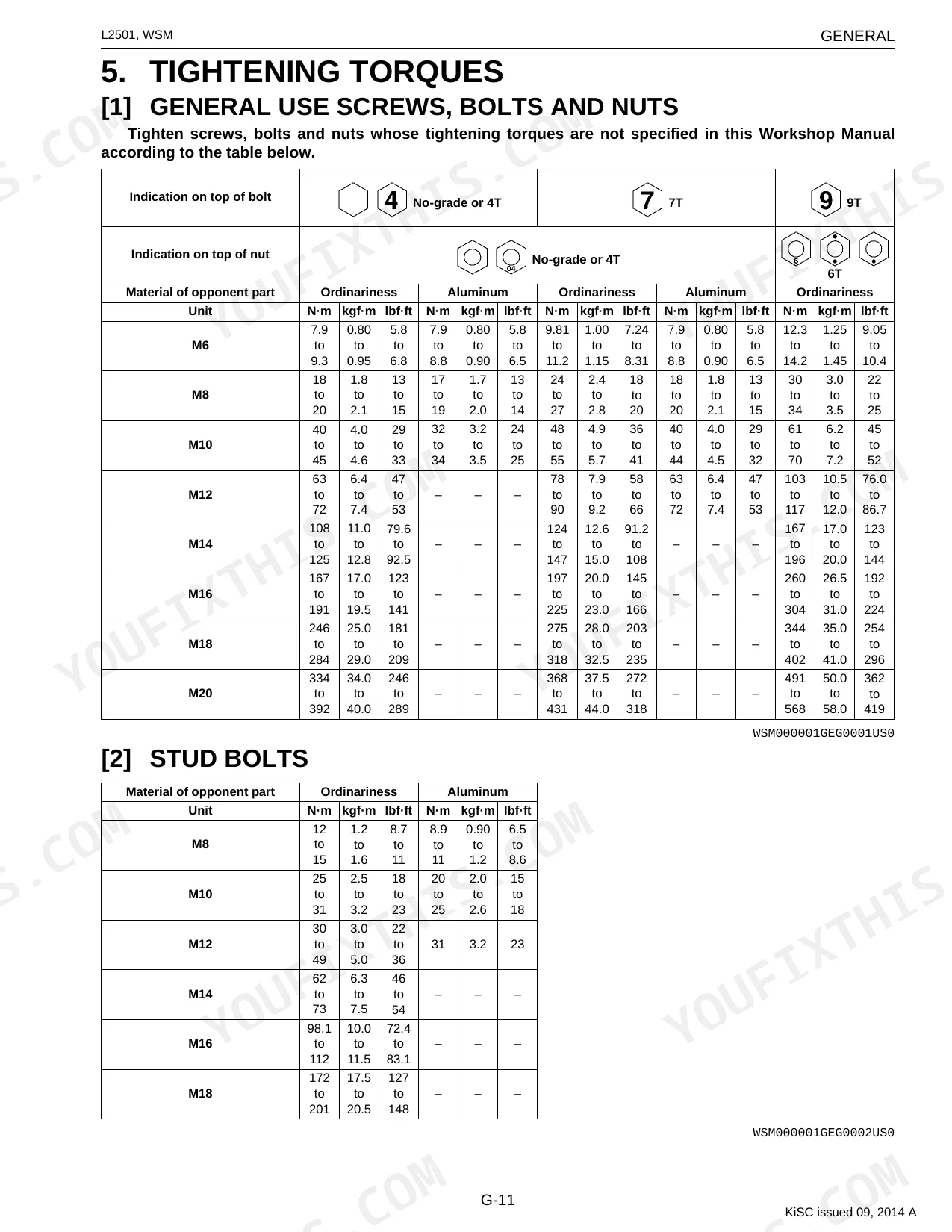

| General Use Screws, Bolts and Nuts (M8 Ordinariness) | 18 to 20 N·m | p. 26 |
| Front wheel bolt and nut tightening torque | 137 N·m | p. 36 |
| Rear wheel bolt and nuts tightening torque | 215 N·m | p. 36 |
| Battery Voltage | 12 V | p. 11 |
| Battery CCA (SAE) | 490 A | p. 11 |
| Commutator O.D. (Factory Specification) | 30.0 mm | p. 414 |
| Brush Length (Factory Specification) | 15.0 mm | p. 414 |
| Fuel Level Sensor Resistance (Float at upper-most position) | 1 to 5 Ω | p. 439 |
| Transmission/Front Axle Case Hydraulic Fluid Type | KUBOTA SUPER UDT-2 fluid | p. 24 |
| Range Gear Shift Lever Switch Resistance (When switch is pushed) | 0 Ω | p. 419 |
| Relief Valve Setting Pressure (Three Point Hitch System) | 15.2 to 16.2 MPa | p. 361 |
| Fuel tank capacity | 38.0 L | p. 11 |
Kubota L2501 Common Problems This Manual Covers
HST loses power on hills
An L2501 hydrostatic drive that slows on grades or under load is a common owner complaint tied to the HST and its hydraulic supply. The Transmission section covers HST structure and servicing.
Manual Section: 3 Transmission p. 188Cranks but will not start
No-start conditions trace to the battery, starter, safety interlock, or fuel delivery. The Electrical System section includes the wiring diagram and switch and circuit checks.
Manual Section: 9 Electrical System p. 377Hydraulics erratic after fluid service

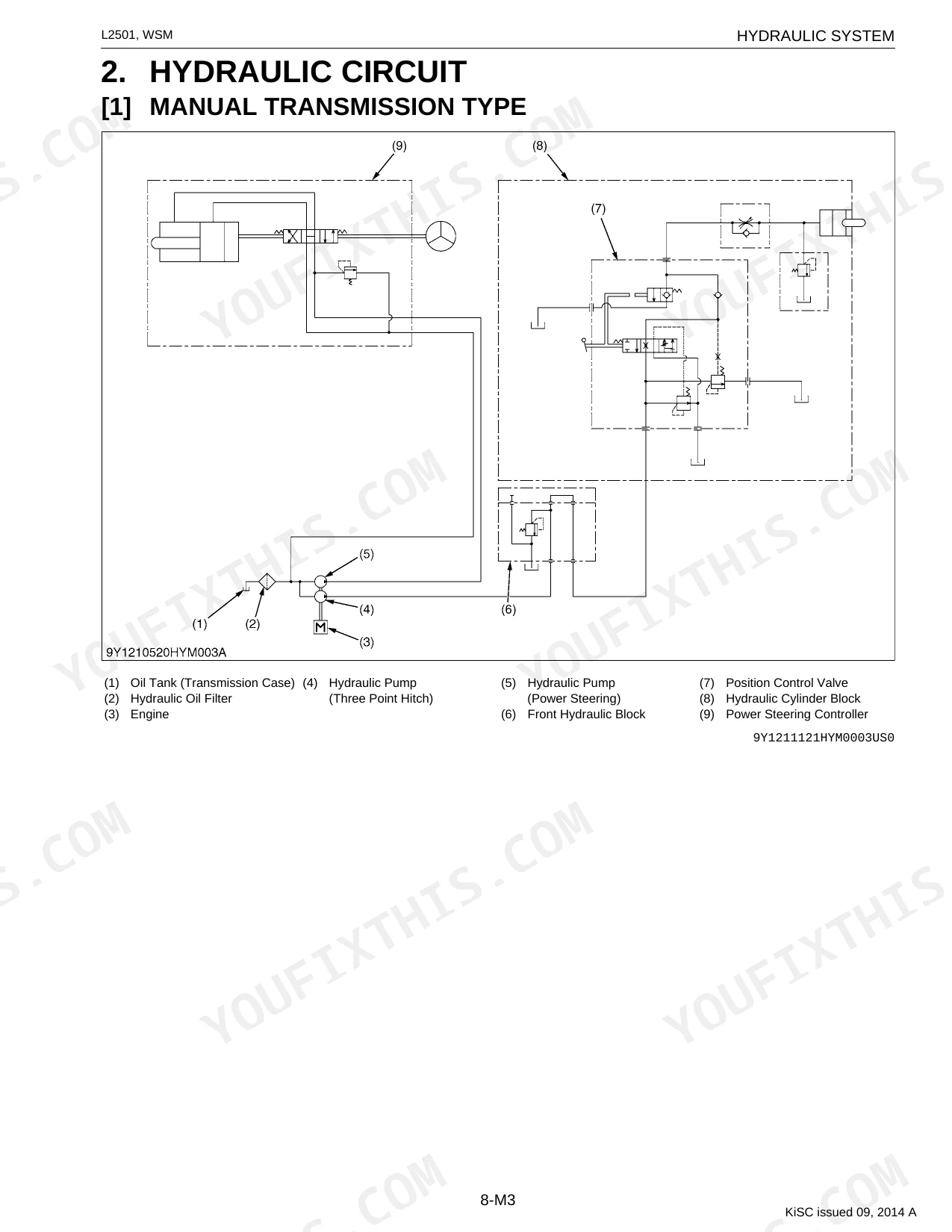

Erratic or slow hydraulics after a fluid change usually means the wrong fluid, wrong level, or trapped air. The Hydraulic System section gives the relief valve setting and circuit details.
Manual Section: 8 Hydraulic System p. 342Weak or uneven braking
Soft brakes or too much pedal travel point to worn discs or an out-of-adjustment pedal. The Brakes section lists the free-travel spec and the checking and adjusting steps.
Manual Section: 5 Brakes p. 284Clutch drag on gear-drive models
On gear-drive L2501s a dragging clutch or lost free travel makes shifting hard. The Clutch section covers free-travel adjustment and wear limits.
Manual Section: 2 Clutch p. 161Hard starting or rough running

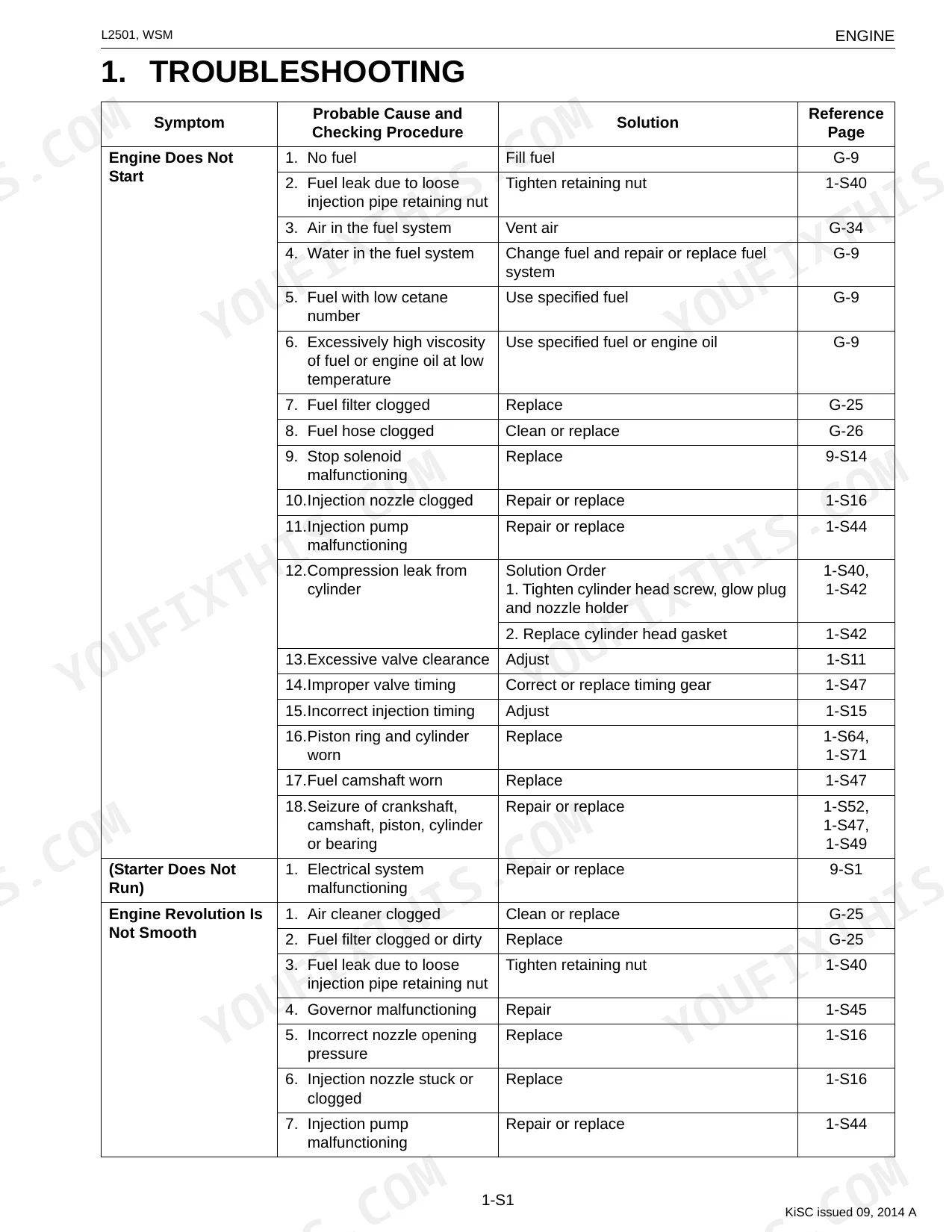

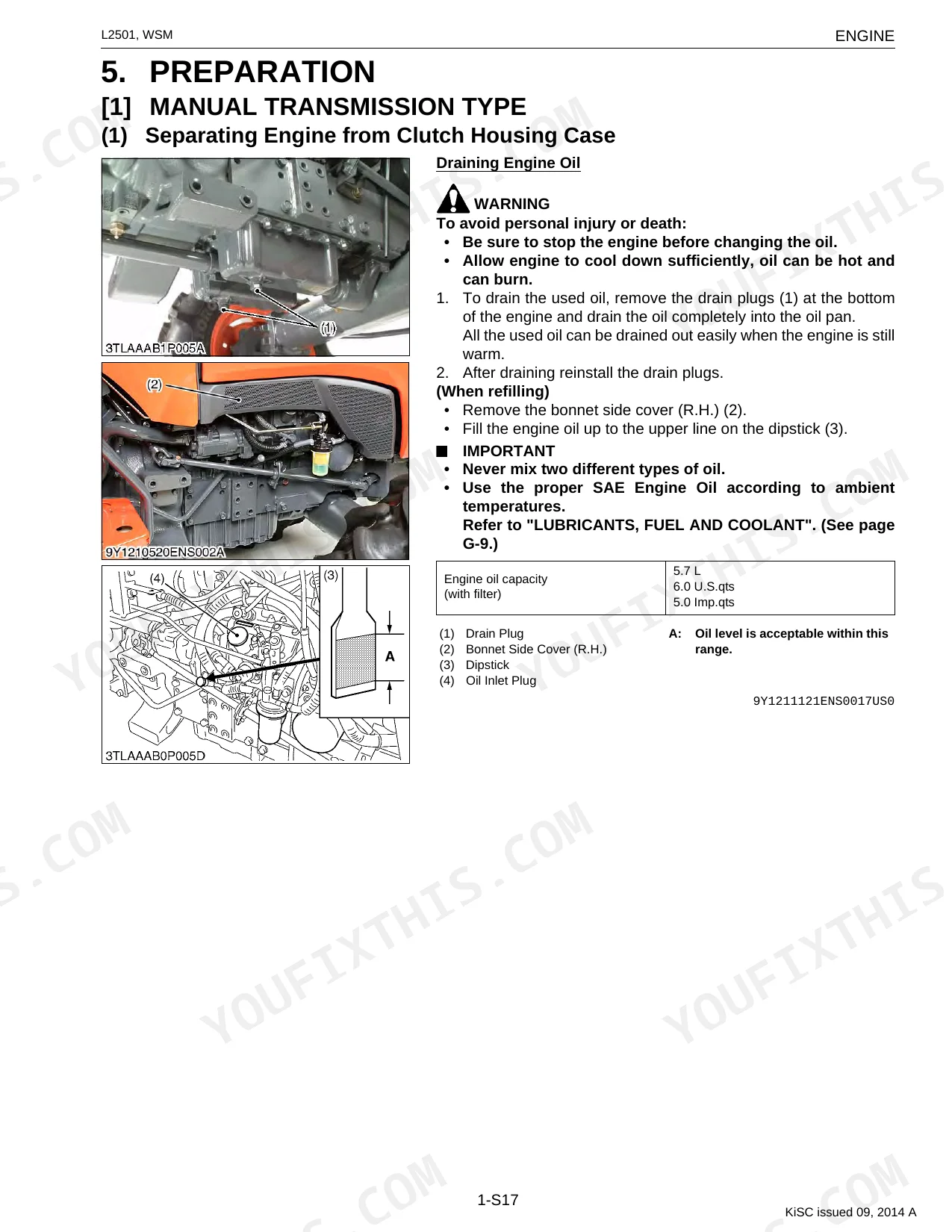

A diesel that is hard to start or runs poorly often comes down to valve clearance, oil pressure, or fuel issues. The Engine section carries troubleshooting and servicing specifications for the D1703-M-DI-E4.
Manual Section: 1 Engine p. 79Frequently Asked Questions
Which model and engine does this manual cover?
It covers the Kubota L2501 compact tractor, powered by the D1703-M-DI-E4 diesel engine, in both gear-drive and HST forms. The manual applies from routine maintenance to full overhaul.
What are the wheel bolt torque specs?
The manual specifies 137 N·m for the front wheel bolts and nuts and 215 N·m for the rear. These and other tightening torques are listed in the servicing data. p. 36
What hydraulic fluid does the L2501 use?
It calls for KUBOTA SUPER UDT-2 fluid in the transmission and front axle case. Using the specified fluid avoids the erratic hydraulics owners see after switching to the wrong oil. p. 24

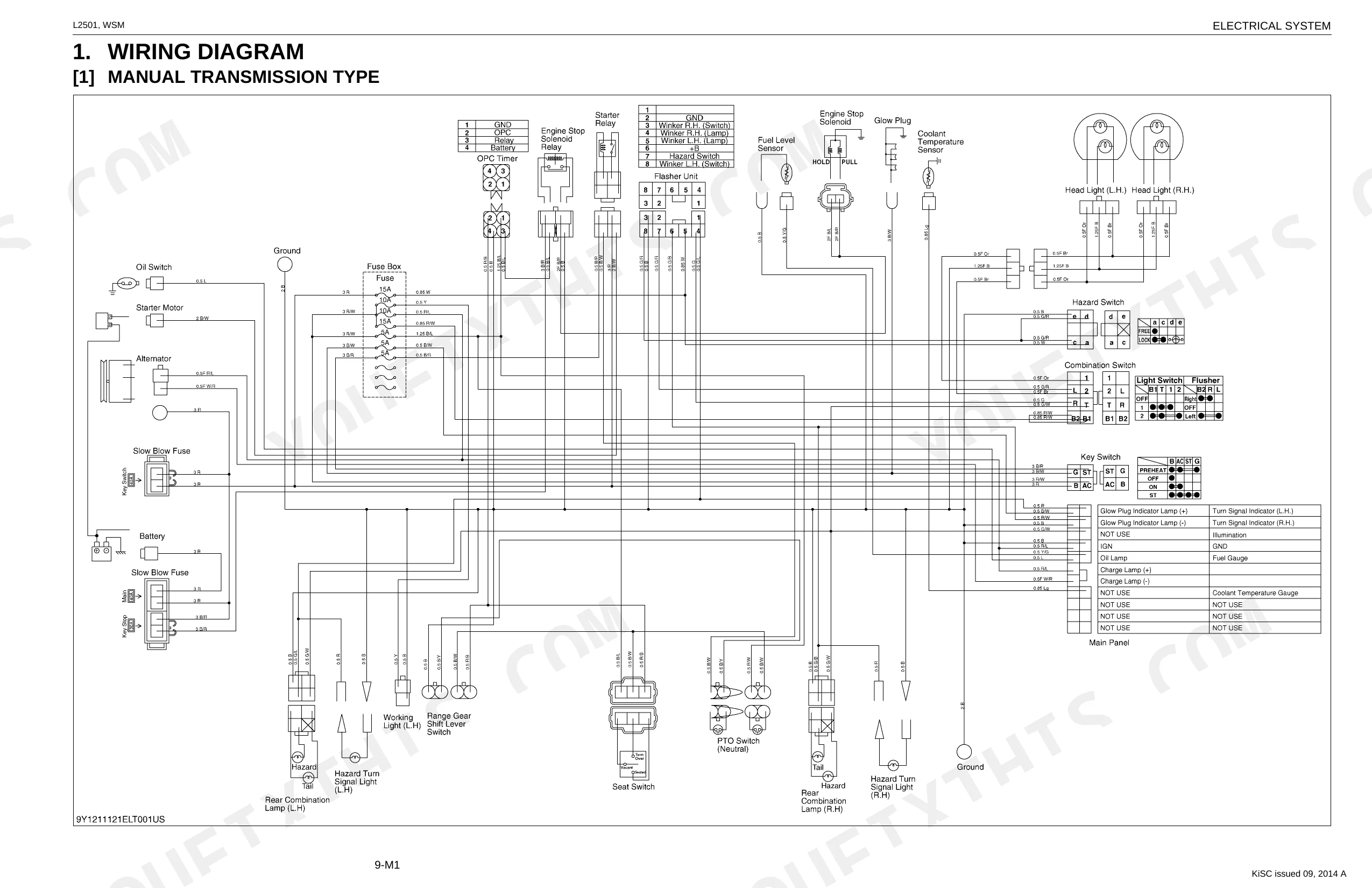

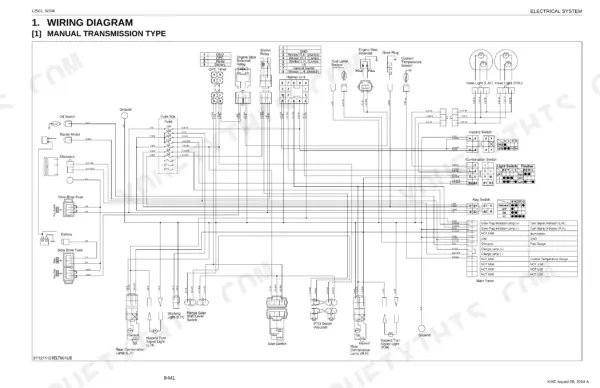

Does it include wiring diagrams?
Yes. The Electrical System section contains the full wiring diagrams for both manual-transmission and HST models, along with electrical circuit and component checks. p. 377
How will I receive this Kubota L2501 Service Manual?
Checkout unlocks an instant download: a 444-page searchable PDF. Open it on a laptop, tablet, or phone and take it straight to the shop floor.
Are there any print restrictions on this Kubota L2501 manual?
None at all. Print as many copies as you like. Plenty of mechanics run off just the section they're working on and keep it on the bench.
Can I find wiring schematics in this Kubota L2501 manual?
Yes. The manual includes full wiring diagrams for the L2501, with every electrical circuit, harness route, and connector pinout.
