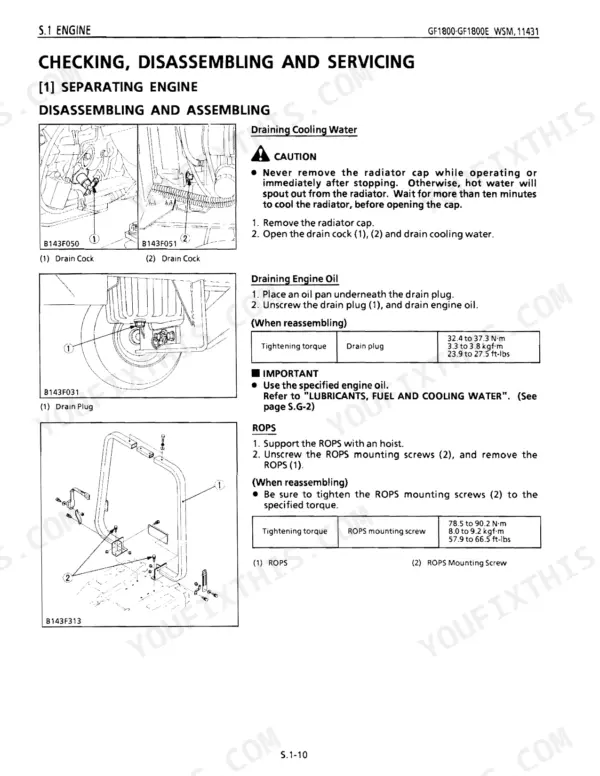

This is the factory Kubota Service Manual for the GF1800 and GF1800E front-mount riding mowers, powered by the three-cylinder D722-FM diesel engine. Its 264 pages pair a Features and Mechanism overview with step-by-step servicing for every system on the machine.Coverage runs through the engine, hydrostatic transmission and front axle, brakes, rear axle, steering, the hydraulic lift, the wet multi-disc PTO clutch, and the electrical system with its charging, lighting, and key-switch shut-off circuits. A dedicated mower section adds deck specifications, blade torque values, and maintenance checks.Use this PDF to fix a PTO that will not stay engaged, chase a no-start, restore hydrostatic drive, or set blade torque correctly. It downloads instantly and prints cleanly, so you can take just the pages you need out to the mower.
What's Inside This Kubota GF1800, GF1800E Manual
| System | Pages | Key Topics |
|---|---|---|
| Intro | - | Safety Servicing and Repairing, Safety Decals, Specifications |
| Features | - | Unique 4WD Developed, Instrument Panel and Controls, A Lighter, More Compact Body Configuration |
| General | - | Identification, Lubricants, Fuel and Cooling Water, Tightening Torques, Maintenance Check List, Check and Maintenance (Check Points of Daily or Each Use) |
| Sect 1 Engine | - | Troubleshooting, Servicing Specifications, Tightening Torques, Checking, Disassembling and Servicing (Disassembling and Assembling, Engine Body, Checking and Adjusting) |
| Sect 2 Transmission and Front Axle | - | Separating Transmission and Front Axle, Hydrostatic Transmission, Transmission Case and Front Axle Case |
| Sect 3 Brakes | - | Brake Rod 1, Brake Rod 2, Automatic Release System, Parking Brake, Brake Switch, Brake Assembly, Brake Lining, Brake Drum |
| Sect 4 Rear Axle | - | Rear Wheel and Kingpin, Rear Axle |
| Sect 5 Steering | - | Steering Wheel, Steering Shaft, Joint Shaft, Pitman Arm, Steering Gear Case, Pinion Shaft, Sector Gear, Sector Shaft |
| Sect 6 Hydraulic System | - | Control Valve, Control Valve Adaptor, Lift Cylinder |
| Sect 7 PTO | - | PTO Rod, PTO Switch, Pressure Plate, Clutch Disc, Steel Plate, PTO Gear Case, 35T Gear, Brake Ring |
| Sect 8 Electrical | - | Troubleshooting, Battery, Starting System, Engine Key Switch Shut-Off System, Charging System, Lighting System, Gauges, Easy Checker |
| Sect 9 Mower | - | Specifications, Exterior View and Appellation (Side Discharge Type), Mower Identification, Lubricants, Tightening Torques, Maintenance Check List |
| Supplement | - | Safety Instructions (Servicing and Repairing, Operation), Safety Decals, Specifications |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Center blade mounting screw torque | 98.1 to 117.7 N·m | p. 197 |
| Outer blade mounting screw torque | 123.6 to 147.1 N·m | p. 197 |
| Pressure Plate Thickness (Allowable Limit) | 1.80 mm | p. 162 |
| Clutch Disc Thickness (Allowable Limit) | 1.60 mm | p. 162 |
| Engine Oil Capacity | 3.0 L | p. 6 |
| Radiator Coolant Capacity | 3.3 L | p. 6 |
| Fuel Tank Capacity | 20 L | p. 6 |
| Engine Rated Speed | 3200 rpm | p. 6 |
| Engine Compression Pressure (Factory Spec) | 2.84 to 3.24 MPa | p. 68 |
| Engine Valve Clearance (Cold) (Factory Spec) | 0.145 to 0.185 mm | p. 68 |
| Engine Oil Pressure (At Idle Speed) (Factory Spec) | 98 kPa | p. 72 |
| Radiator Cap Tightness (Pressure Fall Time) (Factory Spec) | More than 10 seconds for pressure fall from 88 to 59 kPa | p. 73 |
Kubota GF1800, GF1800E Common Problems This Manual Covers
PTO will not engage or stay engaged
A recurring GF1800 complaint is a PTO that will not engage or drops out, caused by wear in the clutch pack or one-way shaft assembly. The PTO section covers the clutch disc, pressure plate, and steel plate with allowable limits.
Manual Section: Sect 7 PTOHard starting or no-start

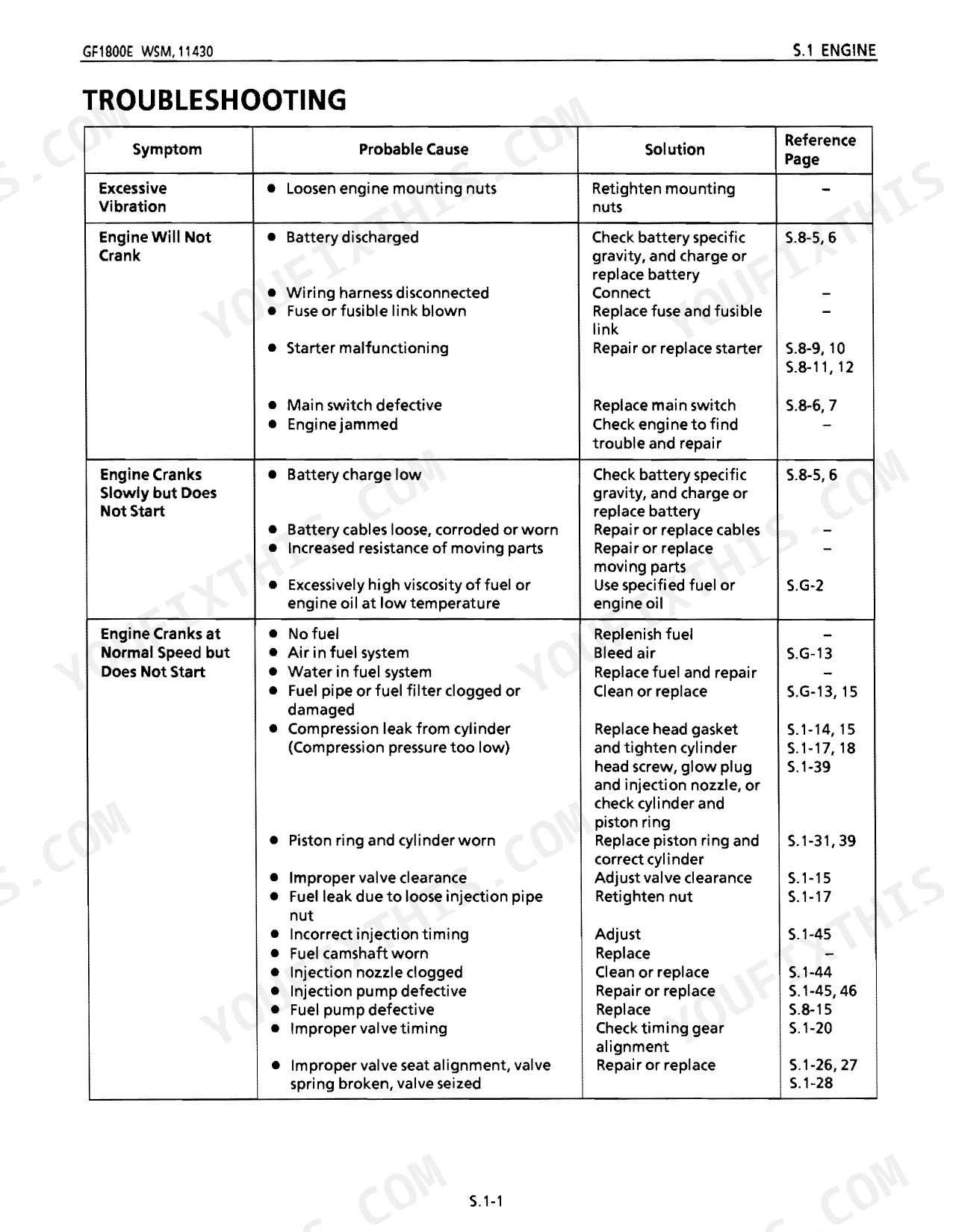

A mower that will not start or is hard to start needs a systematic check of the fuel and starting systems. The engine section opens with troubleshooting and the servicing specifications for the D722-FM.
Manual Section: Sect 1 Engine p. 66Mower cuts out when the deck is raised

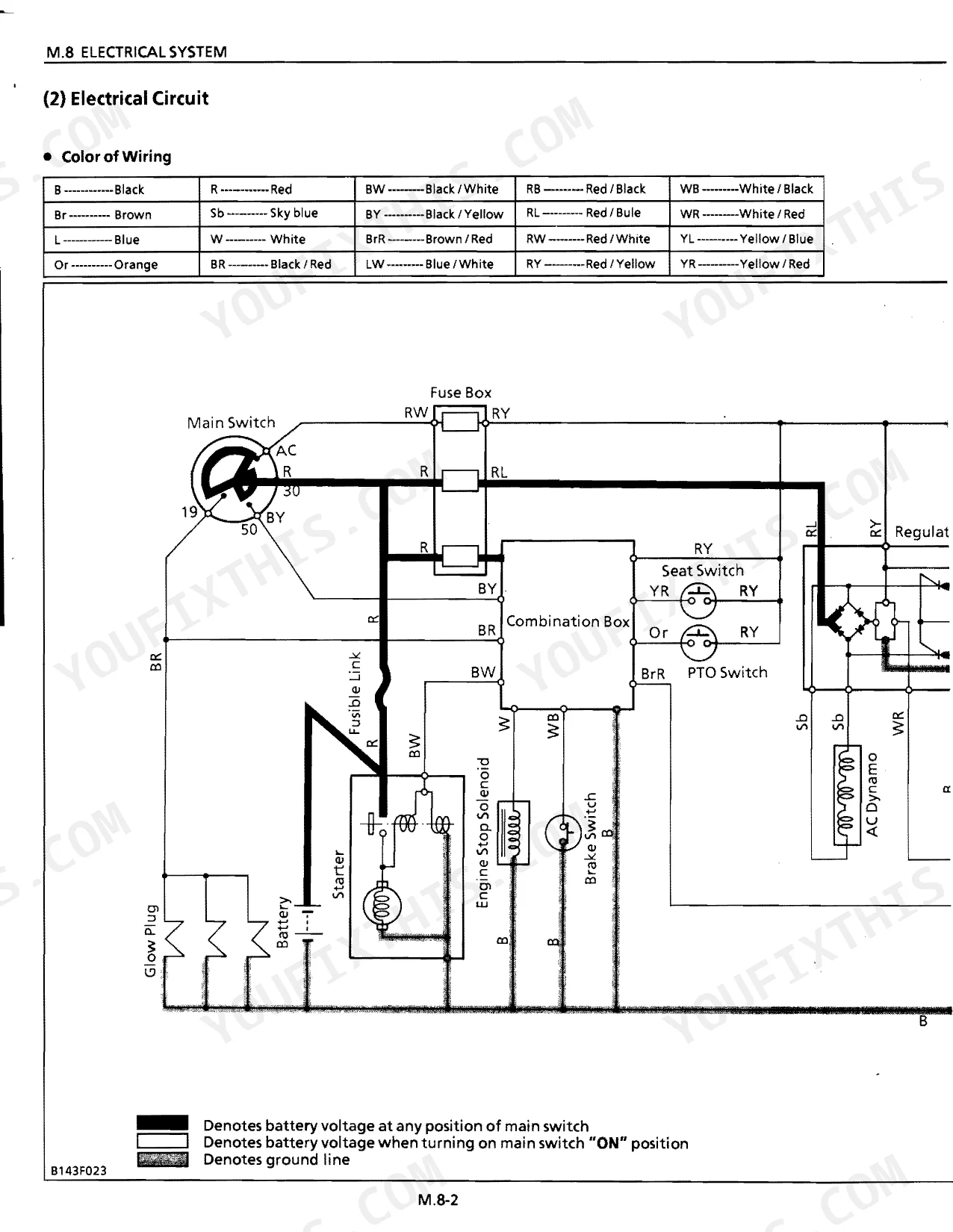

The engine dying when the deck lifts usually points to a seat or PTO safety switch in the shut-off system. The electrical section covers the engine key switch shut-off system and its switches.
Manual Section: Sect 8 ElectricalWeak or lost hydrostatic drive

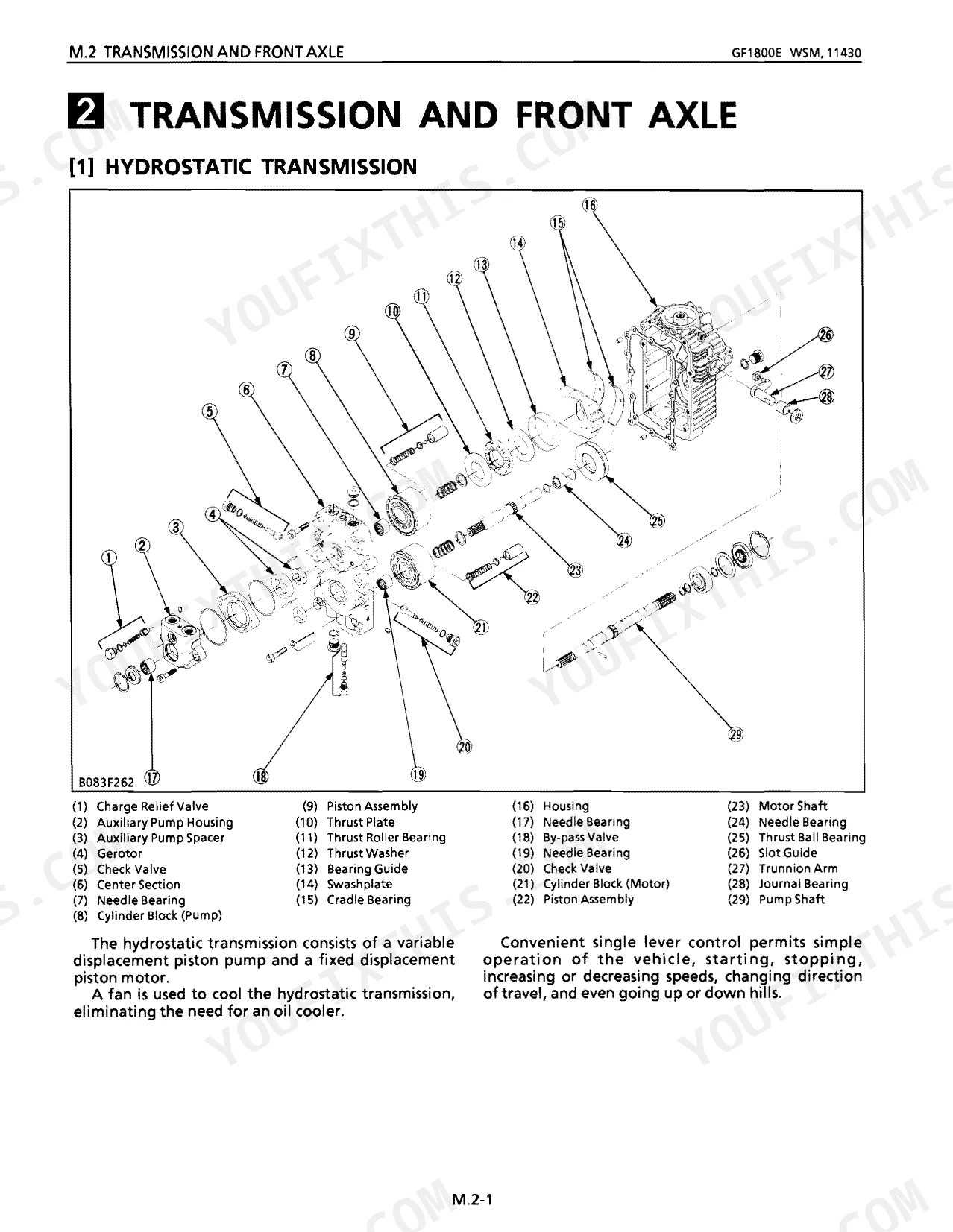

Sluggish or lost travel points to the hydrostatic transmission or front axle. The transmission and front axle section covers separating, checking, and adjusting the HST.
Manual Section: Sect 2 Transmission and Front Axle p. 114Poor cutting or worn blades
Ragged cutting quality is usually worn blades or a deck that needs adjustment. The mower section lists blade torque, deck specifications, and the maintenance check list.
Manual Section: Sect 9 MowerParking brake or braking problems
Braking or parking-brake trouble can stem from worn linings, the automatic release system, or the brake switch. The brakes section covers the brake rods, assembly, lining, and drum.
Manual Section: Sect 3 BrakesFrequently Asked Questions
Which mowers does this manual cover?
It covers the Kubota GF1800 and GF1800E front-mount riding mowers, both powered by the three-cylinder D722-FM diesel engine.
Does it cover the PTO clutch?
Yes. The Sect 7 PTO section covers the clutch disc, pressure plate, and steel plate, with the allowable-limit thicknesses used to judge wear.
Are mower blade torque specifications included?

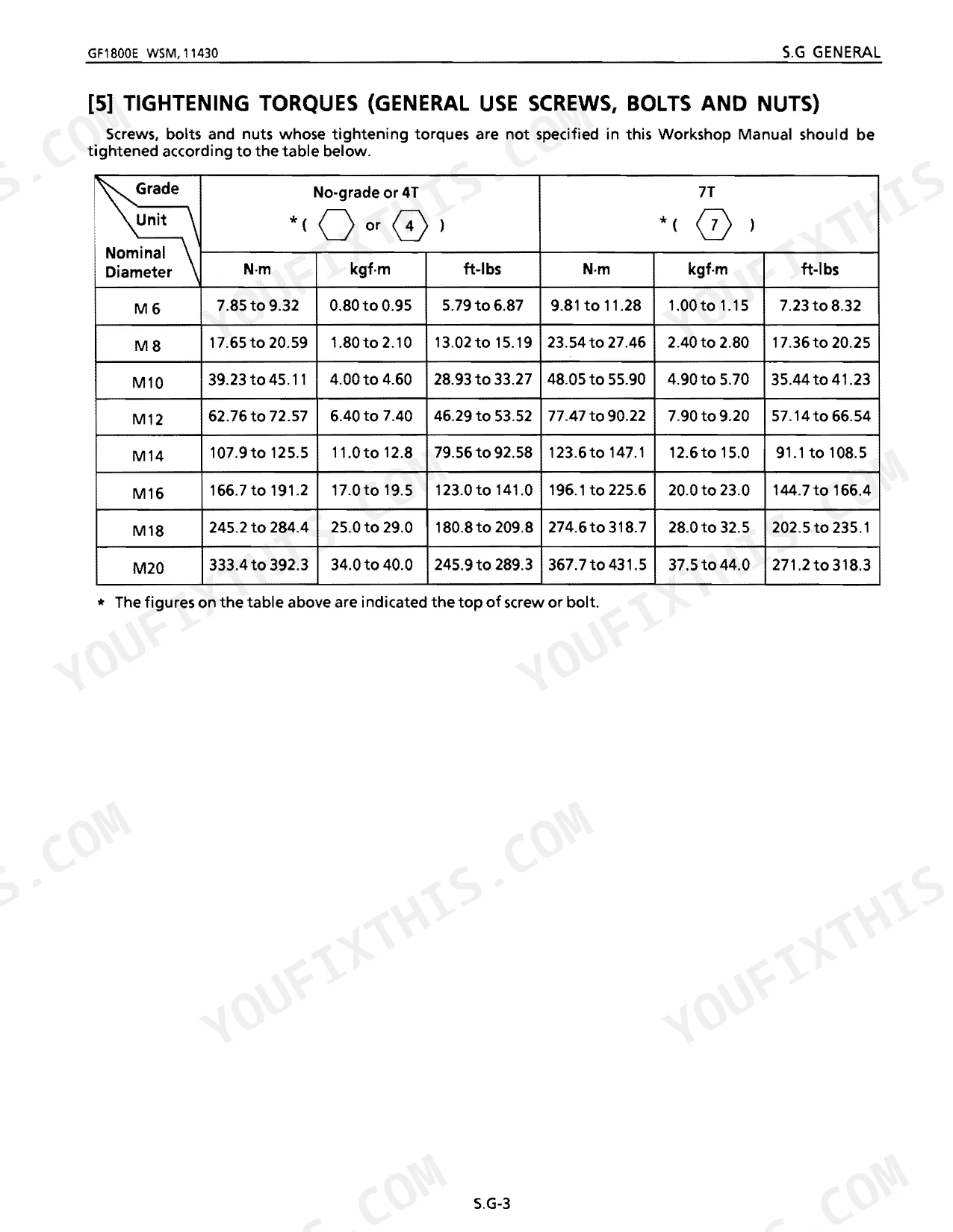

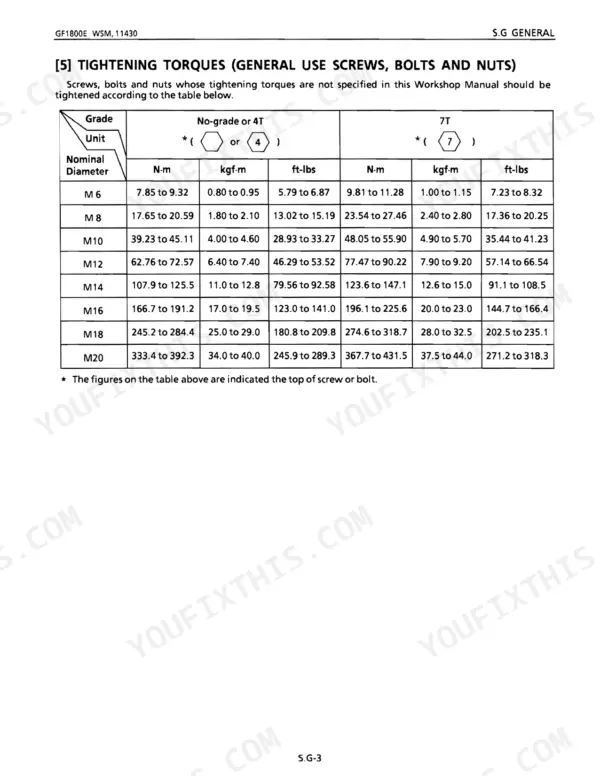

Yes. The General section's tightening torque table, plus the dedicated mower section, give the center and outer blade mounting screw torques. p. 48
Does it include engine troubleshooting and specs?

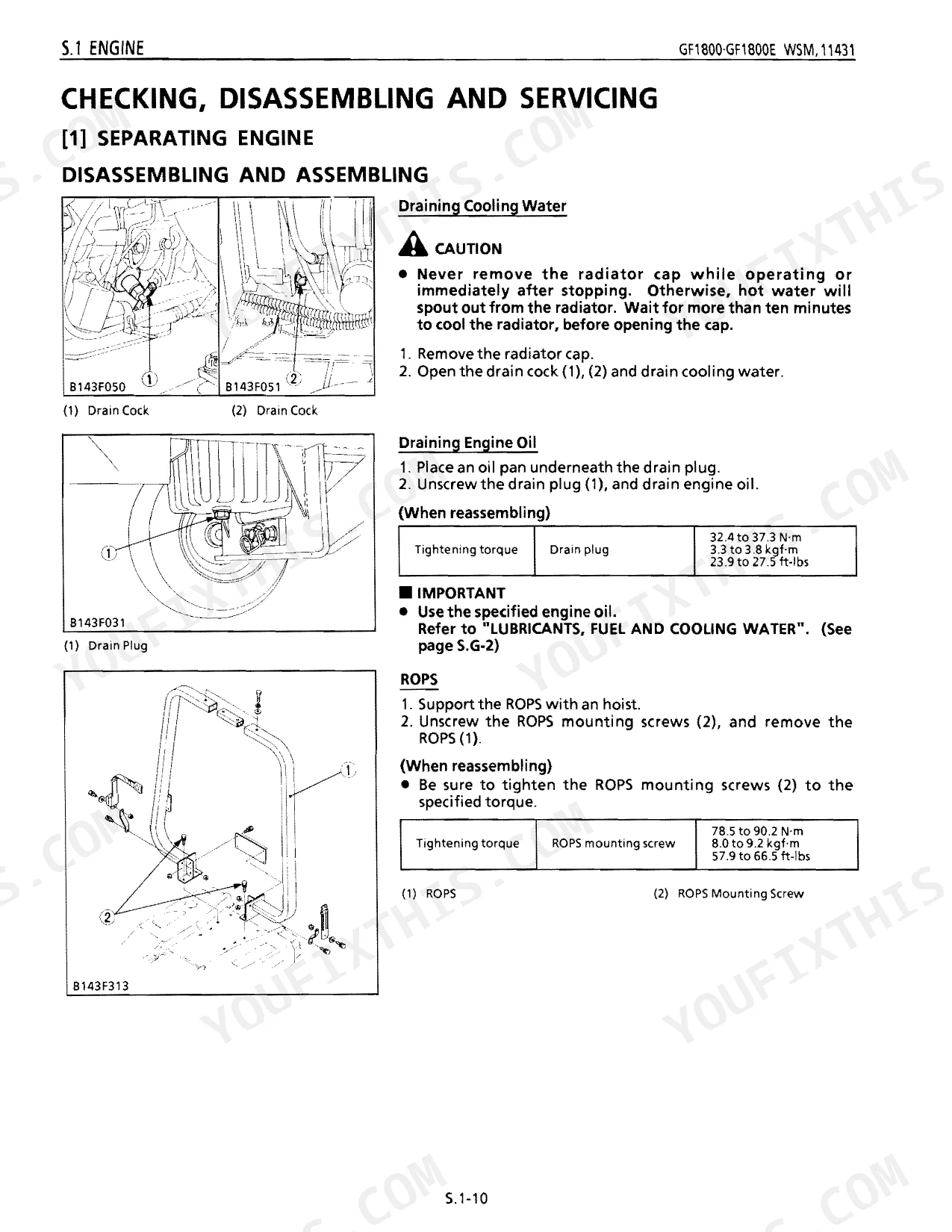

Yes. Sect 1 Engine opens with troubleshooting and provides the servicing specifications, tightening torques, and checking procedures. p. 66
How quickly can I access this manual after buying?
Immediate download of the complete 264-page searchable service manual. Access it on any device: laptop at your desk, phone in the field.
Can I print just the pages I need from this Kubota GF1800 manual?
Yes, print as many copies as you want. There are no restrictions, and many mechanics print just the section they need to bring to the shop floor.
Does this Kubota GF1800 Service Manual include the hydraulic layout?

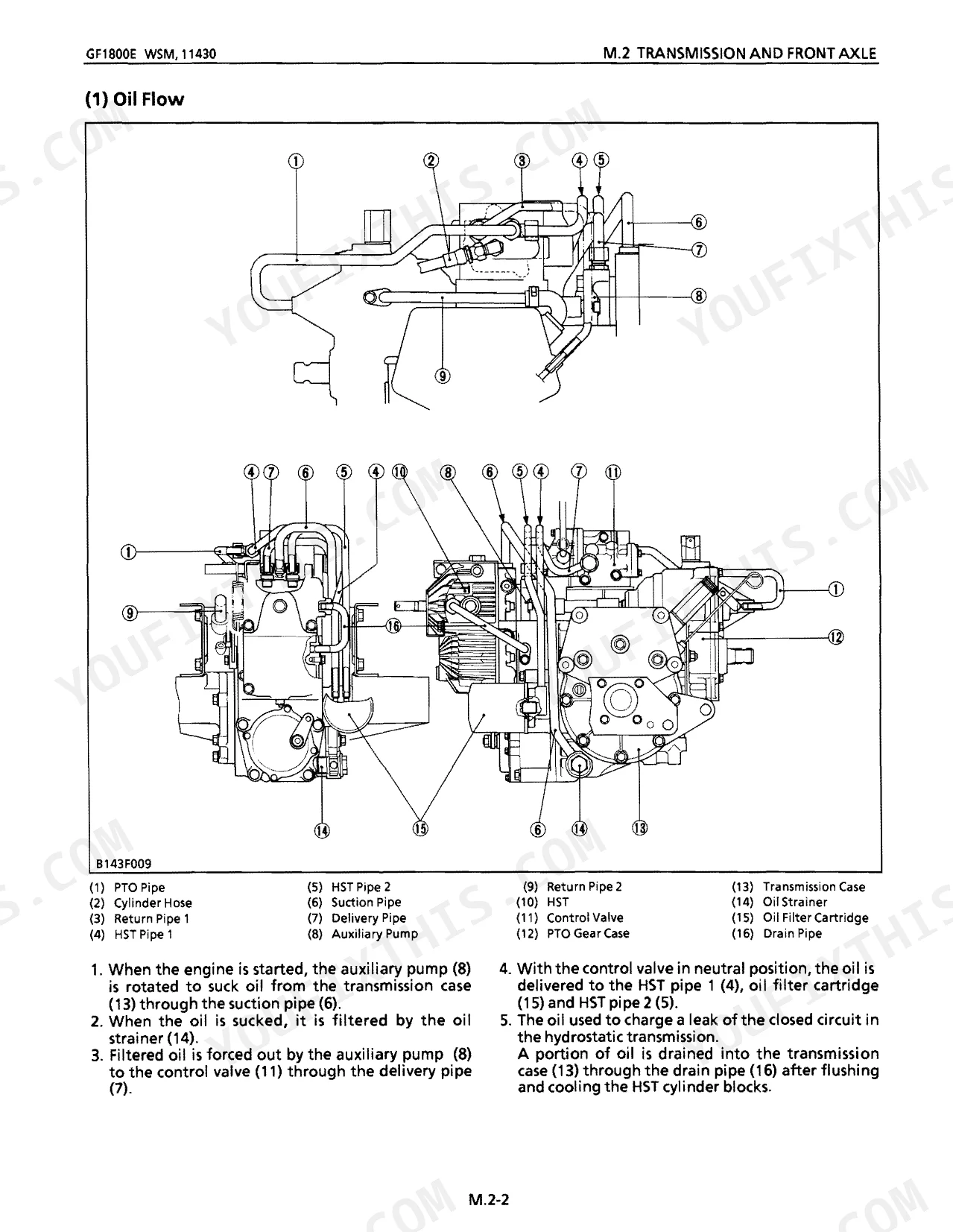

Yes. The manual includes hydraulic circuit diagrams, system schematics, and component specifications with pressure ratings.
