Finding the exact factory part number for your L245 or L245DT tractor is simple with this official OEM #12016 manual. Spanning 152 pages, the catalog provides indexed parts lists for engine internals, the front axle, clutch, transmission, and hydraulics. Full exploded view diagrams break down every subsystem from the crankcase to the 3-point linkage. If you need a nozzle holder, injection pump component, or integral power steering drag link, each assembly shows individual part numbers with cross-reference data to prevent ordering mistakes. It also includes critical shipping weights, noting the cylinder head assembly at 15.4 kgf and the crankcase at 55 kgf. Stop squinting at blurry photocopies. Download the searchable PDF, look up any component by keyword, and pull up the exploded view directly on your phone at the parts counter.
What's Inside This Kubota L245F Parts Manual
| System | Pages | Key Topics |
|---|---|---|

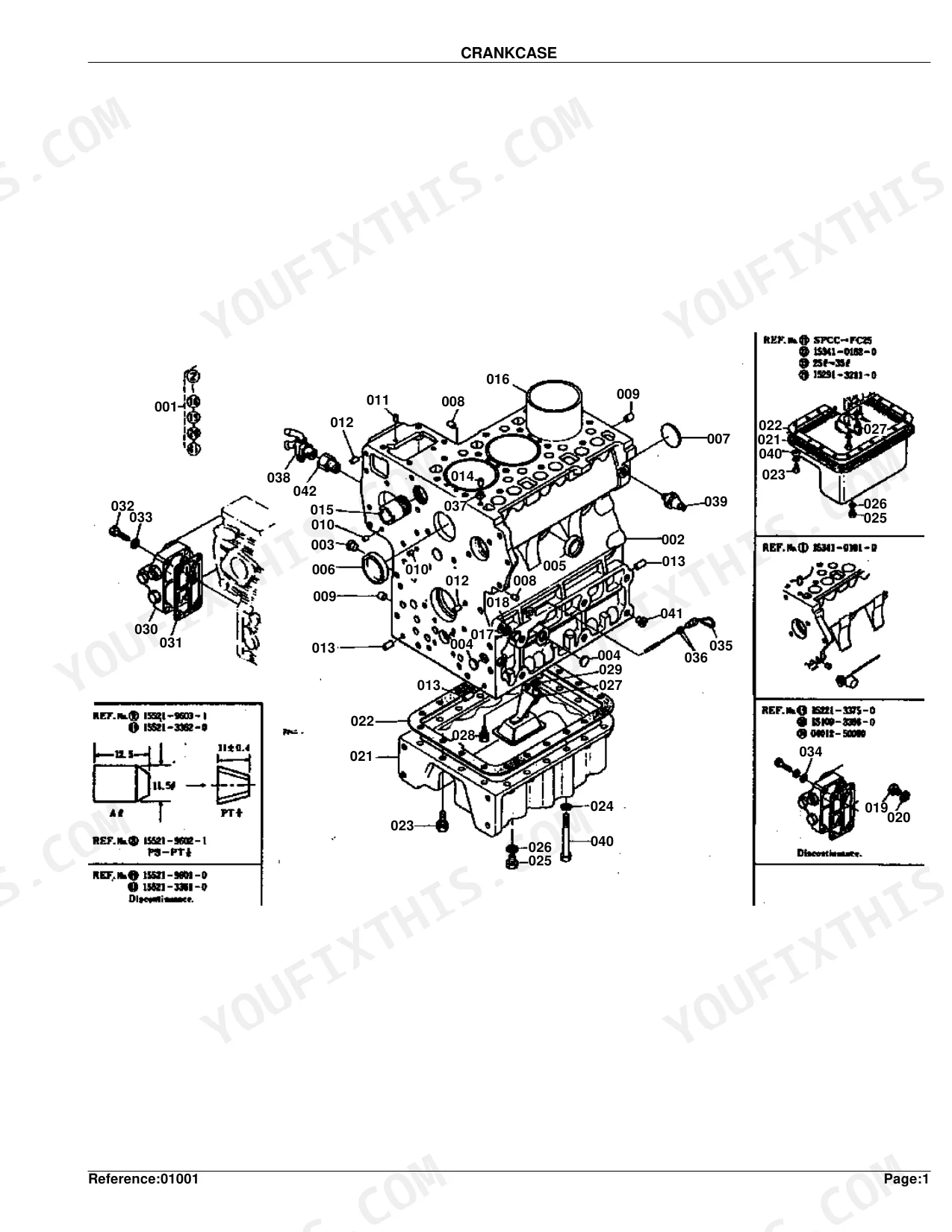

| Crankcase | - | Parts List |
| Cylinder Head | - | Ref.No. 01513-50816 |
| Gear Case | - | Ref.No. 15321-04020 |
| Bearing Case | - | Ref.No. 15221-04040 |
| Breather | - | Ref.No. 15241-05010 |
| Air Cleaner | - | Ref.No. 15222-11012 |
| Muffler [L245Dt] | - | Parts List |
| Muffler [L245] | - | Parts List |
| Valve,Rocker Arm | - | Valve, Rocker Arm, Ref.No. 15221-14030 |
| Head Cover | - | Ref.No. 15321-14510 |
| Camshaft | - | Ref.No. 04612-00240 |
| Piston Crankshaft | - | Ref.No. 15221-22170 |
| Flywheel | - | Parts List |
| Fuel Camshaft | - | Ref.No. 01513-50822 |
| Speed Control Plate | - | Ref.No. 15401-54250 |
| Governor | - | Ref.No. 04012-50080 |
| Radiator | - | Ref.No. 01153-50835 |
| Water Pump | - | Ref.No. 15321-73030 |
| Name Plate | - | Parts List |
| Oil Filter 2 [Section Parts] | - | Parts List |
| Starter | - | Parts List |
| Nozzle Holder | - | Ref.No. 15221-22020 |
| Injection Pump | - | Parts List |

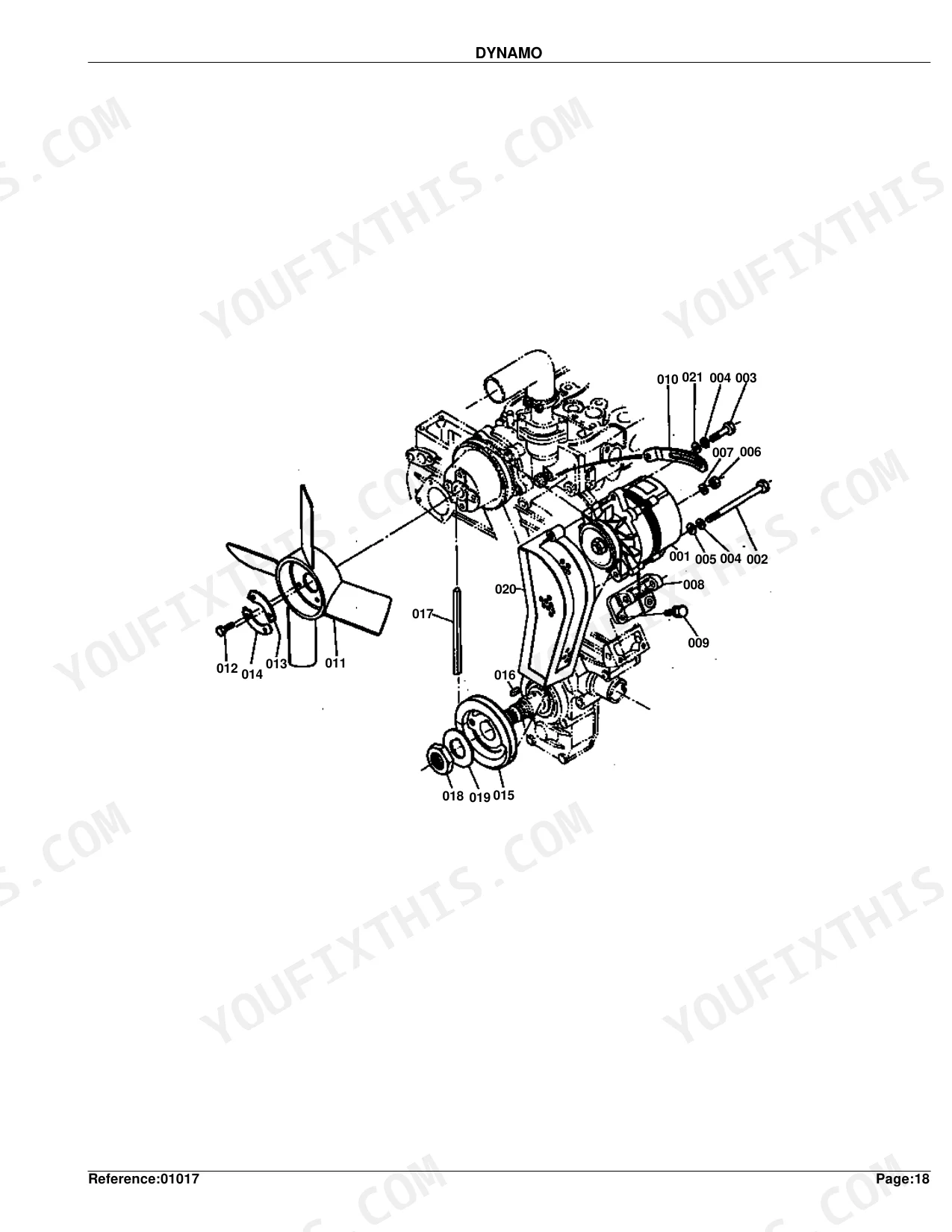

| Dynamo | - | Parts List |
| Front Wheel [L245] | - | Parts List |
| Front Wheel Drive | - | Parts List |

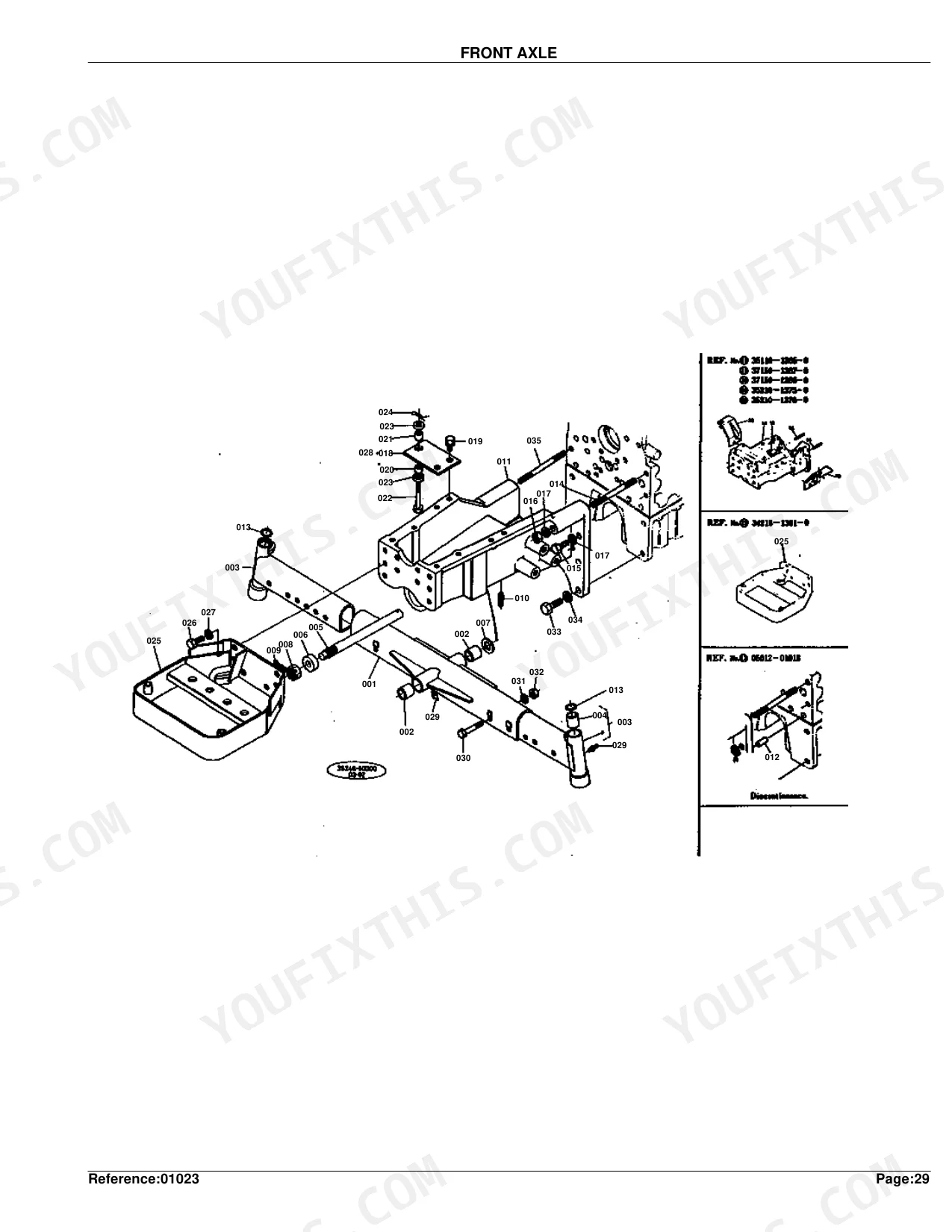

| Front Axle | - | Parts List |
| Battery | - | Parts List |
| Clutch Housing | - | Parts List |
| Clutch | - | Parts List |
| Clutch Pedal | - | Parts List |
| Steering | - | Parts List |
| Hand Accel | - | Parts List |
| Bonnet | - | Parts List |
| Mirror Lamp | - | Parts List |
| Seat | - | Parts List |
| Transmission Case | - | Parts List |

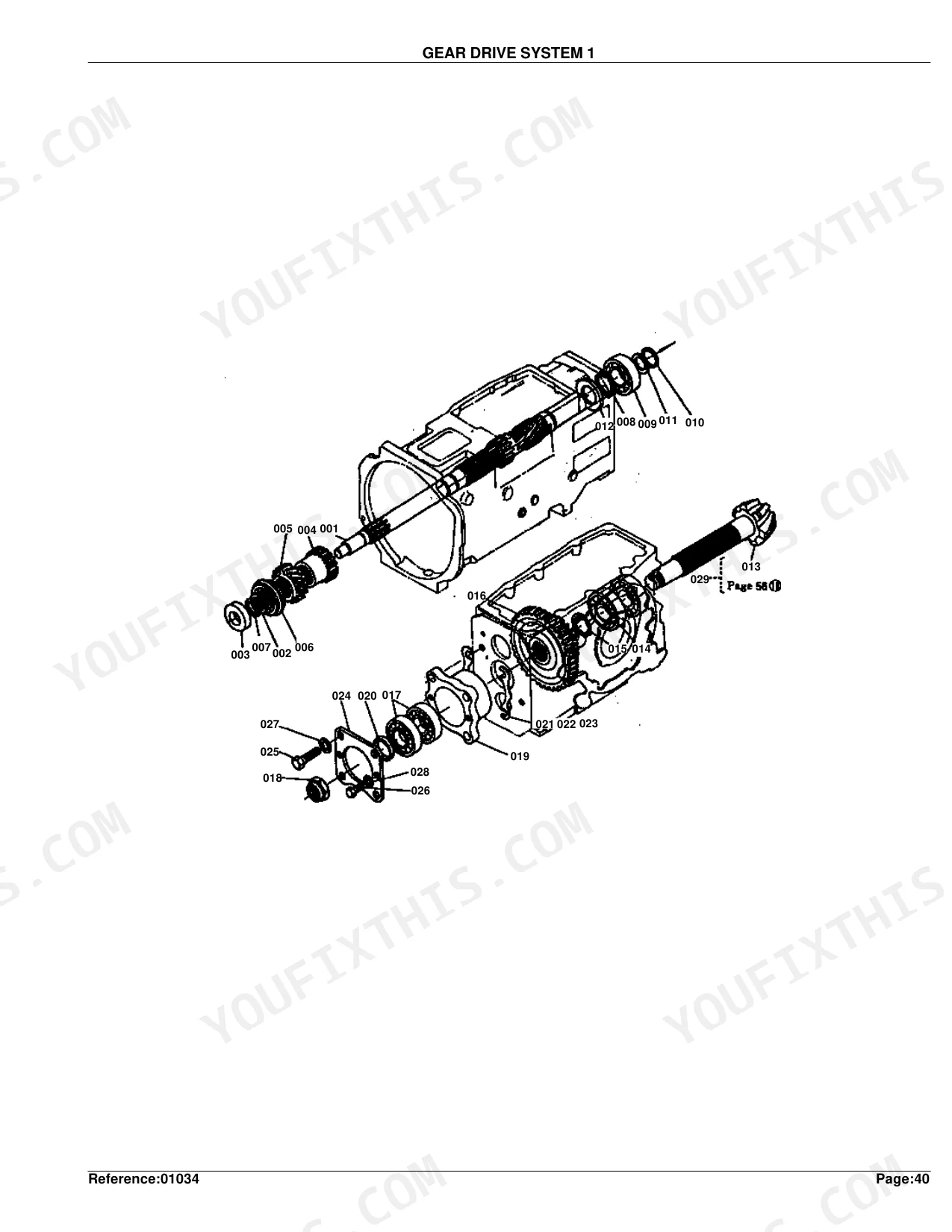

| Gear Drive System 1 | - | Parts List |
| Gear Drive System 2 | - | Parts List |
| Gear Drive System 3 | - | Parts List |
| Speed Change System 1 | - | Parts List |
| Speed Change System 2 | - | Parts List |
| Change Laver | - | Parts List |
| Differential System 1 | - | Parts List |
| Differential System 2 | - | Parts List |
| Rear Axle | - | Parts List |
| Axle Case | - | Parts List |
| Brake | - | Parts List |
| Brake Pedal | - | Parts List |
| Fender [U.S.A] | - | Parts List |
| Electical 1 | - | Parts List |
| Electical 2 | - | Parts List |
| Electical 3 | - | Parts List |

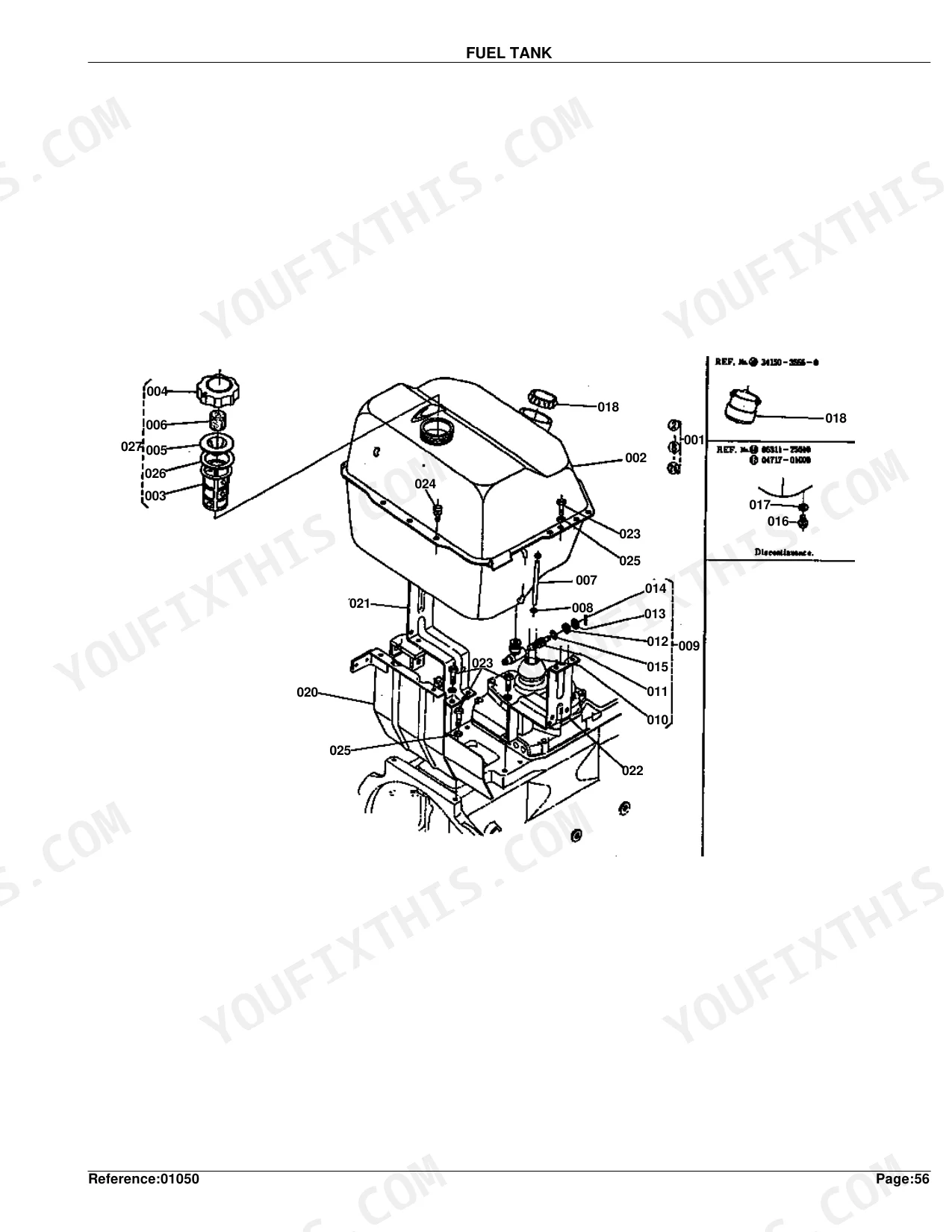

| Fuel Tank | - | Parts List |
| Fuel Filter | - | Parts List |
| Oil Pressure 1 | - | Parts List |
| Oil Pressure 2 | - | Parts List |
| O/P Cylinder | - | Parts List |

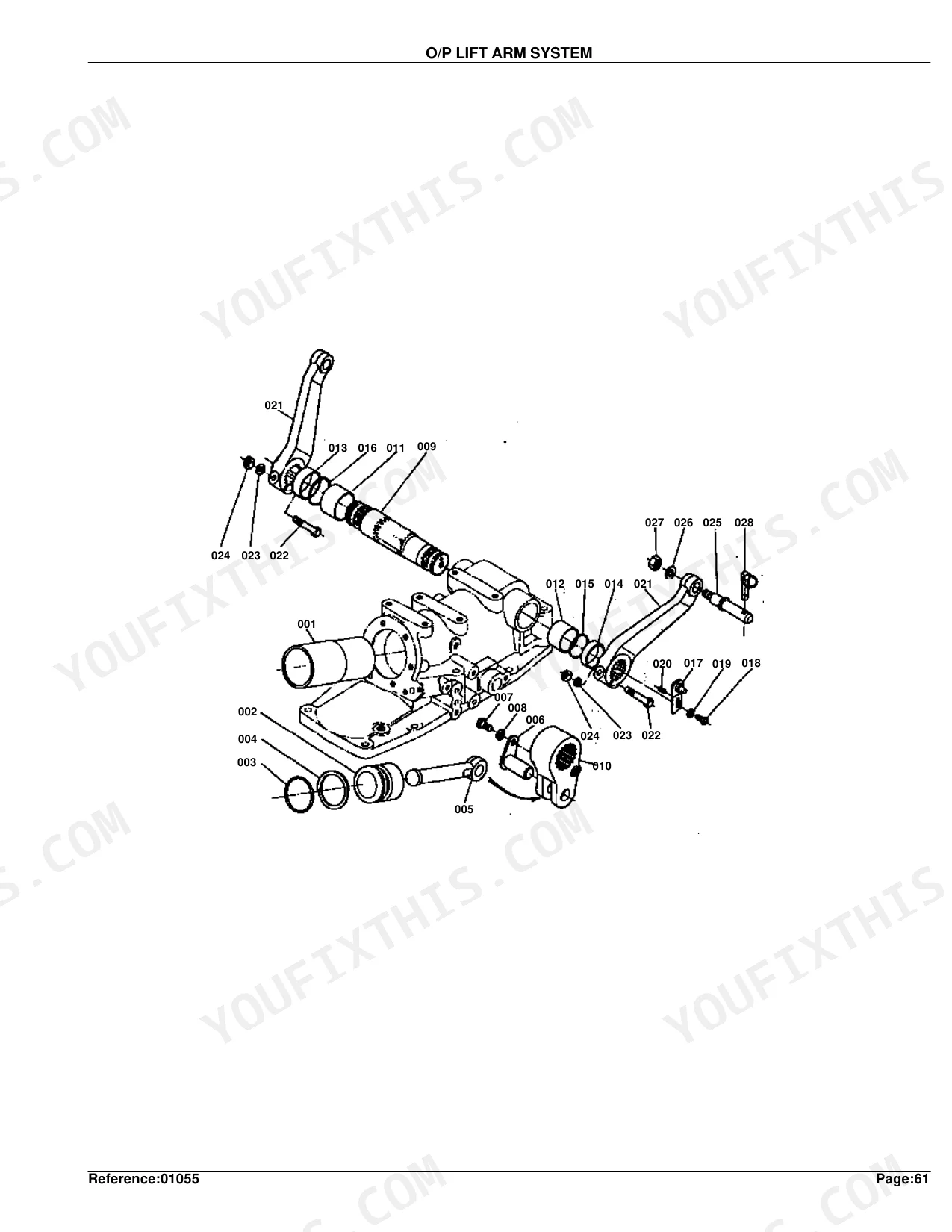

| O/P Lift Arm System | - | Parts List |
| Oil Pressure Pump | - | Parts List |
| Control Valve | - | Parts List |
| Relief Valve | - | Parts List |
| Drag Link [Integral Power Steering] | - | Parts List |
| Power Steering [Integral Power Steering] | - | Parts List |
| Flow Priority Valve [Integral Power Steering] | - | Parts List |
| Fuel Tank [Integral Power Steering] | - | Parts List |
| Oil Pressure [Integral Power Steering] | - | Parts List |
| Steering Joint [Integral Power Steering] | - | Parts List |
| 3-Point Linkage [3P] | - | Parts List, Accessories And Service Parts |
| Accessories and Service Parts | - | Parts List |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| ASSY CRANKCASE Weight | 55 kgf | p. 6 |
| LINER,CYLINDER Weight | 0.58 kgf | p. 6 |
| ASSY CYLINDER HEAD Weight | 15.4 kgf | p. 9 |
| WASHER,ADJUSTING Thickness | 1.00 | p. 53 |
| BATTERY:DRY Weight | 13.8 kgf | p. 65 |
| CLUTCH HOUSING Weight | 41.5 kgf | p. 67 |
| ASSY REAR WHEEL Weight | 126 kgf | p. 102 |
| ASSY TANK FUEL Weight | 6 kgf | p. 119 |
| O/P CYLINDER ASSY CYLINDER Weight | 20.1 kgf | p. 128 |
| ASSY POWER STEERING Weight | 14.5 kgf | p. 140 |
Kubota L245F Common Problems This Manual Covers
Engine cranks but won't start, requiring a new fuel shutoff solenoid. p. 54
Turn to the Injection Pump exploded view on page 54 to locate the fuel shutoff solenoid part number. You can cross-reference the Electrical 1 section on page 112 for relay and fuse part numbers in the starting circuit. Review the Fuel Tank diagram on page 118, which lists the 6 kgf tank assembly, to source tank-side fuel line fittings.
Manual Section: Injection PumpStarter motor spins slowly or fails entirely, demanding a correct replacement part. p. 50
Check the starter assembly exploded view on page 50. Identify the complete starter unit part number and all sub-components like the drive pinion and solenoid. Verify the 13.8 kgf battery specification in the Battery section on page 64 matches your current unit before ordering starter parts.
Manual Section: StarterHydraulic lift arms won't raise implements fully, need cylinder seal or pump part numbers p. 127
Check the O/P Cylinder exploded view on page 127 for cylinder assembly part numbers; the cylinder assembly weighs 20.1 kgf. Review the O/P Lift Arm System diagram on page 129 for lift arm components. For pump internals, see the Oil Pressure Pump section on page 131 to identify seals and internal parts by position.
Manual Section: O/P CylinderFrequently Asked Questions
What are the replacement specifications for fuel filters?
The replacement fuel filter is identified by Part No. 15213-32430, described as "FILTER,CARTRIDGE". This specific part weighs 0.355 kgf (0.781 lb).
What are the replacement specifications for water pump?
The replacement water pump assembly is Part No. 15341-73030, described as "ASSY PUMP,WATER". This assembly has a weight of 2 kgf (4.4 lb).
My L245F cranks but won't start, which parts does this catalog help me find?
Turn to the Injection Pump exploded view on page 54 to identify the fuel shutoff solenoid part number, a common no-start cause. You can cross-reference the Electical 1 section on page 112 for relay and fuse part numbers in the starting circuit. The Fuel Tank diagram on page 118 lets you source tank-side fuel line fittings.
Where do I find starter motor part numbers if my L245F starter is spinning slowly or failing?
Check the Starter exploded view on page 50 to identify the complete starter unit part number along with sub-components like the drive pinion and solenoid. Before ordering, verify the battery specification in the Battery section on page 64 matches your current unit, since a weak battery can mimic starter symptoms. (page 50)
If my L245F three-point hitch won't lift implements fully, which sections cover the hydraulic parts?
Check the O/P Cylinder exploded view on page 127 for cylinder assembly part numbers. Use the O/P Lift Arm System diagram on page 129 for lift arm components, and the Oil Pressure Pump section on page 131 to identify pump seals and internal parts by position. (page 127)
Does this catalog cover the Integral Power Steering parts for the L245F?
Yes. There are dedicated Integral Power Steering sections, including the Power Steering assembly on pages 139-140 and the Flow Priority Valve on pages 141-142. The Drag Link section on pages 137-138 and the Steering Joint section on pages 147-148 are also included for that configuration. (page 139)
Is this Kubota L245F Parts Catalog a digital download?
A 152-page Parts Catalog in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, no shipping wait.
Can I print this Kubota L245F manual?
Yes. The PDF has no DRM restrictions, print any page or section you need for your shop. Works with any standard printer.
