Searching for the Kubota l175 parts manual pdf? This 83-page factory parts catalog maps every component on your Kubota L175 tractor across exploded-view assemblies: from crank case and camshaft internals to fuel injection pump, transmission gear, differential, hydraulics, 3-point linkage, and the full electrical system. You get a numbered parts list for each assembly, with reference numbers, factory part numbers, quantities, and country fitment codes covering the US, Canada, France, Greece, Australia, and Portugal. Each entry carries the factory component weight, so when the hydraulic unit logs at 0.48 kgf you know immediately whether your replacement matches. No more guessing at part numbers or cross-referencing blurry microfiche. Bookmarked by system: jump straight to Front Axle, Speed Change, or Starter without paging through all 83 pages to find what you need.
What's Inside This Kubota L175 Parts Manual
| System | Pages | Key Topics |
|---|---|---|

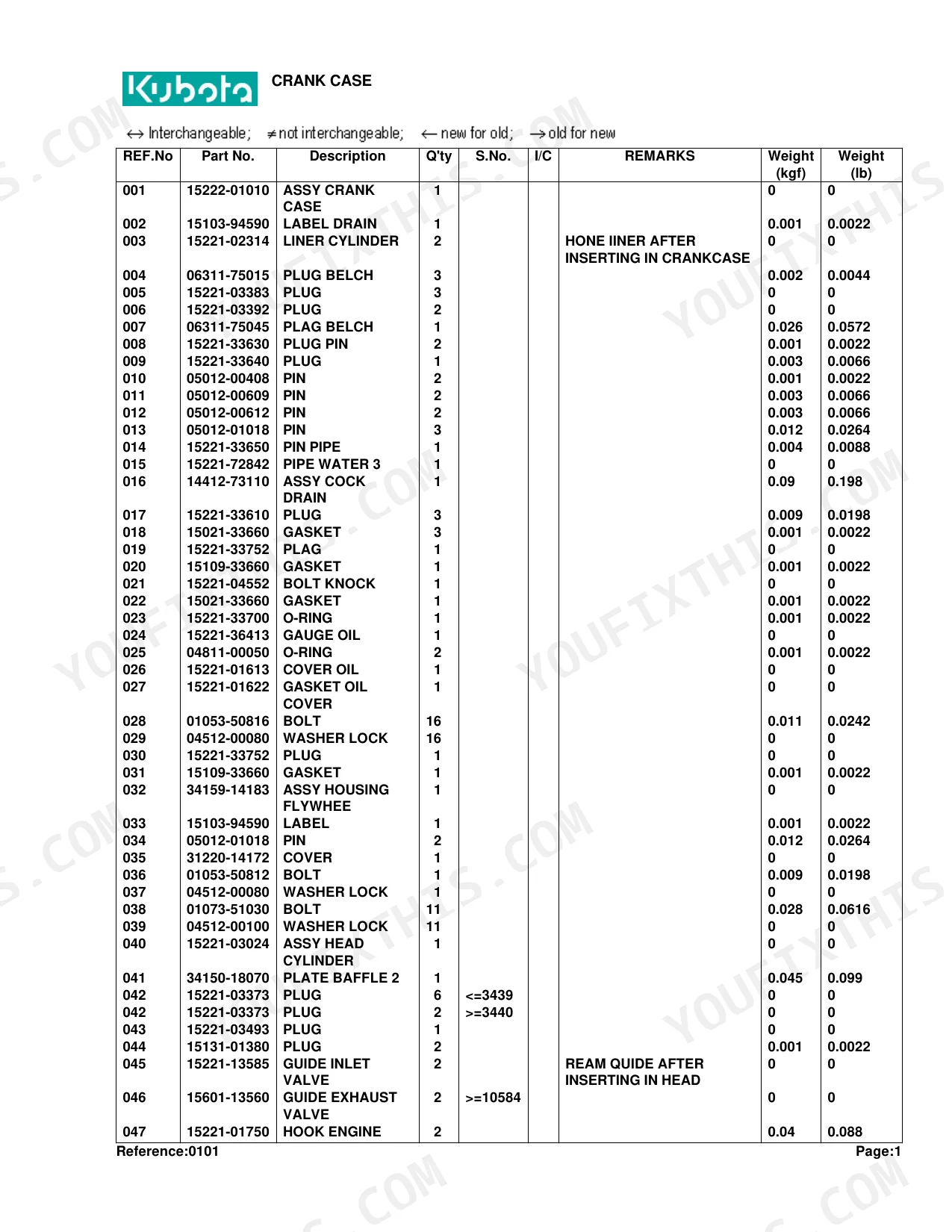

| Crank Case | 4-6 | Assy Crank Case, Liner Cylinder, Assy Cock Drain, Assy Housing Flywhee, Assy Head Cylinder, Plate Baffle, Hook Engine |
| Gear Case [A] | 7-8 | Assy Case Gear, Plug Pin, Pipe Water, O-ring, Pin Spring, Gasket Gear Case, Bolt, Washer Lock |
| Valve Head Cover Rocker Arm | 9-11 | Valve Intake, Valve Exhaust, Spring Valve, Retainer Valve Sprin, Collet Valve Spring, Stem-seal Valve, Cap Valve |
| Crank Shaft | 12-13 | Plug Pin, Flywheel, Gear Ring, Piston, Connecting Rod, Metal Crank Pin, Gasket |
| Cam Shaft | 14-15 | Assy Camshaft, Plug Pin, Gear Cam, Stopper Camshaft, Cir-clip External, Gear Crank, Collar Crank Gear, Oil Cut Crank Shaft |
| Fuel Camshaft | 16-18 | Assy Camshaft Fuel, Camshaft Fuel, Assy Gear Injection, Sleeve Governor, Case Governor Ball, Assy Lever Fork, Shaft Fork Lever, Assy Lever Governor |
| Breather Injection Pump | 19-20 | Breather, Injection Pump, Pipe Breather, Cover Injection, Pump Injection, Shim Injection Pump, Holder Nozzle |

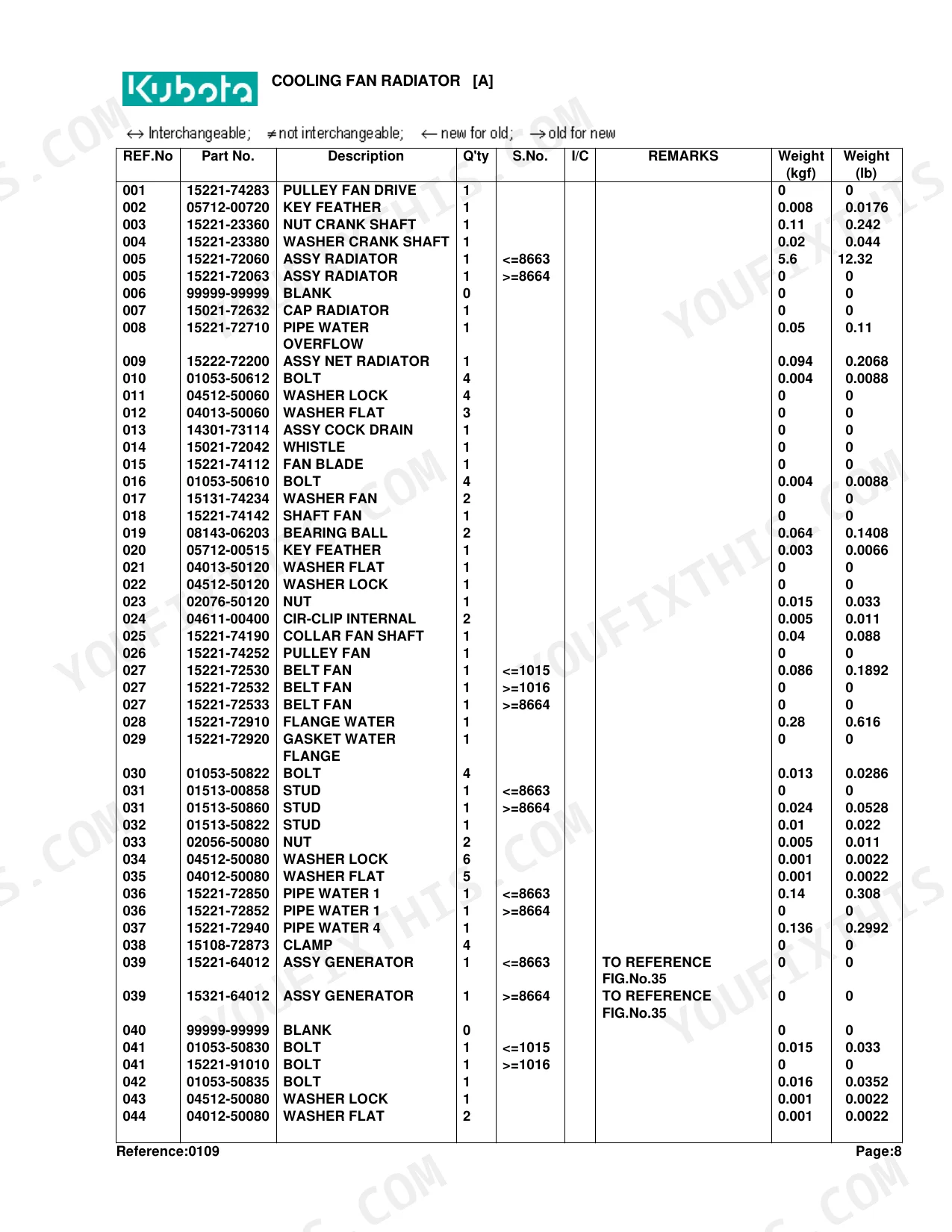

| Cooling Fan Radiator [A] | 21-23 | Pulley Fan Drive, Nut Crank Shaft, Assy Radiator, Cap Radiator, Assy Net Radiator, Fan Blade, Shaft Fan, Belt Fan |
| Air Cleaner Muffler [A] | 24-26 | Air Cleaner Muffler, Manifold Intake, Gasket Intake Manifo, Pipe Intake, Clamp Pipe, Assy Air Cleaner, Body Air Cleaner, Cover Air Cleaner |

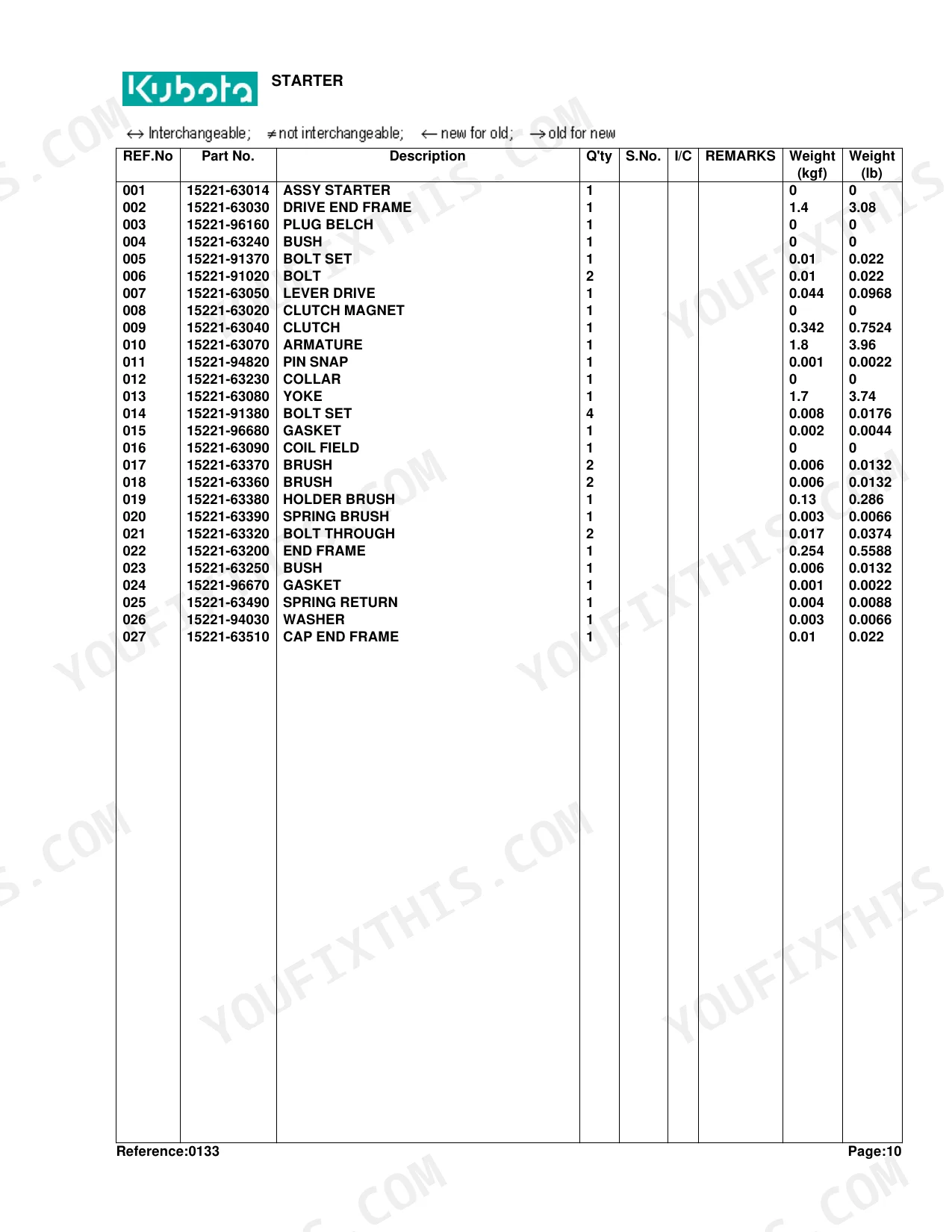

| Starter | 27-28 | Assy Starter, Drive End Frame, Plug Belch, Bush, Bolt Set, Lever Drive, Clutch Magnet, Clutch |

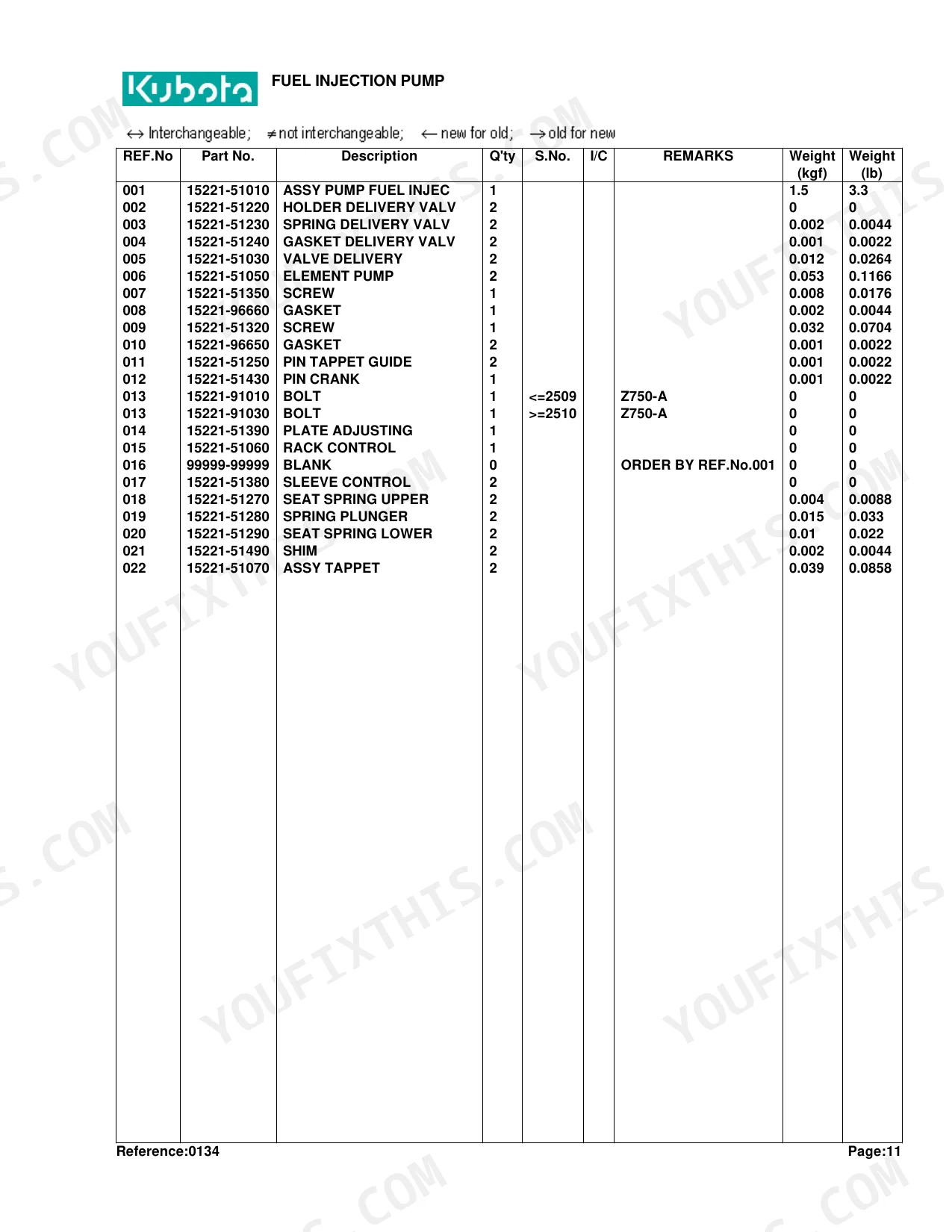

| Fuel Injection Pump | 29-30 | Assy Pump Fuel Injec, Holder Delivery Valv, Spring Delivery Valv, Gasket Delivery Valv, Valve Delivery, Element Pump, Pin Tappet Guide, Pin Crank |
| Generator | 31-32 | Nut, Washer Spring, Pulley Alternator, Fan Alternator, Collar, Bolt Through, Drive End Frame, Felt Oil |
| Oil Filter | 33-34 | Assy Filter Oil, Assy Cover Oil Filte, Cover Oil Filter, Assy Safety Valve, Plug Relief Valve, Assy Valve Pressure, Assy Releaf Valve |
| Nozzle | 35-36 | Assy Holder Nozzle, Joint, Nut, Washer Flat, Body Nozzle Holder, Washer Adjusting, Spring Nozzle, Rod Bush |

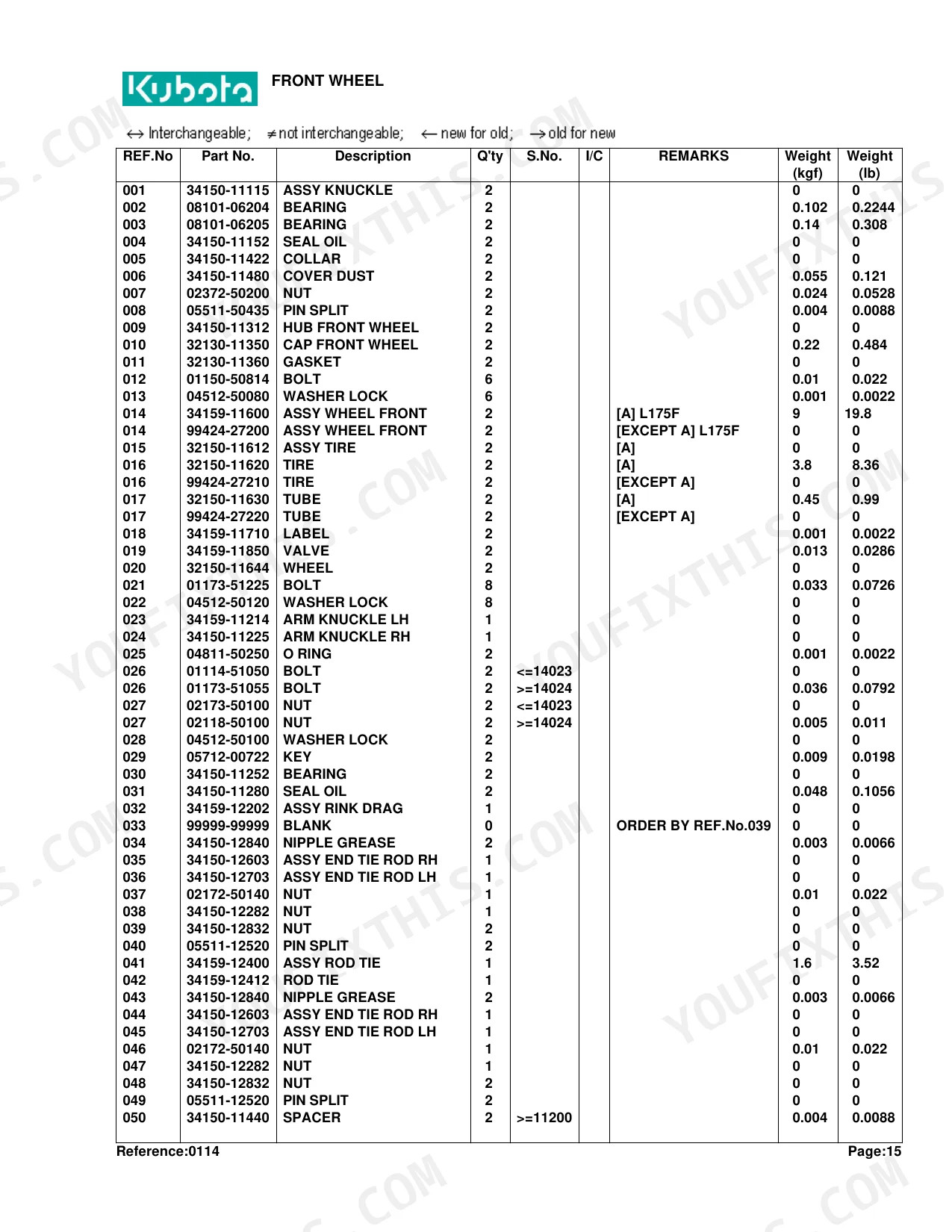

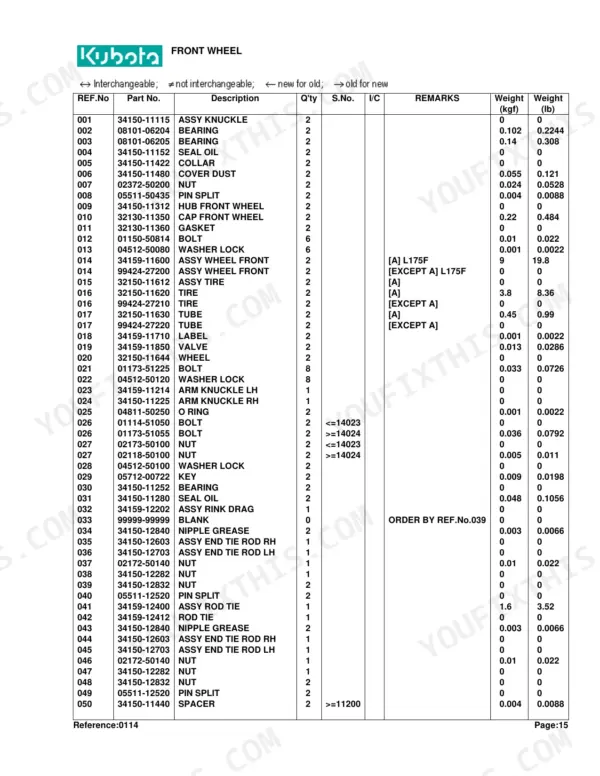

| Front Wheel | 37-39 | Assy Knuckle, Bearing, Seal Oil, Collar, Cover Dust, Hub Front Wheel, Cap Front Wheel, Gasket |
| Front Axle | 40-42 | Assy Axle Front, Bushing, Nipple Grease, Pin Center, Collar, Bracket Front Axle, Support Radiator, Cushion |
| Clutch Housing Mission Case | 43-44 | Assy Housing Clutch, Washer Lock, Plug, O Ring, Gasket, Cover Housing, Spacer |
| Clutch Pedal | 45-47 | Assy Disk Clutch, Assy Plate Pressure, Spring Pressure, Lever Release, Bolt Lever, Cap Pressure Spring, Seat Lever |
| Steering | 48-49 | Assy Steering, Box Gear, Shaft Sector, Assy Ball Nut, Bearing, Cover Rear, Shim, Cover Side |
| Hand Accel | 50-51 | Lever Hand Accel, Washer Plain, Spring, Nut, Grip Lever, Link Accel, Rod Accel, Joint Rod |
| Hood | 52-54 | Assy Hood, Plate Baffle, Grille Hood, Kubota Mark Front, Kubota Mark Side, Hook Hood, Cushion Hood, Lens |
| Seat Fender [A] | 55-57 | Assy Seat, Support Seat Rh, Support Seat Lh, Holder Cushion, Cushon Seat, Assy Reflector, Assy Step Rh, Assy Fender Rh |
| Transmission Gear | 58-60 | Shaft Main, Bearing, Cir-clip External, Key, Gear, Shaft, Cover Bearing |
| Differential [A] | 61-62 | Spiral Bevel Gear Se, Assy Diff, Case Diff, Key Feather, Shaft Diff Pinion, Washer Diff Pinion, Gear Diff Side L, Washer |
| Speed Change | 63-65 | Fork Shift, Rod Fork, Mounting Change Leve, Lever Main Change, Lever Pto Change, Assy Lever Sub Chang, Grip Lever, Shaft Fork |
| Rear Wheel Shaft | 66-68 | Gear, Bearing, Collar, Nut, Case Wheel Shaft, Gasket, Bolt |
| Brake | 69-70 | Assy Brake R, Assy Brake L, Plate Anchor, Drum Brake, Assy Shoe Brake, Shaft Brake Pedal, Support Pedal Shaft, Assy Pedal Brake |
| Fuel Tank | 71-73 | Assy Tank Fuel, Filter, Cap, Gasket, Plug, Gauge Fuel, Clip Pipe |

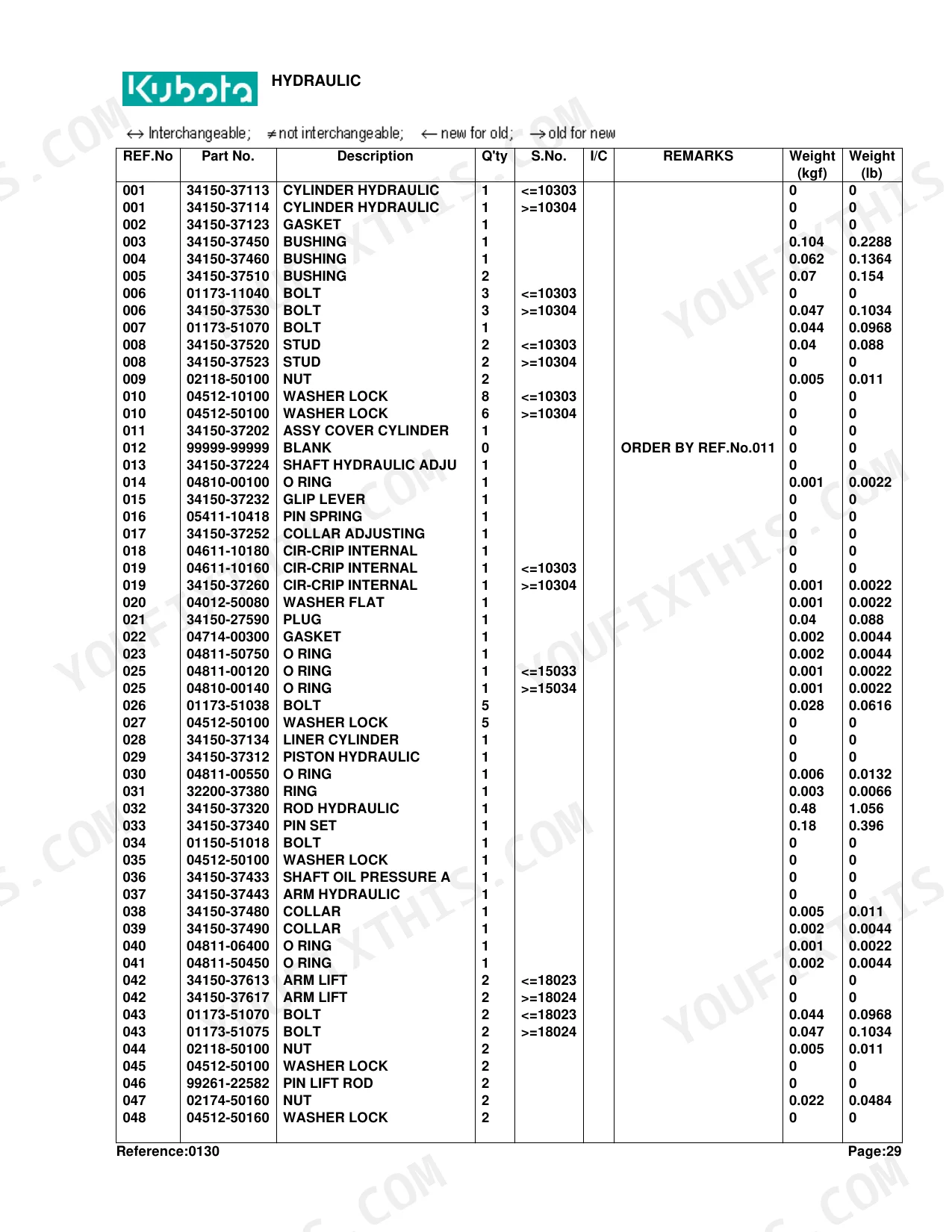

| Hydraulic | 74-79 | Cylinder Hydraulic, Assy Cover Cylinder, Shaft Hydraulic Adju, Glip Lever, Collar Adjusting, Piston Hydraulic, Rod Hydraulic, Assy Pin Set |
| 3-Point Linkage | 80-81 | Assy Linkage 3-POINT, Link Top, Nut Top Link, Joint Top Link Rh, Joint Top Link Lh, Pin Top Link, Assy Pin Set, Holder Top Link |
| Electrical | 82-83 | Assy Wire Harness, Wire Harness, Band, Clamp Cord, Washer Spring, Bolt, Washer, Cushion |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Weight | 0.125 kgf | p. 53 |
| CRANK CASE: LABEL DRAIN weight | 0.001 kgf | p. 5 |
| CRANK CASE: PLAG BELCH weight | 0.026 kgf | p. 5 |
| CRANK CASE: ASSY COCK DRAIN weight | 0.09 kgf | p. 5 |
| CRANK CASE: PLATE BAFFLE 2 weight | 0.045 kgf | p. 5 |
| GEAR CASE [A]: PIPE WATER 2 weight | 0.115 kgf | p. 8 |
| GEAR CASE [A]: BOLT (REF.No 009) weight | 0.031 kgf | p. 8 |
| GEAR CASE [A]: BALL STEEL weight | 0.004 kgf | p. 8 |
| VALVE HEAD COVER ROCKER ARM: GASKET HEAD COVER weight | 0.033 kgf | p. 10 |
| VALVE HEAD COVER ROCKER ARM: ASSY SHAFT DECOMP. weight | 0.55 kgf | p. 10 |
| CRANK SHAFT: PISTON weight | 0.45 kgf | p. 13 |
| CRANK SHAFT: ASSY RING PISTON weight | 0.05 kgf | p. 13 |
Kubota L175 Common Problems This Manual Covers
Need the exact Kubota L175 piston ring part numbers because the engine won't start in cold weather. p. 13
Check the exploded view on page 13 to locate the correct piston rings. Verify the ASSY RING PISTON part number, which has a listed weight of 0.05 kgf. Match your engine serial number to the index to ensure you order the right replacement components.
Manual Section: Crank ShaftCan't find the correct hydraulic valve diagram when the bucket lift feels weak and erratic. p. 75
Inspect the hydraulic parts diagram on page 75 to identify the specific valve assembly needed. Cross-reference the hydraulic component weights, noting the 0.48 kgf spec for correct shipping calculations. Order the exact seals and spools listed to rebuild the sluggish control block.
Manual Section: HydraulicTrying to locate replacement wiring harness connectors to fix intermittent gauge and accessory operation. p. 83
Review the electrical system layout on page 83 for exact harness routing and connector part numbers. Verify the main harness assembly, listed with a weight of 0.54 kgf, against the parts index. Order the specified factory connectors to replace any corroded terminals.
Manual Section: ElectricalNeed shifter linkage diagrams to fix transmission gear selection problems and grinding noises. p. 8
Inspect the gear case parts breakdown on page 8 to identify the shifter detent components. Locate the exact part number for the steel ball, which has a weight of 0.004 kgf, and its matching spring. Order these specific parts to rebuild the linkage properly.
Manual Section: Gear Case [A]Frequently Asked Questions
What are the replacement specifications for fuses?
The manual identifies a "BOX FUSE" with part number 34150-33600, weighing 0.125 kgf (0.275 lb). It also lists a "LABEL FUSE" with part number 34150-33610. However, specific electrical replacement specifications such as amperage or fuse type are not detailed in this parts book.
Does this Kubota L175 parts manual show the hydraulic valve assembly for a weak or erratic bucket lift?
Yes. The hydraulic section includes a parts diagram that identifies the specific valve assembly, along with the seals and spools listed for rebuilding the control block (page 75). Use it to locate the exact components for a sluggish or erratic lift before ordering. Note this is a parts catalog, so it gives part numbers and exploded views rather than repair procedures or pressure specs.
Can I find the wiring harness connector part numbers for the Kubota L175 in this manual?
Yes. The electrical section shows the harness routing and connector part numbers, including the main harness assembly, so you can match factory connectors against the parts index (page 83). It is intended for locating and ordering replacement connectors and terminals, for example when chasing intermittent gauge or accessory operation. As a parts book it does not include wiring diagnostics or voltage testing steps.
Where do I find the piston ring part numbers for the Kubota L175 engine?
The crank shaft section has an exploded view that lets you locate the correct piston rings and verify the ASSY RING PISTON part number against your engine serial number in the index (page 13). This is useful when you need to confirm the exact replacement rings to order. Being a parts manual, it lists components and reference numbers rather than engine rebuild instructions.
Does the manual cover the shifter linkage parts for transmission gear-selection problems?
Yes. The Gear Case [A] section breaks down the shifter detent components, including the steel ball and its matching spring, so you can identify the exact part numbers to rebuild the linkage (page 8). It is helpful when diagnosing gear-selection or grinding-noise issues that trace back to worn linkage parts. The manual provides the parts breakdown and reference numbers, not step-by-step transmission repair.
What format is this Kubota L175 manual in?
Instant PDF download. You get the full 83-page searchable Parts Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Are there any print restrictions on this Kubota L175 manual?
None at all — the PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
