Lost time chasing a part number for your Kubota L245DT tractor? This 160-page Kubota L245DT parts manual (OEM #100K0129) maps every component from crankcase to 3-point linkage, organized by system with factory part numbers, quantities, and interchange codes on every spread. Engine coverage alone spans 26 sections: crankcase, cylinder head, injection pump, camshaft, governor, starter, and more, each presented as a numbered exploded view paired with a parts table. Drivetrain runs 23 sections deep through the clutch housing, transmission case, differential, rear axle, brake, and all three gear drive systems; hydraulic and front-axle sections cover the DT-specific front wheel drive, propeller shaft, and integral power steering. Factory assembly weights are listed throughout: the crankcase calls out at 55 kgf, the cylinder head at 15.4 kgf. Stop ordering parts blind. Bookmarked by system and keyword-searchable; open it on your tablet, find the part, place the order right.
What's Inside This Kubota L245DT Parts Manual
| System | Pages | Key Topics |
|---|---|---|

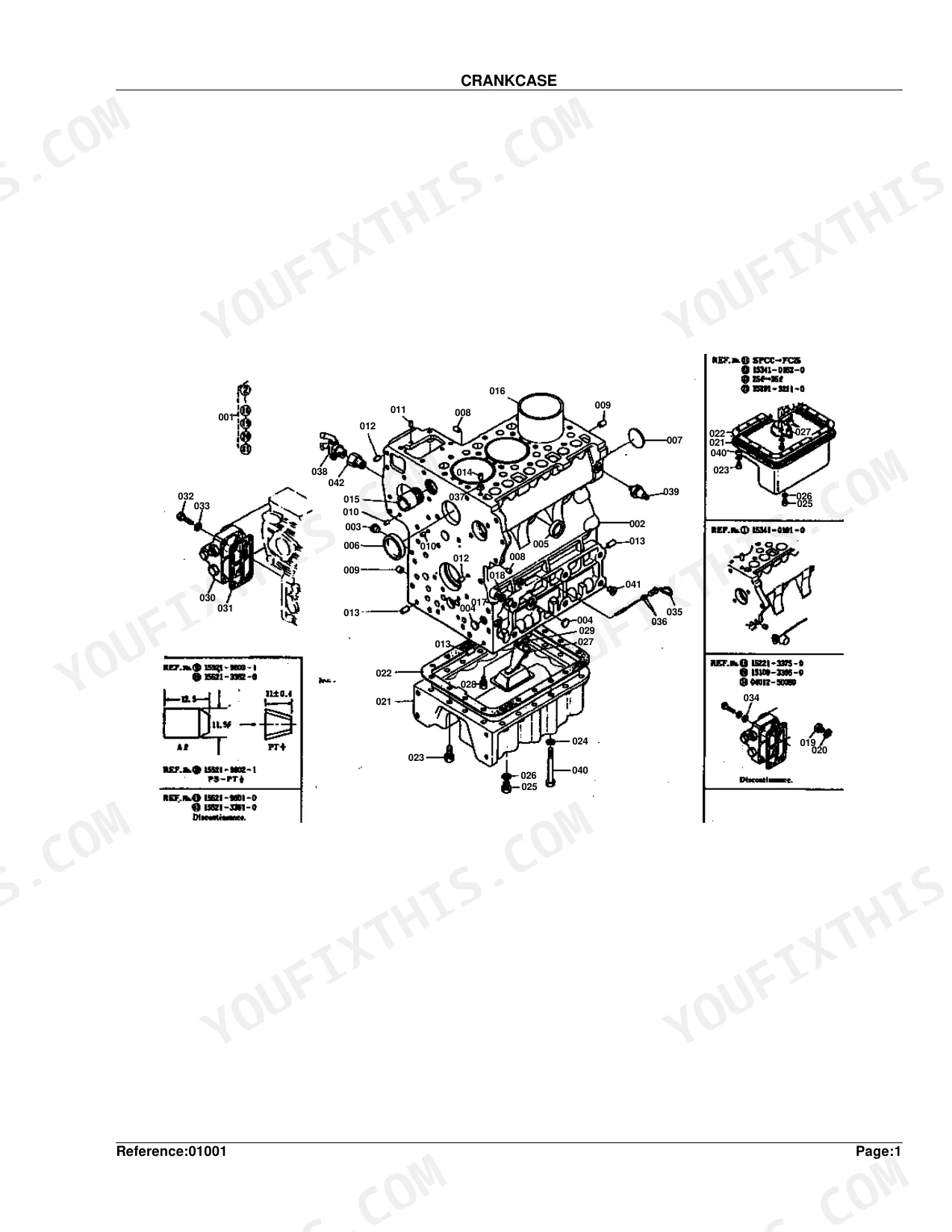

| Crankcase | - | Assy Crankcase, Plug, Cap, Sealing, Pin, Pipe, Water |
| Cylinder Head | - | Hook, Engine, Stud, Nut, Washer, Spring, Cap |
| Gear Case | - | Assy Case, Gear, Plug, Pin, Cap, Sealing, Pipe, Water |
| Bearing Case | - | Assy Case, Bearing, Bolt, Washer, Gasket, Cover, Seal |
| Breather | - | Assy Breather, Plate, Element, Gasket, Cover, Oil Shield, Pipe |
| Air Cleaner | - | Body, Cover, Baffle, Assy Band, Air Cleane, Element, Pipe |
| Muffler [L245Dt] | - | Muffler, Flange, Gasket, Stud, Nut, Band, Bolt, Pipe |
| Muffler [L245] | - | Muffler, Pipe, Gasket, Band, Bolt, Nut, Washer, Support |
| Valve,Rocker Arm | - | Valve, Rocker Arm, Inlet, Exhaust, Spring, Retainer, Valve Sprin, Collet |
| Head Cover | - | Cylinder Head, Decompressor, Oil Filler |
| Camshaft | - | Tappet, Push Rod, Idle Gear, Oil Pump |
| Piston Crankshaft | - | Piston, Piston Ring, Piston Pin, Connecting Rod, Crankshaft, Crankshaft Gear, Oil Slinger, Oil Seal |
| Flywheel | - | Gear, Ring, Bolt, Washer, Assy Housing, Pin, Plug |
| Nozzle Holder | - | Pipe, Fuel Over Flow, Cover, Injection Pump, Gasket, Pump Cover, Bolt |
| Fuel Camshaft | - | Assy Pump, Injection, Shim, Injection Pump, Stud, Nut, Washer |
| Speed Control Plate | - | Assy Apparatus, Fuel, Spring, Nut, Cap, Idle, Assy Bolt |
| Governor | - | Assy Lever, Fork, Lever, Shaft, Fork Lever, Bolt, Lever Shaft |
| Dynamo | - | Assy Dynamo, Bolt, Washer, Nut, Support, Stay, Fan, Pulley |
| Radiator | - | Cap, Pipe, Water Over Flow, Nut, Whistle, Steem, Flange |
| Water Pump | - | Shaft, Impeller, Set Seal, Bearing, Cir-clip, Slinger, Pulley |
| Name Plate | - | Label, Oil, Instruction |
| Oil Filter 2 [Section Parts] | - | Assy Cover, Filter, Cover, Assy Valve, Safety, Valve, Plug, Spring |
| Starter | - | Drive End Frame, Plug, Belch, Bush, Bolt, Lever, Drive, Clutch |
| Injection Pump | - | Holder, Delivery Valv, Spring, Gasket, Valve, Delivery, Element |

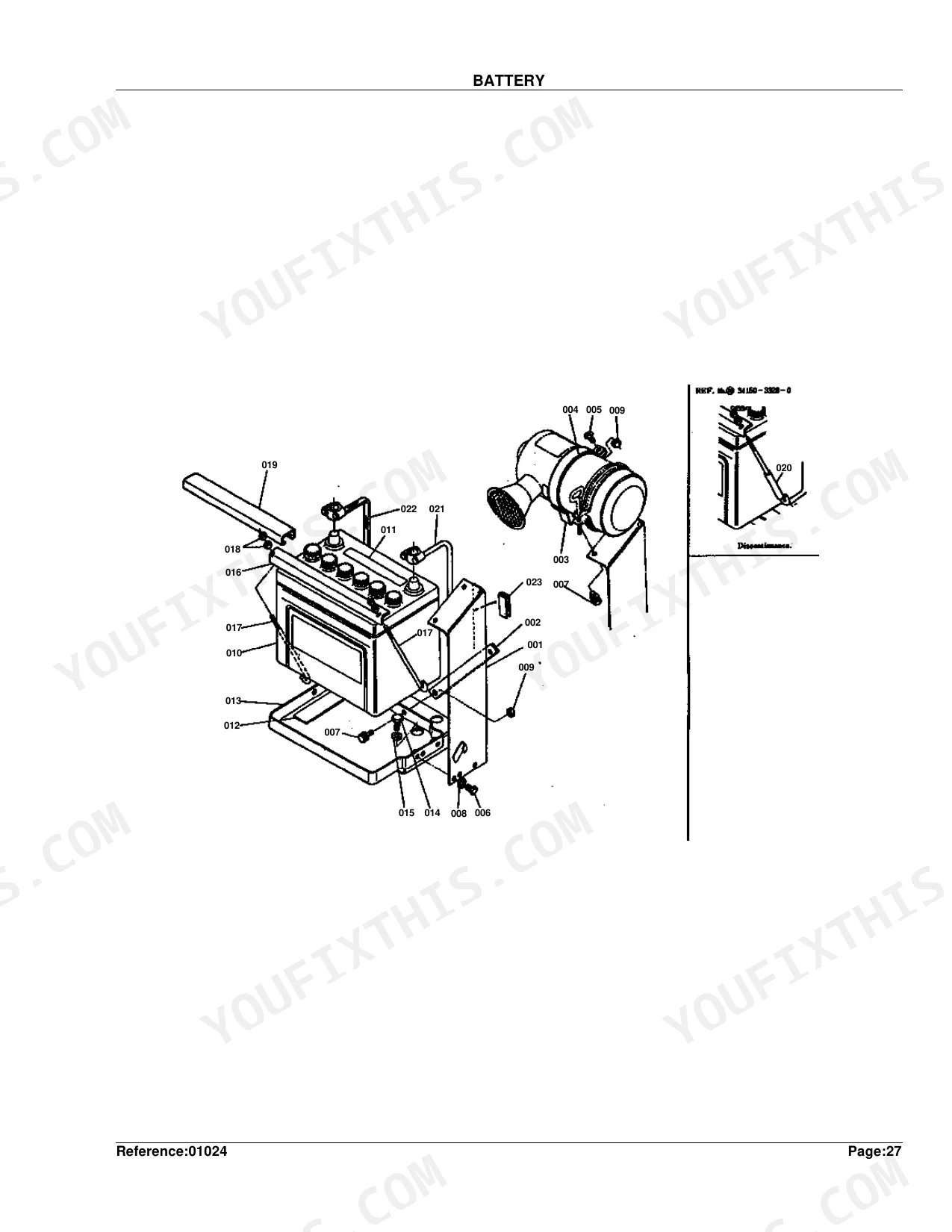

| Battery | - | Support Air Cleaner, Band Air Cleaner, Washer Lock Toothed, Retainer Battery, Bolt Hook, Cover Battery, Pipe Rubber |

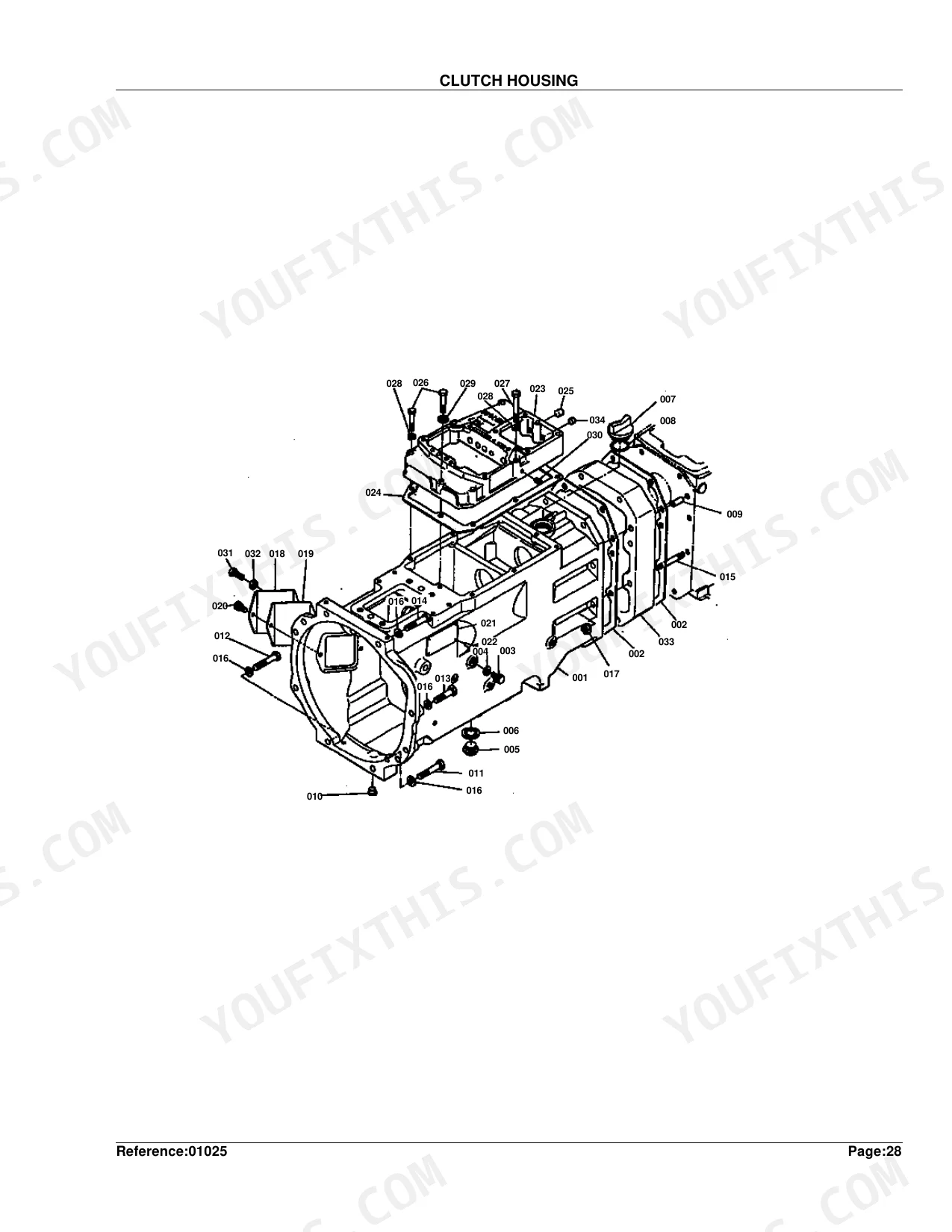

| Clutch Housing | - | Packing, Plug, Washer Seal, O Ring, Pin Straight, Bolt, Nut |
| Clutch | - | Assy Disk Clutch, Assy Plate Pressure, Bolt Reamer, Lever Clutch, Fork, Hub Clutch Release, Bearing Clutch Lever, Case Propeller Shaft |
| Clutch Pedal | - | Joint Forked, Pin Joint, Washer Plain, Pin Split, Rod Clutch, Nut, Pedal Clutch, Bush |
| Steering | - | Assy Steering, Case Gear, Shaft Sector, Ball Nut, Cover Rear, Shim, Cover Side, Gasket |
| Hand Accel | - | Lever Hand Accel, Grip Lever, Spring, Washer Plain, Nut, Link Accelerator, Rod Accelerator, Joint Rod |

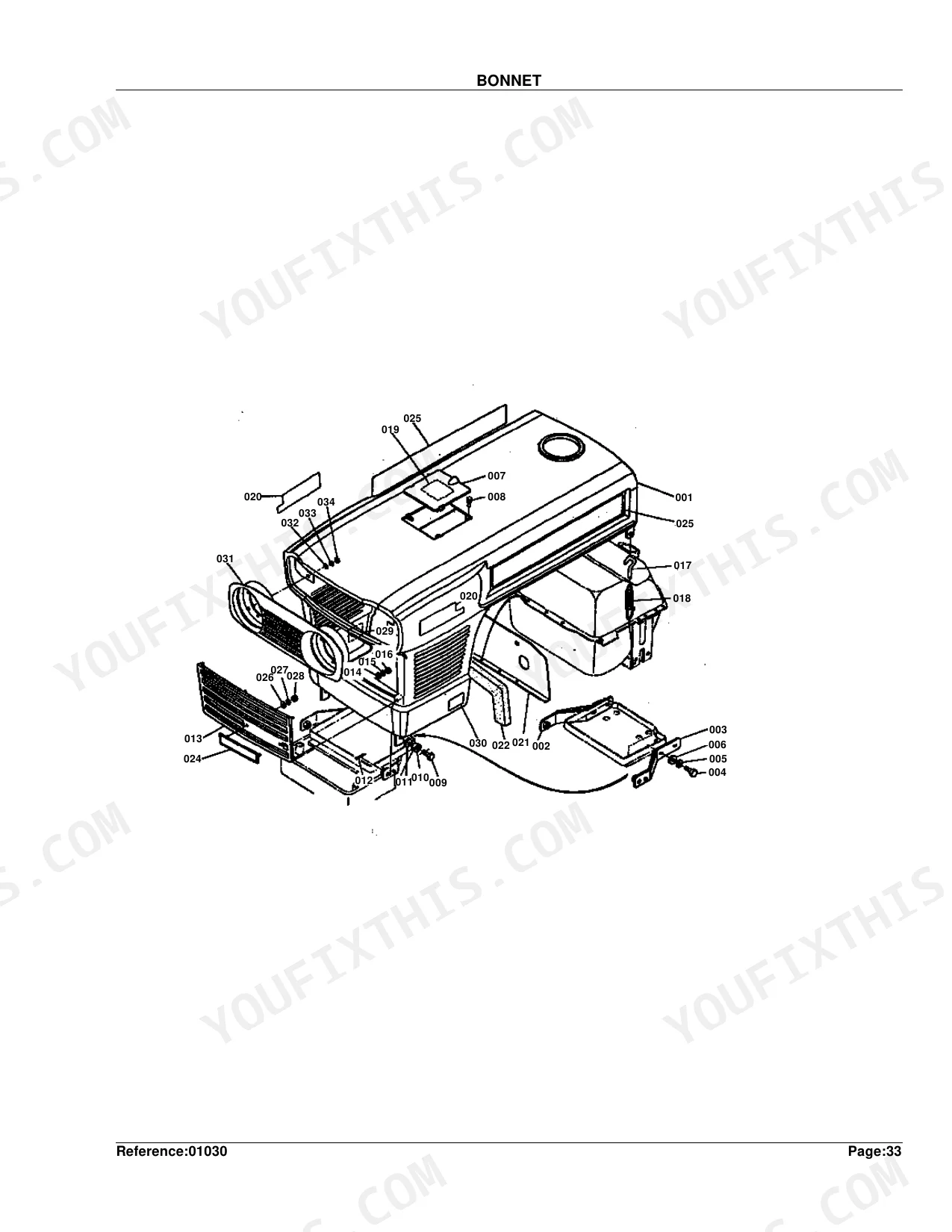

| Bonnet | - | Assy Bonnet, Support Bonnet Rh, Support Bonnet Lh, Cover Bonnet, Grille Bonnet, Hook Bonnet, Plate Shutter, Grille Lamp |
| Mirror Lamp | - | Assy Lamp Head, Body, Lens, Lamp, Reflector, Rubber, Washer Plain, Washer Spring |
| Seat | - | Assy Seat, Mark Kubota, Cushion, Assy Suspension Seat, Arm, Spring Seat, Bolt Adjusting, Pin |
| Transmission Case | - | Plug, Cover, Gasket, Washer Seal, Bolt, Washer Spring, Hitct |
| Gear Drive System 1 | - | Shaft Main, Washer, Seal Oil, Gear Spur, Bearing Ball, Cir-clip External, Collar, Case Bearing |
| Gear Drive System 2 | - | Countershaft, Collar Thrust, Bearing Ball, Gear Spur, Coupling, Shaft, Retainer Bearing, Bush |
| Gear Drive System 3 | - | Countershaft, Collor Thrust, Bearing Ball, Cir-crip External, Gear Spur, Cover Bearing, Boss Spline, Shaft Pto |
| Speed Change System 1 | - | Fork Shift, Pin Spring, Rod Fork, Ball, Spring Stopper, Piece Neutral, Spring, Shaft Fork |
| Speed Change System 2 | - | Fork Shift, Shaft Fork, Screw Set, Washer Seal, Ball, Spring Stopper, Lever Shift, Stopper Lever |
| Change Laver | - | Base Speed Change, Gasket, Pin Set, Bolt, Lever Main Speed Cha, Grip Lever, Oil Shield, O Ring |
| Differential System 1 | - | Bolt, Stopper, Assy Differential, Case Differential, Key Feather, Shaft Diff Pinion, Bush, Washer Diff Pinion |
| Differential System 2 | - | Case Diff Bearing, Shim, Bearing Ball, Bolt, Washer Spring, Fork Shift, Spring, Pedal Diff Lock |
| Rear Axle | - | Assy Rear Wheel, Tire, Tube, Rim, Disk, Blade, Wheel |
| Axle Case | - | Case Axle Rh, Case Axle Lh, Cover Axle Case, Gasket, Pin Straight, Bolt, Washer Spring, Stud |
| Brake | - | Case Brake, Gasket, Pin Straight, Disk Brake, O Ring, Boss Spline, Cir-clip External, Cam Brake |
| Brake Pedal | - | Shaft Brake Pedal, Support Pedal Shaft, Nipple Grease, Pedal Brake Lh, Pedal Brake Rh, Ratchet, Guide Ratchet, Rod Ratchet |
| Fender [U.S.A] | - | Assy Lamp Tail, Lens Tail Lamp, Bulb Tail Lamp, Holder Tail Lamp, Flasher Unit, Assy Lamp Hazard Fla, Valve Hazard Flasher, Assy Fender Rh |
| Electical 1 | - | Panel, Cushion, Screw Pan Head, Washer Spring, Nut, Board Panel, Guide Rh, Guide Lh |
| Electical 2 | - | Assy Regulator, Cover Regulator, Case Fuse, Meter Tractor, Bulb Lamp, Cable Tractor Meter, Wire Decompress, Label Decompress |
| Electical 3 | - | Assy Wire Harness, Wire Harness, Clamp Cord, Bolt, Washer Spring, Washer, Cushion, Cord |
| Fuel Tank | - | Assy Tank Fuel, Filter, Gasket, Sponge, Gauge Fuel, Clip Pipe, Assy Cock Fuel, Bush Fuel Tank |
| Fuel Filter | - | Assy Pipe Fuel, Clip Pipe, Joint Fuel Pipe, Pipe Fuel, Assy Filter Fuel, Cover Filter, Element Filter, Plug Filter Breather |
| Oil Pressure 1 | - | Pump Oil Pressure, Gear Spur, Washer Claw, Nut, Gasket, Holder O/p Pump, Stud, Bolt |
| Oil Pressure 2 | - | Valve Control, Joint Spool, Lever Spool Drive, Assy Valve Relief, Lever Control, Guide Lever, Arm Control, Mark Control |

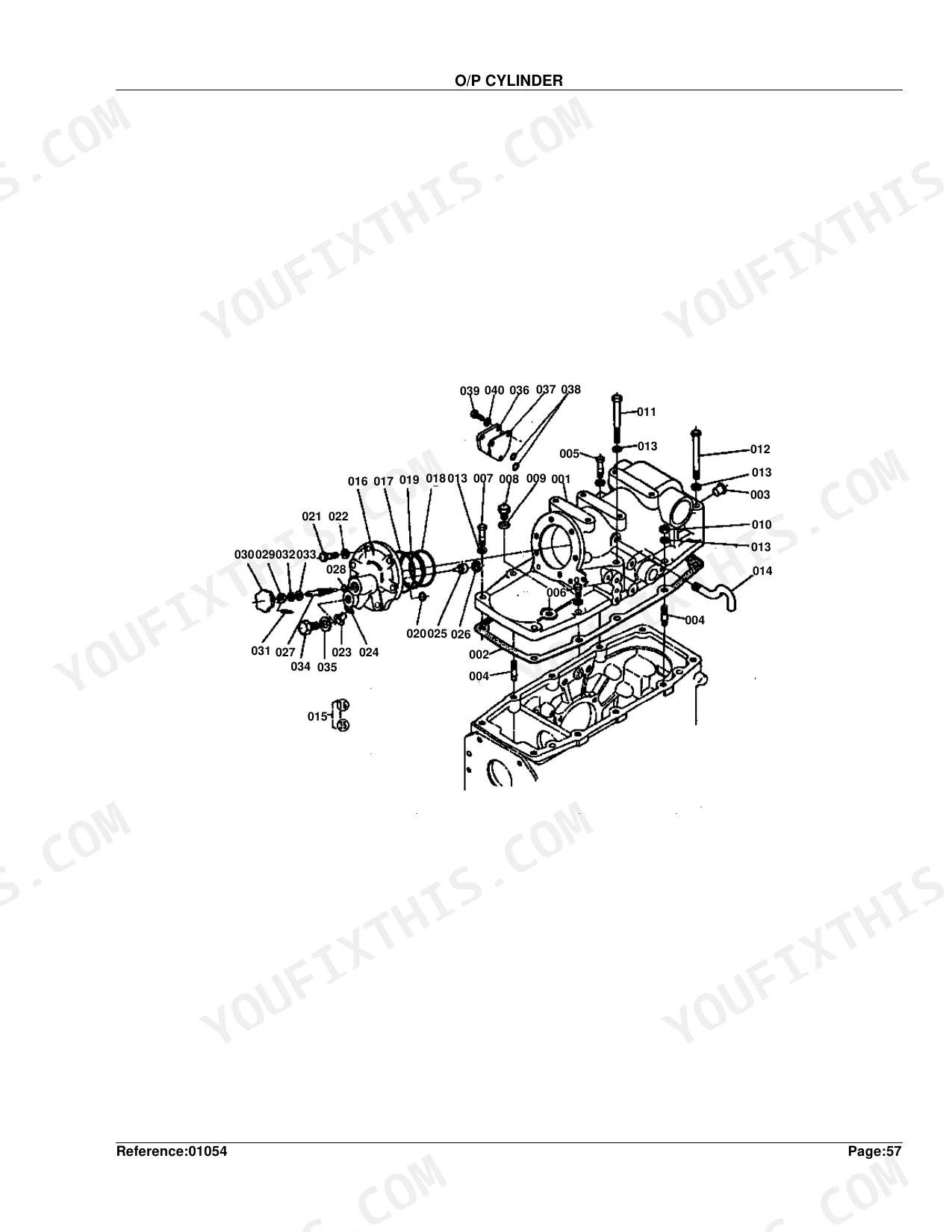

| O/P Cylinder | - | Assy Cylinder, Gasket, Plug, Stud, Bolt, Washer Seal, Nut, Washer Spring |
| O/P Lift Arm System | - | Liner Cylinder, Piston Oil Pressure, Ring Back Up, Rod Oil Pressure, Pin Set, Shaft O/p Arm, Arm Oil Pressure, Link Control |
| Front Wheel [L245Dt] | - | Front Wheel, Tube, Tire, Washer Spring, Washer Plain, Nut, Stud, Shaft Bevel Gear |
| Front Wheel Drive [L245Dt] | - | End Drag Rink, Nipple Grease, Pin Knuckle, Support Knuckle, Bush, Shim, Assy Link Drag, Ball-nut Tie Rod |
| Diff Gear Case [L245Dt] | - | Diff Gear Case, Plug, Washer Seal, Case Diff Bearing, Shim, Collar Oil Seal, Case Pinion Bearing, Nut |
| Front Axle Support [L245Dt] | - | Front Axle Support, O Ring, Plug, Washer Seal, Pin Straight, Bolt, Washer Spring, Stud |
| Drive Case [L245Dt] | - | Sleeve, Gear Spur, Collar, Washer Thrust, Case, Pin Straight, Bearing Needle, Bearing Ball |
| Propeeller Shaft [L245Dt] | - | Propeeller Shaft, Shaft Propeller, Coupling, Cir-clip External, Cover, Gasket, Cover Seal, Bolt |
| Front Axle Bracket | - | Pin Straight, Support Radiator, Washer Spring, Cushion, Bolt, Washer, Pin Snap |
| Oil Pressure Pump | - | Key Woodruff, Seal Oil, Ring Support, Ring Seering, O Ring, Bolt, Washer Spring |
| Control Valve | - | Spring, Valve Chek, O Ring, Seet, Ring Back Up, Poppet, Plug Seat, Valve Unloader |
| Relief Valve | - | Blank, Seet, Poppet, Spring, Plug, Shim, O Ring |
| Drag Link [Integral Power Steering] [L245Dt] | - | End Drag Link, Bush, Assy Link Drag |
| Power Steering [Integral Power Steering] | - | Assy Power Steering, Washer Spring, Nut, Pin Stright, Stud, Arm Pitman, Assy Wheel Steering, Cap Handle |
| Flow Priority Valve [Integral Power Steering] | - | Assy Valve Flow Prio, O Ring, Assy Pipe, Assy Connector, Nipple, Pipe Joint, Band Pipe, Pin Pipe Band |
| Fuel Tank [Integral Power Steering] | - | Assy Tank Fuel, Tank Fuel, Filter, Cap, Gasket, Sponge, Gauge Fuel, Clip Pipe |
| Oil Pressure [Integral Power Steering] | - | Pump Oil Pressure, Key Woodruff, Boss Spline, Washer Claw, Gear Spur, Race Inner, Bearing Needle, Bearing Ball |
| Steering Joint [Integral Power Steering] | - | Joint Steering, Cover Rubber, Washer Spring, Nut |

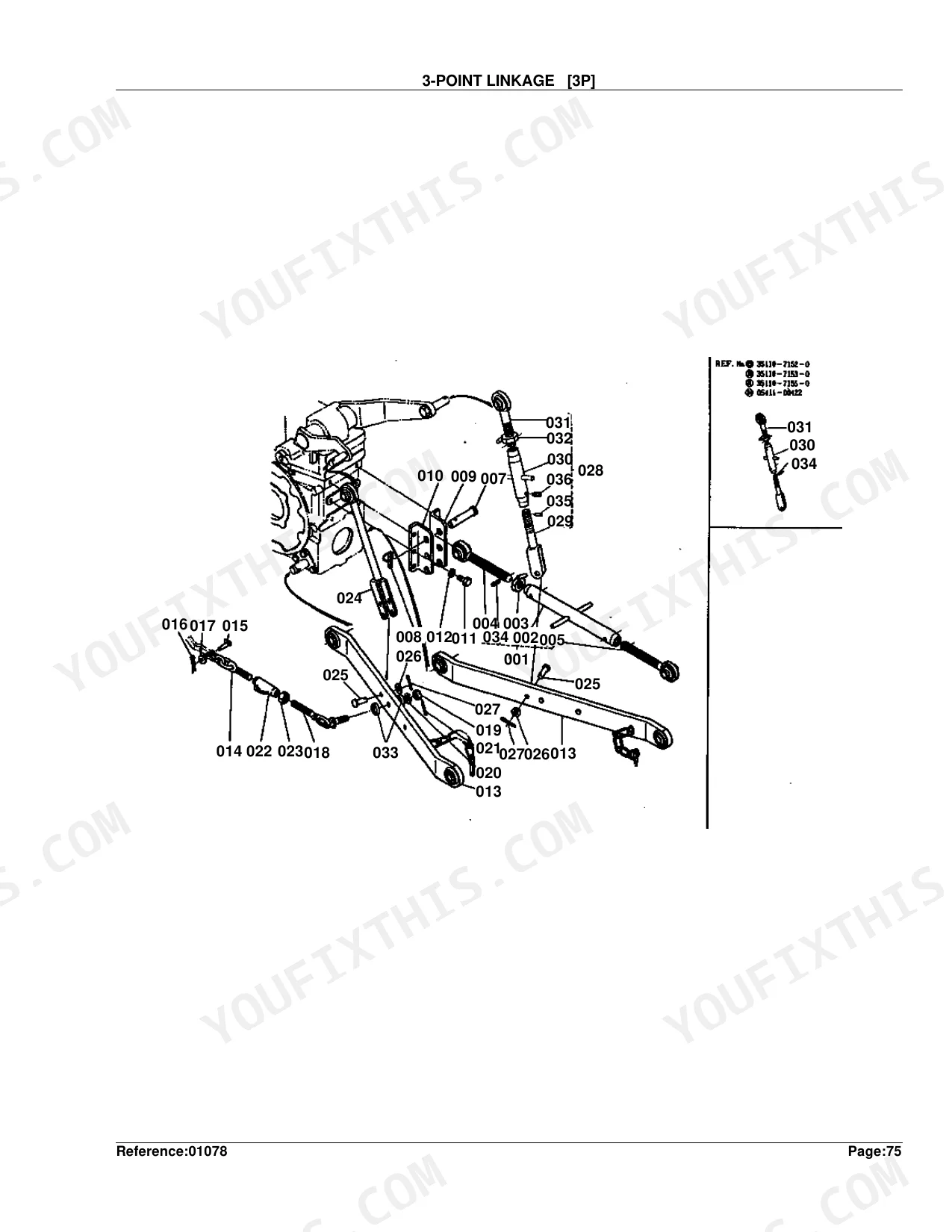

| 3-Point Linkage [3P] | - | Assy Link Top, Link Top, Nut Top Link, Joint Top Link Rh, Joint Top Link Lh, Pin Top Link, Assy Pin Set, Holder Top Link Rh |
| Accessories and Service Parts | - | Assy Cir-crip, Assy Wheel Plate, Assy Case Axle, Axle Rear, Case Axle Rh, Cover Axle Case, Assy Gear High-speed, Fork Shift |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Assy Crankcase Weight | 55 kgf | p. 6 |
| Assy Cylinder Head Weight | 15.4 kgf | p. 9 |
| Assy Gear Case Weight | 4.8 kgf | p. 11 |
| Assy Radiator Weight | 7 kgf | p. 43 |
| Battery (Dry) Weight | 13.8 kgf | p. 59 |
| Clutch Housing Weight | 41.5 kgf | p. 61 |
| Assy Steering Weight | 7.2 kgf | p. 67 |
| Assy Fuel Tank Weight | 5.85 kgf | p. 113 |
| O/P Cylinder Assy Weight | 20.1 kgf | p. 122 |
| Assy Front Wheel RH Weight | 25 kgf | p. 126 |
| Assy Link Drag Weight | 3 kgf | p. 146 |
| Assy Link Top Weight | 2.91 kgf | p. 158 |
Kubota L245DT Common Problems This Manual Covers
Front axle weeping oil, and you can't pin down which seal or hub part number to order p. 125
Check the Front Wheel [L245Dt] exploded view on page 125, then the Front Wheel Drive [L245Dt] diagram on page 127. Match the hub seals against the Diff Gear Case [L245Dt] parts list on page 129. The RH front wheel assembly weighs 25 kgf, so confirm the correct side first. Verify your serial range against each part's applicability column before buying.
Manual Section: Front Wheel [L245Dt]Hydraulic oil spraying around the engine, need the correct hose or seal part numbers p. 121
Start with the Oil Pressure 1 and Oil Pressure 2 exploded views on pages 116 and 118. For cylinder seals, jump to the O/P Cylinder diagram on page 121; that assembly weighs 20.1 kgf complete. If the leak sits near the valves, check the Control Valve on page 141 and Relief Valve on page 143. Match every part number to your serial range using the parts index.
Manual Section: O/P CylinderTractor cranks but won't start, need fuel shutoff solenoid, fuse, relay, or key switch part numbers p. 106
Pull the Electrical 1, 2, and 3 diagrams on pages 106, 108, and 110. These exploded views list the fuses, relays, key switch, and wiring components by part number. If the starter itself is suspect, cross-reference the Starter parts list on page 50. Confirm serial applicability before ordering any electrical part, since wiring varies by production run.
Manual Section: Electical 1Power steering stiff or erratic, need pump belt or steering component part numbers p. 147
Go to the Power Steering [Integral Power Steering] diagram on page 147 for the steering unit, and the Flow Priority Valve on page 149 for that sub-assembly. The Drag Link parts list is on page 145; the link drag assembly weighs 3 kgf. For the oil pressure pump feeding the steering circuit, see page 139. The Steering Joint diagram on page 155 covers the column-side connection hardware. Confirm L245DT-specific parts using the serial applicability column on each page.
Manual Section: Power Steering [Integral Power Steering]Front axle support or drive case worn, need part numbers for the 4WD drivetrain components p. 131
Trace the Front Axle Support [L245Dt] exploded view on page 131 and the Drive Case [L245Dt] diagram on page 133. Propeller Shaft parts sit on page 135. Together these three sections cover the front drive from transfer point to axle. Cross-reference the Diff Gear Case [L245Dt] on page 129 if differential parts are involved. All four sections are L245DT-specific, so confirm your serial number before ordering.
Manual Section: Front Axle Support [L245Dt]Injection pump or fuel filter parts needed, unsure which components match the fuel system p. 54
Find the Injection Pump exploded view on page 54 and the Fuel Filter parts list on page 114. The Fuel Camshaft diagram on page 34 covers the pump-drive side. If you need tank, shutoff, or pickup parts at the same time, check the Fuel Tank section on page 112; that tank assembly weighs 5.85 kgf. Verify applicability against your serial range before ordering injection components, since substitutions are common across L245 variants.
Manual Section: Injection PumpFrequently Asked Questions
How will I receive this Kubota L245DT Parts Manual?
Immediate download of the complete 160-page searchable Parts Manual. Open it on any device, whether that's the laptop at your desk or your phone in the field.
Does this manual help me find the right parts for a leaking front axle on my Kubota L245DT?
Yes. It includes the Front Wheel [L245Dt] exploded view on page 125 and the Front Wheel Drive [L245Dt] diagram on page 127, so you can identify the leaking seal or hub by part number. Match the hub seals against the Diff Gear Case [L245Dt] parts list on page 129. Confirm the part against your serial range using the applicability column before ordering.
If my L245DT cranks but won't start, which sections cover the electrical and fuel-shutoff parts?
The Electrical 1, 2, and 3 diagrams on pages 106, 108, and 110 list the fuses, relays, key switch, and wiring components by part number. If the starter itself is suspect, cross-reference the Starter parts list on page 50. Confirm serial applicability before ordering any electrical part, since wiring varies by production run.
Where do I find power steering parts if my L245DT steering is stiff or erratic?
Go to the Power Steering [Integral Power Steering] diagram on page 147 for the steering unit, and the Flow Priority Valve on page 149 for that sub-assembly. The Drag Link parts list is on page 145, and the oil pressure pump feeding the steering circuit is on page 139. The Steering Joint diagram on page 155 covers the column-side connection hardware.
Can I use this manual to identify injection pump and fuel filter parts?
Yes. The Injection Pump exploded view is on page 54 and the Fuel Filter parts list is on page 114, with the Fuel Camshaft diagram on page 34 covering the pump-drive side. If you need tank, shutoff, or pickup parts at the same time, check the Fuel Tank section on page 112. Verify applicability against your serial range before ordering injection components, since substitutions are common across L245 variants.
Are there any print restrictions on this Kubota L245DT manual?
No. The PDF carries no DRM, so you can print any page or section you need for the shop. Works with any standard printer.
