This Kubota Operator Manual covers the L245 and L245DT tractors, powered by the Kubota DH1101-A diesel engine. Across 40 pages it is the factory owner reference for operating and maintaining both the two-wheel-drive L245 and the four-wheel-drive L245DT.
It walks through safe operation, the specification tables, the instrument panel and controls, starting and stopping, the hydraulic three-point hitch, wheel tread changes, and a full maintenance and checks section with a service check list and wiring diagram.
With this PDF you can look up fluid capacities and tire pressures, torque the rear wheel nuts after a tread change, set clutch pedal free travel, follow the fuel, air cleaner, and hydraulic screen service intervals, and work through the engine trouble diagnosis chart. Formatted as a clear, printable download for the shop.
Complete the set for your L245, L245DT
- Parts Catalog: Kubota L245DT Tractor Parts Manual
- Repair Manual: Kubota L185, L245, L295 Workshop Manual — Wiring Diagrams
What's Inside This Kubota L245, L245DT Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| For Safe Operation | Fuel Supply and Starting Engine, Loading and Unloading, Traveling, Operating with Implement, Other Operating Cautions | |
| Servicing of Tractor | Tractor, Instrument Panel, Controls, Hydraulic System, Three-Point Hitch, Engine Lubrication, Air Cleaner, Radiator | |
| Specifications | Engine, Clutch, Steering, Transmission, Brake, PTO System, Fuel, Capacities | |
| Handling New Tractor | Do Not Operate the Tractor at Full Speed for the First 100 Hours, Supply and Exchange of Lubricating Oils, Safe Operation, Precautions to Help Prevent Accidents | |

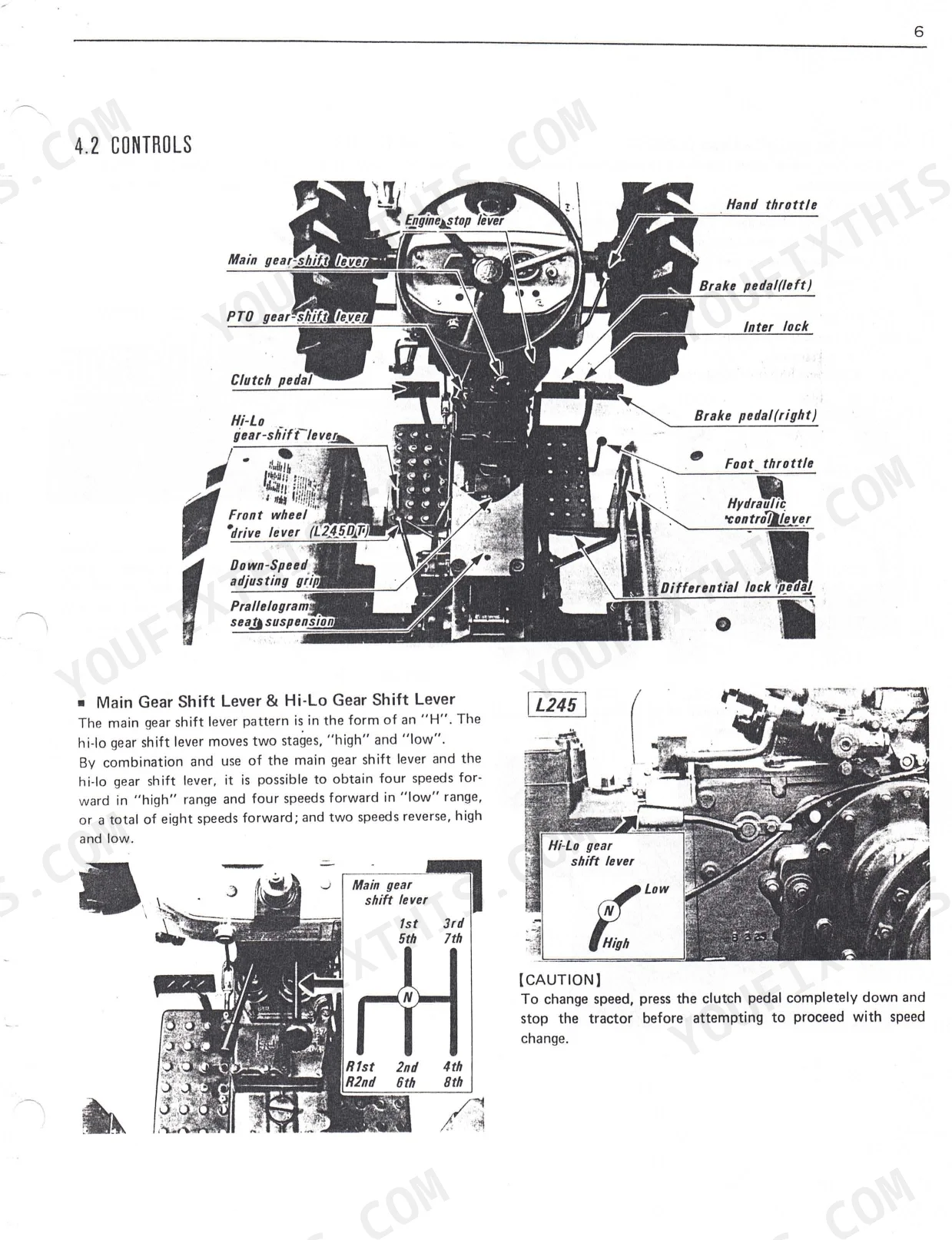

| Instrument Panel and Controls | Instrument Panel, Controls | |

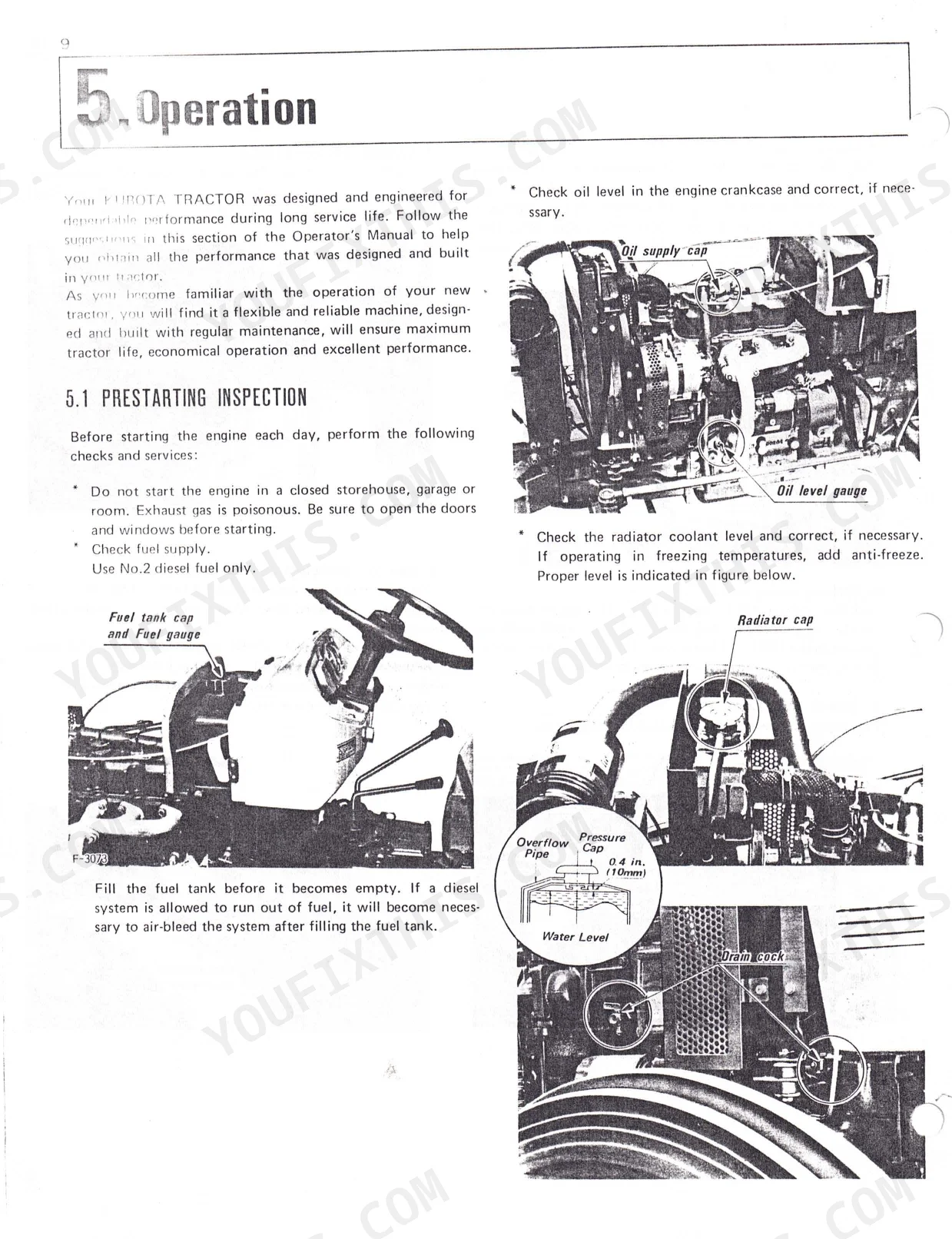

| Operation | Prestarting Inspection, Starting the Engine, Stopping the Engine, Operating the Tractor, Stopping the Tractor, Parking, Turning, Check While Operating | |
| Hydraulic System | The Implement Is Lifted Fully, Position Controlling, Positioning Range, The Implement Is Lowered Fully, Hydraulic Lever Stop-Bolt, To Rear of Tractor, To Front of Tractor, Position of Hydraulic Lever | |
| Three-Point Hitch | Top Link, Stopper, Lifting Rod, Check Chains, Turn Buckle, Lower Link, Chains, Lifting Rod Hole | |
| Storage | Drain Out the Water From the Radiator, Be Sure to Stop the Engine by Pulling the Engine Stopping Lever, Drain Out the Dirty Engine Oil, If the Air Cleaner Should Be Extremely Dirty | |

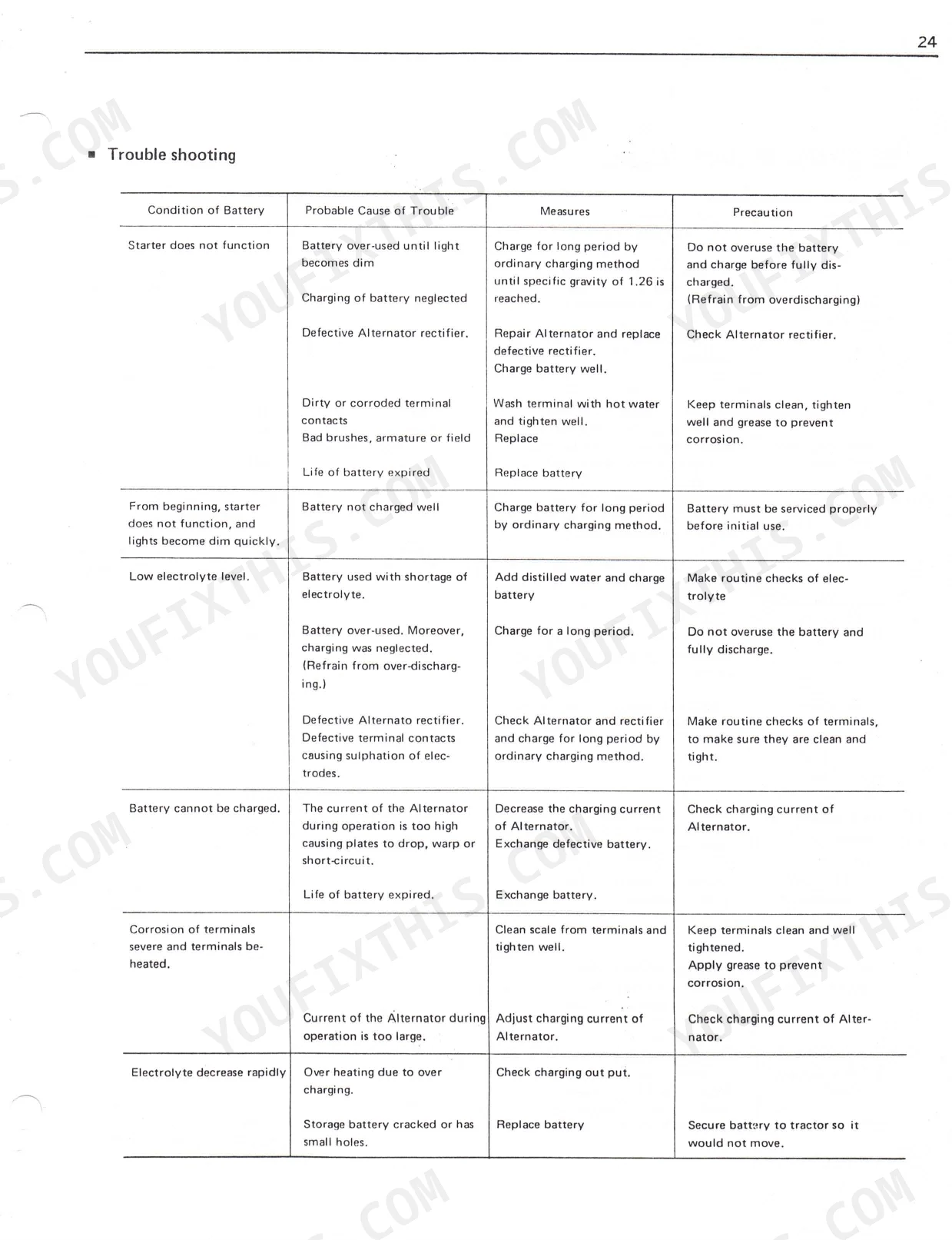

| Maintenance and Checks | Engine Lubrication, Air Cleaner, Radiator, Battery, Diagnoss of Engine Trouble, Transmission Lubrication, Clutch, Check Tire Pressure | |
| Change of Wheel Treads | Change Front Wheel Tread, Change Rear Wheel Tread | |
| Wiring Diagram | Head Light Lamp, Battery, Glow Plug, Oil Switch, Safety Switch, Glow Plug Controller, Starter Switch, Hour Meter | |

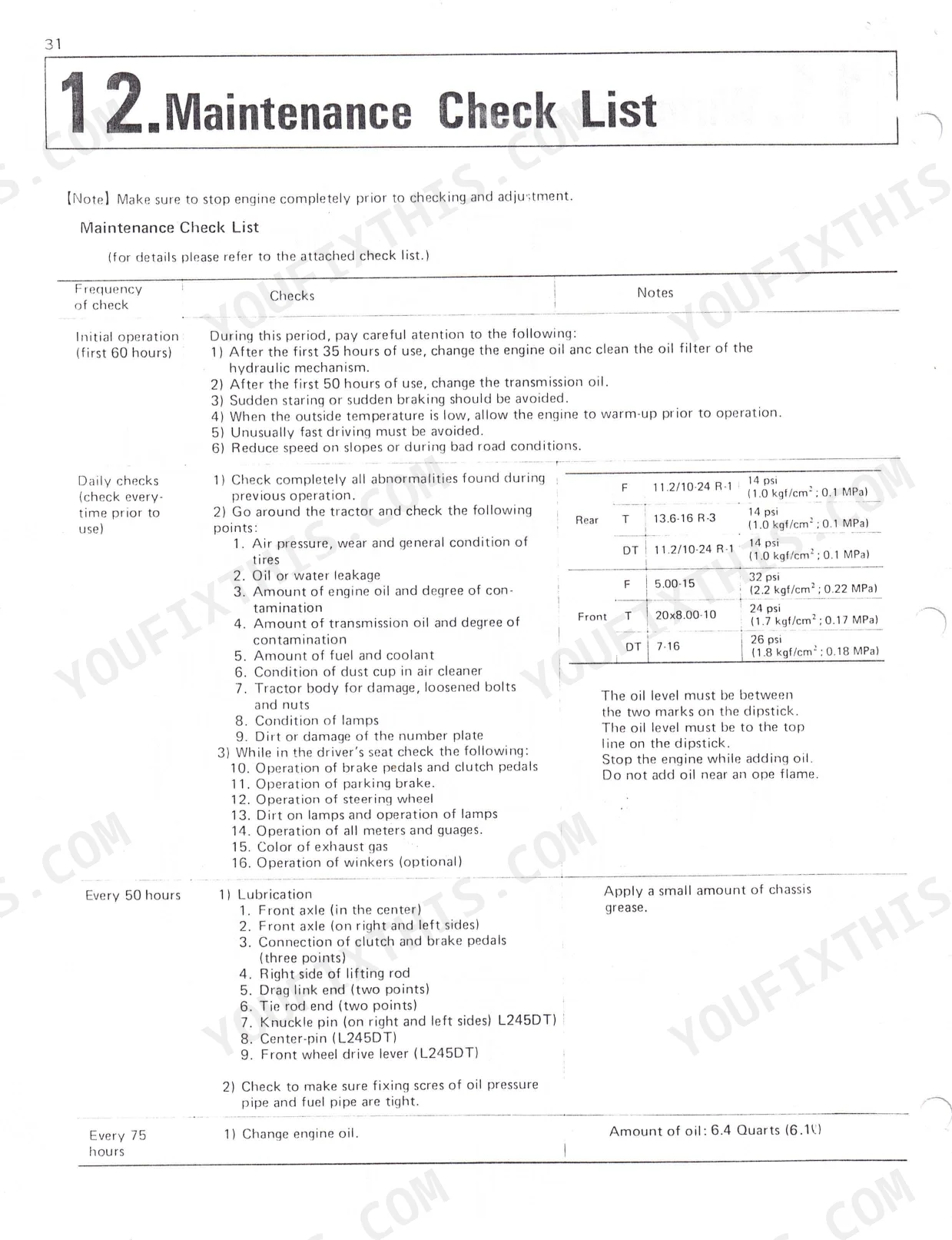

| Maintenance Check List | Frequency of Check, Checks, Notes, Initial Operation, Daily Checks, Every 50 Hours, Every 75 Hours, Every 100 Hours | |
| L245 the Superior Limit of the Implement | Rotary Mower, Rotary Tiller, Bottom Plow, Disc Plow, Cultivator, Disc Harrow, Sprayer, Front Blade |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Rear wheel nut torque | 145~165 ft. lbs. (196~226N・m, 20~23 kgf·m) | p. 34 |
| Fuel filter replacement interval | Every 400 hours | p. 37 |
| Hydraulic mechanism oil filter cleaning interval (initial) | After the first 35 hours of use | p. 36 |
| Oil pressure filter cleaning interval (subsequent) | Every 200 hours | p. 37 |
| Air cleaner element cleaning interval | Every 100 hours | p. 37 |
| Air cleaner element replacement interval | After one year's use (every 6 cleaning) | p. 37 |
| Fan belt play/tension | 9/32 in. (7mm) play in tension. 13/16~2 in. (20~50mm) at outer circum-ference. | p. 37 |
| Engine Total Displacement | 68.3 Cu. in. (1115cm³) | p. 7 |
| Engine Rated Revolution | 2800 rpm (46.7r/s) | p. 7 |
| Fuel Tank Capacity | 5.8 Gallons (22ℓ) | p. 7 |
| Cooling System Capacity | 7.0 Quarts (6.6ℓ) | p. 7 |
| Engine Crankcase Oil Capacity | 6.4 Quarts (6.1ℓ) | p. 7 |
Kubota L245, L245DT Common Problems This Manual Covers
No-start after fuel filter change
The L245DT commonly will not start after a fuel filter service because air is trapped in the fuel lines and the system was not primed. The Maintenance and Checks section covers the fuel system service and engine trouble diagnosis.
Manual Section: Maintenance and Checks p. 23Weak or inconsistent hydraulics
A three-point hitch that lifts poorly usually starts with a low fluid level or a clogged hydraulic filter or suction screen. The Hydraulic System section explains position control and hydraulic lever operation to help isolate the fault.
Manual Section: Hydraulic System p. 19Overheating from a dirty radiator
Reduced cooling and rising temperatures come from a dirty radiator screen or core, low coolant, or restricted airflow. The Maintenance and Checks section covers radiator care and the cooling checks that prevent it.
Manual Section: Maintenance and Checks p. 23Loose wheel nuts after a tread change
After adjusting the wheel tread, the rear wheel nuts must be brought back to the correct torque or they will loosen in service. The Change of Wheel Treads section covers changing the front and rear tread and the torque to reset.
Manual Section: Change of Wheel Treads p. 33Problems from missed service intervals
Skipping scheduled checks lets fuel, air cleaner, and hydraulic screen service slip and small faults grow. The Maintenance Check List section lays out the daily, 50-hour, 75-hour, and 100-hour checks to follow.
Manual Section: Maintenance Check List p. 36Frequently Asked Questions
Which tractors does this manual cover?
It covers the Kubota L245 and the four-wheel-drive L245DT, both powered by the Kubota DH1101-A diesel engine.
What does the operator manual include?
It covers safe operation, specifications, the instrument panel and controls, starting and stopping, the hydraulic system and three-point hitch, wheel tread changes, maintenance and checks, and a wiring diagram.
Does it give the rear wheel nut torque?
Yes. The Change of Wheel Treads section covers changing the front and rear tread and the rear wheel nut torque you reset afterward. p. 33
Does it include a wiring diagram?
Yes. The Wiring Diagram section shows the head light lamp, battery, glow plug, oil switch, safety switch, glow plug controller, starter switch, and hour meter circuits. p. 35
Do I get instant access to this Kubota L245 Operator Manual?
This is a 40-page searchable PDF ready for immediate download. It works on any device, so you can pull it up on your phone while you're under the hood. No shipping, no waiting.
Can I print pages of this manual for my own shop?
Yes. Many buyers print one chapter at a time for their own shop and keep the rest on a tablet.
