Part of the Kubota Repair Manuals.
This is the Kubota BX1500 Workshop Manual, the factory service manual for Kubota's BX1500 sub-compact diesel tractor built around the Z602-E engine. It is the same document dealers use, covering the tractor from safety and specifications through full teardown and reassembly.Inside you get engine service, the hydrostatic transaxle, front axle, power steering, the hydraulic system and three-point linkage, plus the complete electrical system with wiring diagrams. Each section carries troubleshooting charts, servicing specifications, and tightening torques so you can diagnose a fault and set clearances to factory numbers.Whether you are chasing a braking problem, a loader that will not lift, or a charging fault, this PDF download gives an owner or independent mechanic the procedures and values needed to do the job right. The file is fully searchable and prints on standard paper.
What's Inside This Kubota BX1500 Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety Instructions | - | SAFETY FIRST, DANGER, WARNING, CAUTION, IMPORTANT, BEFORE SERVICING AND REPAIRING, SAFETY STARTING, SAFETY WORKING, AVOID FIRES, VENTILATE WORK AREA, PREVENT ACID BURNS, DISPOSE OF FLUIDS PROPERLY, PR |
| Travelling Speeds | - | Model, Tire Size Rear, Speed Ranges |
| Dimensions | - | Overall Length, Overall Width, Overall Height with ROPS, Overall Height Top of Steering Wheel, Wheel Base, Minimum Ground Clearance, Tread Front, Tread Rear |
| General | - | Tractor Identification, Handling Precautions for Electrical Parts and Wiring (Battery, Fuse, Connector, Handling of Circuit Tester), Lubricants, Fuel and Coolant |

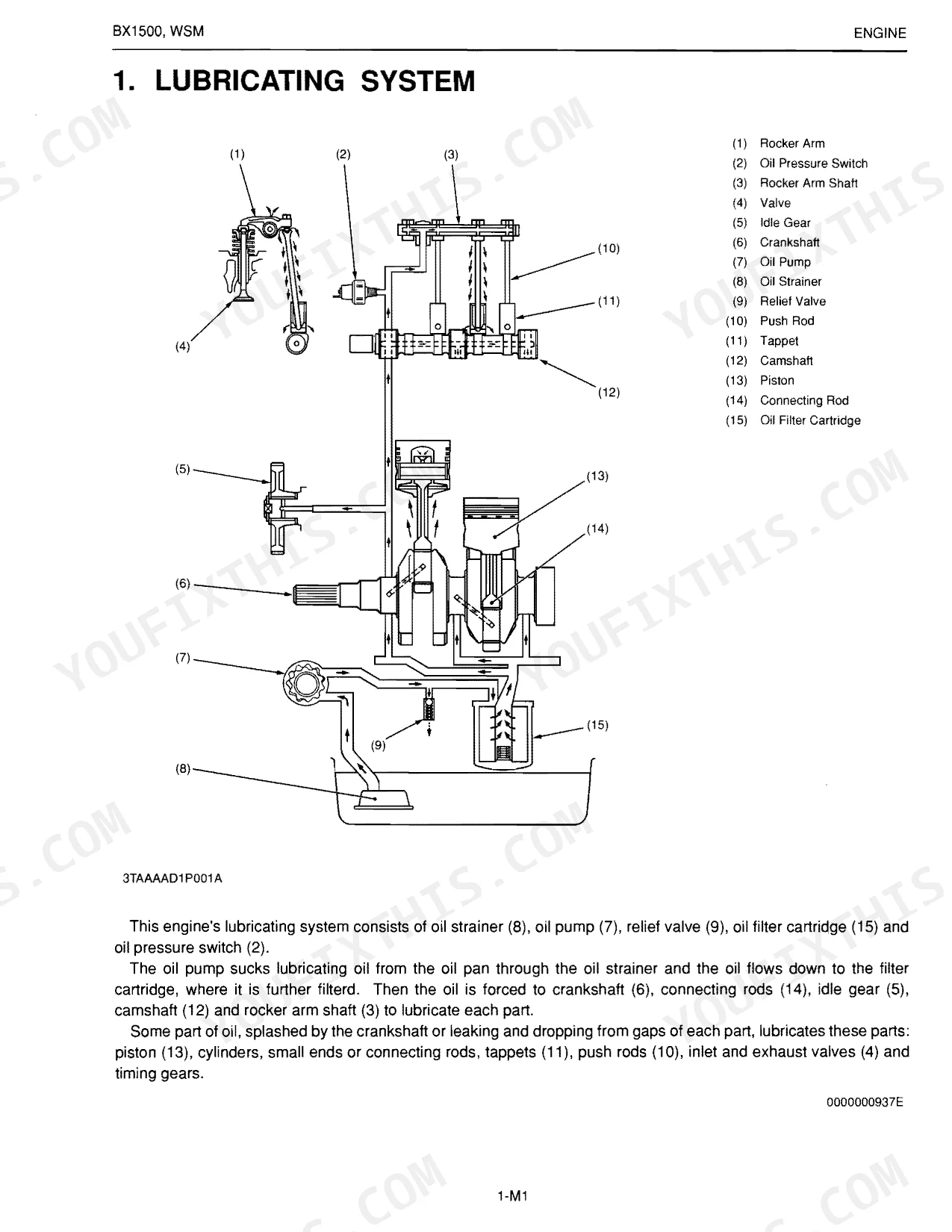

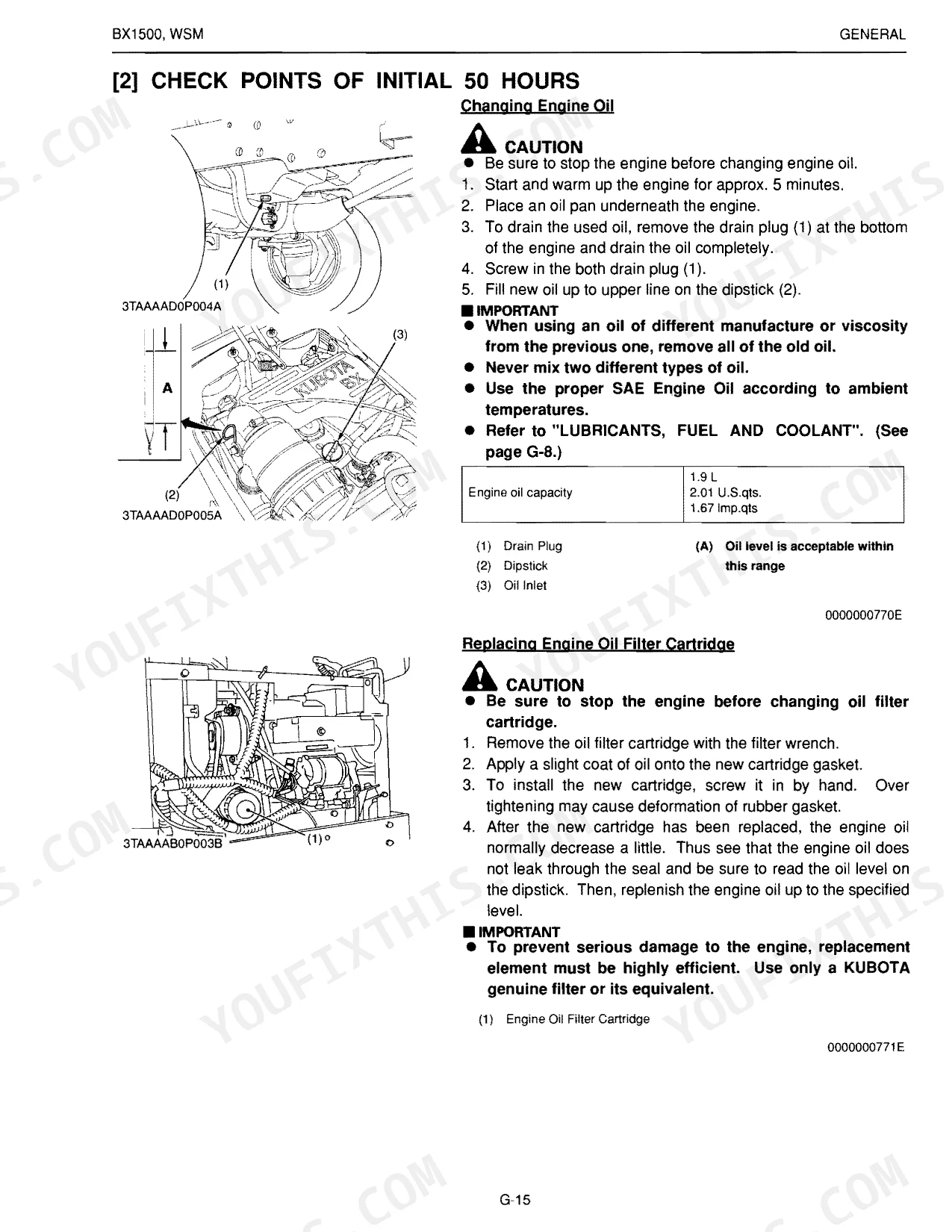

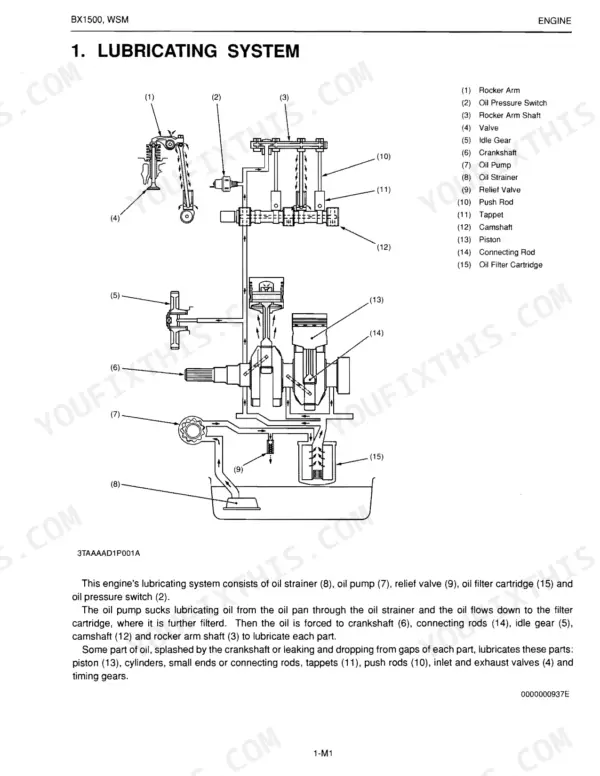

| Engine | - | Lubricating System, Cooling System, Fuel System (Fuel Line), Troubleshooting, Servicing Specifications, Tightening Torques, Checking |
| Transaxle | - | Structure, Travelling System (Hydrostatic Transmission, Range Gear Shift Section, Front Wheel Drive Section, Differential Gear Section, Brake Section) |
| Front Axle | - | Structure, Troubleshooting, Servicing Specifications, Tightening Torques, Checking, Disassembling and Servicing (Checking and Adjusting, Disassembling and Assembling) |
| Steering | - | Hydraulic Circuit, Steering Controller, Steering Cylinder, Troubleshooting, Servicing Specifications, Tightening Torques, Checking |
| Hydraulic | - | Hydraulic Circuit, Hydraulic Control Valve, Flow Priority Valve, Relief Valve, Hydraulic Cylinder, Hydraulic Block Type Outlet, Mower Linkage, Troubleshooting |

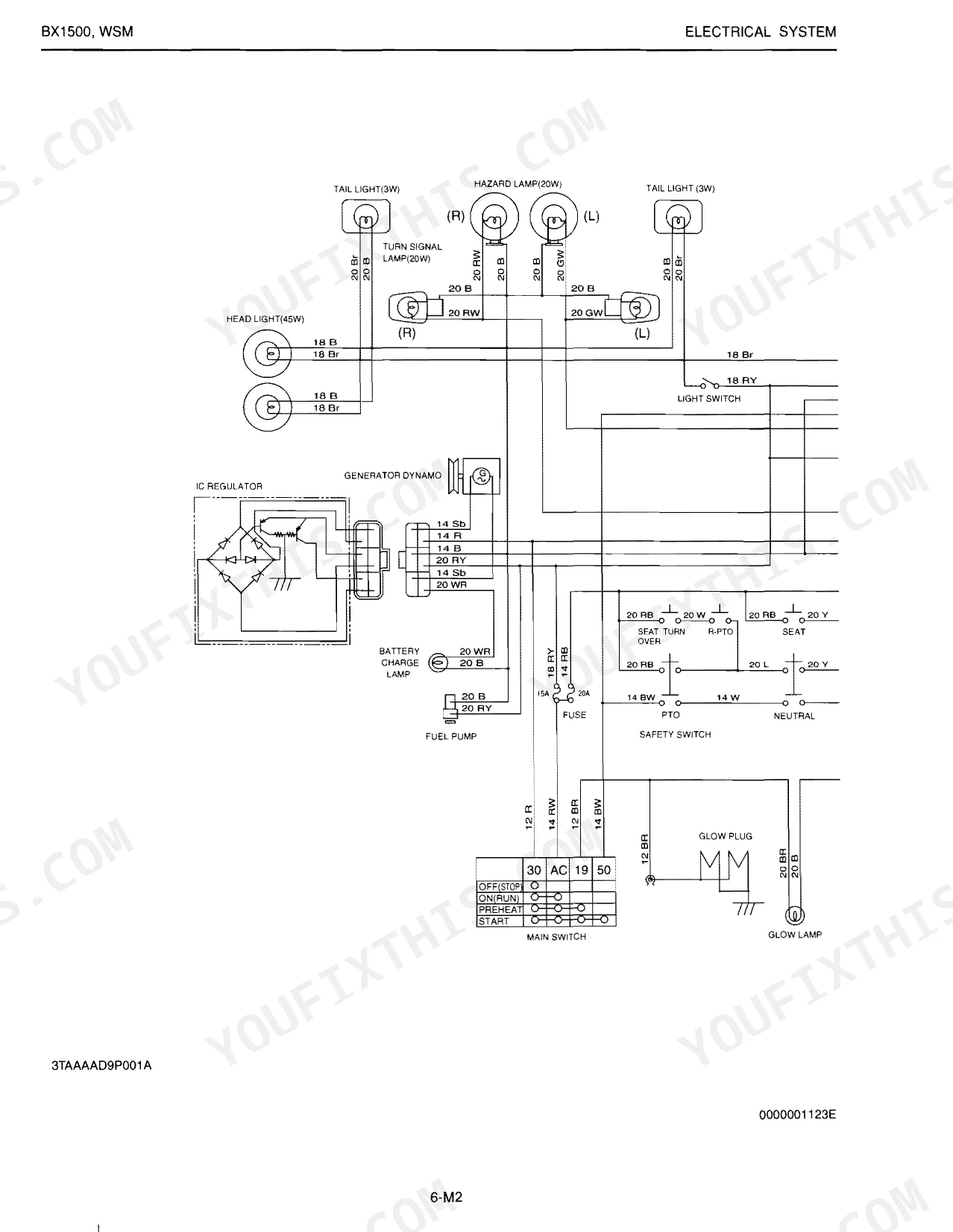

| Electrical | - | Wiring Diagram, Starting System, Charging System, Lighting System, Gauges, Troubleshooting, Servicing Specifications, Tightening Torques |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

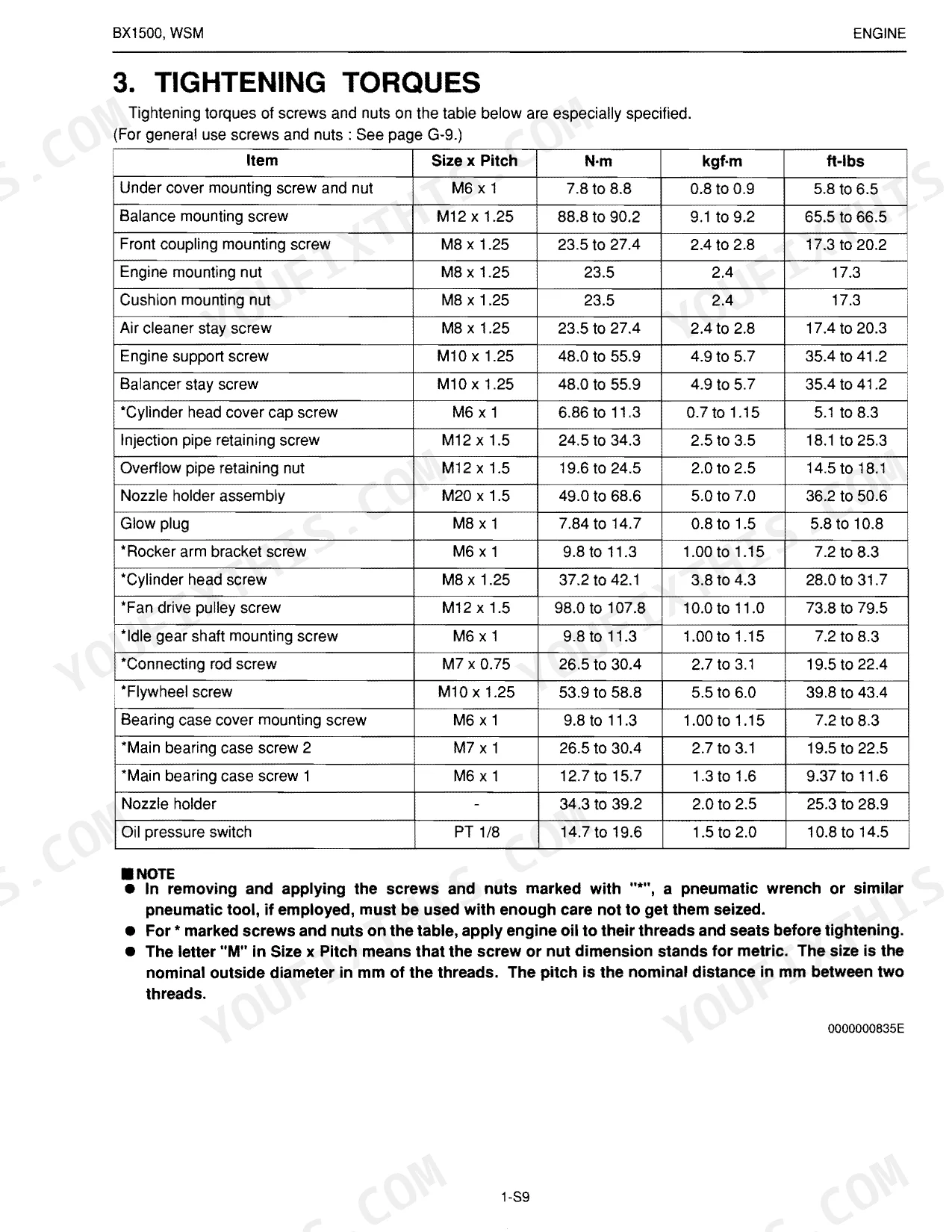

| GENERAL USE SCREWS, BOLTS AND NUTS (Ordinariness, M6) | 7.85 to 9.31 N·m | p. 21 |
| Nozzle holder assembly | 49.0 to 68.6 N·m | p. 75 |
| Implement Does Not Rise (No Noise) - Probable Cause | Control valve broken | p. 233 |
| Brake pedal free travel | 20 to 30 mm | p. 35 |
| Brake disc thickness (Allowable limit) | 3.0 mm | p. 179 |
| Friction plate thickness (Allowable limit) | 1.52 mm | p. 179 |
| Engine Total Displacement | 599 cm3 | p. 6 |
| Fuel Tank Capacity | 17 L | p. 6 |
| Engine Crankcase Oil Capacity | 1.9 L | p. 6 |
| Engine Coolant Capacity (with recovery tank) | 2.9 L | p. 6 |
| Transmission Case Fluid Capacity | 10.1 L | p. 6 |
| Front Axle Case Oil Capacity | 2.3 L | p. 6 |
Kubota BX1500 Common Problems This Manual Covers
Weak braking or excessive pedal travel
Owners report soft or ineffective brakes on the BX1500, usually traced to brake linkage that has drifted out of adjustment. The Transaxle section covers checking and setting brake pedal free travel and inspecting the brake discs.
Manual Section: TransaxleLoader or implement will not raise
A three-point implement that stays down or lifts weakly points to a hydraulic control valve or relief valve fault. The Hydraulic section provides the circuit, valve checks, and troubleshooting for the lift system.
Manual Section: HydraulicHard or heavy steering
Increasing effort at the wheel on this hydrostatic-steered tractor usually involves the steering controller, cylinder, or hydraulic supply. The Steering section covers the hydraulic circuit and component checks.
Manual Section: SteeringHard starting or low power

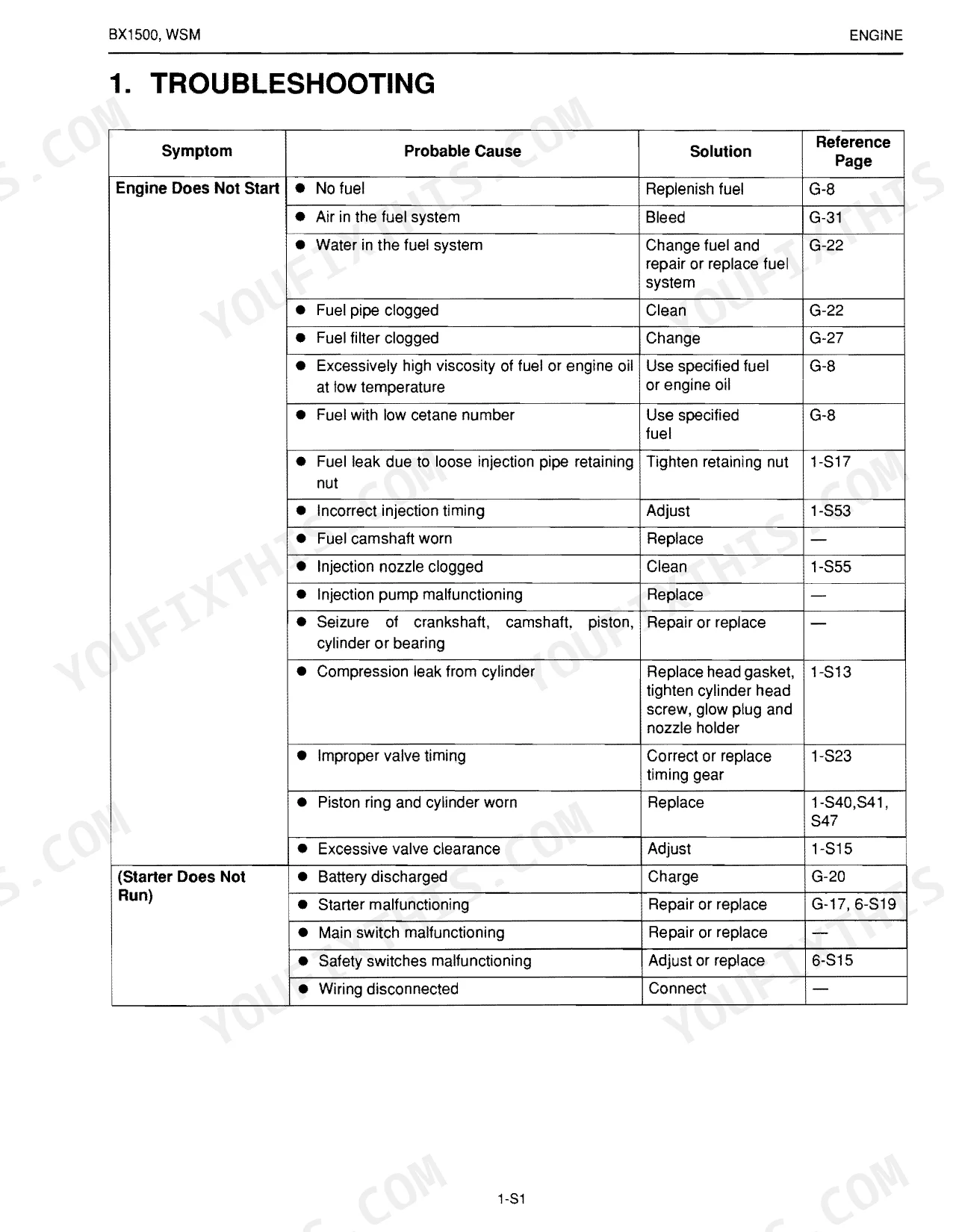

A diesel that cranks slowly to fire or lacks power often comes down to compression, valve clearance, or the fuel system. The Engine section carries troubleshooting, servicing specifications, and checking procedures for the Z602-E.
Manual Section: EngineCharging or starting system faults
No-crank, no-charge, or dead accessories trace to the battery, starter, or charging circuit. The Electrical section includes the wiring diagram plus starting and charging system diagnostics.
Manual Section: ElectricalFront axle noise or play
Knocking or looseness at the front on four-wheel-drive units points to worn gears or bearings in the front axle. The Front Axle section covers checking, adjusting, and disassembly.
Manual Section: Front AxleFrequently Asked Questions
Which tractor does this manual cover?
It covers the Kubota BX1500 sub-compact diesel tractor, which is powered by the Z602-E engine. The workshop manual applies to servicing this model from routine maintenance through full component overhaul.
What engine and fluid capacities does the BX1500 have?
The BX1500 uses the Z602-E diesel with 599 cm3 total displacement. Listed capacities include a 17 L fuel tank, 1.9 L engine crankcase oil, and 10.1 L in the transmission case. p. 6
What is the cylinder head screw torque?
The manual specifies a cylinder head screw torque of 37.2 to 42.1 N·m for the Z602-E engine. Full engine tightening torques are listed alongside the servicing specifications. p. 75
What should the brake pedal free travel be?
Brake pedal free travel should be set to 20 to 30 mm using the turnbuckle and lock nut. The manual gives the adjustment procedure so you can correct soft or dragging brakes. p. 35
How will I receive this Kubota BX1500 Service Manual?
Download starts the moment payment clears. The full 294-page searchable Service Manual is yours to open on a laptop, tablet, or phone right in the shop.
Is this Kubota BX1500 Service Manual printable?
Yes. The PDF carries no DRM, so you can print any page or section you need for the shop. It works with any standard printer.
Does this Kubota BX1500 Service Manual cover the hydraulic system?

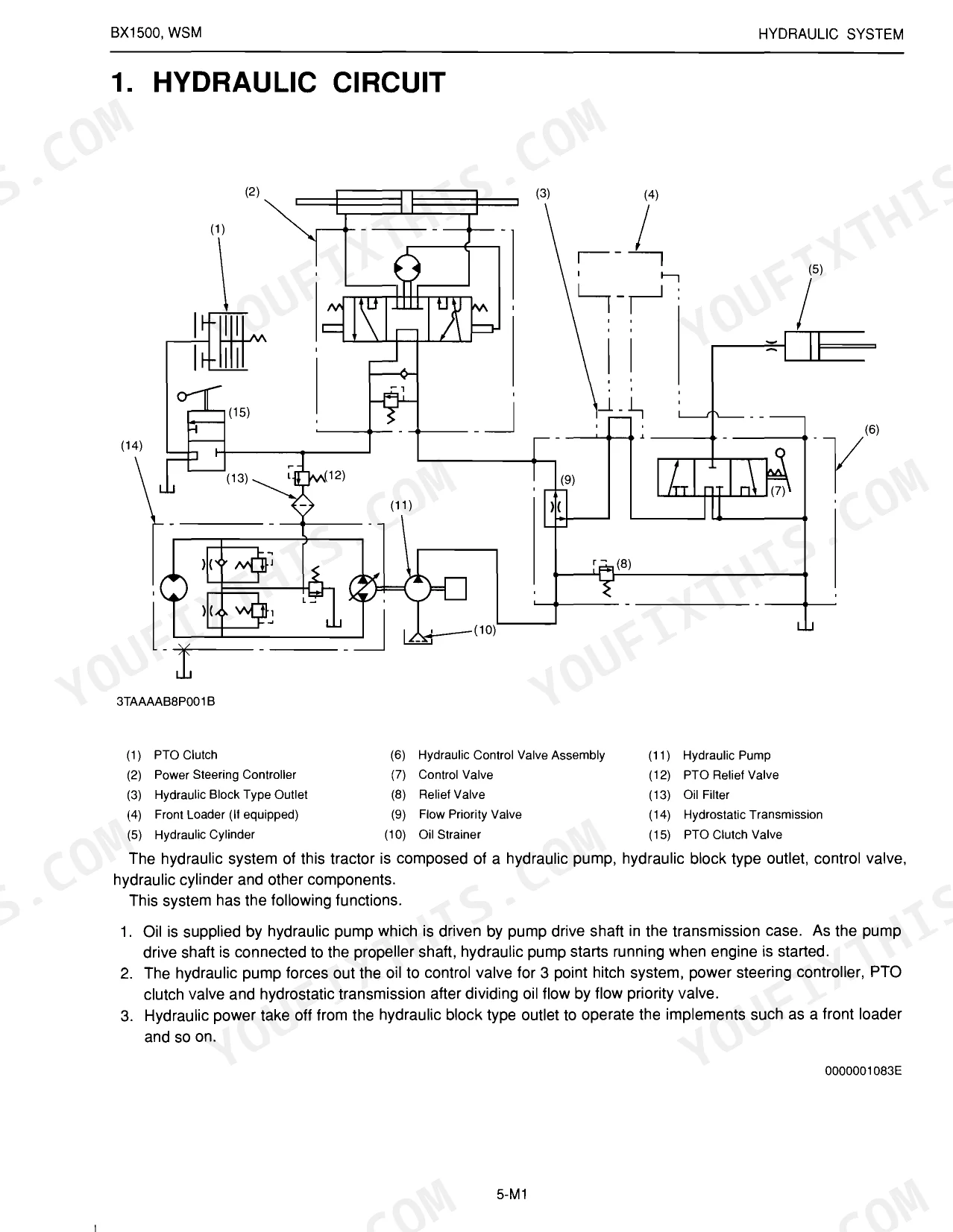

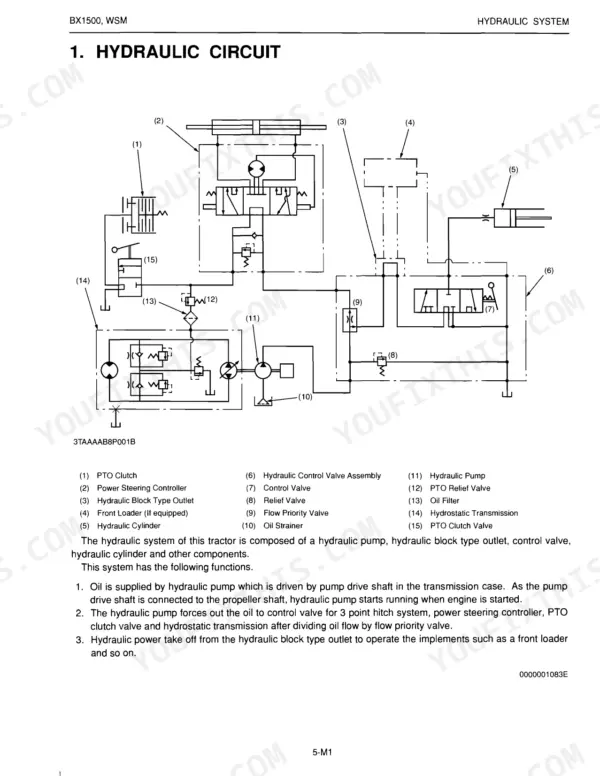

Yes. The manual includes hydraulic circuit diagrams, system schematics, and component specifications with pressure ratings.
