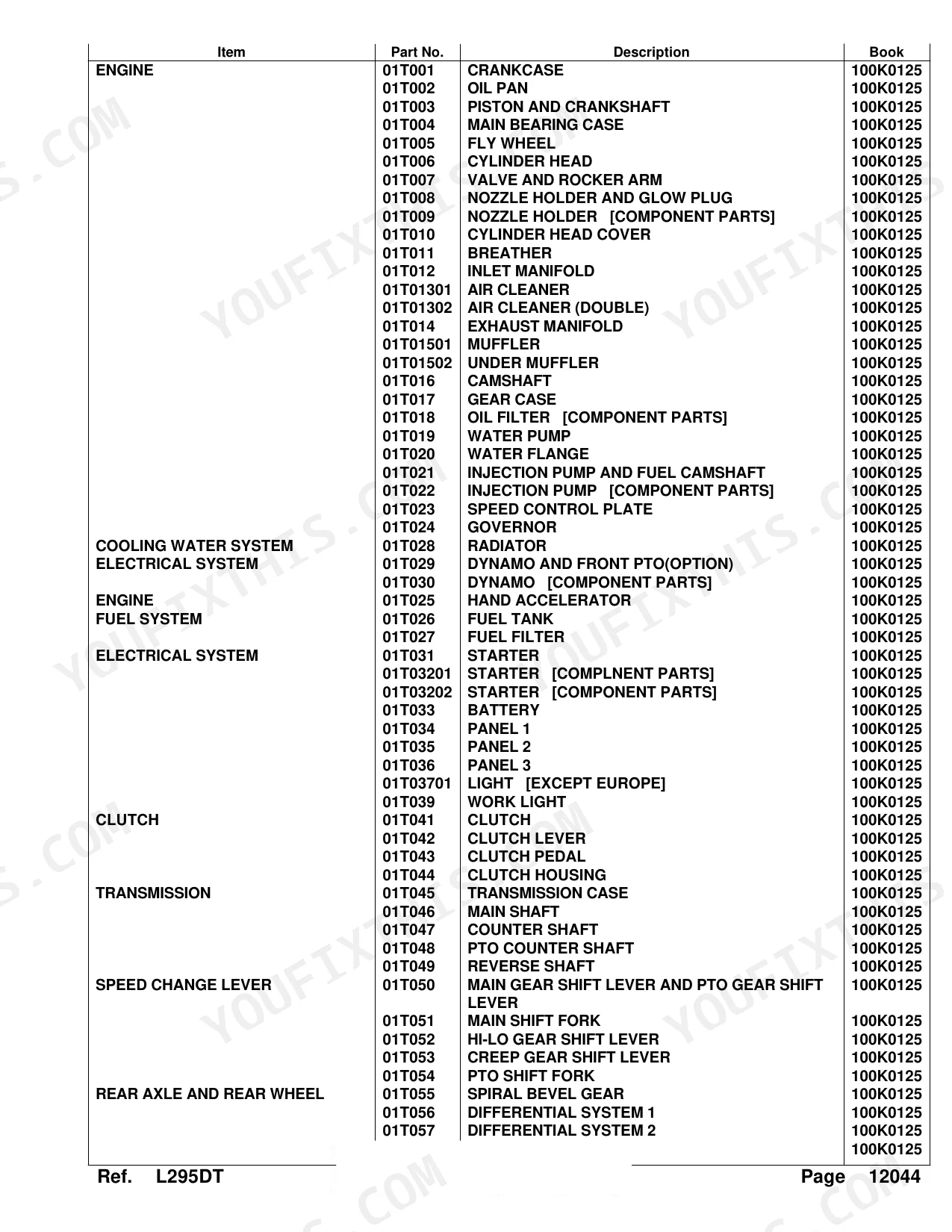

What's Inside This Kubota L295DT Parts Manual
| System | Pages | Key Topics |
|---|---|---|

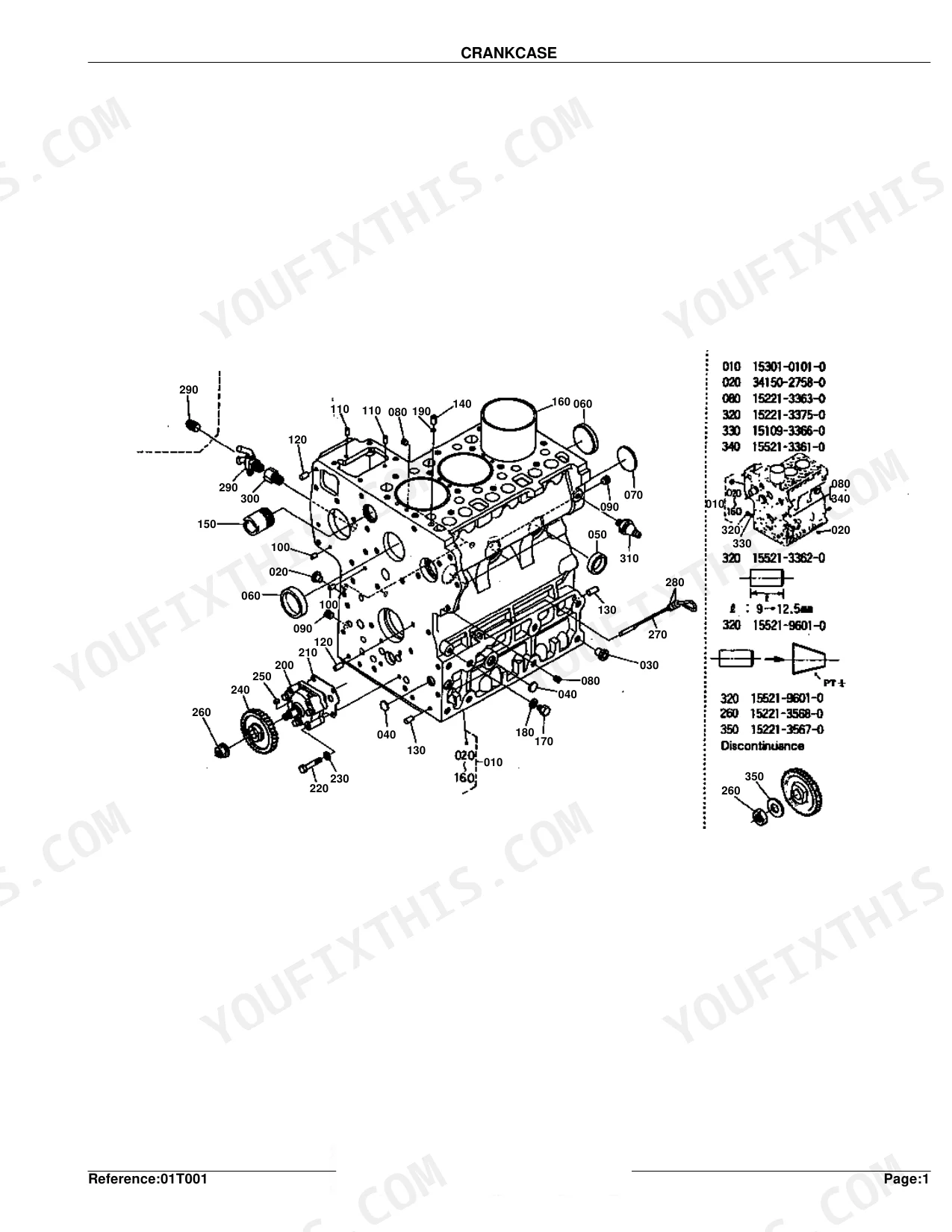

| Crankcase | - | Plug, Cap Sealing, Pin Straight, Pipe Water, Liner Cylinder, Gasket, O Ring |
| Oil Pan | - | Gasket Oil Pan, Bolt, Plug, Gasket, Filter Oil, O Ring, Washer Spring |
| Piston and Crankshaft | - | Piston, Crankshaft, Piston Ring, Connecting Rod |
| Main Bearing Case | - | Assy Case Main Brg, Bolt, Washer Lock, Washer Plain, Gasket, Cover Bearing, Seal Oil |
| Fly Wheel | - | Comp.flywheel, Gear Ring, Bolt Flywheel, Washer Flywheel, Comp.housing F-w., Pin Straight, Plug, Cover |
| Cylinder Head | - | Hook Engine, Bolt, Stud, Nut, Washer Spring, Comp.cylinder Head, Cap Sealing |
| Valve and Rocker Arm | - | Valve, Rocker Arm, Valve Inlet, Valve Exhaust, Spring Valve, Retainer Valve Sp., Collet Valve Spring, Seal Valve Stem |
| Nozzle Holder and Glow Plug | - | Nozzle Holder, Glow Plug, Pipe Injection, Clamp Pipe, Screw With Washer, Cover Injection Pump, Gasket Pump Cover, Bolt |
| Nozzle Holder [Component Parts] | - | Nozzle Holder, Nut, Joint, Washer Plain, Washer Adjusting, Spring Nozzle, Piece Distance, Push Rod |
| Cylinder Head Cover | - | Gasket Head Cover, Nut Head Cover, Plug Oil Filler, Holder Decomp.wire, Spring Decompress, Comp.shaft Decomp., Washer Head Cover |
| Breather | - | Plate Element, Element Breather, Oil Shield Breather, Stud, Joint Breather Pipe, Clamp Pipe, Pipe Breather |
| Inlet Manifold | - | Gasket In-manifold, Bolt, Washer Spring, Washer Plain |
| Air Cleaner | - | Body Air Cleaner, Cover Air Cleaner, Cover Baffle, Assy Nut Wing, Assy Band Aircleaner, Assy Element Cleaner, Washer With Rubber |
| Air Cleaner (Double) | - | Assy Cleaner Air, Body Air Cleaner, Cover Air Cleaner, Cover Baffle, Assy Nut Wing, Assy Band Aircleaner, Assy Element Outer, Label Element A/c |
| Exhaust Manifold | - | Manifold Exhaust, Gasket Ex-manifold, Stud, Washer Spring, Nut |
| Muffler | - | Band Muffler, Pipe Muffler, Band Pipe, Flange Muffler, Gasket, Assy Muffler Upward |
| Under Muffler | - | Assy Muffler Under, Pipe Muffler, Gasket, Muffler, Band Muffler, Support Muffler, Collar |
| Camshaft | - | Tappet, Push Rod, Assy Camshaft, Plug Pin, Screw Set, Gear Camshaft, Key Feather |
| Gear Case | - | Plug Pin, Cap Sealing, Pipe Water, O Ring, Pin Start Spring, Pin Straight, Gasket Gear Case |
| Oil Filter [Component Parts] | - | Assy Filter Oil, Assy Cover Oil Filte, Cover, Assy Valve Safety, Valve Safety, Spring, O Ring, Plug |
| Water Pump | - | Assy Pump Water, Shaft Water Pump, Impeller Water Pump, Set Seal, Assy Seal Mechanical, Bearing Ball, Cir-clip External, Cir-clip Internal |
| Water Flange | - | Flange Water, Pipe Water Return, Gasket Water Flange, Band Pipe, Cover Thermostat, Assy Thermostat |
| Injection Pump and Fuel Camshaft | - | Injection Pump, Fuel Camshaft, Assy Pump, Shim, Bolt, Stud, Nut, Washer Spring |
| Injection Pump [Component Parts] | - | Assy Pump Injection, Plate Adjusting, Spring Deliv.valve, Gasket Deliv.valve, Valve Delivery, Plunger Pump, Screw Air Breeder, Rack Control |
| Speed Control Plate | - | Apparatus Fuel Limit, Nut Lock, Gasket, Nut Cap, Assy Apparatus I/d., Assy Bolt Adjusting, Spring, Lever Speed Control |
| Governor | - | Comp.lever Governor, Assy Lever Fork, Comp.lever Fork, Lever Fork, Shaft Fork Lever, Bolt Lever Shaft, Holder Fork Lever, Spring Start |
| Radiator | - | Cap Radiator, Pipe Water Over Flow, Shroud Fan, Cock Drain, Net Radiator, Pipe Water, Washer Spring |
| Dynamo and Front Pto(Option) | - | Dynamo, Front Pto, Fan, Pulley Fan Drive, Key Feather, Cover Belt Lh, Flange Front Pto |
| Dynamo [Component Parts] | - | Assy Dynamo, Washer Spring, Pulley Dynamo, Fan Dynamo, Frame Drive End, Bearing Ball, Plate Retainer, Armature |
| Hand Accelerator | - | Lever Hand Accel., Grip Lever, Spring, Link Accel., Rod Accel., Joint Rod, Washer Plain, Pin Split |
| Fuel Tank | - | Assy Tank Fuel, Assy Cap Fuel Tank, Assy Cock Fuel, Bush Fuel Tank, Support Fuel Tank, Bracket, Rubber Protector, Cap Rubber |
| Fuel Filter | - | Assy Pipe Fuel, Clip Pipe, Assy Filter Fuel, Cover Filter, Element Filter, Plug Filter Breather, O Ring, Mark Form |

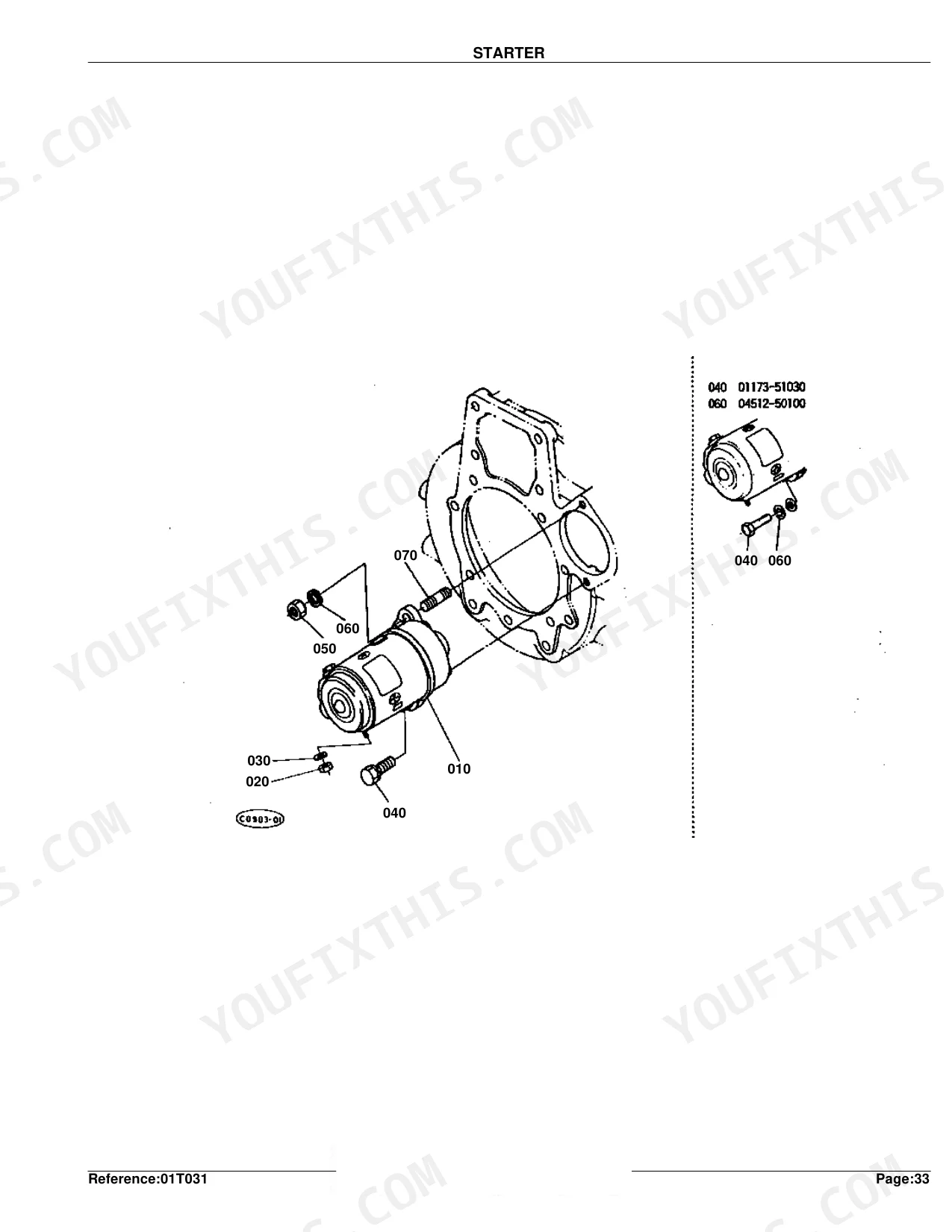

| Starter | - | Assy Starter, Nut, Washer Spring, Bolt, Stud |
| Starter [Complnent Parts] | - | Assy Starter, Yoke, Armature, Gasket, Holder Brush, Spring Brush, Switch Magnetic, Gear |
| Starter [Component Parts] | - | Assy Starter, Assy Yoke, Assy Armature, Assy Clutch, Frame Drive End, Assy Switch Hagnetic, Frame End, Assy Holder Brush |
| Battery | - | Support Air Cleaner, Stay Support A/c, Band Air Cleaner, Cushion Air Cleaner, Plate Shutter, Battery Dry, Cushion, Support Battery |
| Panel 1 | - | Panel, Bolt, Cushion, Screw Pan Head, Washer Plain, Washer Spring, Nut, Guide Rh |
| Panel 2 | - | Assy Switch Main, Nut Ring, Key Main Switch, Switch Starter, Assy Knob, Cap Rubber, Switch Winker, Thermometer Water |
| Panel 3 | - | Switch Safety, Holder Switch, Assy Regulator, Assy Box Fuse, Unit Flasher, Switch Stop, Horn, Assy Hazard Unit |
| Light [Except Europe] | - | Assy Light Head, Body, Lens, Bulb, Reflector, Rubber Dusting, Comp.cord Socket, Clip |
| Work Light | - | Assy Light Working, Bulb Lamp, Lens, Stay Lamp, Bolt, Washer Spring, Washer Plain, Nut |
| Clutch | - | Comp.disk Clutch, Assy Plate Pressure, Bolt Reamer, Bolt, Washer Spring |
| Clutch Lever | - | Lever Clutch, Fork, Key Fork, Bolt, Hub Clutch Release, Nipple Grease, Bearing Thrust Ball, Spring |
| Clutch Pedal | - | Pedal Clutch, Bush, Nipple Grease, Spring, Piece Distance, Joint, Pin Joint, Washer Plain |
| Clutch Housing | - | Housing Clutch, Plug Blind, Gauge Oil, Plug Drain, Cover Housing, Gasket Housing, Spacer |
| Transmission Case | - | Case Transmission, Plug Blind, Plug, Gasket, Retainer, O Ring, Bolt, Washer Spring |

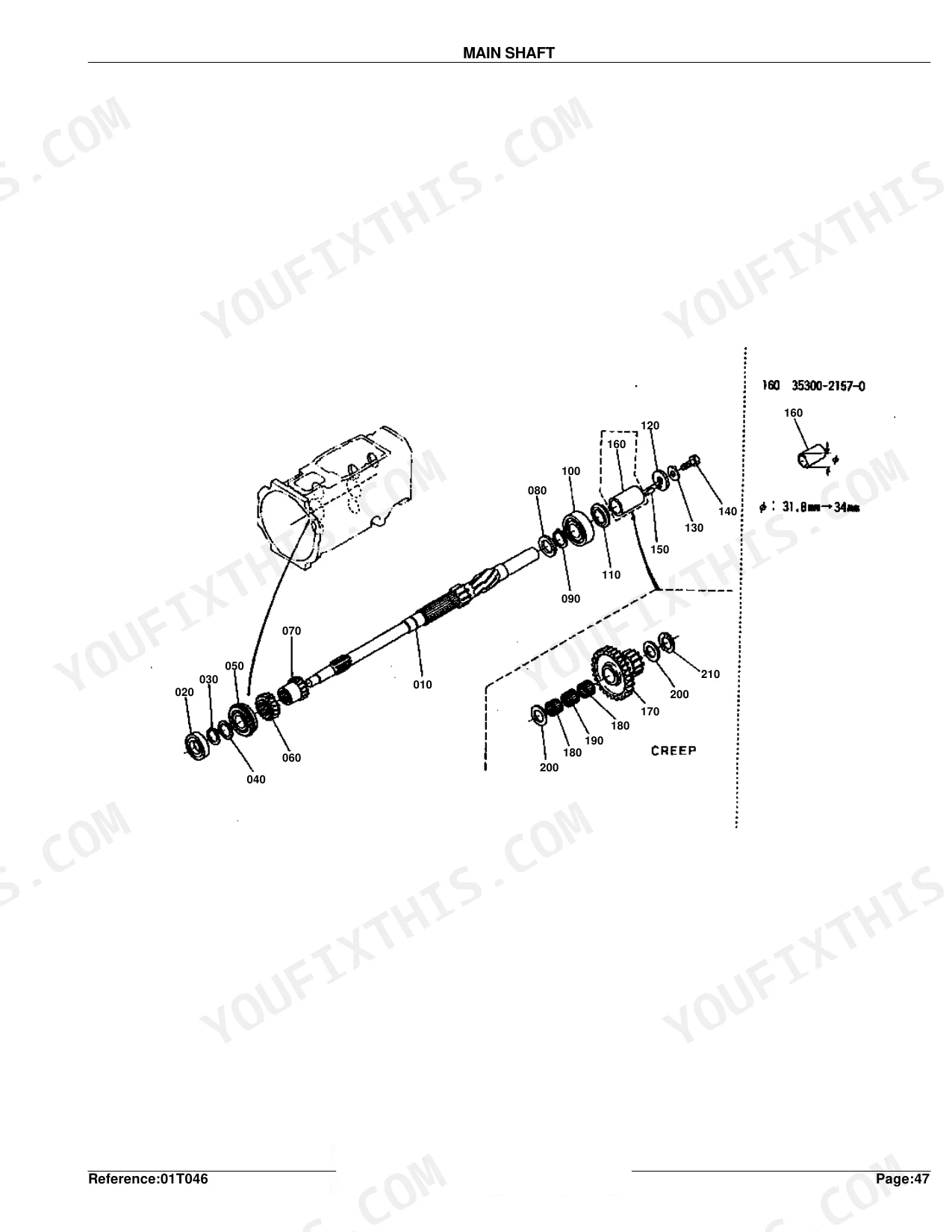

| Main Shaft | - | Shaft Main, Seal Oil, Cir-clip External, Washer, Bearing Ball, Gear, Collar, Bearing Needle |
| Counter Shaft | - | Countershaft, Washer, Bearing Ball, Collar Thrust, Boss Spline, Cir-clip, Wire, Gear |
| PTO Counter Shaft | - | Countershaft Pto, Shaft Pto, Case Bearing, Clutch Oneway, Case Clutch, Clutch |
| Reverse Shaft | - | Shaft Reverse, Screw Set, Washer With Rubber, Assy Gear, Bush |
| Main Gear Shift Lever and PTO Gear Shift Lever | - | Main Gear Shift Lever, Pto Gear Shift Lever, Cover Gear Shift, Gasket, Plug, Bolt, Washer With Rubber, Bracket Gear Shift |
| Main Shift Fork | - | Fork Shift, Rod Fork, Ball, Spring, Pin Spring, Piece Neutral |
| Hi-Lo Gear Shift Lever | - | Fork Shift, Shaft Fork, Pin Snap, Screw Set, Washer With Rubber, Ball, Spring, Lever Shift |
| Creep Gear Shift Lever | - | Cover, Gasket, Stud, Bolt, Washer Spring, Nut, Label |
| PTO Shift Fork | - | Fork Shift, Shaft Fork, Screw Set, Washer With Rubber, O Ring, Ball, Spring, Lever Pto |
| Spiral Bevel Gear | - | Assy Gear Bevel, Bearing Roller, Cir-clip External, Gear, Bearing Taper-roller, Nut, Case Bearing, Shim |
| Differential System 1 | - | Assy Differential, Case Differential, Cover Diff.case, Pin Straight, Shaft Diff.pinion, Assy Pinion Differen, Bush, Washer Diff.pinion |
| Differential System 2 | - | Case Diff.bearing Rh, Case Diff.bearing Lh, Shim, Bearing Taper-roller, Bolt, Washer Spring, Shaft Diff Gear Rh, Shaft Diff Gear Lh |
| Diff.Lock Pedal | - | Fork Shift, Spring, Bolt, Pedal Diff.lock, Bracket, Cam Diff.lock, Pin Joint, Washer Plain |
| Rear Axle | - | Axle Rear, Seal Oil, Bearing Ball, Cir-clip Internal, Collar, Washer, Gear, Nut |
| Axle Case | - | Axle Case Rh, Axle Case Lh, Plug, Washer With Rubber, Pin Straight, Bolt, Stud, Washer Plain |
| Rear Wheel(12.4-24) | - | Assy Rear Wheel, Tire, Tube, Cap Valve, Core Valve, Housing Valve Core, Nut Rim, Rim |
| Brake | - | Case Brake, Gasket, Pin Straight, Plate Cam Lh, Plate Cam Rh, Disk Brake, Plate, Seat Ball |
| Brake Pedal | - | Shaft Brake Pedal, Support Pedal Shaft, Bush, Nipple Grease, Bolt, Collar, Cir-clip External |
| Parking Brake Lever | - | Ratchet, Spring, Bolt, Washer Plain, Nut, Guide Ratchet, Rod Ratchet |

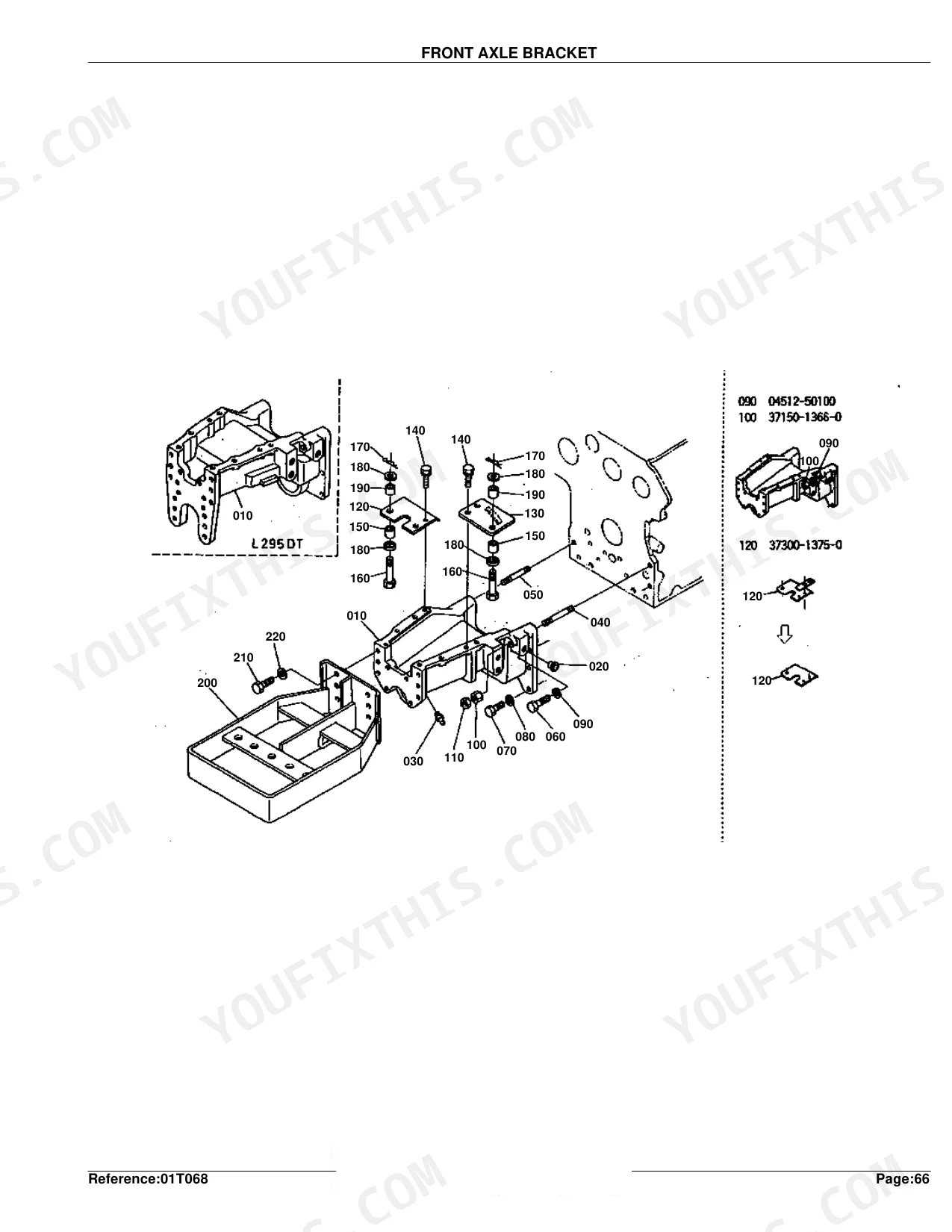

| Front Axle Bracket | - | Plug, Stud, Bolt, Washer Spring, Nut, Support Radiator Rh, Support Radiator Lh |
| Diff.Gear Shaft | - | Seal Oil, Shaft Bevel Gear, Collar Seal, Bearing Ball, Collar Split, Cir-clip Internal, Axle, Collar Thrust |
| Diff.Gear Case | - | Case Gear, Washer With Rubber, Collar Seal, Case Pinion Bearing, Assy Bearing Taper R, Case Differential, Shaft Diff.pinion, Assy Pinion Diff. |
| Front Axle Support | - | Support Rh, O Ring, Support Lh, Plug, Washer With Rubber, Pin Straight, Bolt, Washer Spring |
| Propeller Shaft | - | Pin Center, O Ring, Collar Thrust, Shim, Bolt, Washer Spring, Pin Straight |
| Drive Case | - | Case Drive, Pin Straight, Cover Pto, Gasket, Shaft, Bearing Ball, Cir-clip Internal, Seal Oil |
| Front Wheel(7-16) | - | Front Wheel, Tube, Cap Valve, Core Valve, Tire, Wheel, Washer Plain, Nut |
| Drag Linkage | - | End Drag Link, Pin Knuckle, Gasket, Support Knuckle Rh, Bush, Shim, O Ring, Comp.link Drag |
| Tie Rod | - | Arm Knuckle Rh, Arm Knuckle Lh, Bolt, Assy Rod Tie, Rod Tie, Assy End Tie Rod, Nut, Pin Split |
| Manual Steering | - | Assy Steering, Pin Straight, Bolt, Assy Handle Strg., Cap Handle, Washer Spring, Nut, Holder Post |
| Manual Steering [Component Parts] | - | Assy Steering, Box Gear, Shaft Sector, Comp.nut Ball, O Ring, Spacer, Pin Spring, Rivet |

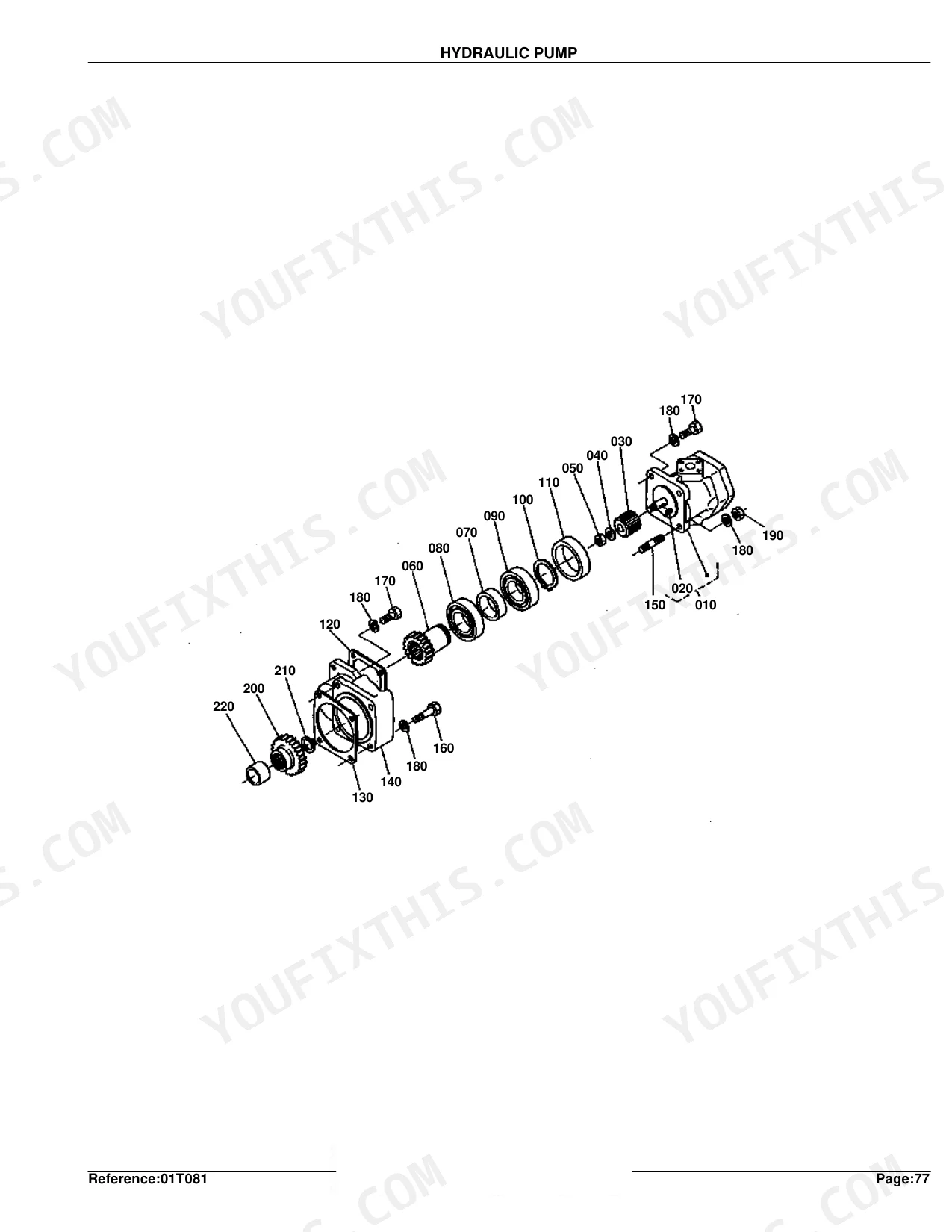

| Hydraulic Pump | - | Key Woodruff, Boss Spline, Washer, Nut, Gear, Race Inner, Bearing Needle |
| Hydraulic Pump [Component Parts] | - | Pump Hydraulic, Assy Gear And Bush, Seal Oil, O Ring, Key Woodruff, Ring Seal, Ring Support, Cover |
| Hydraulic Oil Line | - | Pipe Inlet, O Ring, Bolt, Washer Spring, Comp.pipe Delivery, Band Pipe, Pin Band |
| Hydraulic Oil Filter | - | Comp Pot Filter, Bolt, Washer Spring, Washer Plain, Pipe Rubber, Clamp, Filter Oil, Cover Filter |
| Control Valve | - | Valve Control, Joint Spool, Cir-clip External, Nut, Bolt, Washer Spring, Lever Spool Drive, Arm Control |
| Control Valve [Component Parts] | - | Valve Control, Spring, Valve Check, O Ring, Seat, Poppet, Plug Seat, Valve Unload |
| Relief Valve | - | Valve Relief, Spacer Valve, Bolt, Stud, Nut, Washer Spring, O Ring, Plug |
| Relief Valve [Component Parts] | - | Assy Valve Relief, Seat, Poppet, Spring, Plug, Shim, O Ring |
| Draft Control Valve | - | Guide Hyd.lever, Stopper, Nut, Washer Spring, Assy Valve Draft Con, Lever Feed Back, Spacer, O Ring |
| Draft Control Valve [Component Parts] | - | Draft Control Valve, Assy Valve Draft Con, Cover, Plug, Spring, O Ring, Shaft, Arm |
| Hydraulic Cylinder | - | Cylinder Hyd., Pipe Breather, Assy Cover Hyd.Cyl., Collar Adjusting, Screw Adjusting, Grip, Ring Back Up, Elbow |
| Lift Arm | - | Liner Cylinder, Piston Hyd., Shaft Hyd.arm, Arm Hydraulic, Rod Hyd., Link Control, Arm Lift, Pin Lift Rod |
| 3-Point Linkage | - | Assy Link Top, Link Top, Joint Top Link, Pin Spring, Pin Set, Comp.link Lower, Assy Adjuster, Rod Lift Lower |
| Top Linkage Bracket | - | Comp Bracket Link, Bush, Pin Straight, Nipple Grease, Bolt, Washer Spring, Rod Draft Control, Turnbuckle |
| Drawbar and Hitch | - | Frame Drawbar, Hitch, Bolt, Washer Spring, Link Support, Drawbar, Nut, Pin Joint |
| PTO Shaft Protector | - | Protector Shaft Pto, Collar, Bolt, Washer Spring |
| Hood (Bonnet) | - | Comp.bonnet, Cover Bonnet, Cushion, Support Bonnet Rh, Support Bonnet Lh, Hook, Grille Light, Grille Lamp |
| Rearview Mirror | - | Assy Mirror Rearview, Mirror Rearview, Support R.mirror, Holder, Washer Spring, Nut, Bolt |
| Upper Frame | - | Cover Fan, Frame Upper, Bolt, Washer Plain, Screw With Washer |
| Fender | - | Comp.fender Rh, Comp.fender Lh, Bracket Fender Rh, Bracket Fender Lh, Stay Fender Rh, Stay Fender Lh, Spacer Fender, Balustrade |
| Fendr | - | Comp.fender Rh, Comp.fender Lh, Bracket Fender Rh, Bracket Fender Lh, Stay Fender Rh, Stay Fender Lh, Spacer Fender |
| Tools Case | - | Case Tools, Bolt, Nut, Stay Tools Case, Washer Spring |
| Seat | - | Assy Seat, Assy Suspention Seat, Support Seat, Arm, Spring Seat, Bolt Adjust, Pin, Cushion |
| Seat [Option] | - | Suspenshion Seat Adj, Assy Seat, Seat Adjust Rh, Seat Adjust Lh, Cushion, Pin Split, Screw With Washer, Support Seat |
| S.M.V.Emblem Bracket | - | Bkt.triangle Plate, Screw Pan Head, Nut, Washer Spring, Washer Plain |
| Step | - | Comp.step Rh, Spring, Step Lh, Collar, Bolt, Washer Spring, Tube Vinyl, Seat Step |
| Label 1 | - | Side Kubota Rh, Side Kubota Lh, Model Rh, Model Lh, Drain, Kubota, Oil, Hi-lo Shift |
| Label 2 | - | Name Plate, Label Pto, Label Instruction, Label Pedal, Mark Spacer, Label Engine Stop, Label Drain Caution, Label One Way Clutch |
| Accessories and Service Parts | - | Manual Instruction, List Parts, Assy Tools Standard, Screw Driver, Spanner, Wrench Offset, Pliers, Squeezer Oil |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| SHIM ADJUSTING (1.5+0.035/0.015MM) | 0.002 kgf | p. 157 |
| SHIM ADJUSTING (1.5+0.065/0.045MM) | 0.002 kgf | p. 157 |
| SHIM (REF.No 080) | 0.5MM | p. 139 |
| SHIM (REF.No 040) | 0.2MM | p. 141 |
| OIL PAN (REF.No 010) | 11.4 kgf | p. 8 |
| COMP.CRANKCASE Weight | 55 kgf | p. 6 |
| LINER CYLINDER Weight | 0.57 kgf | p. 6 |
| OIL PAN Weight | 11.4 kgf | p. 8 |
| COMP.FLYWHEEL Weight | 15.9 kgf | p. 15 |
| COMP.CYLINDER HEAD Weight | 15.1 kgf | p. 17 |
| ASSY PUMP WATER Weight | 1.95 kgf | p. 47 |
