Need the right factory part number before you call the dealer? That's the single job these 581 pages do for the Kubota L3130DT, L3130GST, and L3130HST. Every major assembly gets an exploded-view diagram beside its numbered parts list, from the crankcase and piston-crankshaft group down to the HST unit's piston, regulator, and rotary component sets. Kubota's interchangeability symbols sit in each section, so you can tell at a glance whether a listed part crosses to your DT, GST, or HST variant. The electrical section splits fuse ratings by circuit (5A through 40A) and lists switch assemblies separately for each transmission, pointing you to the exact harness or relay number you're after. Three variants, one catalog, so cross-checking takes seconds. Bookmarked by system and searchable by keyword, it pulls up fast on a tablet to confirm the number and order it once.
What's Inside This Kubota L3130DT, L3130GST, L3130HST Parts Manual
| System | Pages |
|---|---|

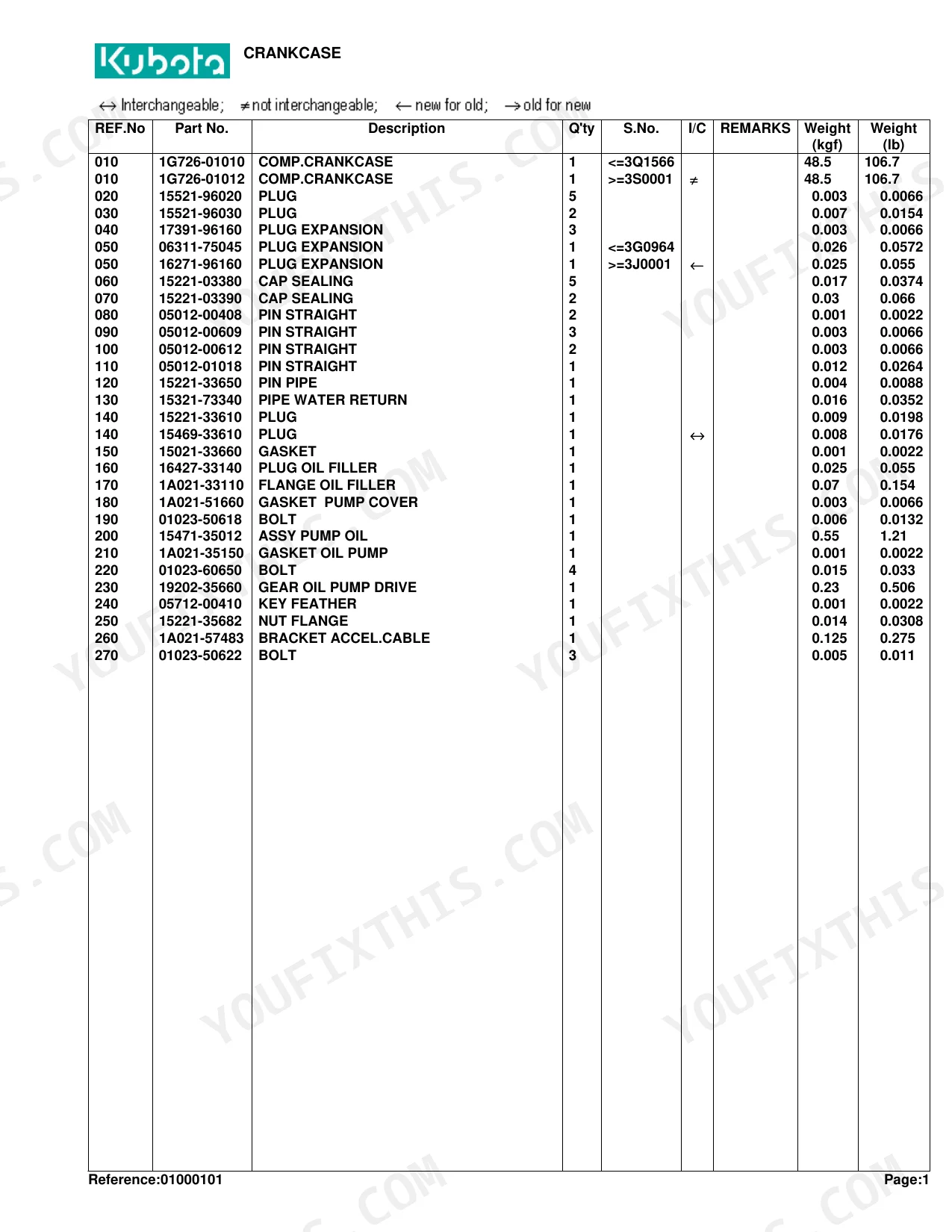

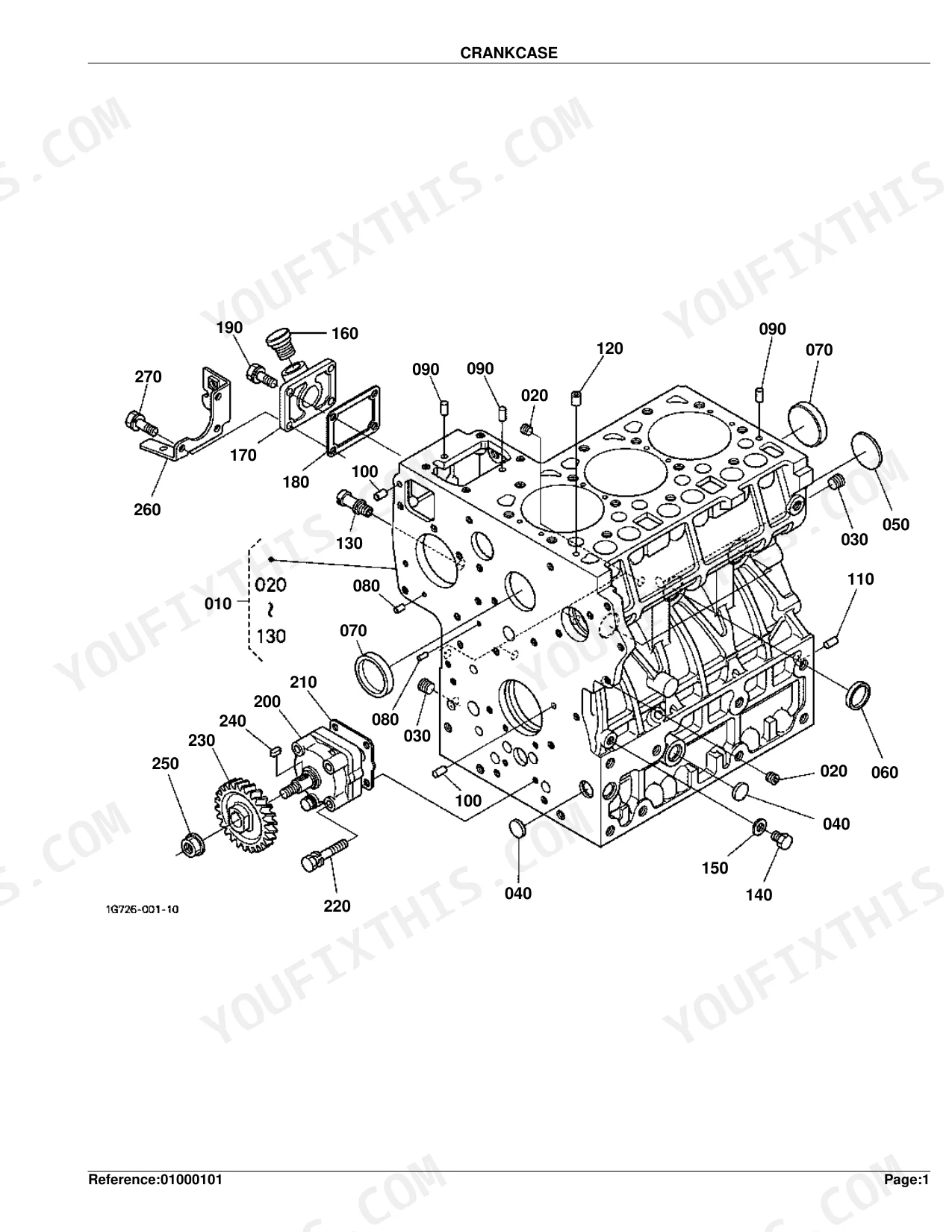

| Crankcase | 8-9 |
| Oil Pan | 10-11 |
| Cylinder Head | 12-13 |
| Gear Case [Rops Type] | 14-16 |
| Head Cover [Old Type] | 17-18 |
| Head Cover [New Type] | 19-20 |
| Main Bearing Case [Old Type] | 21-22 |
| Main Bearing Case [New Type] | 23-25 |
| Camshaft and Idle Gear Shaft | 26-28 |
| Piston and Crankshaft | 29-32 |
| Flywheel [Except HST Type] | 33-34 |
| Flywheel [Hst Type] | 35-36 |
| Fuel Camshaft | 37-39 |
| Engine Stop Lever | 40-41 |
| Injection Pump | 42-43 |
| Governor | 44-46 |
| Speed Control Plate | 47-48 |
| Nozzle Holder and Glow Plug | 49-51 |
| Nozzle Holder [Component Parts] | 52-53 |
| Water Flange and Thermostat [Rops Type] | 54-55 |
| Water Pump | 56-57 |
| Valve and Rocker Arm | 58-59 |
| Inlet Manifold | 60-62 |
| Exhaust Manifold/Muffler | 63-64 |
| Air Cleaner [Rops Type] | 65-67 |
| Upper Gasket Kit | 68-69 |
| Lower Gasket Kit | 70-72 |
| Accelerator Lever [Rops Type] | 73-75 |
| Accelerator Pedal [Except HST Type] | 76-77 |
| Fuel Tank | 78-79 |
| Fuel Pipe and Fuel Filter [Rops Type] | 80-81 |
| Fuel Filter | 82-83 |
| Fuel Filter [Component Parts] | 84-85 |
| Fan | 86-87 |
| Water Pipe | 88-89 |
| Radiator [Except HST Type] [Rops Type] | 90-92 |
| Radiator [Hst Type] [Rops Type] | 93-95 |
| Reserve Tank [Rops Type] | 96-97 |
| Alternator | 98-100 |
| Alternator [Component Parts] [Rops Type] | 101-102 |
| Starter | 103-104 |
| Starter [Component Parts] | 105-106 |
| Battery | 107-108 |
| Switch/Relay [Rops Type] | 109-110 |
| Switch/Sensor [Except Cab [Ca] Type] | 111-112 |
| Switch [Manual T/M Type] | 113-115 |
| Switch [Gst Type] | 116-118 |
| Switch [Hst Type] | 119-121 |
| Panel Board [Rops Type] | 122-123 |
| Panel Board [Component Parts] | 124-125 |
| Head Light | 126-128 |
| Hazard Light [Rops Type] | 129-130 |
| Rear Lamp [Rops Type] | 131-132 |
| Electrical Wiring [Manual T/M Type] | 133-135 |
| Electrical Wiring [Gst Type] | 136-138 |
| Electrical Wiring [Hst Type] [Rops Type] | 139-141 |

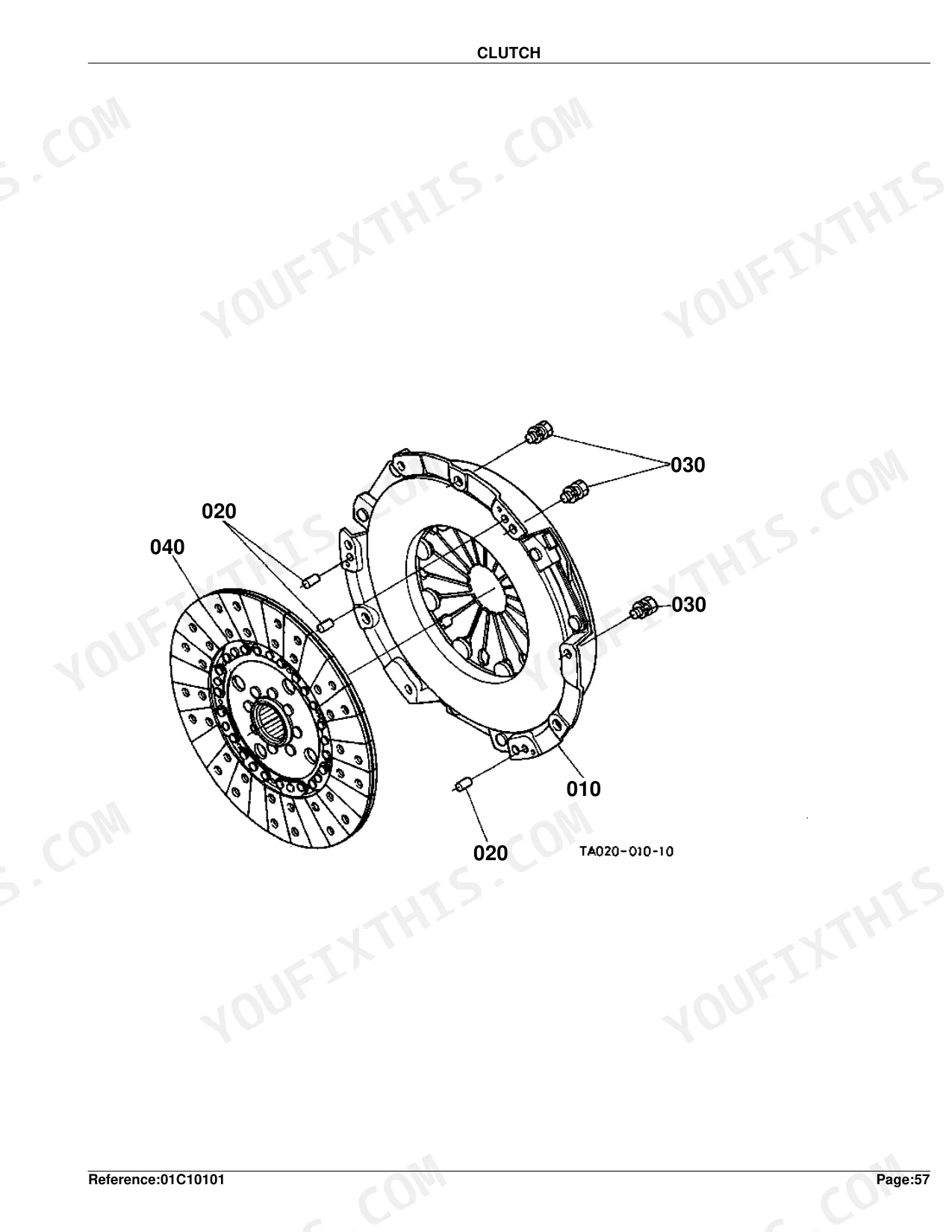

| Clutch | 142-143 |
| Clutch Lever [Except HST Type] | 144-145 |
| Clutch Lever [Hst Type] | 146-148 |
| Clutch Pedal [Except HST Type] | 149-151 |
| Clutch Pedal [Hst Type] [Rops Type] | 152-154 |
| Clutch Housing [Manual T/M Type] | 155-156 |
| Clutch Housing [Gst Type] | 157-158 |
| Clutch Housing [Hst Type] | 159-160 |
| HST (Piston/Plug) [Component Parts] [Hst Type] | 161-163 |
| HST (Regulator/Pipe) [Component Parts] [Hst Type] | 164-165 |
| HST (Rotary) [Component Parts] [Hst Type] | 166-167 |
| Gst Valve [Gst Type] | 168-169 |
| Gst Valve [Component Parts] [Gst Type] | 170-171 |
| Mid Case [Manual T/M Type] | 172-174 |
| Mid Case [Gst Type] | 175-177 |
| Mid Case [Hst Type] | 178-180 |
| Transmission Case [Manual T/M Type] | 181-183 |
| Transmission Case [Gst Type] | 184-186 |
| Transmission Case [Hst Type] | 187-189 |
| Main Shaft [Except HST Type] | 190-191 |
| Input Shaft [Hst Type] | 192-193 |
| Countershaft [Manual T/M Type] | 194-195 |
| Countershaft [Gst Type] | 196-197 |
| Countershaft [Hst Type] | 198-199 |
| Hydraulic Clutch [Gst Type] | 200-201 |
| Shuttle Shaft [Manual T/M Type] | 202-203 |
| Shuttle Shaft [Gst Type] | 204-205 |
| Reverse Shaft [Manual T/M Type] | 206-207 |
| Reverse Shaft [Gst Type] | 208-209 |
| Range Gear Shaft [Manual T/M Type] | 210-211 |
| Range Gear Shaft [Gst Type] | 212-213 |
| Range Gear Shaft [Hst Type] | 214-215 |
| Spiral Bevel Pinion [Except HST Type] | 216-217 |
| Spiral Bevel Pinion [Hst Type] | 218-219 |
| Rear Differential | 220-221 |
| PTO Countershaft [Except HST Type] | 222-223 |
| PTO Countershaft [Hst Type] | 224-225 |
| PTO Clutch [Except HST Type] | 226-227 |
| PTO Clutch [Hst Type] | 228-229 |
| PTO Clutch [Component Parts] | 230-231 |
| PTO Shaft | 232-233 |
| Main Gear Shift Fork [Manual T/M Type] | 234-235 |
| Main Gear Shift Fork [Gst Type] | 236-237 |
| Shuttle Shift Fork [Manual T/M Type] | 238-239 |
| Shuttle Shift Fork [Gst Type] | 240-241 |
| Range Gear Shift Fork [Manual T/M Type] | 242-243 |
| Range Gear Shift Fork [Gst Type] | 244-245 |
| Range Gear Shift Fork [Hst Type] | 246-247 |
| Differential Lock Shift Fork [Except HST Type] | 248-250 |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| L3130DT | ||
| Current Rating | 5A | p. 135 |
| Weight | 0.125 kgf | p. 115 |
| L3130GST | ||
| Current Rating | 5A | p. 138 |
| Weight | 0.125 kgf | p. 118 |
| All Models | ||
| Weight | 0.07 kgf | p. 110 |
| L3130DT, L3130GST | ||
| Weight | 0.535 kgf | p. 357 |
| L3130HST | ||
| Weight | 0.535 kgf | p. 359 |
Kubota L3130DT, L3130GST, L3130HST Common Problems This Manual Covers
Kubota L3130HST loses drive power and struggles under heavy load with extremely dirty hydraulic fluid. p. 358
Check the hydraulic oil line inlet diagrams on page 358. Locate the 0.535 kgf oil filter assembly and its mounting bracket. Cross-reference the filter cartridge part numbers for your specific HST type serial number before ordering a replacement to ensure proper fluid flow.
Manual Section: Hydraulic Oil Line(Inlet) [Hst Type]Engine cranks but won't start, or catches only intermittently, when fuel delivery falls short. p. 40
Trace the engine stop lever components on the page 40 diagram. The 0.29 kgf fuel shutoff solenoid and its mounting hardware are called out there; confirm the solenoid assembly's part number in the matching parts list so it fits your engine configuration.
Manual Section: Engine Stop LeverTractor engine stalls unexpectedly or safety interlocks shut the machine down during standard field operation. p. 109
Inspect the switch and relay diagrams on page 109. The 0.07 kgf relay assembly sits with its connector block; read off the component reference numbers and match them against the parts index so the replacement relay fits your safety interlock circuit.
Manual Section: Switch/Relay [Rops Type]Diesel runs down on power and stalls without warning once fuel flow gets choked off. p. 84
Open to the fuel filter breakdown on page 84. Note the 0.59 kgf filter element and its sealing O-rings, then look up their part numbers in the table to get the right replacement element and bring fuel flow back.
Manual Section: Fuel Filter [Component Parts]Frequently Asked Questions
What are the replacement specifications for fuses?
Ratings run from 5A up to 50A. On the Electrical Wiring [Manual T/M Type] and [HST Type] [ROPS Type], you'll find 5A (Part No. T1060-30430), 7.5A (Part No. T1150-30480), 15A (Part No. T1060-30450), 30A (Part No. T1060-30470 or TD060-30510), 40A (Part No. TD060-30520), and 50A (Part No. TD060-30530). The [GST Type] adds a 10A (Part No. T1060-30440) and otherwise carries 5A (Part No. T1060-30430), 7.5A (Part No. T1150-30480), 15A (Part No. T1060-30450), 30A (Part No. T1060-30470 or TD060-30510), 40A (Part No. TD060-30520), and 50A (Part No. T1060-30530).
What are the replacement specifications for relays?
The SWITCH/RELAY [ROPS TYPE] section calls out two relays. One is the RELAY GLOW, Part No. T1060-33710, listed at a quantity of 2; the other is the RELAY STARTER, Part No. T1060-33720, at a quantity of 1.
Is this Kubota L3130DT, L3130GST, L3130HST Parts Catalog a digital download?
Yes. It's a 581-page searchable PDF available to download immediately. It opens on any device, so you can read it on your phone while you're under the hood. Nothing ships, and there's no wait.
Document Quality
This document is a hybrid PDF, featuring native digital text for part lists and scanned images for diagrams. You can search and copy the full text, as an OCR layer is present and accurate across all pages. The text on the part list pages is crisp and easy to read. Diagrams and illustrations are scanned raster images, which are generally clear and readable, though they will pixelate at high zoom levels. Some minor scan artifacts, faint lines, or slight page skew are visible on diagram pages, but these do not hinder readability. There are no blank pages, though some pages are dedicated to 'OLD PARTS' diagrams.
