Kubota L35 Parts Manual

Original price was: $40.99.Current price is: $29.99.

-27%
Model: L35
Type: Tractor
317 Pages·3.7 MB·Searchable PDF·English·Print-Ready
  • Bookmarks
Preview Sample Pages (PDF)

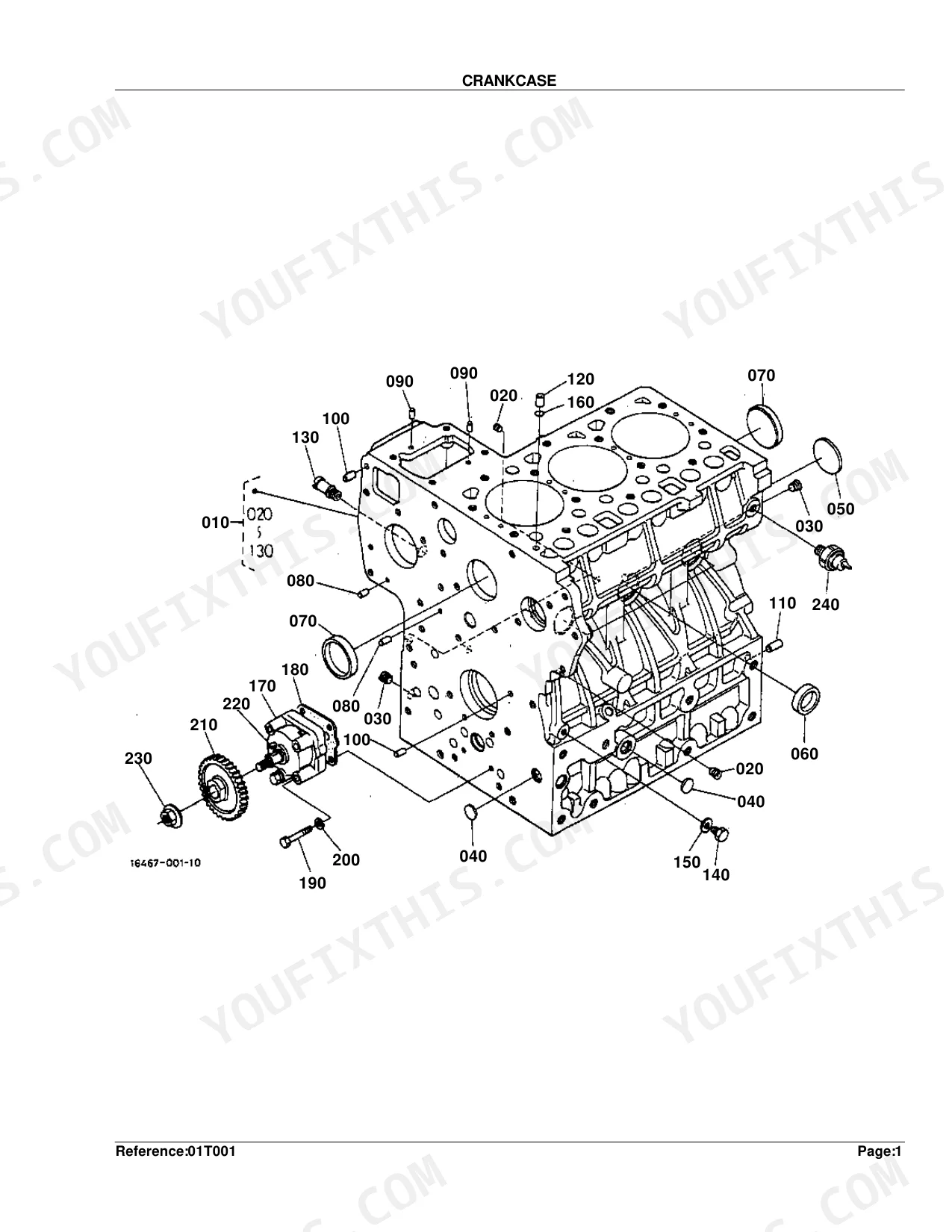

Kubota L35 crankcase exploded view diagram showing engine block, oil pump, and numbered component parts.
Kubota L35 Parts Manual $40.99 Original price was: $40.99.$29.99Current price is: $29.99.

Instant Download 24/7

  • Works on PC, Mac, tablet, and phone.
  • Download once, keep forever



Guaranteed Safe Checkout
Visa Mastercard PayPal Apple Pay Google Pay

The whole point of these 317 pages: finding the exact part number before you waste an hour on the wrong order. The catalog runs across 79 major systems, with exploded views covering the crankcase assembly, piston-connecting rod groups, hydraulic pump internals, GST valve component parts, and 3-point linkage. Need the front axle case shim stack? It's laid out with thicknesses from 1.0mm through 1.8mm marked in the diagrams. Factory weights sit right in the parts listings too: the cylinder head at 15.02 kgf, the crankcase at 48.5 kgf, so you order against real data instead of a guess. No more chasing a number across 15 forums. Everything is bookmarked by system and searchable by keyword, so you can pull it up on any device and jump straight to the section you need.

What's Inside This Kubota L35 Parts Manual

SystemPagesKey Topics
Crankcase-Assembly, Plugs and Seals, Oil Pump and Related Parts, Fasteners and Other Components
Oil Pan-Assembly, Fasteners, Plugs and Seals, Oil Filter
Piston and Crankshaft-Piston Assembly, Connecting Rod Assembly, Crankshaft and Bearings, Seals and Rings
Main Bearing Case [Old Type]-Bearing Case Assembly, Gaskets and Seals, Fasteners
Main Bearing Case [New Type]-Bearing Case Assembly, Gaskets and Seals, Fasteners, Crankshaft Metal
Flywheel-Assembly, Plugs and Seals, Fasteners
Cylinder Head-Assembly, Valves and Guides, Plugs, Seals and Fasteners
Valve and Rocker Arm [Old Type]-Valve Components, Rocker Arm Assembly, Fasteners and Seals
Valve and Rocker Arm [New Type]-Valve Components, Rocker Arm Assembly
Nozzle Holder and Glow Plug-Nozzle Holder, Glow Plug, Pipe Over Flow, Clip Pipe, Gasket, Seal Heat, Pipe Injection, Clamp Pipe
Nozzle Holder [Component Parts]-Nozzle Holder, Nut, Washer, Spring Nozzle, Piece Distance, Push Rod, Piece Nozzle, Seal Heat
Cylinder Head Cover [Old Type]-Cylinder Head Assembly, Valves and Guides, Plugs, Seals and Fasteners
Cylinder Head Cover [New Type]-Cylinder Head Assembly, Valves and Guides, Plugs, Seals and Fasteners
Inlet Manifold-Manifold Inlet, Assy Manifold Inlet, Pipe Water Return, Gasket In-Manifold, Bolt
Air Cleaner-Assy Cleaner Air, Comp.body A/c, Pipe Air Cleaner, Comp.filter A/c, Assy Cup Air Cleaner, Seal Air Cleaner, Valve, Bolt Wing
Exhaust Manifold and Muffler-Exhaust Manifold, Muffler, Gasket Muffler, Stud, Gasket Ex-Manifold, Washer Spring, Nut, Pipe Muffler
Camshaft-Tappet, Push Rod, Assy Camshaft, Screw Set, Ball, Gear Camshaft, Gear Cam
Gear Case-Plug, O Ring, Pin Start Spring, Pin Straight, Support Oil Filter, Gasket Na, Cover
Water Pump-Assy Pump Water, Body Water Pump, Impeller Water Pump, Assy Seal Mechanical, Flange Water Pump, Gasket Water Pump, Kit Repair W/pump
Water Flange and Thermostat-Water Flange, Thermostat, Pipe Water Return, Band Pipe, Cover Thermostat, Assy Thermostat
Fuel Camshaft-Assy Camshaft Fuel, Bearing Ball, Gear Injection Pump, Key Feather, Circlip External, Sleeve Governor, Cir-Clip Gov.sleeve
Injection Pump-Shim Injection, Assy Cock Jet Start, Assy Pump Fuel, Gasket Fuel Pump, Joint Eye, Assy Tube Fuel, Tube Fuel
Engine Stop Lever-Apparatus Idling, Assy Bolt Adjustment, Nut, Nut Cap, Gasket, Cap, Assy Lever Eng.stop
Speed Control Plate-Assy Bolt Adjustment, Bolt Adjusting, Nut, Gasket, Nut Cap, Cap, Pipe Lock
Governor-Comp.lever Governor, Assy Lever Fork, Lever Fork, Shaft Fork Lever, Bolt Lever Shaft, Washer Spring, Holder Fork Lever, Spring Start
Upper Gasket Kit-Gasket Kit Upper, O Ring, Gasket Cyl.head, Seal Valve Stem, Gasket, Seal Heat, Gasket Head Cover, Gasket In-Manifold
Lower Gasket Kit-Gasket, O Ring, Seal Oil, Packing Cover
Stop Selenoid and Engine Stop Wire-Stop Selenoid, Engine Stop Wire, Solenoid Stop, Lever Stop, Wire Engine Stop, Holder Wire, Pin Joint, Band Cord
Accelerator Lever-Bush, Grip Lever, Shaft Accel.lever, Spring, Washer Plain, Washer Spring, Nut
Accelerator Linkage-Spring, Rod Accel., Washer Plain, Pin Split, Lever Accel.
Accelerator Rod-Rod Pedal, Washer Plain, Pin Split, Assy Rod Accel., Nut
Fuel Tank-Kit Fuel Tank, Assy Tank Fuel, Assy Cap Fuel Tank, Gasket Tank Cap, Cushion Battery, Bolt Flange, Washer Plain, Cushion
Fuel Filter and Fuel Pipe-Fuel Filter, Fuel Pipe, Clip Pipe, Bracket Fuel Filter
Fuel Filter [Component Parts]-Fuel Filter, Assy Filter Fuel, Assy Body, Handle Filter, Gasket, Retainer Handle, Plate Thrust, O Ring
Water Pipe-Pipe Water, Band, Hose Water Lower, Hose Drain, Band Hose
Radiator-Shroud Fan, Cap Radiator, Plug Drain, O Ring, Hose Drain, Guide, Bolt Flange
Reserve Tank-Cap, Gasket, Pipe Water Overflow, Clip Pipe, Label Caution, Stay Reserve Tank, Bolt Flange
Alternator-Stay Dynamo, Pulley Fan Drive, Key Feather, Assy Alternator, Cover Fan Belt, Bolt, Nut, Washer Plain
Alternator [Component Parts]-Assy Alternator, Pulley Alternator, Rotor, Cover Bearing, Bearing Ball, Frame Drive End, Plate Retainer, Frame End
Starter-Assy Starter, Stud, Nut, Bolt, Washer Spring
Starter [Component Parts]-Assy Starter, Yoke, Armature, Bearing, Assy Clutch, Roller, Retainer, Gear
Battery-Label Battery, Cap Battery, Cord Battery, Cord Earth, Washer Plain, Retainer Battery, Bolt Hook
Switch-Timer Key Stop, Controller, Relay Glow, Switch Lever, Relay Starter, Hazard Unit, Switch Main, Assykey Main Switch
Panel Board-Assy Panel, Cable Elexible, O Ring, Plate Panel, Screw Tapping, Seal Panel, Bolt Set, Screw
Panel Board [Component Parts]-Assy Panel, Hood Panel, Assy Tachometer, Assy Meter Fuel, Assy Thermometer, Case, Glass, Assy Plate
Light [Old Type]-Assy Light Head, Socket Head Light, Bulb Head Light, Bolt Flange, Assy Light Hazard, Lens Hazard Light, Screw Tapping, Light Tail
Light [New Type]-Assy Light Head, Socket Head Light, Bulb Head Light, Assy Light Hazard, Lens Hazard Light, Assy Light Combi.rh, Assy Light Combi.lh, Holder
Electrical Wiring [Old Type]-Wire Harness, Assy Box Fuse, Cover Fuse Box, Fuse, Screw with Washer, Clamp Cord, Band Cord
Electrical Wiring [New Type]-Assy Wire Harness, Wire Harness, Assy Box Fuse, Cover Fuse Box, Assy Case Fuse, Fuse, Screw with Washer, Clamp Cord
Clutch-Comp.disk Clutch, Assy Plate Pressure, Bolt Reamer, Washer Spring, Lever Clutch, Case Propeller Shaft, Pin Straight, Holder Clutch
Clutch Pedal-Bush, Seal Oil, Spring, Bolt, Nut, Cover Pedal, Rod Clutch
Clutch Housing-Bush, Plug Drain, Washer with Rubber, Plug, Pin Straight, Stud, Bolt
Mid Case-Gasket, Pin Straight, Stud, Washer Spring, Nut, Holder Bearing, Bolt

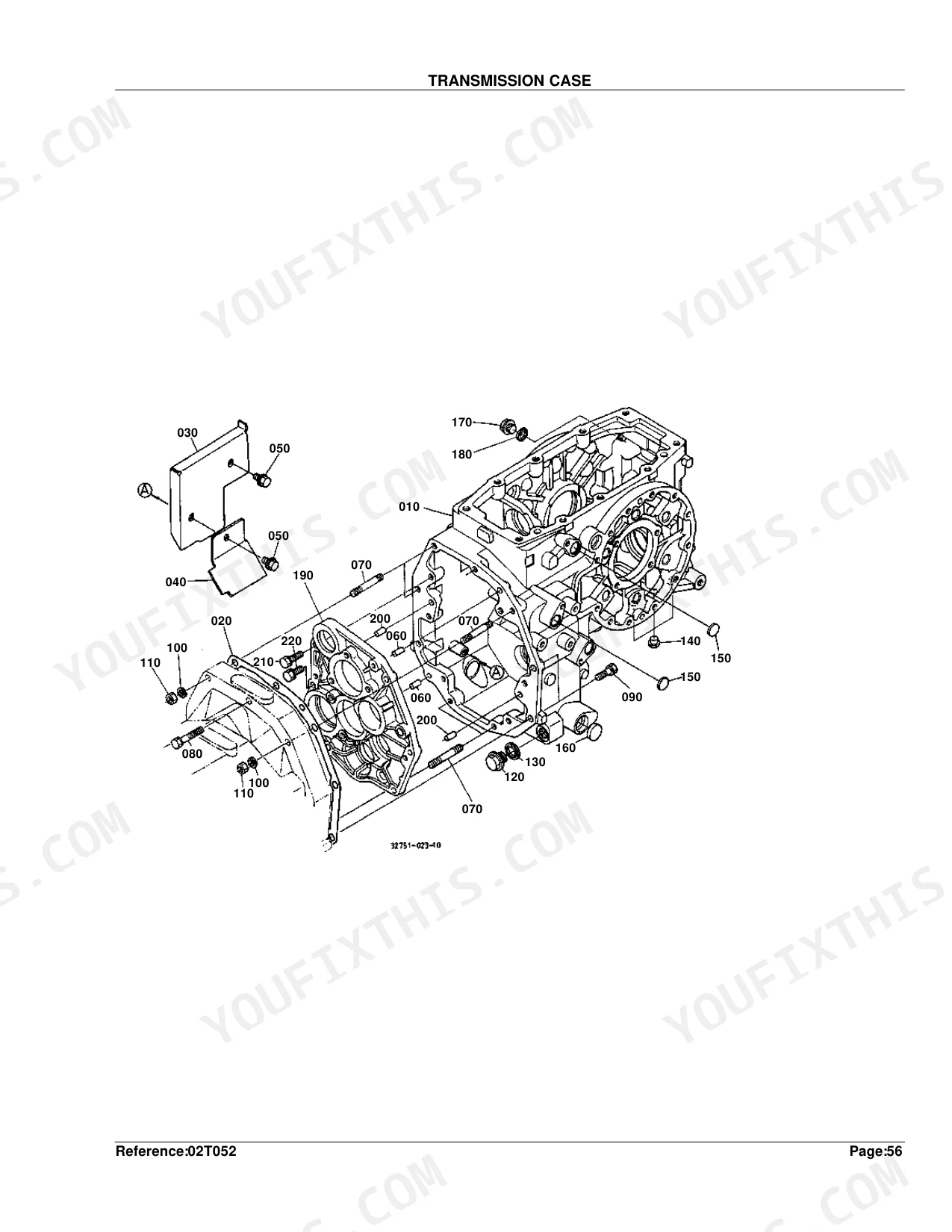

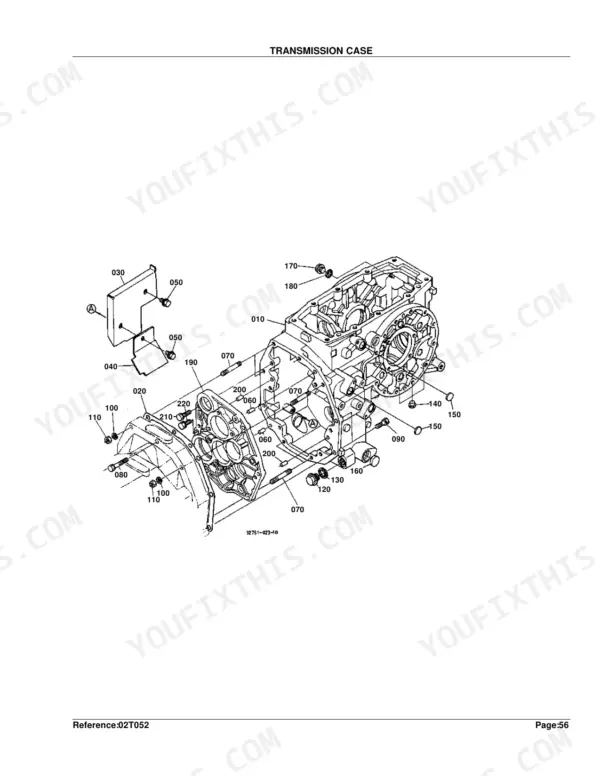

Transmission Case-Plate Oil, Bolt Flange, Pin Straight, Stud, Washer Spring, Plug Drain, Holder Bearing
Main Shaft-Gear-Shaft, Bearing Ball, Washer, Circlip External, Seal Oil, Stopper, Bolt
Countershaft-Bearing Ball, Cir Clip Internal, Gear, Bearing Needle, Coupling, Shifter, Ring Synchronizer
Hydraulic Clutch-Assy Clutch, Case Clutch, Bearing Needle, Ring Seal, Piston, O Ring, Spring, Plate Retainer
Shuttle Shaft-Circlip External, Collar Thrust, Bearing Ball, Gear, Bearing Needle, Coupling, Shifter
Range Gear Shaft-Shaft Range Gear, Coupling, Circlip External, Washer, Bearing Ball, Collar Thrust, Cir-Clip, Gear
PTO Countershaft and One Way Clutch-PTO Countershaft, One Way Clutch, Bearing Ball, Gear, Circlip External, Washer Clutch, Collar, Cam Clutch
PTO Shaft-Collar Thrust, Gear, Bearing Needle, Collar, Shaft PTO Drive, Cir-Crip External, Bearing Ball, Stopper
Main Gear Shift Lever-Guide Shift, Bolt Flange, Assy Cable Shift, Gasket, Pin Straight, Washer Plain, Collar, Nut
Gst Shift Cover [Option]-Assy Cover Gst, Guide Roller, Support Roller
Main Gear Shift Fork-Fork Main Shift, Rod Fork, Pin Spring, Shifter, Pin Shift, Bolt Fork Lock, Washer Spring, Ball
Shuttle Gear Shift Lever-Grommet, Lever Shuttle, Grip Lever, Nut, Bolt Reamer, Spring, Collar Shuttle
Shuttle Gear Shift Fork-Fork Shuttle Shift, Bolt Reamer, Washer, Rod Fork, Spring, Ball, Pin Snap, Arm Shuttle Shift
Range Gear Shift Fork-Fork Range Shift, Rod Fork, Pin Spring, Shifter, Pin Shift, Bolt Fork Lock, Washer Spring
PTO Gear Shift Lever-Plate, Stud, Nut, Washer Spring, O Ring, Joint, Arm F.wheel Drive
PTO Gear Shift Fork-Rod PTO Fork, Fork PTO Shift, Pin Spring, Spring, Ball, Shifter PTO, Collar
Spiral Bevel Pinion-Gear 4WD, Circlip External, Gear, Coupling, Collar, Collar Thrust, Bolt, Gear-Shaft
Rear Differential-Assy Differential, Case Differential, Cover Diff. Case, Shaft Diff. Pinion, Pinion Diff., Gear Diff. Side, Shifter Diff. Lock, Bearing Taper-Roller
Defferential Lock Shift Fork-Fork Diff.Lock Shift, Pin Joint, Shaft Fork, Seal Oil, Pin Spring, Rod Diff.Lock, Washer Plain, Spring
Rear Axle-Shaft Diff.gear RH, Shaft Diff.gear LH, Bearing Ball, Cir Clip Internal, Circlip External, Axle Rear, Spacer, Seal Oil
Rear Wheel (15-19.5)-Assy Rear Wheel, Assy Tire Rear RH, Tire, Wheel, Label Tire RH, Assy Tire Rear LH, Label Tire LH, Bolt
Brake-Case Brake LH, Case Brake RH, Pin Straight, Stud, Bolt, Washer Spring, Nut, Plug
Brake Pedal-Shaft Pedal, Circlip External, Support Pedal Shaft, Assy Pedal Brake RH, Seal Oil, Bearing Needle, Pedal Brake LH
Brake Rod-Rod Brake RH, Rod Brake LH, Pin Joint, Washer Plain, Pin Split, Assy Lever Brake LH, Bush, Assy Lever Brake RH

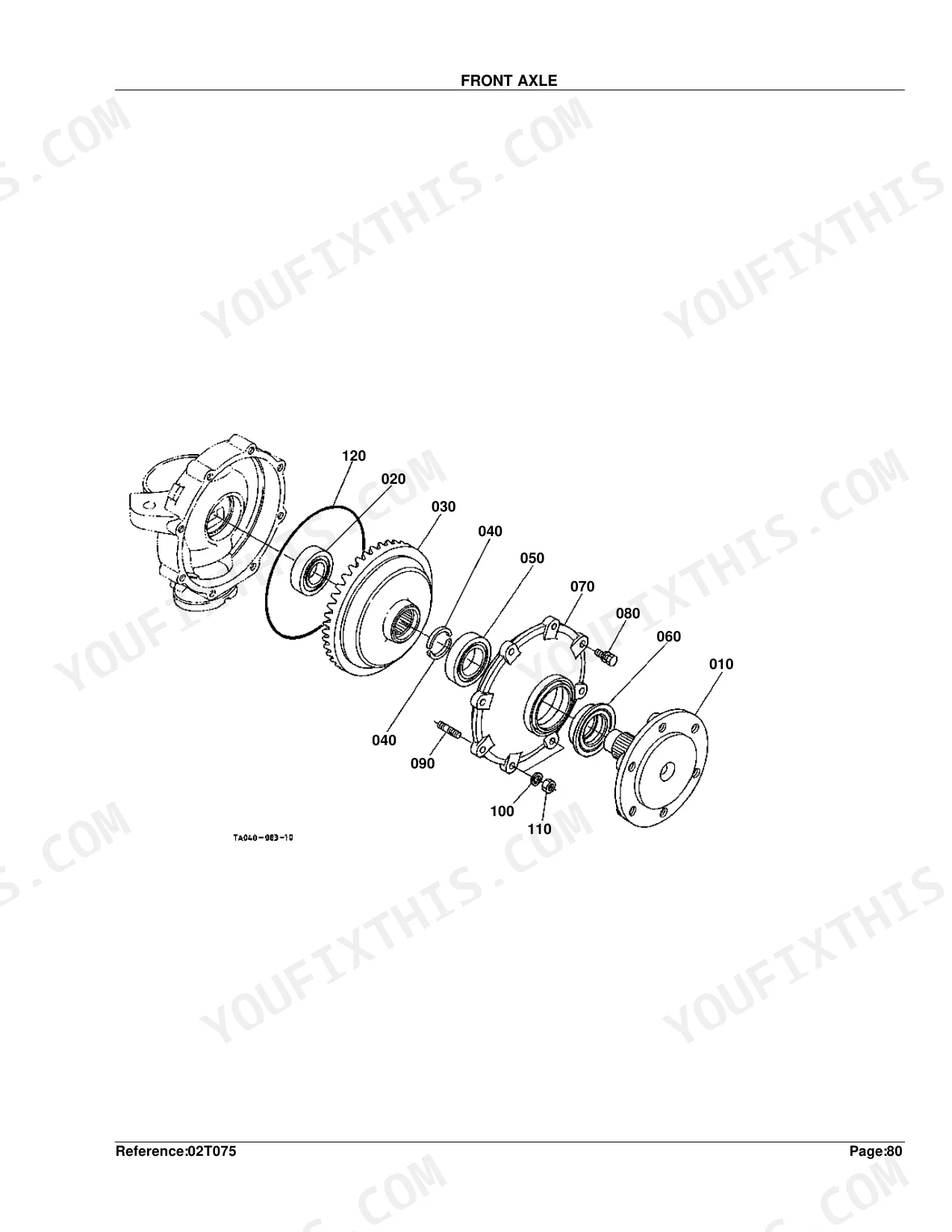

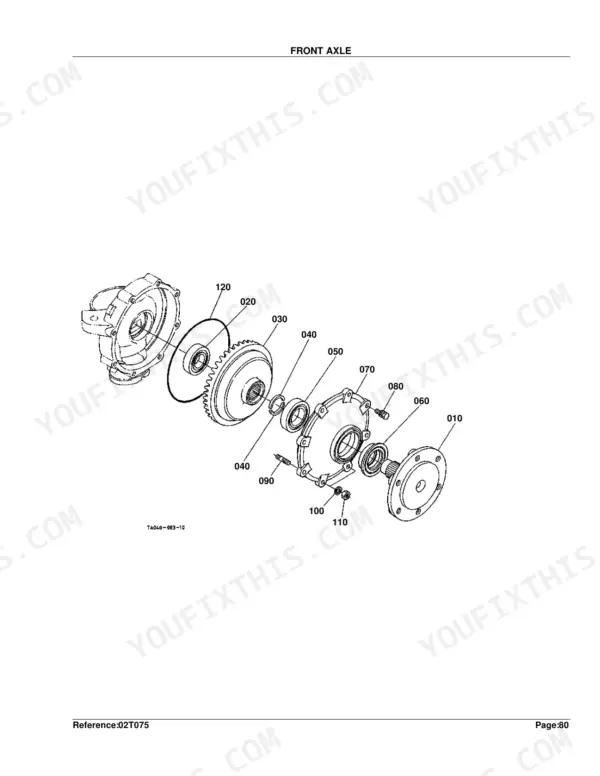

Front Axle-Axle Front, Bearing Ball, Gear Bevel, Collar, Seal Oil, Cover Front Axle, Bolt, Stud
Front Axle Case-Shaft Bevel Gear, Case Front Gear RH, Case Front Gear LH, Plug, Washer with Rubber, Seal Oil, Bearing Ball
Differential Gear Shaft-Shaft Yoke LH, Shaft Yoke RH, Case Bevel Gear, Pin Straight, Washer Spring, O Ring, Gear Bevel
Front Differential Case-Assy Holder Front, Pipe Breather, Collar Thrust, Washer Spring, Nipple Grease
Front Differential-Assy Gear Bevel, Bearing Taper-Roller, Collar, Nut, Seal Oil, Cir Clip Internal, Case Diff., Pin Straight
Propeller Shaft-Shaft Propeller, Cover Shaft Front, Cover Shaft Rear, Coupling, Pin Spring, Bearing Ball, Collar
Front Wheel Drive Shaft-Shaft 4WD Shift Gear, Bearing Ball, Collar, Spring, Ball, Gear 4WD Shift, Shaft Drive, Gear 4WD
Front Wheel Drive Lever-Lever 4WD Shift, O Ring, Stopper, Bolt Flange, Lever 4WD Change, Pin Spring, Grip Lever, Nut
Front Wheel (27X10.5-15)-Assy Front Wheel, Assy Tire Rear RH, Tire, Wheel, Label Tire RH, Assy Tire Front LH, Label Tire LH, Nut
Front Axle Frame-Comp.frame F-Axle, Bolt, Washer Spring, Plug, Support Battery, Sponge, Stud, Nut
Steering Linkage-Rod Tie, End Tie Rod, Pin Split, Clip, Cover Dust, Rod Adjusting
Steering Cylinder-Assy Lever Steering, Lever Steering, Bush, Nipple Grease, Pin Strg.lever, Plate Rod End, Bolt, Comp.cylinder Hyd.
Steering Cylinder [Component Parts]-Comp.cylinder Hyd., Comp.tube Cylinder, Assy Rod, Bush, Assy Cylinder Head, O Ring, Assy Piston, Nut
Steering Controller-Seal Oil, Plug, O Ring, Comp.valve Relief, Adapter Cylinder, Adapter, Joint
Steering Handle-Cover Steering Post, Assy Post Steering, Shaft Joint, Lever Tilt, Holder Tilt Lever, Assy Wheel Steering, Pad Steering
Hydraulic Oil Line (Ps)-Hose Delivery, Assy Hose Power Strg, Adapter Cylinder, Assy Hose Return, Comp.pipe Oil Cooler, Assy Cooler Oil, Pipe Oil Cooler, Hose Regulator Valve
Gst Valve-Assy Valve Gst, Pipe Hydraulic, Bolt, Pin Straight, Assy Cover Valve, Assy Seal Rotary Va.
Gst Valve [Gst Type] [Component Parts]-Assy Valve Gst, Cover Valve, O Ring, Seal Oil, Gasket, Bolt, Bearing Ball, Collar Thrust
Regulator Valve-Joint, Gasket, Bolt, O Ring, Plate, Comp.pipe Gst, Bolt Joint

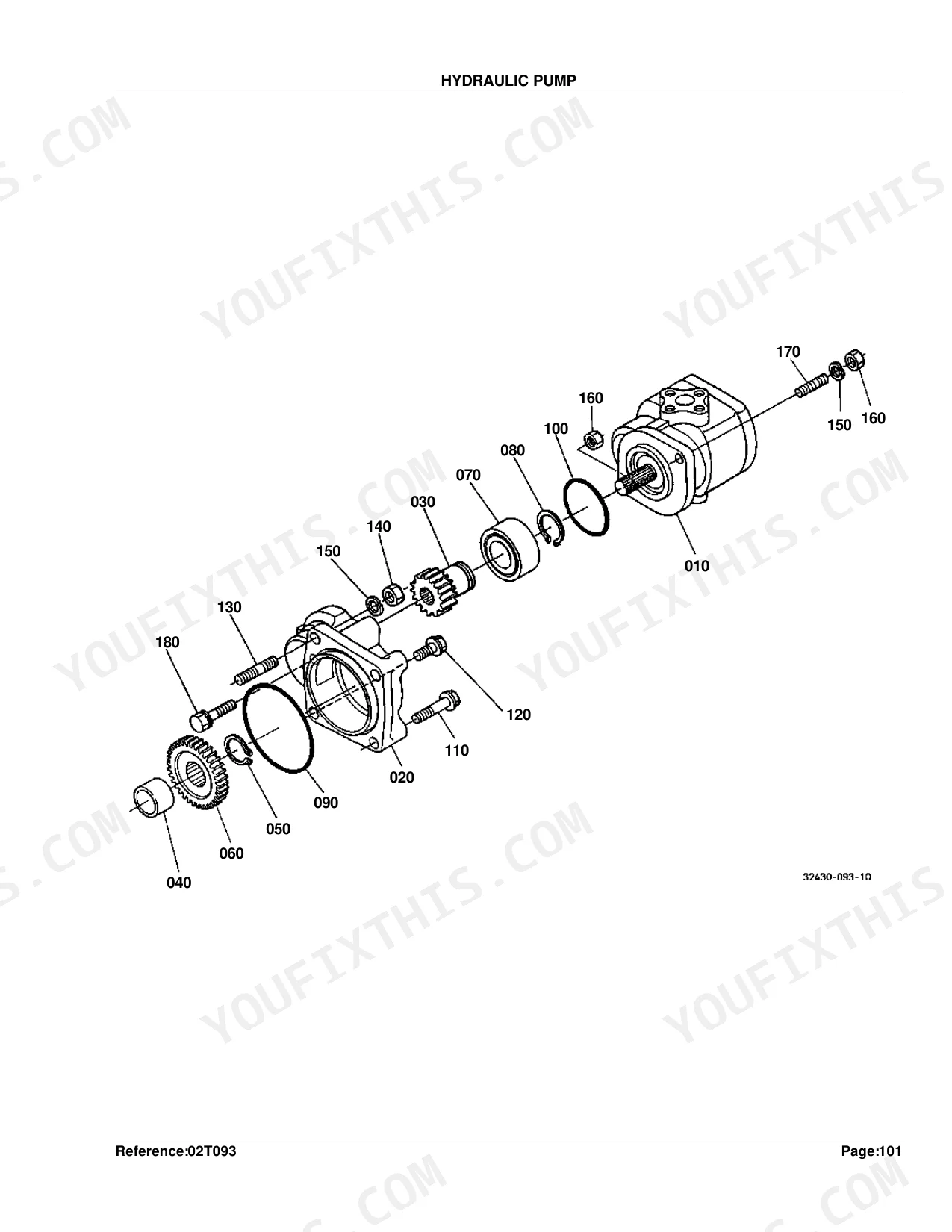

Hydraulic Pump-Holder Pump, Gear, Collar, Circlip External, Bearing Ball, O Ring, Bolt Flange
Hydraulic Pump [Component Parts]-Hydraulic Pump, Comp.gear Hyd.pump, Assy Pump Hydraulic, Square Ring, Seal Oil, Bolt Flange, Cir Clip Internal, O Ring
Hydraulic Oil Line (Inlet)-Bracket Filter, Cushion, Spacer, Washer Plain, Bolt, Filter Oil, Comp.pipe Inlet, O Ring
Hydraulic Oil Line (Delivery)-Comp.pipe Delivery, O Ring, Bolt, Holder, Tube, Washer Plain, Joint Pipe, Stud
Hydraulic Cylinder-Assy Case Hyd.cylind, Case Hyd.cylinder, Plug, Breather, O Ring, Bolt Stud, Stud
Lift Arm-Piston Hyd, Ring Back Up, Rod Hyd, Shaft Hyd.arm, Arm Hydraulic, Bush, Collar, Arm Lift
Control Valve-Assy Valve, Cover Cyl.front, O Ring, Collar Adjusting, Cir Clip Internal, Shaft, Pipe, Pin Spring
Control Valve [Component Parts]-Assy Valve Control, Spring Spool, Plug, Poppet, Spring, O Ring, Plate, Plate Joint
Position Control Lever-Lever Position, Pin Spring, Bolt Flange, Grip Lever, Guide Hyd.lever, Stopper, Bolt Knob, Washer Spring
Feed Back Lever-Lever Spool Drive, Arm Control, Set Plate, Shaft Back Lever, Lever Feed Back, Rod Feedback, Rod Control, Joint Spool
Directional Valve Lever-Plate, Bolt, Pin Spring, Spool Hyd.change, O Ring, Ring Back Up, Lever
3-Point Linkage 1 (Lower Link)-Assy Link Top, Link Top, Nipple Grease, Joint Top Link, Nut Top Link, Pin Spring, Pin Joint, Pin Set
3-Point Linkage 2 (Lift Rod)-Assy Rod Lift RH, Rod Lift Lower, Rod Lift Upper, Pin Spring, Nut, Turnbuckle, Nipple Grease, Rod Lift LH
Top Link Holder and PTO Protector-Top Link Holder, PTO Protector, Holder Lower Link, Stud, Bolt, Washer Spring, Nut, Bracket
Front Grille-Hood Front Grille, Cushion, Cushion Bonnet, Bolt Flange, Support Front Grille, Grille Front, Sponge
Hood (Bonnet) and Side Cover-Hood (Bonnet), Side Cover, Comp.bonnet, Cushion, Bolt Flange, Nut Flange, Cap Pre Cleaner, Cover Radiator
Shutter Plate-Support Bonnet Rear, Spacer, Bolt Ubs, Bolt Flange, Kit Fuel Tank, Plate Shutter, Washer Plain, Cushion
Panel Frame-Bonnet, Nut Spring, Bolt Flange, Cover, Assy Frame Panel, Bearing Needle, Seal Oil, Bracket Panel Cover
Fender-Fender RH, Fender LH, Bolt Flange, Nut Flange, Cap Rubber, Plate Fender LH, Plate Fender RH, Nut
Floor Seat-Cover Floor Seat, Bolt Flange, Support Floor Seat, Bolt, Cushion, Washer, Washer Spring
Seat-Base Reversibl Seat, Bolt Flange, Pin Joint, Pin Snap, Bracket Seat RH, Bracket Seat LH, Stay, Bracket Smv
Reversible Seat Base [Component Parts]-Reversible Seat Base, Lever Clamp, Link Suspension, Comp.base Seat, Rod Release, Assy Adjuster Seat, Stay Seat Belt
Step-Main Frame
ROPS and Fops-ROPS Kit, Comp.frame LH, Reflector Label, Kit Frame RH, Comp.frame RH, Label ROPS Warning, Bolt, Washer Spring
Label 1-Label Start Caution, Label Key Stop, Label Fan Warning, Label Fan Belt, Label Muffler, Label Fuel, Label Shuttle, Mark Kubota
Label 2-Label ROPS Warning, Label Drawbar, Label Safety, Label PTO Warning, Label Shuttle, Mark Shift, Mark 4WD, Label Speed Set
Accessories and Service Parts-Operator's Manual, Manual Assembly, Assy Key Main Switch, Bracket Seat RH, Bracket Seat LH, Spring Plate, Bracket

Quick Reference Specifications

SpecificationValuePage
SHIM1.0mmp. 199
CRANKCASE Weight48.5 kgfp. 7
OIL PAN Weight2.8 kgfp. 10
PISTON Weight0.58 kgfp. 13
CYLINDER HEAD Weight15.02 kgfp. 24
NOZZLE HOLDER WASHER ADJUSTING Thickness0.900mmp. 34
MUFFLER Weight6.8 kgfp. 47
WATER PUMP Weight1 kgfp. 55
INJECTION PUMP SHIM INJECTION Thickness0.20mmp. 62
FUEL TANK Weight9.9 kgfp. 87
RADIATOR Weight5.2 kgfp. 98
BATTERY CORD Weight0.485 kgfp. 111

Kubota L35 Common Problems This Manual Covers

Cold-start system fails and the glow plugs stay on continuously. p. 30

Check the diagram on page 30 to pin down the right glow plug module for your serial number. The nozzle holder washer calls for 0.900mm thickness, listed on page 34. Confirm both part numbers before you order replacements.

Manual Section: Nozzle Holder and Glow Plug
Front wheels lock up entirely after longer drives at normal operating temperatures. p. 197

Pull up the front axle case exploded view on page 197 to locate the internal gearing. Match your front differential shim parts against the 1.0mm spec on page 199, then cross-reference the serial number range so the gears fit.

Manual Section: Front Axle Case
Drivetrain binds up and the tractor needs a complete split to reach the slipping clutch. p. 135

Walk through the clutch housing diagram on page 135 to identify every internal linkage and bearing part number. Have proper lifting gear ready for the 34 kgf bare housing weight noted on page 137. Order the full gasket kits before you start reassembly.

Manual Section: Clutch Housing
Floor panels rot through and the rear backhoe fenders show heavy rust-through. p. 295

Locate the floor and bracket replacements in the diagrams on page 295. The fuel tank part numbers are on page 85; factor in the 9.9 kgf bare tank weight from page 87 when you order new mounting hardware.

Manual Section: Floor Seat

Frequently Asked Questions

What are the replacement specifications for glow plug module?

This parts catalog lists the glow plug components individually. For the "PLUG GLOW", order Part No. 19077-65510, which weighs 0.03 kgf (0.066 lb). The "CORD GLOW PLUG" depends on serial number: use 16415-65560 for S.No. <=4E1597, or 1G742-65560 for S.No. >=4G0001. Either cord weighs 0.015 kgf (0.033 lb).

Does this Kubota L35 manual help if the front wheels lock up after driving?

Yes. The Front Axle Case section covers the internal gearing you need to inspect when the front wheels lock up after longer drives at operating temperature, with the exploded view on page 197. It lists the front differential shim against the 1.0mm spec on page 199, and you cross-reference your serial number range so the replacement gears fit.

What does this manual cover for a clutch replacement that requires splitting the tractor?

The Clutch Housing section walks through the housing diagram on page 135 so you can identify every internal linkage and bearing part number before splitting the tractor to reach a slipping clutch. It notes the 34 kgf bare housing weight on page 137, so you can have proper lifting gear ready, and it points you to order the full gasket kits before reassembly.

Can I find the parts to fix rusted-through floor panels and rear fenders on the L35?

Yes. The Floor Seat section shows the floor and bracket replacement parts in the diagrams on page 295, which is where you look when floor panels rot through or the rear backhoe fenders rust out. Related fuel tank part numbers are on page 85 if you also need mounting hardware in that area.

What injection pump and nozzle adjustment thicknesses are listed in this manual?

The Injection Pump section lists the injection pump shim at 0.20mm thickness (page 62). For the nozzle holder, the adjusting washer is specified at 0.900mm thickness (page 34). Confirm these values against your machine before ordering replacement shims or washers.

Is this Kubota L35 Parts Manual a digital download?

Yes. It's a 317-page Parts Manual in searchable PDF, ready the moment checkout completes. Open it on a computer, tablet, or phone, with no shipping wait.

Are there any print restrictions on this Kubota L35 manual?

Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.

BrandKubota
ModelL35
Machine TypeTractor
Manual TypeParts Manual
LanguageEnglish
FormatSearchable PDF (Digital Download)
Pages317
File Size3.7 MB
Wiring DiagramsNo
Hydraulic SchematicsNo
Torque SpecificationsNo
Bookmarked / IndexedYes

Reviews

There are no reviews yet.

Be the first to review “Kubota L35 Parts Manual”

Your email address will not be published. Required fields are marked *
