This is the Kubota Operator Manual for the L35 tractor, a 65-page guide built around the D1703 diesel engine. It is the factory owner reference that walks you through safe operation, controls, daily checks, and the routine service that keeps the L35 running.Inside you get the full specification table, traveling speeds, implement limitations, engine starting and stopping procedures, three-point hitch and PTO operation, and the periodic service schedule from every 50 hours out to every 800 hours.With this PDF you can look up fluid capacities, torque a wheel bolt, set clutch and brake pedal free travel, follow the maintenance intervals, and work through the engine troubleshooting chart when the tractor is hard to start or loses power. Formatted for easy reading and printing so you can keep a copy in the shop.
What's Inside This Kubota L35 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Universal Symbols | - | Safety Alert Symbol, Diesel Fuel, Remote Cylinder-Retract, Engine Speed Control |
| Safe Operation | - | Before Operating the Tractor, Driving the Tractor on the Road, Parking the Tractor, Operating the PTO, Using 3-Point Hitch, Servicing the Tractor, Danger |
| Servicing of Tractor | - | Tractor Identification Plate, Tractor Serial Number, Engine Serial Number, Date of Purchase |

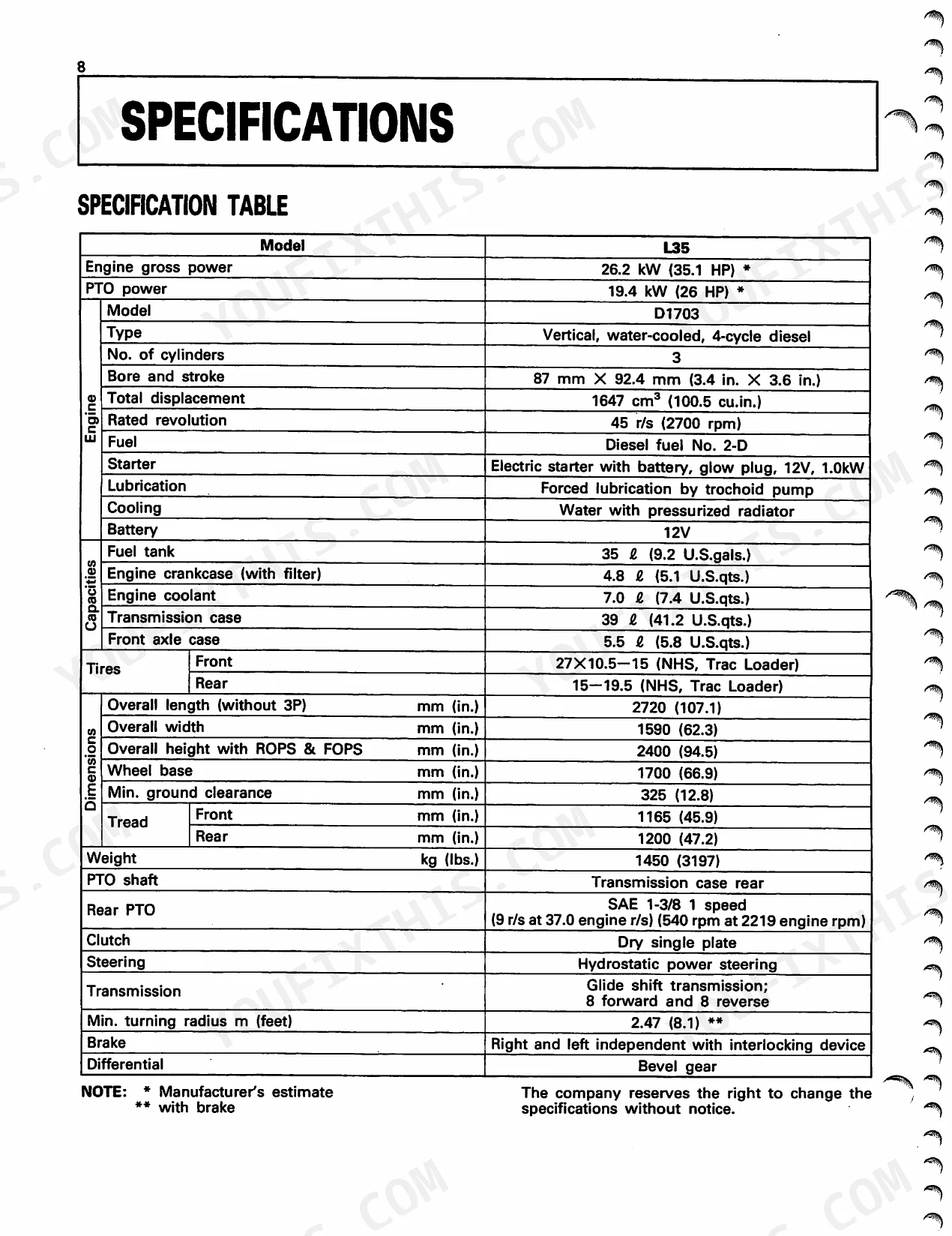

| Specifications | - | Specification Table (Engine, Capacities, Dimensions, Tires, Weight, PTO Shaft, Clutch, Steering, Transmission, Brake, Differential) |
| Traveling Speeds | - | At Rated Engine RPM, Model L35, Tire Size Rear 15-19.5, Shuttle Shift Lever Speeds, Main Gear Shift Lever Speeds |
| Implement Limitations | - | Tread, Actual Figures (Lower Link End Max Loading Weight, Implement Weight, Trailer Loading Weight) |

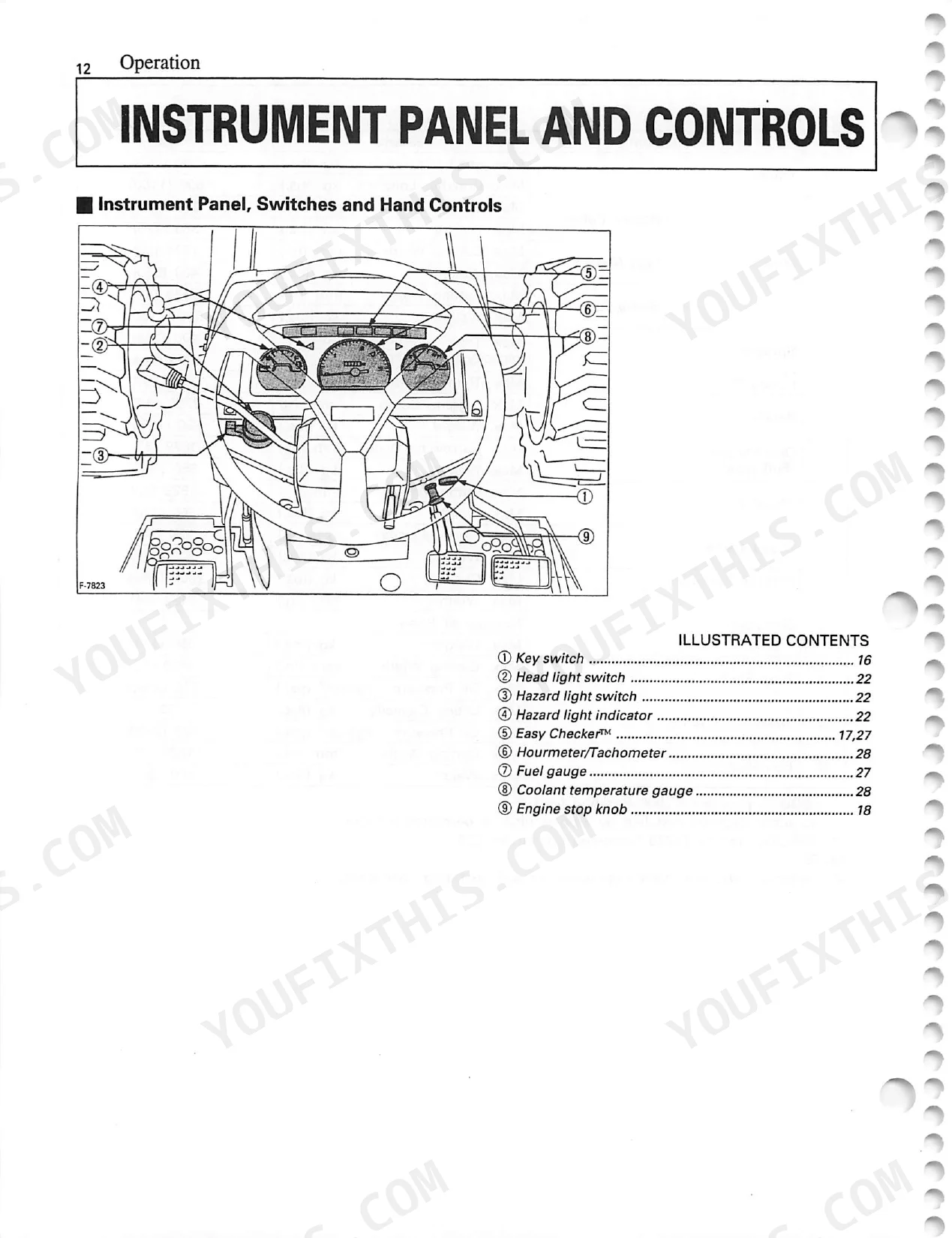

| Instrument Panel and Controls | - | Instrument Panel |
| Pre-Operation Check | - | Daily Check (Walk Around Inspection, Check Engine Oil Level, Check Transmission Oil Level, Check Coolant Level, Clean Grill and Radiator Screen, Check Air Cleaner Evacuator Valve, Check Brake and Clutch Pedal, Check Indicators, Gauges and Meter, Check Lights, Check Seat Belt, ROPS & FOPS, Refuel, Care of Danger, Warning and Caution Labels) |
| Operating the Engine | - | Starting the Engine, Cold Weather Starting, Stopping the Engine, Jump Starting |
| Operating the Tractor | - | Operating New Tractor, Checking the Brake Pedal, Selecting the Travel Speed, Accelerate the Engine, Stopping, Parking, Reversing the Seat |
| PTO | - | PTO Operation (PTO Gear Shift Lever), PTO Shaft Cover and Shaft Cap |
| Three-Point Hitch & Drawbar | - | Top Link, Lifting Rod, Check Chains |
| Hydraulic Unit | - | 3-Point Hitch Control System (Position Control, 3-Point Hitch Lowering Speed, Directional Valve) |
| Tires, Wheels and Ballast | - | Tires (Inflation Pressure, Treads), Ballast (Front Ballast, Rear Ballast, Liquid Ballast in Rear Tires), Every 50 Hours |

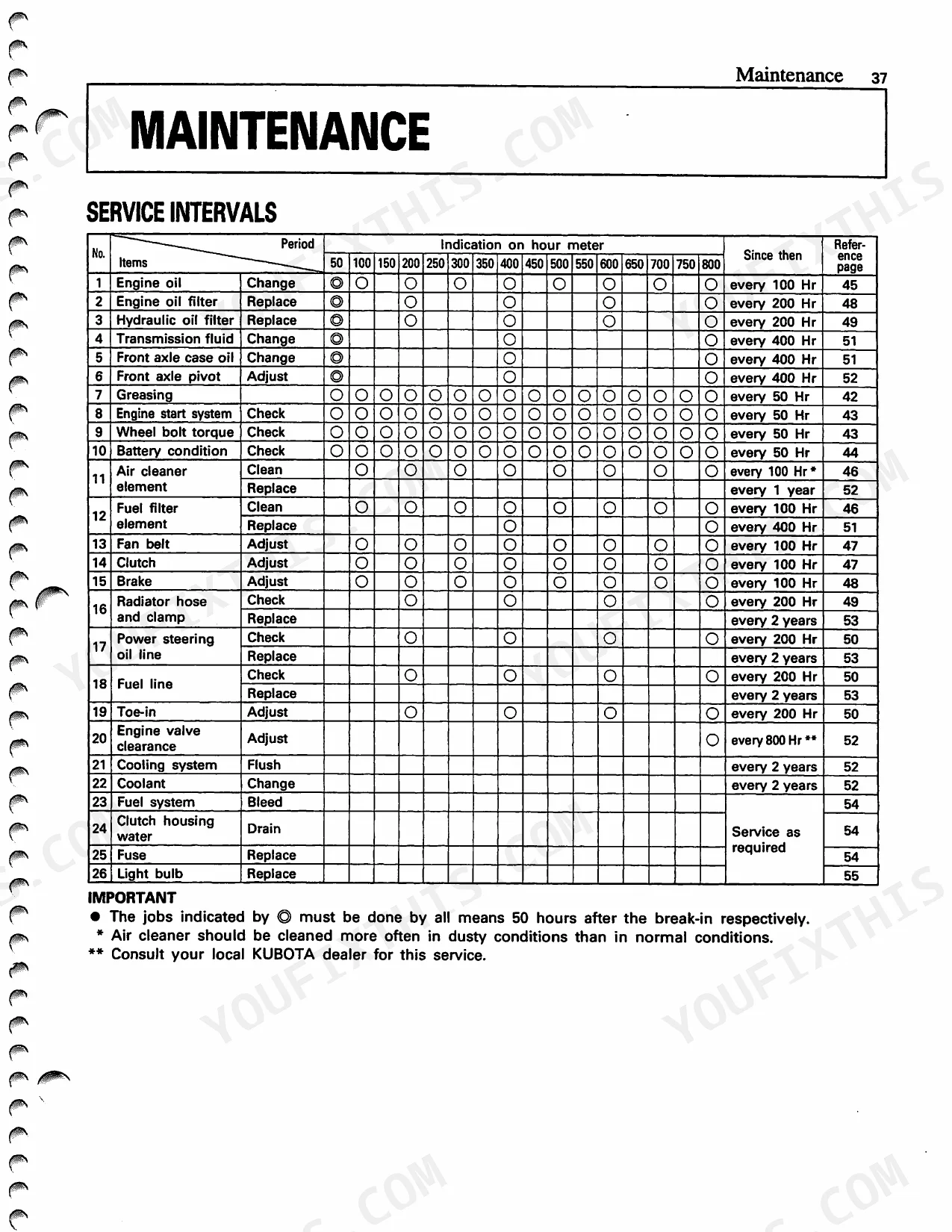

| Maintenance | - | Service Intervals (Engine Oil, Engine Oil Filter, Hydraulic Oil Filter, Transmission Fluid, Front Axle Case Oil, Front Axle Pivot, Greasing, Engine Start System, Wheel Bolt Torque, Battery Condition, Air Cleaner Element, Fuel Filter Element, Fan Belt, Clutch, Brake, Radiator Hose and Clamp, Power Steering Oil Line, Fuel Line, Toe-In, Engine Valve Clearance, Cooling System, Coolant, Fuel System Bleed, Clutch Housing Water, Fuse, Light Bulb) |
| Periodic Service | - | How to Open the Hood, Every 50 Hours, Every 100 Hours, Every 200 Hours, Every 400 Hours, Every 800 Hours, Service As Required |
| Storage | - | Tractor Storage (Check Bolts and Nuts, Apply Grease to Tractor Areas, Detach Weights From Tractor Body, Inflate Tires, Change Engine Oil, Pull Engine Stop Knob, Keep Clutch Disengaged, Coat Exposed Hydraulic Cylinder Piston Rods, Remove the Battery, Keep the Tractor in a Dry Place, Store the Tractor Indoors) |
| Troubleshooting | - | Engine Troubleshooting (Engine Is Difficult to Start or Won't Start, Insufficient Engine Power, Engine Stops Suddenly, Exhaust Fumes Are Colored, Engine Overheats) |
| Options | - | Engine Precleaner, Engine Block Heater, Vertical Muffler, Spark Arrestor, Smv Emblem, Work Light, Rear Work Light, Back Up Alarm |
| Kubota Corporation Is | - | - |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Clutch pedal free travel | 20 to 30 mm (0.8 to 1.2 in.) | p. 27 |
| Transmission fluid capacity | 39 l (41.2 U.S.qts.) | p. 56 |
| Engine Crankcase Oil Capacity (with filter) | 4.8 l (5.1 U.S.qts.) | p. 13 |
| Engine Coolant Capacity | 7.0 l (7.4 U.S.qts.) | p. 13 |
| Fuel Tank Capacity | 35 l (9.2 U.S.gals.) | p. 13 |
| Transmission Case Oil Capacity | 39 l (41.2 U.S.qts.) | p. 13 |
| Front Axle Case Oil Capacity | 5.5 l (5.8 U.S.qts.) | p. 13 |
| Front Wheel Bolt Torque | 215 N•m (160 ft-lbs) | p. 48 |
| Rear Wheel Bolt Torque | 137 N•m (100 ft-lbs) | p. 48 |
| Brake Pedal Free Travel | 15 to 20 mm (0.6 to 0.8 in.) | p. 48 |
| Fan Belt Tension Deflection | 7 to 9 mm (0.28 to 0.34 in.) | p. 47 |
| Rear PTO Speed | 540 rpm | p. 13 |
Kubota L35 Common Problems This Manual Covers
Engine is hard to start or will not start
A no-start or hard-start condition on the L35 can come from fuel contamination, an air or fuel restriction, or a weak battery after storage. The Troubleshooting section lists the likely causes and the checks to make.
Manual Section: Troubleshooting p. 62Insufficient engine power or overheating
Loss of power, colored exhaust, or overheating usually traces to airflow restriction, low coolant, or neglected maintenance. The Troubleshooting section covers these engine symptoms and where to look first.
Manual Section: Troubleshooting p. 62Difficult cold-weather starting
In cold weather the L35 diesel needs the correct starting sequence to fire reliably. The Operating the Engine section covers cold weather starting and the stopping and jump-start procedures.
Manual Section: Operating the Engine p. 20Clutch drag or gear engagement issues
Trouble getting into gear or a dragging clutch is often a clutch pedal free travel adjustment. The Maintenance section gives the free travel specification and the service items that keep the clutch and brake working.
Manual Section: Maintenance p. 42Overheating from a dirty radiator screen
Skipped daily checks let debris block the grill and radiator screen and drive temperatures up. The Pre-Operation Check section lists the walk-around inspection, coolant check, and screen cleaning that prevent it.
Manual Section: Pre-Operation Check p. 19Problems after seasonal storage
A tractor put away wet or unprepared can come out with corrosion, a flat battery, or fuel issues. The Storage section covers the steps to lay the L35 up correctly and bring it back into service.
Manual Section: Storage p. 61Frequently Asked Questions
Which tractor does this manual cover?
It is the operator manual for the Kubota L35 tractor, which uses the D1703 diesel engine. Publication number 32751-19712.
Is this a service manual or an operator manual?
This is the operator manual. It covers safe operation, controls, specifications, daily checks, periodic service intervals, and basic engine troubleshooting, rather than full component overhaul procedures.
Does it list fluid capacities and specs?
Yes. The Specifications section gives the specification table covering the engine, capacities, dimensions, tires, weight, PTO shaft, clutch, steering, transmission, brake, and differential. p. 13
Does it cover maintenance intervals?
Yes. The Maintenance section lists service intervals and specifications, and the Periodic Service section details the every-50 through every-800-hour tasks. p. 42
Is this Kubota L35 Operator Manual a digital download?
Yes. It's a 65-page Operator Manual in searchable PDF, available the moment checkout completes. Open it on a computer, tablet, or phone, with no shipping wait.
Are there any print restrictions on this manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
