Finding the exact OEM part number for a Kubota TL720(L35) loader requires serial-specific diagrams. This 31-page parts catalog PDF breaks down every assembly on the attachment, from the Frame and Boom through the Bucket, Control Lever, Link, and hydraulic circuit. Exploded-view diagrams cover all major assemblies, featuring component-level teardowns of the Boom and Bucket Cylinder internals, Control Valve assemblies with O-ring details, and the complete Hydraulic Tube layout. Cross-reference any component using the product index, which lists items by Kubota part number, description, and country code to confirm compatibility before ordering. Stop squinting at worn casting numbers and hoping the dealer picks the right seal kit. The file is fully bookmarked by assembly, letting you jump straight to the Boom, Bucket, or Hydraulic Tube on any device.
What's Inside This Kubota TL720(L35) Parts Manual
| System | Pages | Key Topics |
|---|---|---|

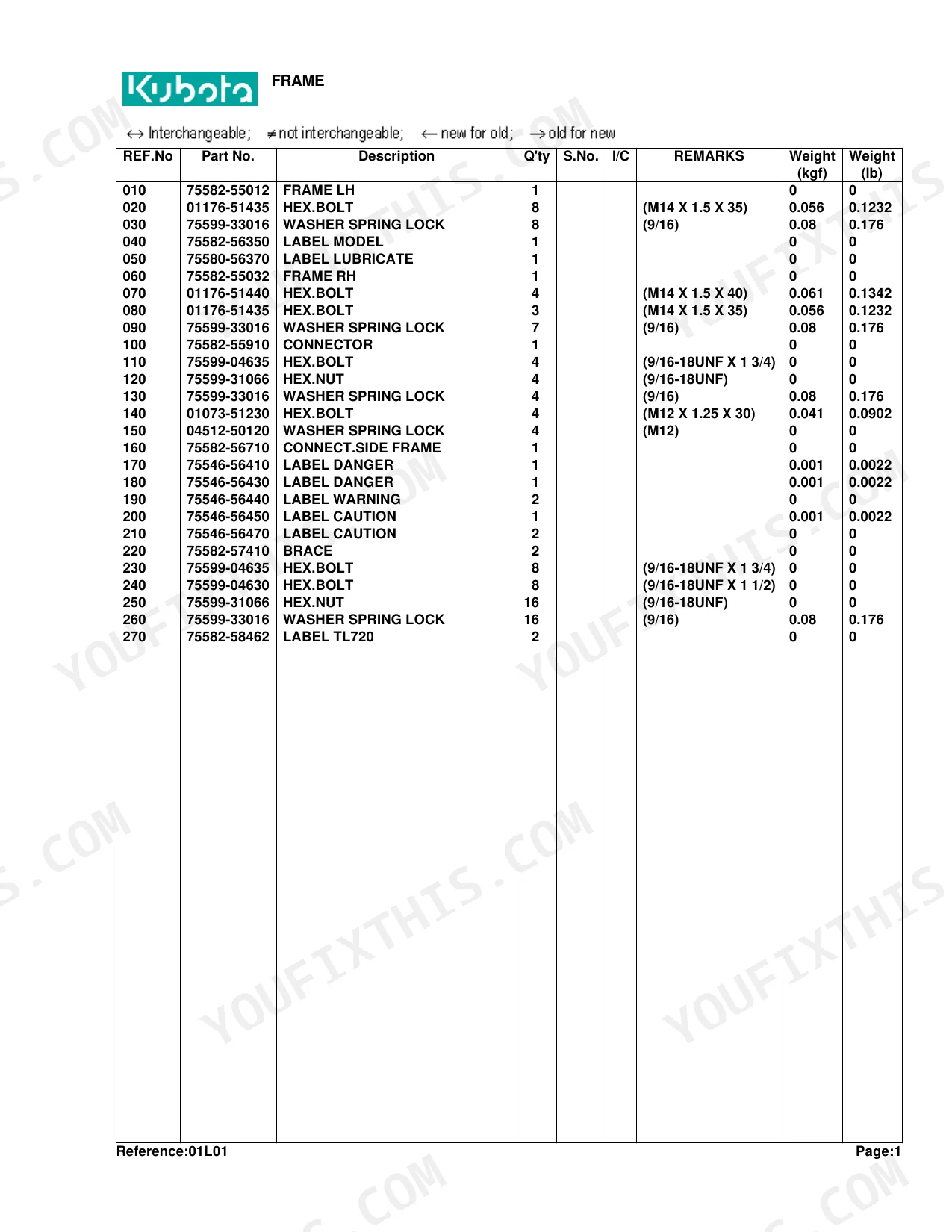

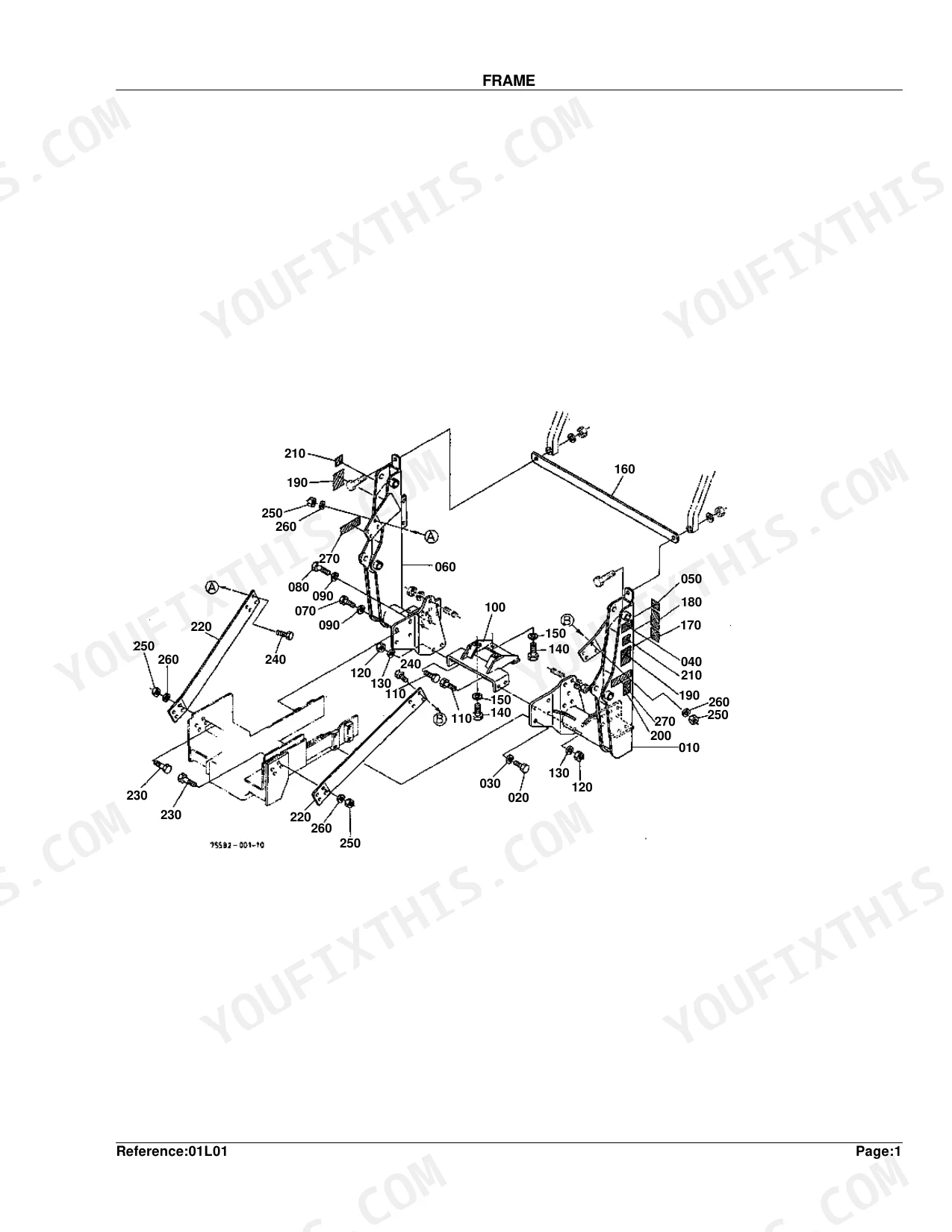

| Frame | 4-5 | Hex.Bolt, Washer Spring Lock |

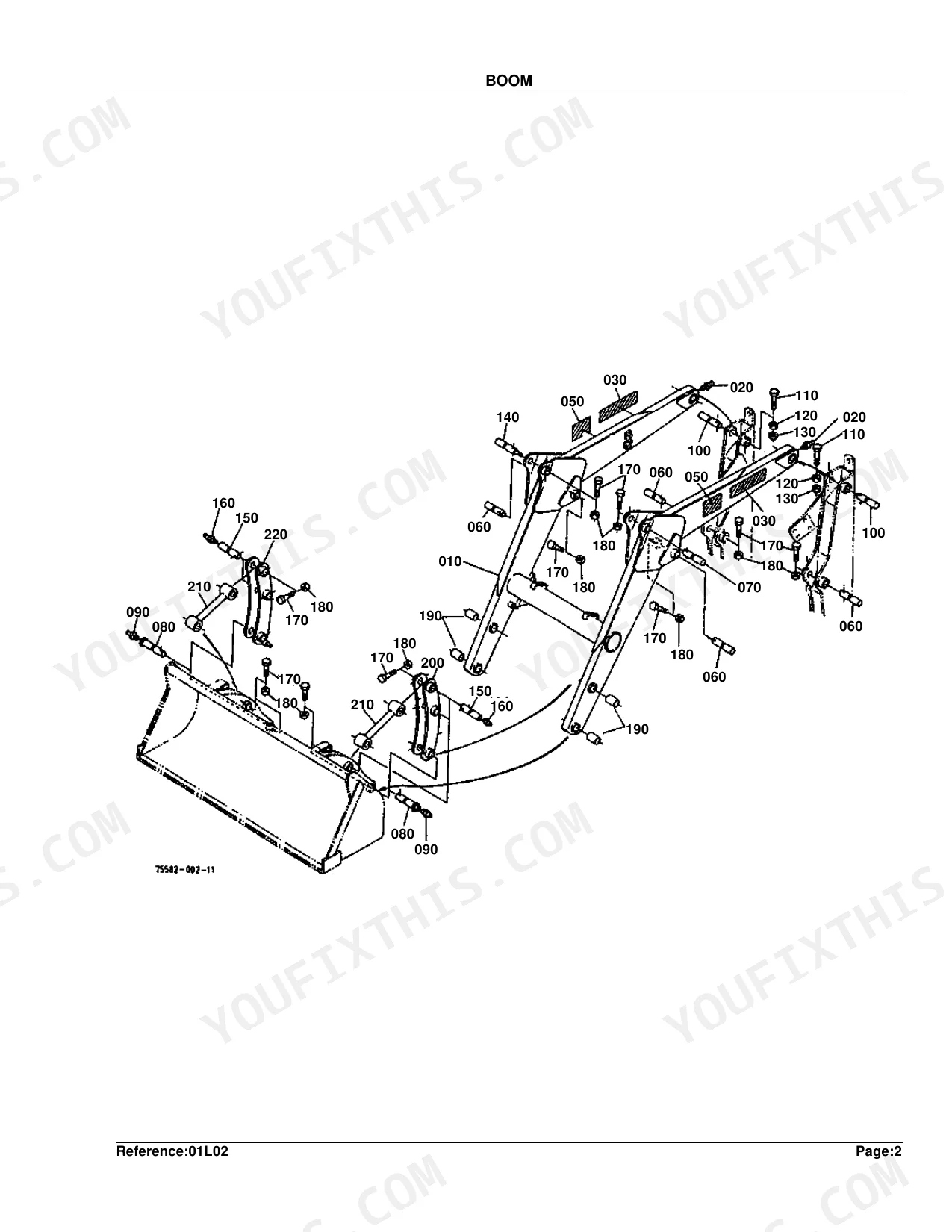

| Boom | 6-7 | Fitting Grease, Label Kubota, Label L35 |

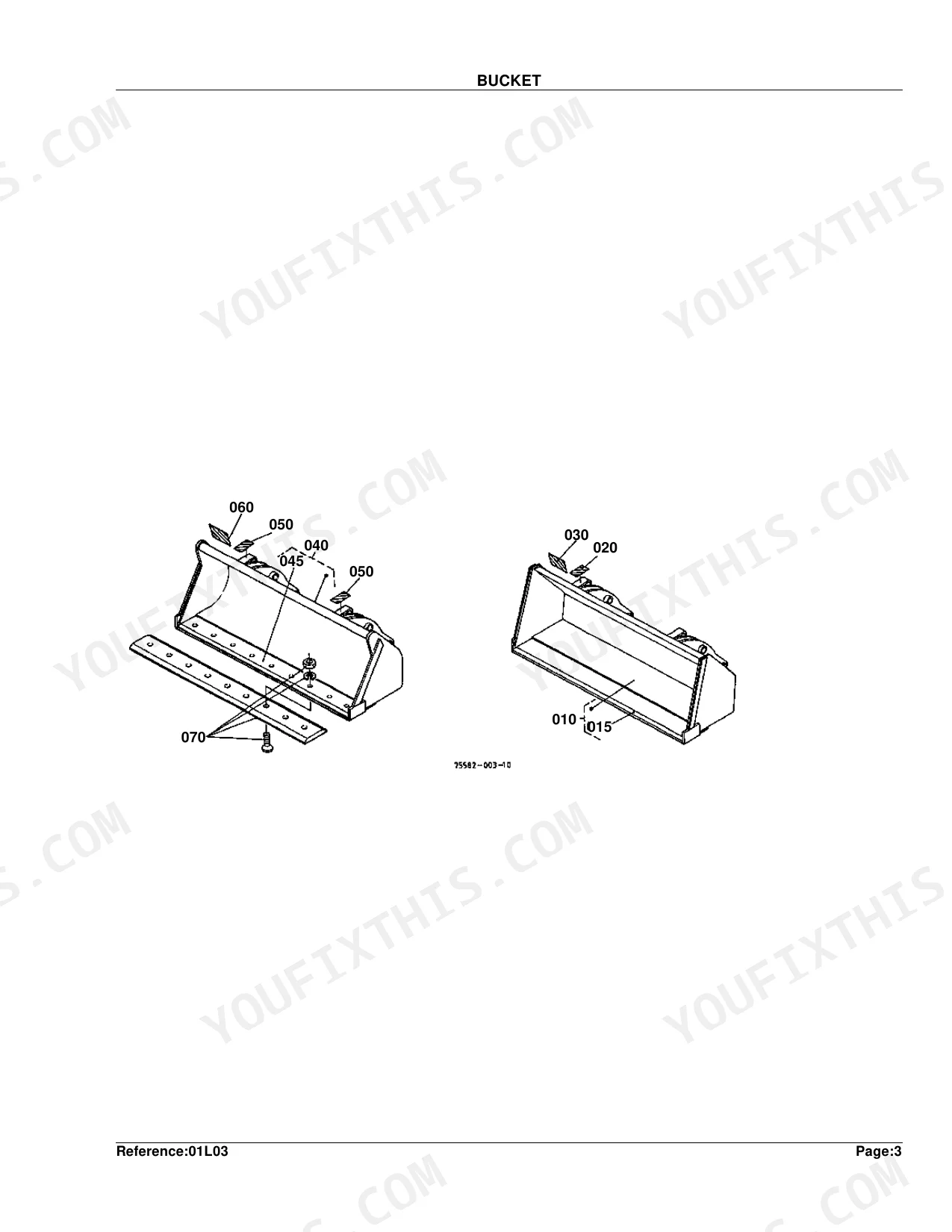

| Bucket | 8-9 | Edge Cutting, Label Leveler, Label Model |

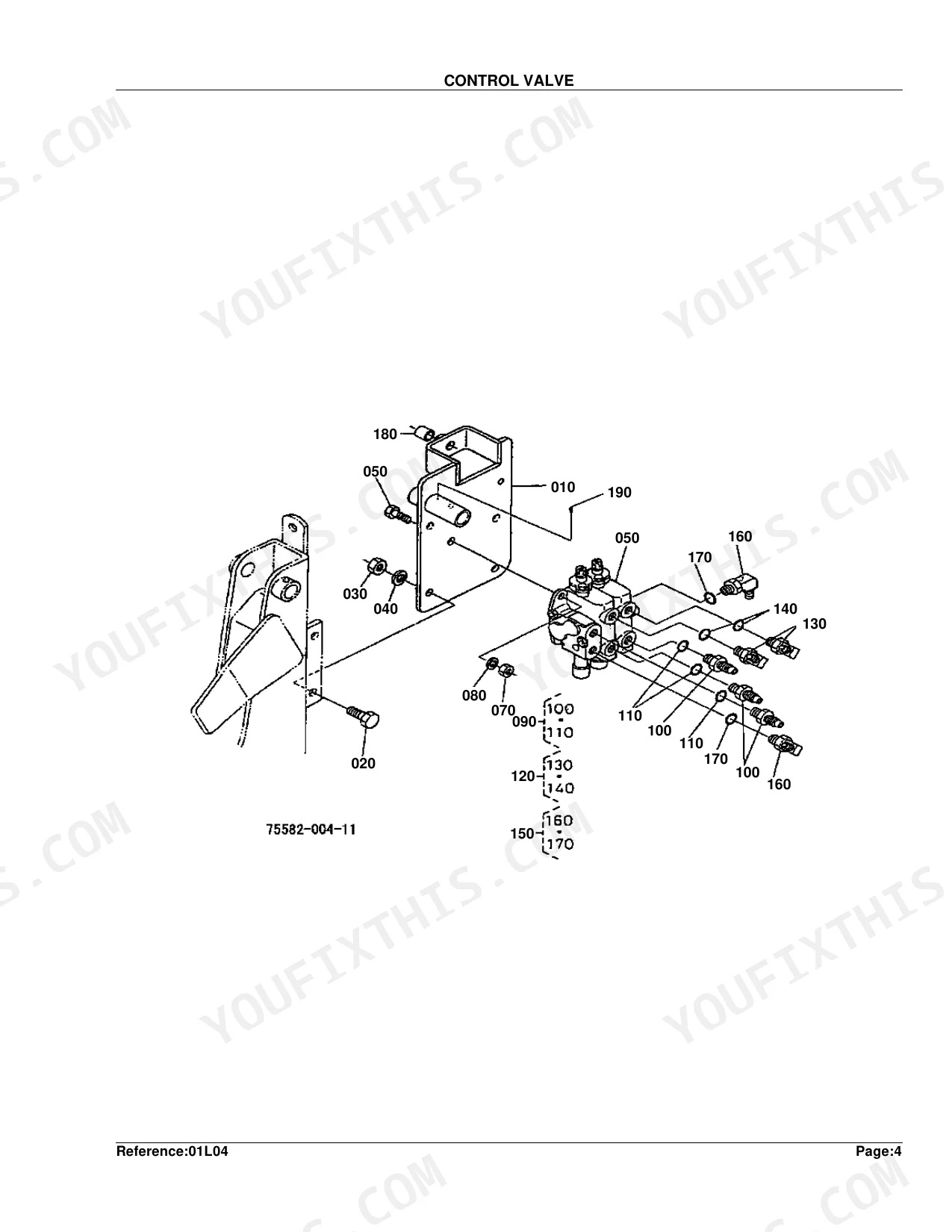

| Control Valve | 10-11 | Stay Valve, Hex.Bolt, Hex.Nut |
| Control Valve [Component Parts] | 12-13 | Valve Control, Assy Inlet Section, O-Ring |

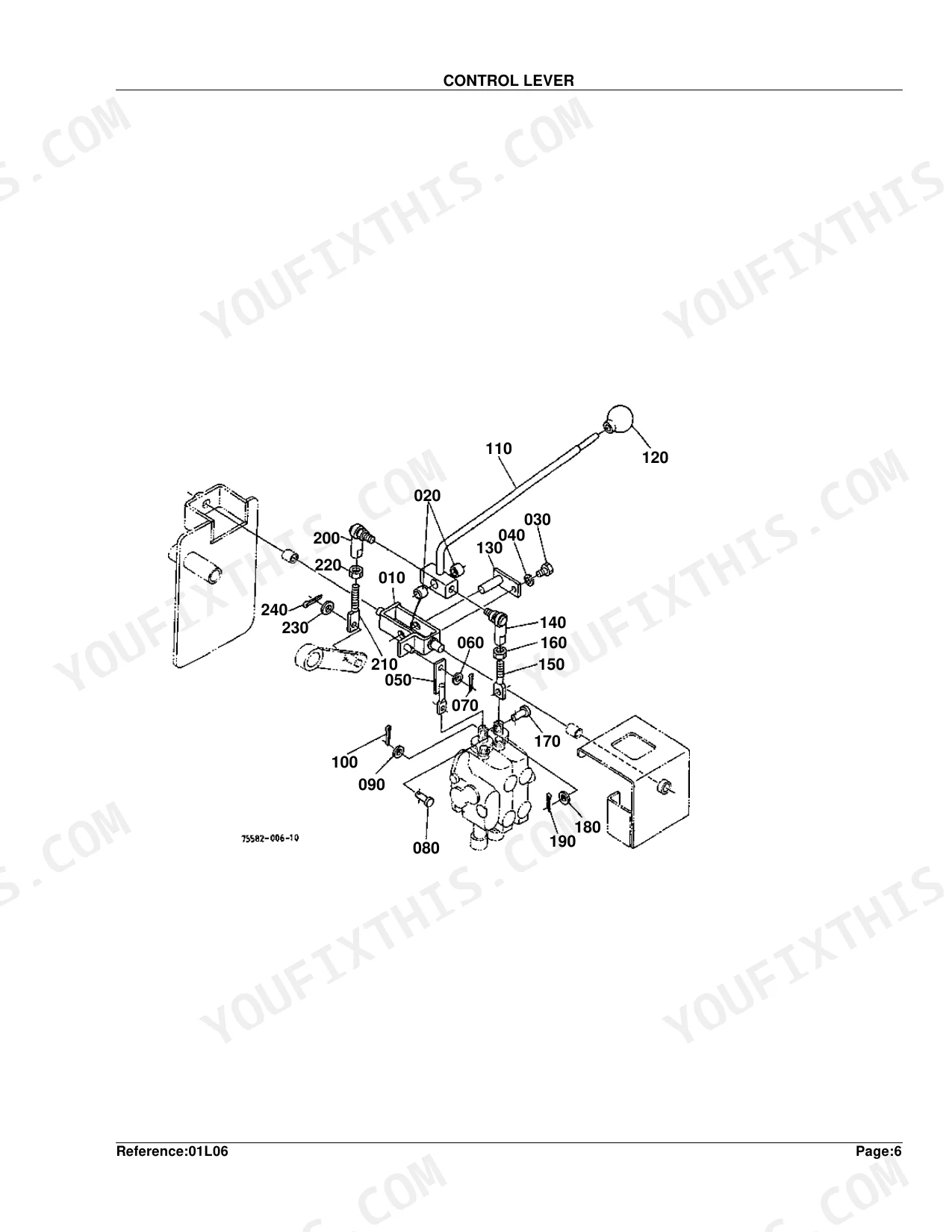

| Control Lever | 14-15 | Lever, Bushing, Hex.Bolt |
| Lever Cover | 16-17 | Cover, Hex.Bolt, Washer Spring Lock |

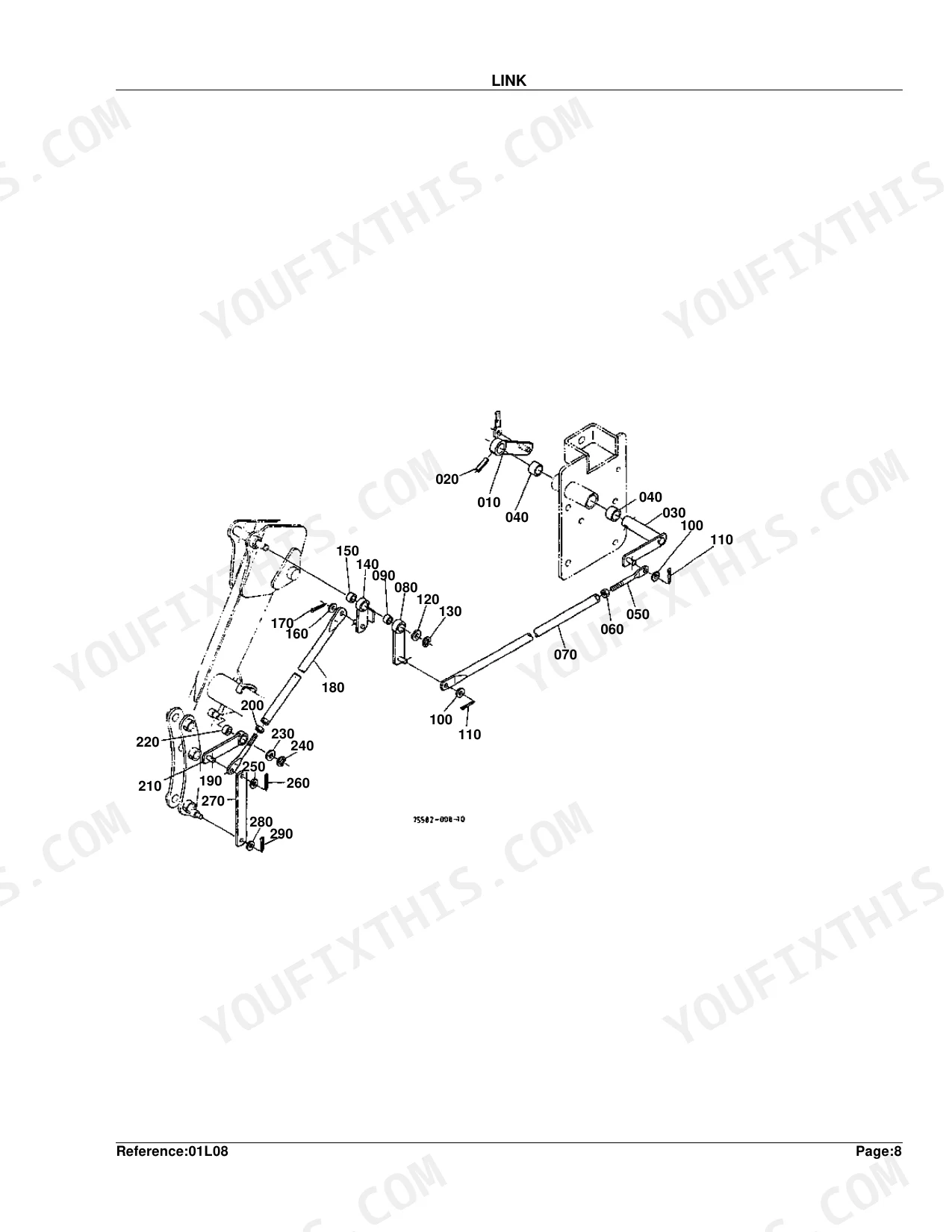

| Link | 18-19 | Pin Spring, Bushing, Rod |
| Cylinder/Hydraulic Hose | 20-21 | With Bt900, Cylinder, Bushing |
| Boom Cylinder [Component Parts] | 22-25 | Cylinder, Tube Comp, Kit Seal (75554 Series) |
| Bucket Cylinder [Component Parts] | 26-29 | Cylinder, Tube Comp, Kit Seal (75582 Series) |
| Hydraulic Tube | 30-31 | Tube Hydraulic, Clamp, Hex.Bolt |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| HEX.BOLT (M14 X 1.5 X 35) Weight | 0.056 kgf | p. 5 |
| WASHER SPRING LOCK (9/16) Weight | 0.08 kgf | p. 5 |
| LABEL L35 Weight | 0.007 kgf | p. 7 |
| HEX.NUT (3/8-24UNF) Weight | 0.006 kgf | p. 7 |
| WASHER SPRING LOCK (3/8) Weight | 0.01 kgf | p. 11 |
| SPACER-CAP SPOOL Weight | 0.05 kgf | p. 13 |
| KIT DETENT Weight | 0.1 kgf | p. 13 |
| KIT CAP SPOOL SECT. Weight | 0.2 kgf | p. 13 |
| GRIP LEVER Weight | 0.05 kgf | p. 15 |
| WASHER PLAIN (5/16) Weight | 0.002 kgf | p. 15 |
| WASHER SPRING LOCK (5/16) Weight | 0.002 kgf | p. 17 |
Kubota TL720(L35) Common Problems This Manual Covers
Loader functions are slow and weak when operating the control lever
Review the control valve component parts diagram on page 12 to locate replacement O-rings. Match the correct spool assembly part numbers to your specific serial number. Order the replacement kit cap spool sect., listed with a weight of 0.2 kgf on page 13.

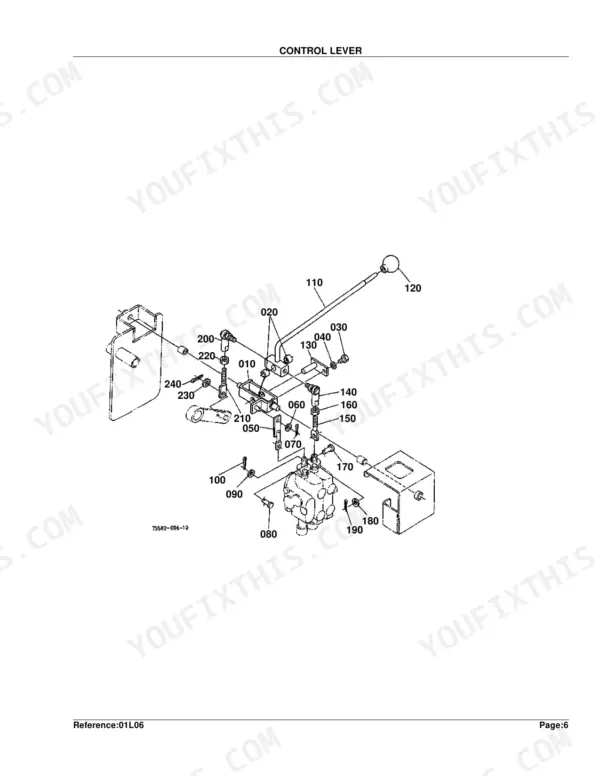

Manual Section: Control Valve [Component Parts] p. 12Control lever assembly feels loose and the rubber grip is missing
Check the control lever parts diagram on page 14. Identify the exact part number for the replacement grip lever, which weighs 0.05 kgf according to page 15. Cross-reference the plain 5/16 washer (0.002 kgf) and bushing part numbers to rebuild the lever assembly.
Manual Section: Control Lever p. 14Chassis mounting bolts stripped out or missing from the main loader frame
Check the frame parts number list on page 5. Locate the exact part number for the M14 X 1.5 X 35 hex bolt, which weighs 0.056 kgf. Order the matching 9/16 spring lock washers, weighing 0.08 kgf, to ensure the chassis components remain securely fastened.
Manual Section: Frame p. 5Valve assembly will not hold in the detent position when the hydraulic lever is engaged
Consult the control valve component parts breakdown on page 12. Locate the part number for the kit detent assembly. Confirm the replacement kit detent, listed with a weight of 0.1 kgf on page 13, matches your valve block serial number before ordering.
Manual Section: Control Valve [Component Parts] p. 12Frequently Asked Questions
What are the replacement specifications for hydraulic cylinder seal kit?
For hydraulic cylinder seal kits, the part numbers vary by cylinder type and serial number. For boom cylinders, use part number 75554-63400 (S.No.<=24075) or 75554-64600 (S.No.>=24076), with 2 kits needed. For bucket cylinders, use 75582-64400 (S.No.<=24075) or 75582-64600 (S.No.>=24076), also requiring 2 kits. p. 23
What format is this Kubota TL720(L35) manual in?
A 31-page Parts Catalog in searchable PDF format (0 MB), available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Are there any print restrictions on this Kubota TL720(L35) manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
