This is the factory Kubota T1600H Workshop Manual, a 105 page PDF covering the T1600H riding mower and its T1600HST hydrostatic variant. It documents the Kubota Z482 diesel engine, the hydrostatic transaxle, front axle, steering, brakes, and the electrical system, so you can diagnose and repair the machine yourself instead of guessing at a dealer counter.The manual is organized into Mechanism sections that explain how each system works and Disassembling and Servicing sections that walk through teardown, inspection, and reassembly. You get troubleshooting charts, servicing specifications, tightening torques, and a maintenance check list with the service intervals Kubota specifies.Whether you are chasing a weak transmission, a hard starting engine, or a charging fault, the procedures and factory numbers are here. It arrives as an instant PDF download you can read on a phone, tablet, or computer, or print for the workshop bench.
What's Inside This Kubota T1600H Manual
| System | Pages | Key Topics |
|---|---|---|
| Specifications | 4 | Model, Engine, Weight, Fuel Tank Capacity, Tire Size, Steering System, Brake, Transmission, PTO, Mower |
| Dimensions | 5 | Overall Length, Overall Width, Overall Height, Wheel Base, Front Tread, Rear Tread, Unit of Measurement |

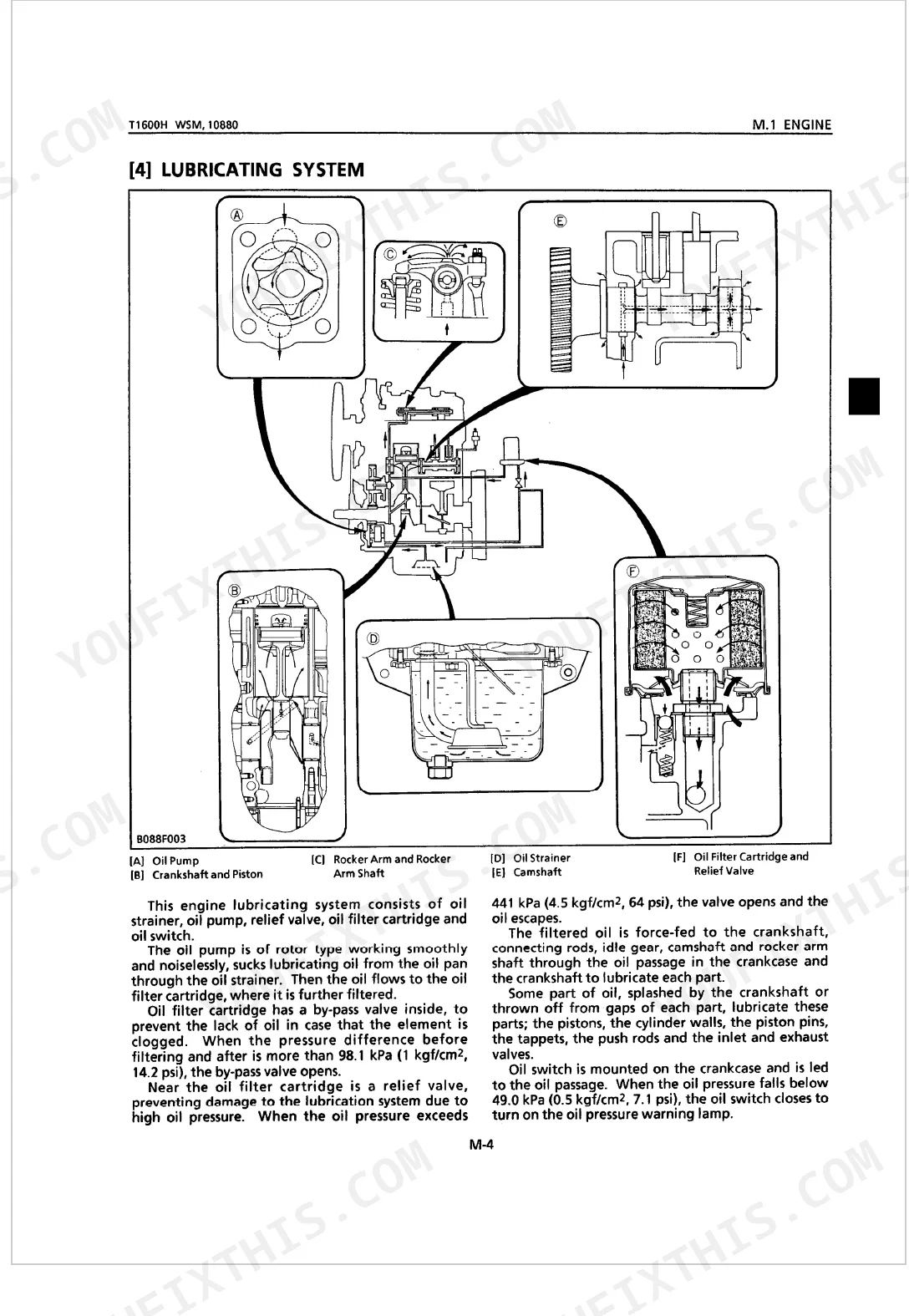

| Mechanism | 6-30 | Engine (Combustion System, Piston, Lubricating System, Cooling System, Fuel System), Hydrostatic Transaxle, Electrical System (Wiring Diagrams, Starting System, Charging System, Combination Box) |
| General | 32-54 | Identification, Safety Precautions, Lubricants and Fuel, Troubleshooting, Servicing Specifications, Tightening Torques, Maintenance Check List, Check and Maintenance, Special Tools |
| Engine | 55-78 | Separating Engine, Engine Body Disassembly, Lubricating System, Cooling System, Fuel System |

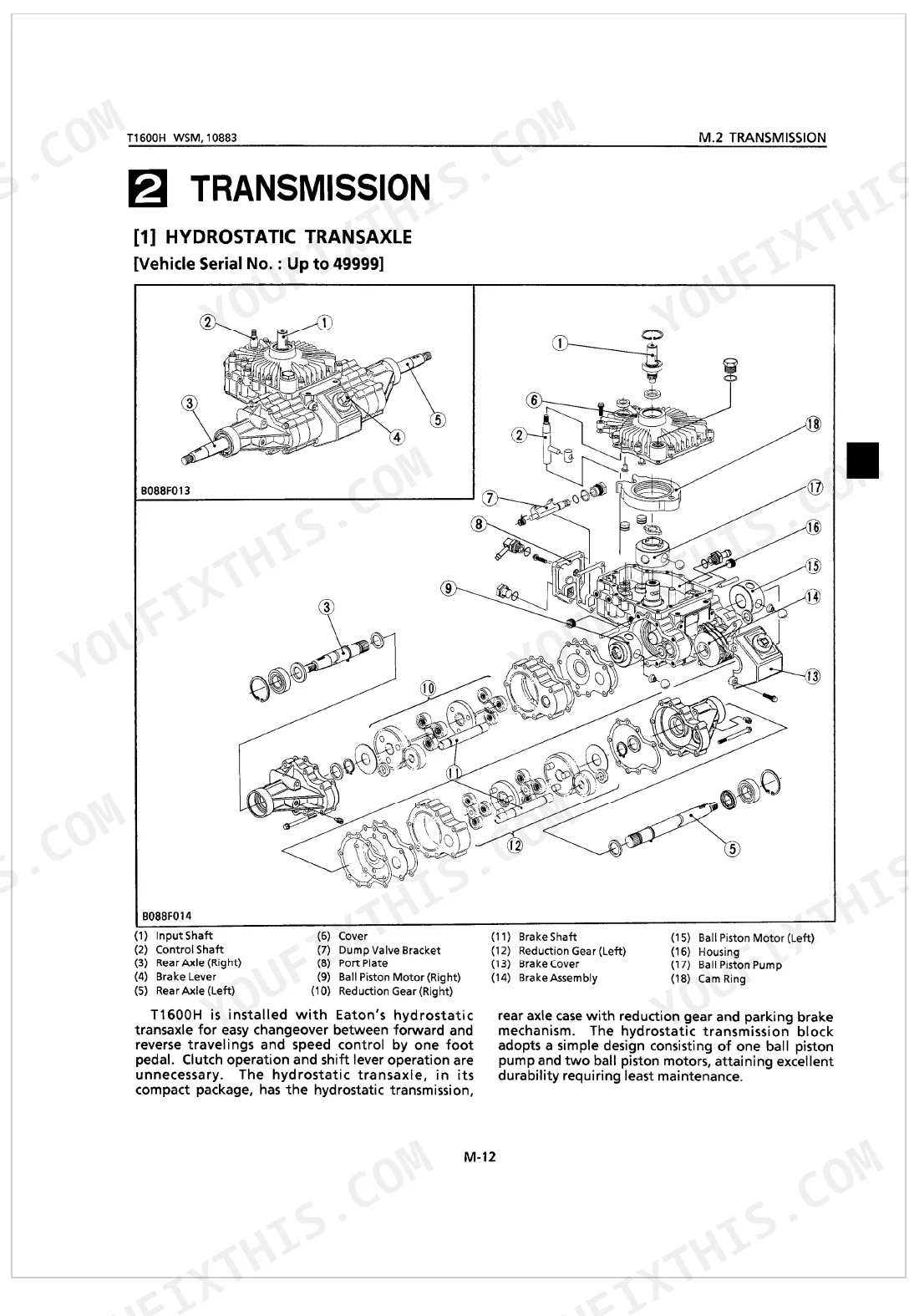

| Transmission and Rear Axle | 79-88 | Separating Hydrostatic Transaxle, Hydrostatic Transaxle Disassembly and Assembly, Rear Axle Service |
| Brake | 89 | Parking Brake Checking and Adjusting, Brake Band Servicing, Brake Pedal Adjustment |
| Front Axle | 90-91 | Front Axle Spindle Checking and Adjusting, Hub Bearing Disassembly and Assembly, Toe-In Alignment |
| Steering | 92-93 | Steering Play Checking, Tie Rod Disassembly and Assembly, Steering Column Servicing |
| Electrical System | 94-101 | Battery, Starting System, Charging System, Electrical Equipment |
| Mower | 102-105 | Mower Deck Checking and Adjusting, Blade and Belt Disassembly and Assembly, Mandrel Servicing |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine mounting nut torque | 23.5 to 27.5 N-m | p. 43 |
| Cylinder head bolt torque | 39.2 to 44.1 N-m | p. 43 |
| Engine Oil Capacity (Crankcase) | 2.1 l | p. 33 |
| Hydrostatic Transmission Oil Capacity (Vehicle Serial No.: Up to 49999) | 1.7 l | p. 33 |
| Mower Gear Box Oil Capacity | 0.3 l | p. 33 |

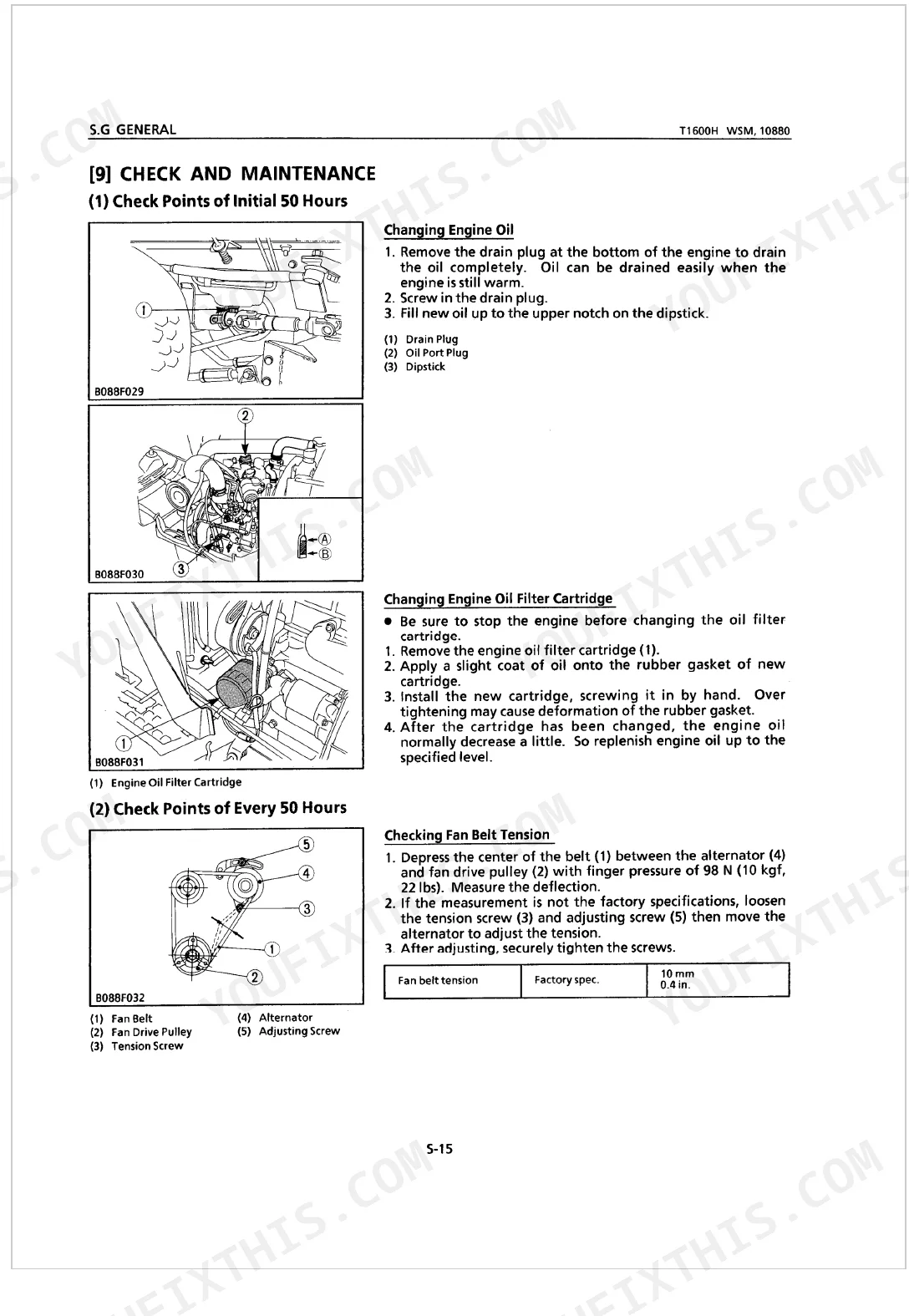

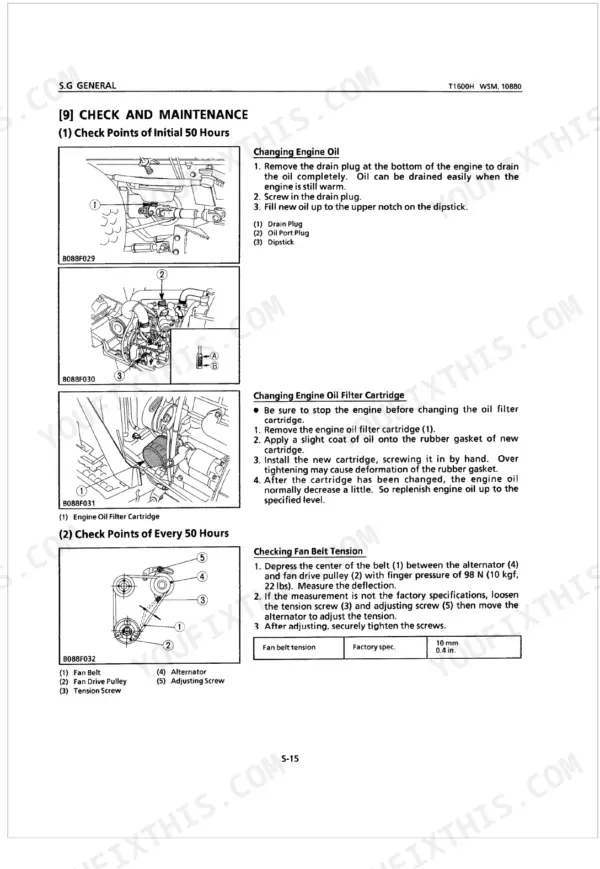

| Fan Belt Tension Deflection | 10 mm | p. 41 |
| Cylinder Head Bolt Tightening Torque | 39.2 to 44.1 N-m | p. 43 |
| Connecting Rod Screw Tightening Torque | 26.5 to 30.4 N-m | p. 43 |
| Wheel Hub Retaining Nut Tightening Torque | 118 to 147 N-m | p. 43 |
| Blade Screw Tightening Torque | 123 to 147 N-m | p. 43 |
| Valve Clearance (Cold) IN., EX. Factory Spec | 0.145 to 0.185 mm | p. 38 |
| Compression Pressure Allowable Limit | 2.26 MPa | p. 38 |
Kubota T1600H Common Problems This Manual Covers
Engine hard to start or runs rough

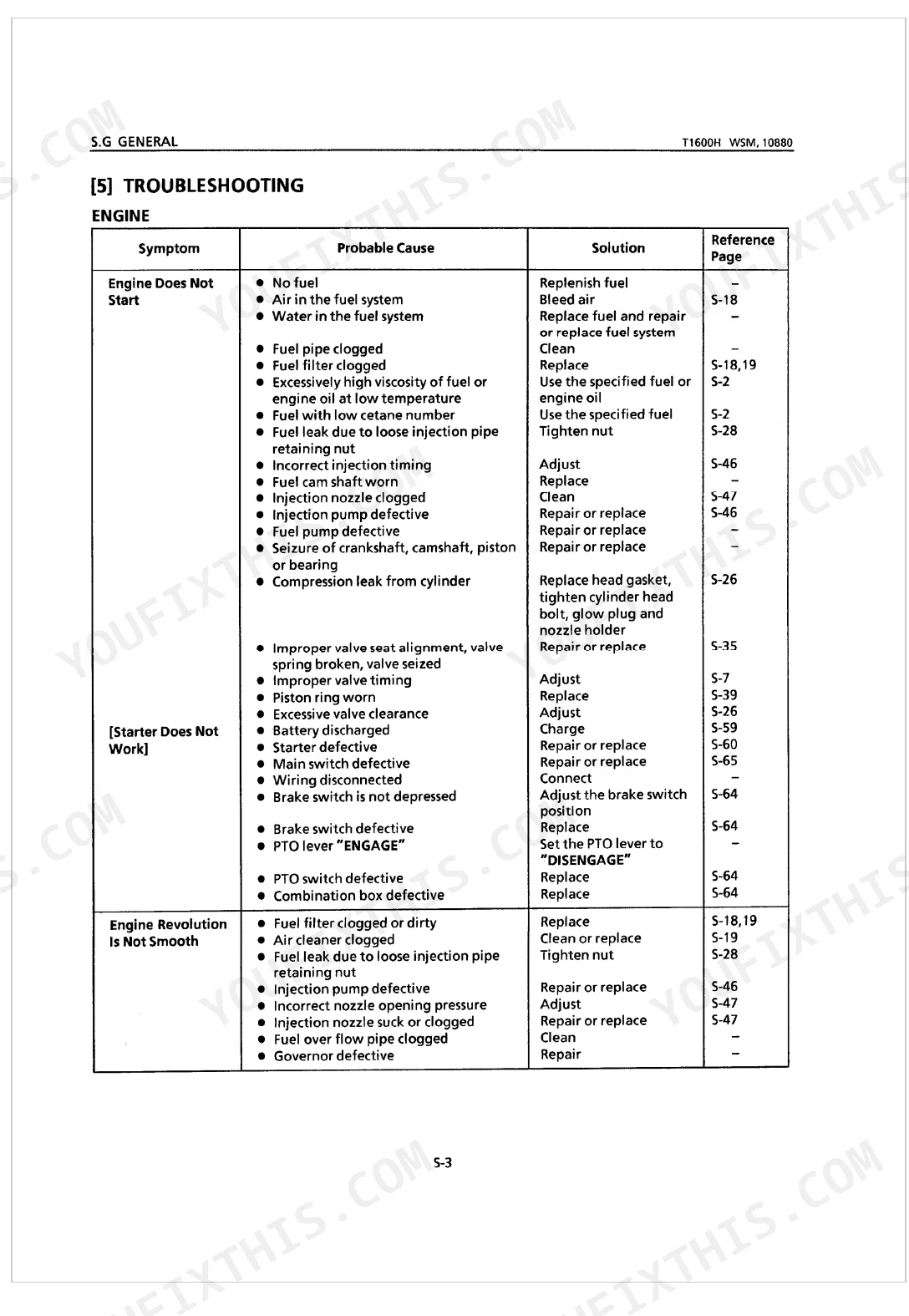

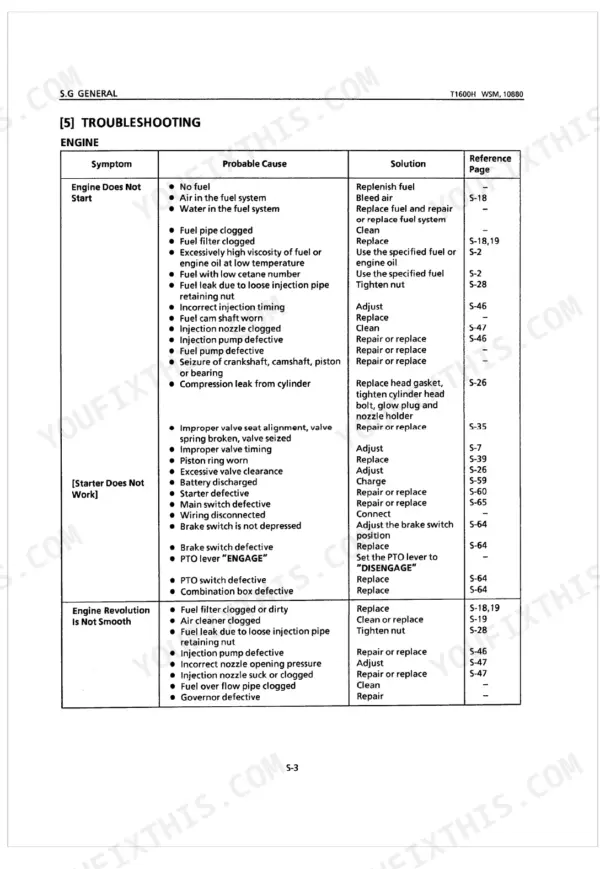

A T1600H that cranks slowly or fires unevenly usually points to the fuel or starting circuit. The Troubleshooting charts help you isolate the cause before you start pulling parts.
Manual Section: Troubleshooting p. 34Weak or lost hydrostatic drive
Sluggish travel, creeping in neutral, or no drive at all on these hydrostatic mowers is a transaxle concern. This section covers separating and servicing the hydrostatic transaxle with the factory checks.
Manual Section: Hydrostatic Transaxle p. 81Engine overheating
The small Z482 diesel runs hot when the cooling system is neglected. This section walks through inspecting and servicing the cooling components so temperatures stay in range.
Manual Section: Cooling System p. 75Fuel delivery and injection faults
Loss of power, smoke, or stalling on a diesel mower often traces back to the fuel system. The manual details servicing the fuel components and restoring proper delivery.
Manual Section: Fuel System p. 77Battery not charging
A battery that keeps going flat usually means a charging fault rather than a bad battery. This section covers testing and servicing the charging circuit.
Manual Section: Charging System p. 99Brake feels weak or drags
Poor stopping or a dragging brake on the T1600H is addressed with the checking, adjusting, and servicing steps in this section.
Manual Section: Brake p. 89Frequently Asked Questions
Which models does this manual cover?
It covers the Kubota T1600H riding mower, including the T1600HST hydrostatic variant. It is the factory Workshop Manual for that machine.
Does it list the engine and machine specifications?
Yes. The Specifications section gives the Kubota Z482 engine, weight, fuel tank capacity, tire size, steering, brake, and transmission details at the front of the manual. p. 4
Are tightening torque values included?

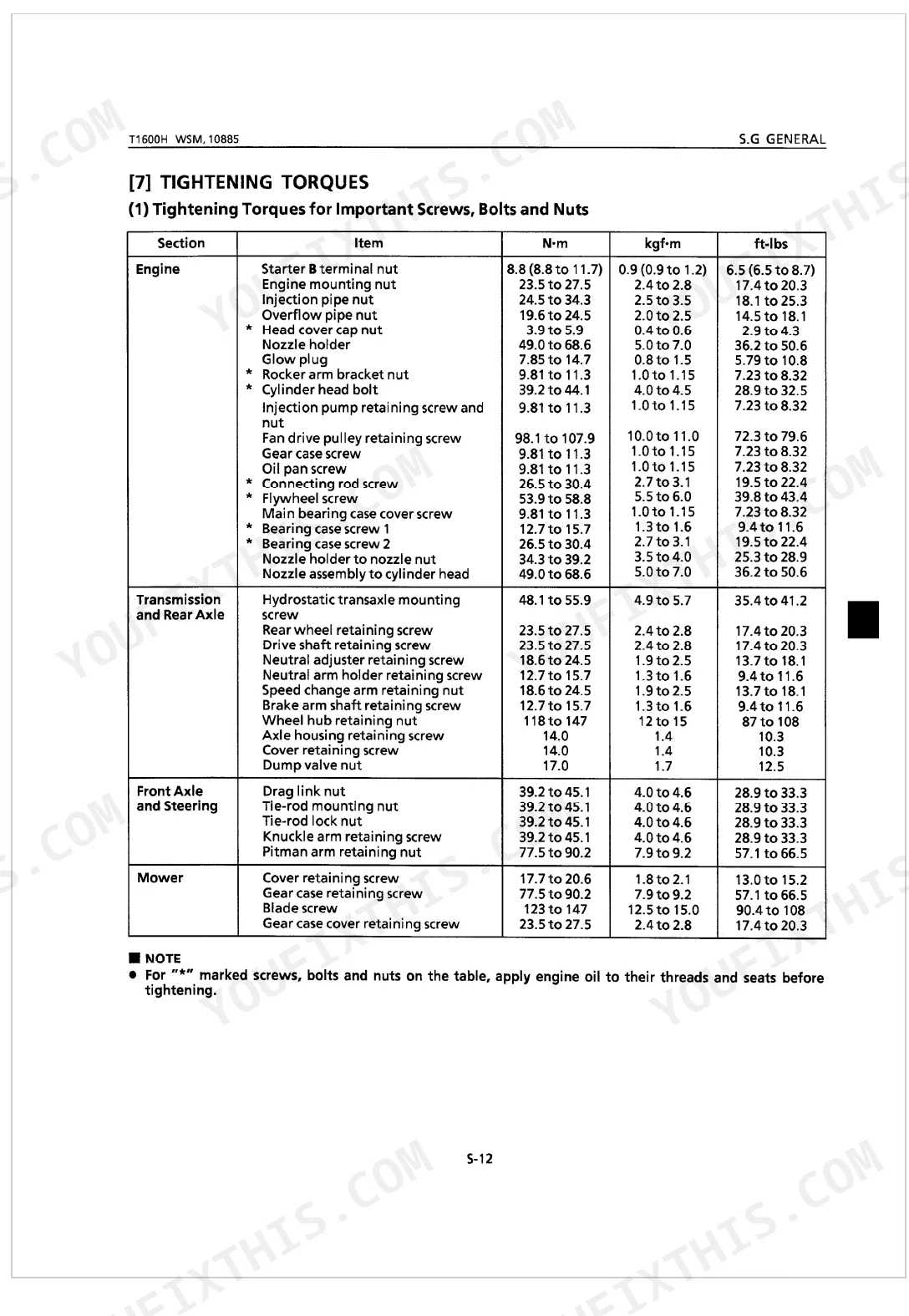

Yes. The Tightening Torques section lists the factory torque figures for engine and chassis fasteners so you can reassemble the machine correctly. p. 43
How do I get the manual after buying?
You download it instantly after checkout. There is no shipping and no waiting, and you keep your own copy of the file.
Is this Kubota T1600H Workshop Manual a digital download?
It's an instant PDF download. The full 105-page searchable Workshop Manual lands in your hands right after payment, ready to open on a laptop, tablet, or phone in the shop.
Am I able to print pages from this manual?
Print as many copies as you want; there are no restrictions. Plenty of mechanics print just the section they need and carry it onto the shop floor.

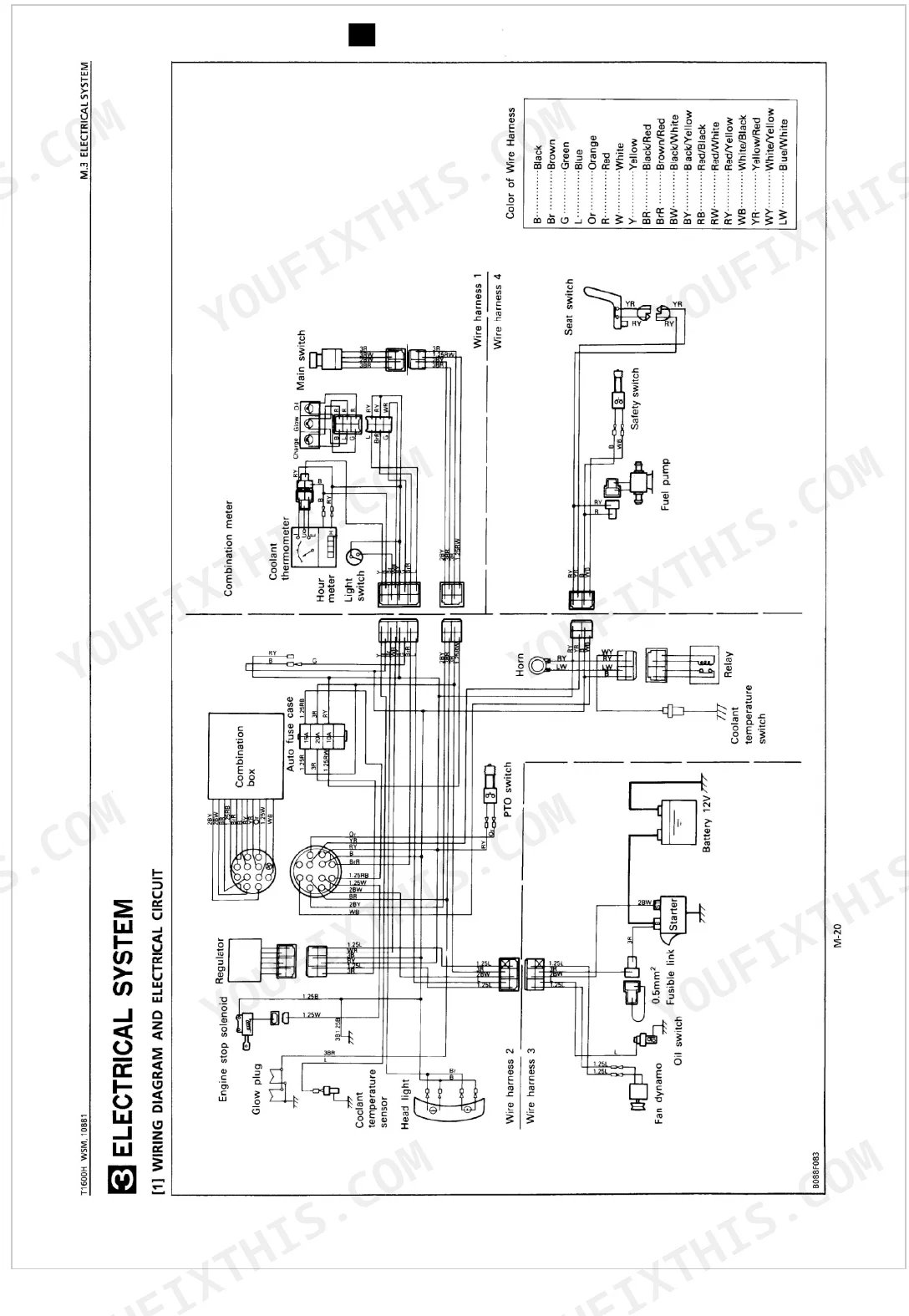

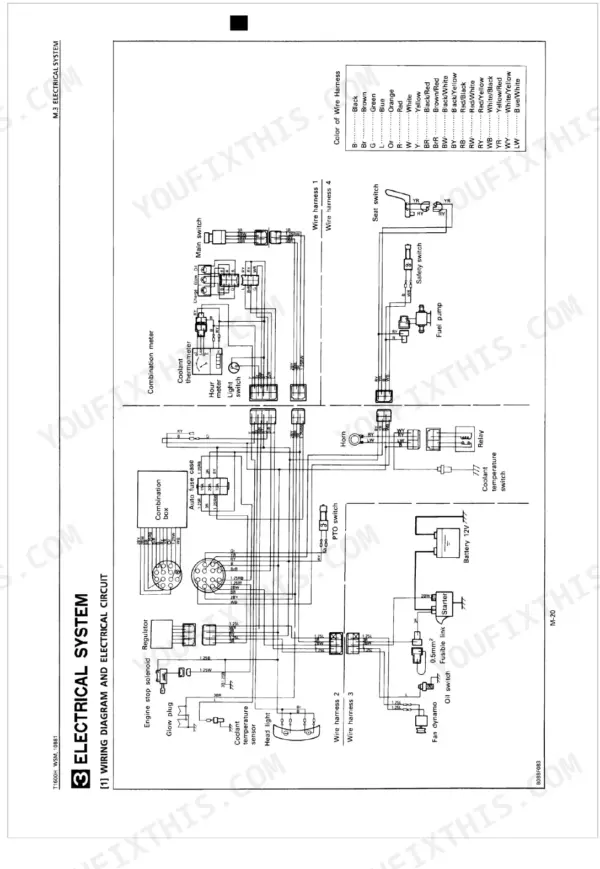

Can I find wiring schematics in this Kubota T1600H manual?
Yes. The manual includes full electrical schematics with wire routing diagrams, connector identification, and circuit descriptions.
