Part of the Kubota Repair Manuals.

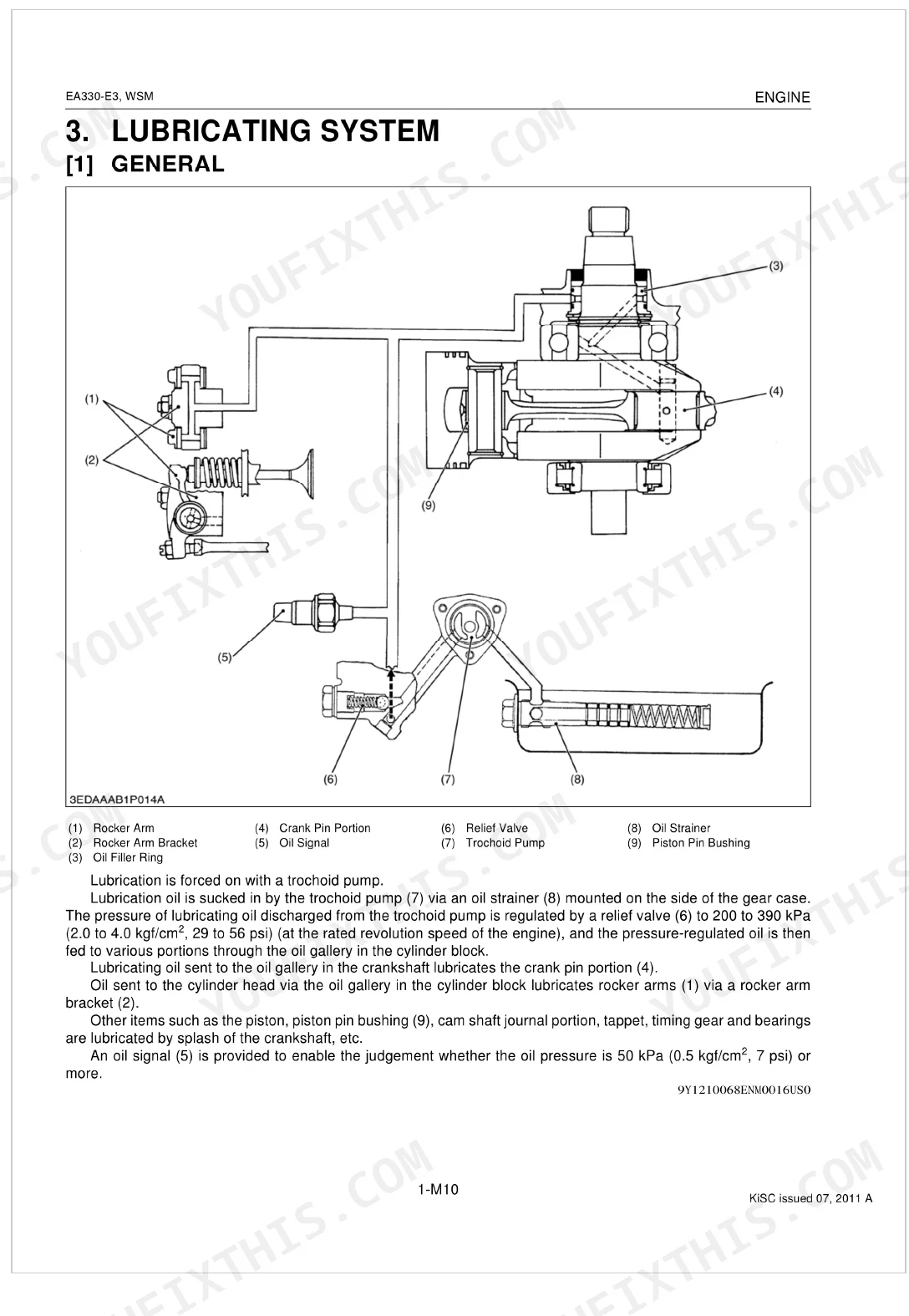

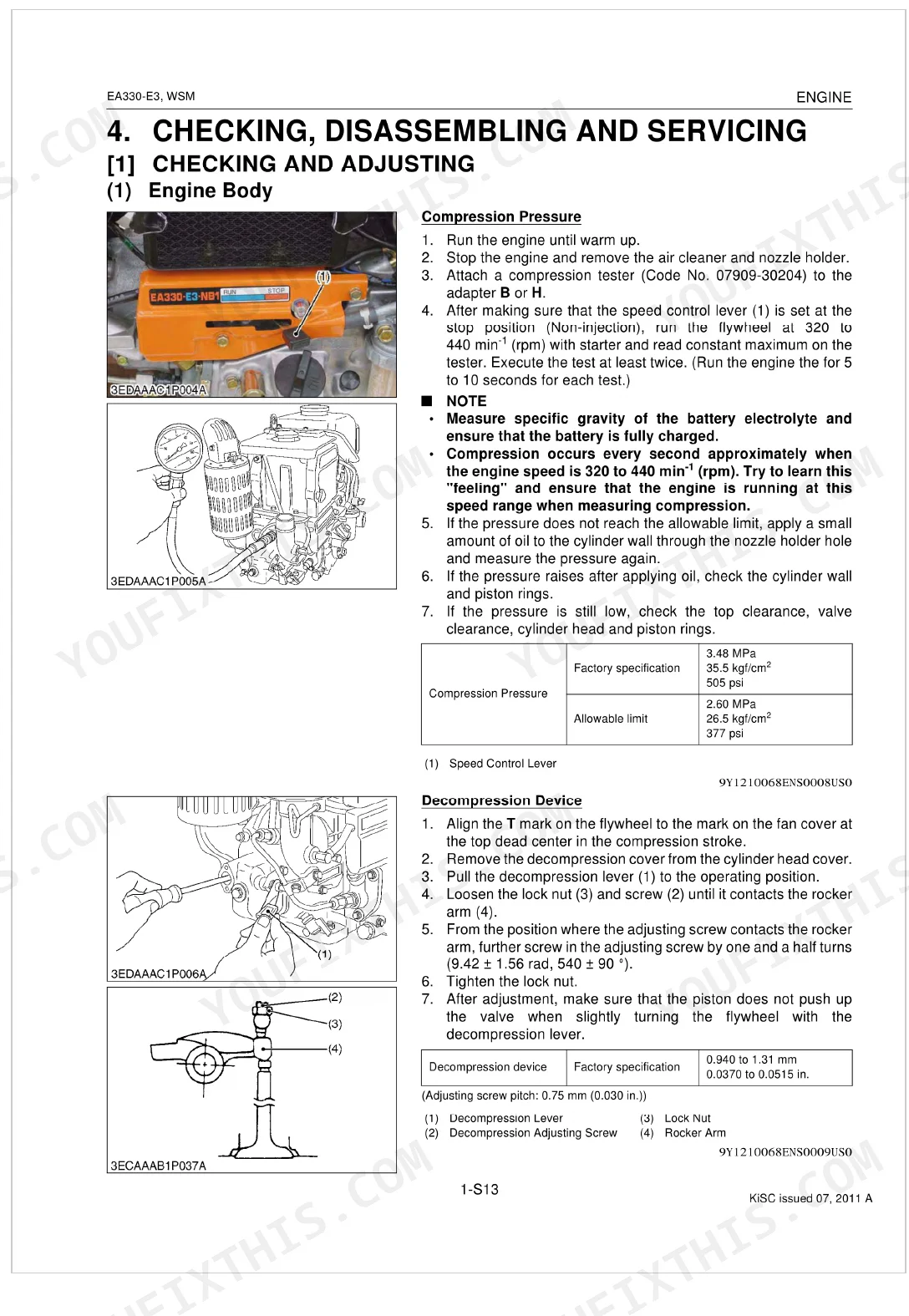

OEM #9Y021-01877 covers a single engine family: the E3-series diesel behind the EA330-E3, EA330-E3-NB1, and both APU variants. The 129 pages break down into exploded-view diagrams running from cylinder head to dynamic balancer and system diagrams for lubrication, cooling, fuel injection, intake/exhaust, and electrical. A maintenance checklist lays out 50-hour and 100-hour service intervals. Troubleshooting covers fault isolation, and step-by-step procedures handle disassembly, assembly, and adjustment across every major system. Cylinder head studs torque to 25-29 N·m, and the fuel filter gets replaced every 100 hours, both straight from Kubota factory data. Bookmarks let you jump to any section, and keyword search pulls up any spec in seconds once the file is open.
What's Inside This Manual
| System | Pages | Key Topics |
|---|---|---|
| General | Engine Identification (Model Name and Engine Serial Number), Maintenance Check List | |

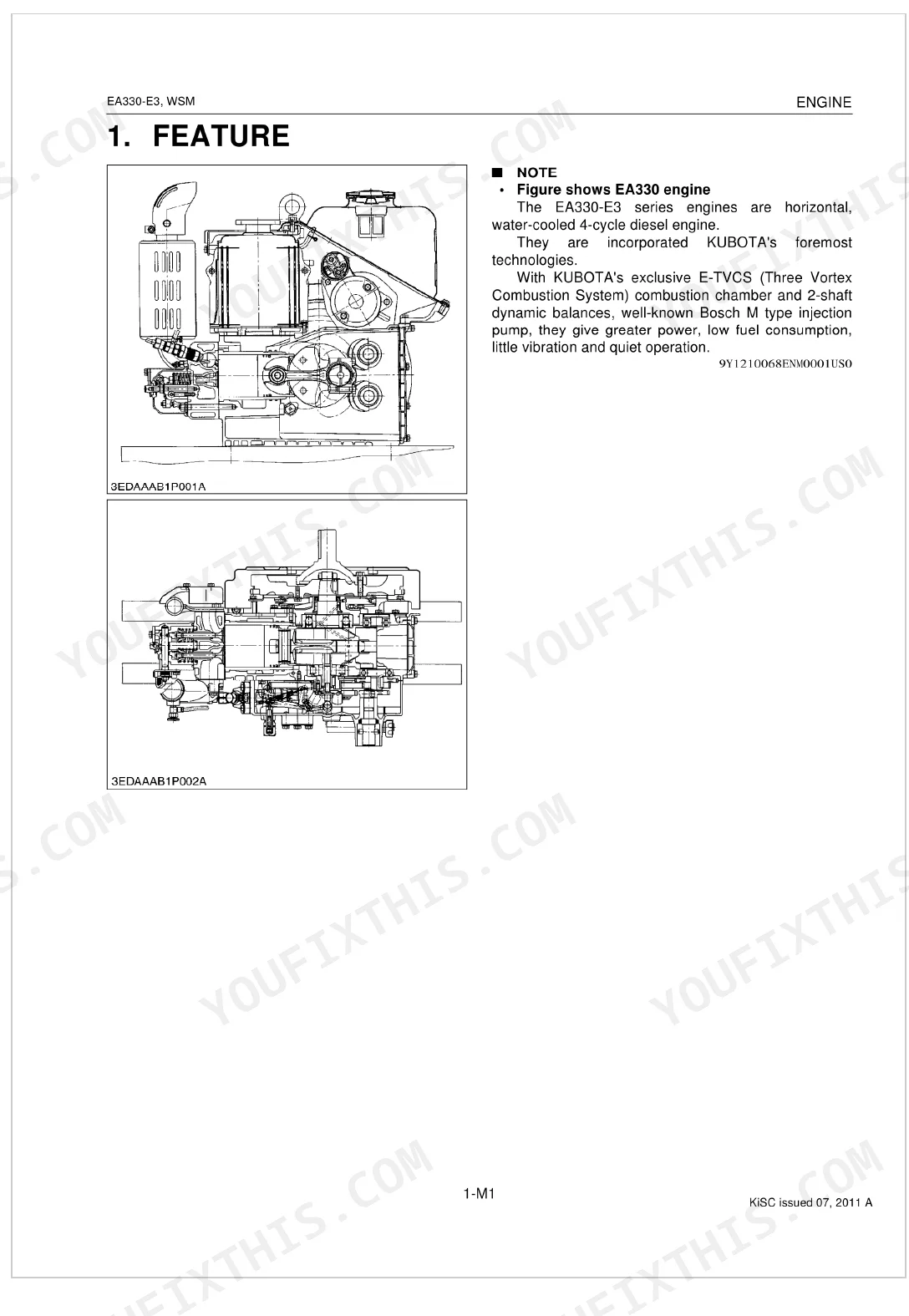

| Mechanism | Feature | |

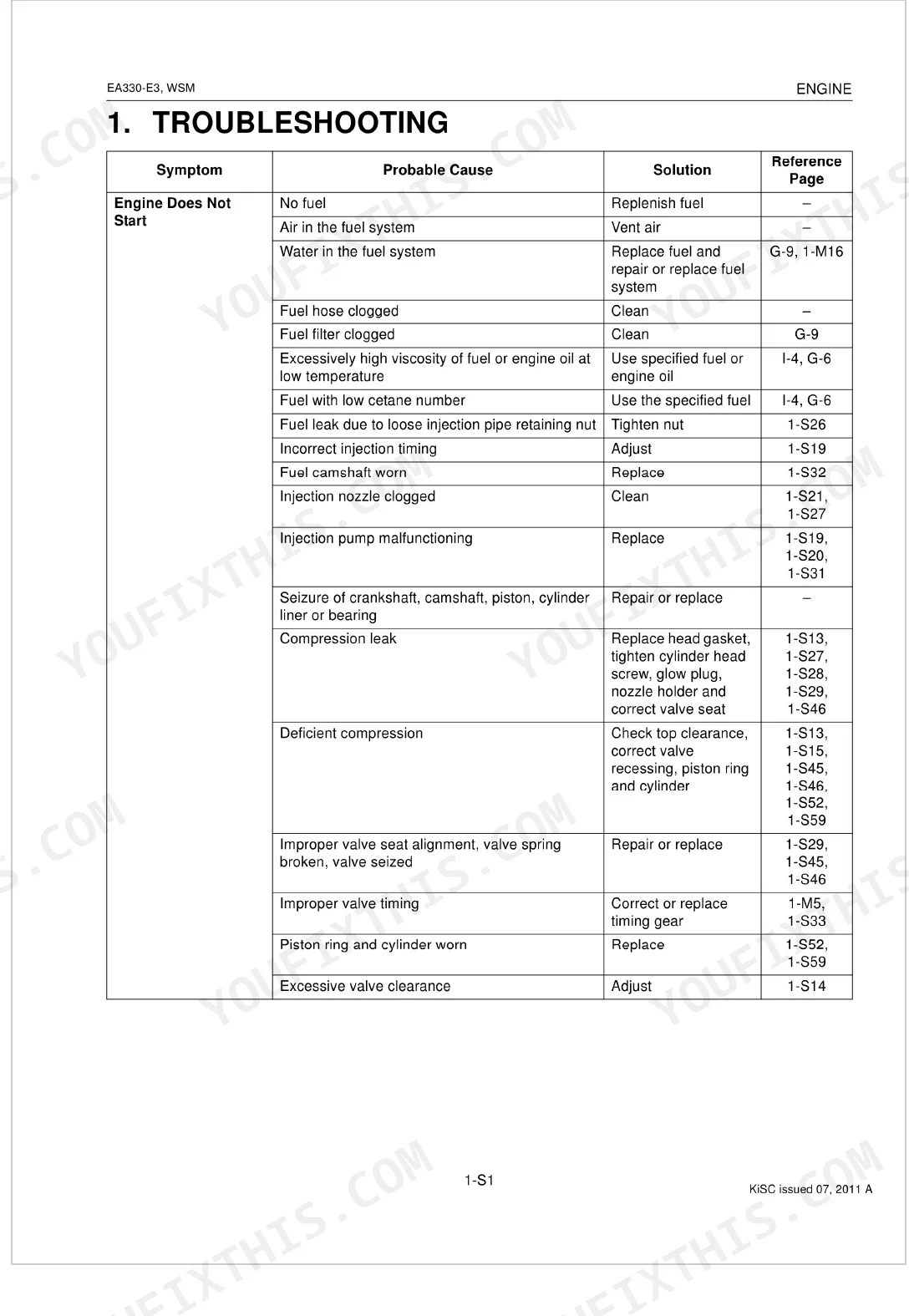

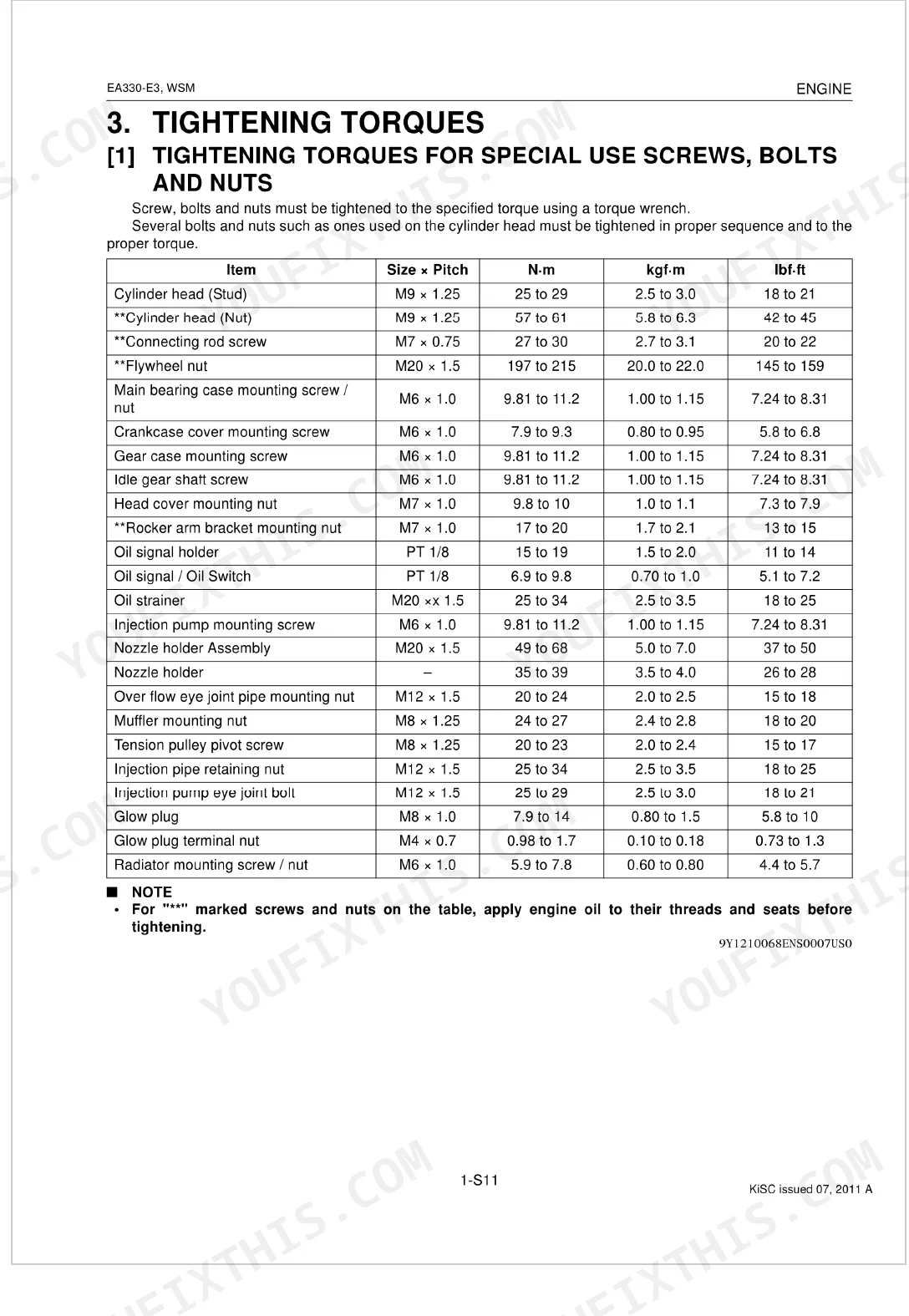

| Servicing | Troubleshooting, Servicing Specifications, Tightening Torques (Special Use Screws, Bolts and Nuts, General Use Screws, Bolts and Nuts), Checking |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Cylinder head (Stud) torque | 25 to 29 N·m (2.5 to 3.0 kgf·m, 18 to 21 lbf·ft) | p. 75 |
| Fuel filter element replacement interval | Every 300 hrs | p. 20 |
| Fuel filter mounting screw torque | 25 to 29 N·m (2.5 to 3.0 kgf·m, 18 to 21 lbf·ft) | p. 88 |
| Air cleaner element replacement interval | Every 100 hrs or Every 1 year | p. 20 |
| Air cleaner element cleaning interval | Every 50 hrs or Every 1 year | p. 20 |
| Oil filter cartridge replacement interval (implied with crankcase oil change) | Every 100 hrs or Every 1 year | p. 20 |
| Oil filter mounting screw torque | 25 to 29 N·m (2.5 to 3.0 kgf·m, 18 to 21 lbf·ft) | p. 88 |
| Fan belt check interval | Every 50 hrs or Every 1 year | p. 20 |
| Fan belt tension (Factory Specification) | 5.0 to 10 mm / 98 N (10 kgf, 22 lbs) | p. 73 |
| Injection nozzle mounting screw torque | 25 to 34 N·m (2.5 to 3.5 kgf·m, 18 to 25 lbf·ft) | p. 75 |
| Nozzle holder assembly torque | 49 to 68 N·m (5.0 to 7.0 kgf·m, 37 to 50 lbf·ft) | p. 75 |
| Battery check interval | Every 50 hrs or Every 1 year | p. 20 |
