This Kubota Shop Manual covers the Z442-B (E), Z482-B (E), D662-B (E), and D722-B (E) diesel engines, the compact powerplants used in Kubota zero-turn mowers and other equipment. It is the factory service reference for owners and independent mechanics who want to diagnose and repair these engines themselves.Across 100 pages you get specifications, performance curves, dimensions, and a full breakdown of the engine mechanism: lubricating, cooling, fuel, and electrical systems. The disassembling and servicing chapters walk through tightening torques, troubleshooting, servicing specifications, and step-by-step teardown of the engine body, injection pump, and nozzles.With this manual you can set valve clearance, check compression, torque head and connecting rod screws, service the fuel and cooling systems, and rebuild the engine to factory limits. Delivered as a downloadable PDF you can read on any device or print.
What's Inside This Kubota Z442-B (E), Z482-B (E), D662-B (E), D722-B (E) Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety Instructions | - | - |
| Specifications | - | Combustion Chamber, Fuel Injection Pump, Governor, Injection Nozzle, Lubricating System, Lubricating Filter, Cooling System, Starting System |
| Performance Curves | - | Brake Horsepower, Torque Curves, Fuel Consumption (B.S.F.C.), Sae and Din Ratings |
| Dimensions | - | Overall Length, Width and Height, Flywheel Housing, Mounting Holes |
| Mechanism | - | Engine Body, Lubricating System, Cooling System, Fuel System, Electrical System |
| Disassembling and Servicing | - | Engine Body, Lubricating System, Cooling System, Fuel System, Electrical System |

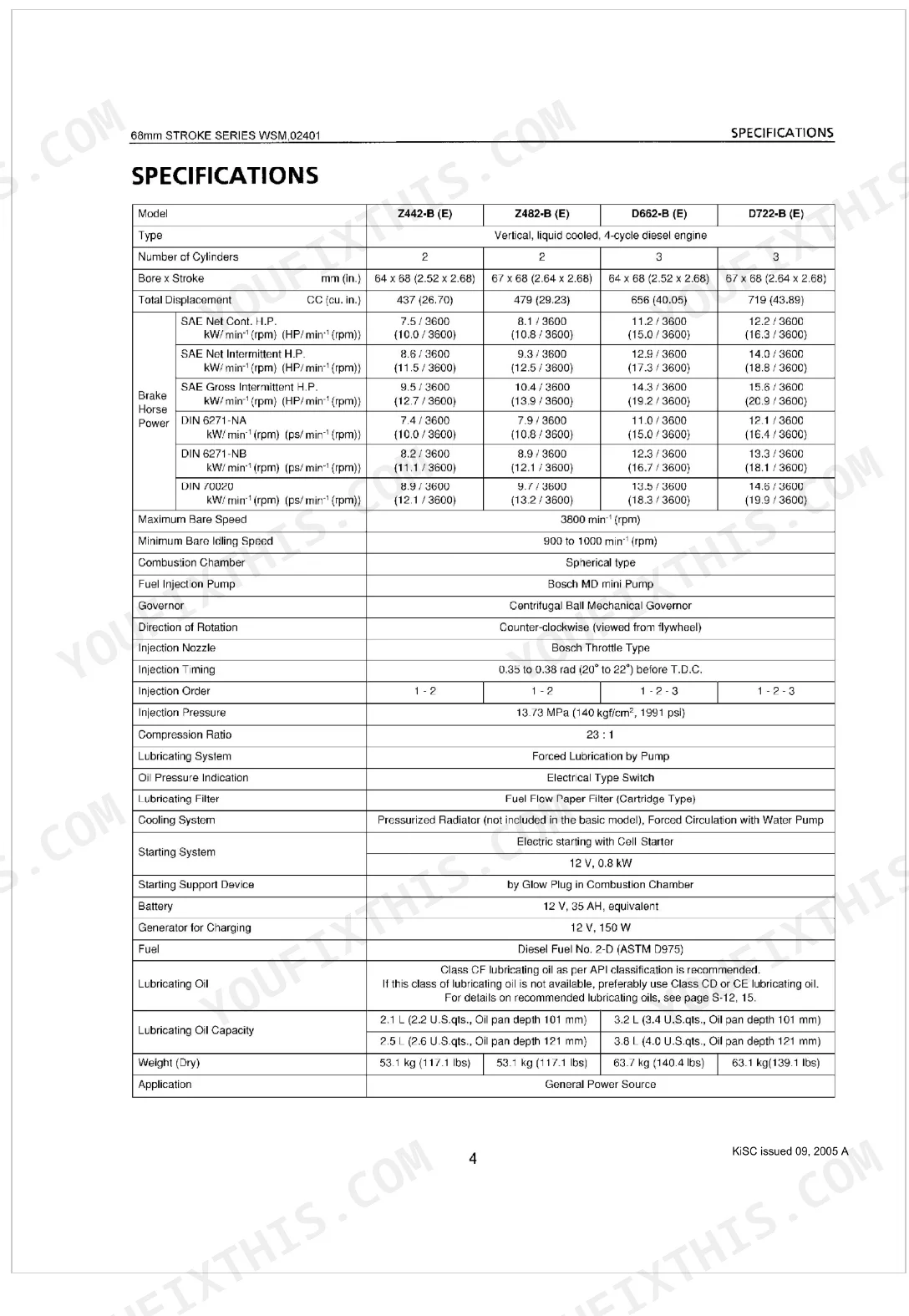

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Cylinder head screw tightening torque | 37.3 to 42.2 N-m | p. 37 |
| Nozzle holder assembly tightening torque | 49.0 to 68.6 N-m | p. 37 |
| Changing fuel filter cartridge interval | Every 400 hours | p. 46 |
| Cleaning air filter element compressed air pressure | under 205kPa (2.1 kgf/cm², 30psi) | p. 49 |
| Changing oil filter cartridge interval | Every 200 hours | p. 46 |
| Lubricating Oil Capacity (D662-B E, 101 mm pan) | 3.2 L (3.4 U.S.qts.) | p. 7 |
| Stroke | 68 mm | p. 9 |
| Radiator cap tightness (pressure falling time) | More than 10 seconds for pressure fall from 88 to 59 kPa | p. 88 |
| Fan belt tension (deflection) | 7.0 to 9.0 mm / 98N | p. 49 |
| Battery | 12 V, 35 AH, equivalent | p. 7 |
| Glow plug resistance | Approx. 0.9 Ω | p. 45 |
| Cylinder Head Screw Torque | 37.3 to 42.2 N-m | p. 37 |
| Connecting Rod Screw Torque | 26.5 to 30.4 N-m | p. 37 |
Kubota Z442-B (E), Z482-B (E), D662-B (E), D722-B (E) Common Problems This Manual Covers
Engine cranks but will not start
These compact Kubota diesels often refuse to start after sitting when the fuel filter plugs or air gets into the lines. The Fuel System section covers the fuel filter, feed pump, and injection pump so you can find and clear the restriction.
Manual Section: Fuel System p. 22Hard starting when cold
Cold-weather hard starting is commonly traced to a weak battery or a glow plug and preheat fault on diesel models. The Electrical System section covers the starting system and glow plug checks, including the glow plug resistance value.
Manual Section: Electrical System p. 28Overheats or loses power under load
Overheating and power loss under load usually come from restricted radiator airflow, a loose fan belt, or a thermostat fault. The Cooling System section covers the water pump, thermostat, radiator, and radiator cap.
Manual Section: Cooling System p. 20Low oil pressure or engine knock

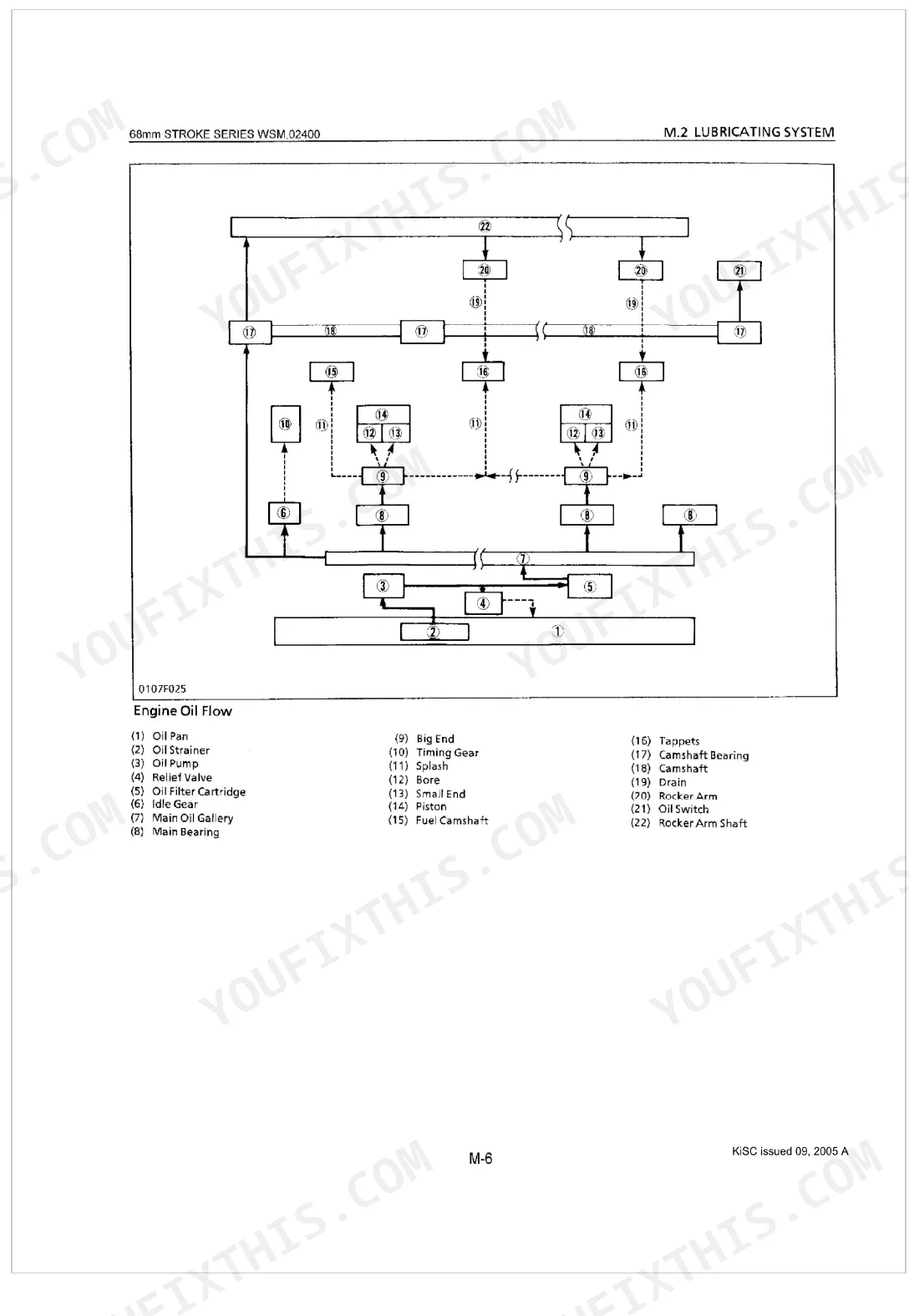

A low oil pressure warning or knocking can point to a worn oil pump, clogged pickup, or dirty oil. The Lubricating System section covers the oil pump, relief valve, oil filter cartridge, and oil pressure switch.
Manual Section: Lubricating System p. 16Excessive exhaust smoke

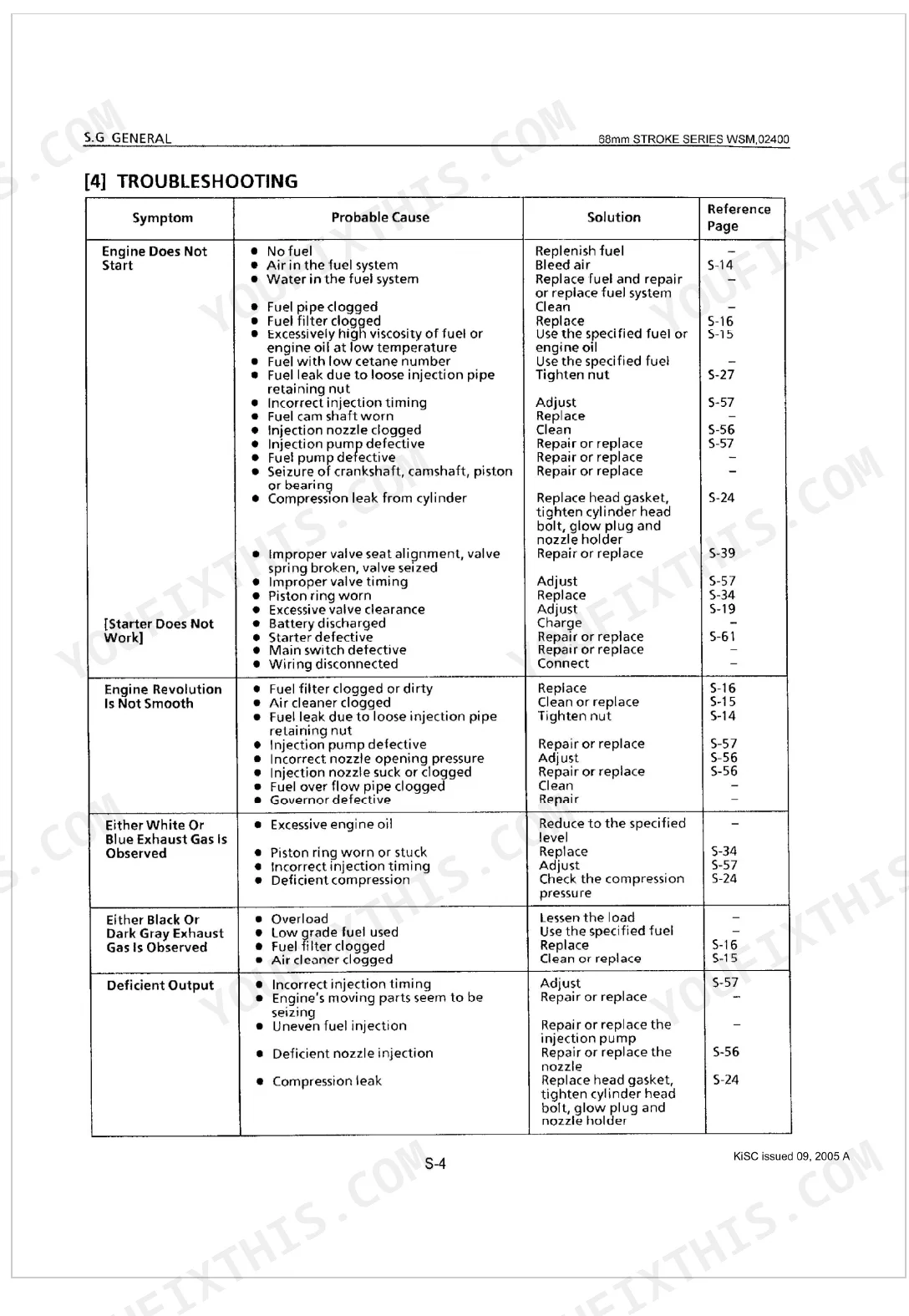

Heavy exhaust smoke often follows a dirty air filter, injector wear, or incorrect fueling. The Troubleshooting section helps you trace smoke to its cause and points to the injection nozzle and fuel checks.
Manual Section: Troubleshooting p. 38Battery drains or weak charging

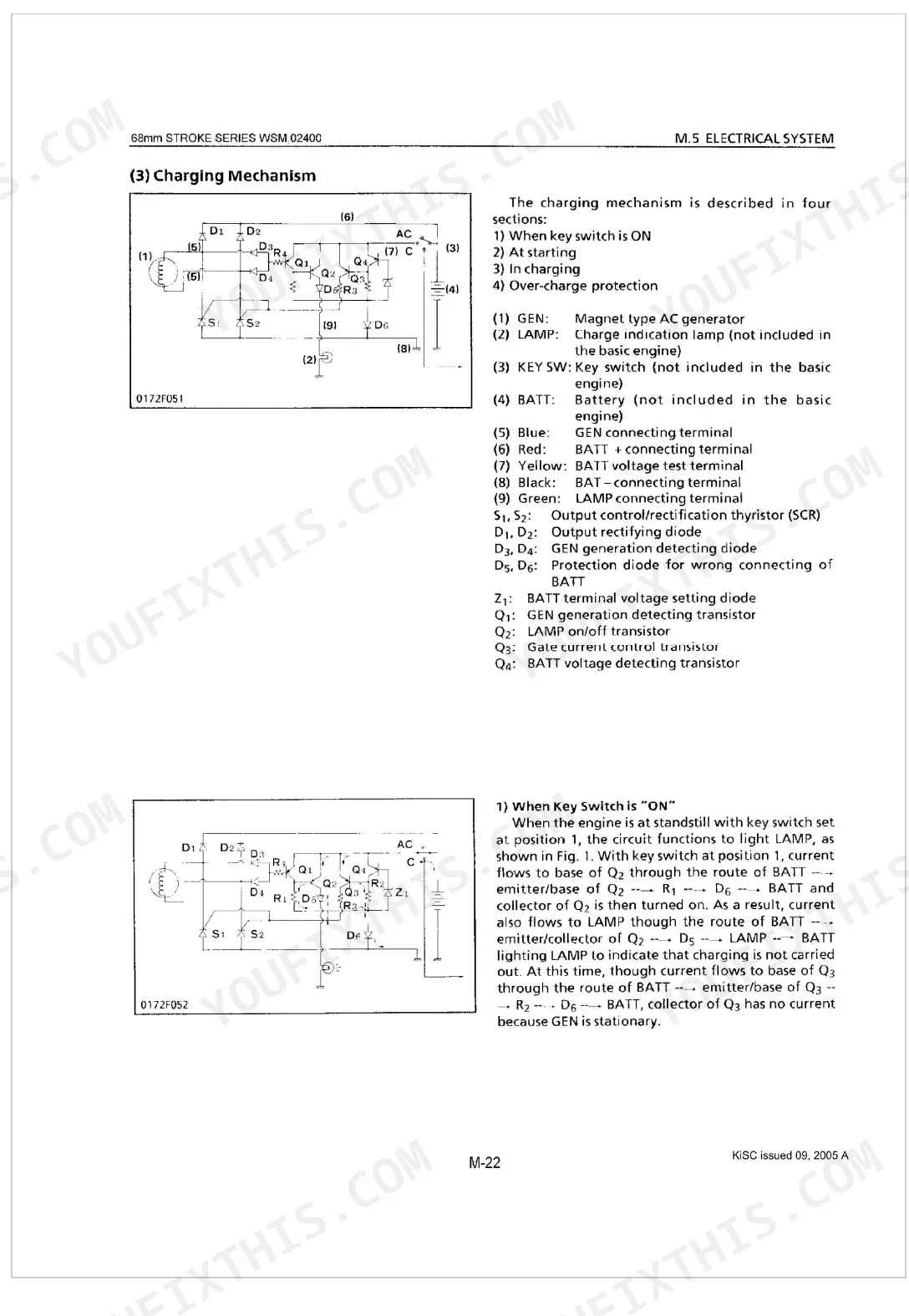

A battery that drains quickly or a charging system that seems weak is often loose cables or a failing charging circuit. The Charging System section covers the alternator and regulator so you can test and repair it.
Manual Section: Charging System p. 32Rough running and low compression
An engine that runs rough or lacks power may have tight valves or low compression from wear. The Servicing Specifications section lists valve clearance and the compression pressure allowable limit to check against.
Manual Section: Servicing Specifications p. 40Frequently Asked Questions
Which engines does this manual cover?
It covers the Kubota Z442-B (E), Z482-B (E), D662-B (E), and D722-B (E) diesel engines. These are the compact powerplants used in Kubota zero-turn mowers and similar equipment.

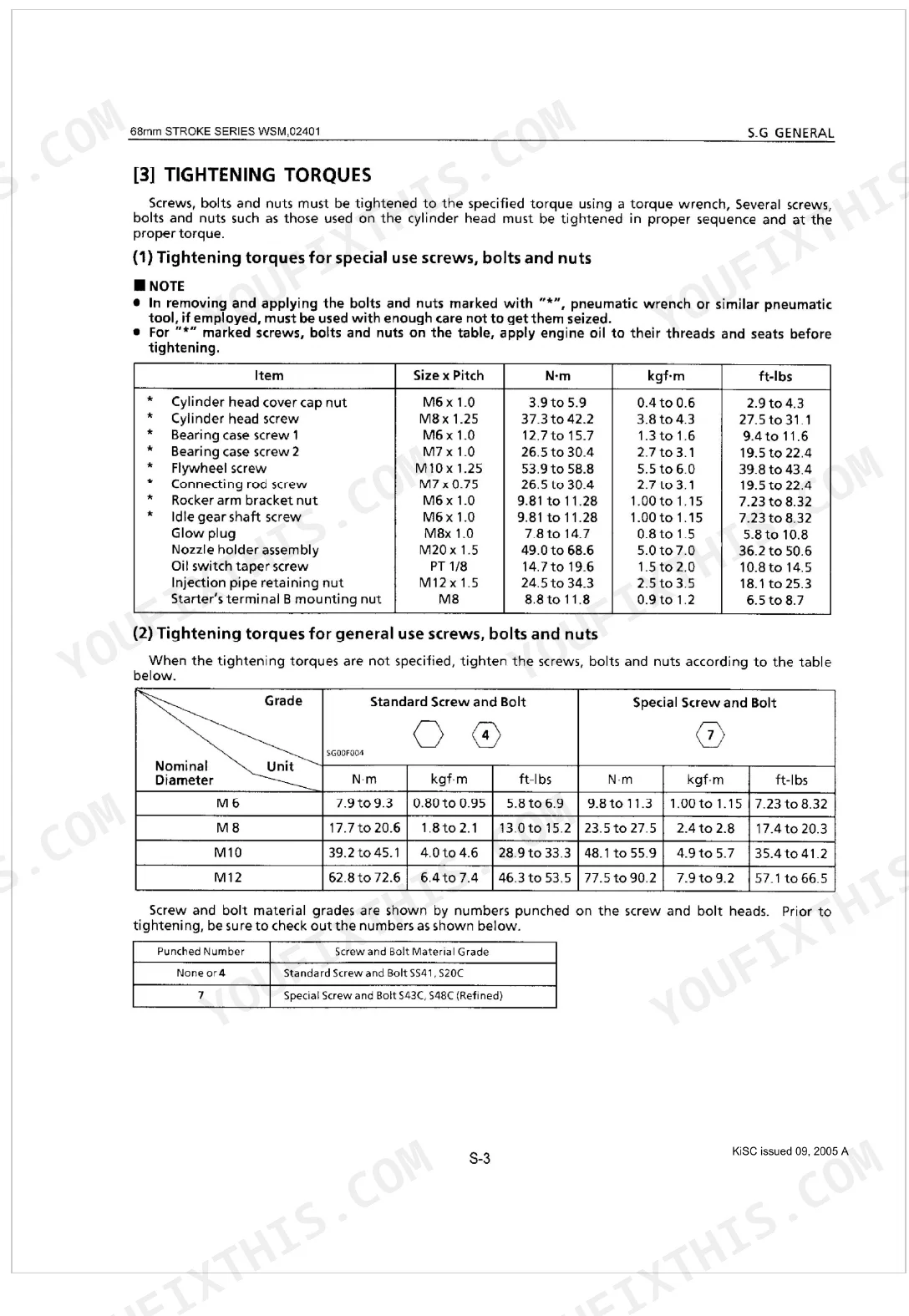

Does it include tightening torque specifications?
Yes. The Tightening Torques section lists factory values, including the cylinder head screw torque of 37.3 to 42.2 N-m and the nozzle holder assembly torque of 49.0 to 68.6 N-m. p. 37

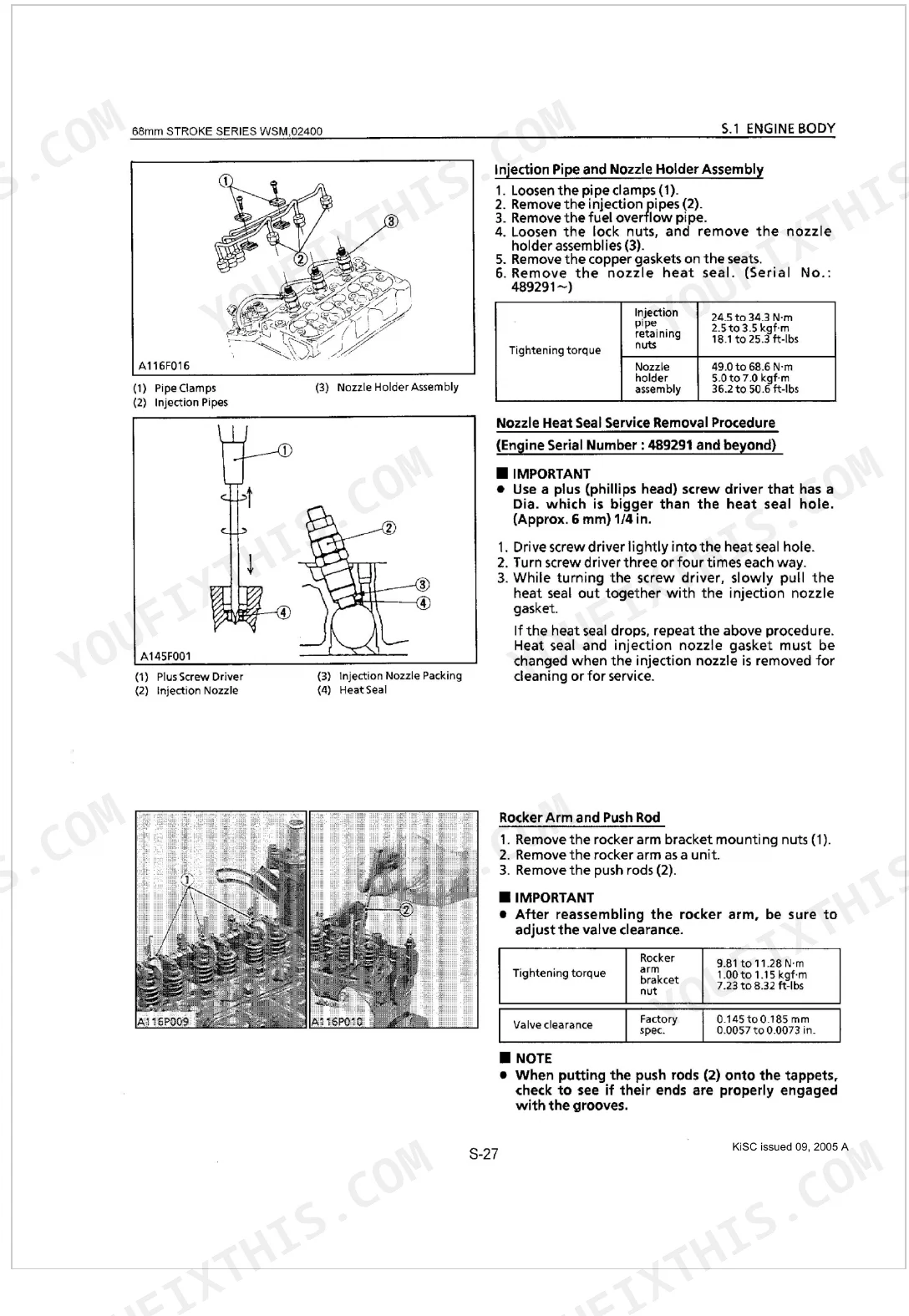

What is the valve clearance for these engines?
The Servicing Specifications section gives a cold valve clearance of 0.145 to 0.185 mm, along with the compression pressure allowable limit of 2.26 MPa for checking engine condition. p. 40
How do I get the manual after buying?
After checkout you download the PDF file directly. There is no waiting for shipping, and you keep the file to reference whenever you service the engine.
How quickly can I access this manual after buying?
It's a 100-page shop manual in searchable PDF format, available immediately after checkout. View it on a computer, tablet, or phone. No shipping wait.
Can I print this manual?
Yes. The PDF has no DRM restrictions. Print any page or section you need for the shop. Works with any standard printer.
Does this Kubota Z442-B, D722-B manual include wiring diagrams?
Wiring diagrams are included, covering the starting and charging system circuits for the Z442-B (E), Z482-B (E), D662-B (E), and D722-B (E) engines.
